USER MANUAL VW549ZT ETNA

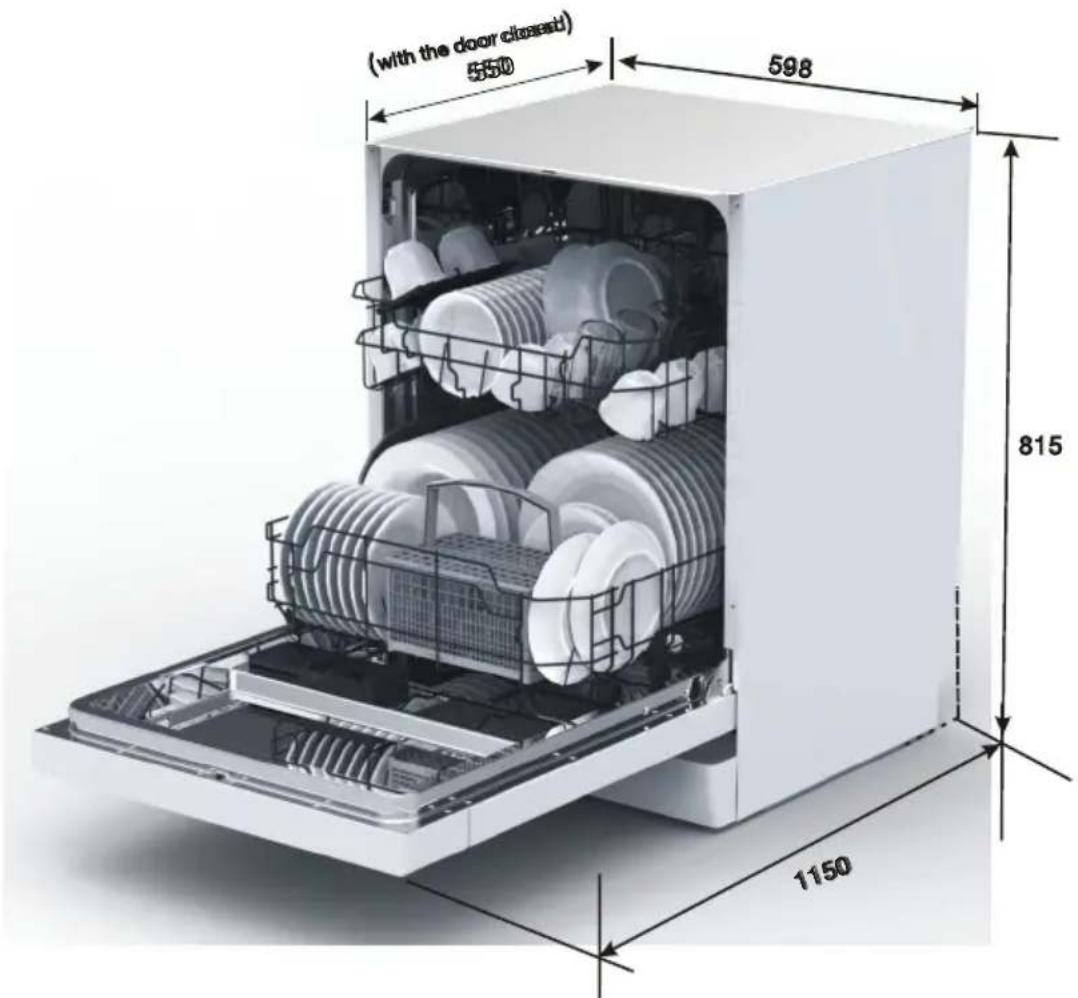

with the door closed

with the door closed

with the door closed

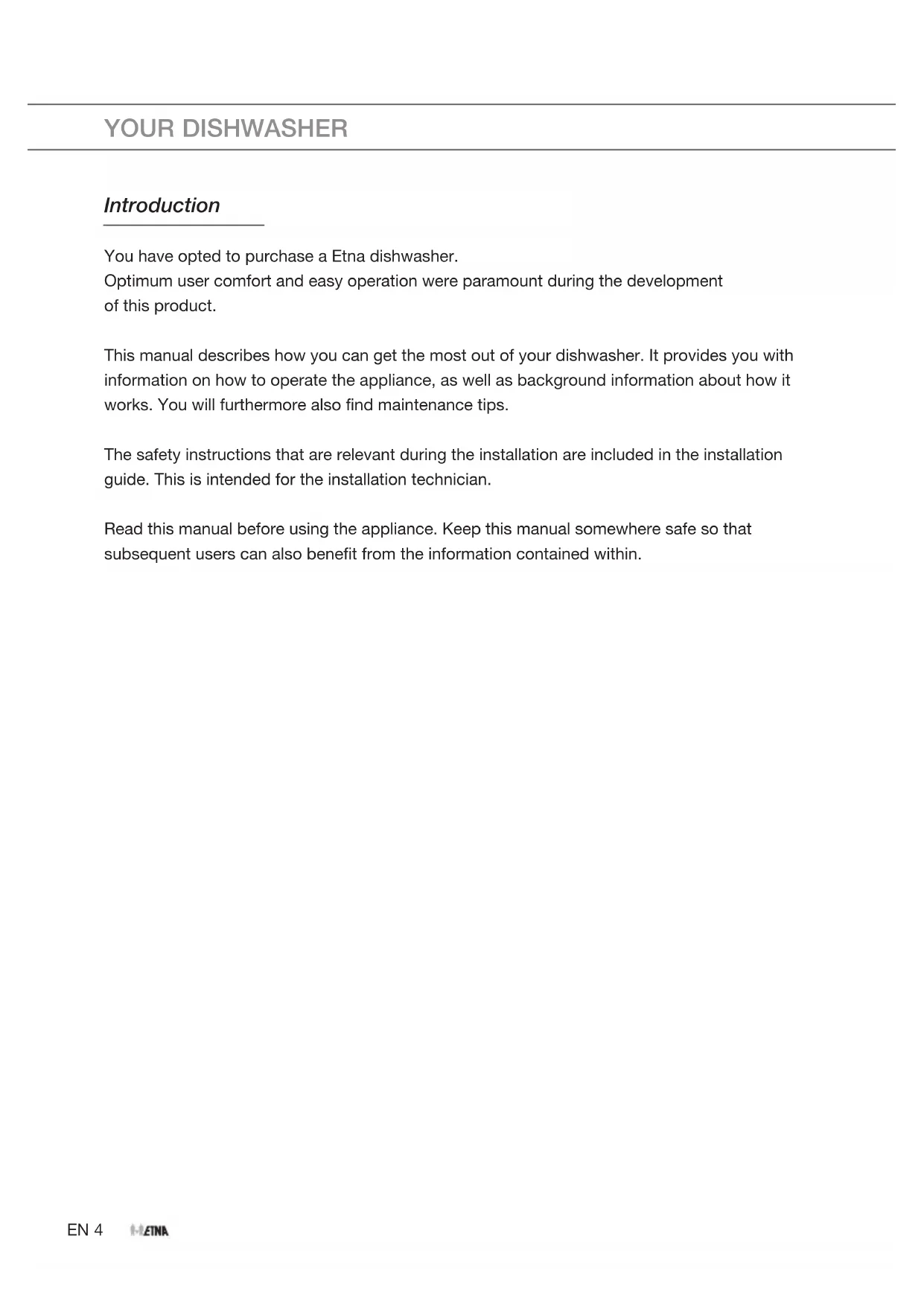

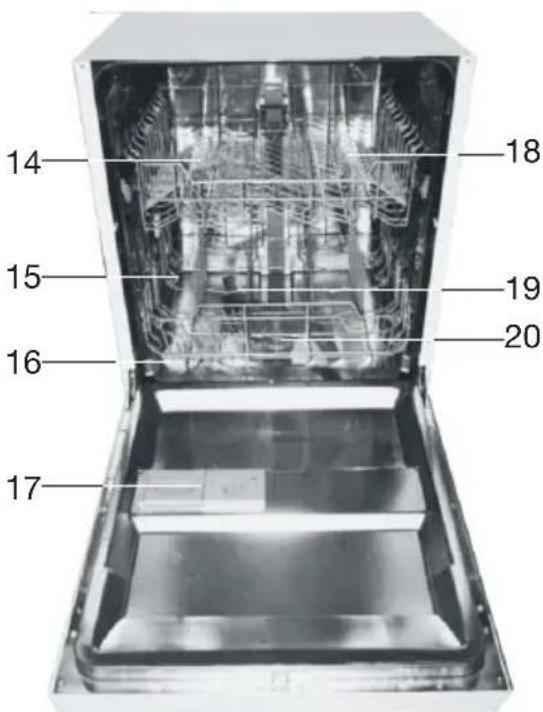

CONTENTS Your dishwasher Introduction 4 Safety Note! 5 Description Control panel 8 Interior 8 First use Setting the water softener 9 Adding salt 10 Operation Switching on 11 Cycle selection table 12 use Rinse aid 13 Dishwasher detergents 14 Loading the baskets 16 Damage to glassware and other crockery 18 Maintenance Filter system 19 Cleaning the spray arms 19 Cleaning the filters 19 Cleaning the door 20 Errors What should I do, if... 21 Error table 21 Error codes 23 Technical data sheet Built-in dimensions 24 Technical data sheet 24 Your dishwasher and the environment Disposal 26EN 4 Introduction You have opted to purchase a Etna dishwasher. Optimum user comfort and easy operation were paramount during the development of this product. This manual describes how you can get the most out of your dishwasher. It provides you with information on how to operate the appliance, as well as background information about how it works. You will furthermore also find maintenance tips. The safety instructions that are relevant during the installation are included in the installation guide. This is intended for the installation technician. Read this manual before using the appliance. Keep this manual somewhere safe so that subsequent users can also benefit from the information contained within. YOUR DISHWASHEREN 5 SAFETY Note! Contact a registered installer to fit your appliance (see “Installation instructions”). Do not connect the appliance to the electrical mains until the installation is complete.

• Connect up the appliance according to local installation regulations.

• This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. Do not allow children to play with the appliance. Do not allow children to clean or maintain the appliance unless supervised.

• This appliance is intended to be used in household and similar applications such as: ▷ staff kitchen areas in shops, offices and other working environments; ▷ by clients in hotels, motels and other residential type environments; ▷ farm houses; ▷ bedand breakfast type environments

• In order to prevent hazardous situations, a damaged connection cable may only be replaced by the manufacturer, the manufacturer’s service department, or by similarly qualified persons.

• This appliance must be earthed! Earthing reduces the risk of an electric shock in the event of errors and faults. This appliance is fitted with an earthed power lead and plug. Only insert the plug into an earthed wall socket that has been fitted in compliance with the local electrical code!

• Incorrect connection of the power lead can result in a life-threatening situation. In case of doubt, contact a qualified electrician or service technician. Do not make any changes to the plug.EN 6

• If the plug does not fit into the wall socket, contact a qualified electrician to change it.

• Improper use of the door and basket of the dishwasher is not recommended. Do not sit or stand on the door or basket.

• Do not clean unsuitable plastic dishes in the appliance, unless they bear a mark indicating that they are dishwasher-safe. Where dishes do not bear any such marking, always follow the manufacturer’s instructions.

• Only use detergent, rinse agent and salt that is intended for use in a dishwasher. Under no circumstances should professional or catering detergents be used. Under no circumstances should normal washing-up liquid or fabric detergents be used.

• Keep detergents out of the reach of children. Note!

• Keep detergents and rinse agents out of the reach of children. Keep children out of reach of the dishwasher when open. There may still be some cleaning agent present in the appliance. If swallowed, consult a doctor immediately and take the packaging with you.

• Keep the door closed. You can trip over an open door.

• Do not bend the intake and drainage hoses or connection lead excessively during installation. Take care to ensure they do not become trapped.

• The appliance is not intended for use by young children.

• Dishwasher detergents are highly alkaline and are particularly harmful if swallowed. If swallowed, consult a doctor immediately and take the packaging with you.

• Avoid contact with the skin and eyes. Keep children away from the dishwasher when the door is open.

• Make sure that all loose components in the dishwasher have been fitted correctly. Do not open the door during the cycle. SAFETYEN 7

• Do not place heavy objects on the opened door. Do not stand on the door. The appliance may tip over, which can result in damage to the appliance.

• When loading the baskets, place sharp objects so that they cannot damage the rubber seal on the door.

• Packaging materials should be disposed of in a responsible manner and in accordance with government regulations.

• The dishwasher must only be used for its intended purpose. The appliance should only be used in a frost-free room!

• Remove the door or deactivate the lock when disposing of the appliance.

• Do not allow children to play with the appliance.

• Check whether the detergent reservoir is empty following the end of the wash cycle.

• Fill the salt and rinse agent reservoirs prior to first use and when the indicators light up. Set the salt consumption before use.

• Disconnect the appliance from the power supply when cleaning or performing repairs. Remove the plug from the socket or turn off the switch in the fuse box. SAFETYEN 8 DESCRIPTION Control panel

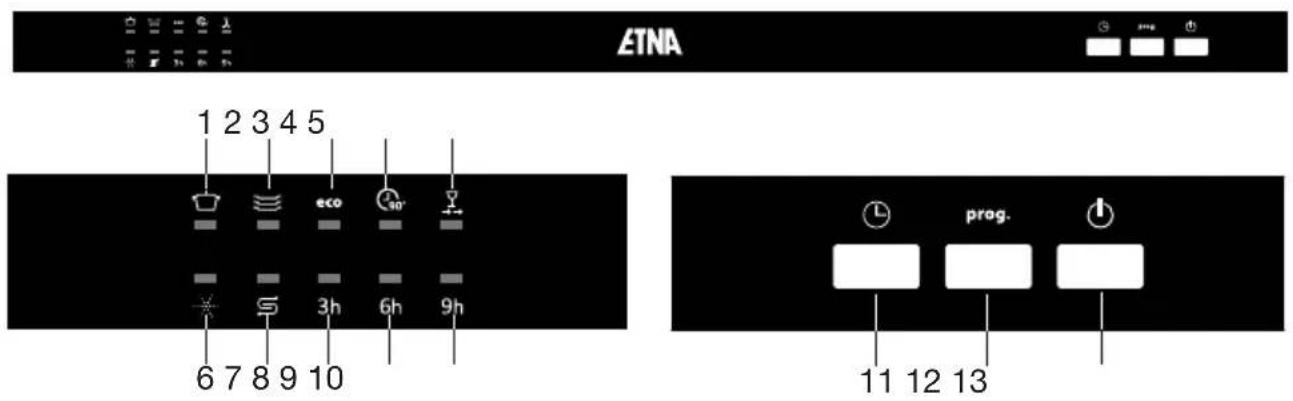

1. Intensive cycle indicator

2. Normal cycle indicator

3. Energy-saving cycle indicator

7. Water softener indicator

8. Delayed start indicator (3 hours)

9. Delayed start indicator (6 hours)

10. Delayed start indicator (9 hours)

17EN 9 FIRST USE Before using the dishwasher for the first time:

• Set the water hardness.

• Add 1 litre of water to the salt reservoir and then add 1.5 kg of dishwasher salt.

• Add detergent. Setting the water softener

1. Open the door to switch on the appliance.

2. Press the Program button for more than 5 seconds to start the water softener set model

within 60 seconds after the appliance was switched on (the water softener and Rinse agent warning lights will be on periodically when it get in the set model ).

3. Press the Program button to select the proper set according to your local environment, the

sets will change in the following sequence: H1->H2->H3->H4->H5->H6;

4. Press the Power button to end the set up model.

Water softener table Adjust the salt consumption according to the table below: Water hardness ºClarke ºdH mmol/l setting Cycle indicator light up Salt consumption (grams/cycle)

The manufactory setting: H4 (EN 50242) Your local water authority can inform you how hard your mains water is.EN 10 FIRST USE Adding salt This machine is equipped with a water softener. To use the water softener, fill the dishwasher with salt.

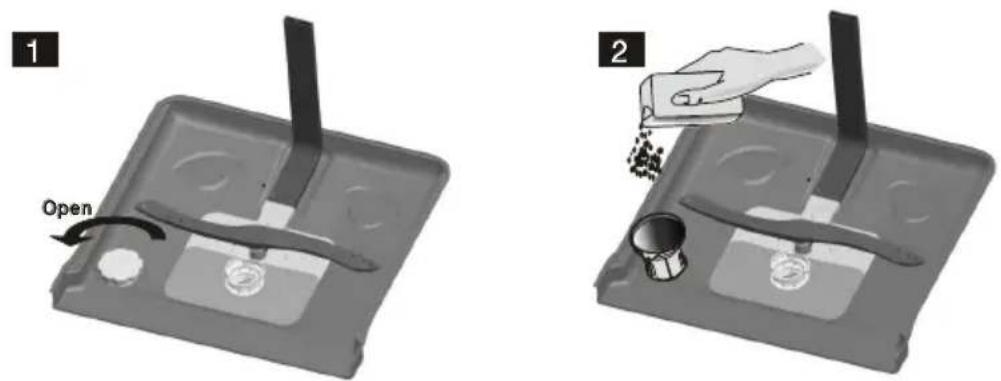

1. Remove the bottom basket and then unscrew the cap from the reservoir.

2. Before filling the reservoir for the first time, pour in one litre of water.

3. Insert the funnel into the reservoir opening. Pour in approximately 1 kg of salt. It is normal

for a little water to flow out of the opening when doing this. Note! Clear up any spilled salt and always run a full cycle immediately afterwards to prevent damage to the bottom.

4. Screw the cap back on firmly.

Note! Always fill the salt reservoir and adjust the water hardness setting before using the dishwasher. Refill the salt reservoir when the water softener indicator lights up. It is possible that the light will remain lit for a short while after the salt reservoir is filled. It will go out automatically when enough salt has been dissolved in the water.EN 11 OPERATION Switching on

1. Open the door to the dishwasher.

2. Add detergent and rinse agent (consult 'Dishwasher detergents' and 'Rinse aid’). Check the

amount of salt in the salt reservoir (consult ‘Adding Salt’).

3. Press the “on/off” button to switch on the appliance.

A cycle indicator will light up when the appliance is switched on.

4. Select the desired cycle (see cycle selection table”).

Press the programming button repeatedly to select the required cycle. The cycle indicator corresponding to the selected cycle will light up.

5. Close the door. The dishwasher will automatically start running the selected cycle.

• If you want the dishwasher to switch on at a later time, you can used the “delayed start” button. Select a delayed start time of 3, 6 or 9 hours by pressing the button several times. The delayed start indicators show the delayed start time that has been selected. Stopping or changing a wash cycle

• Open the door. Press and hold the programming button for more than 3 seconds. You can now re-select the desired cycle (see “cycle selection table”). Now close the door. Note! A cycle that has already begun can only be changed in the start-up phase. After this, the detergent will be sprayed all over the dishes or the machine may have already pumped out the water. In that instance, you must refill the detergent compartment (see section on Detergent compartment). Following the end of the wash cycle

• Once the wash cycle has completed, an audible signal will sound for eight seconds. Switch the appliance off using the on/off button. Open the door to the dishwasher. Wait a few minutes before unloading the dishwasher. The dishes and cutlery will still be very hot immediately following the end of the cycle. There is a chance that dishes may break as a result of the heat. Moreover, the dishes dry better when allowed to stand for a few minutes. Flood protection switch

• Your dishwasher is fitted with a safety switch that prevents too much water from running into the appliance. The safety switch closes the inlet valve and instructs the dishwasher to pump out the surplus water. If there is water in machine (due to too much water being fed in previously, or as a result of a leak), this must first be removed before the appliance is switched on again.EN 12 Warning! Opening the door fully during the wash cycle is dangerous. You may be splashed with hot water from the machine. Cycle selection table Program Cycle selection information Description of cycle Detergent pre/main Time (min.) Energy (KWh) Water (L) Intensive Heavily soiled dishes, such as dishes pans, casseroles, plates plates with dried-on leftover food. Prewash (50 °C) Main wash (60 °C) Rinse Rinse Rinse (65 °C) Dry 5/25 gr. 160 1.5 18,5 Normal Normally soiled dishes, such as dishes, plates, glasses, lightly soiled pans. Prewash (45 °C) Main wash (55 °C) Spoelen Spoelen (65 °C) Dry 5/25 gr. 180 1.25 15 Energy- saving (*EN 50242 ECO) Lightly soiled dishes, such as plates, glasses, bowls and lightly soiled pans. Prewash Main wash (45 °C) Rinse (65 °C) Dry 5/25 gr. 185 1.02 11 90 minutes Daily dishes in 90 minutes. For day- to-day dishes, such as lightly soiled or normal plates and pans. Main wash (65 °C) Rinse Rinse (65 °C) Dry 30 gr. 90 1.35 12.5 Quick Lightly soiled dishes, such as glasses, crystal and fragile porcelain. No drying. Main wash (45 °C) Rinse Rinse (55 °C) 20 gr. 40 0.75 11.5 *EN 50242: This is a test cycle. The information for a comparison test in accordance with EN 50242 is as follows:

• Capacity: 12 place settings

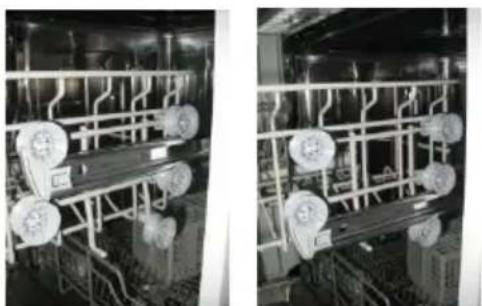

• Position of upper basket: wheels on runners

• Pl: 0,49w; Po: 0,45w OPERATIONEN 13 USE Rinse aid Rinse agent is added during the final rinse. Rinse agent prevents traces of water droplets being left behind on the clean dishes. Moreover, it ensures that the dishes dry quicker, since the water drains off more easily. The dishwasher is designed for use with liquid rinse agent. The rinse agent reservoir is located on the inside of the door, alongside the detergent compartment. Note: refill the rinse agent reservoir when the rinse aid indicator lights up. The reservoir has a capacity of approximately 100 ml. Do not overfill the rinse agent reservoir. This will cause the rinse agent reservoir to overflow. Rinse agent spillages must be cleaned up, otherwise they may lead to leakages as a result of extreme foaming.

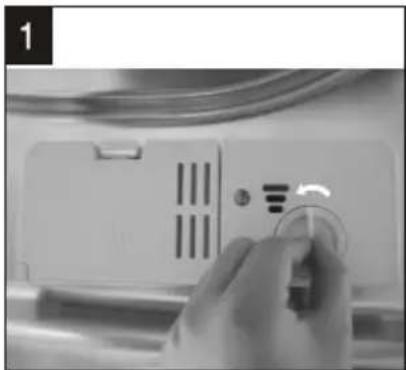

1. Unscrew the cap from the rinse agent reservoir (to the left, toward the arrow with “open”).

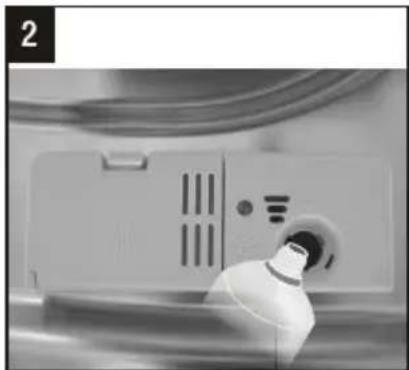

2. Pour the rinse agent into the reservoir, taking care not to overfill it. The reservoir has a

capacity of approximately 100 ml.

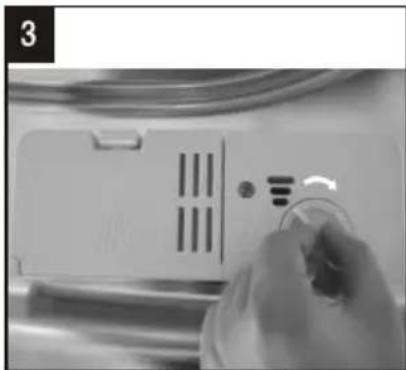

3. Replace the cap. Make sure that the cap is lined up with the “open” arrow and turn in the

direction of the “closed” arrow.

Setting the quantity of rinse agent A fixed amount of rinse agent is added during the final rinse. As is the case with detergent, the amount of rinse agent needed is dependent on the hardness of the water in your area. Too much rinse agent can lead to streaks on the dishes.EN 14 The rinse agent reservoir has 6 settings. To begin with, set the reservoir to setting 2. If this still causes spotting on the dishes and the dishes do not dry well, you can increase the amount of rinse agent added by turning the selector knob on the reservoir to setting 3. If there is still no improvement, turn the selector knob to a higher setting. Repeat this action until the dishes are streak-free when they emerge from the dishwasher. Dishwasher detergents The chemical agents in dishwasher detergents remove the dirt, break it down and ensure that it is drained out of the dishwasher. The dishwasher detergents you can buy in most shops are suitable for this purpose. Warning! Dishwasher detergent is a corrosive product. It should therefore be kept out of the reach of children. If swallowed, consult a doctor immediately and take the packaging with you. Concentrated detergent Based on their chemical composition, 2 different types of concentrated detergent can be distinguished:

• Conventional alkaline detergents with corrosive ingredients.

• Low-alkaline concentrated detergents with natural enzymes. Using concentrated detergent in combination with “normal” wash cycles produces less pollution and is good for your dishes: these wash cycles are specially tailored to the dirt-dissolving properties of the enzymes contained in concentrated detergent. This means that “normal” wash cycles with concentrated detergent achieve the same results as an intensive wash cycle. Dishwasher tablets Dishwasher tablets from different manufacturers dissolve at different rates. This means that, during short wash cycles, certain types of dishwasher tablet do not fully dissolve, as a result of which their cleaning action is reduced. Dishwasher tablets should therefore chiefly be used in combination with long wash cycles, so that the dish washer tablet has time to fully dissolve. Detergent compartment Fill the detergent compartment prior to starting a wash cycle. Your dishwasher uses less detergent and rinse agent than conventional dishwashers. Generally speaking, just one measuring spoon of detergent powder is needed for a normal wash cycle. USEEN 15 Use more detergent if your dishes are more heavily soiled. Fill the soap compartment immediately prior to starting the cycle. Filling it prior to this may result in the detergent becoming damp and therefore not fully dissolving. The 'Cycle selection table' shows the amount of detergent required for the different cycles. These are averages. A different dosage may be necessary, depending on the hardness of the water and how soiled the dishes are. Filling

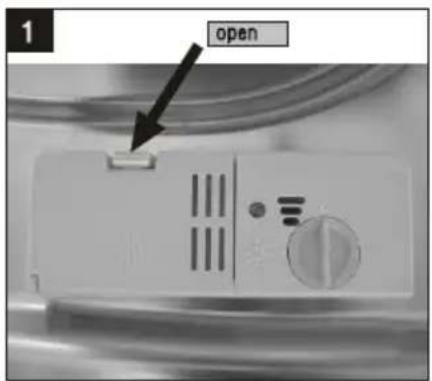

1. Press the release catch if the lid is closed. The lid will spring open.

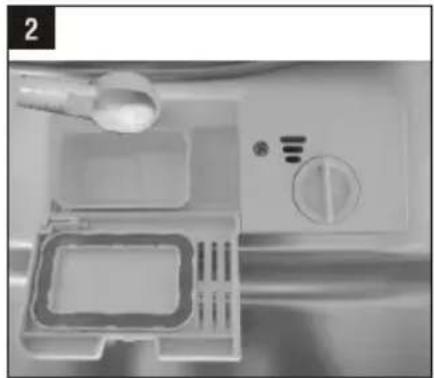

2. Fill the detergent compartment immediately prior to starting a wash cycle.

Use only branded detergent in the dishwasher. The markings in the detergent compartment indicate the dosage.

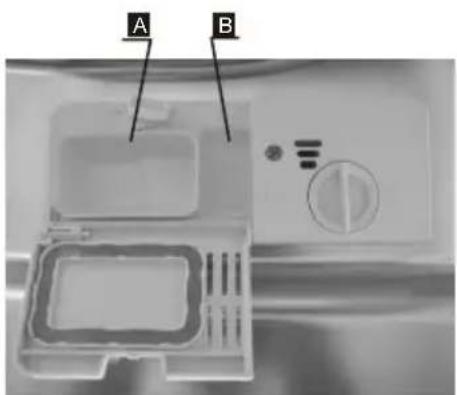

• Compartment for main wash cycle detergent (A), “MIN” is approximately equal to 20 grams of detergent.

• Compartment for prewash detergent (B), holds approximately 5 grams of prewash detergent.

Use only detergents that are specifically designed for dishwashers. Store the detergent in a cool and dry place. Only fill the detergent compartment with detergent when you are running a wash cycle immediately afterwards. USEEN 16 Loading the baskets Upper basket Lower basket

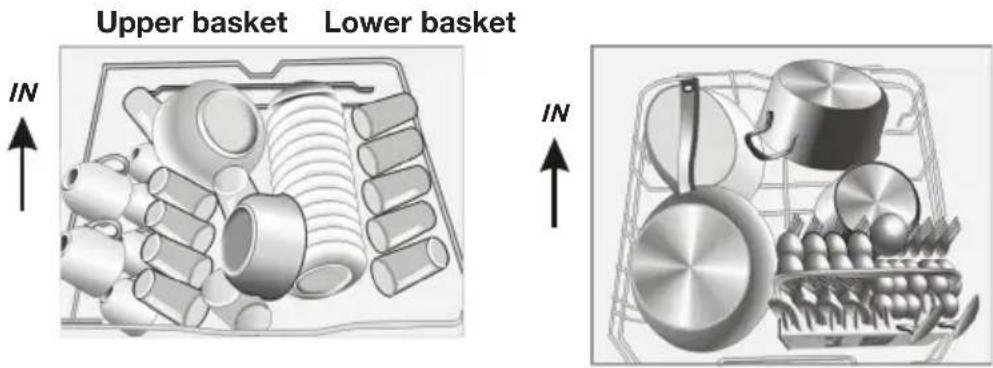

• The upper basket is designed for fragile, light dishes, such as glasses, cups and saucers, plates, small bowls and shallow (not particularly dirty) pans.

• Place the dishes in the basket in such a way as to ensure they cannot move when sprayed. The height of the upper basket can be adjusted by removing the basket and replacing it in a different position in the runners. Lower position Upper position Using the lower basket We recommend that you place large objects that are the most difficult to clean in the lower basket: pots, pans, pan lids, casserole dishes and basins. Casserole dishes and pan lids should preferably be placed at the side of the basket. This will ensure that they do not obstruct the spray arm when it is turning.

• Saucepans, serving dishes etc. must always be placed upside down in the basket.

• Deep bowls should be tilted, with the opening facing downwards to allow water to escape.

• The lower basket can be adjusted to allow for larger, or more, pots and pans. You can fold down the plate racks to make it easier to fit pots and pans in the dishwasher. USEEN 17 Cutlery basket Cutlery should be placed in the cutlery basket with the handles pointing down. If the cutlery basket is equipped with compartments, the cutlery must be placed in the compartments piece by piece. Long cooking utensils, such as wooden spoons, should be placed lying down (horizontal) in the front of the upper basket. Warning! Take care to ensure that no objects are sticking through the bottom of the cutlery basket, as this will obstruct the spray arm. Cutlery/crockery unsuitable for the dishwasher

• Cutlery with a wooden, porcelain or mother of pearl handle

• Plastic objects that are not heat-resistant

• Cutlery with glued elements that are not heat-resistant

• Glued cutlery or crockery

• Pewter or copper objects

• Lead crystal glassware

• Steel objects that are prone to rust

• Objects manufactured from synthetic fibres Cutlery/crockery with limited suitability for use in the dishwasher

• Certain types of glass can become dull after undergoing a large number of wash cycles

• Silver and aluminium may tarnish after use in the dishwasher

• Glazed patters may fade as a result of regular washing Note! Do not place any objects soiled with cigarette ash, candle wax, varnish or paint in the dishwasher. When buying new kitchen utensils, ensure that they are suitable for the dishwasher. Do not overload the dishwasher. There is only room for 12 standard settings. Do not place cooking utensils that are unsuitable for dishwashers inside. This is essential to ensure good washing results and a low energy consumption. USEEN 18 USE Placing cutlery and crockery in the dishwasher Before placing the dishes in the dishwasher, you must:

• Remove any large bits of leftover food.

• Leave caked and burnt on leftover food to soak for a while. When inserting the dishes, take care to ensure that:

• The spray arm is not obstructed by the dishes.

• Hollow objects are placed with the opening facing downwards, to ensure that that cannot hold the water. Plates and cutlery must not cover each other

• Glassware items must not touch, otherwise damage can occur.

• Place large objects that are difficult to clean in the lower basket.

• The upper basket is specially designed for lighter objects, such as glasses and coffee and tea cups. Warning!

• Long knives standing upright in the cutlery basket can cause injury!

• Long and/or sharp items of cutlery, such as carving knives, should be laid (placed horizontally) in the upper basket. Damage to glassware and other crockery Potential causes:

• Type of glass or manufacturing process. Chemical composition of the dishwasher detergent.

• Water temperature and duration of the wash cycle. Proposed solution:

• Use glassware and porcelain crockery produced by manufacturers that state that it is suitable for dishwashers.

• Use a milder/less corrosive dishwasher detergent. If needed, ask detergent manufacturers for more information.

• Select a wash cycle with a lower temperature.

• Remove glassware and cutlery from the dishwasher as soon as possible after the cycle has finished, to prevent damage.EN 19 Filter system Depending on usage, the filters may require regular rinsing under a tap. The filter system consists of three components: the large filter, the coarse filter and the fine filter.

1. Large filter: Leftover food and waste that lands on this filter is

rinsed through to the coarse filter by a special jet on the lower spray arm.

2. Coarse filter: Larger articles, such as leftover bones or pieces of

glass that could block the drain, are trapped in the coarse filter. In order to remove the waste from the filter, you must lightly squeeze the lips on top of the filter together and then pull the filter upwards.

3. Fine filter: This filter prevents waste and leftover food from entering

the drainage pump and ensures that said leftovers are not spread over the dishes again during the cycle. Cleaning the spray arms It is essential that you clean the spray arms on a regular basis. In the longer term, waste can block the nozzles and the bearings in the spray arms. Clean the spray arms as follows:

• To remove the upper sprayarm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward.

• Clean the spray arms in warm, soapy water, using a soft brush to clean the nozzles.

• Rinse the spray arms thoroughly before fixing back in place. Cleaning the filters Filter section In order to ensure the dishwasher operates at maximum efficiency, the whole filter section must be cleaned. The filter section efficiently removes food remnants from the water and ensures that the water is able to continue circulating throughout the wash cycle. It is therefore a good idea to remove larger food remnants from the filter section after each wash cycle, by cleaning the half- round filter and filter housing under running water. MAINTENANCEEN 20

• Remove the filter section by turning in anti-clockwise direction and pulling upwards. All components in the filter section must be cleaned at least once per month. All components in the filter section must be cleaned at least once per month.

• Use a dishwashing brush to clean the coarse and fine filter. Put the filter section back together again according to the illustration opposite and then re-fit the whole filter section back into the tub of the dishwasher. Never use the dishwasher without the filter section. Incorrect fitting of the filter section will result in the dishwasher no longer delivering maximum performance. Damage to cutlery and dishes is a further possible consequence. Cleaning the door Clean the edge of the door, including the sealing rubber, with a soft, damp cloth. Take care to ensure that water does not enter the door locking mechanism or electrical components. Spray- type cleaning products should not be used, nor aggressive cleaning products such as scourers. These cleaning products can damage the finish. MAINTENANCE

OpenOpen 2EN 21 ERRORS What should I do, if... If the appliance is not functioning well, this does not always mean that it is faulty. Try to resolve the fault yourself first. If the recommendations below does not solve your problem, telephone our service department. Note! Disconnect the appliance from the power supply before beginning repairs. It is preferable if you remove the plug from the socket. Error table Problem The dishwasher is not working. The drainage pump does not shut off. Noise. Contamination of the tub. Potential causes Fuse is faulty or the earthing switch has been activated. The power supply is not switched on The water pressure is too low. The water is running over. Some noises are normal. Cutlery is rattling in cutlery basket or something small has fallen out of the basket. The motor makes an unusual noise. Poor quality detergent. Blocked filters Rinse agent has been spilled. Solution Replace the fuse or reset the isolating switch. Remove other appliances that are connected to the same group. Make sure that the dishwasher is switched on and the door closed. Make sure that the plug is correctly inserted into the socket. Check whether the dishwasher is correctly connected to the water mains and that the tap is open. The system is designed so that it can automatically detect overflowing water. In that instance, the appliance shuts off the circulation pump and switches on the drainage pump. Noise of rotating pump/washing noises; the detergent compartment opening. Ensure that everything is loaded securely in the dishwasher. The pump is blocked. Contact an installer. Only use detergent suitable for dishwashers to prevent contamination. Open the door and clean the filters. Run the pre- wash cycle. Always wipe up spilled rinse agent immediately.EN 22 ERRORS Problem Dishes not dry. Dishes and flat objects are not clean. Spotting and scaling on glasses and flat dishes. Cloudy stains on the glassware. Yellow or brown scale on the inside of the tub. White scale on the inside of the tub. Dishwasher detergent is left in the detergent compartment. Steam. Black or grey stains on the dishes. Water remains under the filters. The dishwasher is leaking. Potential causes The rinse agent reservoir is empty. Incorrect cycle. Baskets are incorrectly loaded. Extremely hard water. Incoming water temperature is low. The dishwasher is overloaded. Baskets are incorrectly loaded. Old or damp detergent. Rinse agent reservoir is empty. Incorrect detergent dosage. Combination of soft water and too much detergent. Traces of iron in the water may cause spotting to the tub of the dishwasher. Hard water. The detergent compartment is blocked by dishes. When opening the door. Aluminium cooking utensils have scraped the dishes. This is normal. Rinse agent reservoir too full or rinse agent is leaking. The dishwasher is not standing level. Solution Ensure that the rinse agent reservoir is filled. Select a higher cycle. Make sure that the detergent compartment and spray arms are not obstructed by large dishes/pans. To remove spotting from glass objects: Remove all metal objects from the dishwasher. Use the prescribed quantity of detergent. Select the longest cycle. Allow the dishwasher to run for approximately 18 to 22 minutes. It should by then have reached the main wash cycle. Open the door carefully and pour 2 cups of white vinegar into the base. Close the door and allow the dishwasher to complete its cycle. If vinegar does not work: Repeat the above steps, but use a quarter cup (60 ml) of citric acid crystals in place of white vinegar. Use less detergent and choose the glass cycle, which you can use to clean glassware. Contact a manufacturer of water softeners for a special filter. Increase salt consumption setting Load the baskets so that the dishes no longer block the detergent compartment. Clean the upper spray arm. This is possible at the end of the cycle. Aluminium can tarnish. A small amount of water around the drain on the rear of the tub base keeps the seal flexible. Take care not to overfill the rinse agent reservoir. Spilled rinse agent can lead to foam/ flooding. Wipe up spilled rinse agent with a damp cloth. Adjust the dishwasher so that it is standing level.EN 23 ERRORS Problem Quick cycle indicator flicker fleetly ECO cycle indicator flicker fleetly Potential causes Water intake time is too long. Overflow. Solution Faucets is not opened, or water intake is restricted,or water pressure is too low. Some element of dishwasher leaks. Note the code and alert the service department. Error codes Should the appliance become overfilled or exhibit excessive leaking, shut off the inlet tap and alert the service department. If all indicators are flashing simultaneously: switch off the dishwasher immediately, shut off the inlet tap and alert the service department.EN 24

with the door closed

Technical data sheet Sheet of household dishwasher according to EU Directive 1059/2010: Manufacturer Etna Type / Description VW549ZT Standard place settings 12 Energy efficiency energy efficiency class (1) A+ Annual energy consumption (2) 290 KWh Cleaning efficiency class A Drying efficiency class (4) A Energy consumption of the standard cleaning cycle 1.02 KWh Standard cleaning cycle ECO 45 ºC Program duration of the standard cleaning cycle (5) 185 MIN. Power consumption of off-mode 0.45 W Power consumption of standby-mode 0.49 WEN 25 Annual water consumption (3) 3080 L Noise level 49 dB(A) re 1pW Mounting Build-in Height 81.5 cm Width 59.8 cm Depth (with connectors) 55 cm Power consumption 1760-2100 W Rated voltage / frequency 220-240 V~ 50 Hz Rated current 10 A Water pressure (flow pressure) 0.4-10 bar = 0.04-1 Mpa

1. A + + + (highest efficiency) to D (lowest efficiency)

2. on the basis of 280 standard cleaning cycles. Actual annual energy consumption depends

on the actual frequency of usage.

3. on the basis of 280 standard cleaning cycles. Actual annual water consumption depends

on the actual frequency of usage.

4. A (highest efficiency) to G (lowest efficiency)

5. This program is suitable for cleaning soiled normally soiled tableware and that it is the most

efficient programme in terms of its combined energy and water consumption for that type of tableware. The device meets the European standards and the directives in the current version at delivery: - LVD 2004/95/EC - EMC 204/108/EC - EUP 2009/125/EC Note: The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and the dishes, water hardness, amount of detergent, etc. The manual is based on the European Union’s standards and rules.

TECHNICAL DATA SHEETEN 26

Disposal Disposing of the packaging and appliance Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance should be disposed of in a responsible manner. The government can provide you with information in this regard. The packaging for the appliance is recyclable. The following may be used:

• CFC-free polystyrene (PS hard foam). The materials should be disposed of in a responsible manner and in accordance with government regulations. The product bears the symbol of a crossed out waste bin to draw attention to the obligation regarding separate processing of electrical household appliances. This means that the appliance cannot be added to your normal household waste at the end of its lifecycle. The appliance must be taken to a special municipal waste collection centre, or to a sales outlet that offers this service. Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inadequate processing. It ensures that the materials which the appliance is composed of can be reclaimed, allowing for considerable savings to be made in terms of energy and materials. Note! The packaging material may be hazardous for children. Declaration of conformity We hereby declare that our products satisfy the applicable European directives, orders and regulations YOUR DISHWASHER AND THE ENVIRONMENTEN 27545998 / VER 1 / 23-10-2015
