Product Type	Dishwasher
Brand	Etna
Model	VW549M

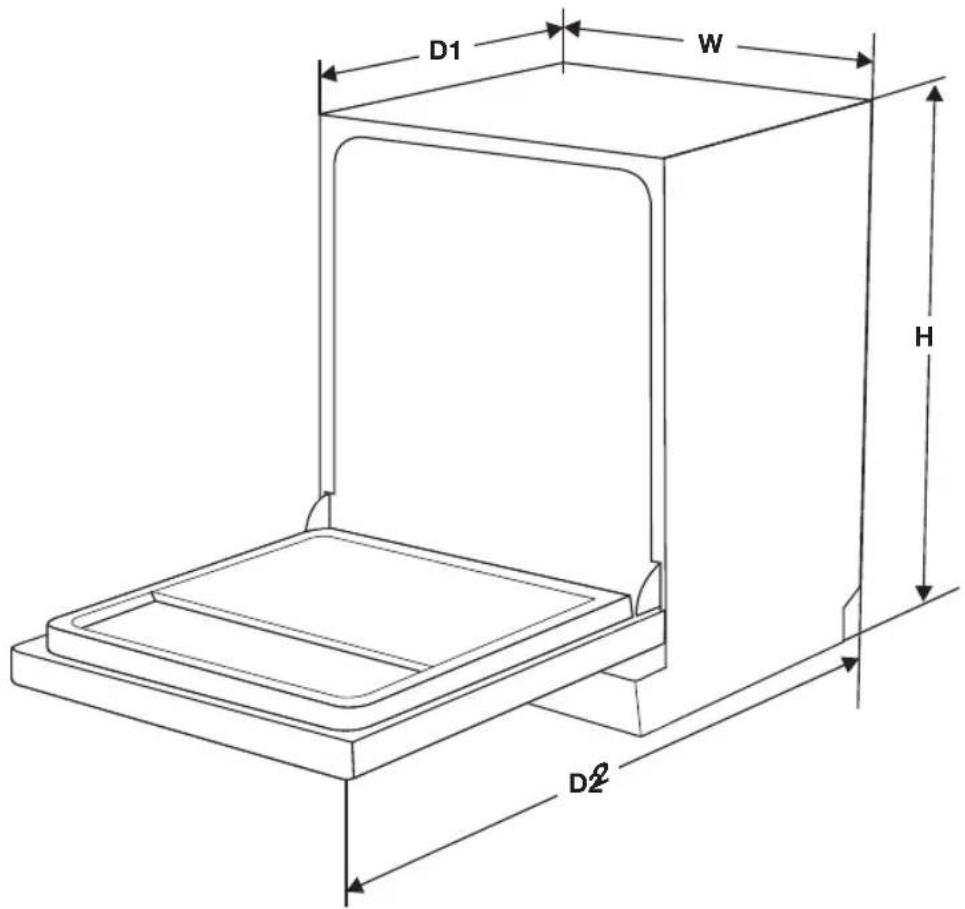

Height	815 mm
Width	598 mm
Depth (door closed)	550 mm
Depth (door opened 90°)	1150 mm
Capacity	12 place settings (estimated)
Energy Consumption (ECO)	0.908 kWh
Water Consumption (ECO)	11.0 L
Number of Programs	5
Programs	Intensive, Universal, ECO, 90 Min, Rapid
Water Softener	Yes, adjustable salt consumption
Salt Consumption Settings	H1 to H6 based on water hardness
Rinse Aid Dispenser	Yes, adjustable (6 settings)
Delayed Start	Yes (3h, 6h, 9h)
Half-Load Function	Yes
Filter System	Three-stage (coarse, main, fine)
Spray Arms	Upper and lower
Control Type	Push buttons with indicators
Display	Program and warning indicators (rinse aid, salt)
Voltage	220-240 V
Frequency	50 Hz
Earthing Required	Yes

Frequently Asked Questions - VW549M ETNA

How do I load dishes for best results?

Scrape off large food remnants. Load hollow items (cups, glasses) upside down. Place larger items in the lower basket, delicate items in the upper basket. Ensure spray arms can rotate freely. Do not overload.

How do I add salt to the water softener?

Remove lower basket, unscrew salt reservoir cap, pour in dishwasher salt (about 1.5 kg) using the funnel. Tighten cap. Run a short program immediately to avoid damage.

How do I adjust the water softener setting?

Switch on the appliance, within 60 seconds press the program button for 5+ seconds. Select setting H1-H6 based on water hardness using the program button, then press On/Off to confirm.

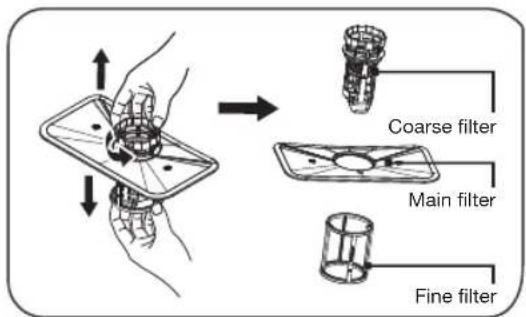

How do I clean the filters?

Rotate the coarse filter counterclockwise and lift out. Separate fine filter from main filter. Rinse under running water, use a soft brush if needed. Reassemble in reverse order.

What do the warning lights mean?

Rinse aid light: low on rinse aid, refill. Salt light: low on dishwasher salt, refill. Other indicator combinations may indicate errors (see manual).

How do I start a wash cycle?

Load dishes, add detergent, plug in, open water supply. Press On/Off, select program, close door. The dishwasher starts automatically.

Can I change the program after starting?

Only if the cycle has just started. Open door, press program button for 3+ seconds to reset, then select new program and close door.

Why are my dishes not drying properly?

Ensure rinse aid reservoir is full. Check setting (adjust to higher number). Use a longer program like ECO. Unload after cooling (about 15 minutes).

What detergent should I use?

Only use detergent specifically for automatic dishwashers. Never use soap, laundry detergent, or hand washing detergent. Follow manufacturer's dosage instructions.

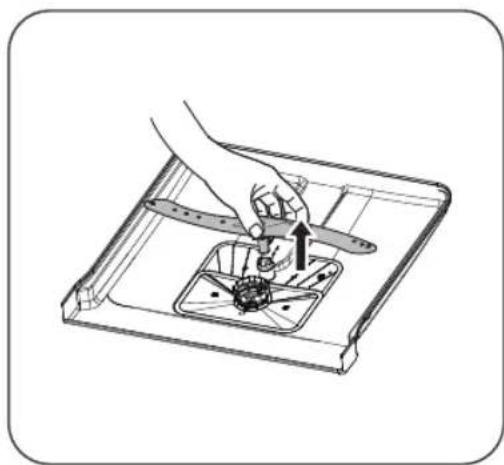

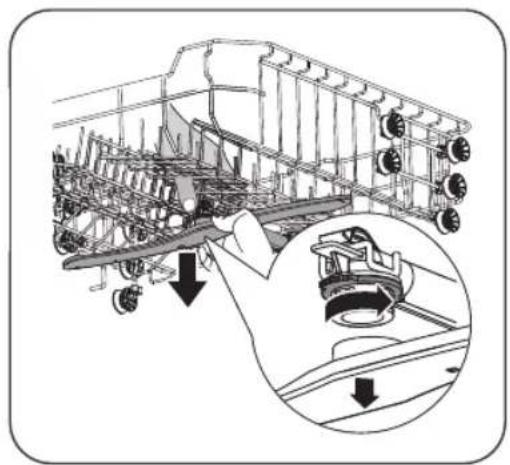

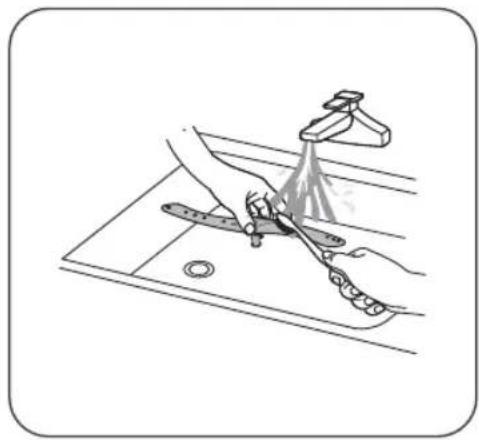

How do I clean the spray arms?

Remove upper spray arm by holding nut and rotating clockwise. Pull lower spray arm upward. Wash in warm soapy water, clean jets with soft brush. Rinse and reattach.

USER MANUAL VW549M ETNA

Contact a registered installer to fit your appliance (see “Installation instructions”). Do not connect the appliance to the electrical mains until the installation is complete.

This appliance is intended to be used in household and similar applications such as:

▶staff kitchen areas in shops, offices and other working environments;
▶farmhouses;
▶by clients in hotels, motels and other residential type environments;
▶bed and breakfast type environments.

For EN60335-1:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

For IEC60335-1:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Packaging material could be dangerous for children!
• This appliance is for indoor household use only.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and performing maintenance on the appliance.
• Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again.

Earthing Instructions

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.
• The plug must be plugged into an appropriate outlet that is installed and earthed in a ccordance with all local codes and ordinances.

• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.

• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Do not modify the plug provided with the appliance, if it does not fit the outlet.
• Have a proper outlet installed by a qualified electrician.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

When loading items to be washed:

▶Locate sharp items so that they are not likely to damage the door seal;
▶Warning: Knives and other utensils with sharp points must be loaded in the basket with their points facing down or placed in a horizontal position.

- Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.

• Check that the detergent powder is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
• For unmarked plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused.
• To save energy, the appliance will go to standby mode automatically when there is no operation during some time.

CONTENTS

Your dishwasher

Introduction 4

Using your dishwasher

Description 5

Quick start 5

Control panel 6

Water softener 7

Adding salt 8

Preparing and loading dishes 9

Function of the rinse aid and dishwasher detergent 13

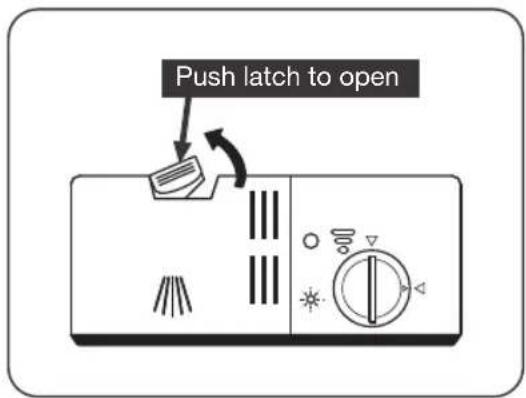

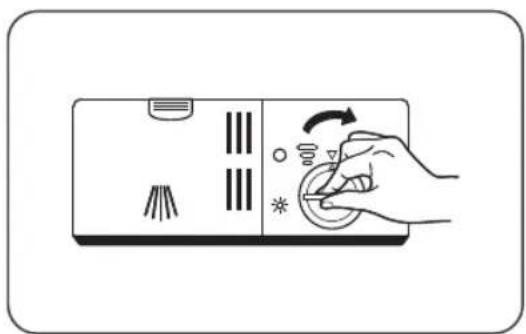

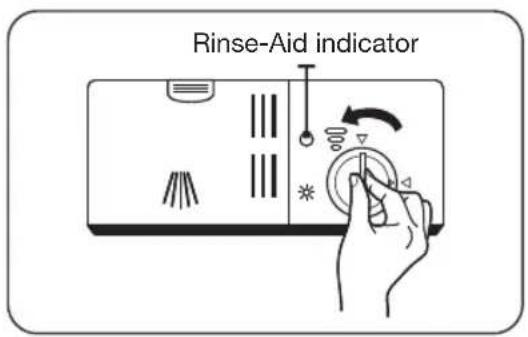

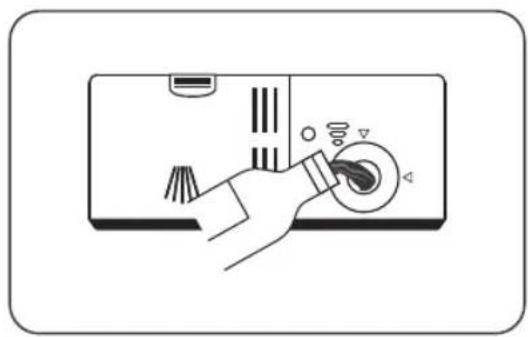

Filling the rinse aid reservoir 14

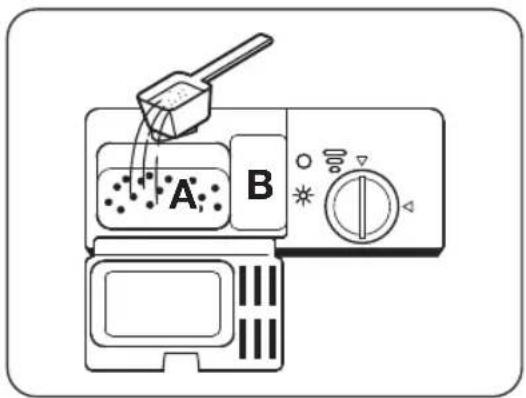

Filling the detergent dispenser 15

Programming the dishwasher

Wash cycle table 16

Starting a cycle wash 17

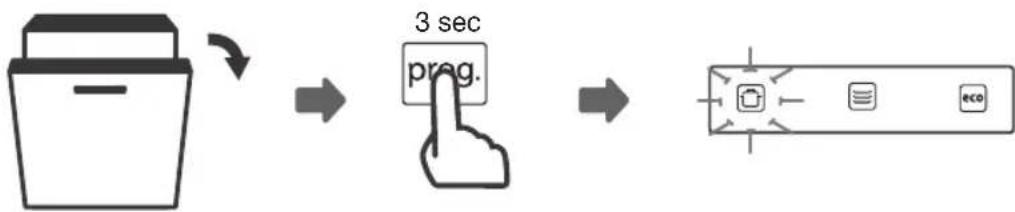

Changing the program mid-cycle 17

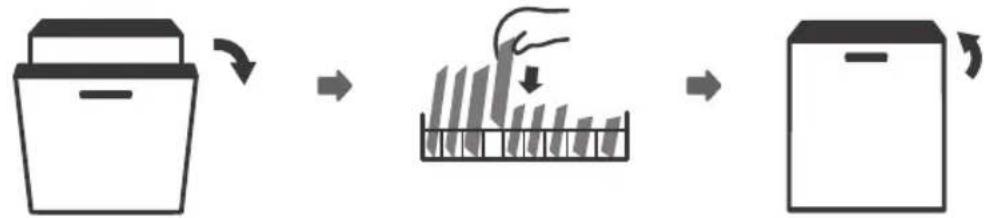

Forget to add a dish? 18

Maintenance

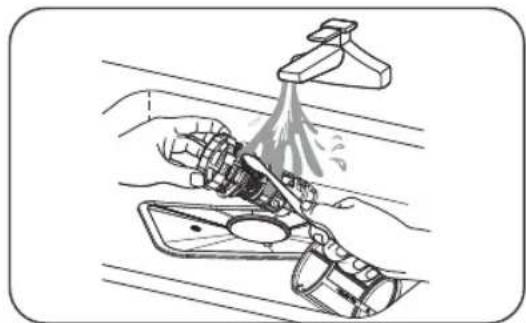

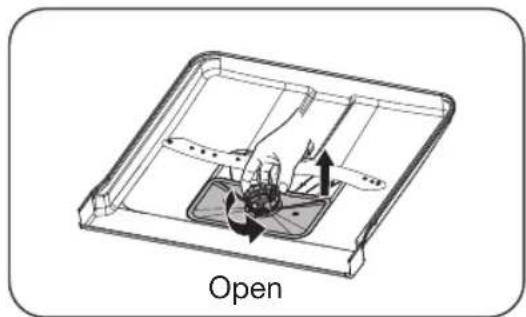

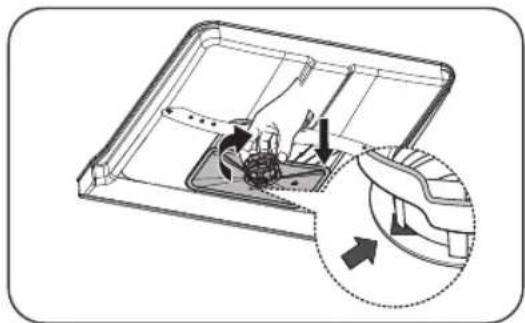

Filtering system 19

Cleaning the spray arms 20

Caring for the dishwasher 21

Cleaning the door 22

Errors

What should I do, if... 23

Error table 23

Technical data sheet 26

Your dishwasher and the environment

Disposal 27

Introduction

You have chosen to purchase a Etna dishwasher.

Optimum user comfort and easy operation were paramount during the development of this product.

This manual describes how you can get the most out of your dishwasher. It provides you with information on how to operate the appliance, as well as background information about how it works. You will furthermore also find maintenance tips.

The safety instructions that are relevant during the installation are included in the installation guide. This is intended for the installation technician.

Read this manual before using the appliance. Keep this manual somewhere safe so that subsequent users can also benefit from the information contained within.

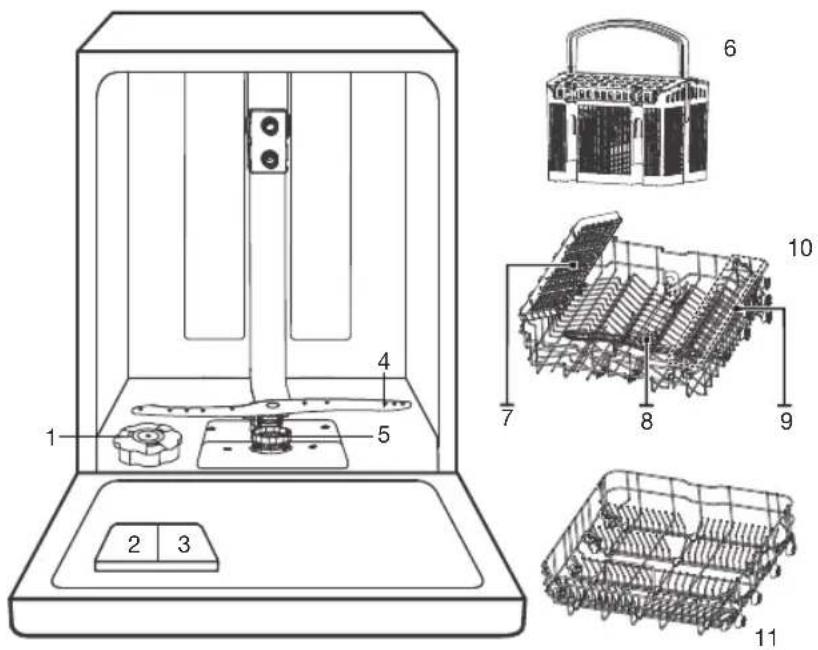

Description

Features and appearance of baskets and cutlery baskets may vary, depending on your model.

1. Salt container
2. Detergent dispenser
3. Rainse aid reservoir
4. Lower spray arm
5. Filtering system
6. Cutlery basket
7. Cup rack
8. Upper spray arm
9. Upper basket
10. Lower basket

Quick start

Please read the corresponding content in this manual for more details about the operation.

1. Setting the water softener/loading the salt.
2. Removing larges residues on the cutlery/dishes.
3. Loading the baskets.
4. Filling the dispenser and the rinse aid reservoir.
5. Selecting a program and running the dishwasher.

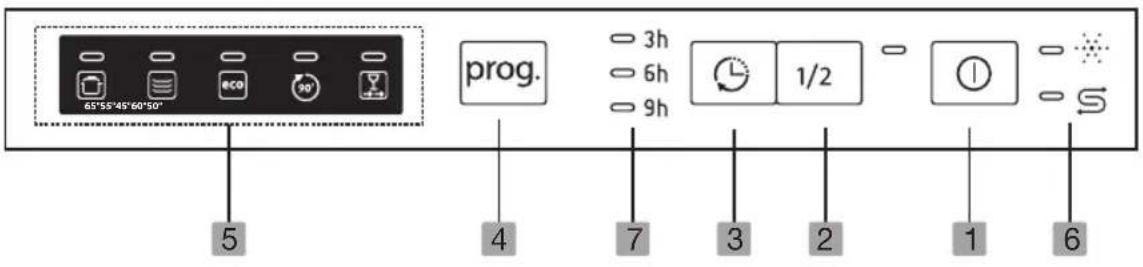

Control panel

Operation (push buttons)
1 On/Off		Press this button to turn on your dishwasher, the screen lights up.
2 Half-load		If you do not have too much load, you might consider using the half-load program. This function saves water and energy. It can be used with the programs Intensive, Universal, ECO and 90 min.
3 Delayed start		Press this button to set a delayed start.
4 Program		Select the appropriate washing program. The corresponding indicator will be lit.

Indicators
5 Program indicator			IntensiveHeavily soiled items include pots and pans. With dried on food.
			UniversalFor normally soiled loads, such as pots, plates, glasses and lightly soiled pans.
		[5DZX]	ECOThis is the standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.
			90 MinFor normally soiled loads that need quick wash.
			RapidA shorter wash for lightly soiled loads that do not need drying.
6 Warning indicator		[X332]	Rinse aidIf this indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill.
			SaltIf this indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.
7 Delayed start time			To show the delayed start time (3h/6h/9h).

Water softener

• The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
• The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

Adjusting salt consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance;
2. Press the program button for more than 5 seconds to open the water softener settings mode within 60 seconds after the appliance was switched on;
3. Press the program button to select the correct setting according to your local environment. The settings will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the On/Off button to confirm the setting and to end the setting mode.

Water hardness table

Adjust the salt consumption according to the table below:

Water hardness
°Clarke °dH mmol/l Setting Corresponding program indicator Salt consumption (grams/cycle)
0 - 6 0 - 5 0 - 0.94 H1 Rapid 0
7 - 14	6 - 11	1.0 - 2.0	H2	90 Min	9
15 - 21	12 - 17	2.1 - 3.0	H3	90 Min + Rapid	12
22 - 28	18 - 22	3.1 - 4.0	H4	ECO	20
29 - 42	23 - 34	4.1 - 6.0	H5	ECO + Rapid	30
43 - 69	35 - 55	6.1 - 9.8	H6	ECO + 90 Min	60

The factory setting: H3

Contact your local water board for information on the hardness of your water supply.

Adding salt

1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (supplied) into the container
3. Fill the salt container to its maximum limit with dishwasher salt (about 1.5 kg). It is normal for a small amount of water to come out of the salt container.
4. After filling the container, put back the cap (tighten firmly).
5. The salt warning light will go off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should be started (we suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

Note! The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If salt has spilled, run a soak or quick program to remove it.

Preparing and loading dishes

• Consider buying utensils which are identified as dishwasher-proof.
• For particular items, select a program with the lowest possible temperature.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.

For washing the following cutlery/dishes are not suitable:

▶Cutlery with wooden, horn china or mother-of-pearl handles
▶Plastic items that are not heat resistant
▶ Older cutlery with glued parts that are not temperature resistant
▶ Bonded cutlery items or dishes
▶Pewter or cooper items
▶Crystal glass
▶Steel items subject to rusting
▶Wooden platters
▶Items made from synthetic fibres

For washing the following cutlery/dishes are of limited suitability:

Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
▶Glazed patterns may fade if machine washed frequently

Recommendations for loading the dishwasher

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary, depending on your model.

- Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/pans, etc. are faced downwards.
  ▶ Curved items, or ones with recesses, should be loaded aslant so that water can run off.
  ▶All utensils are stacked securely and cannot tip over.

All utensils are placed in the way that the spray arms can rotate freely during washing.

- Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other.

To avoid damage, glasses should not touch one another.

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.

▶ Long bladed knives stored in an upright position are a potential hazard!

• Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ▶ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

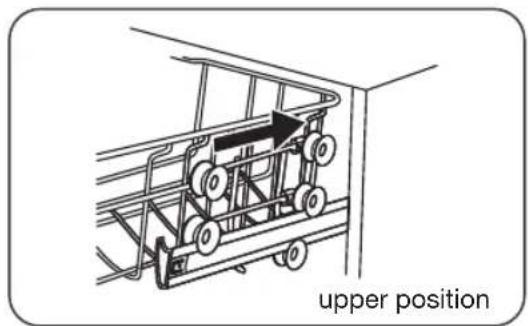

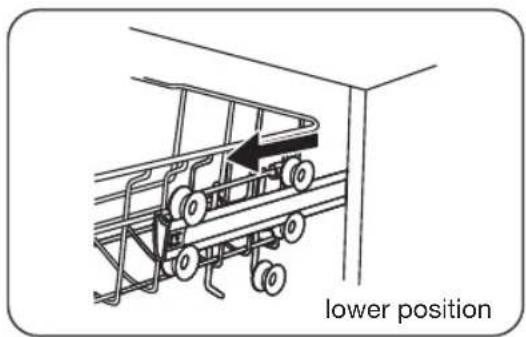

Loading the upper basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Technical line drawing of a mechanical component with no visible text or symbols

Loading the lower basket

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

Pure diagram of vertical slats arranged in a grid pattern without any text, numbers, or symbols

Loading the cutlery basket/cutlery rack

Cutlery should be placed separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

Warning! Do not let any item extend through the bottom.

Removing the dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first, followed by the upper basket.

Warning! Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

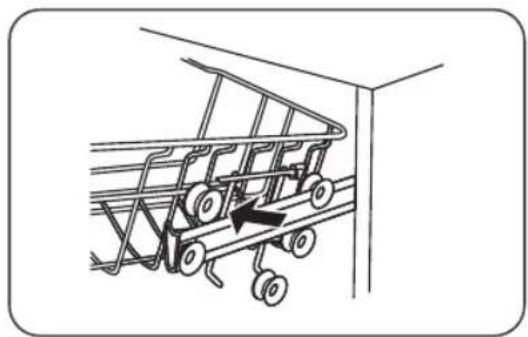

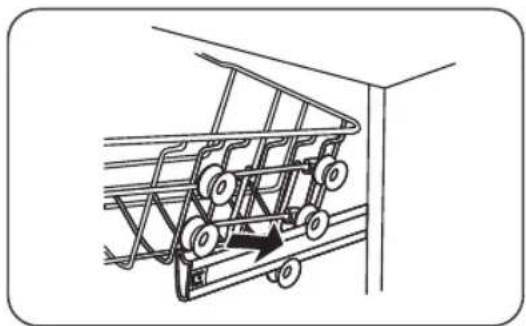

Adjusting the height of the upper basket type 1 (depending on the model)

The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. To adjust the height of the upper basket, follow these steps:

1. Pull out the upper basket.
2. Remove the upper basket.

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a directional arrow (no text or symbols)

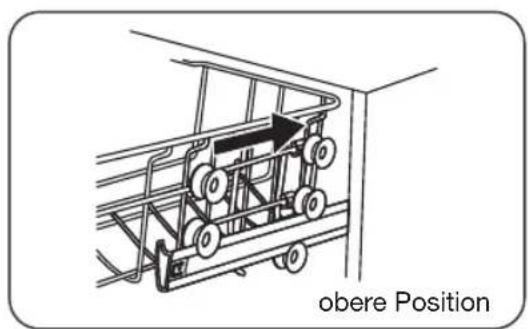

1. Re-attach the upper basket to the upper or lower rollers.
2. Push in the upper basket.

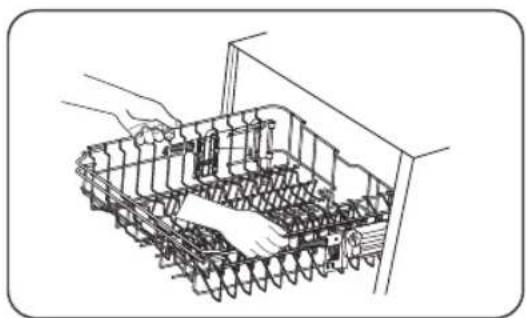

Adjusting the height of the upper basket type 2 (depending on the model)

Line drawing of a mechanical assembly with spring-loaded components and a hand holding a tool (no text or symbols)

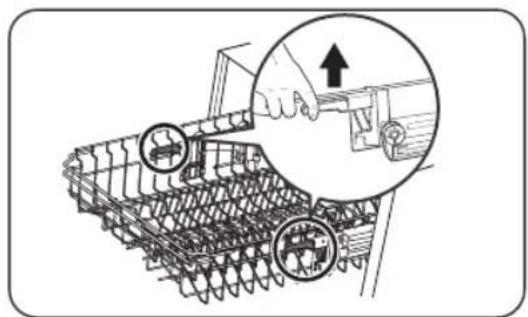

1. To raise the basket to the upper position, lift the basket until both sides are at the same height. The basket will secure into place.
2. To lower the basket, push down on the handle and release.

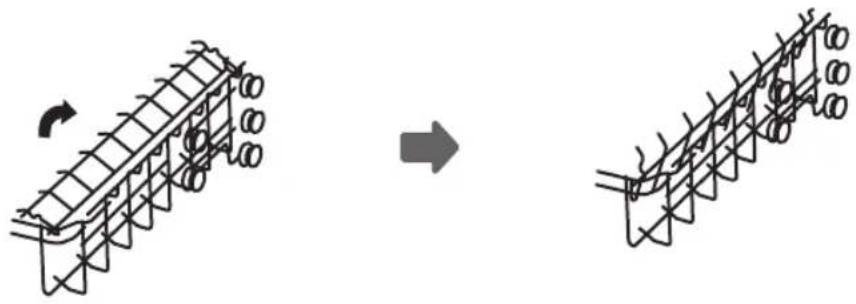

Folding back the cup shelves

To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

Diagram showing a structural assembly before and after rotation, with no visible text or symbols.

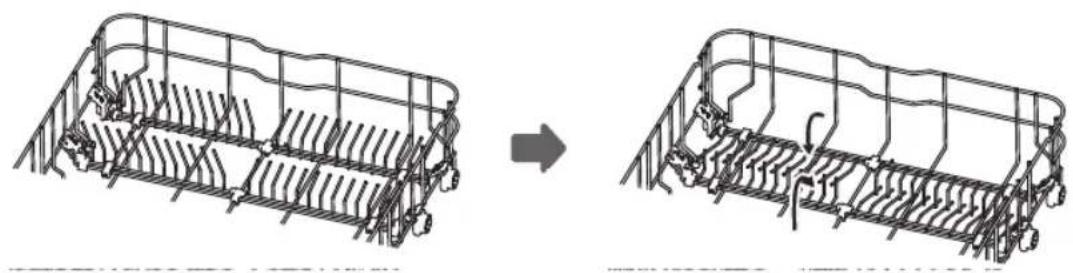

Folding back the rack shelves

The rack shelves can be lowered to make more room for large items.

fold backwardsraise upwards

Diagram showing a structural change before and after assembly, with no visible text or symbols

Function of the rinse aid and dishwasher detergent

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.

Warning! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid dispenser

• Unless the rinse-aid warning light on the control panel is on, you can always estimate the amount from the color of the optical level indicator located next to the cap.
• When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.
• As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full 3/4 full 1/2 full 1/4 full Empty

◎ ○

Function of the dishwasher detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Warning! Proper use of the dishwasher detergent

• Use only detergent specifically made for dishwashers use.
• Keep your dishwasher detergent fresh and dry.
• Don't put powdered detergent into the dispenser until you are ready to wash dishes.
• Dishwasher detergent is corrosive! Keep dishwasher detergent out of the reach of children.

Filling the rinse aid reservoir

Illustration of a hand pressing down on a device panel with buttons and indicators (no text or symbols)

1. To open the dispenser, turn the cap to the "open" (left) arrow and lift it out
2. Carefully pour in the rinse-aid into its dispenser, whilst avoiding it to overflow.

Note: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.

Illustration of a hand pressing down on a device with icons for cleaning and adjustment (no text or symbols)

1. Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Adjusting the rinse aid reservoir

The rinse aid reservoir has 6 settings. Both the recommended setting and the factory setting is "4". If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

Filling the detergent dispenser

1. Press the release catch on the detergent dispenser to open the cover.
2. Add detergent into the larger cavity (A) for the main wash cycle.

For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.

Illustration of a hand pressing down on a kitchen appliance with a scroll wheel and directional arrow (no text or symbols)

1. Close the cover and press on it until it locks into place.

Note: Be aware that depending on the soiling of water, setting may be different.

Please observe the manufacturer's recommendations on the detergent packaging.

Wash cycle table

The table shows information about the programs.

Program Steps of the wash cycle		Detergent pre/main(3)	Running time (min)	Energy (kWh)	Water (l)	Rinse aid
65°Intensive	Pre-wash (50°C)Wash (65°C)RinseRinseRinse (65°C)Drying	4/16g(1 or 2 pieces)	205 1.621 17.8			Yes
55°Universal	Pre-wash (45°C)Wash (55°C)RinseRinse (65°C)Drying	4/16g(1 or 2 pieces)	175 1.302 14.3			Yes
45°ECO(1)	Wash (45°C)RinseRinse (60°C)Drying	16g(1 piece)	220 0.908	(2)0.923(3)	11.0	Yes
60°90 Min	Wash (60°C)RinseRinse (65°C)Drying	20g(1 piece)	90 1.350 11.7			Yes
50°Rapid	Wash (50°C)RinseRinse (45°C)	20g(1 piece)	30 0.751 11.2			No

(1) This program is the test cycle.
The information for comparability test in accordance with EN 50242/EN 60436.
(2) According to standard EN 50242
(3) According to standard EN 60436

Starting a cycle wash

1. Draw out the lower and upper basket, load the dishes and push them back.

It is commended to load the lower basket first, then the upper one.

1. Pour in the detergent.

2. Insert the plug into the socket. The power supply can be found on the "rating plate"

which is located on the side of the inner dishwasher door, where also the serial number is mentioned.

Make sure that the water supply is turned on to full pressure.

1. Open the door and press the on/off button to switch on the appliance.

2. Choose a program, the response light will turn on. Then close the door, the dishwasher will start its cycle.

Changing the program mid-cycle

A wash cycle can only be changed if it has been running for a short time. Otherwise the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Open the door a little to stop the dishwasher. When the spray arm stops working, you can open the door completely.
2. Press the program button for more than three seconds to set the appliance into standby state.
3. You can change the program to the desired cycle setting.
4. Then close the door, the dishwasher will start its cycle.

PROGRAMMING THE DISHWASHER

Forget to add a dish?

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will start running again.

Warning! It is dangerous to open the door mid-cycle, as hot steam may scald you.

Filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water. Follow the steps below to clean the filters in the wash cabinet.

Note: Pictures are only for reference. The models of the filtering system and spray arms can be different.

Technical diagram of a mechanical component with arrows indicating open state, labeled 'Open' (no text or symbols on the diagram itself)

1. Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.
2. The fine filter can be pulled off the bottom of the filter assembly. The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away.

Illustration of a hand washing a car with a spray bottle, no text or symbols present

Diagram of a device interior with internal components and a magnified view showing internal structure (no text or symbols)

1. Larger food remnants can be cleaned by rinsing the filter under running water.
   For a more thorough clean, use a soft cleaning brush.
2. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.

Warning! Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. NEVER use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

MAINTENANCE

Cleaning the spray arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

Technical diagram of an aircraft carrier with internal components and directional arrows indicating movement (no text or labels)

Illustration of a hand using a tool to adjust or install a mechanical component inside a tray (no text or symbols visible)

1. To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

2. To remove the lower spray arm, pull out the spray arm upward.

Illustration of a hand using a tool to clean or wash a kitchen sink (no text or symbols)

1. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Caring for the dishwasher

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after a washing cycle, please operate as follows:

• Cut off the electrical power to the dishwasher at the supply source.
• Turn off the water supply and disconnect the water inlet pipe from the water valve.
• Drain the water from the inlet pipe and water valve (use a pan to gather the water).
• Reconnect the water inlet pipe to the water valve.
• Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump.

After every wash

- After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

Remove the plug

- Before cleaning or performing maintenance, always remove the plug from the socket.

No solvents or abrasive cleaning

- To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a longtime

- It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the appliance

- If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

MAINTENANCE

Cleaning the door

• Clean the edge of the door, including the sealing rubber, with a soft, damp cloth.
• Take care to ensure that water does not enter the door locking mechanism or electrical components.
• Spray-type cleaning products should not be used, nor aggressive cleaning products such as scourers. These cleaning products can damage the finish.

What should I do, if...

If the appliance is not functioning well, this does not always mean that it is faulty. Try to resolve the fault yourself first. If the recommendations below do not solve your problem, telephone our service department.

Note!

Disconnect the appliance from the power supply before beginning repairs. It is preferable if you remove the plug from the socket.

Error table

Problem Potential causes Solution

The dishwasher is not working.	Fuse is faulty or the earthing switch has been activated.	Replace the fuse or reset the isolating switch. Remove other appliances that are connected to the same group.
	The power supply is not switched on.	Make sure that the dishwasher is switched on and the door closed. Make sure that the plug is correctly inserted into the socket.
	The water pressure is too low.	Check whether the dishwasher is correctly connected to the water mains and that the tap is open.
	The door of the dishwasher is not closed properly.	Make sure the door is closed properly.
The drainage pump does not shut off.	The water is running over. The system is designed so that it can automatically detect overflowing water. In that instance, the appliance shuts off the circulation pump and switches on the drainage pump.
Noise. Some noises are normal. Noise of rotating pump/washing noises; the detergent compartment opening.

Problem Potential causes Solution

Contamination of the tub.	Poor quality detergent. Only use detergent suitable for dishwashers to prevent contamination.
	Blocked filters. Open the door and clean the filters.Run the pre-wash cycle.
	Rinse agent has been spilled. Always wipe up spilled rinse agent immediately.
Dishes are not dry. The rinse agent reservoir is empty.		Ensure that the rinse agent reservoir is filled.
		Improper loading. Load the dishwasher as suggested in the manual.
		The dishwasher is unloaded too soon.	Do not unload your dishwasher immediately after washing. Open the door slightly so the steam can come out. Wait for the inside temperature to be safe. Unload the lower basket first.
		Incorrect cycle. A short program with low temperature can have worse washing and drying results compared to a longer program with a higher temperature. Select another wash cycle.
Dishes and flat objects are not clean.	Incorrect cycle. Select a higher cycle.
	Baskets are incorrectly loaded. Make sure that the detergent compartment and spray arms are not obstructed by large dishes/pans.
Spotting and scaling on glasses and flat dishes.	Extremely hard water.Incoming water temperature is low. The dishwasher is overloaded.Baskets are incorrectly loaded.Old or damp detergent. Rinse agent reservoir is empty.Incorrect detergent dosage.	To remove spotting from glass objects: Remove all metal objects from the dishwasher. Use the prescribed quantity of detergent.Select the longest cycle. Allow the dishwasher to run for approximately 18 to 22 minutes. It should by then have reached the main wash cycle.Open the door carefully and pour 2 cups of white vinegar into the base. Close the door and allow the dishwasher to complete its cycle. If vinegar does not work: Repeat the above steps, but use a quarter cup (60 ml) of citric acid crystals in place of white vinegar.

Problem Potential causes Solution

Cloudy stains on the glassware.	Combination of soft water and too much detergent.	Use less detergent and choose the glass cycle, which you can use to clean glassware.
Yellow or brown scale on the inside of the tub.	Traces of iron in the water may cause spotting to the tub of the dishwasher.	Contact a manufacturer of water softeners for a special filter.
White scale on the inside of the tub.	Hard water. Increase salt consumption setting.
Dishwasher detergent is left in the detergent compartment.	The detergent compartment is blocked by dishes.	Load the baskets so that the dishes no longer block the detergent compartment. Clean the upper spray arm.
Steam. When opening the door. This is possible at the end of the cycle.
Black or grey stains on the dishes.	Aluminium cooking utensils have scraped the dishes.	Aluminium can tarnish.
Water remains under the filters.	This is normal. A small amount of water around the drain on the rear of the tub base keeps the seal flexible.
The dishwasher is leaking.	Rinse agent reservoir too full or rinse agent is leaking.	Take care not to overfill the rinse agent reservoir. Spilled rinse agent can lead to foam/flooding. Wipe up spilled rinse agent with a damp cloth.
	The dishwasher is not standing level.	Adjust the dishwasher so that it is standing level.
The Rapid light flicker fleetly.	Water intake time is too long.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
The 90min light and Rapid light flicker fleetly.	Not reaching required temperature.	Malfunction of heating element.
The ECO light flicker fleetly.	Overflow. Some element of dishwasher leaks.
The ECO, Universal and Rapid light flicker fleetly.	Failure of communication between main PCB with display PCB.	Open circuit or break wiring for the communication.

Should the appliance become overfilled or exhibit excessive leaking, shut off the inlet tap and alert the service department. If all indicators are flashing simultaneously: switch off the dishwasher immediately, shut off the inlet tap and alert the service department.

Height (H) 815 mm
Width (W) 598 mm
Depth (D1) 550 mm (with the door closed)
Depth (D2) 1150 mm (with the door opened 90°)

Link to the EU EPREL database

The QR code on the energy label supplied with the appliance provides a web link to the registration of this appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is possible to find information related to the performance of the product in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name and product number that you can find on the rating plate of the appliance. Refer to the chapter "Product description".

For more detailed information about the energy label, visit www.theenergylabel.eu.

Disposal

Disposing of the packaging and appliance

Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance should be disposed of in a responsible manner. The government can provide you with information in this regard.

The packaging for the appliance is recyclable. The following may be used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS hard foam).

The materials should be disposed of in a responsible manner and in accordance with government regulations.

Symbol of a trash bin crossed with no visible text or labels

The product bears the symbol of a crossed out waste bin to draw attention to the obligation regarding separate processing of electrical household appliances. This means that the appliance cannot be added to your normal household waste at the end of its lifecycle. The appliance must be taken to a special municipal waste collection centre, or to a sales outlet that offers this service.

Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inadequate processing. It ensures that the materials which the appliance is composed of can be reclaimed, allowing for considerable savings to be made in terms of energy and materials.

Note! The packaging material may be hazardous for children.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations

Schnellstart

Technical line drawing of a mechanical component with no visible text or symbols

Pure diagram of vertical panels arranged in a grid pattern without any text, numbers, or symbols

Line drawing of a shopping cart with wheels and an arrow indicating direction (no text or symbols)

Line drawing of a shopping cart with wheels and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components (no text or symbols)

Diagram showing a structural assembly before and after transformation, with no visible text or symbols.

Diagram showing a mechanical assembly before and after modification, with no visible text or symbols.

Illustration of a hand pressing down on a device with buttons and icons (no text or symbols)

Illustration of a hand pressing down on a device with icons and a circular button (no text or symbols)

Illustration of a hand pressing down on a kitchen appliance with a scroll and control knob (no text or symbols)

Illustration of hands cleaning a car dashboard with a spray bottle (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

Technical diagram of an aircraft fuselage assembly with internal components and a magnified inset showing mechanical assembly (no text or labels)

Illustration of a hand using a tool to adjust or install a mechanical component inside a tray (no text or symbols visible)

Line drawing of a kitchen sink with a hand cleaning the surface and a faucet spraying water (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)
