USER MANUAL XL Formula QUINNY

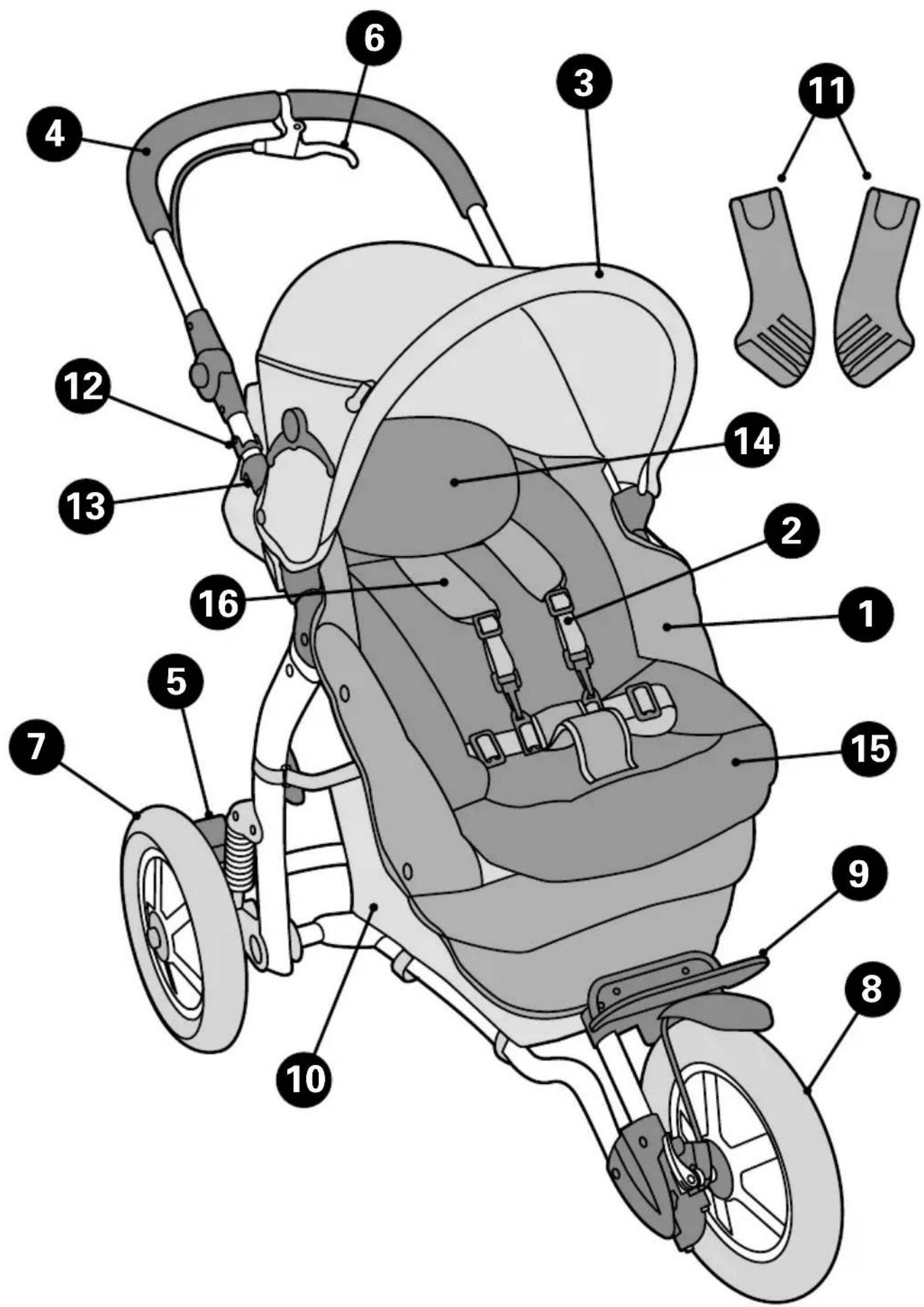

1 Pushchair seat 2 Safety harness 3 Sun canopy 4 Handlebar 5 Parking brake 6 Handbrake 7 Rear wheel 8 Self-steering front wheel (lockable) 9 Footrest 10 Shopping basket 11 Adapters 12 Fold lock 13 Transport safety lock/ handlebar safety lock 14 Adjustable/removable head rest 15 Seat insert 16 Belt pads

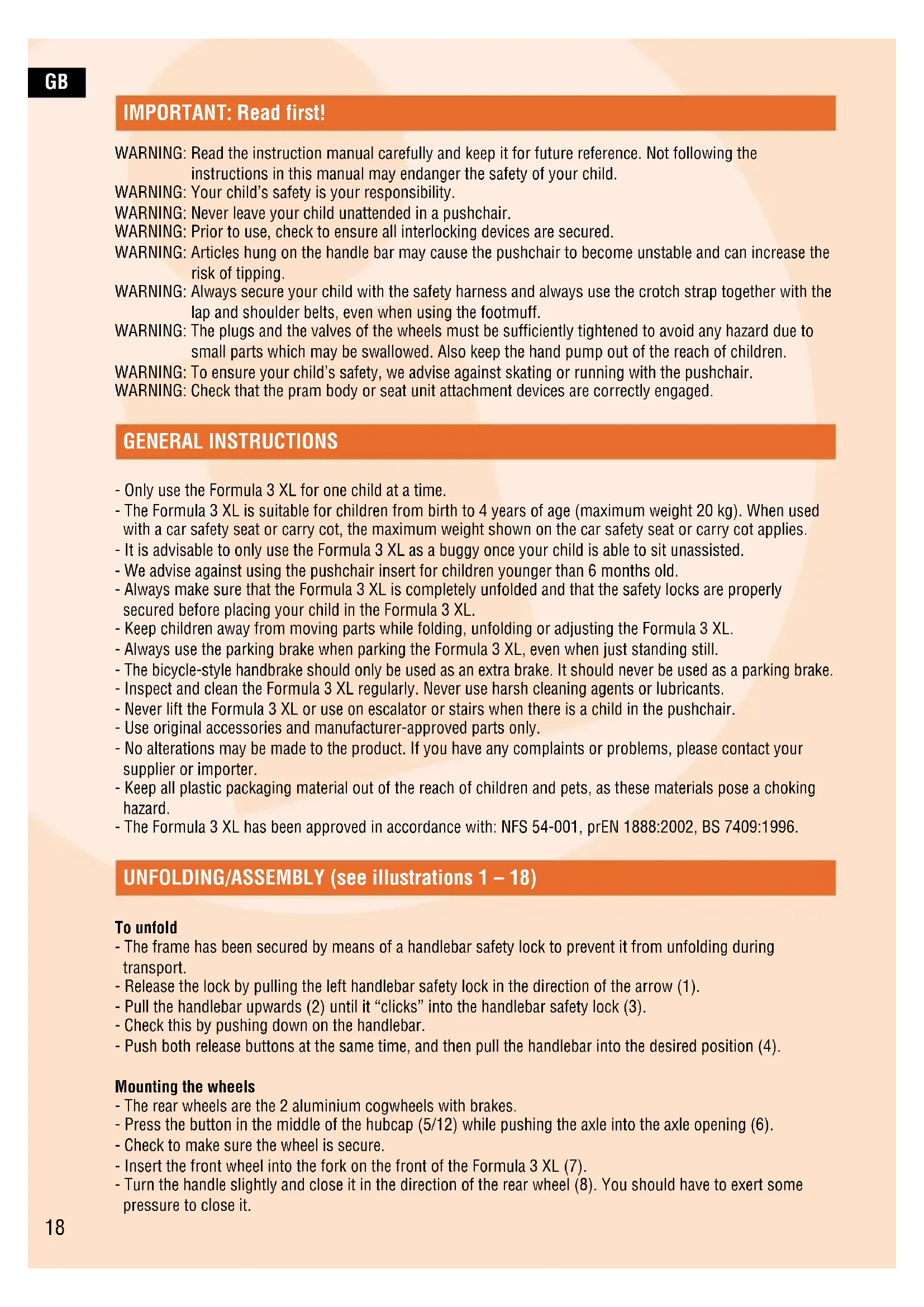

WARNING: Read the instruction manual carefully and keep it for future reference. Not following the

instructions in this manual may endanger the safety of your child.

WARNING: Your child’s safety is your responsibility.

WARNING: Never leave your child unattended in a pushchair.

WARNING: Prior to use, check to ensure all interlocking devices are secured.

WARNING: Articles hung on the handle bar may cause the pushchair to become unstable and can increase the

WARNING: Always secure your child with the safety harness and always use the crotch strap together with the

lap and shoulder belts, even when using the footmuff.

WARNING: The plugs and the valves of the wheels must be sufficiently tightened to avoid any hazard due to

small parts which may be swallowed. Also keep the hand pump out of the reach of children.

WARNING: To ensure your child’s safety, we advise against skating or running with the pushchair.

WARNING: Check that the pram body or seat unit attachment devices are correctly engaged.

GENERAL INSTRUCTIONS - Only use the Formula 3 XL for one child at a time. - The Formula 3 XL is suitable for children from birth to 4 years of age (maximum weight 20 kg). When used with a car safety seat or carry cot, the maximum weight shown on the car safety seat or carry cot applies. - It is advisable to only use the Formula 3 XL as a buggy once your child is able to sit unassisted. - We advise against using the pushchair insert for children younger than 6 months old. - Always make sure that the Formula 3 XL is completely unfolded and that the safety locks are properly secured before placing your child in the Formula 3 XL. - Keep children away from moving parts while folding, unfolding or adjusting the Formula 3 XL. - Always use the parking brake when parking the Formula 3 XL, even when just standing still. - The bicycle-style handbrake should only be used as an extra brake. It should never be used as a parking brake. - Inspect and clean the Formula 3 XL regularly. Never use harsh cleaning agents or lubricants. - Never lift the Formula 3 XL or use on escalator or stairs when there is a child in the pushchair. - Use original accessories and manufacturer-approved parts only. - No alterations may be made to the product. If you have any complaints or problems, please contact your supplier or importer. - Keep all plastic packaging material out of the reach of children and pets, as these materials pose a choking hazard. - The Formula 3 XL has been approved in accordance with: NFS 54-001, prEN 1888:2002, BS 7409:1996. UNFOLDING/ASSEMBLY (see illustrations 1 – 18) To unfold - The frame has been secured by means of a handlebar safety lock to prevent it from unfolding during transport. - Release the lock by pulling the left handlebar safety lock in the direction of the arrow (1). - Pull the handlebar upwards (2) until it “clicks” into the handlebar safety lock (3). - Check this by pushing down on the handlebar. - Push both release buttons at the same time, and then pull the handlebar into the desired position (4). Mounting the wheels - The rear wheels are the 2 aluminium cogwheels with brakes. - Press the button in the middle of the hubcap (5/12) while pushing the axle into the axle opening (6). - Check to make sure the wheel is secure. - Insert the front wheel into the fork on the front of the Formula 3 XL (7). - Turn the handle slightly and close it in the direction of the rear wheel (8). You should have to exert some pressure to close it. 18GB

- Check the tyre pressure and inflate the tyre if necessary (see maintenance section for the maximum tyre pressure allowance). - The self-steering front wheel can be locked. To secure it, turn the locks on the right and left sides of the wheel towards the front. - First secure the side with the handle because the wheel needs to be able to move slightly (9/1) when the lock moves along the handle (9/2). Next, secure the other side (10). - To use the swivel function, carry out the above steps in reverse order, starting with the non-handle side (11/1), followed by the handle side (11/2). Removing the wheels - To remove the rear wheels, press the button on the hubcap (5/12) and pull the wheel out of the axle opening (13). - The front wheel: lift the handle (14/1) and pull the wheel out of the fork (14/2). Adjusting the handlebar - To adjust the height of the handlebar, push the release buttons at the same time (15/1) and rotate the handlebar into the desired position (15/2). Folding - Push the release buttons on the handlebar at the same time and rotate the handlebar downwards. - Fold up the sun canopy (see “Attaching and removing the sun canopy”) - Tilt up the fold lock above the right handlebar safety lock (16). - Pull the left and right handlebar safety lock upwards and push the handlebar forward until the Formula 3 XL is folded (17). - Make sure that the handlebar safety lock “clicks” into the transport safety lock (18). - Remove the wheels to make the pushchair even smaller. PARKING BRAKE (see illustration 19) - Always use the brake when parking the Formula 3 XL, “also when at a standstill”. - Step on the red brake pedal on the right rear wheel in order to lock both rear wheels (19/1). The pushchair is now in the parking position. - Always check to make sure the wheels are locked. - Release the parking brake by stepping on the left pedal (19/2). - The handbrake is for slowing down and should not be used as a parking brake. The handbrake works on both rear wheels. If you squeeze the handbrake too firmly or quickly, there is a risk that you will stumble over the Formula 3 XL, thus endangering your child. - Always check whether the wheels are locked.

INSTRUCTIONS FOR USE

For use with the Dreami carrycot(up to 9 kg) and the Maxi-Cosi car safety seat (up to 13 kg) (see illustrations 20 - 25) Attaching the adapters - Slide the adapter marked A into the right-hand side and the adapter marked B into the left-hand side of the adapter attachment. - Continue sliding until you hear a “click” (20). - Check to make sure the adapters are secure. Placing the Dreami carrycot - Unfold the pushchair and place the carry cot onto the adapters with the foot end between the sides of the handle (21). - Check to make sure the carry cot is fastened securely.GB Removing the Dreami carrycot - Place your thumbs on the control buttons on both sides of the carry cot (22/1). - Push in the buttons while lifting the carry cot from the Formula 3 XL (22/2). Fitting the Maxi-Cosi car seat - Unfold the pushchair and place the car safety seat onto the adapters with the foot end between the sides of the handle (23). - Check to make sure the car seat is fastened securely. Removing the Maxi-Cosi car seat - Place your thumbs on the control buttons on both sides of the car seat (24/1). - Push in the buttons while lifting the car seat from the Formula 3 XL (24/2). Removing the adapters - Remove the adapters by moving the red button under the adapters outward (25/1) while sliding the adapters upwards (25/2). When used as a pushchair (see illustrations 26 – 34) Placing the pushchair seat - To attach the pushchair seat, fasten the 6 poppers onto the frame (26). - Next, attach the straps for the rear wheels, front wheel and under the pushchair seat (27). - Secure both straps on the back adjuster into the quick-acting closures (28). - To remove the pushchair seat, carry out these steps in reverse order. Back adjuster - The pushchair seat back has multi-positional adjustment. - To adjust the back, squeeze the adjusting grip in the middle of the back (29/1) and adjust the strap until the desired position is reached (29/2). Attaching/removing sun canopy - Push both clips of the sun canopy onto both sides of the handlebar just above the plastic hinge in the slot in the pushchair seat (30/1). - Fasten the poppers onto the back of the pushchair seat (30/2). - Remove the sun canopy by unfastening the poppers and pulling the clips from the handlebar. Safety harness - Apply the brakes on the Formula 3 XL. - Make sure the safety harness is loosened before placing your child (carefully!) into the seat. - Fasten the lap and shoulder belts to the crotch strap (32). - Adjust the belts to the size of your child by lengthening or shortening the belts using the clasps (33). - Push the buttons to open the fastener (31). - There are D rings for securing an additional safety harness. Make sure any safety harness you use meets the following standard: BS 6684. - The shoulder belts are height adjustable. To adjust the height, open the cover on the back and move the clasp in both the cover as well as the reinforcement board (34). SHOPPING BASKET - The maximum weight allowance for the shopping basket under the Formula 3 XL is 5 kg. - The other storage compartments on the pushchair have a maximum weight allowance of 0.5 kg.

IMPORTANT: Only use the storage compartments provided and do not exceed the maximum weight allowance. 20GB

MAINTENANCE - Check whether everything functions properly on a regular basis. - If the Formula 3 XL has been damaged (i.e. in-flight, transport damage), have the product checked/repaired by your supplier before using it again. - For reasons of safety, always use original parts. - To ensure the long-lasting use of the Formula 3XL, dry it off with a soft rag after using it in rainy weather. - Clean the frame using a damp cloth. Do not use any abrasive detergents. - Do not use lubricants, as these attract dirt and dust. - Note: Oil and grease will damage the functioning of the handbrake. - The cover, basket and pillow can be washed by hand in lukewarm water using a regular detergent (see “Washing instructions”). - Remove the pushchair seat from the Formula 3 XL (see “Attaching the pushchair seat”). - Remove the seat back and bottom boards with belts. - When re-attaching the boards, make sure the belts are fastened properly. - Never use the pushchair without the reinforcement boards and safety harness. Wheels - The tyres can be inflated up to a maximum pressure of 28 PSI/1.8 Bar. The tyres are equipped with air valves and can be inflated using the pump supplied or a bicycle pump with adapter. - If the inner tube has a puncture, you can repair it as you would a bicycle tire or have it repaired at a bicycle repair shop. - Always deflate the tyres when taking the Formula 3XL on an aircraft, as the tyres could burst due to the pressure difference. - The pushchair may be prone to rusting/tarnishing if used on a beach. Riding through seawater is therefore not advised. Clean the wheels thoroughly after visiting the beach. - Clean the wheels and axles often and remove any sand or dirt before assembling them. - The tyres may leave behind black marks on some surfaces (particularly smooth floors like parquet, laminate and linoleum). ACCESSORIES Dreami carrycot Rain/wind cover Footmuff The use of non-original accessories can have an adverse affect on the working of the Formula 3 XL. QUESTIONS? Contact your supplier or importer (see address on the back). WARRANTY - The guarantee period takes effect on the date of purchase and is valid for a period of 12 months. The warranty applies to material and manufacturing faults only. The date of purchase can only be proven using an original sales receipt. The guarantee only applies to the first owner and is not transferable. The guarantee is only valid for products that have not been modified by the user. - In the case of defects contact your supplier. If your supplier cannot help you, he will send the product back to the manufacturer together with a clear description of the complaint and the original proof of purchase with date. Exchange or refund is not possible. Repairs do not give right to extension of the guarantee period.

The manufacturer is not responsible for damage other than that to the product produced by the manufacturer.GB The guarantee is not valid if - The Product is not returned to the manufacturer with the original proof of purchase. - The defects found are the result of incorrect use or maintenance, i.e. reccommendations in the instruction manual have not been followed. - Discolouration, damage to the fabric or watermarks due to washing or rainwater. - The defect is the result of negligence or damage to the fabric or frame due to a blow to the pushchair. - The defect is the result of an accident or aircraft travel. - The defect is the result of overburdening (exceeding the maximum weight allowance for child and items being carried). - The defect is the result of using a standing board for a second child. - There is normal wear and tear to the wheels, tyres and/or fabric, which can be expected with daily use. - The product has been involved in a “collision” with, for example, a pavement curb or heavy shop door. The wheels and/or axles will no longer be aligned or may bend, as a result of which the pushchair will not track well. - Damage to surfaces, such as plastic laminate floors, due to tyre marks. - The above guarantee conditions have not been fulfilled in some other way. 22F
