USER MANUAL Nutricook P42214 TEFAL

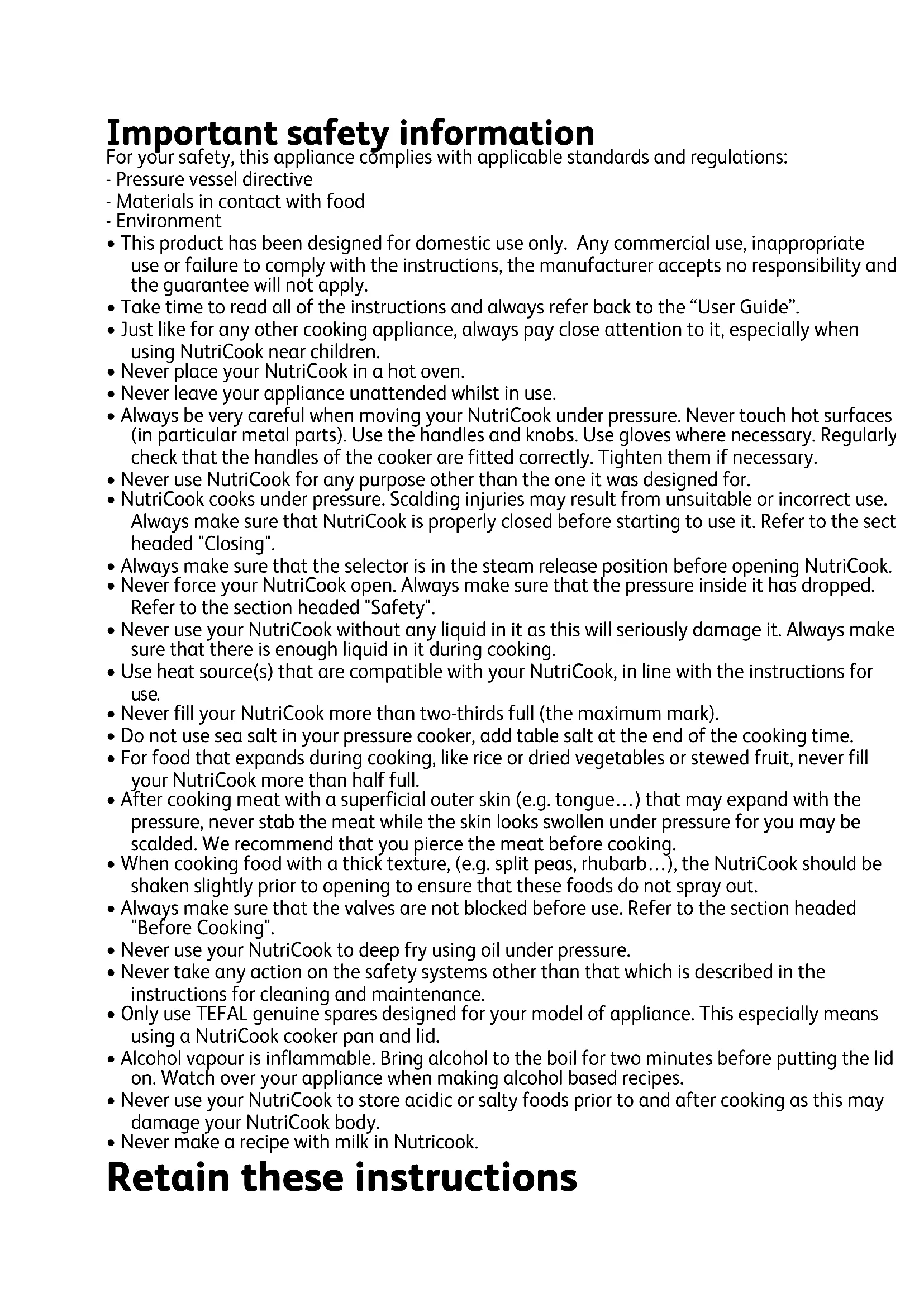

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Take time to read all of the instructions and always refer back to the “User Guide”.

• Just like for any other cooking appliance, always pay close attention to it, especially when using NutriCook near children.

• Never place your NutriCook in a hot oven.

• Never leave your appliance unattended whilst in use.

• Always be very careful when moving your NutriCook under pressure. Never touch hot surfaces (in particular metal parts). Use the handles and knobs. Use gloves where necessary. Regularly check that the handles of the cooker are fitted correctly. Tighten them if necessary.

• Never use NutriCook for any purpose other than the one it was designed for.

• NutriCook cooks under pressure. Scalding injuries may result from unsuitable or incorrect use. Always make sure that NutriCook is properly closed before starting to use it. Refer to the section headed "Closing".

• Always make sure that the selector is in the steam release position before opening NutriCook.

• Never force your NutriCook open. Always make sure that the pressure inside it has dropped. Refer to the section headed "Safety".

• Never use your NutriCook without any liquid in it as this will seriously damage it. Always make sure that there is enough liquid in it during cooking.

• Use heat source(s) that are compatible with your NutriCook, in line with the instructions for use.

• Never fill your NutriCook more than two-thirds full (the maximum mark).

• Do not use sea salt in your pressure cooker, add table salt at the end of the cooking time.

• For food that expands during cooking, like rice or dried vegetables or stewed fruit, never fill your NutriCook more than half full.

• After cooking meat with a superficial outer skin (e.g. tongue…) that may expand with the pressure, never stab the meat while the skin looks swollen under pressure for you may be scalded. We recommend that you pierce the meat before cooking.

• When cooking food with a thick texture, (e.g. split peas, rhubarb…), the NutriCook should be shaken slightly prior to opening to ensure that these foods do not spray out.

• Always make sure that the valves are not blocked before use. Refer to the section headed "Before Cooking".

• Never use your NutriCook to deep fry using oil under pressure.

• Never take any action on the safety systems other than that which is described in the instructions for cleaning and maintenance.

• Only use TEFAL genuine spares designed for your model of appliance. This especially means using a NutriCook cooker pan and lid.

• Alcohol vapour is inflammable. Bring alcohol to the boil for two minutes before putting the lid on. Watch over your appliance when making alcohol based recipes.

• Never use your NutriCook to store acidic or salty foods prior to and after cooking as this may damage your NutriCook body.

• Never make a recipe with milk in Nutricook. Retain these instructionsEN

Nutritious and Delicious Innovating for your health Nutrition naturally includes eating a varied and balanced diet… but nutrition is far more than just ingredients. They way they are cooked plays an essential part in their nutritional and organoleptic (taste, texture...) transformation. As all appliances are not the same, TEFAL has developed a dedicated range of products for NUTRITION WITH MORE PLEASURE: ingenious utensils that preserve all of the nutritional content while bringing out the true taste of the ingredients used. Bringing you unique solutions TEFAL invests in research to create appliances that offer unique nutritional performance, and that are validated by scientific studies. Informing you TEFAL has always been your best partner for nutritious health, bringing you fast, handy and enjoyable ways to prepare your meals. Day by day, the TEFAL Nutritious and Delicious range will help you share culinary pleasure and a balanced diet, by:

• Enhancing and preserving the qualities of the natural ingredients that are essential to your diet,

• Limiting the use to fats,

• Encouraging a return of forgotten tastes and flavours,

• Limiting the time spent preparing meals. Within this product range, NutriCook

offers you 4 programmes for the 4 food groups.2 Welcome to the world of NutriCook

: the Nutrition & Flavour pressure cooker. Four cooking programmes that are specific to each family of foods – vegetables, starches, meat and fish so that:

• Up to twice as much vitamin C preserved in your vegetables*

• Carbohydrates are assimilated more gradually*

• Meats are cooked faster to retain more vitamin B6*

• Up to 25% more omega 3 content is retained** *: Compared to cooking in a conventional pressure cooker - **: Compared with cooking in the oven A balanced recipe book: from ratatouille to cod cooked in individual parcels, from stews to cold cucumber soup… And not forgetting tables with the cooking times for most vegetables and essential foods.

• NutriCook can be used on all heat sources including induction heating except on Aga cookers.

• When using an electric hotplate or induction, make sure that the size of the hot plate does not exceed the size of the NutriCook base.

• On a ceramic or halogen, always make sure that the NutriCook base is clean and dry.

• On a gas burner, the flame should not lick past the diameter of the NutriCook base.

• On all burners, make sure that NutriCook is properly centred. A. Steam release outlet B. Automatic air ventilation system C. Timer D. Pressure indicator E. Opening/Closing handle F. Cooking programme selector G. Crown H. Seal

Never heat your NutriCook when it is empty or you may damage it.4 Accessories TEFAL

• The following NutriCook accessories are available from shops:

• To replace other parts or have repairs performed, please call on your local TEFAL Approved Service Centre.

• Only use TEFAL genuine parts designed for your product model. Opening

• Make sure that the cooking programme selector (F) is in the Fig. 8 position and that the pressure indicator is down.

• Move the handle from the horizontal to the vertical position (the jaws open) Fig. 1.

• Lift the lid. Closing

• Make sure that the cooking programme Selector (F) is in the position and the Opening/Closing handle (E) is in the vertical position.

• Place the lid on the pressure cooker, taking care to ensure that it is correctly positioned.

• Move the Open/Close handle from the vertical to the horizontal position Fig. 2.

• Apply a little force at the end when closing to trigger the locking mechanism.

• Once in the closed position, it is normal that the lid can turn freely on the NutriCook pan. If you cannot close the lid:

• Check that the Open/Close handle is in the vertical position.

• Check that the seal is in place properly. Accessories Reference numbers Lid seal 6 L X1010004 Lid seal 8 L X1010003 Timer X1060003 During Opening/Closing operations, the control module must be in place on the lid. The jaws must be in contact with the edge of the lid.EN

• The removeable control module is designed to make it easier to clean your NutriCook.

• Once you remove the timer, the pan and lid are dishwasher safe.

• The control module comprises all of the components needed for your NutriCook to operate. Once mounted on the lid, your NutriCook can be used normally. To remove the control module from the lid:

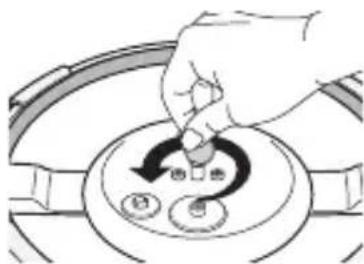

• Unscrew the module retaining nut using a coin, while holding the module in the other hand.

• Turn the lid over and remove the control module. To fit the control module on the lid:

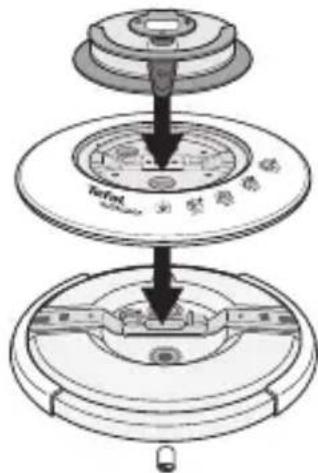

• Position the crown on the lid, with the vent for the automatic air ventilation system (B) aligned over the grey valve.

• Position the module, with the handle down, on the lid.

• Turn the complete assembly over while holding the module against the lid and tighten down the retaining nut using a coin. The crown and control module will only fit one way. Never use NutriCook without the crown. Minimum filling When cooking directly in the cooker:

• Always pour a minimum amount of liquid of at least 250 ml (two glasses) into the NutriCook Fig. 3. For steaming:

• At least 750 ml of water must be poured in.

• Place your steaming basket filled with food into the bottom of the cooker Fig. 5. If your NutriCook was heated without any liquid inside:

• Have your NutriCook inspected by a TEFAL Approved Service Centre. Food placed in the steaming basket must not touch the NutriCook lid.6 Maximum filling

• Never fill your NutriCook more than two-thirds full (the maximum mark) Fig. 4. For some food:

• For food that expands during cooking, like rice or dried vegetables or stewed fruit, never fill your NutriCook more than half full Fig. 6. Using the steaming basket

• Pour 750 ml of water into the cooker.

• Place the steaming basket into the bottom of the cooker Fig. 5. Using the programme selector

• The recipe book that comes with your NutriCook shows you which programme to select for each recipe.

• Generally, the cooking programmes correspond to:

• However, for some recipes that mix multiple types of foods, the programme has been chosen and validated by our Chef to guarantee you the best texture and taste.

• If you wish to innovate and create your own recipes or cook ingredients that are not listed in the tables given at the end of this manual, we recommend you follow these instructions: "prog 1" for vegetables, "prog 2" for starchy foods (or recipes containing at least one starchy food), "prog 3" for meat and poultry and "prog 4" for fish and shellfish.

• Depending on the cooking programme chosen, the soft steam phase lasts : "prog 1" = 4 min, "prog 2" = 6 min, "prog 3" = 10 min, "prog 4" = 4 min.

• Cooking with frozen ingredients has no effect on the cooking programme selected.

• For soups, we recommend that you choose "prog 2". Vegetables Starches Meat Fish and Seafood prog 1 prog 2 prog 3 prog 4EN

• NutriCook is not an ordinary pressure cooker, for TEFAL has innovated how best to preserve the food's nutritional qualities and especially how to bring out the full taste of every dish prepared.

• Every cooking programme includes a soft steam phase while finishing cooking, to bring out the taste in the food. Fast and powerful when starting cooking, the steam becomes mild and moderate towards the end.

• The two cooking phases, limit the possibility of overcooking, to ensure perfect cooking with the best taste and texture, plus the optimum preservation of nutrients and vitamins.

• To make it easier to use your NutriCook, the timer is there to help and guide you through your recipes. Fitting and removing the timer

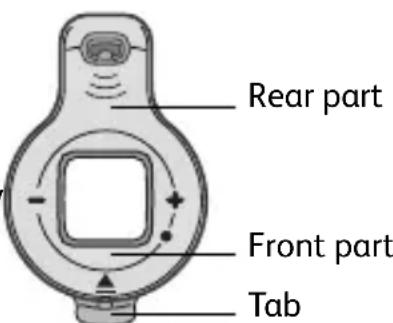

• To fit the timer (C) Fig. 7, first insert the rear part, then clip down the front part.

• To remove the timer (C), press the tab and lift it. Cooking always takes place in two phases:

• The duration of the first pressure phase is directly linked to the chosen recipe or the kind of ingredients to be cooked, and this is the time you need to programme on the timer using the – and + buttons.

• The second soft cooking phase is pre- programmed into the timer and follows on automatically. All you have to do is follow the guide.

• You can switch the timer off at any time by pressing simultaneously on both buttons.

• During cooking you can change the cooking time only if the timer is positioned on the NutriCook. During the soft steam phase, you cannot modify the cooking time. Rear part Front part Tab Never open your NutriCook before the end of the soft cooking phase, as you could stop the cooking process before the ingredients are fully cooked. Refer to the "End of cooking" heading.8 I close NutriCook

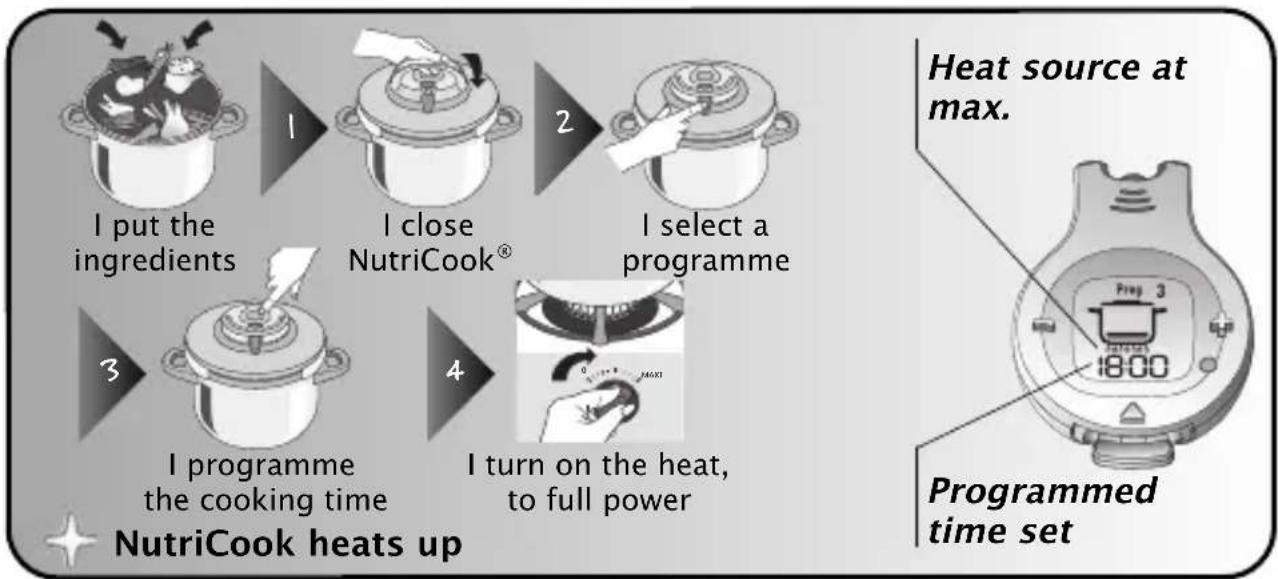

NutriCook heats up I select a programmeI programme the cooking timeI turn on the heat, to full power

MAXI Programmed time set Heat source at max. I put the ingredients

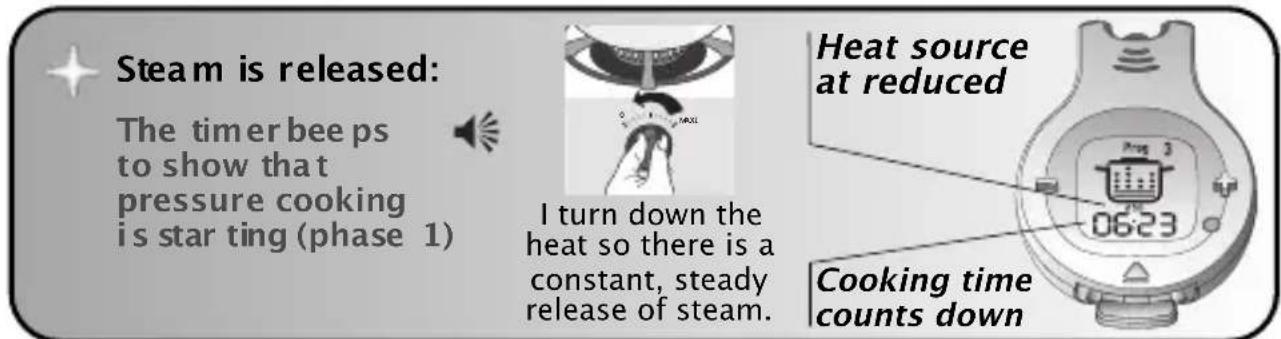

I turn down theheat so there is aconstant, steadyrelease of steam.

Heat source at reduced Cooking time counts downI turn off the heat

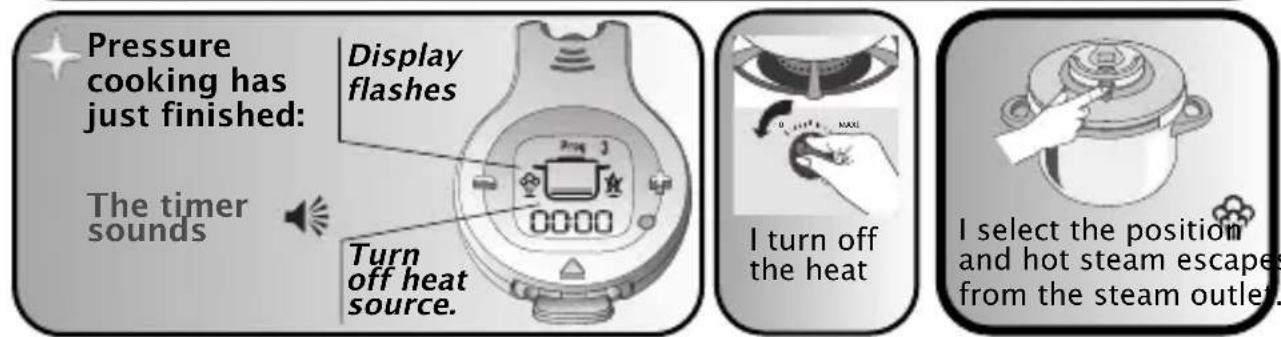

MAXI Pressure cooking has just finished: The timer sounds I select the positionand hot steam escapesfrom the steam outlet. Display flashes Turn off heat source. Soft pressure cooking (phase 2) automatically starts: I do not open the cooker until the end of phase 2 AUTOMATICALLY PROGRAMMED

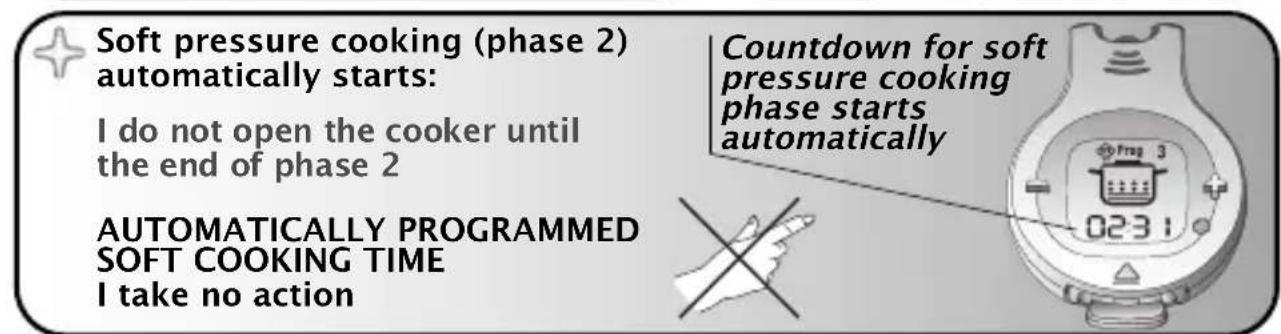

I take no action Countdown for soft pressure cooking phase starts automatically I open my NutriCook® Never force the pressure cooker open, make sure the pressure indicator is down in the normal position. Soft pressure cooking ends: The timer sounds to show that the recipe is finished. To stop the timer beeping, press the + or - buttons once.EN

• The battery life depends on how often the timer is used. However, when you note that the display is completely or partially lost you should remove the battery.

• To contribute to protection of the environment, remove the used battery. Do not throw it away with the household waste but dispose of it at a specialist collection centre. The timer battery is a lithium manganese button battery. It complies with European regulations.

• You can replace the timer's battery ref CR2032 or have it replaced by a retailer authorised for this type of service.

• To remove the battery from the timer, open the battery compartment Fig. 11.

• Always gently close up the battery cover, never forcing past its stop point Fig. 11. Recommendations for use:

• Never force down the battery cover when closing it.

• If you lose the cover, you can obtain a replacement from all TEFAL Approved Service Centres. If the timer flashes continuously with rapid beeps Make sure that:- The timer is in place on the NutriCook - A cooking program has been selected- When storing the lid upside do'wn, the lid does not press on the + and - buttons. ERROR MESSAGE IMPORTANT

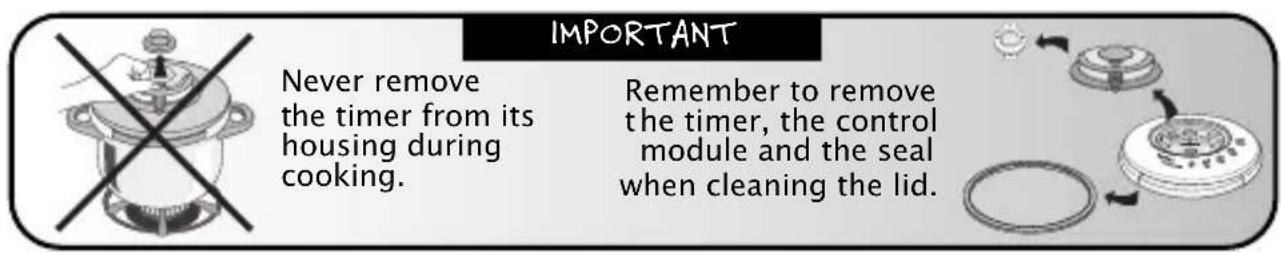

Remember to remove he timer, the controlmodule and the sealwhen cleaning the lid.Never remove he timer from itshousing duringcooking.10 First use

• Fill the NutriCook to the two-thirds mark (the maximum mark) with cold water.

• Place the steaming basket in the NutriCook.

• Close the NutriCook.

• Move the pressure selector to "prog 4".

• Set the timer for 20 minutes.

• Place the NutriCook on a heat source set to maximum power.

• When the signal sounds, the timer indicates that you need to turn the heat down so there is a constant, steady release of steam Fig. 12. The pressure cooking phase starts:

• Once the pressure cooking phase is finished, the beep sounds and the timer indicates that you need to turn off the heat and move the cooking programme selector (F) to Fig. 8.

• Hot steam, and possibly droplets of water, escape from the steam outlet (A) in a vertical direction. The soft pressure cooking phase starts (this time is ready programmed):

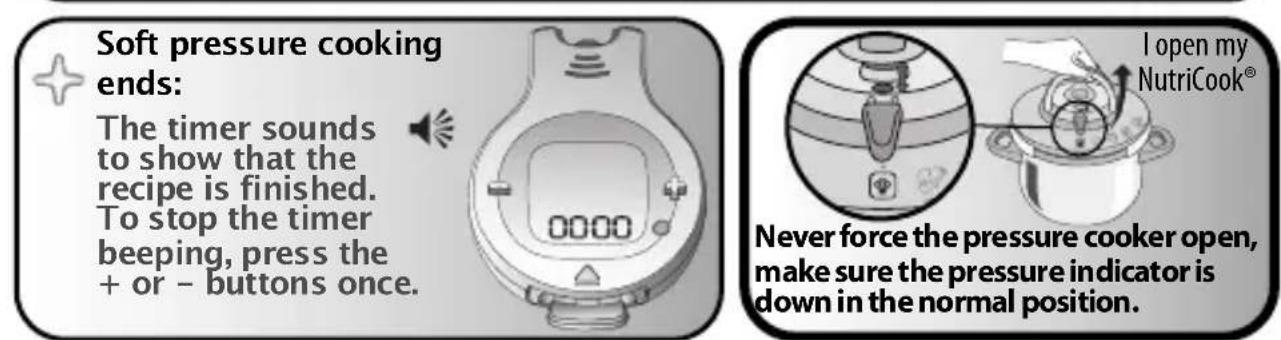

• When the soft pressure cooking phase is finished, the timer's beep sounds indicating that cooking is finished. .

• Check that the pressure indicator (D) has dropped back down.

• Raise the Open/Close handle to the vertical position to open the lid Fig.1.

• Remove the timer, rinse the NutriCook and dry it. Using NutriCook Before cooking

• Every time you use your cooker, first check that the control module is correctly fitted and tightened (using a coin) and check that the operating valve (L) located inside the lid can move, by moving the programme selector (F) to "prog 1" and pressing the decompression valve (O) with your finger Fig. 17.

• Also check that the safety valve (M) can move: see Fig. 18and refer to the "Cleaning and Maintenance" heading. Always position the NutriCook so that the selector faces you. Never force the pressure cooker open, make sure the pressure indicator is down in the normal position. decompression valveI open my NutriCook ®EN

• Close the NutriCook.

• Move the selector to one of the programmes as shown in your recipe book Fig. 9.

• Programme the timer for the cooking time shown for your recipe Fig. 10.

• Place the NutriCook on a heat source set to maximum power. During cooking

• When the first signal sounds, the timer tells you to reduce the heat. Pressure cooking starts and the timer counts down:

• At the end of the pressure cooking stage, when the second signal sounds, the timer tells you to switch off the heat and set the cooking programme selector to Fig. 8.

• A jet of hot steam, and possibly droplets of water, escape from the steam outlet (A) in a vertical direction. The soft pressure cooking phase starts (this time is ready programmed):

• If you accidentally open your NutriCook during the soft cooking phase, close it back up immediately, and this will have no effect on cooking.

• Never remove the timer during the pressure cooking or soft pressure cooking phases. Finishing cooking

• At the end of the soft pressure cooking phase, the third signal sound from the timer indicates that cooking has ended.

• Check that the pressure indicator (D) has dropped back down.

• Raise the Open/Close handle to the vertical position to open the lid Fig. 1. Cleaning and maintenance

• For best operation, be sure to follow these cleaning and maintenance recommendations every time the NutriCook is used.

• After each use always wash the NutriCook as directed below. Wash the basket in warm water with a little washing up liquid. Always position the NutriCook so that the programme selector (F) faces you. Just like for any other cooking appliance, always pay close attention to it, especially when using NutriCook near children. The steam jet coming from the steam release outlet (A) is very hot. Never leave food in the NutriCook. To move NutriCook, use the carrying handles on the side of the cooker.12

• Never use bleach or chlorine products as these could permanently damage of the stainless steel.

• Do not use steel wool. To clean the inside of the NutriCook

• Clean it with a scouring pad and washing up liquid.

• If the inside of the stainless steel cooker shows iridescent reflections, or white spots left by hard water, clean with a solution of equal parts water and vinegar. Leave for 10 minutes. Rinse and dry completely.

• You can wash the NutriCook pan in the dishwasher. To clean the outside of the NutriCook

• Clean it with a sponge and washing up liquid.

• For tough staining on the outside of NutriCook use a special stainless steel polisher and cleanser from a hardware store. To clean the NutriCook lid

• Clean the lid with a sponge and washing up liquid.

• You can wash the lid in the dishwasher after first removing the timer, the control module and the seal.

• If the decorative crown (G) becomes discoloured by food (carrots, oranges…), rub it with a cloth dipped in a little cooking oil, then rinse it.

• To clean the steam release valve: remove the control module and clean the lid under running water. Visually check that the operating valve outlet is not blocked by holding it up to the light Fig. 14.

• If you accidentally remove the base of the automatic air removal system, refit it by pressing and turning it simultaneously. To clean the lid seal

• After using the NutriCook, always clean the seal (H) and its groove.

• Wash the seal using a sponge and washing up liquid.

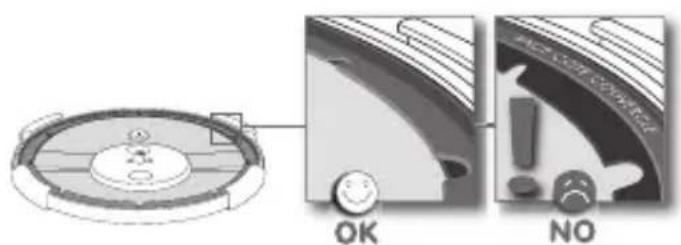

• To refit the lid seal, refer to the drawing Fig. 15 and ensure that the words "face côté couvercle" are against the lid. Never place the timer under running water or in the dishwasher. Automatic air release system base Never wash the seal in the dishwasher.EN

To clean the control module and the valves

• Remove the control module from the lid and remove the timer: see the "Control module" heading.

• Wash the module under a gentle flow of running water.

• Visually check that the steam release outlet (A) is not blocked by seeing light through it as shown in Fig.16. If it is blocked, clean it under running water. Refit the control module.

• Check that the operating valve (L) located inside the lid is mobile, by moving the program selector to "prog 1" and pressing with a finger Fig. 17. You can only do this when the module is fitted on the lid!

• You can clean this valve under running tap water.

• Also check that the safety valve (M) works properly by using a cotton bud (for example) to press down hard on the centre of the pipe, a part that should move Fig. 18. You can clean this valve under running tap water.

• You can also wash the control module in the dishwasher, after taking care to remove the timer.

• Check that the steam release outlet seal (K) is in place. If this seal is missing or has been damaged, leaks may appear under the module when your NutriCook is in use. The shape of the seal lets you easily remove and refit it. If necessary, you can get replacement seals from a TEFAL Approved Service Centre.

• Check that the pressure indicator (D) is clean. It can be cleaned under running tap water. To clean the timer

• Use a clean dry cloth.

• Never place the timer under water. Never dismantle the control module. Don’t forget to remove the timer before cleaning the control module by hand or in the dishwasher. Never use a cutting or pointed object to clean the safetly valve (M). Never place the timer in the dishwasher.14 To store your NutriCook

• Turn the lid over and place it on the NutriCook body. Safety

• Your NutriCook is provided with a number of safety mechanisms. Lid closure safety

• The jaws should be in contact with the lid edge. If this is not the case, then steam will leak from around. The pressure indicator and NutriCook will never come up to pressure. Opening safety

• While NutriCook is under pressure, the open/close handle cannot be activated as the mechanism is locked down by the pressure indicator.

• In this case, never attempt to force the NutriCook open, but move the selector to to the pressure indicator drops (D) back down before opening your NutriCook. Excess pressure safety features

• NutriCook has two excess pressure safety features:

• First feature: the safety valve (M) releases pressure and the steam will escape under the control module Fig. 19.

• Second feature: the seal (H) lets steam escape between the lid and the base Fig. 20.

• If one of the two excess pressure safety systems is triggered: - Turn off the heat. - Do not move the cooker or turn the programme selector (F) to the steam release position. - Allow the NutriCook to cool down completely by standing at room temperature. - Open it up. - Check and clean the operating valve (L), the steam release oultet (A), the safety valve (M) and the seal (H).EN

Recommendations for use

1 - The steam is very hot when it leaves the operating

2 - As soon as the pressure indicator rises, you can no

longer open your NutriCook. Never tamper with this pressure indicator.

3 - Just like any other cooking appliance, always pay

close attention to your NutriCook during use in the presence of children.

4 - Beware of the steam jet. when turning the pressure

selector (F) to the position.

5 - To move your NutriCook, always use both of the

carrying handles on the side.

6 - Never leave food in your NutriCook.

7 - Never use bleach or chlorine products as they could

affect the finish of the stainless steel.

8 - Never leave the lid to soak in water.

9 - Replace the sealing gasket (H) every year.

10 - Always have your NutriCook checked by a TEFAL

Approved Service Centre after ten years of use.

11 - Never force on the opening/closing handle to open

NutriCook. Guarantee

• Your new TEFAL NutriCook comes with a ten year guarantee on the Nutricook pan provided that the appliance has been used according to these instructions. This guarantee covers: - Any defects relating to the metal structure of the NutriCook pan, - Any premature deterioration of the metal base.

• For other parts, a one year parts and labour guarantee is provided (except where applicable law in your own country states otherwise). This guarantee covers any manufacturing defects.

• The guarantee is only valid on presentation of a proof of purchase showing its date of purchase. The guarantee cover excludes:

• Any damage caused by misuse or improper handling of the product or not used in accordance with the instructions, especially:16 - Dropping, falls, placing in an oven…

• Only TEFAL Approved Service Centres are authorised to provide service under guarantee.

• Please call the Helpline for the address of your nearest TEFAL Approved Service Centre. If you have any problems or queries please call our Customer Relations team first for expert help and advice. Regulation markings Marking Location Manufacturer's identification or trademark. Decorative crown. Year of manufacture, Equipment identification / model reference. On the top of a jaw, visible when the cover is in the "Open" position. Max. operating pressure Max. safety pressure. On the control module, when the module is removed from the lid. Capacity. On the outside of the NutriCook pan.EN

TEFAL answers your questions Problems Recommendations If you cannot close the lid: Check that the Open/Close handle is in the vertical position. Check the way up the seal is fitted, see the "Cleaning and Maintenance" heading. If the NutriCook has heated up under pressure with no liquid inside: Have your NutriCook inspected by a TEFAL Approved Service Centre. If the pressure indicator did not rise and nothing escapes from the valve during cooking: Check that: - The cooking program selector is set to one of the cooking programmes. - Your NutriCook is properly closed. If the pressure indicator has risen but still nothing escapes from the valve during cooking: This is normal for the first few minutes. If the problem persists, select the . programme. Wait for the pressure indicator to drop then move the Open/Close handle to the vertical position. Clean the operating valve and steam release outlet under running water and check that the safety valve moves Fig. 17. See the "Cleaning and Maintenance" heading. If steam escapes from around the lid, check: That the lid is properly closed. The position of the lid seal is the correct way up. That the seal is in good condition, and if necessary, replace it. That the lid, the seal, its seat in the lid are clean. That the edge of the NutriCook pan is in good condition.18 Environment protection first! i Your appliance contains valuable materials which can be re- covered or recycled. ‹ Leave it at a local civic waste collection point Problems Recommendations If steam escapes from around the lid together with a piercing noise, check: That the seal is not caught between the body and the lid. If you cannot open the lid: Check that the selector is set to . Check that the pressure indicator is down. If not: release pressure. Never tamper with this pressure indicator. If food is not cooked or has burnt, check: The cooking time is correct. The heat level was neither too low nor too high. That the cooking program selector was in the right position. The amount of liquid was sufficient for the cooking time. If food has burnt in the NutriCook: Fill the pan with water and leave the NutriCook to soak for a while before washing. Never use bleach or chlorine products. If one of the safety systems is triggered: Turn off the heat. Leave the NutriCook to cool down without moving it or turning the programme selector (F) to the steam release positon. Wait for the pressure indicator to drop down and open the NutriCook. Check and clean the operating valve, the steam release outlet, the safety valve and the seal. If the fault persists, have your NutriCook inspected by a TEFAL Approved Service Centre. If the decompression valve (O) is disassembled: Have your NutriCook
