Thank you for choosing our Baby monitor Expert Care. We recommend you read these instructions carefully in order to use your Baby monitor to best advantage and ensure it continues to operate as long as possible. If you should find a fault, however, or if you have any problem, please contact our company.

IMPORTANT: This baby monitor uses low emission power, in order to protect baby's health. The receiver and the transmitter don't communicate continuously, in order to limit the emission of radiations in the room. When baby cries, the system is activated immediately to alert parents; when the baby doesn't cry, the transmitter and the receiver communicate only each 20 seconds to check the good communication

FUNCTIONS

• Range 1,000 m in an open space.
• 2 channels + 8 digital codes (total of 16 sub-channels) to offer a high degree of protection against all kinds of interference.
• Receiver fitted with a lithium battery that recharges on its base.

• Alarms : audible, visual and vibrations on the receiver
  • Volume control on the receiver.

• Gentle night light on the transmitter.

• Microphone sensitivity can be adjusted digitally on the transmitter.
• Audible and visual alarm on the receiver when the transmitter is out of range.
• Battery condition indicated on both the transmitter
  er.and receiver, and alarm when batteries need changing or recharging.

WARNINGS

• The Baby monitor Expert Care should not be seen as a medical device. In addition to using Baby monitor Expert Care, it is strongly recommended that an adult checks on your baby directly, on a regular basis. Premature babies or children considered to be at risk should be monitored by your pediatrician or a health professional.
• Never go away from your baby outside the house, even a short moment.
• Non-rechargeable batteries are not to be recharged.
• Rechargeable batteries are to be removed from the device before being charged.
• Different types of batteries : new and used batteries, or rechargeable and not rechargeable batteries, are not to be mixed.
• Rechargeable batteries are only to be charged under adult supervision.
• Batteries are to be inserted with the correct polarity (+/-).
• Exhausted batteries are to be removed from the device.
• The supply terminals are not to be short-circuited.
• Always use the supplied battery for the receiver: if the battery is damaged it must be replaced by the manufacturer, the after-sales service or people with similar qualifications, in order to avoid any risk.
• For best performance of your babyphone, and to reduce any interference, we recommend you do not plug any other electrical appliance into the same socket as your babyphone. (Do not use multiple socket outlets).

POWER SUPPLY

A / Transmitter

1. Operation using batteries (not supplied)

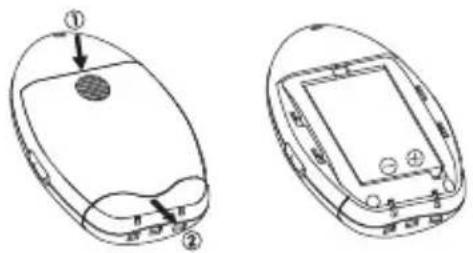

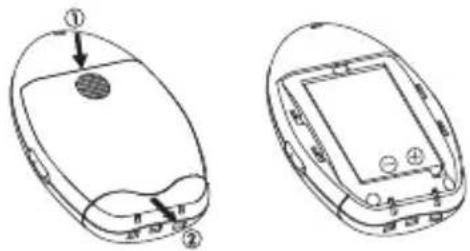

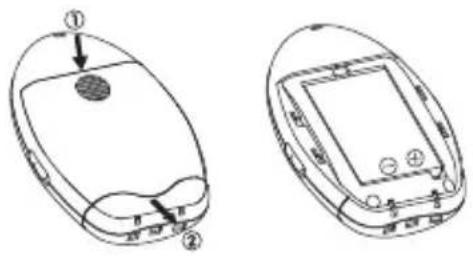

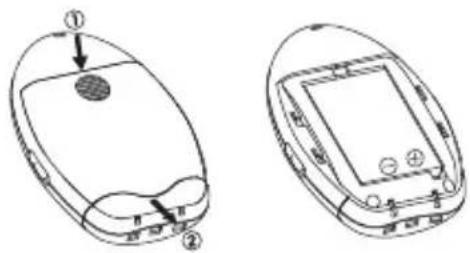

Press down the lock button and slide open the battery door. Insert three pieces AAA size (UM-4) alkaline batteries into the compartment. Observe correct polarities indication (+/-).

Diagram of a mobile phone with labeled parts and directional arrow indicating movement or change

Diagram of a battery pack with four positive and negative terminals (no text or symbols)

2. Operation using the (AC adapter supplied)

The transmitter can be operated on AC mains using the supplied 6V AC adapter. Connect the output plug of adapter to DC jack (7) of the transmitter. Connect the adapter to the mains. The power supply from the battery will be cut off once the receiver is mains-operating.

N.B.: The communication range is longest when the transmitter is operated on AC mains.

B / Receiver

1. Operation from battery pack

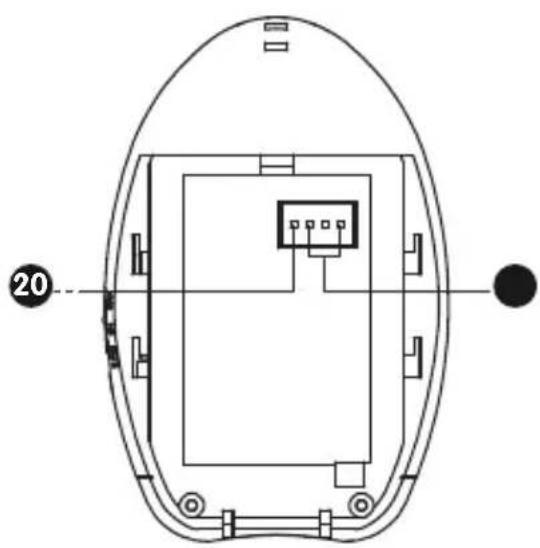

The Li polymer battery pack is already installed in the unit.

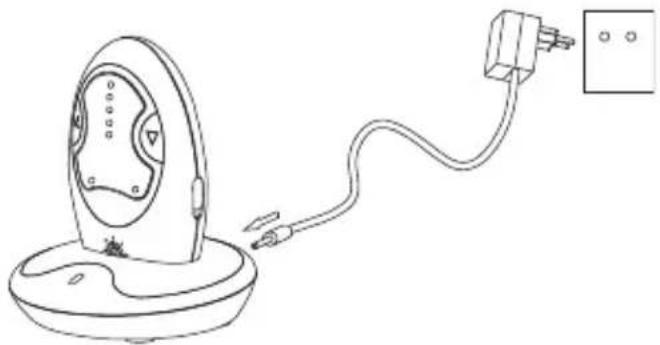

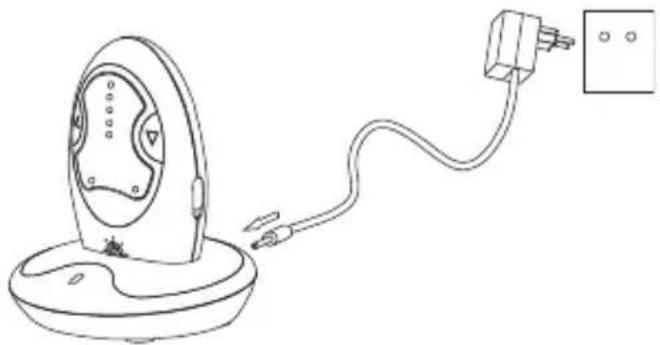

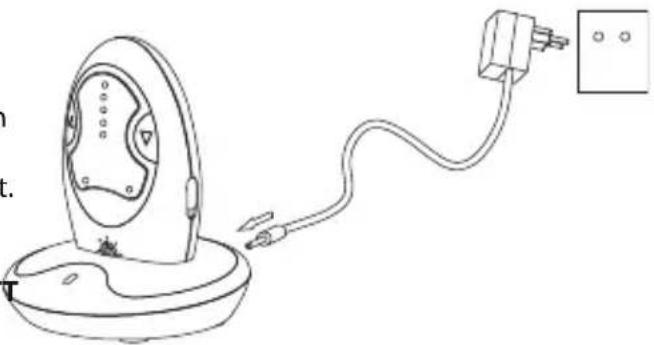

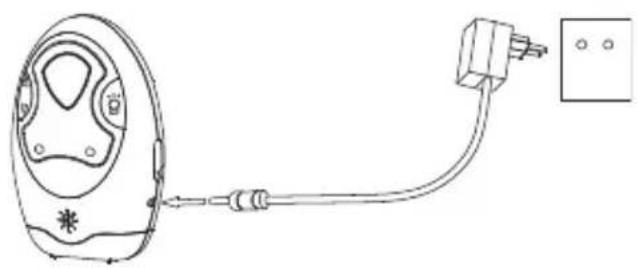

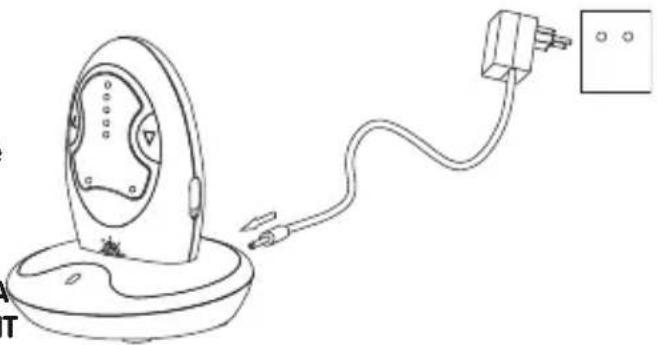

2. Recharging and operation on the base

Before using the receiver for the first time, make sure it is turned off and recharge it on its base. The charge indicator will show a red light. Once the battery is fully charged (average time 3 hours) the indicator will turn green. The receiver is then ready to be turned on and used. If you decide to leave the receiver on its base, when it detects that the charge level is too low the base will automatically start recharging the battery.

N.B.: TO ENSURE MAXIMUM LIFE FOR YOUR BATTERY, WAIT UNTIL IT IS COMPLETELY DISCHARGED BEFORE RECHARGING IT.

Line drawing of a medical device with attached electrical outlet (no text or symbols)

Two technical diagrams of a device with labeled components, showing front and side views (no text or symbols present)

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

SETTING OF CHANNELS

Your transmitter and receiver are already tuned to the same channel: you can use them immediately without carrying out this step. If you notice any interference, follow the procedure for setting your transmitter and receiver to another channel.

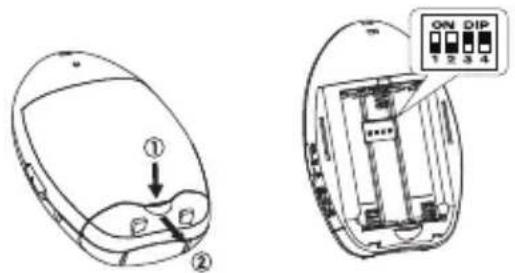

Transmitter

Press down the lock button and slide open the battery cover. Remove the batteries.

Technical diagram showing two views of a device with labeled parts and an ON/DIP indicator box

- With help of a pointed object, select one of the two settings of the channel selector (knob 1).

- Then select your digital code by choosing one of the eight possible combination with the knobs 2, 3 and 4.

Receiver

Press the latch cover and slide it to gain access to the battery compartment. Remove the battery. Proceed as for the transmitter to set the channel and numeric code. Make sure that the settings for the transmitter and receiver are exactly the same.

Diagram of a computer mouse with labeled parts and directional arrows indicating movement or orientation.

ON DIP 1 2 3 4

NB.: If you notice any interference when in operation, change channel or alter the numeric code combination. Make sure that you always keep the same settings for the transmitter and receiver.

CONTROLS LAYOUT

Transmitter

1. Nightlight
2. Microphone sensitivity adjustment
3. Transmit indicator
4. Microphone
5. Nightlight VOX control button
6. Power On-Off and Nightlight switch
7. Power on / Battery low indicator
8. DC Jack

Receiver

1. Visual level meter / Out-of-range indicator
2. Volume down
3. Vibration indicator
4. Speaker
5. Volume up
6. Power On/Off and vibration switch
7. Charging contacts

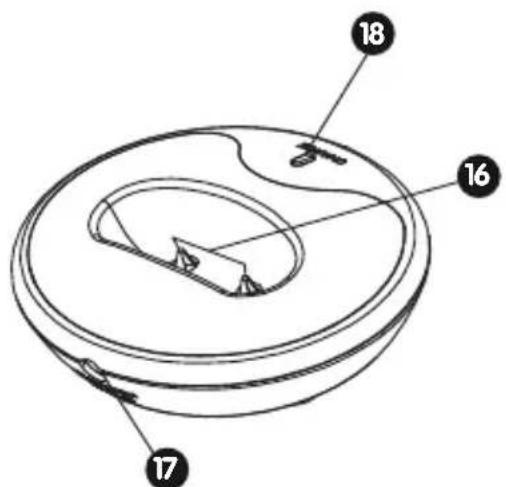

Charger

1. Charging pins
2. DC Jack
3. Charging Indicator

Transmitter and receiver

1. Channel switch
2. Digital codes switches

OPERATION

A / Transmitter

• Set the power ON/OFF switch (6) to ON position to turn on the unit. The power on indicator (7) will light up steady green.
• Place the transmitter about 1 m from the cradle, directing the microphone (4) towards the baby.
• Adjust the sensitivity of the microphone by using button (2): press upwards to increase sensitivity and downwards to reduce it (there are 5 levels).
• As soon as the transmitter detects a sound, the transmit indicator lights up red.
• The night light (1) can be set permanently ON by moving the power ON/OFF switch (6) to position ⚙. The night light can also be set to be VOX (voice activated) by momentarily pressing the button 5. Under VOX mode, the night light will be switched on once the microphone detects a sound and automatically goes off a few seconds after the microphone stops picking up any sound.
• The condition of the batteries is shown by the battery low indicator "Power" (7). When the battery power is being consumed, the indicator starts flashing.

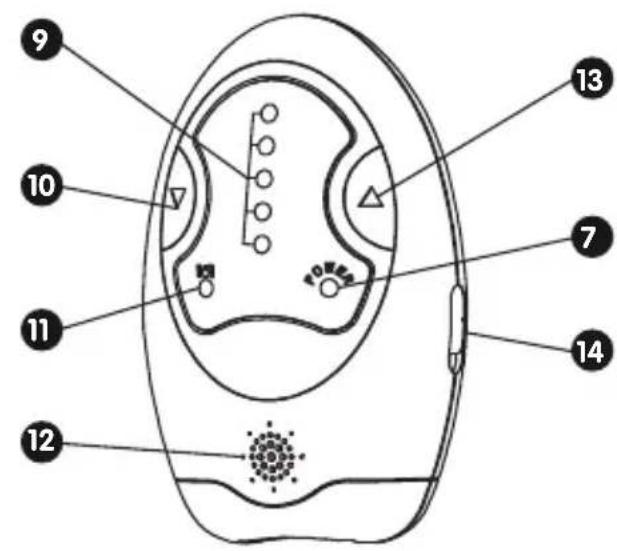

B / Reveiver

• Set the power ON/OFF switch (14) to ON position to turn on the unit. The power on indicator (7) will light up steady green.
• Place the receiver at a reasonable distance away from the transmitter to avoid feedback. Too close a distance will create a screeching sound.
• Once the unit receives a signal from the transmitter, the LED of the visual level meter (9) light up. The louder the baby's voice, the more number of LED will be lighted up.

• The loudspeaker volume can be adjusted by using buttons (10) and (13). Each time you press on one of these buttons, you will hear a "beep" whose volume corresponds to the level you have just selected. If you press button 10 to its lowest level, you will no longer hear a beep which means that your receiver is in mute mode.

• This unit is equipped with a vibrating alert. Set the power ON/OFF switch (14) to position 🔒, the vibration indicator (11) will light up. Once the received baby's voice is loud enough, the vibrator starts functioning. To save battery power, it is recommended not to use the vibrating alert frequently.

• Once the receiver is beyond the communication range of the transmitter for over 2 minutes, an out-of-range alarm will be heard and the LED level meter (9) starts flashing. The alarm will go off only when the receiver falls back within the communication range of transmitter.
  N.B.: This alarm will also be heard in case the transmitter is switched off, or its battery has run down, or its power is cut off, or the channel/digital code setting is different between the transmitter and receiver.
• The condition of the rechargeable battery pack is shown by the Battery Low indicator "Power" (7). When

the battery power is being consumed, the indicator starts flashing and an alarm can be heard.

- For more convenience, the receiver can be worn around the neck with a strap (supplied).

Simple line drawing of a mechanical component with a curved handle and a circular feature (no text or symbols)

PRECAUTIONS

• Use only the supplied AC adapters, use of other adapters may cause damage to the baby monitor
• When not using the monitor for as long period of time, remove all batteries from the transmitter and receiver to avoid damage due to battery leakage.
• Disconnect the AC adapter from the wall outlet when the monitor is not to be operated.

• The baby monitor is best performed within a temperature range of -9^ to +50^

• Do not leave the monitor expose to strong sunlight for a long time or nearby any heat source, moisture and excessive dusty environment.

• Do not open the cabinet, no serviceable part inside.
• Waste Electrical and Electronic Equipment should be disposed of by selective collection. Do not throw electrical and electronic equipment away with unsorted household waste, but dispose of it at a selective collection point.

ACCESSORIES

a. 6V AC adapter for transmitter
b. 6V AC adapter for rapid charger
c. Rapid charger
d. Transmitter unit
e. Receiver unit
f. Li rechargeable battery pack (installed in receiver unit)
g. Hand strap
h. User manual

Simple line drawing of a plug and its terminal block (no text or symbols)

Simple line drawing of a resistor with a terminal connector and a separate cylindrical component (no text or symbols)

Simple line drawing of a biological cell with nucleus and cytoplasm (no text or labels)

C

Simple line drawing of a stylized object resembling a face mask or button (no text or symbols)

d

Simple line drawing of a biological cell or vesicle with internal structures and a labeled point 'e' (no text or symbols beyond the label)

babymooy 0+ babyphone Expert Care K-9 h

Problem Possible cause Solution
No transmission from the transmitter.	The microphone sensitivity is set too low.The batteries have run out or the AC adapter is not properly connected.	Increase the microphone sensitivity using the button 2.Charge up the battery of the receiver / install new batteries in the transmitter or check the connection.
Transmits without interruption.	The microphone sensitivity is set too high.	Decrease the microphone sensitivity using the button 2.
Out-of-range alarm activated without interruption.	The channel or digital code setting is not the same on the transmitter and the receiver.The batteries of the transmitter have run out.The distance between the transmitter and the receiver is greater than the operating range.	Set the same channel and same digital code on the transmitter and the receiver.Install new batteries or use the AC adapter.Bring the transmitter and the receiver closer to each other.
The out-of-range alarm is activated sometimes without reason	Interferences with other appliances operating on the same channel.	Change to another channel.
The battery low warning is displayed without interruption.	The batteries have run out.No battery inside the receiver.The battery is damaged.	Recharge the battery of the receiver using the charger base / Replace the batteries of the transmitter or use the AC adapter for the transmitter.Replace the battery in the battery compartment.Contact the customer service.
The battery life of the receiver is too short.	The night light is on permanently. Turn off the night light or set to VOX function.
The battery life of the transmitter is too short.	The vibration alarm is on. Turn off the vibration alarm.
A lot of static and interference.	The transmitter is located close to other electrical apparatus.	Remove the electrical appliances or move the transmitter away from the source of interference or change the channel.
Too short communication range.	A large number of steel structures between the transmitter and the receiver.Transmitter batterie has run down.	Reposition the transmitter and the receiver.Replace the batteries or use the AC adapter.
