MS0200 - Safe SentrySafe - Free user manual and instructions
Find the device manual for free MS0200 SentrySafe in PDF.
| Product Type | Fire-resistant safe |
| Brand | SentrySafe |
| Model | MS0200 |
| External dimensions (approx.) | 39.9 x 32 x 39.9 cm (H x W x D) |
| Weight (approx.) | 11.3 kg |
| Material | Steel with fire-resistant insulation |
| Power supply | 4 AA alkaline batteries (not included) |
| Locking system | Mechanical combination lock or LCD electronic keypad |
| Fire resistance | UL listed: 1 hour at 927°C (1700°F); drop and impact test |
| Water resistance | Tested: water spray 4000 L/min for 15 min + immersion 1 hour in 5.24 cm of water |
| Lock capacity | Up to 6 user codes (4-8 digits) + administrator code |
| Main functions | Fire protection, water protection, dual security (key + code), floor mounting possible |
| Maintenance and cleaning | Clean with a soft, dry cloth; do not use chemicals |
| Security | 2-minute standby mode after 3 wrong codes; audible and visual signal |
| Spare parts and repairability | Replaceable batteries; spare keys and combinations available through customer service |
| General information | Limited 2-year warranty; do not store jewelry, pearls, digital media or medications |
Frequently Asked Questions - MS0200 SentrySafe
User questions about MS0200 SentrySafe
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Safe in PDF format for free! Find your manual MS0200 - SentrySafe and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MS0200 by SentrySafe.

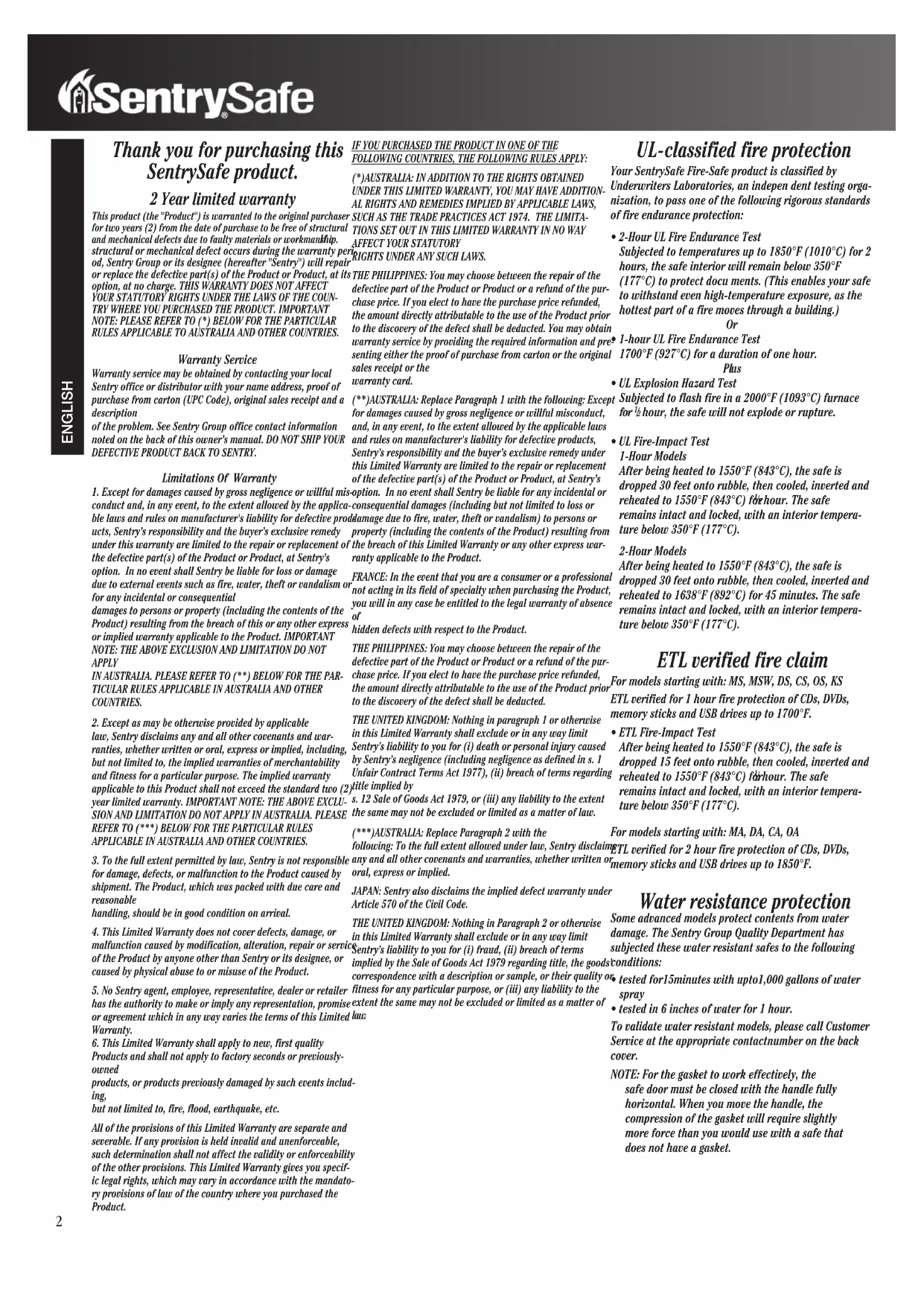

USER MANUAL MS0200 SentrySafe
Owner's Manual FIRE SAFBrand steel safesor information on using your safe's lock(s), please see pages 2-5. See back cover for Model and combination information.
FIRE SAFE
Thank you for purchasing this SentrySafe product. 2 Year limited warranty
This product (the "Product") is warranted to the original purchaser for two years (2) from the date of purchase to be free of structural and mechanical defects due to faulty materials or workmanship. Structural or mechanical defect occurs during the warranty period, Sentry Group or its designee (hereafter "Sentry") will repair or replace the defective part(s) of the Product or Product, at its option, at no charge. THIS WARRANTY DOES NOT AFFECT YOUR STATUTORY RIGHTS UNDER THE LAWS OF THE COUNTRY WHERE YOU PURCHASED THE PRODUCT. IMPORTANT NOTE: PLEASE REFER TO (*) BELOW FOR THE PARTICULAR RULES APPLICABLE TO AUSTRALIA AND OTHER COUNTRIES.
Warranty Service
Warranty service may be obtained by contacting your local Sentry office or distributor with your name address, proof of purchase from carton (UPC Code), original sales receipt and a description of the problem. See Sentry Group office contact information noted on the back of this owner's manual. DO NOT SHIP YOUR DEFECTIVE PRODUCT BACK TO SENTRY.
Limitations Of Warranty
- Except for damages caused by gross negligence or willful mis conduct and, in any event, to the extent allowed by the applicable laws and rules on manufacturer's liability for defective products, Sentry's responsibility and the buyer's exclusive remedy under this warranty are limited to the repair or replacement of the defective part(s) of the Product or Product, at Sentry's option. In no event shall Sentry be liable for loss or damage due to external events such as fire, water, theft or vandalism or for any incidental or consequential damages to persons or property (including the contents of the Product) resulting from the breach of this or any other express or implied warranty applicable to the Product. IMPORTANT NOTE: THE ABOVE EXCLUSION AND LIMITATION DO NOT APPLY IN AUSTRALIA. PLEASE REFER TO (^**) BELOW FOR THE PARTICULAR RULES APPLICABLE IN AUSTRALIA AND OTHER COUNTRIES.
- Except as may be otherwise provided by applicable law, Sentry disclaims any and all other covenants and warranties, whether written or oral, express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The implied warranty applicable to this Product shall not exceed the standard two (2 year limited warranty. IMPORTANT NOTE: THE ABOVE EXCLUSION AND LIMITATION DO NOT APPLY IN AUSTRALIA. PLEASE REFER TO ( ) BELOW FOR THE PARTICULAR RULES APPLICABLE IN AUSTRALIA AND OTHER COUNTRIES.
- To the full extent permitted by law, Sentry is not responsible for damage, defects, or malfunction to the Product caused by shipment. The Product, which was packed with due care and reasonable handling, should be in good condition on arrival.
- This Limited Warranty does not cover defects, damage, or malfunction caused by modification, alteration, repair or service of the Product by anyone other than Sentry or its designee, or caused by physical abuse to or misuse of the Product.
- No Sentry agent, employee, representative, dealer or retailer has the authority to make or imply any representation, promise or agreement which in any way varies the terms of this Limited Warranty.
- This Limited Warranty shall apply to new, first quality Products and shall not apply to factory seconds or previously-owned products, or products previously damaged by such events including, but not limited to, fire, flood, earthquake, etc.
All of the provisions of this Limited Warranty are separate and severable. If any provision is held invalid and unenforceable, such determination shall not affect the validity or enforceability of the other provisions. This Limited Warranty gives you specific legal rights, which may vary in accordance with the mandatory provisions of law of the country where you purchased the Product.
IF YOU PURCHASED THE PRODUCT IN ONE OF THE FOLLOWING COUNTRIES, THE FOLLOWING RULES APPLY:
(*)AUSTRALIA: IN ADDITION TO THE RIGHTS OBTAINED UNDER THIS LIMITED WARRANTY, YOU MAY HAVE ADDITIONAL RIGHTS AND REMEDIES IMPLIED BY APPLICABLE LAWS, SUCH AS THE TRADE PRACTICES ACT 1974. THE LIMITATIONS SET OUT IN THIS LIMITED WARRANTY IN NO WAY AFFECT YOUR STATUTORY RIGHTS UNDER ANY SUCH LAWS.
S THE PHILIPPINES: You may choose between the repair of the defective part of the Product or Product or a refund of the purchase price. If you elect to have the purchase price refunded, the amount directly attributable to the use of the Product prior to the discovery of the defect shall be deducted. You may obtain warranty service by providing the required information and presenting either the proof of purchase from carton or the original sales receipt or the warranty card.
(**)AUSTRALIA: Replace Paragraph 1 with the following: Except for damages caused by gross negligence or willful misconduct, and, in any event, to the extent allowed by the applicable laws and rules on manufacturer's liability for defective products, this Limited Warranty is limited to the repair or replacement of the defective part(s) of the Product or Product, at Sentry's option. In no event shall Sentry be liable for any incidental or consequential damages (including but not limited to loss or damage due to fire, water, theft or vandalism) to persons or property (including the contents of the Product) resulting from the breach of this Limited Warranty or any other express warranty applicable to the Product.
FRANCE: In the event that you are a consumer or a professional not acting in its field of specialty when purchasing the Product, you will in any case be entitled to the legal warranty of absence of hidden defects with respect to the Product.
THE PHILIPPINES: You may choose between the repair of the defective part of the Product or Product or a refund of the purchase price. If you elect to have the purchase price refunded, the amount directly attributable to the use of the Product prior to the discovery of the defect shall be deducted.
THE UNITED KINGDOM: Nothing in paragraph 1 or otherwise in this Limited Warranty shall exclude or in any way limit Sentry's liability to you for (i) death or personal injury caused by Sentry's negligence (including negligence as defined in s. 1 Unfair Contract Terms Act 1977), (ii) breach of terms regarding title implied by
s. 12 Sale of Goods Act 1979, or (iii) any liability to the extent the same may not be excluded or limited as a matter of law.
(^**) AUSTRALIA: Replace Paragraph 2 with the following: To the full extent allowed under law, Sentry disclaims any and all other covenants and warranties, whether written or oral, express or implied.
JAPAN: Sentry also disclaims the implied defect warranty under Article 570 of the Civil Code.
THE UNITED KINGDOM: Nothing in Paragraph 2 or otherwise in this Limited Warranty shall exclude or in any way limit of the Sentry's liability to you for (i) fraud, (ii) breach of terms implied by the Sale of Goods Act 1979 regarding title, the goods' correspondence with a description or sample, or their quality or fitness for any particular purpose, or (iii) any liability to the
The extent the same may not be excluded or limited as a matter of
UL-classified fire protection
Your SentrySafe Fire-Safe product is classified by Underwriters Laboratories, an independ dent testing organization, to pass one of the following rigorous standards of fire endurance protection:
2-Hour UL Fire Endurance Test
Subjected to temperatures up to 1850^ (1010^) for 2 hours, the safe interior will remain below 350^
(177^) to protect docu ments. (This enables your safe to withstand even high-temperature exposure, as the hottest part of a fire moves through a building.)
Or
1-hour UL Fire Endurance Test
1700^ (927^) for a duration of one hour.
Plus
- UL Explosion Hazard Test
Subjcted to flash fire in a 2000^ (1093^) furnace for 1/2 hour, the safe will not explode or rupture.
- UL Fire-Impact Test 1-Hour Models
After being heated to 1550^ (843^) the safe is dropped 30 feet onto rubble, then cooled, inverted and reheated to 1550^ (843^) for hour. The safe remains intact and locked, with an interior temperature below 350^ (177^) .
2-Hour Models
After being heated to 1550^ (843^) the safe is dropped 30 feet onto rubble, then cooled, inverted and reheated to 1638^ (892^) for 45 minutes. The safe remains intact and locked, with an interior temperature below 350^ (177^) .
ETL verified fire claim
For models starting with: MS, MSW, DS, CS, OS, KS ETL verified for 1 hour fire protection of CDs, DVDs, memory sticks and USB drives up to 1700^ F.
- ETL Fire-Impact Test
After being heated to 1550^ (843^) the safe is dropped 15 feet onto rubble, then cooled, inverted and reheated to 1550^ (843^) for hour. The safe remains intact and locked, with an interior temperature below 350^ (177^) .
For models starting with: MA, DA, CA, OA
ETL verified for 2 hour fire protection of CDs, DVDs, memory sticks and USB drives up to 1850^
Water resistance protection
Some advanced models protect contents from water damage. The Sentry Group Quality Department has subjected these water resistant safes to the following conditions:
^ 串 tested for15minutes with upto1,000 gallons of water spray
- tested in 6 inches of water for 1 hour.
To validate water resistant models, please call Customer Service at the appropriate contactnumber on the back cover.
NOTE: For the gasket to work effectively, the safe door must be closed with the handle fully horizontal. When you move the handle, the compression of the gasket will require slightly more force than you would use with a safe that does not have a gasket.
Instructions for floor mounting
This kit contains:
(2) lag screws, (2) washers, (2) masonry anchors (Fig.
Tools needed for floor mounting: Drill, wrench,
716" (11.0 mm) drill bit, for wood anchoring" (7.2 mm) drill bit, for masonry anchoring" (9.50 mm) masonry drill bit.
Instructions:
1 Tip the safe onto its right side. (Door hinges horizontal with the floor.)
2. Unlock the safe and open the door.
3. Look on the bottom of the safe for two indentations in opposite corners. Using the d^ (11.0 mm) bit, drill a hole through each indentation perpendicular to the bottom of the safe. (Fig. B)
4. Close the door and tip the safe upright. Place it when desired and reopen the door.
5. Use a screw or drill bit to mark the floor through bot holes. (Fig. C)
6. Move the safe aside to clear both marked spots for drilling.
7. Drill into the floor:
A.For wood:Using the32"7.2 mm)bit,drill a hole 2^1 / 2 (64mm) deep in each marked spot.(Fig.D) B.For masonry:
Using the 38 (9.50 mm) masonry bit, drill a hole 212 (64 mm) deep in each marked spot. (Fig. D) Install a masonry anchor in each hole.
- Replace the safe in the desired position, with the holes in the safe aligned with those in the floor.
- Securing the safe:
A. For wood: Pass each lag screw through a washer, then through the safe and into a hole. Tighten with the wrench. (Fig. E)
B. For masonry: Pass each lag screw through a washer, then through the safe and into a masonry anchor. Tighten with the wrench. (Fig. F)
NOTE: Drill holes through feet only, not through the back or sides.
NOTE: Bolting/unbolting of the unit is at the consumers expense and discretion. Sentry Group is not responsible for any costs incurred if the unit is to be replaced.
Lost combination or keys
IMPORTANT: Please read the following instructions carefully. For your protection, new keys CAN, and combinations CANNOT, be issued by telephone request. To order replacement keys and/or combinations, it is essential that you e-mail or fax to the Sentry Customer Service at the appropriate contact address or number on the back cover. If you need assistance in preparing your order, or wish to purchase via credit card (Visa/Mastercard only), please call Sentry Customer Service at the appropriate contact number on the back cover.
Lost combination: First, find your safe's Model and Serial Number, then call your local Sentry retailer. The Serial Number is on the back cover, and is also printed on the small label beside the door hinge (outside).
Lost keys: To obtain replacement keys, please contact your local Sentry retailer with the safe Serial Number. The Serial Number is on the back cover, and is also printed on the small label beside the door hinge (outside).
WARNING
This product is not intended for the secure storage of all materials. Items such as firearms, other weapons, combustible materials, or medication should not be stored in this unit.
WARNING
DO NOT store delicate items directly in your safe. SentrySafe products which offer fire protection have a patented insulation that has a high moisture content. In addition the SentrySafe advanced safes close airtight to offer water resistance, which may also cause moisture to accumulate inside your safe. The desiccant packet included in your safe during shipment, should be left in your safe. DO NOT DISCARD IT is intended to help absorb moisture which may accumulate inside your safe. Please open your unit periodically to avoid moisture accumulation.
If you choose to store delicate items such as jewelry with working parts, watches, stamps, or photos in your safe, we recommend putting them in an air-tight container, prior to placing them in the safe for storage.
NOTE: Sentry Group will not be responsible for any damage or loss of items placed in the unit due to moisture.
WARNING
DO NOT store pearls in this safe unit.
In the event of a fire, potential damage to delicate pearls occurs at temperatures much lower than the 350^ interior performance measure which the UL classification performance standard indicated guarantees. Therefore, DO NOT store pearls in your SentrySafe product.
WARNING
Nocomputerdisks,audio-visualmediaor photonegatives.
This product in not intended to protect computer flopp or 2-1/4" diskettes, cartridges and tapes, audio or video cassettes or photo negatives. For fire-resistant storage of these materials, ask your retailer for the SentrySafe Fire-Safe Media storage products.
IMPORTANT
Using a mechanical combination lock NOTE: It may be required to push the bolt button which in turn, will throw the bolts to a locked position while the door is open (Fig. G). Proceed to test your combination. The handle should be all the way UP, in the horizontal position before attempting to dial out safe. Your combina tion lock is now ready to use. You will find your safe's combina tion on the sticker on the back of the owner's manual. Depending upon the mode you chose, you will have either a 3-number or 4-number combination.
Dual security combination and key lock safes
For added security, some safes have a dual locking system. Combination anley are required to unlock dual locking system locks. NOTE: The safe will lock with or without key.
To unlock and open Insert the key in the lock and turn until the plunger pops out. Remove key.
Open first - test combination with door open!
3-NUMBER COMBINATION
See back cover of this manual for your combination.
NOTE: This combination cannot be changed.
Start at zero.
Turn dial right past ZERO 3 rotations. Stop at the first number of your combination after third rotation.
Turn the dial to left 2 rotations. Stop at second number on second rotation.
Turn dial to the right. Stop at third number on first rotation.
4-NUMBER COMBINATION
NOTE: Changing the combination voids your warranty. To reinstate your Limited 1-Year Warranty, (valid purchase dated receipt required) you must contact Sentry Customer Service at the appropriate contact number on the back cover to document your new combination.
Start at zero.
Turn dial to left 4 rotations past ZERO. Stop at the first number of your combination after the fourth rotation.
Turn the dial to the right 3 rotations. Stop at the second number on third rotation.
Turn the dial to the left 2 rotations. Stop at the third number on second rotation.
Turn the dial to the right. Stop at the last number on first rotation.
To close and lock
- Close door.
- Turn door handle to the horizontal position.
- Depress the key lock.
- Spin the combination dial for greatest security.
Electronic lock
Battery installation
Four alkaline AA batteries, (not included) are required.
NOTE: Non-alkaline and rechargeable batteries ARE NOT RECOMMENDED.
To install batteries: Turn the electric lock case to the right and remove. (Fig. H) Insert four new batteries as indicated, replace the electric lock case and turn to the left to reassemble.
Safes with an electronic and key lock
For added security, some models have a dual locking system. You MUST use both the electronic code and the key to open the safe.
To open your safe for the first time:
Install 4 AA batteries. (See instructions above.)
Turn the key to the right so that cylinder pops out. Enter the electronic lock code printed on the back cover. When the green PROCEED light comes on, you have four seconds to turn the handle down to open.
Open first - test combination with door open!
See back cover of this manual for your Factory Code. NOTE: This combination cannot be changed.

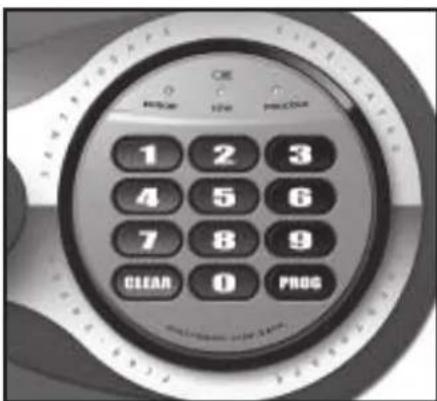

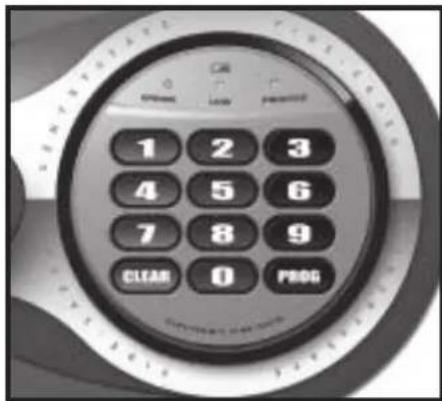

Using the keypad
Caution!
Liquids can damage the keypad!
Caution!
Pen points or other sharp objects can puncture the keypad membrane!
Only a light touch is needed. A green PROCEED light and a single beep indicate that the keypad "felt" your touch. The lock allows 5 seconds for each key press. After 5 seconds, 3 beeps will sound and a red light will blink. Start over if this occurs.

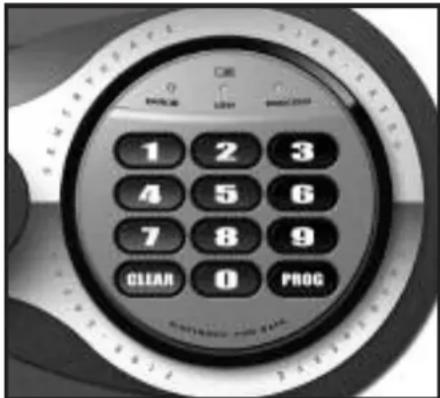

Basic electronic lock
Access codes
There are three ways to unlock the safe.
- Enter the preset 5-digit electronic lock combination. This code cannot be deleted and can always be used to open the safe - keep it secure!
- A 5-digit User Code of your choice can be programmed and changed as needed.
- For temporary access to the safe, you can program a 5-digit User PIN that can be erased or changed.
NOTE: All zeros is an invalid code.
Programminga5-digitUserID
- Press the Program key.
- Enter the electronic lock combination. The green LED remains ON while you enter the 5-digit User Code of your choice. After 5 digits are entered the green LED turns OFF.
To enter a new User Code, repeat these steps. To erase the User Code, press the Program key and enter your electronic lock combination twice.
Programming a 5-digit User PIN
NOTE: You must program a User Code before programming a User PIN.
- Press the Program key.
- Press it a second time.
- Enter your 5-digit User Code. The green LED remains ON.
- Enter the 5-digit User PIN of your choice. After 5 digits are entered the green LED turns OFF.
(To enter a new User PIN, repeat these steps. To erase the User PIN, press Program twice, enter your User Code and then enter 00000.)
Open first - test combination with door open!
Test your new electronic lock combination several times with the door open, to make sure you have recorded it correctly. Your new electronic lock combination is ready to use.
Record your User Code and User PIN here
User Code:
User PIN:
To unlock safe:
Enter the preset 5-digit electronic lock combination, a User Code, or a User PIN. When the green LED lights you have 4 seconds to turn the handle and open the safe.
To lock safe:
Close the door and return the handle to the horizontal position.
Battery replacement
The yellow LED will light when the batteries need to be replaced. No codes are erased when old batteries are removed for replacement. See "Battery installation" in the "Electronic lock" section for installation instructions.
NOTE: If your safe does not appear to be working, please check batteries before calling Sentry Customer Service.
NOTE: It is recommended you replace the batteries after two years, or when the yellow LED remains on.
Delay mode
The lock automatically enters a two-minute delay mode after an invalid code has been entered three consecutive times. In this mode, the lock can not be activated and any key entry will generate an ERROR signal.

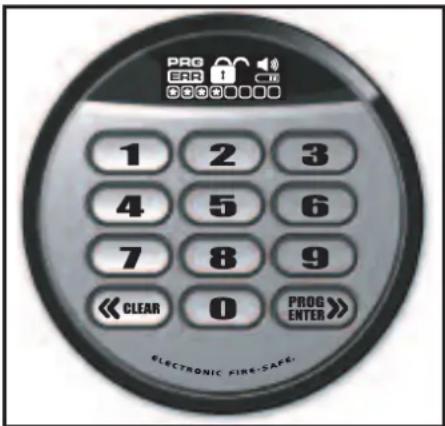

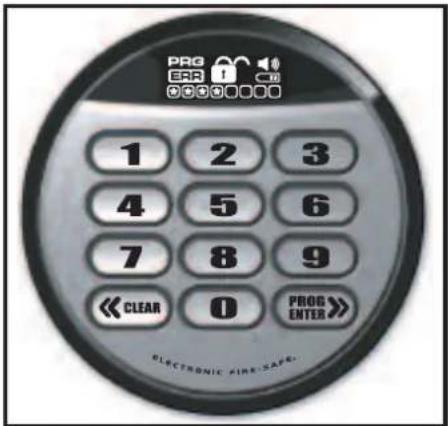

Advanced LCD electronic loci
For safes with an electronic lock and a key loc
For added security, some models have dual locking system (electronic lock plus key lock). You MUST use both the electronic code and the key to open the safe.
To open your safe for the first time:
Install 4 AA batteries. (See instructions under "Electronic lock".)
Turn the key to the right so that cylinder pops out. Enter the electronic lock code printed on the front cover, then press the Prog/Enter key. When the green PROCEED light comes on, you have four seconds to turn the handle down to open.
Using the keypad
Caution!
Liquids can damage the keypad!
Caution!
Pen points or other sharp objects can puncture the keypad membrane!
Only a light touch is needed. Press any button, the keypad lights up and a single beep will indicate that the keypad "felt" your touch. The lock allows 5 seconds for each key press. After 5 seconds, 3 beeps will sound and a red light will blink. Start over if this occurs.
Access codes
There are three ways to unlock and access the safe. Use one of the following, then press the Prog/Enter key:
- Enter the preset 5-digit electronic lock combination. This code cannot be deleted and can always be used to open the safe - keep it secure!
- A 4-8 digit Manager Code can be programmed and changed as needed.
- For temporary access to the safe, you can program up to six 4-8 digit User Codes that can be erased or changed.
NOTE: All zeros is an invalid code.
Open first - test combination with door open!
Test your new LCD electronic lock codes several times with the door open to be sure you have entered them correctly.
NOTE: To return to the beginning when inputting a programmed Manager, User or Factory Code, press CLEAR. You may then re-enter the Code.
NOTE: To turn the beeper on or off, press the 0 key and then the Prog/Enter key. (0, Prog/Enter)
Programming the Manager Code
NOTE: One (1) Manager Code is allowed. To add:
- Press the Prog/Enter key, then enter the 5-digit electronic lock combination and then press the Prog/Enter key.
- An empty lit box means no Manager Code is programmed. A boxed lighted *means a Manager Code is programmed.
- Enter a 4 to 8 digit code and press the Prog/Enter key to finish programming the code into the unit.
To delete:
- Press the Prog/Enter key, then enter the 5-digit electronic lock combination and then press the Prog/Enter key.
- A boxed lighted icon indicates there is a code programmed and can be deleted.
- Press 0, 0, 0, 0, then the Prog/Enter key to delete the Manager Code. (0, 0, 0, 0, Prog/Enter)
NOTE: To return to the beginning when programming a Manager or User Code, wait 5 seconds and the lock will time-out. You may then start over.
Programming User Codes
NOTE: Six (6) user codes are allowed.
To add:
- Press the Prog/Enter key 2 times, enter the Manager Code and then press the Prog/Enter key.
- Use the <
> to scroll between the lighted boxes. An empty box means it is available for a code entry; a boxed lighted *means it is being used. - Enter a 4 to 8 digit code in the selected position and press the Prog/Enter key to finish programming the code into the unit.
To delete:
- Press the Prog/Enter key 2 times, enter the Manager Code and then press the Prog/Enter key.
- Use the <
> to scroll to the boxed lighted * icon to be removed. - Press 0, 0, 0, 0, then the ProgEnter key to delete the selected user. (0, 0, 0, 0, ProgEnter)
NOTE: To return to the beginning when programming a Manager or User Code, wait 5 seconds and the lock will time-out. You may then start over.
To unlock safe:
Enter the preset 5-digit electronic lock combination, a Manager Code or a User Code and press the ProgEnter key. An asterisk will light each time a digit is entered. When the unlocked padlock icon appears you have 4 seconds to turn the handle and open the safe.
To lock safe:
Close the door and return the handle to the horizontal position.
Keep your Manager and User Codes secure
Maintain a record of your Manager and User Codes and store them in a secure location, other than in the safe.
Record your Manager and User Codes here
Manager Code:
User Code:
Battery replacement
The battery icon will light when the batteries need to be replaced. No codes are erased when old batteries are removed for replacement. See "Battery installation" in the "Electronic lock" section for installation instructions.
NOTE: If your safe does not appear to be working, please check batteries before calling Sentry Customer Service.
Icon identification
ERR (Error) indicates one of the following:
- You have pressed Program key out of sequence.
- You have entered an invalid code.
- You have let 5 seconds elapse between key presses.
PRG (Program)
Lights after pressing the Program key and stays lit while programming a Manager or User Code.
*Asterisk) indicates one of the following:
1. A number key has been pressed.
2. In Program mode, it signals a programmed code location.
Boxes
Light during programming and indicate code locations.
- An empty lit box means no code is programmed.
- A boxed lighted * means a code is programmed.
Padlock
Lights after three consecutive invalid codes are input and stays lit during the 2-minute delay mode.
Unlocked Lock
Lights when a valid code is entered. Indicates that the safe is unlocked and the door can be opened.
Battery
Lights when batteries are low indicating that the batteries need to be replaced soon.
Horn
Lights when the beeper is on.
Delay mode
The lock automatically enters a two-minute delay mode after an invalid code has been entered three consecutive times. In this mode, the lock can not be activated and the
PADLOCKED icon lights.
UL 0000000000000000000000000000000000000000000
Jolal Jlaa jlll lalil w gaiw aiai jaij
Lulai uwwo. Underwriters Laboratories uwwo
gaiuai ailll aaylll oaoe
aiiauiolglgjaiJaiJaiJai
juciuuui junui ULjui
a10 1.1 Jai aai aai aai yaaia jaiyaaia aai aai yaaia aai yaaia aai Lao (cuiyagai HAO) aai (cuayagai R) aai Ww qai ai ayai yai alal alai gai yajill Jai na ayai ai jai (Lao).
（a）
clw jol ULj
1V..Jai aJaa aiaa Jaa
J
juiy joloo ULj
gaiy 8. aclw/1.0al (aio 1-4) ci jgi
aijuiu
UL
aLdclw Jaojogoluyo
- 1 J L a b j a J a J a J a J a J a
Edison Testing Laboratories (ETL) DVD
1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 1J 0
11
ETL
- 100.
jLgicuiolaii
jblacw/aaol(aagnoAER)ccggi00.
a1Wj jai jia aaiagaii
11111111111111111111
OA.CA.DA.MA:
Edison Testing Laboratories (ETL)
DVD 1000000000000000000000000000000000000000000
aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ aJ a
10
sll
aill jaiil aigin aiaiial aygall gnn
ailll gblll slll aoglaal jlljll j
1,…ylluLaplanwnlyaa 10aalla
glll 100
aLw aol stalljao（aogy）da10f.8gJ Laii
aai juaai yjy slal uagall aoglee gaxill
aillll lglc gals pckl jkaai klae
Jus Jsi yuuiyio jai Lao yi:ihx
gaiall gaiall jaiy jaiy jaiy dciy jaiy
a aaa aa aaa aaa aaa aaa aaa aaa
1 1
12,11 (ii),111 (i) all
yie 14vA pIe IwI y
j 80200s0g1 ggs aagc g ggtt
a
1.10
(1)
y 1
4.1.10.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.
e
a
jaiill i jiy 2xii (aiial algina Jsi lal)
aaiiill kiaai bai yu g jiaao slg jiaao y
1
（）
5
y
Cgail, Cialalai aiS, g j 0j jui jaii
1
A
A
1.（Y）a#d a#dall a#d all jaiil
gaiy 0x10a1 gaiy aay aay yaiy
a aaaal aaiiie aagaaal jaiiaai
aagaaal 0 aaiiial
aiaeall jaa5yaleell aieeall aiee
j 8 j 10
yJxJyJyL
Jaleill JScg iluaio giaol jaiilal lige ayjll gaii
jg jgiiaai 1000000000000000000000000000000000000000
gill ju w g kao yie h j j jhail u jy
y 5381
1
gacgawallbllggljgsslloljg jyjai 1
aiall jayssll yalal aylanl qaae caiall lla 1/2 yll f 00 pao 10 a o ao yol g) yall bailg bailg abgall paxg. (aag) ayall g aabg aagagall gall g
#
glll gill lall plnni
gglg 11111111111111111111111111111111111111111111111111111111111111 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
aclaoJI aLoJU 1
J 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
ii.119 111111
uoll jie gaojai aag Jaiall gci liell lal
aJ1Lg-2gaijz ！
pLj81 aai 1
y j 1
aaii aaii aaii aai iai aiis
aic. 100000000000000000000000000000000000000000000000000000000000
aie aai jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy
211 1
J 10000000000000000000000000000000000000000000000000000000000000000000000000000000
jll jll l 1000000000000000000000000000000000000000000000000000000000000000000000
Ljolal pJ 0goll pssll gS J.
a plai aas 0gSall gann paaenell g5 Jlal
Lak, plai aas 0gSall gll Jlsj.
a.aaa 10gaball 25 a.bw gaaia 25 Jlss)
aioe ieie eaii piinai gann 11 (0000 jai iiai aai 5 Jjg (Program)
a 1 2g i j 2i 1
g0gJyolc, yoo 1LJI JIJI JAIJ: jaiiO
i
S J 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789
aJ Lg 2g1 aJg Jg
gaiol 5 jaoaill i gaii 10
cIaJI aJpI
1
1
1
a 1
slll jaii aaiil aaiil jaiil aaiie iaiin
jaiia gao jaii (PROCEED) jaiai iaii
jaii gao jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii
LwIg
2
.
LaaLoaLae! aill aaiagil plaaasll JsJ . 1. gsiSJIJIJI
1 1
00 p1 20000000000000000000000000000000000000000
piai aoe 0gSo paoiell gay gaoa oai.
oJia jai jai lijogao
puiuWU uioo, 1057, Lioi: iio
00g50 pisiinoo g5 aoyo 1
a a a a a a a a a a a a a a a a a a a a a a
aagj jyjg jyj gajg jyj gajg jyj gajg jyj
iie 1
JaaHg
.
Jg maJI 2gS1 J Lio pssuaJg
Jgssall2gS 1
J1
a a 11111111111111111111111111111111111111
Jai 1 Jao 8 gai 5 1 1 1 1 1 1 1 1 1 1 1 1 1
j0j1
:JU 1 (L)ERR, jy (Program)
C
= 23 - 32 = - 32
j j jie 100
（204）PRG
aiiaao Jbiq. (Program) aoyo, pio 100000000000000000000000000000000000000000000000000000
JzU LaoLaoLaoLao! a yIa aIyIaIyIaIyIaIyIaIyIaIy
cuii lii aaiinui 1sag sll iis s8
a>2110 111 a= 1000000000000000000000000000000
aai 1 aai jao aigso aai iai aai ayai
piaiWU 1uio juiyjuiyjui:
HctpyKnnn dna HanoIbHOYCTaHOBKn
$ kOMNNEXT XODAT:
260m c napnnae ronncnn, 2 wai6w.
2.2006a (puc.A)
HCTpymmentn dnnanbnoy yctahokm:dpB, raHHN KIOH Caeep 11.0 MM (73),dnepeepaHNO ochaaHc:ceepo 7.2 MM (33),pnaKamHNO ochaaHc:ceepo no 6etony 9.5 MM (34).
HCTpyqum:
- Tepesephne oepn ha npabyo chcxy (netnaa Aepu npoanbno).
- Onnpare ceiH ompoire aepuy.
3.HaHnre Ha dHnne celhaa ynyfene H apnoeBnOoNcx ynx.Cepyam 11,0mm(%") npocepnnt B o6ox ytyfneHnx OTBepCTn nepehnykynho nnay cefa (pnc.B).
4.3aepnre aepuy npeepnne cepn aepnkabno. Noctabe ero ha byspaHoe MECTO HIOBc oepnre aepuy. - Wypynom HIN caepnom KAMETBE OTBEPCTH a NOY yepea npocepneHNHEHN (pHc.C).
- CpaHHe ceHb cTropohy ot HameHHnx oraeepctw.
- RpocaepePnTe OTepCTm:
A. B depeeHHHOM nory: Caepn7,2 mm (%o)* npocepme orpncthe my6m8 64 mm (21* no kaxdo H3 oMeTox (pHc. D).
B.B KAMHOMMOY: CEBPMNO 68974,5 MM (%)" iPOCEEPNTTEOTBEPTME 6MHO 64MM (21 / 2)^ no KAOKH3 OTMETK (DHC.D). BCTABNEO6BENB KAKDEE HONEPCTHE.
- NOCTABBE CENH HAM EMEO, COOMECTME OTBEPCTN 8 PAAE COTBEPCTNNM NAOY.
9.3akpenme ceiΦ:
A. B depaehnnom nany: Bctaae arpyy mvepe 1 aai6 b oaepcnB eaepe m nany.3aannne kaoHOM (pnc.E).
B. B kameHHOM mony: BCTaBte uyyTm uepe3 wAeBb B OTBepCTM B oaeFe M E doBenX. 3aHnHrE KNOHOM (GNC.F).
BHMMHHE: CepnBt otepTME MOHO TOHNO HOMAX, NO HE CTREMAX.
BHIMAHHE: MomrAn H demovrak ceiHa apom3oB DATCR 3a CHET H no ycmotpemno 2a3a4Wka. Komnna Sentry Group Me Mecet otberctbH NOCTH 3a paocdmo no 3aeme ceiHa.
Iotepa koda nn KnoueH
BAXHO: BMMATENHNO pOHTHE cAeYIOue HNCTpyuM. B qenrX aauw SEaONACnOCTN MOaBHe KAAOM MOY, 2 KOy HE MOYT 6bIb 3K33AHNo TneTePOWy. IaR ZAMeWM Xooye HN KQa npWIMnHMAo BAHO oBpATbC C 3anPocom A KINHEmTCKy OcXy6y KOMnAMM Sentry no 3AKTPOHNHO NOTE HN No PAcXy. (CM. 3aJMAKO CTOPOMY 60000.) Ecm SAM nortpe6yETCN NOMOU b 3aONOWEMM 3akzA3a HN 3aXOTHTE OvATMTB erO no KpeDTHMO Kapre (TObAO Visa/Mastercard), 03BOWNTE B KAMENTCKyo cAYx6y KOMnAMM Sentry no TneFOHy M3 3aJDAVH CTOPOME 60000.
NotepKa:HaHJrmeMoAeBmKcepnHmHcmep CeHgMIO3BOHTMECHOMYTOPOBOMy npOCTaIeNIO KOMnAHsSentry.CepnHmHcmep HaneVATAN HA Zaehn CTpaHne OeNnKmHa aepnHoe pRacmC metn (chapx).
Norepa knovei: Dae sambnckowcofoane MEcTHOMy TropoMnympctantno kompanh Sertby cepmkm oep cedfa. Cepmkm hcmep manenatan Ha 3adne ctpaHnue oOAnnnn Hk npbve padom C metn (chpyx).
A INPEDyTNPEKDEHME
372 kogambe He npepnabnae hao
dai kaidokoro xapnemk n650
kaepnakos. He npoeonk npanekno
Oncetpnsne Hnpocp opyns.
npoohm Mntipnbln 1MauKDMHt.
PNEyPEXKDEHNE
HE XPAHHTE xynnne Hxnnhhe Bnennncnne nncnne bennnnoe
PnaneHOBaHHK HONHmHecropaemix KdEeN
SentrySafe oepknt Maepknt bocokn BncknoCTM.
Kpme TOrO, dAeObcneHHe aodophenpoHApMeoCTN
ycoepeaeXCTBOBAAHMe cefo SentrySafe
3akpaanotre repetmHn,TO Taee Mocet BcBtB
8 HIX COnONHE BIAF, BnoseHHe npn noctabe
MAKETbO CyUHTBnD OAnHMe OCTBaTbC HHTPN
cefo. He BBIPACbIBAHTE 3TN NAKETbl.
Oh npaeaaene Hn nnoaennnnae nn, oxnnnnae aee anrnnnne ae. So koeane enonner nannnne nepeoennnne onpaaeine eep.
Xpynne H NEXONNE pnpma (apcunennoct
CIOBNNHANN HAETNN, HACU, MAPKIN KIN FOOTPOHN)
PEKOMENDAM XpAHTN, PNDAPATENBO NOECTN
B REPMENNAI KONTEHEP.
BHMHAHME: Komnnaa Sentry Group He hocet OTaETCTBENHOCT 3a nopeKemHe Mm ytpary NOMeHennbX cenphi npedmetos BCnectme ENAMMOCTK.
PDEyIPEXKDEHNE
HE XPAHNTE a ceiiee xemeyr.
Pnnoaep nopege HneHro meyra npocqat np Tne Tnepatypax roaspdo Hoee rapamnoanok cnaaprom UL antpen He Tnepatypu 177C (350/F). Noorty HE XPAHNTE xmyr a celfe SentrySafe.
PPEyPPEKDEHNE
He moeKxat xpaehnHO KOMNbOtepeHsE Mckn, 3ykoBHe H BDOHOCHTIN, FOOTOHARTHM. 3to kAeWHe He npedhnaeHNOI 3aAMTN DcKET, KAPTPKneH NENT, 3ykoBx H BDOEOKACOT H FOOTOHARTHC0E. 3a npo6peneH H CECPOEMOR cH4a Jpn XpaeHH TAKM MATePAAoe ObaPTNTec K Toproomy npaeCTAerreNo SentiSale Fire-Sale.
BAXHO
MexonueeXnIOoBb3aOx
BHIMMAHIE:BO3MNO,OTpeyETCR HAATb HAOOMY 3AC0B0, YTO, S CBOO OVEEPB, NepesEeRr Ks a
TnOeepem 3aAmpamra nPnO pOpyoI Asepe (pAc. G).
Ipoepe BnK. NepesNabOpom OTnpauqero
kda PnOHTKa DOnK6bN TIOHRTA
ROKHTABHMOE NOONKEHNE. Nocie 3rTO KDOBSE
2AOKR TORX PASFIRE.HANORECA C KOOM c0f
AAGOHTCR MA AGNNE CHOPDE 6000000000000000088.8 8aHHCMOCHT OH AIBPAMNOI MOEOV,
KQO COCTOT H2-3-X MNN 4-X mD
CenΦbI C DBOHOn 3aUHTOJ KOOM N KIOUOM
OONHHTBNN 38UHTA Hxotopk cefo
06eNnEBA DNOH CNTBOM 3aepnH. JIN
00PANH 3AMXo CHCm C DIOHbAM 3anpAHem
HYKHN KQ KOJ, TIK NOK. BHMAHME: 3anepeb
CNI MNOK KAK KNOOM, TIK H 603 MHO.
OTTIPAHMeN OTKpbTHe
Bctane kno 3aamn n noepnre do Bwckaaahnr
mneepa. Buhe te kno.
Chayana npoBepbTe KoC OTKpbIToN DBepuen!
KoI H3 3-X UHΦP
HaepnncnKgHsapncrepOe600003rTOpyoBCCTBA.
BHMMHME:KMOWNTB 3OTKOGHO28
Hannane C. Wyne.
Pnepnne nckpeea HbKa 3 o6oata.
Nocne npertero o6oata octanenrecb Ka nepea unpee kda.
Piopnme pnc npno ha 2 oobota. Octanrncb npm npom oobone ha npoe mnppe kpa.
Poeepnme pck eBc. Octanmteb npn nppeom oobpore ka Tpebn anpoe kda.
KoI N3 4-X UHΦP
BHUMAHNE: Cmena Koga anhynpyet rapaHTno.
IINBocCTaHOBnEHNOr OpanHueHHoR oROBOB
rapeTTHN (npn HANuHN KBHTAHUN C datoN
PnHObpeTeHH) Cneyert obpaTntbcn B
KNHeNTCKYIO cny6y KomaHHS Senti no
COOTBETCTByOuEMy KOHTAKTHOMY TeneFOHy Ha
3aNDHe CTOpOHE 0bNOxKn IIN
DOKymeHTMPOBaHH HOBOKOda.
HauhneTe C hyn.
NobepHnTE DnCK BnEBo Ype3 Hylb Ha 4 o6oPota. Pocne YetBepTorO o6oPota octaHOBNTecb Ha nepBoi UnFpe Koda.
IIOBEPHNTe DNCK BnPaBO HA 3 ObOpOta. OCTaHOBNTecb npn TpeTbeM ObOpOte Ha BTOPOI cHPe KOA.
IOBepHNTe DNCK BJIeBO Ha 2 O6OpOta. OCTaHOBntecb npn BTOPOM O6OpOte Ha TpeTbeu cHPe KOA.
IOBEPHNTE DnK BnPaBO. OCTaHOBTec npn nepbOM o6oPte Ha noCneJeH nIepe
3aKpbTne H 3aHpaHne
1.3akpoTe dBepuy.
2.ПовернITEpyKByBrogntaHbHoeNoLoXeHne.
3. HaxMMTe 3aMOK.
4.ДЯббш�иЗшИТБ NOBEPHNTe KOJOBBIy DnCK.
3NeKtpoHHb3aMOK
Bctabka 6atapei
Heo6xOJIMMbYeTbIpeJeNoHbIX6aTapeKNAA (B KOMnNEKT He BXoJrT).
IPNMEUHNE:HeueoHbteBaataeKnnAkkymyTOpBt HE PEKOMEHdyOTC
IyctaHOBKn 6atapeek: NOBEPHNTe KpbHkny 3NeKtPOHHOrO 3AmKa BnPaBO IN CHMHTE. (Pnc. H) BCTABTe, KAK NOKa3aHO, YETbPe HObIX 6atapeNk, BEHPNTe KpbHkny 3NeKtPOHHOrO 3AmKa HA MecTO IN NOBEPHNTe BnEO Do 3AkPbTIN.
Cenphi c 3neKtpoHHbIM nO6bUHbIM 3aMKaMn
DOnOHInTeHbHa3aHTaHEKOTOpBxMoDEneI OBeCneYehA DBOHOH CnCTeMOH 3aHpAHN.4To6bO tOKpbTcEeΦ, HEOBXODMbKaK 3NeKTPoHHb KQd,Tak KJIIOH.
OtkpbBaCeHΦBnepBbIe:
BCTaBBTe 46aTaepKnAA.Cm.1HcTpyKuHbBHe.)
NobepHNTe KIOU BnPABO DO BbCKaKbAHNA UINHHpa.
BBeJnte KOI3NEKTOPOHORO 3AMKa, HaneYaTHbHa 3aDHe CTOPOE O6NoXKn. PpN BKNIOyEHMN 3eJeHOrO
CnHana PROCEED (IpOdoNkntb) y Bac cctb Ytebpe
ceKHyDb, TTo6bl NobepHyTb pyKu BHN 3OTKpbTb Dbepy.
Chayana npOBepbTe kOcOTKpbIToN DBepue!
HaHInTe 3aBODCKoKoHa 3aHHei CTOpOHe 0bIOxKn 3TOrO pyKOBOCTBa. BHUMAHNE: H3MeHHTb 3OT KO HeIb3a
Klavnatypa
OctopoxHo!
KnDkoCTb moKeT noBpeaHTb KlaBaHaTpy!
OctopoxHo!
KoHnKOMpyKN HdpYMMOCTpbIMN ppeMetamMOxHO npOKoIOnTb Mem6paHy Kaabnatypbl!
DonyctmTOIbKOJIeKOpnPKOCHOBHMe.3eJIeHb CMrHANPROCEEDIOIN3BkyBOOBNrHANIOKA3BMBAOT, 4TO KACAHME BOCIPNHITo KJABNATyPOJ.1A JKAqDORo HAKATN KJABNIM3AMOK OTBOHT5CEkyHd.Ype35 CEkyHd.IP03ByHTCmHana n3aMnraETKpachbCBET. ECNI3TOcUYNTCA.HaHHTe CHaYana.
OchOBHOJ 3JIeKTPoHHbI 3aMOK
KoDbI Doctyna
EcTbPnOc06aOnepTe ceiΦ.
1.BBeMITE npEpyCTaHOBJIeHHbIe 5 uHp KoJa 3JNEKTPoHHOrO 3aMka.
3T0Kd HEnb3y ydaIb7b, HMBceRdaMOXHO BOCnIb3ObaTcra, YTO6bIOTKpbITb ceHΦ - XpaHHTe eroB hAdexHOM mecte!
2.5uΦp Bb6paHHo BAAM KOa NOJb3OBeTJI MOXHO nporpaMMPOBaTb H N3MeHrTb NO Mepe HaO6HOCTM.
3.ДЯВБЕМEHOROДОCTYNAKceHФуMOXHO3anpo- rpaMMNPOBaTb5-3aHbI PINIIOb3OBaTeJIa, KOTOpbMoxHO CTepeTb NIN N3MeHHTb.
BHUMAHNE: KoI n3 Ondnx Hyne HeNoOpYCTHM.
IporpamMnpoBaHne 5-3NaHOrO KoJa IOnb3OBaTeJIa
- HaxMMTE KnaBmUy Program (PporpaMMNpOBAHne).
2.BBeIeKoJ3JIeKToHHO 3aMka.3eHbCBTeODIO npOdoJkae T OpeB npB BBODeBb6paHHoro 5-3HaHoro KOa NOb30BaTeN.IocNe BBoJa 5uΦp 3eHb CBTeODIO raCHT.
Дл BAHO HOBO KOA NOIb3OBeTIEL NOBTOPIE 3TN WaH.Дл CTnHaHNA KOJA NOIb3OBATEJI HAXMITE KIAIBNsu Program N DBaxDbI BBeDHTE KOJ 3NeKTPOHHO 3AMKa.
PpOpaMMnPOBaHne 5-3NaUHO PIN-KoDa nOlb3OBaTeJIa
BHUMAHNE: Ipeep nporpammpoBaHem PINKOa cneayet 3anporpammpoBaTkoI nonb3OBateA.
- HaxMMte KnaBmuy Program.
- Haxmte ee eue pa3.
3.BBeInTeBaW5-3HaHbI KOd nonB3oBaTeIe. 3eHeHb CBToIOuN npOdoJXaET ropTeB.
4.BBeNTe Bb6paHHb BamN 5-3HaHb PIN-KoI. Nocne BBoDa 5 uΦp 3eHeh CBetOnn rachet.
(DnBBOHa HOBOr PIN noIb3OBeTEn NOBTOPe 3TN
Warn. DnCTnPaHnPIN DaXbHaxMITE KIABnWy
Program, BBeDnTe BaW KOd NOB3OBeTEn,
a 3ATEM 00000.)
Chauana npOBepbTe kOc OTKpbIToN DBepee!
PpOBepeTe HOBbKOd 3JIeKToPOHOrO 3aMka HeCKoJIbKO pa3 pN pOTkpToI DBepue, YTO6bI y6eDnTcBra Eero npabINbHOH 3aInCn.HOBbKO 3JIeKToPOHOrO 3aMka RotOB K pnpMeHeHHIO.
3aHHTe Baun KoJ noIb30BaTeJn PIN 3decb
KoI nonb30BaTeHa:
PIN:
Tro6bl OTnepeb ceH:
BBeIe npedyctahOBHeHb5-3HaHbKoJ 3NeKtpOHHO 3aMka, KOD nonb3ObaTeRn nn PIN. Pnp BKNIOEHm 3eHEno CnHana y Bac cEc7 b4 cekynb, T06bl NOBepHyb pyky n OTkpbl ceiΦ.
TtO6bl3anepebcehΦ:
3aKpoIe Dbepu N BepHnTe pyky B roH3OHTaIbHoe nOIOXeHne.
3aMeHa 6aTapei
Pn Heo6xOIMOCTH 3aMeHb 6atapei 3aropaetc
KeTbI CBETOIOID.Pn BByHTbIX IJRA 3aMeHb
6atapekax BCE KOJIb COXPAHOTc. CM. HNCTpyKUnn no
yCTAHOBKe YCTAHOBKa 6atapeBpa3dJe
3NeKTPoHHb 3AMOK
BHUMAHNE: Ecnn ceiΦ nepeTan pa6oTaB,do 06paueHn B KIneTcKyO cnyx6yKomnaHHN Sentry npoebpte 6atapeKeK.
BHUMAHNE: 3aMena 6atapen peKOMeHnyetcyepe3 da rda nn npn octaouemcra ropetbXeTOM CBeToNDoe.
Pexm 3aepxkn
PnBBOe HeBepHOrO KOJa TpN pa3a NoOpJr 3AmOK ABToMaTmUeCKn IpeXoDnB PexKIM DByXMnHYTHOH 3aepKKn. B 3ToM pexMme AKTNbPoBaTb 3AmOK HeJIb3R, INIIO6oe Haxatme KnaBnN Bb3OBet CnHAnl EROR (On6ka).
YcoBepweHCTBOBaHHbI 3JIeKtpoHHbI 3aMOK C XmIKOKPNCtAJIINueCKIM HndkaTOPOM
PpOrpaMMnPoBaHne KoIOB NOIb3OBaTeJIa
BHUMAHNE: Donyctmbl 6 (wectb) KOOB nonb30baTeJI.
ДЯ ВБОА:
- HaxMMTE DαBxDbl KλaBMuWy Prog/Enter, BBeMnTe KoI MeHeJXepa HaxMMTE KλaBMuWy Prog/Enter.
- BocnoIb3yIeTcB << INN >> INI nepeXoJa OT NOJI K NOJIO. NycTOE NOJI O3NaHaeT DOCTYnHOCTb IINBBOJa KOJa; NOCDBEeHHoe CmBOJOM NCNOIb3yETcR.
3.BBeNTeOT4D08uΦpKoDaBb6paHHyO No3uHIO HAXMMTe KnaBnUy Prog/Enter 3aBepWeHnI pOrpaAMMPOBaHnKa OKa BceΦe.
Дуденин:
- HaxMMTE DaaBxbl KnaBMw Prog/Enter, BBeNtE KOI MeHeJXepa HaxMMTE KnaBMw Prog/Enter.
2.BocnoIb3yIteCb<>nepexoAOTnOJ KNoIOco3naKOM*，KToPbHHyXHOydaJIITb. - Haxmnte 0, 0, 0, a 3aTeM KlaBnWy Prog/Enter Ду удаленя Вьбразного Кда NOььзOBaTeЯ. (0, 0, 0, 0, Prog/Enter)
BHUMAHNE:ДЯьВОЗБРATAКИЧАNYnporpammmopobAHNAKOManeJxKepaHnNNoJIb3OBATENIOOJXHTE5CekyHddoC6pocaZAMKa.PocneSTOROMOXHNOHAYtChayana.
TtO6bI OTpeBcEeΦ:
BBeDnTe npEcyctaHOBeHHbI 5-3HaHHbI KOd 3NeKtpOHHO 3AMKa, KOd MEHeJKepe IuN KOd NOBtOBaTeR N HAKMITE KJI BmUy Prog/Enter. Ipn BBOde KaoKOnUIΦpBu IBaCBEHMaBcTc 3B3DQHc. Ipn NOBLaEHIN 3HaAkaP3oMCHyTOr 3AMKa y BaEc tB 4 CekHyb, YTO6bI NobepHybpyKu OTKpbYb CeHf.
Yro6b3anepebceh:
3aikpoite dBepuy in BepHnTe pykry B rpoHOnTaIbHoe nnoJxHe.
HaTeXHo xpaHnTe KoDbI MeHeJxepa N NOb30BaTeJIa
3ainnbaiTe KOIb MHeJeXeepa NIOJIb3OBeTaeJI XpaHnTE IVB6e3oNaChOM MeCTe BHe CeHa.
3aHHTe 3decb KoDbI MeHeJxepa n Nobl30BaTeJIa
KoJ MeHeJxepa:
KoI noJIb3ObaTeJIa:
3aMeHa 6aTaPei
Pn Heo6xOIMOCn 3aMeHb 6atapei 3aropaeTc 3aHOK 6atapei. Pn BbHybix nla 3aMeHb 6atapeKax BCE KObl COXPAHOTCr.CM. IHCTpyKmN IO yCTaHOBKe YCTaHOBKa 6atapeiBpaDeneE3NeKtpoHHb3AMOK
BHUMAHNE: Ecnn ceiΦ nepeetan pa6otatb,do 6paueHnB KInHeTcKHy cnyx6yKomnaHHSentry npoebpte 6atapeKn.
Ha3hayeHne 3haqKOB
ERR (OwH6ka) noka3bIbaeT OJHO m3 cIeMyoux octoHH:
- He no nopáky hǎjata kλnabùna Program (IporpamMnpoBaHne).
2.BBeDENHeBepHbIKoJ. - Naay3a 60bIe 5 cekyH MekxHy HaxaTnMn KnaBn.
PRG (PpOprpaMMNPOBaHne)
3aoropaeTc npn Haxatm KnaBmH Progarm n Tropnt npn nporpammmpoBaHH KOda MeHeJXepa NIN PnIb30BaTeJIa.
* (3Be3doqka) noka3bIbae T OJHO 3 CJIeDyoux COCTOARHH:
- Haxata KlaBnua C nΦpOi.
2.BpeKHeInporpaMMPOBaHHIOKA3bBAeI paNOJOKeHHe InporpaMMpyEMO KOAa.
Non
Topr npnporpaMnpoBaHnn noka3bBAOT paONOxHeHKe KOa.
- NycTe ONE NOCDBETK 03Haayet,TO KOH 3aPpOpaMMPOBaH.
Pone C BbCBeHbM 03HaayTTOKoMeHeXepa 3anporpammpoBaH.
3amok
3aropaetcnpnTpKbIbNpIeBHeHOM HeBepHom Koe npoDopKaET ropeTb B pexmme 2-MHHyTHOH 3aepkKn.
OTOMKHYtb3aM0K
3aropaeTcnoe BbOda DeCTBntbHoro kOda.
Poka3bIbaet,TOceHΦOTnepT,NDbepU MOxHO OTKpbTb.
Батаразу
3aropaetc npn pa3pnd 6atapei, noka3bbar, yto nx npora 3aemHtB.
DnHaMVK
3aropaetc npn BKNIOeHm 3bYKOBOrO cnHaJa.
Pexm 3aepxkn
PnBBOe HeBepHoro KOJa TPN pa3a NoDpRd 3AMOK ABOTMaTHueCKN NepExoJNT B pexHM DByXMHNHYTHOH 3aDEpKKn. B 3TOM pexIME 3AMOK Heb3r akTNBnPoBaTb, ROPHT 3HaQK 3AMKA.
Las puntas de los boligrafos y otros objetivos afiladosSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO
m = 311 ;
lpline UK:
