USER MANUAL DH 28PCY HITACHI

(Original instructions)

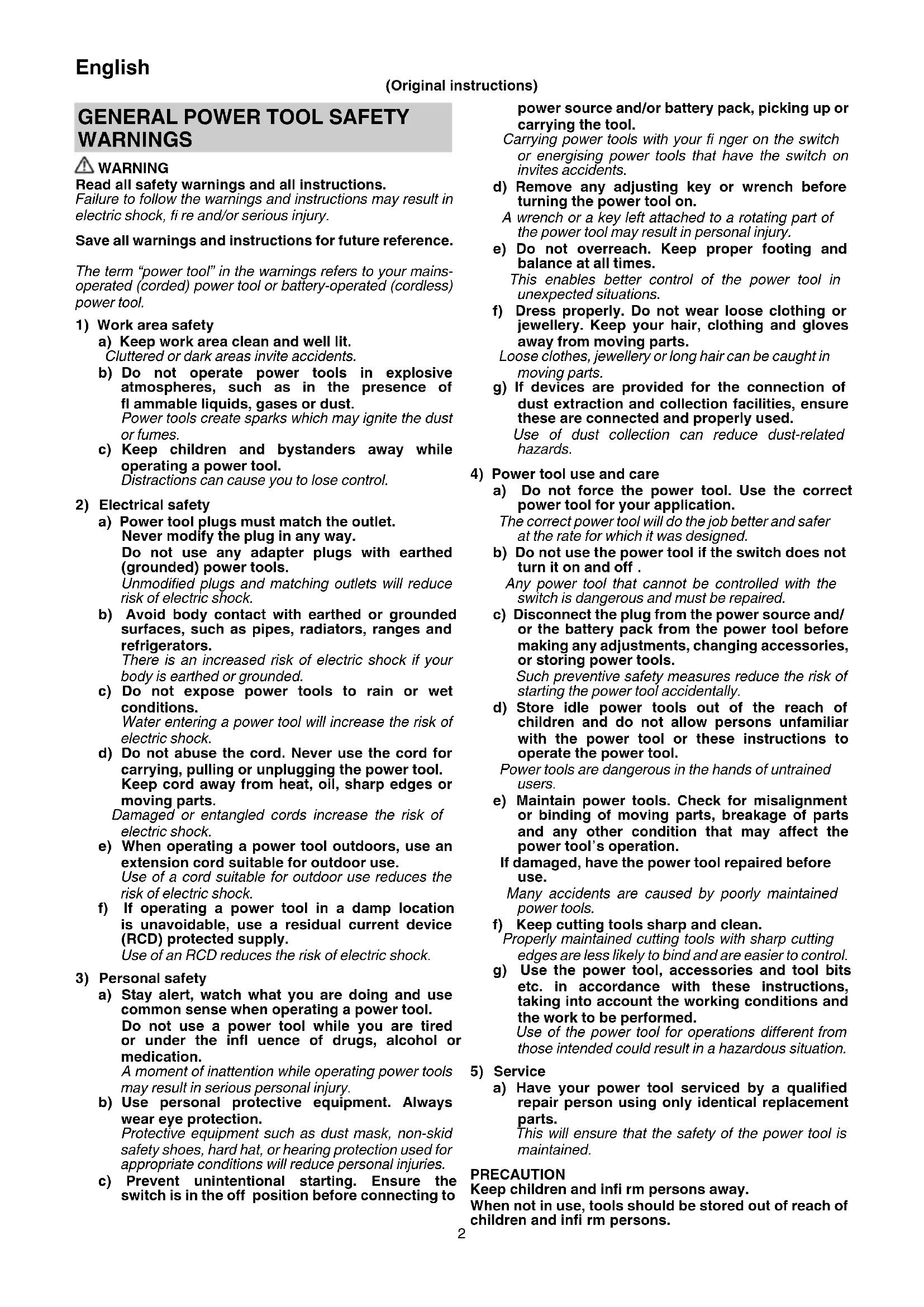

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (cored) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to

power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infirm persons away.

When not in use, tools should be stored out of reach of children and infirm persons.

ROTARY HAMMER SAFETY WARNINGS

1. Wear ear protectors

Exposure to noise can cause hearing loss.

1. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.
2. Ensure that the power switch is in the OFF position.

If the plug is connected to a receptacle while the power switch is in the ON position, the power tool will start operating immediately, which could cause a serious accident.

1. When the work area is removed from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
2. Do not touch the bit during or immediately after operation. The bit becomes very hot during operation and could cause serious burns.
3. Before starting to break, chip or drill into a wall, floor or ceiling, thoroughly confirm that such items as electric cables or conduits are not buried inside.
4. Always hold the body handle and side handle of the power tool firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.
5. Wear a dust mask

Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders.

1. Mounting the drill bit
   To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle.
2. When using tools such as bull points, drill bits, etc., make sure to use the genuine parts designated by our company.
   Clean the shank portion of the drill bit.
   Check the latching by pulling on the drill bit.
3. To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle when the drill bits and other various parts are installed or removed. The power switch should also be turned off during a work break and after work.
4. Rotation + hammering

DH28PMY only: Using drill bit holder (standard accessories)

When the drill bit touches construction iron bar, the bit will stop immediately and the rotary hammer will react to revolve. Therefore firmly tighten the side handle.

1. Rotation only

To drill wood or metal material using the drill chuck and chuck adapter (optional accessories).

DH28PMY only: Using drill chuck holder (standard accessories)

Application of force more than necessary will not only expedite the work, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition.

• Drill bits may snap off while withdrawing the rotary hammer from the drilled hole. For withdrawing, it is important to use a pushing motion.
• Do not attempt to drill anchor holes or holes in concrete with the machine set in the rotation only function.
  Do not attempt to use the rotary hammer in the rotation and striking function with the drill chuck and chuck adapter attached. This would seriously shorten the service life of every component of the machine.
• Hammering only

DH28PMY only: Using drill bit holder (standard accessories)

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	DH24PG / DH24PH / DH26PB / DH26PC / DH28PY / DH28PCY / DH28PMY: Rotary Hammer
	To reduce the risk of injury, user must read instruction manual.
	Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/ EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
V	Rated voltage
P	Power Input
n0	No-load speed
Bpm Full-load impact rate
φ max	Drilling diameter, max.
kg	Weight (According to EPTA-Procedure 01/2003)
	Concrete
	Steel
	Wood
T	Hammering only function
	Rotation only function
IT	Rotation and hammering function
I	Switching ON
O	Switching OFF
	Disconnect mains plug from electrical outlet
	Class II tool

STANDARD ACCESSORIES

In addition to the main unit (1), the package contains the accessories listed in the below.

Plastic case 1
Side handle 1
Depth gauge 1
Drill chuck holder (DH28PMY only) 1

Standard accessories are subject to change without notice.

APPLICATIONS

Rotation and hammering function

Drilling anchor holes

Drilling holes in concrete

Drilling holes in tile

Rotation only function

Drilling in steel or wood (with optional accessories)

• Tightening machine screws, wood screws (with optional accessories)

Hammering only function

Light-duty chiselling of concrete, groove digging and edging.

SPECIFICATIONS

The specifications of this machine are listed in the Table on page 90.

NOTE

Due to HiKOKI's continuing program of research and development, the specific cations herein are subject to change without prior notice.

MOUNTING AND OPERATION

Action Figure Page
Inserting SDS-plus drilling tools 1 91
Removing SDS-plus drilling tools 2 91
Selecting rotation direction 3 91
Selecting the operating mode 4 91
Adjusting the drilling depth 5 91
Changing the chisel position 6 91
Inserting the quick release chuck (DH28PMY)	7	92
Removing the quick release chuck (DH28PMY)*1	8	92
Inserting round shank applications tools (DH28PMY)	9	92
Switching on and off and setting the speed	10 92
Locking-on the On / Off switch	11 92
Releasing the On / Off switch	12 92
Selecting accessories*2	-	93, 94

1 If it is hard to pull out the drill chuck holder or the drill bit holder, align the change lever with the T mark and turn the lock grip.
2 For detailed information regarding each tool, contact a HiKOKI authorized service center.

LUBRICATION

Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Replace the grease whenever you change the carbon brush to maintain the service life.

Further use of the rotary hammer with lock off grease will cause the machine to seize up reduce the service life.

CAUTION

A special grease is used with this machine, therefore, the normal performance of the machine may be badly affected by use of other grease. Please be sure to let one of our service agents undertake replacement of the grease.

MAINTENANCE AND INSPECTION

1. Inspecting the drill bits

Since use of a dull tool will cause motor malfunctioning and degraded efficiency, replace the drill bit with new ones or resharpen them without delay when abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very "heart" of the power tool.

Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes

For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a HiKOKI Authorized Service Center.

5. Replacing supply cord

If the replacement of the supply cord is necessary, this has to be done by the manufacturer of this agent in order to avoid a safety hazard.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

IMPORTANT

Correct connection of the plug

The wires of the main lead are coloured in accordance with the following code:

Blue: — Neutral

Brown:Live

As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the earth terminal.

NOTE:

This requirement is provided according to BRITISH STANDARD 2769:1984.

Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom.

WARNING

The vibration emission during actual use of the power tool can differ from the declared total value depending in the ways in which the tool is used.
- Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

NOTE

Due to HiKOKI's continuing program of research and development, the specifi cations herein are subject to change without prior notice.

Information concerning airborne noise and vibration

The measured values were determined according to

EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level:

Measured A-weighted sound pressure level:

Uncertainty K: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

Hammer drilling into concrete:

Vibration emission value a_h, HD =

Equivalent chiselling value:

Vibration emission value a_h , CHeq =

12.1 (DH24BH)

11.0 2 (DH26RC)

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

VOORZORGSGMAATREGELEN

VEILIGHEIDSWAARSCHUWINGEN

1. Inspecionar as brocas de perfuracao

2 (D;B28PCY, DTH/SPMY)

Usikkerhed K = 1,5m / s^2

VEDLIKEHOLD OG INSPEKSJON

1. Inspisere boringsbitene

Tia va tpuimnoe E lo n metaloo e took tpunaviou kai npoapmuoyea took (npoaipetika eapntma).

VARNOSTNA NAVODILA ZAVRTALNO KLADIVO

Negotovost K: 3 dB (A).

IpehaHTo Ha HCTpyMeHTn C npbCT Ha CTapT 6yToHa, HnHa IpeBKnUOyBaTeNa Ha 3axpaHbHeTo, Hocn OnaCHOCT OT INHcNdeHTN.

d) Otcpahe TBCNHN CEHTnpaun KINHOBENIraeHNI HIOOBE, npEn Da BKNIOHTe eJeKTPnueChn HNCTpyMeHT.

FaeueH KIOU HN INHCTpymeHT, 3a6paBEN B PotaUNOHNN KOMNOHEHT Ha eJNEKTPuYeCKNJ INHCTpymeHT, MOHe da DOBeJe Do HapaHraBaHe.

e) He ce npecaraTe. Ppe3 uJIoTO BpeMe Tp6Ba Da HMaTe Cta6HnHa onopa N da noDbPkaTe 6aHaHC Ha TJIOTO.

Toba OCHyprBa NO-06bP KOHTpO Bbpxy eIeKtpnuecknte INHCTpyMeHTn npN N3BbHpeDNH cnTuayuHN.

f) Hocete noxdxogio 06leHIO. He hocete npekaleHo wnpokn dpexn nn 6nHyta. Na3ete hocata, dpexnte n pbaHbNcHTe cn ot NOdBHXHN KOMTOHEHTN.

Unpoknte npexn, bnyta n dbIra Koca morat da 6bdat 3axbaHaTN OT NOBHXHNTe KOMNOHEHTN.

g) Ako ca ocnrgyepH ycTpoNCTBa 3a cBbP3BaHe C npaxoyIOBHTeHN HnCTaIauHN, yBepeTe ce, Che ca CBbp3aHN Ce n3NoI3BAT npabnHO.

H3noJ3BaHeTo Ha npaxoyIOBHTeIN uKHOHMOKe Da HamaJIIN Cbbp3aHHTe Cbc 3aMbpcBAHeTO pNCKOBe.

4) EhcnpaatauHa nOpaBHHa Ha eJeHTpueechn HhCTpyMeHTn

a) He hacnBaIte eIeKtpnuecknTe nHcTpymeHTn. N3noJ3BaIte noXoJa eIeHTpnueckn HHCTpymeHT 3a CbOTBETHNTe ceJIi.

PpabHnHnT eJNcHHTpymENT 1e CbbpHn paOtaTa no-dO6pe nno-6e3oNaCHO npn NOKa3aTeJIte, 3a KOnTO e IpoEHTnpaH.

b) He n3noJ3BaIte eIeKtpnuecHnT nHCTpyMeHT, aHO He MoKe da 6bJe BKNIOUeH NIN N3KIOUeH OT CbOTBeTHnA CTApT 6yTOH NIN NpeBHNIOUyBaTeI.

BceKn eJeHTpUeCKn HcTpyMeH, KOTo He MoKe Da ce KOHTpolnpa OT cTapT 6yToHa, e OnaceH N NOJIeHN Ha peMOHT.

c) N3KIOUeTe UeNceJa Ha HnHCTpyMeHTa OT N3TOUHNHa Ha 3axpaHbAHe N/NNOT 6aTePnIa, NpeDN Da N3BbPwBaTe HAcTpoiKn, PpN CmHa Ha npNCTabKn Nn npN cbXpaHeHne.

TaknBa npeBaHTNBHm MepKn 3a 6e3oNaCHOCT HamaJIbAT pNcKa OT ClyuayHO BKNIOyBaHe Ha eNEKTPnueckn INCHTpymeHT.

d) CbXpaHbAaIte HeH3nO3BaHHTe eHeKtpnueckn HhCTpyMeHTn DaJeY OT DOCTbN Ha Deua N He No3BOJRABaTe Ha INuca, He3aNo3HaTN C HauHHa Ha pa6ota c HhCTpyMeHTnte, n C Te3n HhCTpyKcHn, da pa6oTATC TAX.

Enktpueechnte HnctpymEnTH npedCTaBnBaT ONaCHOCT BpbTeHa HeonHTHn Nua.

e) NpOdbpKaHte eJNtpruecknTe HNCTpyMeHTn. NpOBepraBte cHTPOBhata n 3aKpenBaHeTo Ha NOBbHHnTe qactn, npOBepraBte 3a NobpeHn Yactn, KOnTO MoRat da Ce OTPa3rT Ha paOtaTa HA eJNtpruecknTe HNCTpyMeHTn. AHO yCTaHOBnTe nobpeHn,OTcPahete rN npEdu Ha h3NoI3BaTe eJNtpruecknTe HNCTpyMeHTn. MHoro 3IIOJIoYKn Ce JbJIkHa Na Iooa NpOdpbHKHa eJNtpruecknTe HNCTpyMeHTn.
f) PndbpaHte peHeuTe HhctpyMeHTn HatoeHN uHCTN.

IpaBnHO noDbPkaHnTe peKeu nHCTpyMeHTn, C HatoyeH peKeu eemeHTn, ce ynpaBnaBaT KOHTPOlnpA T No-NECHO.

g) H3noI3BaIte eIeHTpUeChn HNCTpyMeHTn, npHcTAbHN n aKceCoapn, n T.H., CbIaCHO Te3n HNCTpyKUnn, KaTO B3EmTe NpeBnD pa60THTE yCIOBn n BnDa pa60TN, KOnTo ige Ce n3BbpWbAT.

N3noJ3BaHeTo Ha eNeKTPnuecknTe HnCTpyMeHTn 3a 3aJaUH, pa3JIuHn OT Te3n, 3a KOnTO Ca npedBnJeHn, MoKe Da DOBeJe Do OnaCHn CHTyaUH.

5) 06cIyHbAHe

a) 06cIyHbAHeTo Ha eIeHTpNueChnTe HhCTpyMeHTn Tpa6Ba Da ce N3BbPwBa cMo OT KBaJIHΦHnPaHH cepBn3HN pa6OTHnU, npn H3NoJ3BaHe Ha opRnHaJIHn pe3epBn YacTn.

ToBa ige rapaHTnpa 6e3oNaChocT Ta npn pa6Ota c eIeKTPuYeCKNTe INHCTpyMeHTN.

BHIMAHNE

He donyuchai Te B 30HaTa Ha pa6oTa deca N Bb3pacTHn Xopa.

Horato He H3noI3BaTe eIeKtpueeCKnte HHcTpymENTn, cbxpaHraBaIte rN daIeY OTo DCtbn Ha Deua N Bb3pactTHXopa.

ИНСТРУнциз 3A БЕЗОПАСHОCT 3A ПЕФОРATOP

1. Hocete aHTnfoHN.

H3naHaTeHO Hb3dEiCTBHeTO Ha Wym MoJe da doBeNe Do 3ary6a Ha cIyxa.

1. H3noJ3BaIte DOINbIHNHTeHHaT aHO ca npedocTabeHc ypea.

3ary6a Ha KOHTpO Bbpxy ypea MoKe Da IOBeDe Do HapaHbAHe.

1. EInktpnuecknT HNCTpyMeHT Tp6Ba Da ce DbpKn 3a n30lnpaHNTe 3axBaTHN NOBbpxHOCTN, KOrato pa6OTnte C Hero BClyaYpe peHcTaT npHcTaBA BJe3e B KOHTAKT CbC ChPnTO OKa6JIeBAHe IIN CO6CTBeHHn CN 3axpaHBAu Ka6eI.

PeKeuT aKceCoap, cBdbpKaa,,3apeH" Ka6e, MoKe Da HnPaBn OTKpNTte MeTaHn Yactn Ha eEeKtpueckn IHCTpyMeHT,3apeH" N da npHInH eEeKtpueckn yDap Ha n3NoI3BaIyra.

ДОПьЛНITEЛНИ

ПРЕДУПЕЖDEHENЯ 3A БE3ОПАСHОCT

1. YbepeTe ce, Ye n3TOUHNbT Ha HAnpeKeHne, KOTo ⅢnOJI3BaTe, OTROBapr Ha n3NCKBaHnra TPO CneuΦnKaun, NOCouEHn Bbpxy INHBentapHaTa Ta6eIka.
2. YBepeTe Ce, Ye npeBnIOuBaTeJIaT Ha 3axpaHbAHeTo E B noJIOKeHne OFF.

Ako 6bde BkHIOueH IeNceJa KbM KOHTaKTA, ypeIbT Ⅲe 3anoYHe Da paBoTH BeDHa, pIn 6yTOH B No3nUra BHJI., KOETOMOKe Da DoBede Do cepno3HN HUNdENTN.
3. Korato pa60HaTa nIooJaHa e dIaJeY OIT I3ToUHn Ha 3axpaHbAHe, I3NoI3BaIte YdbJIHKTeI C IOCTaTbUHa De6eJInHa HOMHaIIHa MOIHOCT. YdbJIHKTeIHNrT Ka6eT Tp6Ba Da 6Be DE Bb3MOKHO HA-NBC.
4. He DoKocBaIte npCTaBkata no BpeMe IIN HEnocpeDCTBeHO cIeI pa6Ota. PnCTaBkata ce HaRopeuBaNo BpeMe Ha pa6Ota n MoKe da npUHHN cepno3HN 3rnapHnA.
5. Ппдд дллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллллл pa3tpoшаBaHe nIln np6nBaHe B CTeHa, nOД nIln TaBaH, yBepeTe ce, Ye B CbOTBeTHInTe 30Hn He MnHaBaT eJelKtpuYeCKn npOBODnIи nIln cKpHTn Ka6eJIHn TpacTa.
6. BnHaHn DpBxTe 3DpaBO DpBxKHaTa Ha KOpnyCa n CtpaHnUHaT a PbKOXBaTKa Ha eNeKtpuYeCKn HnCTpyMeHT. B npOTnBEH cLuyaH npOTnBOeNCTBHeTo MOKe Da DOBeDe Do HnPaBnHa OnaCha paBoTa.
7. Hocete npotnbopaxoba Macka. He BdnBaTe BpeHnI npax, KoTo ce 6pa3yBa npn npo6BaHe nKbptHe. IpxbT MoKe da 3actpaBn BaWETo 3dpaBe, KaKTo n Ha OKOHHTe.
8. NocTabrHe Ha CBpeIIOTo
O 3a da npedotBpaTnTe HnUdEHTN, n3KIOuBaIte npekcbcaua nIeNceJa OT KOHTaTa.
O Horato H3noJ3BaTe HnCTpyMeHTn KaTo Wnla,CbpeJa n DpyrN, yBepTe Ce , Ye H3noJ3BaTe OpIInHaJIHn Yactn, npoeKTnpaHn OT HaWataΦnPma.
O NpOuHCTe ONaUkata Ha CBpeIIOTo.
O PnDpBnHeTe CBepeIIOTo, 3a Da npOBepnte 3axBaUaHETo.
9. 3a da npedotbpaTne HnndeHTN, KORATO NOCTABrTe NIM MAXATE CBpeJa NIN DpyrN YactH, CE yBepete, Ye CTE N3KIOUINI PpeKcbBaA u IeNCEJAt KOHTAKTa. PpeKcbaBt Ha 3axpaHbaHeTo Tp6Ba CbIo Da 6bJe N3KIOUEN Prn NoYbKa n CJIeD npNKIOUBAHe Ha pa6oTaTata.
10. Potaun nepopnpahe

Camo 3a DH28PMY: Изплзовану на дьржану за CBpeДla (CTahdapTHn Akcecoapn)
Korato CBpeДлOTO ce ДОпге до CTponTeJEN CTOMaHEN loCT, то спpe BeDhara, a nepфopatOpBT се pearupa c potaци. 3aTOBa 3aTeHete ПьТHO CTpaHNUHaTa pBkoXBaTHa.

1. Camo potaun

3a npo6nBaHe Ha DbPBeH Nm MeTaJIeH MaTepnaIc NaTpoHHNK 3a CbpeJNa aJaanTeP 3a NaTpoHHNK (DOnBJIHHTeJIHn AkCeCoApN).

CTAHДAPTHN AHCECOAPN

B DOnbJIHeHHe HbM OCHOBHn HOMPJIeHT (1) ca nppeIOCTaBeHn n aKcecoapHT n PnCTaBHnTe, n36poEHn NO-dOly.

OПл actmacobakytna 1
CtpaHnHa pBkoXbaTka 1
OДьббОнмep 1
OДьржанha naTpoHnK 3a CBpeДla (camo 3a DH28PMY only) 1

CtaHapThHe npctaBn n akcecoapn noJeKaT Ha npomHa 6e3 yBeDomJIeHne.

ПРИLOЖЕНИА

No-HaTaTbUHNO H3NoJ3BaHe Ha nepΦopatopa Cbc CTapa rpec ⅢpeDn3BnKa cnpaHa Ha ypeDa n HamaJIraBaHe Ha EKcIIOaTuOHHN JHBOT.

BHIMMAHNE

3aTo3n ypeI ce n3noJ3Ba CneuHa rpec n 3aTOBa HopMaJIHATA My pa6Ota MoKe Da 6bJe NOBInraHa OTPuCaTeJIHO npn n3NoJ3BaHe Ha dpyra rpec. I03BOJte Ha HKar OTHaHTN da ce 3aHIMae cbc CMHaTHa rpeCTa.

IODAPbXKA INHcNEKUNA

1.Инсеньцяна CBpeДлata

TbH KATO H3N0J3BaHeTO Ha 3aTbIeH INHCTpymeHTIe NpeDn3BnKa HeN3PpABHOCTn Pnp DnRaTeJIHaHaMaJIeHne Ha eΦeKTHBHOCTTa, CMeHЯTe CBpeJaTaC HOH INIIN IIN 3aTOUBAIte OTHOBO, BeDHara IOM 3a6eJIeKHe Tn3HOCBaHe.

2.ИHCNEKUNHa MOHTaHHTe BnHTOBe

PeIOBHO HNCNEKTHpaIte BCNUKn FHKcnpaUN BnHTOBe n ce yBpeTe, ye ca do6pe 3aTeHnat. Ako ycTaHObITE paXla6eHN BnHT, He3a6abHO ro 3aTeHHeTe. Hecna3BaHToHa TropHO To PnCKOBe OT cepNo3HN 3JIOJyKn.

3. IopdpbHKHa Ha MOTopa

HaMOTKHe Ha MToPca ca,cbpuTeO"Ha ypea.

YnpaHHBaIte OCO6eHO BHIMAHNE KbM HAMOTKHTe, TbN KATO MORAT Da CE NOBpeJr OT NOnaJaHe Ha BJIara H/INH MacNo No TEx.

4.Инсеньяна Kap60HOBHTeTkn

3a da ce rapaHTnpa NOCTOAnHHa 6e30nacHOCT, KAP6oHOBnTe YETKn Tp86Ba Da ce HcNtKeTnpa N IOMeHr CAMO ot OToPn3npa CepBn3eH LcHTb Ha HiKOKI.

5. CmHa Ha 3axpaHbau Ka6eI

Ako ce HaIara CmHa Ha 3axpaHbau nKa6eI,TOBa MoKe Da CE N3BbpUOn OT npOn3BODHTeN HIN HerOB npEcdTabTeJ,3a Da CE rapaHTnpa 6e3onacHOCTTa.

BHIMAHNE

PnH3NOJ3BaHeTo N NOdRpBxKkATo Ha eJeEKeTpuYeChn HNCTpyMeHTN Tp8Ba Da ce Cna3BaT npaBnIaTa n CTaHapTInTe 3a 6e3OnacHOCT Ha BCra KcCTpaHa.

TAPAHU

Ipeoctabme rapaunna 3a Eektpnueckn HcTpmeHTn HiKOKI cblacHO CneuΦnHnte MeCTeHN 3aKOHOaTeJIcTBa Ha cbOTBeTHNTE IbpaBn. HactoJata rapaun He NOKPbBA DeeKTN IIN NOpeDn, npuHHeH ot HnPaBnHO IIN HepeKHO n3No13BaHe, KaKTo n TaHbA, KOnTO Ce DbJHaT Ha O6NuAHHO n3HOCBaHe Ha KOMnoHeHTte. B clyuaHa peKlamaqry, MoJy, n3npaTeTe EektpuecknT HcTpMeHT, B Hepa3rIo6eH Bn, C TAPAHUOHATA KAPTA, npodobolctBeHa B KpaHa HhCTpyKnITE, Ha OTOpu3napcepBn3eH ceHTbp Ha HiKOKI.

HhOpmaqna 3a WymoBO 3aMbpcBaHe n Bn6paunn NImpeHnte CToHOCTH OTROBAPr HA N3NCKBAHnra Ha EN60745 n CbOTBeTCTBaT Ha ISO 4871.

H3MepeHO A-IPeTeJIeHO WymoBO HnBO:

I3MepeHO HnBO Ha 3ByKOBO HaJIraHe B dB:

HeToHooCT K: 3 dB (A).

HocTe aHTnfoHn.

O6u n cToHocTH Ha Bn6paunn (BeKTopHa cyMa) onpeJeIeHN CbIaCHO EN60745.

YdapHo npo6nBaHe B 6eToH:

EMCNOHbCTOHOCTHaBn6paunTeah,HD=

EKBuBaJIeHTHa cToHOCT npn KbPtHe:

EMnCOnOHHa CToHOCHT Ha Bn6paunTe a,h, CHeq =

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Norway AS

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.no

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.se

Hikoki Power Tools (U.K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.dk

Hikoki Power Tools France S.A.S.

Parc de I'Eglantier 22, rue des Cerisiers, Lisses-C.E. 1541,

91015 EVRY CEDEX, France

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.fr

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es

Hikoki Power Tools Romania S.R.L.

Ring Road, No. 66, Mustang Traco Warehouses, Warehouse

No.1, Pantelimon City, 077145, Ilfov County, Romania
