USER MANUAL Power Odyssee 2P Vaude

USER MANUAL/Power odyssee 2P

vaude.com

deUTsCH. 1
english 8
français. 15
iTaliano. 23
ESpANoL 30
nederlands 37
CeSTina 44
中文. 51

feaTures

PowerfraMe

Powerframe construction combines easy setup with increased wind stability.

BoTH sides siliConiZed

20% longer lifespan, excellent UV reflection, 8 times more tear resistant (8-11 kg). Superior water beading properties.

VenTilaTion Hood

By an intake rain-protected adjustable ventilation.

sTorM Cord Collect

Stormcord tensioner and collector for guylines

weight max: 2850 g

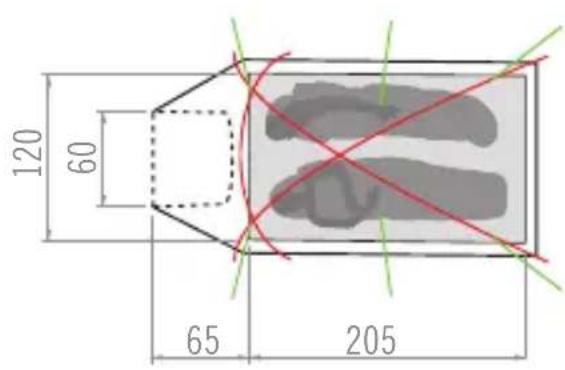

Packing size: 55 × 16 cm

water column groundsheet: 10.000mm

water column fly: 3000 mm

aCHTUNG! fÜR sPÄteres naCH-sCHlagen aUfBewaHren!

einleiTung

Endless freedom, adventure and summit thrills.
Mountains and nature as far as the eye can see.
Peace and excitement all in one.
That is the Spirit of Mountain Sports.

We here at VAUDE are passionate about mountain sports. This passion can be found in every single one of our VAUDE products.

As a modern family business we take our social and environmental responsibility very seriously: we have been a bluesign member since 2008, one of the most stringent ecological standards in the world. And as the first European outdoor outfitter we are also constantly improving our environmental performance through EMAS certification, the EU's eco-management and audit scheme.

So hope to see you soon up in the mountains... Antje von Dewitz

CHOosing yoUr siTe:

• Pitch your tent on level ground, in an area protected from wind and not in a hollow, where water can quickly collect when it rains.
  Take into account wind direction when pitching your tent - face the entrance downwind and sheltered if possible.
  Take into account that camping near water sources could lead to condensation build up on your tent and belongings.
• Don't pitch your tent in dangerous places. This includes gorges, underneath cliffs or rocks, near glacier-fed rivers, in forests or near fire spots.
• Remove all pointy or sharp objects that could damage the tent floor.
• Use a tent footprint or groundsheet to protect the tent floor.
  If you are planning on camping in one spot for a longer period of time, make sure to pitch in shade or half shade - UV radiation accelerates the aging process of tent fabrics and coatings.
• When camping on snow and in freezing conditions,

dig a pit in front of the tent door or in the vestibule in which cold air can collect.

• Avoid snow build up by regularly clearing snow off the surface of the tent.
• Cooking inside your tent should be avoided whenever possible due to the danger of fire or carbon dioxide poisoning. If you need to make an exception, make sure to ensure sufficient ventilation and keep the stove as far from the tent walls as possible. This might mean having to detach the inner tent and fold it back.

seT UP - general insTrUCTIONS:

VAUDE tents are well known for their simple set up. If any step in the process seems difficult, do not use force; take the time to find out what the problem is.

1. Spread out the tent on the ground. (Inner and outer tent are delivered attached to each other.) In windy conditions you should stake out the tent. Use guy lines to anchor it, for example, to a rock, backpack, etc.

ENGLISH

1. Sort the poles and assemble the sections by sliding them into each other. Do not whip out the pole sections so they snap together. Make sure that each pole section is fully inserted into the next section; otherwise they may crack or break under pressure. Gently slide the poles through the pole sleeves. Do not pull them through.
2. Erect the tent and make sure that the entrance zip is not under undue tension or strain which could easily damage the zip. Use the releasing lock at the bottom of the entrance.
3. Stakes should be driven in at a 60^ angle away from the tent (X).
4. In the event of strong winds or a storm, it is necessary to additionally secure the tent with the attached storm cords. To adjust the length of the storm cord, push the Stormcord Collector up or down. If the storm cord is not required, wrap the cord around the Stormcord Collector and secure the end on the hook provided for this purpose (V).
5. The VAUDE Y-stakes that come with our tents are very durable and resistant to bending and

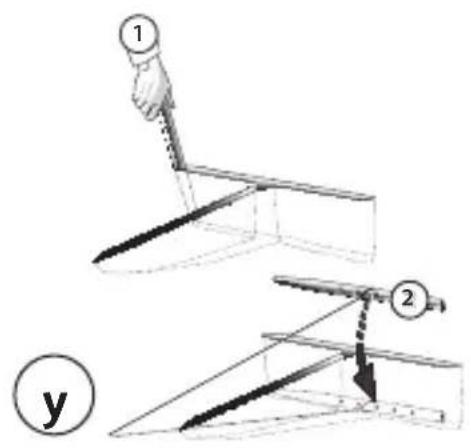

especially suited for hard ground and grass. For extremely hard ground, we recommend the use of tent pegs or spikes. VAUDE offers special stakes for very soft ground, snow or sand. Hammer them in vertically for soft soil or bury them horizontally to anchor in sand or fresh powder snow (y).

seTTing UP - "Model-sPeCific":

Please follow the instructions step by step, the order is important.

1. Clear the set-up place of all pointed objects (if necessary, use a ground sheet).
2. Spread out the tent on the ground. Please note: the inner and outer tent are delivered attached to each other.
3. Lay out the poles and connect them.

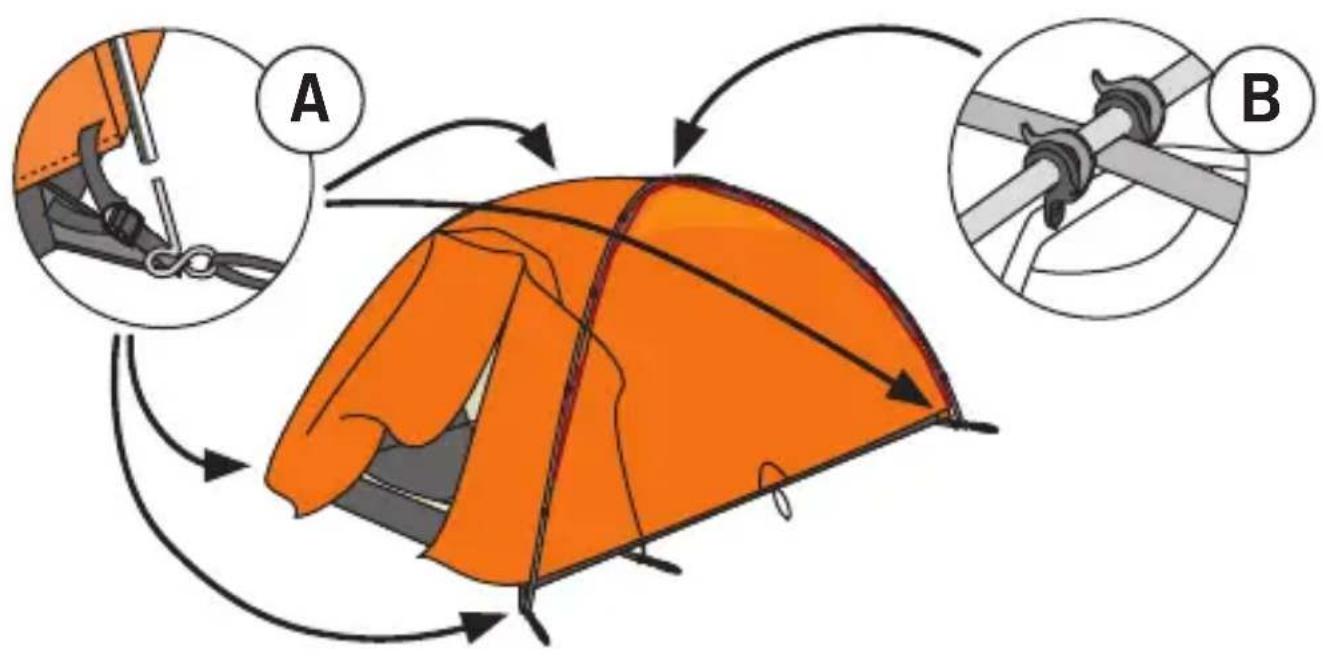

4. Connect the two long poles with the respective square hooks at the tent corners (a); please make sure that they are not twisted. Attention: The reinforcing triangle in the centre at the top has 2 clamping hooks; the pole frame which will be connected to the reinforced triangle must be on top (B).

5. Starting from this central reinforced triangle fasten the clamping hooks to the poles. Do not yet close the red clamping brackets so that the tent can still be adjusted to align with the poles.

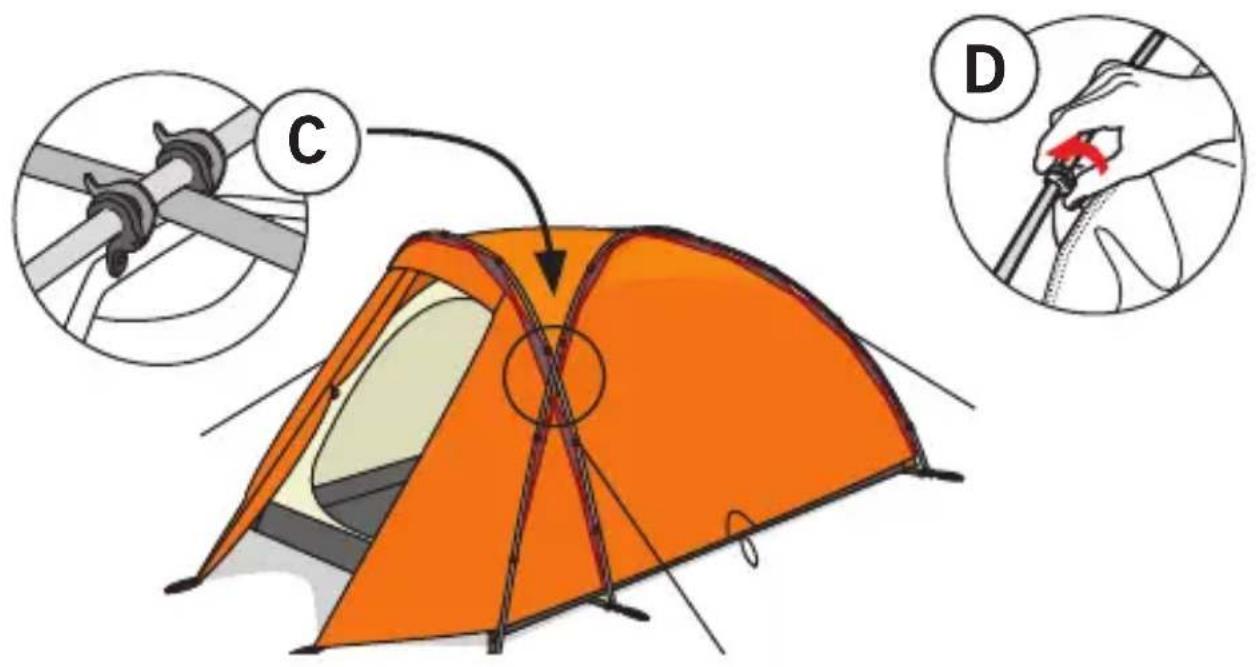

6. Now guide the short poles into the front of the tent on both sides between the two double hooks and fix the ends again below on the square kooks (C). Note: if it's not possible to guide the poles between the two hooks loosen one hook and close it again afterwards.
7. The tent should now stand unaided. Anchor the tent with the woven ribbons and the clamping hooks at all 6 corners of the tent with a peg.
8. Now anchor the porch and if necessary the guy lines with tent pegs. To stabilize the tent in strong winds up to storms you can fix the hooks with clamping brackets on the poles. This ensures the tent is extremely wind stable (d).
9. To provide enough air flow please open the variable entrances.

TaKe down - general instTrUCTIONS:

• Remove everything from the tent's interior.
• Freestanding tents can be gently shaken out to remove leaves, sand, and other debris.
• Turn the tent over with floor facing upward and allow it to dry a bit longer.
  If it's not possible to dry the tent completely before packing it, this should be done within 12 hours to prevent the risk of mold and mildew growth.
• As in the tent set up, never pull the poles out of the pole sleeves; rather push them through.
• When storing a tent in its stuff sack, make sure that stakes and poles don't press against the tent fabric and damage it.
  Before taking down your tent, close all zips and roll up the guy lines. That way you won't have to untangle them when it comes time to set the tent up again, and pitching is that much easier.

disManTling - "Model-sPeCifiC":

1. Remove the pegs from the base points and the hooks from the poles, thus let the tent fold in on

ENGLISH

itself. Then unfasten the poles from the clamping hooks.

1. Fold up the poles and roll them up with the tent, if possible. Do not force the poles into the storage bag, if it is full, as these may result in damage to the storage bag and tent.

sTorage/Care/rePairs:

• As soon as the tent is dry and clean it can be stored in its pack sack in a well-ventilated, cool and dry place. Please do not store the tent near paints, adhesives, oils, plastics, or fuels (gas canisters, etc.).! The gasses emitted from these materials contain plasticizers that can damage your tent over time.
• Zips are always a weak point in a tent's structure. If they get dirty, clean them with a (tooth) brush and lubricate them with graphite (pencil lead), silicon or sewing machine oil. Apply carefully and remove excess oil with a soft cloth.
• Never store your tent when it's wet for a longer period of time. Unpack it as soon as you arrive and dry it out in a well-ventilated place. To do so,

separate the inner and outer tents or use the poles to create space between the two.

• Do not whip out tent poles and snap the sections together. This can damage the pole ends as well as the anodization. Check the poles regularly for cracks or other potential damage. Wash the poles and use silicon spray at any sign of corrosion (from salt water, for example)
  VAUDE only uses poles from the renowned manufacturers DAC and Yunan. These tend to become slightly bent with use, helping to reduce fracturing. Please do not attempt to bend these back into shape. Although aluminum is extremely flexible this might damage or even break the poles. Every VAUDE tent comes with a Pole Doctor or repair sleeve. If a tent pole breaks while out on a trip, simply slide the repair sleeve over the broken section and then use tape to attach it (Z).
• The tent should only be cleaned by hand, never in a washing machine! Use a soft cloth and luke warm water. Detergents or cleaning agents may harm the tent's coating and waterproofing.

Use a brush to rub Nikwax Tech Wash in a 1:4 ratio with water on stubborn stains. Follow up with Nikwax Tent & Gear Solarproof waterproofing, applying generously to the area cleaned.

• When on the road, repair tears in the tent wall with repair tape and seal from the inside with a PU or silicon seam sealer. The seam should however be correctly repaired as soon as possible in order to prevent further tearing. Please contact your retailer to do this.
• Tent pole shock cords can be retightened if necessary (elasticity can wear out in very cold conditions or due to aging). To do this first remove the end cap and then untie the knot in the cord. Retie the knot further up the cord and replace the cap (W).

TECHNICAL DETAILS:

Depending on tent models, VAUDE tents feature the following:

FEATURES/FABRICS:

SILICONISED:

Increases tent life by 20% - a triple coating reflects damaging UV radiation to a much greater degree than standard treatments.
- 8-times greater tear resistance – siliconized fabrics attain a tear resistance of 8-11 kg compared to 1.3 kg of PU coated fabrics.
Excellent water beading properties - water simply beads on the surface.
- Retensioning – the polyamid carrier material swells up when damp or wet. The tent needs to be retensed if rain/snow initiate.
- Sealing - siliconized materials cannot be factory seam sealed (exception: VAUDE Silicon Seam Seal). When camping in extremely rainy conditions we recommend sealing all seams by hand with a silicon seam sealer.

ENGLISH

FLY: TEAR-RESISTANT 40D POLYAMIDE RIPSTOP 240T SI/SI; WATERPROOF TO 3,000 MM.

• High resistance to tearing due to tensile polyamide fabric embedded with reinforcing fibres.
• Triple silicon coating to the outer and inner surfaces for maximum tear-resistance and water run off, as well as increased UV-resistance.

INNER TENT:

30D POLYESTER RIPSTOP 285T.

• 285T - tightly woven ripstop polyester. Wind, sand and snow proof with high tear resistance and breathability.

Floor:

40D POLYAMIDE RIPSTOP 240T, PU LAMINATED, WATER COLUMN 10,000 MM.

• Tightly woven with reinforced cross threads, tear resistant polyamide floor with a laminated PU membrane; waterproof up to 10,000 mm.

SAFETY GUIDELINES:

• Please heed safety guidelines for all appliances used in the tent.
  Always keep exits and throughways as well as vent openings accessible.
  Find out what the rules and regulations are for the campsite you are on and heed fire safety precautions.
• Avoid hazardous materials inside the tent, such as stove or automobile fumes (for example in the Drive Base/Van).
• Wear your shoes around the tent. Stakes and other anchors can be very sharp.
• Do not stake out the guy lines over paths or trails. These can be easily tripped over in the dark.
