Campo Compact XT - Tent Vaude - Free user manual and instructions

Brand	Vaude
Model	Campo Compact XT
Product type	3-season camping tent
Outer tent	Polyester 70D 185T PU, water column 3000 mm
Inner tent	Polyamide 70D Ripstop 185T
Floor	Polyamide 70D 190T PU, water column 5000 mm
Poles	DAC and Yunan, supplied with repair sleeves
Setup	Easy, slide poles into sleeves
Main features	Double roof, vestibule, storm guy lines, Stormcord Collector, anti-tension system
Cleaning	Hand wash with soft cloth and warm water; use Nikwax Tech Wash and Tent & Gear Solarproof
Zipper maintenance	Brush, lubricate with graphite or silicone oil
Pole repair	Repair sleeves provided, slide and secure with tape
Fabric repair	Temporary repair patch, then waterproof; have repaired by a specialist
Storage	Dry, clean, in a cool place away from chemicals
Safety	Do not block ventilation, avoid cooking inside, be careful of sharp pegs

Frequently Asked Questions - Campo Compact XT Vaude

How to choose the location for my Vaude Campo Compact XT tent?

Set up your tent on flat ground sheltered from wind. Avoid depressions where water could collect. Orient the entrance away from wind. Avoid exposed areas such as gorges, under rocks, near a river or fire. Clear the ground of any sharp objects.

How to set up the Campo Compact XT tent?

Unfold the tent on the ground. Assemble the poles by fully joining them, then insert them into the sleeves by pushing (do not pull). Insert the ends into the metal eyelets at the corners of the inner tent. Clip the inner tent hooks onto the poles. Raise the flysheet and attach the velcro strips. Secure the poles with finger loops if needed. Relax the vestibules and open the entrances for ventilation.

How to maintain the zippers of my tent?

Clean them with a toothbrush if dirty. Lubricate with pencil lead (graphite), silicone oil, or sewing machine oil. Apply carefully and wipe off excess with a soft cloth.

What to do in case of strong wind with the Campo Compact XT?

Use the supplied storm guy lines to secure the tent. Pass the Stormcord Collector over or under to adjust the length. If guying is not needed, wrap the guy line around the collector and hook the end into the provided hook.

How to dry my tent after use?

If the tent is damp, do not leave it in its stuff sack for long. Unfold it as soon as possible and dry it in a well-ventilated place. Detach the inner tent from the flysheet and insert the poles to create space between the materials.

How to clean my Vaude Campo Compact XT tent?

Wash it by hand with a soft cloth and warm water. Avoid harsh cleaning agents. For stubborn stains, use Nikwax Tech Wash diluted in four volumes of water, rubbing gently. After cleaning, re-waterproof treated areas with Nikwax Tent & Gear Solarproof.

How to repair a broken tent pole?

Use the supplied repair sleeves. Slide the sleeve over the broken pole and secure with strong tape. Do not try to straighten bent poles; that is normal. Regularly check for micro-cracks.

How to repair a tear in the tent fabric?

Temporarily apply a repair patch over the tear. Make it waterproof with a silicone or PU seam sealer. Then have the fabric repaired by a specialist quickly to prevent the tear from enlarging.

What are the risks of condensation inside the tent?

Condensation can occur especially near water. To reduce it, ensure sufficient ventilation by opening the variable vents. Orient the tent so that the entrance is away from the wind. Avoid cooking inside.

How to properly store the Campo Compact XT tent?

Close all zippers and roll up guy lines and cords. Turn the tent over to dry if necessary. For dismantling, slide the poles out of the sleeves by pushing. Store the tent in its stuff sack in a cool, dry place, away from chemicals such as paint or fuel.

USER MANUAL Campo Compact XT Vaude

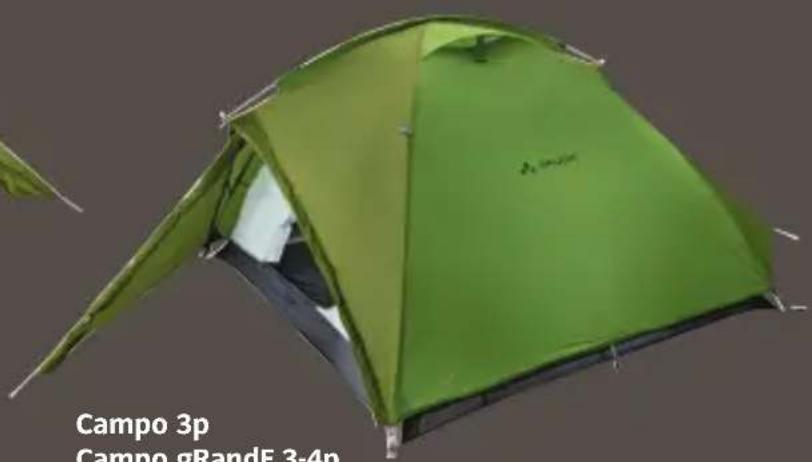

Green camping tent with open lid and visible interior space (no text or symbols)

Campo CompaCt 2p

Campo 3p
Campo gRandE 3-4p
Campo family 5p

vaude.com

dEUtSCH....1

English....7

fRanÇaIS....13

Italiano....20

ESpaÑol....26

nEdERlandS.... 33

CEština.... 39

中文....45

fEatURES

VEntillation Hood

By an intake rain-protected adjustable ventilation.

StoRmCoRd CollectoR

Stormcord tensioner and collector for guylines.

4-Way-Zlp

Entrance with 4-way zip can be fully opened and removed.

ZlppER SEam SEal

Waterproof taped entrance zip.

Mechanical assembly diagram showing a red downward arrow indicating force or motion (no text or symbols present)

V

Illustration of a mechanical spring or rope with a red arrow indicating motion direction (no text or symbols)

Diagram showing a tool interacting with two parallel wires, one emitting a flame (no text or symbols)

Mechanical diagram showing a lever mechanism with a pulley and a spring, labeled with number 2 (no text or symbols on the diagram itself)

Weight max: Packing size:

Water column groundsheet:

Water column fly:

CAMPO COMPACT 2P	2.850 g	55 x 20 cm	5.000 mm	3.000 mm
CAMPO 3P 3.900 g 55 x 22 cm			5.000 mm 3.000 mm
CAMPO GRANDE 3-4P	4.400 g	60 x 22 cm	5.000 mm	3.000 mm
CAMPO FAMILY 5P	6.500 g	60 x 30 cm	5.000 mm	3.000 mm

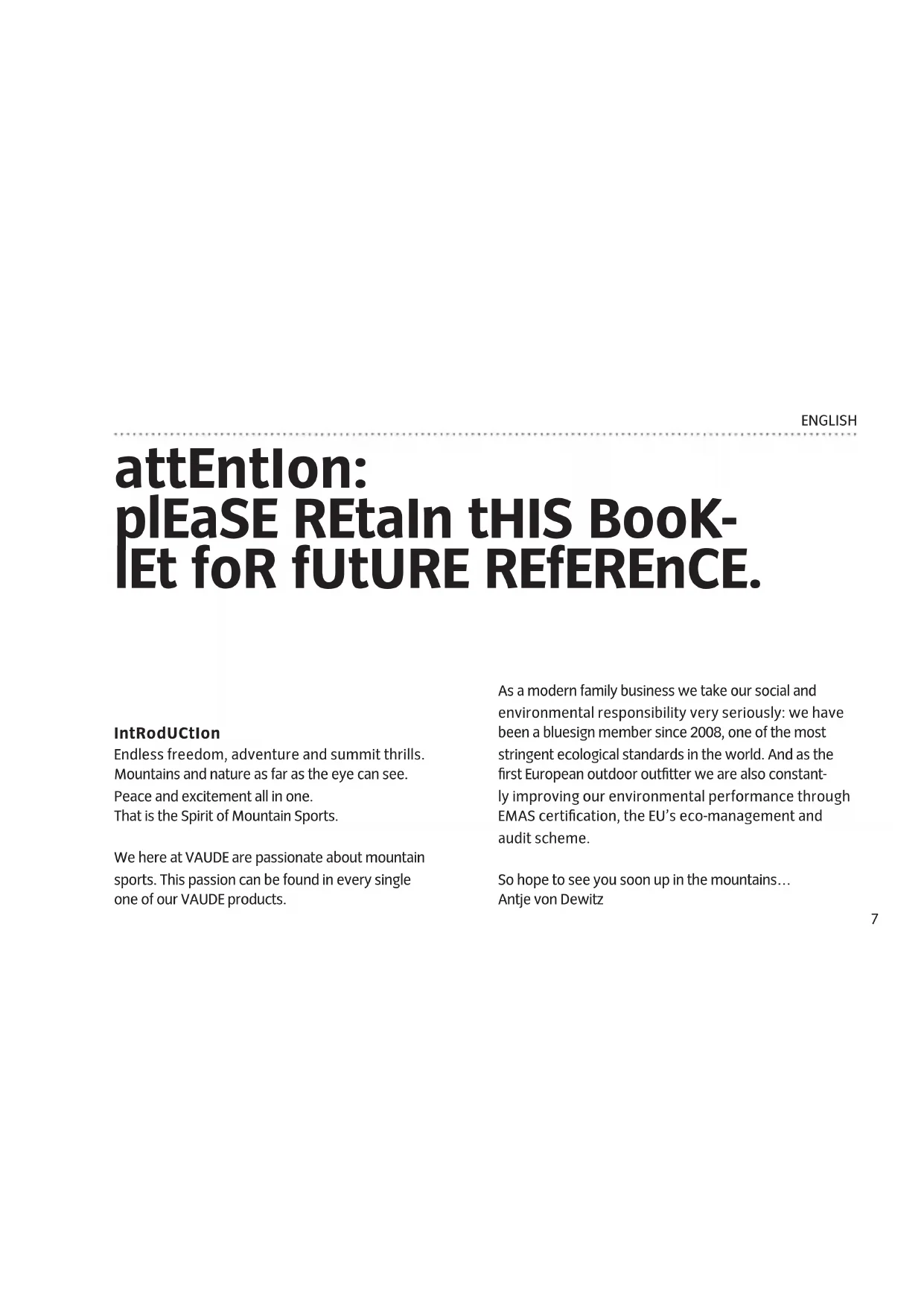

aCHtUng! fÜR SpÄtERES naCH- SCHlagEn aUfBEWaHREn!

EinlEltUng

Endless freedom, adventure and summit thrills. Mountains and nature as far as the eye can see.

Peace and excitement all in one.

That is the Spirit of Mountain Sports.

We here at VAUDE are passionate about mountain sports. This passion can be found in every single one of our VAUDE products.

As a modern family business we take our social and environmental responsibility very seriously: we have been a bluesign member since 2008, one of the most stringent ecological standards in the world. And as the first European outdoor outfitter we are also constantly improving our environmental performance through EMAS certification, the EU's eco-management and audit scheme.

So hope to see you soon up in the mountains... Antje von Dewitz

ENGLISH

CHooSIng yoUR SItE:

• Pitch your tent on level ground, in an area protected from wind and not in a hollow, where water can quickly collect when it rains.
• Take into account wind direction when pitching your tent – face the entrance downwind and sheltered if possible.
  • Take into account that camping near water sources could lead to condensation build up on your tent and belongings.
• Don't pitch your tent in dangerous places. This includes gorges, underneath cliffs or rocks, near glacier-fed rivers, in forests or near fire spots.
• Remove all pointy or sharp objects that could damage the tent floor.
• Use a tent footprint or groundsheet to protect the tent floor.
• If you are planning on camping in one spot for a longer period of time, make sure to pitch in shade or half shade – UV radiation accelerates the aging process of tent fabrics and coatings.
• When camping on snow and in freezing conditions,

dig a pit in front of the tent door or in the vestibule in which cold air can collect.

• Avoid snow build up by regularly clearing snow off the surface of the tent.
• Cooking inside your tent should be avoided whenever possible due to the danger of fire or carbon dioxide poisoning. If you need to make an exception, make sure to ensure sufficient ventilation and keep the stove as far from the tent walls as possible. This might mean having to detach the inner tent and fold it back.

SEt Up - gEnERal InStRUCTIONS:

VAUDE tents are well known for their simple set up. If any step in the process seems difficult, do not use force; take the time to find out what the problem is.

1. Spread out the tent on the ground. (Inner and outer tent are delivered attached to each other.) In windy conditions you should stake out the tent. Use guy lines to anchor it, for example, to a rock, backpack, etc.

2. Sort the poles and assemble the sections by sliding them into each other. Do not whip out the pole sections so they snap together. Make sure that each pole section is fully inserted into the next section; otherwise they may crack or break under pressure. Gently slide the poles through the pole sleeves. Do not pull them through.

3. Erect the tent and make sure that the entrance zip is not under undue tension or strain which could easily damage the zip. Use the releasing lock at the bottom of the entrance.

4. Stakes should be driven in at a 60^ angle away from the tent (X).

5. In the event of strong winds or a storm, it is necessary to additionally secure the tent with the attached storm cords. To adjust the length of the storm cord, push the Stormcord Collector up or down. If the storm cord is not required, wrap the cord around the Stormcord Collector and secure the end on the hook provided for this purpose (V).

6. The VAUDE Y-stakes that come with our tents are very durable and resistant to bending and especially suited for hard ground and grass. For extremely hard ground, we recommend the use of tent pegs or spikes. VAUDE offers special stakes for very soft ground, snow or sand. Hammer them in vertically for soft soil or bury them horizontally to anchor in sand or fresh powder snow (y).

SEttIng Up - "modEl-SpECIfIC":

Please follow these instructions step by step, the order is important.

1. Clear the set-up area of all sharp and pointed objects (if possible, use a groundsheet).
2. Lay the inner tent out on the ground.
3. Lay out the poles and assemble them (a): the poles consist of two long ones (a1) and (except for the Campo Compact) one ridge pole (a2).
4. Insert the ends of the long pole into the obliquely opposing metal sockets at the feet of the inner tent corners (B). Use this to put up the poles (C).
5. Connect the hooks inside the tent to the poles (d).

ENGLISH

1. Throw the outer tent over the erected inner tent and fasten the Velcro ties around the poles (E). Couple the hooks of the outer tent to the respective base points (f).

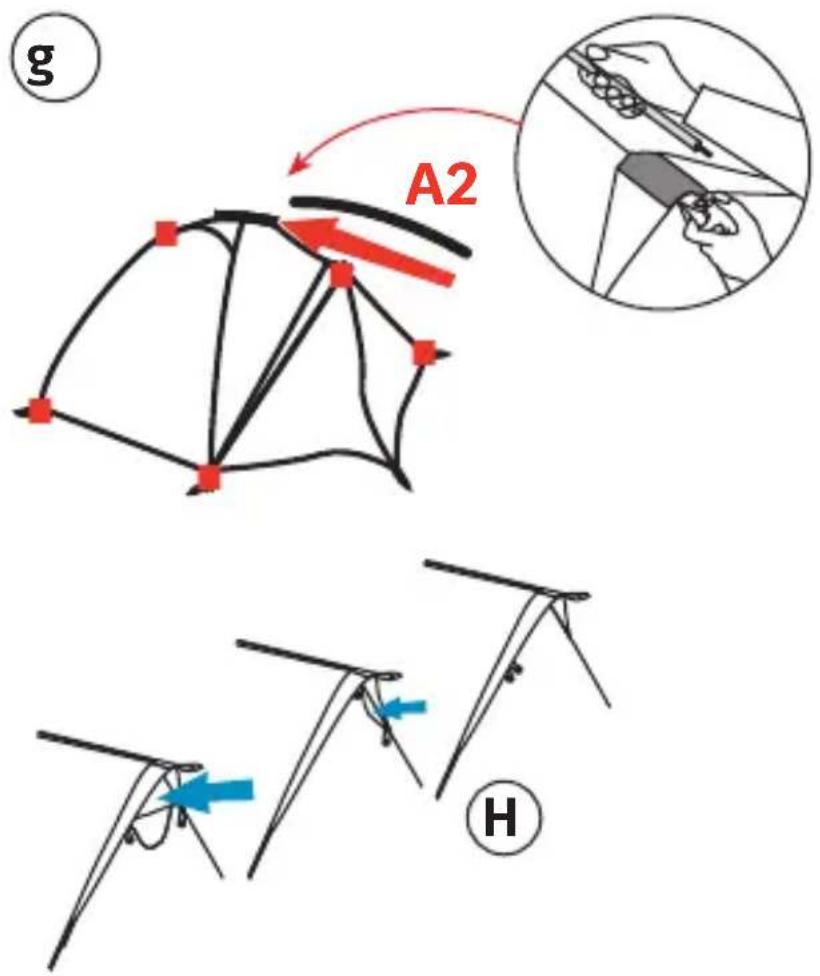

2. Insert the ridge pole and secure (except with Campo Compact); use the finger loops when doing so (g).
3. Anchor the porch and, if necessary, guy ropes. Please note: the finger loops do not suffice to secure the tent during stormy weather.
4. Ensure there is sufficient ventilation. To control this open the various entrances (H).

taKE doWn - gEnERal InSTRUCTIONS:

• Remove everything from the tent's interior.
  • Freestanding tents can be gently shaken out to remove leaves, sand, and other debris.
• Turn the tent over with floor facing upward and allow it to dry a bit longer.
• If it's not possible to dry the tent completely before packing it, this should be done within 12 hours to prevent the risk of mold and mildew growth.
  • As in the tent set up, never pull the poles out of the

pole sleeves; rather push them through.

• When storing a tent in its stuff sack, make sure that stakes and poles don't press against the tent fabric and damage it.
• Before taking down your tent, close all zips and roll up the guy lines. That way you won't have to untangle them when it comes time to set the tent up again, and pitching is that much easier.

dISmantllng - "modEl-SpECIfIC":

1. Pull out the tent pegs and undo the fixings of the poles and let the outer tent collapse.
2. Fold up the poles and roll them up with the tent, if possible. Do not force the poles into the storage bag, if it is full.

StoRagE/CaRE/REpaIRS:

- As soon as the tent is dry and clean it can be stored in its pack sack in a well-ventilated, cool and dry place. Please do not store the tent near paints, adhesives, oils, plastics, or fuels (gas canisters, etc.)!

The gasses emitted from these materials contain plasticizers that can damage your tent over time.

- Zips are always a weak point in a tent's structure. If they get dirty, clean them with a (tooth) brush and lubricate them with graphite (pencil lead), silicon or sewing machine oil. Apply carefully and remove excess oil with a soft cloth.

- Never store your tent when it's wet for a longer period of time. Unpack it as soon as you arrive and dry it out in a well-ventilated place. To do so, separate the inner and outer tents or use the poles to create space between the two.

- Do not whip out tent poles and snap the sections together. This can damage the pole ends as well as the anodization. Check the poles regularly for cracks or other potential damage. Wash the poles and use silicon spray at any sign of corrosion (from salt water, for example)

- VAUDE only uses poles from the renowned manufacturers DAC and Yunan. These tend to become slightly bent with use, helping to reduce fracturing. Please do not attempt to bend these back into sha-

pe. Although aluminum is extremely flexible this might damage or even break the poles. Every VAU-DE tent comes with a Pole Doctor or repair sleeve. If a tent pole breaks while out on a trip, simply slide the repair sleeve over the broken section and then use tape to attach it (Z).

- The tent should only be cleaned by hand, never in a washing machine! Use a soft cloth and luke warm water. Detergents or cleaning agents may harm the tent's coating and waterproofing.

Use a brush to rub Nikwax Tech Wash in a 1:4 ratio with water on stubborn stains. Follow up with Nikwax Tent & Gear Solarproof waterproofing, applying generously to the area cleaned.

- When on the road, repair tears in the tent wall with repair tape and seal from the inside with a PU or silicon seam sealer. The seam should however be correctly repaired as soon as possible in order to prevent further tearing. Please contact your retailer to do this.

- Tent pole shock cords can be retightened if necessary (elasticity can wear out in very cold conditions

ENGLISH

or due to aging). To do this first remove the end cap and then untie the knot in the cord. Retie the knot further up the cord and replace the cap (W).

tECHnICal dEtails:

Depending on tent models, VAUDE tents feature the following:

fly:

CLASSIC 70D POLYESTER 185T PU; 3000 MM WATER COLUMN.

- 70D polyester PU – reliable PU coated polyester backing material.

InnER tEnt:

70D POLYAMIDE RIPSTOP 185T.

• Abrasion and tear resistant polyamide fabric.

flooR:

70D POLYAMIDE 190T, PU COATED; WATER COLUMN 5,000 MM.

- Tightly woven polyamide floor with a laminated PU coating; waterproof up to 5,000 mm.

SafEty gUIDEInES:

• Please heed safety guidelines for all appliances used in the tent.
  • Always keep exits and throughways as well as vent openings accessible.
  • Find out what the rules and regulations are for the campsite you are on and heed fire safety precautions.
• Avoid hazardous materials inside the tent, such as stove or automobile fumes (for example in the Drive Base/Van).
• Wear your shoes around the tent. Stakes and other anchors can be very sharp.
• Do not stake out the guy lines over paths or trails. These can be easily tripped over in the dark.
