Product type	Family camping tent 4-person
Model	Badawi 4P
Brand	Vaude
Exterior dimensions (L x W x H)	620 x 470 x 210 cm
Interior bedroom dimensions (L x W)	260 x 240 cm
Ceiling height	210 cm
Total weight	9.8 kg
Packed volume	68 x 28 x 28 cm
Capacity	4 persons
Main material	Polyester 70D 190T with PU coating
Water column rating	3000 mm
Pole type	DAC Featherlite NFL aluminum poles
Number of poles	3 main poles
Key features	Spacious shelter, front awning with double entry, ventilation outlets
Care and cleaning	Clean with clear water, dry completely before storage, do not machine wash
Safety	Flame retardant compliant with CPAI-84 standard
Spare parts and repairability	Poles, pegs, stakes, tensioners, and masts available separately
General information	User manual included, 2-year manufacturer warranty

Frequently Asked Questions - Badawi 4P Vaude

How to set up the Vaude Badawi 4P tent?

Unfold the tent on a flat surface, insert the poles into the sleeves starting with the center pole, then the end poles. Secure the pegs at the corners and tighten the guy lines.

What is the weight of the Badawi 4P tent?

The total weight is about 9.8 kg, making it suitable for car camping rather than backpacking.

Is the tent waterproof?

Yes, the fabric is treated with a PU coating and a water column rating of 3000 mm. The seams are taped to ensure waterproofness.

How to maintain the tent after use?

Clean it with clear water without detergent, let it dry completely in the open air before storing it in its carry bag. Avoid prolonged exposure to sunlight.

Is the tent wind-resistant?

Thanks to its robust aluminum poles and aerodynamic profile, it withstands moderate winds. For strong wind, use the additional guy lines.

How many people can sleep in the Badawi 4P?

The tent is designed for 4 people with a bedroom of 260 x 240 cm, offering comfortable space for 4 standard sleeping pads.

Is there a mosquito net?

Yes, the entrances are equipped with mosquito nets to prevent insects while allowing ventilation.

Is the tent delivered with pegs?

Yes, it is delivered with steel pegs and guy lines. Check the contents in the manual.

Can I use the tent in winter?

The Badawi 4P is a 3-season tent. It can handle cool temperatures but is not designed for heavy snow or extreme cold.

How to fold the tent correctly?

Remove the pegs and poles, fold the fabric following the original creases, then roll it into the carry bag. Do not force to avoid damaging the seams.

USER MANUAL Badawi 4P Vaude

Exterior view of a camping tent with beige and gray design, no visible text or symbols

vaude.com

DEUTSCH....1

English......8

frAnÇAIS....15

ITALIAnO....22

ESPAÑOI....29

nEDEr|AnDS.... 36

CEŠTInA....42

中文....48

fEATUrES

VEnTIIATION HOOD

By an intake rain-protected adjustable ventilation.

COnTrOl Alr

Window vent is fully adjustable from the inside.

STOrMCOrD COLLECTOr

Stormcord tensioner and collector for guylines.

ZIPPER SEAM SEA

Waterproof taped entrance zip.

Illustration of a hand holding a cable with a red directional arrow indicating motion (no text or symbols)

V

Illustration of a mechanical spring or rope being twisted with a red arrow indicating rotation (no text or symbols)

Diagram showing a tool interacting with a wire, with a red arrow indicating direction and a circled 'W' (no text or symbols on the diagram itself)

Diagram of a mechanical device with a lever and pulley, showing motion direction (no text or symbols)

Weight max: 13.000 g

Packing size: 60 x 35 cm

Water column groundsheet:

10.000 mm

Water column fly:

3.000 mm

Endless freedom, adventure and summit thrills. Mountains and nature as far as the eye can see. Peace and excitement all in one. That is the Spirit of Mountain Sports.

We here at VAUDE are passionate about mountain sports. This passion can be found in every single one of our VAUDE products.

As a modern family business we take our social and environmental responsibility very seriously: we have been a bluesign member since 2008, one of the most stringent ecological standards in the world. And as the first European outdoor outfitter we are also constantly improving our environmental performance through EMAS certification, the EU's eco-management and audit scheme.

So hope to see you soon up in the mountains... Antje von Dewitz

CHOOSIng YOUR SITE:

• Pitch your tent on level ground, in an area protected from wind and not in a hollow, where water can quickly collect when it rains.
• Take into account wind direction when pitching your tent – face the entrance downwind and sheltered if possible.
  • Take into account that camping near water sources could lead to condensation build up on your tent and belongings.
• Don't pitch your tent in dangerous places. This includes gorges, underneath cliffs or rocks, near glacier-fed rivers, in forests or near fire spots.
• Remove all pointy or sharp objects that could damage the tent floor.
• Use a tent footprint or groundsheet to protect the tent floor.
• If you are planning on camping in one spot for a longer period of time, make sure to pitch in shade or half shade – UV radiation accelerates the aging process of tent fabrics and coatings.
• When camping on snow and in freezing conditions,

dig a pit in front of the tent door or in the vestibule in which cold air can collect.

• Avoid snow build up by regularly clearing snow off the surface of the tent.
• Cooking inside your tent should be avoided whenever possible due to the danger of fire or carbon dioxide poisoning. If you need to make an exception, make sure to ensure sufficient ventilation and keep the stove as far from the tent walls as possible. This might mean having to detach the inner tent and fold it back.

SET UP - gEnErAl InSTrUCTIONs:

VAUDE tents are well known for their simple set up. If any step in the process seems difficult, do not use force; take the time to find out what the problem is.

1. Spread out the tent on the ground. (Inner and outer tent are delivered attached to each other.) In windy conditions you should stake out the tent. Use guy lines to anchor it, for example, to a rock, backpack, etc.

ENGLISH

1. Sort the poles and assemble the sections by sliding them into each other. Do not whip out the pole sections so they snap together. Make sure that each pole section is fully inserted into the next section; otherwise they may crack or break under pressure. Gently slide the poles through the pole sleeves. Do not pull them through.
2. Erect the tent and make sure that the entrance zip is not under undue tension or strain which could easily damage the zip. Use the releasing lock at the bottom of the entrance.
3. Stakes should be driven in at a 60^ angle away from the tent (X).

4. In the event of strong winds or a storm, it is necessary to additionally secure the tent with the attached storm cords. To adjust the length of the storm cord, push the Stormcord Collector up or down. If the storm cord is not required, wrap the cord around the Stormcord Collector and secure the end on the hook provided for this purpose (V).

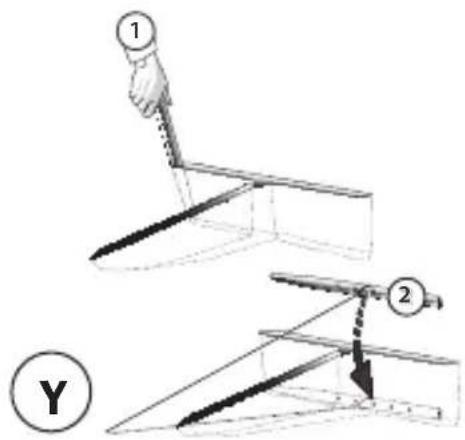

5. The VAUDE Y-stakes that come with our tents are very durable and resistant to bending and especially suited for hard ground and grass. For extremely hard ground, we recommend the use of tent pegs or spikes. VAUDE offers special stakes for very soft ground, snow or sand. Hammer them in vertically for soft soil or bury them horizontally to anchor in sand or fresh powder snow (Y).

SETTING UP - "MODEL-SPECIFIC":

Please follow these instructions.

1. Clear the ground of any sharp items (We recommend the use of a optional groundsheet protector).
2. Unpack the tent and poles, 3 main poles of the same length (A) and 1 ridge pole (B). Note: The inner tent and outer tent are supplied attached.
3. Assemble the poles and stretch the tent out on the ground.
4. Now secure the hood pole using the clip in the middle of the tent (C).
5. Insert the main poles into the pole sleeves (D). Warning: Do not pull the poles. To prevent damage

to the pole sleeve, the frame arches should not be fed in with force. To do this, you must keep an eye on the pole sleeve material and carefully pull it over the pole from the back.

1. When all the frame arches have been inserted, start to insert into the pole pins that are attached to the tape. Tension the intersecting frame arches in sequence (E).

2. Now secure the ridge poles using the clips (f).

3. Throw the rain hood over the center of the tent and gradually secure it to the tapes and the clips on the pole ends using the buckles (g).

4. Now tension the corners of the tent; first insert a peg into the short loop, and then into the long loop with the short pole. Then slacken the entrance area.

5. Open the window, put up the hood connector or remove the ridge hood to ensure a pleasant climate in the tent.

TAKE DOWn - gEnErAl InSTrUCTIONs:

• Remove everything from the tent's interior.
  • Freestanding tents can be gently shaken out to remove leaves, sand, and other debris.
• Turn the tent over with floor facing upward and allow it to dry a bit longer.
• If it's not possible to dry the tent completely before packing it, this should be done within 12 hours to prevent the risk of mold and mildew growth.
• As in the tent set up, never pull the poles out of the pole sleeves; rather push them through.
• When storing a tent in its stuff sack, make sure that stakes and poles don't press against the tent fabric and damage it.
• Before taking down your tent, close all zips and roll up the guy lines. That way you won't have to untangle them when it comes time to set the tent up again, and pitching is that much easier.

DISMAnTling - "MODEL-SPECIFIC":

1. Remove the ridgepole from the pole sleeve.
2. Relax the poles/feet and allow the tent to collapse

ENGLISH

in on itself. Tip: Before removing the poles loosen the outer tent tensioner.

1. Push the poles out of the sleeves (do not pull).
2. Fold up the poles and roll them up with the tent, if possible. Do not force the poles into the storage bag if it is full.

STOrAgE/CArE/rEPAIrS:

• As soon as the tent is dry and clean it can be stored in its pack sack in a well-ventilated, cool and dry place. Please do not store the tent near paints, adhesives, oils, plastics, or fuels (gas canisters, etc.)! The gasses emitted from these materials contain plasticizers that can damage your tent over time.
• Zips are always a weak point in a tent's structure. If they get dirty, clean them with a (tooth) brush and lubricate them with graphite (pencil lead), silicon or sewing machine oil. Apply carefully and remove excess oil with a soft cloth.
• Never store your tent when it's wet for a longer period of time. Unpack it as soon as you arrive and dry it out in a well-ventilated place. To do so,

separate the inner and outer tents or use the poles to create space between the two.

• Do not whip out tent poles and snap the sections together. This can damage the pole ends as well as the anodization. Check the poles regularly for cracks or other potential damage. Wash the poles and use silicon spray at any sign of corrosion (from salt water, for example)
• VAUDE only uses poles from the renowned manufacturers DAC and Yunan. These tend to become slightly bent with use, helping to reduce fracturing. Please do not attempt to bend these back into shape. Although aluminum is extremely flexible this might damage or even break the poles. Every VAUDE tent comes with a Pole Doctor or repair sleeve. If a tent pole breaks while out on a trip, simply slide the repair sleeve over the broken section and then use tape to attach it (Z).
• The tent should only be cleaned by hand, never in a washing machine! Use a soft cloth and luke warm water. Detergents or cleaning agents may harm the tent's coating and waterproofing.

Use a brush to rub Nikwax Tech Wash in a 1:4 ratio with water on stubborn stains. Follow up with Nikwax Tent & Gear Solarproof waterproofing, applying generously to the area cleaned.

• When on the road, repair tears in the tent wall with repair tape and seal from the inside with a PU or silicon seam sealer. The seam should however be correctly repaired as soon as possible in order to prevent further tearing. Please contact your retailer to do this.
• Tent pole shock cords can be retightened if necessary (elasticity can wear out in very cold conditions or due to aging). To do this first remove the end cap and then untie the knot in the cord. Retie the knot further up the cord and replace the cap (W).

TECHNICAL DETAILS:

Depending on tent models, VAUDE tents feature the following:

FLY:

CLASSIC 75D POLYESTER 185T PU; 3.000 MM WATER COLUMN.

- 70D polyester PU – reliable PU coated polyester backing material.

INNER TENT:

70D POLYAMIDE RIPSTOP 190T.

- Abrasion and tear resistant polyamide fabric.

FLOOR:

70D POLYAMIDE 190T, AQUALINE LAMINATED, 10,000 MM.

- Tightly woven polyamide floor with a laminated PU membrane; waterproof up to 10,000 mm.

ENGLISH

SAfETY gUIDEInES:

• Please heed safety guidelines for all appliances used in the tent.
  • Always keep exits and throughways as well as vent openings accessible.
  • Find out what the rules and regulations are for the campsite you are on and heed fire safety precautions.
• Avoid hazardous materials inside the tent, such as stove or automobile fumes (for example in the Drive Base/Van).
• Wear your shoes around the tent. Stakes and other anchors can be very sharp.
• Do not stake out the guy lines over paths or trails. These can be easily tripped over in the dark.
