USER MANUAL SSI 2869 SINBO

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons [including children] with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a personresponsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Heat caused by the arrival of the cutter accidentally starting position to avoid a hazard, such as a timer, this device

is fed via an external switching scheme on a regular basis or by means of the utility opened and closed, and a circuit connected to the circuit

Hol or cold iron and cords should be out of reach of children under 8 years.

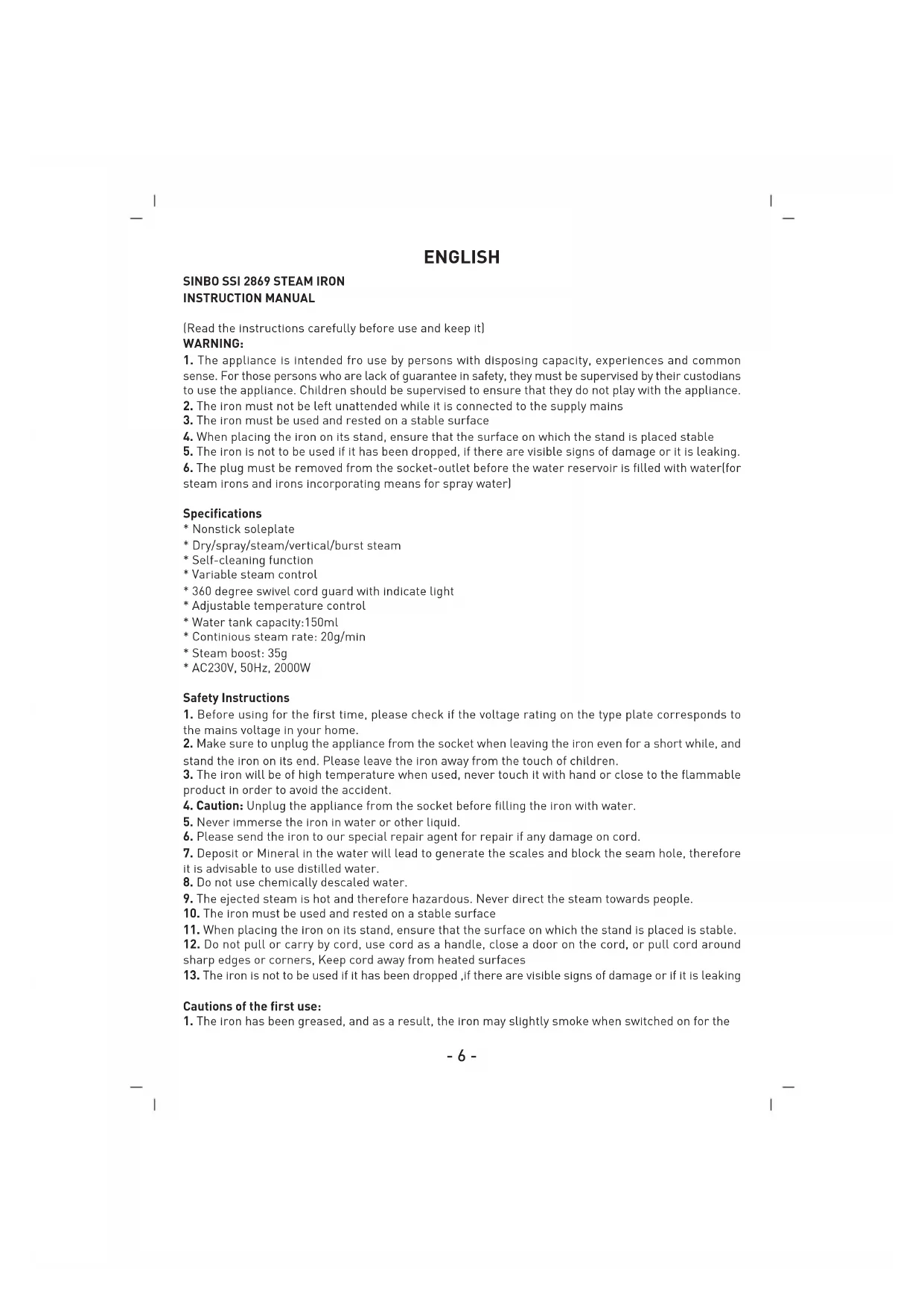

SINBO SSI 2869 BUHARLI U T KULLANIM KILAVUZU

(Read the instructions carefully before use and keep it)
WARNING:

1. The appliance is intended fro use by persons with disposing capacity, experiences and common sense. For those persons who are lack of guarantee in safety, they must be supervised by their custodians to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
2. The iron must not be left unattended while it is connected to the supply mains
3. The iron must be used and rested on a stable surface
4. When placing the iron on its stand, ensure that the surface on which the stand is placed stable
5. The iron is not to be used if it has been dropped, if there are visible signs of damage or it is leaking.
6. The plug must be removed from the socket-outlet before the water reservoir is filled with water[for steam irons and irons incorporating means for spray water]

Specifications

• Nonstick soleplate
• Dry/spray/steam/vertical/burst steam
• Self-cleaning function
• Variable steam control
• 360 degree swivel cord guard with indicate light
• Adjustable temperature control
• Water tank capacity:150ml
• Continious steam rate: 20g/min
• Steam boost: 35g
• AC230V, 50Hz, 2000W

Safety Instructions

1. Before using for the first time, please check if the voltage rating on the type plate corresponds to the mains voltage in your home.
2. Make sure to unplug the appliance from the socket when leaving the iron even for a short while, and stand the iron on its end. Please leave the iron away from the touch of children.
3. The Iron will be of high temperature when used, never touch it with hand or close to the flammable product in order to avoid the accident.
4. Caution: Unplug the appliance from the socket before filling the iron with water.
5. Never Immerse the Iron in water or other liquid.
6. Please send the iron to our special repair agent for repair if any damage on cord.
7. Deposit or Mineral in the water will lead to generate the scales and block the seam hole, therefore it is advisable to use distilled water.
8. Do not use chemically de scaled water.
9. The ejected steam is hot and therefore hazardous. Never direct the steam towards people.
10. The iron must be used and rested on a stable surface
11. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
12. Do not pull or carry by cord, use cord as a handle, close a door on the cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces
13. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking

Cautions of the first use:

1. The iron has been greased, and as a result, the iron may slightly smoke when switched on for the

first time. After a short while, this will cease.
2. Before using for the fist time, remove any sticker or protective foil from the soleplate. Clean the soleplate with a soft cloth.
3. Keep the soleplate smooth: avoid hard contact with metal objects

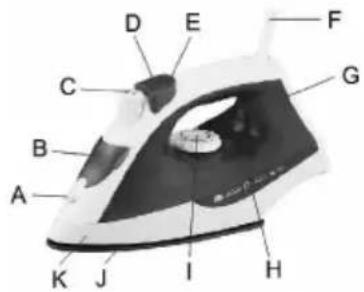

Component Name

A. Spray Nozzle
B. Water Filling Opening
C. Steam Control Knob
D. Burst of Steam Button
E. Spray Button
F. Power Cord Protector
G. Indicator light
H. Water Tank
I. Thermostat Dial
J. Sole plate
K. Skirt

Filling with Water:

Make sure iron is unplugged and the thermostat dial is in the MIN position. Place iron on the heel rest, tilt forward approximately 45 angle and pour water into the water-filling opening to the MAX position of the water tank.

Vertical Steam

"Burst of Steam" can also be applied when holding the iron in vertical position, this is useful for removing creases from hanging clothes, curtains, etc.

Dry Ironing

1. Set the steam control button to position 0[ No Steam]
2. As per washing label of various clothes, set the correct ironing temperature to begin a ironing.

Steam Ironing

1. Fill water in the iron as per the water-filling methods.
2. Plug the appliance in the socket.
3. If only set thermostat dial to MAX position as per the temperature indicator, steam iron will be available, otherwise water may leak from the soleplate.
4. It indicates that the temperature has been ready until the indicator light goes off.
5. Set the steam control button correctly, increase steam output by turning the steam control button back and decrease steam output by forward.
   Caution: Synthetic Fabric, Nylon, Synthetic Silk and Silk cannot use the steam iron, otherwise it will damage the finish of surface.

Burst of Steam

This function works well for tough wrinkles and heavy fabrics. By pressing "Burst of Steam" button, an intense burst of steam is emitted from the soleplate, this can be very useful when removing stubborn creases. The shot of steam facility can be used only while ironing with high ironing temperature. For optimal result, there should be 5 seconds rest between presses of the steam button. To prevent leaking water from the soleplate does not press the steam button continuously for more than 5 seconds. Also allow at least one minute interval before applying this burst of steam function.

Spraying Methods:

At any temperature by pressing the spray button a couple of times, the laundry can be damped down. Ensure that there is enough water in the water tank.

Type of Fabric and Thermostat knob Dial Form:

Caution Please note that on the label means that this article may not ironed.
Instructions on Label Type of Fabric Thermostat Dial
Nylon	Silk MIN
Wool
Cotton MAX
	Linen

Cleaning and Maintenance:

Before cleaning, remove the plug from the socket and allow the iron to cool down sufficiently.
1. Wipe off the soleplate with a damp cloth and a non-abrasive (liquid) cleaner.
2. If the fiber is adhered to the soleplate, use a damp cloth with vinegar to wipe off the soleplate.
3. Never use strong acid or alkali in order to avoid damaging the soleplate.
4. If the scale blocks the steam hole, please remove the scale with toothpick; do not damage the surface of soleplate.
5. Stand the iron on its end and let it cool down sufficiently, and meantime pour any remaining water out of the box, set the steam knob to position "0".

Simple Repair Methods

Problem Possible Reasons	Measurement
Not enough heat or Too heat	Rotate thermostat dial improperly or unplugging	Correct Thermostat dial in position and check if the iron is plugged.
No steam or Leakage The thermostat dial has been set to MIN	Set the thermostat dial to the required position.
No burst of steam or no vertical steam	The (vertical) burst of steam function has been used too often within a very short period. The iron is not hot enough	Continue ironing in horizontal position and wait a while before using the (vertical) burst of steam function again
Leaking water from Soleplate	Set the thermostat dial out of steam range.	Set the thermostat dial as per steam range.
	The heat is still not enough. Open st	steam control button only after the indicator light goes off.
	The water is over than max position	Pour out the remaining water
Little Steam	Check if the steam control button Is In proper location.	Set the steam control button to the proper location.
	Steam hole is blocked. Clean hole w	with distilled water.
	Too little water in the water tank fill water into the box
No Spraying No enough pressure or air inside Press the spray	nozzle by hand, and push the spray button several times continuously.
