USER MANUAL BXLRC10 BASICXL

Black and white toy robot with two wheels and a digital display showing 12:08 (no text or symbols on the device itself)

MANUAL (p. 2)

Alarm clock

MODE D'EMPLOI (p. 9)

Réveil

MANUALE (p. 17)

Orologio sveglia

HASZNÁLATI ÚTMUTATÓ (o. 25.)

Ébresztőóra

MANUAL DE USO (p. 21)

Reloj despertador

KÄYTTÖOHJE (s. 29)

Herätyskello

1. Battery installation:

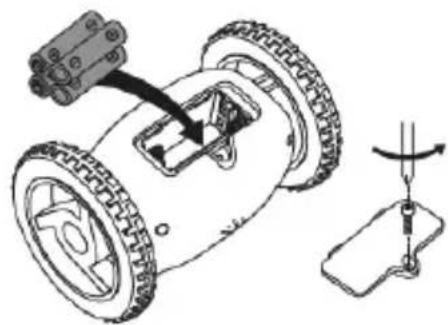

Insert 4 AAA batteries with correct polarity (pic. 1).

Diagram of a small wheeled robot with attached sensor and mechanical components, showing no text or symbols.

(pic. 1)

2. Set time:

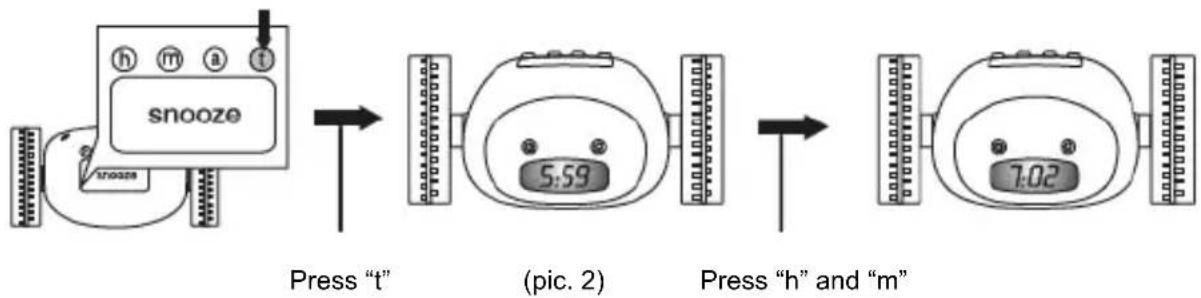

Pressing the "t" button will make the existing time flash on the screen. Press the "h" and "m" button to increase hours and minutes until the time is correctly set. In order to quickly adjust the hours and minutes, press the "h" or "m" buttons to leave the clock setup mode, then press the "t" button or until the screen stops flashing. It will flash for three seconds when lit and flash for two seconds when unlit (pic.2).

3. Alarm clock set:

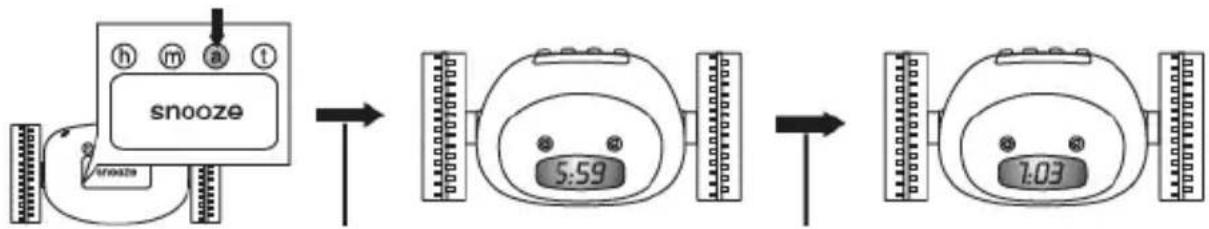

Press the "a" button, when the clock time starts blinking, press the "h" and "m" to adjust hours and minutes. To adjust the time faster, press the "h" or "m" button to leave the clock setup mode and press the "a" button until the end of the screen flashing. It will flash three seconds when a lit and flash for two seconds when until (pic. 3).

Press "a" (pic. 3) Press "h" and "m"

4. Snooze time set:

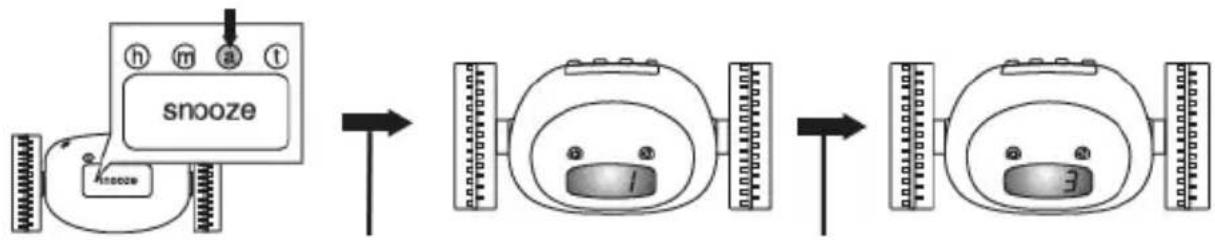

Press the "a" button. The snooze time is set to a 1 minute default. Press the "m" button to alter the snooze time for between 0-9 minutes. If 0 minutes is chosen, the snooze function is not activated (pic. 4).

To leave the snooze set mode, press the "a" button or until the clock time appears.

Press "a" twice (pic. 4) Press "m"

5. Setting the alarm clock:

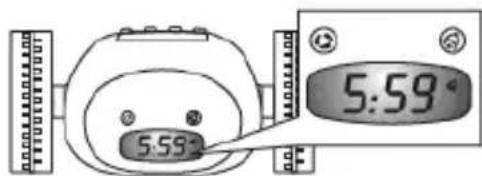

Setting the alarm clock: Press the alarm clock button, the alarm sign will appear on the screen (pic. 5).

5:59 5:59

(pic. 5)

6. Open the bull wheel:

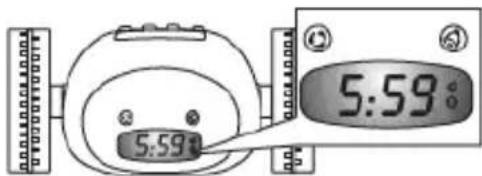

Open the bull wheel: Press the bull wheel button, the wheel sign will appear on the screen (pic. 6).

5:59

(pic. 6)

The next alarm: snooze can be set to ring again, if the alarm is not turned off, the clock will begin to beep and run. If the snooze minute is set to 0, the clock will run when the bell rings.

Press the "snooze" button. The screen will appear the last snooze time. You need to setup snooze time before clock running, the alarm clock will ring again when it runs away.

7. Turning off the alarm clock:

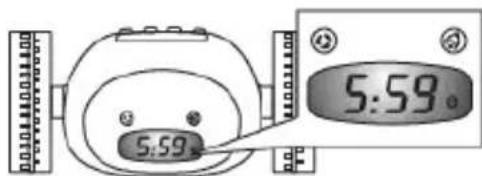

Press the alarm button again to turn off the alarm clock, the alarm sign on the screen will disappear (pic. 7).

5:59.

(pic. 7)

Remark: Once the alarm is turned off the wheel will not run.

8. Turn off the wheel:

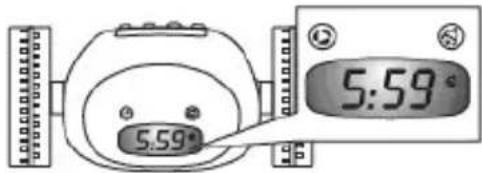

If you would like to have the alarm clock sound but not have it run away, press the bull wheel button again. The wheel sign will disappear from the screen (pic. 8).

5:59°

(pic. 8)

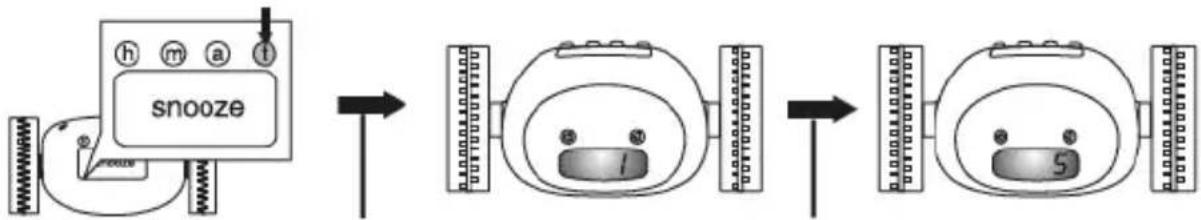

9. Game:

Continuously pressing the "t" button twice will display the No.1 of default. Pressing the "h" button will give you the choice of selecting the numbers between 1 and 5. Press the "t" button again hour after hour (twice) to confirm that the game has started. The game coverage: the alarm clock will rotate forwards, backwards, spin clockwise and counterclockwise; rotate through 360 degrees and irregularly (pic. 9).

Press "t" two twice (pic. 9) Press "h"

The numbers used represent the duration of the game:

No.1, Game duration 20 seconds;

No.2, Game duration 40 seconds;

No.3, Game duration 1 minute;

No.4, Game duration 1 minute 20 seconds;

No.5, Game duration 1 minute 40 seconds.

The times above are the default times of the games and will automatically stop after that time. Press the bull wheel to finish the games early (do not press any other buttons before pressing the bull wheel).

1. In order to avoid the alarm clock from breaking, do not put it in a place more than one meter high.

2. The alarm clock works on a wooden floor or carpet, but we do not recommend using it on a thick rug.

3. The alarm clock will run in different directions for about 30 seconds until it finds somewhere to have a rest. The backlight will flash when the alarm clock rings and moves.

4. Sometimes the alarm clock will spin until it runs in to a solid object.

5. Put the alarm clock back to the bed stand when it is retrieved, do not place it on the ground.

6. You can start the backlighting for 3 seconds to tell the time in darkness by pressing any button.

7. The battery sign will appear and flash on the screen before alarm time when the battery power is low. The alarm clock needs new batteries.

Frequently Asked Questions

1. When the alarm clock does not ring, please check the following: Check whether the alarm clock is set for am or pm and if the alarm clock sign is showing on the screen of the alarm clock and whether the alarm button has been pressed and if it is still showing on the screen.
2. If the alarm clock has a blinking low power warning, please replace the batteries as soon as possible.

Safety precautions:

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.
