USER MANUAL CPD 430 UNITED OFFICE

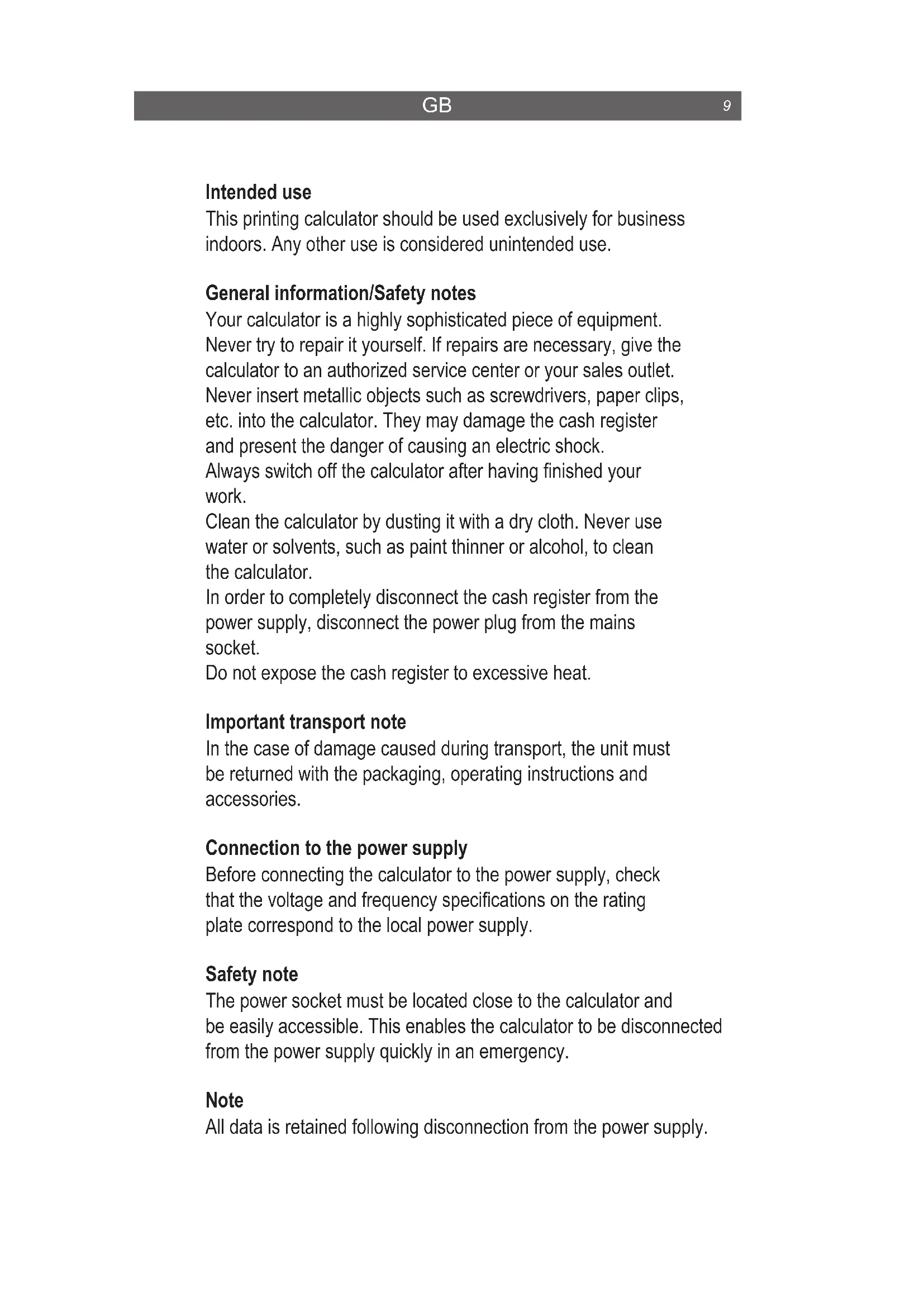

This printing calculator should be used exclusively for business indoors. Any other use is considered unintended use.

General information/Safety notes

Your calculator is a highly sophisticated piece of equipment.

Never try to repair it yourself. If repairs are necessary, give the calculator to an authorized service center or your sales outlet.

Never insert metallic objects such as screwdrivers, paper clips, etc. into the calculator. They may damage the cash register and present the danger of causing an electric shock.

Always switch off the calculator after having finished your work.

Clean the calculator by dusting it with a dry cloth. Never use water or solvents, such as paint thinner or alcohol, to clean the calculator.

In order to completely disconnect the cash register from the power supply, disconnect the power plug from the mains socket.

Do not expose the cash register to excessive heat.

Important transport note

In the case of damage caused during transport, the unit must be returned with the packaging, operating instructions and accessories.

Connection to the power supply

Before connecting the calculator to the power supply, check that the voltage and frequency specifications on the rating plate correspond to the local power supply.

Safety note

The power socket must be located close to the calculator and be easily accessible. This enables the calculator to be disconnected from the power supply quickly in an emergency.

Note

All data is retained following disconnection from the power supply.

Disposal

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, haze

dous substances can leak into the groundwater and get into the food chain or poison the flora and fauna for years to come.

When replacing old appliances with new ones, the retailer is legally obliged to take back your old appliance for disposal free of charge.

Keyboards Describe

C#	When performing a calculation, press once to clear the last entered value. Press again to clear all entered values, except memory. This key is also used for clearing the overflow error.
1 = 9, 0, 00,	Digit keys.
+ , - , x, : = %	Function keys.
+/-	Sign change key.
→	Scroll Right key (moves the number displayed to the right, deleting the last digit on the right-hand side).
/	Paper feed.
C: C2	Used for calculating the currency.
C51 SELL MARKIN	Used for calculating the cost, selling price and profit margin amount. Enter the value of any 2 items to obtain the remaining value (e.g. enter the value of the cost and the selling price to obtain the profit margin%).
	Used for setting the calendar and time.
TAX+ TAX-	Used for calculating the tax.
In millions dollars	Used for calculating the metric conversion.
#/P	Non-Add Key - Used for printing out information which does not affect the calculation such as dates and serial numbers. Figures are printed on the lefthand side of the paper.
0	Sub-total.
*	Total is printed.
M*	Memory clear.
M#	Recall memory.
M#	Memory minus.
M#	Memory plus.

Decimal Point Selector Switch

Designating the decimal point position (A 0 2 3 F) for calculated results.

Addition and subtraction functions are performed with an c 2-digit decimal place.

All effective numbers up to 12 digits are printed or displayed.

Rounding switch

Used for round - up , round - off (5/4), round - down to elected decimal digits in the result.

Currency/Rate Set/Print/Item/Power On - Off Switch

Used for setting or recalling the CURRENCY exchange rate.

Used for setting or recalling the TAX rate.

Set switch to ITEM to print the number of times the

• and - keys have been pressed (up to 999).

When the ^ , M or M keys are pressed the

item count will be printed on the paper roll.

Entries and results will appear on the display and

will be printed out.

Power on, the entries and results will appear on

the display but not be printed out.

POWER OFF.

Overflow function

In the following cases, "E" will be displayed and the keyboard is electronically locked, the further operation is impossible. Press CE/C to clear the overflow.

Overflow Error Condition:

1. When the calculated result exceeds 12 digits.
2. Dividing by "0".
3. The sequential operation speed is faster than the calculation processing speed.

Specifications

Power Source: AA × 4, DC 6 V

Adaptor: DC 6 V, 300 mA

Calculating Capacity: 12 digits maximum

Dimension: 245mm ()× 150mm ()× 57mm (H)

Ink Roll: IR40T

Paper Tape:Width:57 mm

Diameter: 96 mm

Note

If you experience problems with the calculator, please press the RESET button at the back of the calculator. After resetting, be sure to set the calendar, clock, currency exchange and tax rate again.

Replacing the ink roller

1. Turn the power switch off.
2. Remove the printer cover. (Figure 1)
3. Lift the ink roll out from the roll holder. (Figure 2)
4. Install a new ink roll into position. (Figure 3)
5. Replace the printer cover. (Figure 4)

Installing printing paper

1. Lift up the paper arm. (Figure 5)
2. Place the new paper roll on the arm. The edge of the paper should be positioned as shown. (Figure 6)
3. Insert the paper into the slit at the back of the machine as indicated. (Figure 7)
4. Turn the power switch on. Press the paper feed key to advance the paper as shown.(Figure 8)

Guarantee

It is essential to retain this guarantee!

Dear Customer, we are pleased that you have chosen this equipment. Should a technical problem arise with regard to the equipment, please observe the following points:

• The period of guarantee for the equipment is 36 months.
• It is essential to keep the purchase receipt and original packing.
• The first line of action if a problem occurs is to contact our hotline.

Hotline International

00800 100 22 100

We are sorry for any inconvenience.

Yours faithfully

Olympia Business Systems

Vertriebs GmbH

CE

CPD-430

EN 55022: 2006

EN 55024:1998 + A1:2001+A2:2003

Februar 2010

OLYMPIA

Olympia Business Systems

Vertriebs GmbH

C E

CPD-430

EN 55022: 2006

EN 55024: 1998 + A1: 2001+A2:2003

Februar 2010

OLYMPIA

Olympia Business Systems

Vertriebs GmbH

C E

CPD-430

EN 55022: 2006

EN 55024: 1998 + A1: 2001+A2:2003

Februar 2010

OLYMPIA

Olympia Business Systems

Vertriebs GmbH

C E

CPD-430

EN 55022: 2006

EN 55024: 1998 + A1: 2001+A2:2003

Februar 2010

OLYMPIA

Pwntote to dnoa c yia Tc too eiccs twv oneivv ouAoync.

Otau n aTOKoipiDnTwv nAekpiKwv OuakeuWvivetai avEeAeykta, mTopei kata n aAloiwn Touc va qTaoov ETIkiivouveCs ouiec oTa uToyia ubata kai eToI OTN diatpoikn aluoida n va dNtnpiaotei n

πaviδa kai n xλωpiδa επi επη.

Otav n ouokeu n oac avikaiotatai aTó μia kaivoupiα o TTwntnc uTOxpeoutai aTó to vómo va TapaaláβεI Tnv Taaia touláxioTov δωeav ωs TpoC Tnv aTOKoiδn.

Olympia Business Systems

Vertriebs GmbH

C E

CPD-430

EN 55022: 2006

EN 55024: 1998 + A1: 2001+A2:2003

Februar 2010

OLYMPIA

Service-Center Hattingen

Zum Kraftwerk 1

45527 Hattingen

Hotline International

00800 100 22 100

Garancijski list

Olympia Business Systems

Vertriebs GmbH

C E

CPD-430

EN 55022: 2006

EN 55024: 1998 + A1: 2001+A2:2003

Februar 2010

OLYMPIA

Date Setting Example: May 1,2003

Fixer la date Exemple:1 mai 2003

Example: If switches below do not match the example, please set switches as shown.

Cost-Sell-Margin Calculation

Calculation Operation	Display	Print Out
Calculating Cost	200	SELL 200.	200.**
Selling Price: 200
Profit Margin: 12%	12	COST 176.00	12. M %
Cost = ? ( 176)			176.00 C*
Calculating Profit Margin	60	COST 60.	60. C*
Cost: 60
Selling Price: 100	100	MARGIN%40.00	100.**
Profit Margin = ? (40%)			40.00 M %
Calculating Selling Price	20	MARGIN% 20.	20. M %
Profit Margin: 20%
Cost: 120	120	SELL 150.00	120. C*
Selling price: ? ( 150)			150.00 **

Tax Calculation

Calculation Operation	Print Out
Set Tax Rate Rate: 5%	CLURRENCY RATE ITEM PRT ON OEE 5 CLURRENCY RATE ITEM PRT ON OEE 5	RATE 0. RATE 5. TAX %5.	0.%
To add Tax to $ 120. Tax = ? (6) Selling Price with Tax = ? (126.00)	120 TAX +	+ TAX 126.00	120. 5.% 6.00 Δ 126.00*
To subtract Tax from $ 120. Tax = ? (-5.71) Price without Tax = ? (114.29)	120 TAX -	-TAX 114.29	120. 5.% -5.71 Δ 114.29*
Recall Tax Rate	CLURRENCY RATE ITEM PRT ON OEE 5	RATE 5.5.%

Currency exchange calculation

Calculation Operation	Operation Display	Print Out
Set Exchange Rate Rate: 5%	CURRENCY RATE ITEM PRT ON OFF C15	C11.	1.CΔ
		C15.	5.CΔ
	CURRENCY RATE ITEM PRT ON OFF C15	C15.	◇
Exchange Rate is 5 The enter number is 120 Calculate C1/C2 = ?	120C1	C1600.00	120.5.CΔ600.00 C◇
	120C2	C224.00	120.5.CΔ24.00 C◇
Recall exchange Rate	CURRENCY RATE ITEM PRT ON OFF C15	C15.5.CΔ

Item Count

Calculation Operation Display Print Out
23	23+	23.00	23.00 +
25	25+	48.00	25.00 +
+) 42	42+	90.00	42.00 +
90			003......
-) 18	◇	90.00	90.00◇
+) 63	18-	72.00	18.00 -
135	63+	135.00	63.00 +
	*	135.00	005......
			135.00*

Percentage Calculation

Calculation Operation	Print Out
20 + 20 x 52 % = 30.4	20x52%+	20.10.4030.40
20 - 20 x 52 % = 9.6	20x52%-	20.10.409.60

Memory Calculation

Calculation Operation	Display	Print Out
(2 + 6) - (5 + 1) = 2	2+6*M+51M-1M0*M*	2.008.008.008.008.506.006.6006.6006.200	2.00 +6.00 +8.00 *8.00 M+5.00 +1.00 +6.00 *6.00 M-2.00 M*

Data Printout

Calculation Operation	Display	Print Out
May 10, 2003	5.10.2003 #	5.10.2003	# 5.10.2003 .......
2365	2365	2'365.00	2,365.00 +
8456	8456	10'821.00	8,456.00 +
May 11, 2003	5.11.2003 #	5.11.2003	# 5.11.2003 .......
5230	5230	16'051.00	5,230.00 +
+ ) 2578	2578	18'629.00	2,578.00 +
18629		18'629.00	18,629.00 *

Metric Conversion

Calculation Operation Display
inch → centimeter	17
yard → meter	19
foot → meter	14
mile → kilometer	16
ounce → gram	11
pound → kilogram	12
acre → square meter	13
square inch → square centimeter	18
square foot → square meter	15

Declaration of Conformity

in accordance with the Directive 2004/108/EEC and 2006/95/EEC

declares that the product:

complies with the essential requirements when used for its intended purpose.

Protection requirements concerning electromagnetic compatibility

Place & date of issue Name and signature

DoC-Nr.: 942914040

Version: 01

Notes

This instruction manual is purely informative. The contents are not part of any offer for sale or contract. The specifications, extensions and options described may differ from country to country. Olympia Business Systems Vertriebs GmbH reserves the right to revise specifications, make modifications and technical changes to the product described here in without notification.
