USER MANUAL FC1141X BRANDT

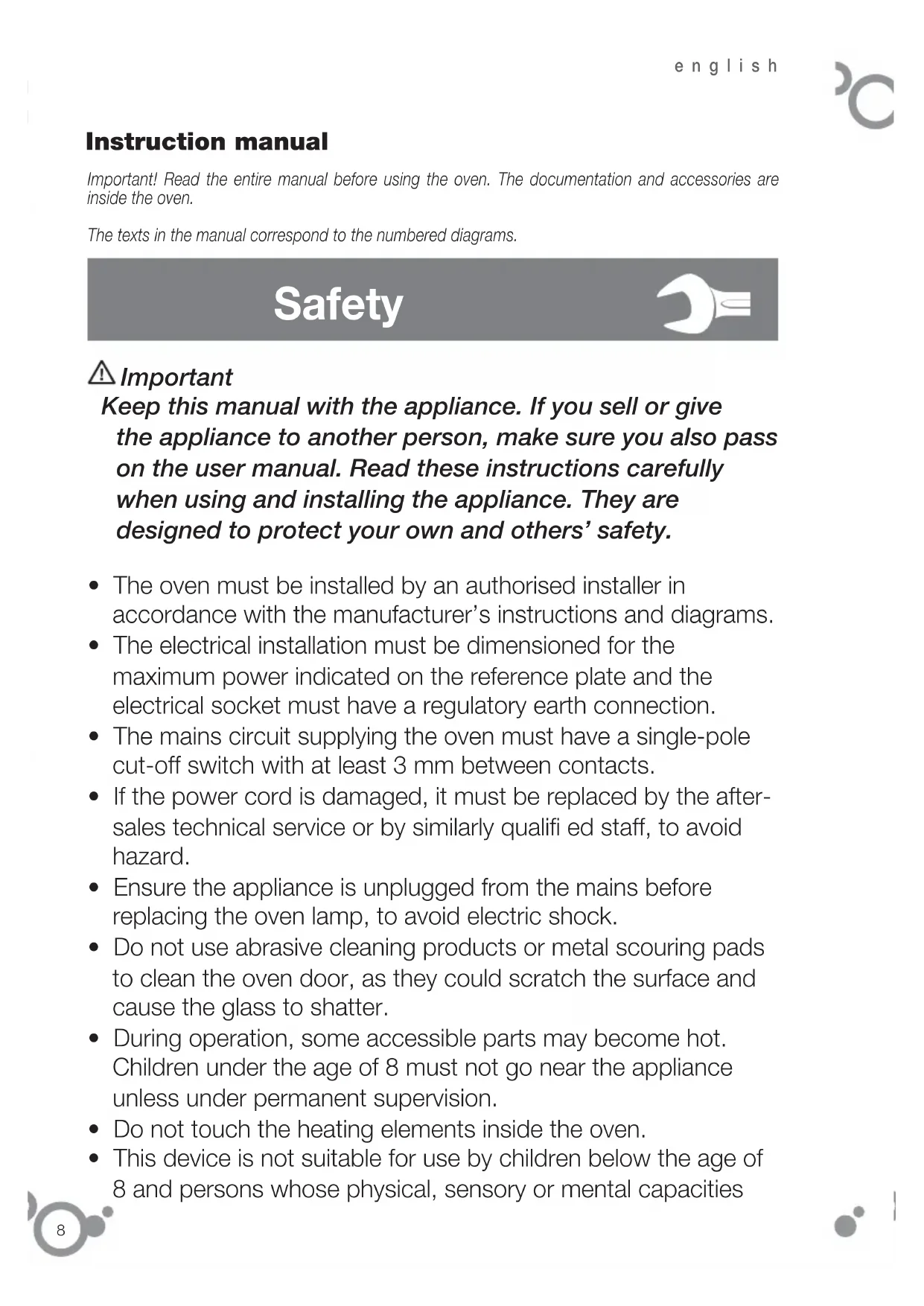

• The oven must be installed by an authorised installer in accordance with the manufacturer’s instructions and diagrams.

• The electrical installation must be dimensioned for the maximum power indicated on the reference plate and the electrical socket must have a regulatory earth connection.

• The mains circuit supplying the oven must have a single-pole cut-off switch with at least 3 mm between contacts.

• If the power cord is damaged, it must be replaced by the after- sales technical service or by similarly qualifi ed staff, to avoid hazard.

• Ensure the appliance is unplugged from the mains before replacing the oven lamp, to avoid electric shock.

• Do not use abrasive cleaning products or metal scouring pads to clean the oven door, as they could scratch the surface and cause the glass to shatter.

• During operation, some accessible parts may become hot. Children under the age of 8 must not go near the appliance unless under permanent supervision.

• Do not touch the heating elements inside the oven.

• This device is not suitable for use by children below the age of 8 and persons whose physical, sensory or mental capacities Important Keep this manual with the appliance. If you sell or give the appliance to another person, make sure you also pass on the user manual. Read these instructions carefully when using and installing the appliance. They are designed to protect your own and others’ safety.9 english are impaired, or who lack suffi cient experience or knowledge, unless they are supervised or instructed in the use of the appliance and understand the dangers involved. Children must not play with the appliance. The appliance must not be cleaned or maintained by unsupervised children.

• This appliance is designed for normal household use only. Do not use it for commercial or industrial purposes. Use exclusively for cooking food products.

• Do not try to modify the characteristics of the appliance. It could be dangerous.

• During cleaning by pyrolysis, surfaces become hotter than during normal use. Keep out of reach of children.

• Before cleaning with pyrolysis, remove all cooking items and signifi cant overfl ows.

• Do not put heavy weights on the oven door and make sure that children do not climb or sit on it.

• Always make sure that the oven is switched off before cleaning.

• After using the oven, make sure that all the controls are in the off position.

• Do not use the oven as a larder or to store accessories after use.

• Do not use steam or high pressure devices to clean the device (electrical device safety reasons)

• The oven door should always be kept closed when working, for all programmes, including the grill.english

Installation Using the oven To fi nd out which model your oven is (“a”, “b”, “c”, “d”, “e”) compare its control panel with the control panels shown in the illustrations.

1.1 Unpacking. Remove all the protective

1.2 Mains connection. Always take into account

the data on the reference plate (1.2.1) and the measurements of the cabinet the oven will be housed in (1.2.2, 1.2.3). The appliance must be connected to the mains with a fi xed single-phase connection with the neutral-to-neutral (blue) connection guaranteed (1.2.4). Fit the oven into the space and centre it (1.2.5). Make sure there is no excess cable in the upper part (1.2.6). Screw it to the fi tting using the two screws supplied (1.2.7).

2.1 Setting the time. When you switch on the

oven, the display will fl ash (2.1.1, 2.1.2). Adjust the time by pressing or (2.1.3), or turning the dial (2.1.4). The time will automatically be validated after 3 seconds, or if you press either the or button. Note: The time will need to be reset if a power cut occurs.

2.2 Changing the time .

Model (a). Turn the function selector to “0”. Hold down the button until the time starts to fl ash (2.2.1). Set the time using the / buttons (2.2.2) and validate by pressing the button. Model (b, c). Turn the function selector to “0” . Hold down the button until the time starts to fl ash (2.2.3). Set the time by turning the / dial (2.1.4) and validate by pressing the button (2.2.4).

2.3 Beeper function . Press or until

appears (2.3.1, 2.3.2). Adjust the time using the and buttons (2.3.3) or by turning the dial (2.1.4, 2.3.4). The time will automatically be validated after a few seconds and the countdown will start. A beep will sound when the countdown ends. Press any button to stop the beep.

2.4 Before using your new oven for the fi rst

time, heat it up while empty (with no food in it and with the control turned to

, for 30 minutes at 250ºC). It may produce some smoke or a bad smell (this is normal and is caused by the oven heating up grease residue etc.). When it has cooled down, pre-clean it by wiping the inside with a damp cloth.

2.5 Accessories. Depending on the model,

the oven is equipped with a Standard Tray

(2.5.1), a Deep Tray (2.5.2) and a Standard Rack (2.5.3), which function separately. You may also combine any tray with the standard rack (2.5.4) to form a unit. SPIT ROASTER: If your oven has a spit roaster, proceed as follows:

1. Place the tray on level 1 to catch juice

drippings. If the item to be roasted is too large, place tray on the base of the oven.

2. Insert the spit in the item you wish to roast

and hold it in place using the two sliding hooks (2.5.5).

3. Place the whole unit in the oven (2.5.6).

4. Insert the spit in the hole in the rear wall of

the oven and unscrew the handle of the spit so that you can close the door (2.5.7).

5. Select the ventilated grill with rotary spit

programme and switch on the oven. Turn the temperature dial to 200ºC.

6. When roasting is complete, screw the

spit handle back on and take it out of the oven. Remove the sliding needles and remove the spit from the food.

2.6 Accessory positions. The accessories

can be fi tted in 5 different positions

2.7 Cooking the food. Place the food in the

oven. Choose the accessory or accessories to be used and their recommended position,english

or consult the cooking table. Close the oven door. COOKING

2.8 Selecting the cooking function . Turn

the function selector and select the desired function according to the model (2.8.1). Traditional fanned heat. For any kind of dish. Several dishes may be cooked at once without their fl avours or smells mixing. Turbo plus. The heat is produced by the central element. Fanned high grill. This browns the food, distributing the heat evenly. Ideal for large- sized roasts. High grill. For browning pasta, souffl és and bechamel sauce. Low grill. For hamburgers, toast and food with a small surface area. High base heat. The heat from the oven base is evenly distributed. Ideal for paellas or pizzas. Fanned base heat. The fan distributes the base heat evenly. Suitable for paellas. Traditional heat. For bread, cakes, cakes with fi lling and lean meat. Ventilated grill + Spit roaster. Ideal for even, juicy, crunchy roasts. Traditional eco. For bread, cakes and lean meat. This function provides power savings of 25% while maintaining the cooking properties. Keep-warm function. Ideal for keeping food warm and for fermenting dough. Defrost. Rapidly thaws any kind of food.

2.9 Selecting the temperature. When you

select the cooking function, the oven will recommend the optimum temperature and cooking will begin immediately. You can change this temperature within an upper and lower limit according to the programme selected. Model (a). Change the temperature using the “ “ dial ( 2.9.1) (2.9.2). Model (b, c). Press the button until appears (2.9.3). The temperature will fl ash and can be changed using the “ “ control. (2.9.4) (2.9.5). Model (d, e). Select the temperature by turning the selector dial (2.9.6).

2.10 Switching off the oven. In all cases, when

the cooking process is complete, turn the function selector dial to (2.10.1) and the time dial to hand position

. Open the oven door, taking care as hot steam may come out.. TIME FUNCTIONS

2.11 Selecting the cooking time

. Select the cooking function and the desired temperature. Press or until starts to fl ash (2.11.1. 2.11.2). Adjust the cooking time by pressing or (2.11.3), or by turning the dial (2.11.4, 2.11.5). After a few seconds the time will automatically be validated and the countdown will begin. When cooking is complete, a beep will sound. To stop the beep, press any button and switch off the oven.

2.12 Selecting the end time : Select the

cooking function, the temperature and the cooking time. Press or until

fl ashing (2.12.1, 2.12.2). Adjust the cooking end time by pressing or (2.12.3), or by turning the dial (2.11.4, 2.12.4). The start of cooking will be delayed so that it fi nishes at the time shown. When the end time is reached, the oven will beep. To stop the beep, press any button and switch off the oven.

2.13 Selecting the cooking time. Timer

Model (d): select the minutes by turning the selector dial. (2.13.1). If you prefer the oven to function without a time limit, turn it to hand position

accidentally forget to switch off the oven, it will switch off automatically after a certain time has elapsed. “AS” will appear on the display.

Maintenance and cleaning

3.1 Cleaning the accessories. The accessories

are dishwasher-safe. To wash them up by hand, use ordinary detergent. Leave them to soak for easier cleaning.

3.2 Cleaning the inside of the oven. Remove

the side rails (3.2.1) (3.2.2). When the rails have been taken out, wet a cloth in hot soapy water and use it to clean the side walls of the oven (3.2.3). When you have cleaned them, replace the guides.3.3 Rough-walled models. Catalytic enamel (self-degreasing). On these models, the rear plate and side panels are covered with a self-cleaning enamel that removes the grease while the oven is functioning. The side panels are reversible, doubling the lifetime of the coating. To remove the self-cleaning panels, fi rstly remove the side rails (3.2.1) (3.2.2). If the panels are not performing the self- cleaning process suffi ciently, they will need regenerating. To do this, remove all the accessories and utensils from the inside of the oven. Thoroughly clean the oven surfaces that are not self-cleaning. Select the function. Set the temperature to 250ºC and set the time between 30 and 60 minutes, depending on how dirty the oven is. When the cleaning programme ends and the oven has cooled down, wipe the self- cleaning elements with a damp sponge. They will then be totally functional again. Note: Do not use specifi c oven cleaning products to clean the catalytic walls. Do not scrape the surface with metal scouring pads or sharp or pointed instruments.

3.4 Cleaning the outside of the oven. Use

neutral cleaning products. Dry the oven well with a soft cloth. Warnings:

• Make sure the oven is switched off.

• Allow the glass to cool down before removing it.

• Never use steam cleaning machines. english

The Environment This oven has been designed with environmental protection in mind. Respect the environment. Only preheat the oven when necessary (see table). Use dark coloured cake tins whenever possible. For long cooking times, switch off the oven 5 or 10 minutes before the end of cooking time. Management of waste electrical and electronic equipment. The symbol indicates that the appliance must not be disposed of in traditional bins for domestic waste. Take your oven to the a special collection centre. Recycling domestic appliances will prevent negative consequences for health and the environment and will allow savings on energy and resources. For further information, contact the local authorities or the shop where you bought the oven.

Troubleshooting You can solve the following problems yourself:

4.1 4.1 The oven is not heating up. Check it is

plugged in and switched on and that the fuse has not blown. Select a higher temperature setting.

4.2 The interior light is not working. Change the

bulb or replace the fuse.

4.3 Smoke is coming out during cooking. Turn

the temperature down and/or clean the oven.

4.4 A beep is sounding. The selected

temperature setting has been reached. The cooking cycle is complete.

4.5 The oven makes a noise after cooking.

This is normal, as the fan keeps running until the temperature inside and outside the oven is reduced.

4.6 “0 00” appears on the display. The

temperature sensor has failed. Call the Technical Service.

4.7 “AS” appears on the display. The oven has

been functioning for several hours and has switched off automatically for safety reasons. Do not try to repair the oven yourself. Call the technical assistance service.english
