USER MANUAL SPWD 180 B1 SILVERCREST

G 1E
User manual and service information
②
Rehoming and session information

Safety instructions 5

Copyright 8

Prior to use 8

Inserting / removing the battery 8

Entering or changing personal data 9

First use 9

Switching on the scales / measuring weight 9

Switching on scales / measuring weight, required calorie intake and body fat, water, bone and muscle percentages 10

Auto Power Off 10

Troubleshooting 11

Nothing is indicated on the LCD display 11

"Lo" is indicated on the LCD display and the scales switch off 11

"USEL" is indicated on the LCD display and the scales switch off 11

"Err" is indicated on the LCD display 11

"Err2" is indicated on the LCD display 11

Maintenance / cleaning 11

Environmental and disposal information 12

Disposal of batteries 12

Conformity information 12

Warranty and servicing advice 13

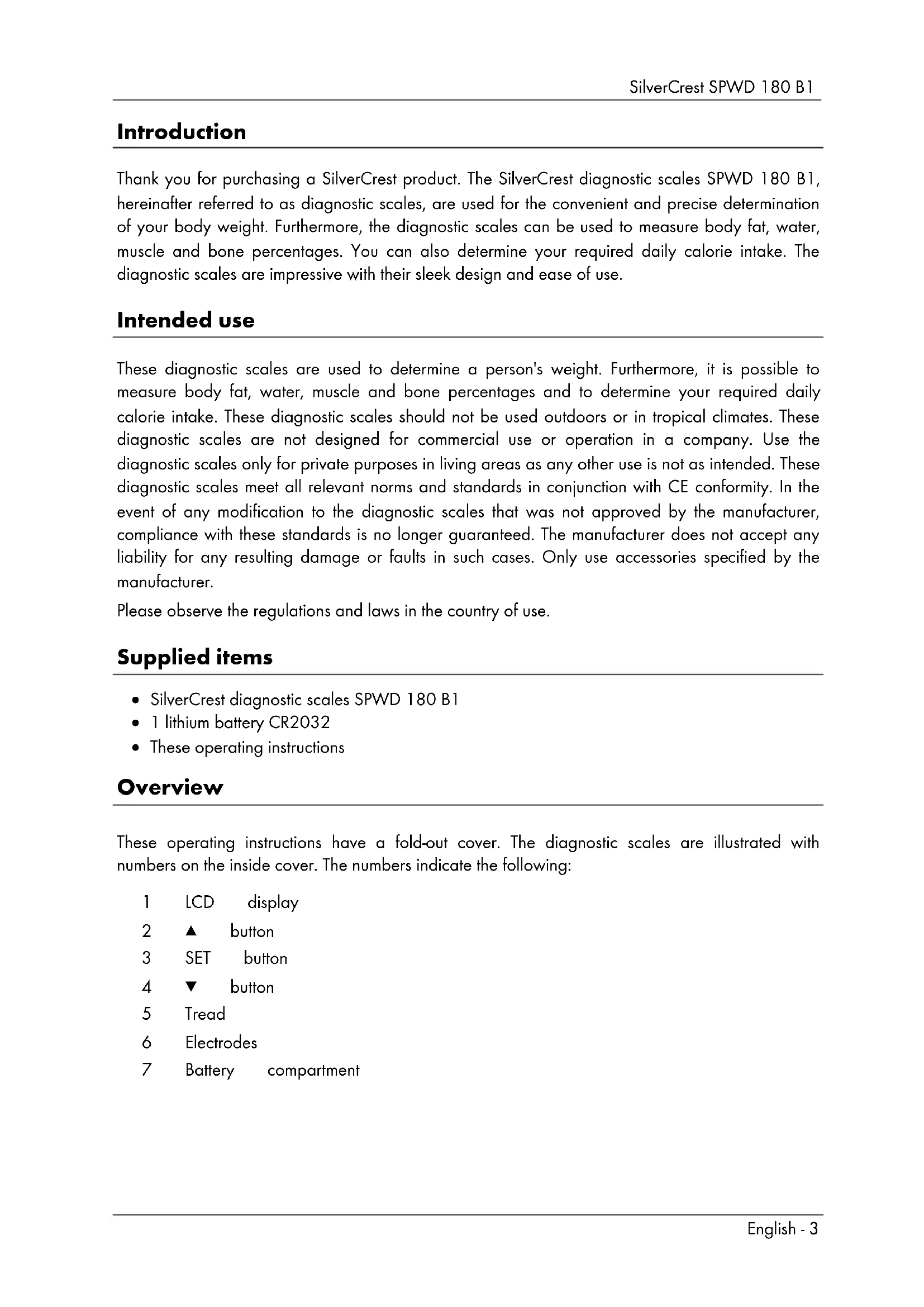

Introduction

Thank you for purchasing a SilverCrest product. The SilverCrest diagnostic scales SPWD 180 B1, hereinafter referred to as diagnostic scales, are used for the convenient and precise determination of your body weight. Furthermore, the diagnostic scales can be used to measure body fat, water, muscle and bone percentages. You can also determine your required daily calorie intake. The diagnostic scales are impressive with their sleek design and ease of use.

Intended use

These diagnostic scales are used to determine a person's weight. Furthermore, it is possible to measure body fat, water, muscle and bone percentages and to determine your required daily calorie intake. These diagnostic scales should not be used outdoors or in tropical climates. These diagnostic scales are not designed for commercial use or operation in a company. Use the diagnostic scales only for private purposes in living areas as any other use is not as intended. These diagnostic scales meet all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the diagnostic scales that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Only use accessories specified by the manufacturer.

Please observe the regulations and laws in the country of use.

Supplied items

SilverCrest diagnostic scales SPWD 180 B1
- 1 lithium battery CR2032
These operating instructions

Overview

These operating instructions have a fold-out cover. The diagnostic scales are illustrated with numbers on the inside cover. The numbers indicate the following:

1 LCD display
2 1 button
3 SET button
4 button
5 Tread
6 Electrodes
7 Battery compartment

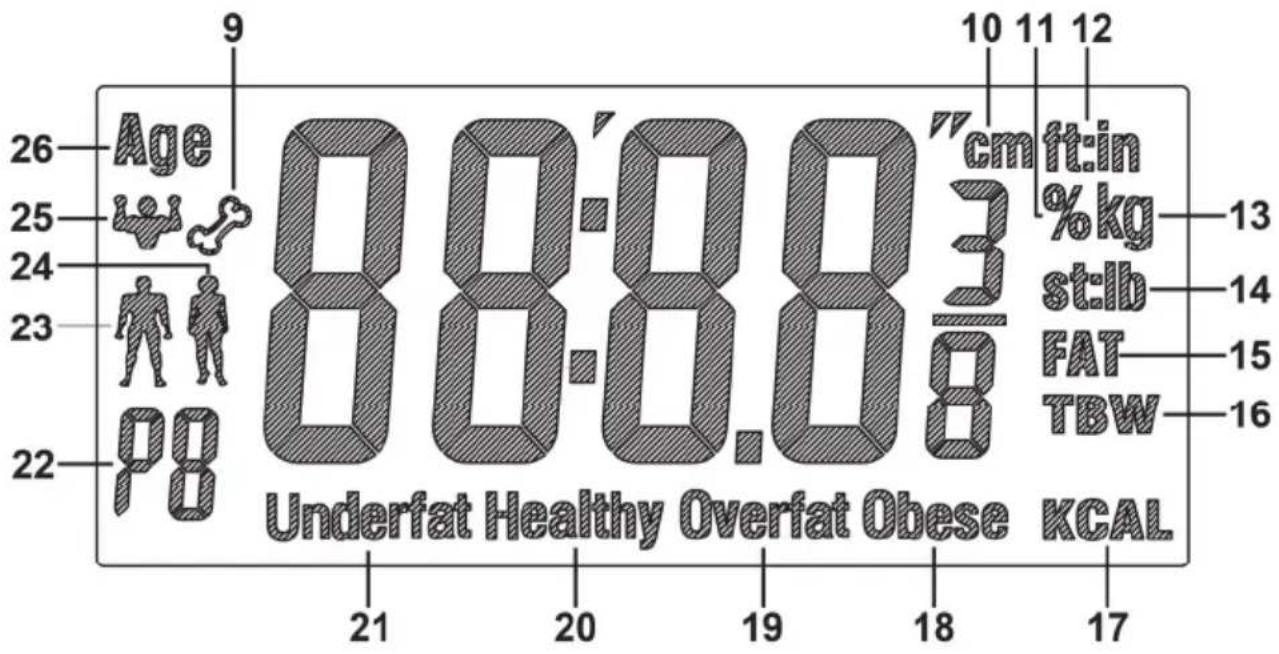

LCD display

9 Bone percentage
10 Body height in cm
11 Percentage (of body fat, water, muscle)
12 Body height in feet:inches
13 Unit of weight in kilograms
14 st:lb Unit of weight in stones:pounds lb Unit of weight in pounds
15 Body fat percentage
16 Water percentage
17 Recommended calorie intake per day
18 Obese
19 Overweight
20 Normal weight
21 Underweight
22 User profile memory
23 Male
24 Female
25 Muscle percentage
26 Age

Technical data

Operating voltage: 3V

Battery: 1 × 3V lithium battery CR2032

Units of weight: kg / st / lb (adjustable)

Weighing range: 5kg to max. 180kg / 396lb / 28st

Graduation: 0.1kg / 0.21b

Measuring tolerance: + / - (1% +0.1kg / 0.21b) for 30kg to 180kg

Auto Power Off function: approx. 15 seconds

User profile memories: 10

Gender: male/female

Age range: 10-80 years of age

Levels of activity: 5 (none, little, normal, moderate, intense)

Body height range: 100 to 220cm

Dimensions (W× D× H) .. 300× 300× 21mm

Weight: approx. 1600 g including battery

Operating temperature: +10^ to +40^

The technical data and design may be changed without notification.

Safety instructions

Before using the diagnostic scales for the first time, please read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the diagnostic scales or pass them on, always include these instructions.

WARNING! This symbol indicates important information for safe operation of the diagnostic scales and the safety of the user.

s symbol indicates that one must not step on the diagnostic scales with wet or damp feet. The same applies if the tread is wet or damp. You could slip and injure yourself.

This symbol indicates other important information on the topic.

These diagnostic scales can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the diagnostic scales and understand the resulting risks. Children must not play with the diagnostic scales. Cleaning and user maintenance must not be carried out by children without supervision. Always keep plastic packaging away from children. It poses a suffocation risk.
Do not use the diagnostic scales under any circumstances if you wear a pacemaker. Never use the diagnostic scales in the vicinity of anyone who wears a pacemaker or other medical devices.
The diagnostic scales are not suitable for pregnant women.
Do not step on the diagnostic scales with wet or damp feet or when the tread is damp. You could slip and injure yourself.
Do not overload the diagnostic scales with more than 180kg . Otherwise, the diagnostic scales could be damaged and there is a risk of injury.

Do not jump on the tread of the diagnostic scales. They could be damaged otherwise and there is a risk of injury.

If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the diagnostic scales. In such cases, the diagnostic scales should not be used until they have been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.

The diagnostic scales must not become damaged in order to prevent hazards.

Ensure that no fire sources (e.g. burning candles) are placed on or near the diagnostic scales. It poses a fire hazard!

The diagnostic scales must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the diagnostic scales near water. In particular, the diagnostic scales should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on the diagnostic scales). Also ensure that the diagnostic scales are never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the diagnostic scales could be damaged.

If the battery has leaked, remove it to prevent damage to the diagnostic scales. You can remove leaked battery fluid with a dry, absorbent cloth. Wear suitable gloves for this

purpose! Contact with skin must be avoided. In the event of skin or eye contact with chemicals, they must be immediately rinsed with generous amounts of water and a doctor must be consulted.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.

Prior to use

Inserting / removing the battery

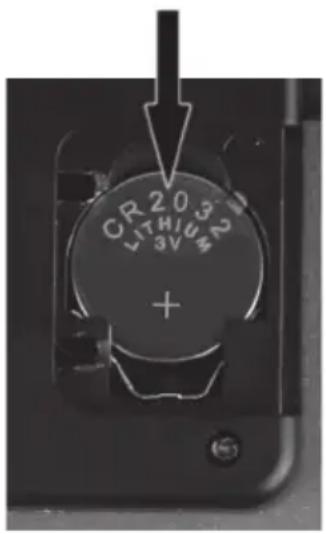

To insert the lithium battery CR2032, remove the cover from the battery compartment (7) on the bottom of the diagnostic scales by pressing the ribbed surface with your finger and then sliding the cover off sideways. Then insert the supplied lithium battery CR2032. Pay attention to the polarity when inserting the battery. This is indicated in the battery compartment (7), and the + symbol on the lithium battery CR2032 must be visible, as shown in the illustration.

To remove the battery, push it down a bit (see the direction of the arrow in the illustration). You can then remove the battery from the holder.

Then replace the cover on the battery compartment (7). The diagnostic scales are now ready to use.

Entering or changing personal data

You must enter your personal data when you first measure your body weight, required calorie intake and body fat, water, bone and muscle percentages. To do so, proceed as follows:

• Press the SET button (3) to switch on the scales.
• The user profile memory (22) then flashes on the LCD display (1). Use the button (2) or button (4) to select the desired user profile memory (22) [P0 to P9]. Confirm your selection using the SET button (3).
• You can then successively enter gender [male (23)/female (24)], age (26), height and level of activity via the button (2) and button (4). Confirm each entry using the SET button (3).

You can use the level of activity to specify your sporting activity. 5 levels of activity are available: AC-1 = none, AC-2 = little, AC-3 = normal, AC-4 = moderate and AC-5 = intense.

First use

A solid surface is required to measure weight correctly. Thus always place the diagnostic scales on a solid, horizontal floor covering and never on carpet. This can distort the measurement result.

To obtain comparable measurement results, you should always weigh yourself if possible at the same time of day (preferably in the morning). Always weigh yourself if possible under the same conditions: on an empty stomach, after having gone to the toilet and naked.

Please note that values for the stone unit of weight are not represented as decimal values. The display is divided into two segments by a colon. Only whole numbers are displayed in the "st" unit of weight to the left of the colon. The remaining weight is displayed in the "lb" unit of weight to the right of the colon.

Example: "6:6 1/2 st:lb" is shown on the display. This corresponds to 6st and 6.5lb.

Switching on the scales / measuring weight

Due to the step on power function, the diagnostic scales are switched on automatically when you step on the tread (5) and they start to measure your weight immediately.

In their original state, the diagnostic scales are set to the "kg" (13) unit of weight. Once the selected unit of weight is displayed, press the buttons (2) or (4) to change it. The selected unit of weight is then indicated on the LCD display (1).

Stand on the tread (5) of the diagnostic scales so that your weight is evenly distributed. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise. The measurement result is indicated on the LCD display (1) during the weighing process. The measurement is complete when the display flashes twice.

Switching on scales / measuring weight, required calorie intake and body fat, water, bone and muscle percentages

You must first enter your personal data before performing these measurements. Please pay particular attention to the section "Entering or changing personal data". Proceed as follows to perform the measurement:

• Press the SET button (3) to switch on the scales.
• Press the button (2) or button (4) to select the desired user profile memory (22).
• Stand barefoot on the tread (5) and make sure that you are standing on both electrodes (6).
• The measurement then starts. Remain standing on both electrodes (6) until the measurement is complete. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise.
  After measuring successfully, the following values are displayed three times in succession:

Body weight
Body fat percentage (15) and obese (18), overweight (19), normal weight (20) or underweight (21)
Water percentage (16)
O Muscle percentage (25)
Bone percentage (9)
o Recommended calorie intake per day (17)

Auto Power Off

The diagnostic scales have an automatic switch-off function (Auto Power Off function). After displaying the measurement result, the diagnostic scales switch off automatically.

Troubleshooting

Nothing is indicated on the LCD display

• The lithium battery CR2032 is empty. Replace the lithium battery CR2032 with another of the same type. Observe the instructions for inserting the batteries on page 8.
• The lithium battery CR2032 is inserted incorrectly. Observe the instructions for inserting the batteries on page 8.

"Lo" is indicated on the LCD display and the scales switch off

• The lithium battery CR2032 is almost empty. Replace the lithium battery CR2032 with another of the same type. Observe the instructions for inserting the batteries on page 8.

"USEL" is indicated on the LCD display and the scales switch off

• An error has occurred and the diagnostic scales cannot perform the measurement. In this case, step off the tread (5) of the diagnostic scales and start the measurement again.

"Err" is indicated on the LCD display

• Your weight exceeds the maximum load capacity of 180kg / 396lb / 28st . You should step off the tread (5) of the diagnostic scales immediately to avoid damaging the scales.

"Err2" is indicated on the LCD display

• An incorrect measurement has occurred. In this case, step off the tread (5) of the diagnostic scales and start the measurement again. Make sure that you are standing on both electrodes (6).

Maintenance / cleaning

It is necessary to service the diagnostic scales if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the scales or if they have been exposed to rain or moisture. Servicing is also required if the scales are not working properly or have been dropped. If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the diagnostic scales. In such cases, the diagnostic scales should not be used until they have been inspected by authorised service personnel. Only have qualified personnel

carry out the servicing on the device. Never open the housing of the diagnostic scales. Only use a clean, dry cloth for cleaning and never use any corrosive liquids.

Environmental and disposal information

When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. The battery must be removed from the device before it is scrapped.

For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Disposal of batteries

Remember to protect the environment. Used batteries should not be disposed of in household waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in collection bins for portable batteries. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.

Conformity information

This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of this manual.

Warranty and servicing advice

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

• Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.

• If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: [phone]

E-Mail: [e-mail]

IE

Phone: [phone]

E-Mail: [e-mail]

MT

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 107206

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

59494 SOEST

GERMANY

Sisallysluettelo

Johdanto 16

Cher client, chere clientele,

BE Telephone:[phone]

E-Mail [e-mail]

LU Telephone:[phone]

E-Mail [e-mail]

CH Telephone:[phone]

E-Mail [e-mail]

IAN: 107206

Fabricant

Auto-Power-off: ca. 15 Sekunden

EU Declaration of Conformity

Address:

Targa GmbH

Coesterweg 45

59494 Soest, Germany

Product:

Body Analyser Scale

Model:

Silvercrest SPWD 180 B1

Identification number:

IAN 107206

The product complies with the requirements of the following European directives:

2004/108/EC

Electromagnetic Compatibility

This declaration of conformity is issued under the sole responsibility of the manufacturer

The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

EMC:

EN 61000-6-3:2007 + A1:2011

EN 61000-6-1:2007

Rohs:

EN 62321: 2009

Year of CE marking:

15

Soest, 8^th June 2015

Matthias Klauke, Managing Director
