JC1416 - Scale Joycare - Free user manual and instructions

USER MANUAL JC1416 Joycare

The values obtained by this body fatMonitor are indicative data that for no reason whatsoever should replace a doctor’s opinion. Do not forget: self-measuring means control, not diagnosis or treatment. Unusual values should always be discussed with4

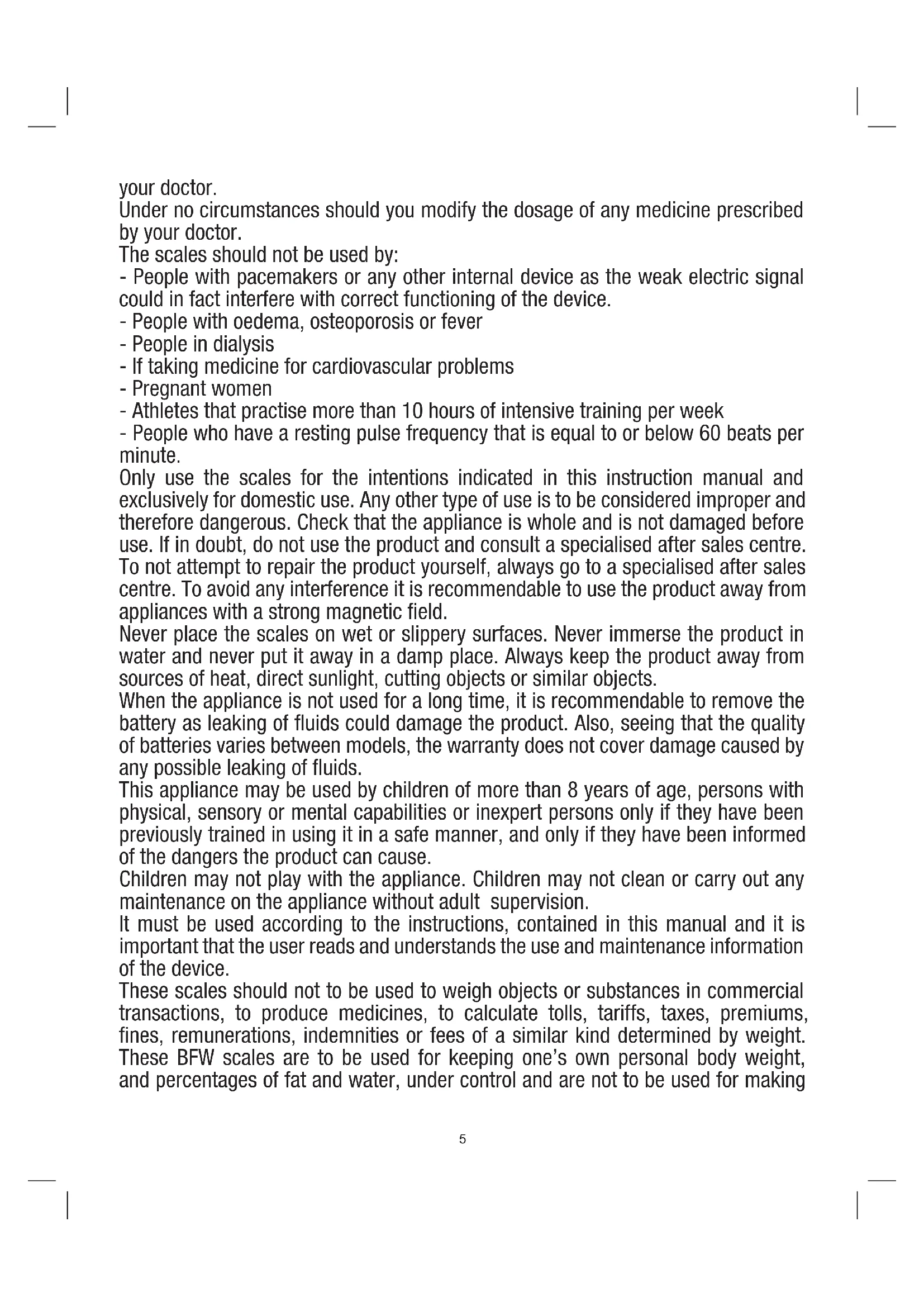

your doctor. Under no circumstances should you modify the dosage of any medicine prescribed by your doctor. The scales should not be used by: - People with pacemakers or any other internal device as the weak electric signal could in fact interfere with correct functioning of the device. - People with oedema, osteoporosis or fever - People in dialysis - If taking medicine for cardiovascular problems - Pregnant women - Athletes that practise more than 10 hours of intensive training per week - People who have a resting pulse frequency that is equal to or below 60 beats per minute. Only use the scales for the intentions indicated in this instruction manual and exclusively for domestic use. Any other type of use is to be considered improper and therefore dangerous. Check that the appliance is whole and is not damaged before use. If in doubt, do not use the product and consult a specialised after sales centre. To not attempt to repair the product yourself, always go to a specialised after sales centre. To avoid any interference it is recommendable to use the product away from appliances with a strong magnetic eld. Never place the scales on wet or slippery surfaces. Never immerse the product in water and never put it away in a damp place. Always keep the product away from sources of heat, direct sunlight, cutting objects or similar objects. When the appliance is not used for a long time, it is recommendable to remove the battery as leaking of uids could damage the product. Also, seeing that the quality of batteries varies between models, the warranty does not cover damage caused by any possible leaking of uids. This appliance may be used by children of more than 8 years of age, persons with physical, sensory or mental capabilities or inexpert persons only if they have been previously trained in using it in a safe manner, and only if they have been informed of the dangers the product can cause. Children may not play with the appliance. Children may not clean or carry out any maintenance on the appliance without adult supervision. It must be used according to the instructions, contained in this manual and it is important that the user reads and understands the use and maintenance information of the device. These scales should not to be used to weigh objects or substances in commercial transactions, to produce medicines, to calculate tolls, tariffs, taxes, premiums, nes, remunerations, indemnities or fees of a similar kind determined by weight. These BFW scales are to be used for keeping one’s own personal body weight, and percentages of fat and water, under control and are not to be used for making6

diagnoses or for medical treatment. Values that may seem unusual or outside the norm should always be discussed with your doctor. In order to avoid danger to the user of this device, the doses of any drug or therapy prescribed by one’s own doctor should in no circumstances be modied on the basis of data calculated by this device. VARIATION OF BODY FAT THROUGHOUT THE DAY Levels of body hydration, lifestyle and daily habits can inuence the detection of the percentage of body fat. A detection performed during the early hours of the morning will calculate a higher percentage of fat because after a long nights sleep, the body tends to be dehydrated. For a more accurate reading and in order to compare different detections it is recommendable to use the product at the same hour of the day and under the same conditions. Before measuring it is important to remember that: - The percentage could be lower after having taken a bath - The percentage could be higher after eating or drinking - Detections could be irregular during a woman’s menstrual cycle - The percentage of water in our body can be reduced after having been ill or after heavy physical activity, as these conditions make us sweat more than usual. WHAT IS THE PERCENTAGE OF WATER IN THE BODY? The percentage of water present in the human body corresponds to the quantity of liquids expressed in a percentage ,according to the total weight of the individual, and it is calculated using a particular scientic formula, also used by expert dieticians. It is important to know that the water inside our body performs a fundamental function and is in all tissue and body organs: approximately 50-65% of our body is made of water. Thanks to these scales it is possible to keep the percentage of water under control, which is fundamental for correct functioning of our body. The percentage value of water present in a healthy individual is as follows: WOMEN from 45-60% MEN from 50-65% VARIATION OF THE PERCENTAGE OF WATER THROUGHOUT THE DAY To obtain a reliable detection it is recommended to measure the percentage of water in the evening (before dinner) as hydration levels are more normal during this hour of the day. In any case, to relate various measurements it is always recommendable to respect established hours.The percentage of water tends to be lower if detected in the morning and this is because the body dehydrates during sleep and above all because during the night liquids tend to concentrate in the torso (whereas during the day thanks to the force of gravity they spread out in a homogeneous manner). Factors that tend to modify the percentage of water are: sleeping, eating and/or drinking, physical activity, having a bath, consumption of medicines, physical conditions and urination. FEATURES Capacity: 150kg Division: 0.1kg Weight unit: kg / lb / st Height unit : cm Fat grade indication : increment of 0,1 % Water grade indication : increment of 0,1 % Age range: 10-80 Display LCD User No.: 10 Battery replacement indication Overload indication Battery: 1 x CR2032 (test battery is included) Operation use conditions: Room temperature: from 10°C to 40°C Relative humidity: from 30% to 75% without condensation. Pressure: from 700 – 1060 hPa Environmental transportation and storage conditions: Temperature: from 10 to 40°C Humidity: from 5 to 95% Pressure: from 700 – 1060 hPa6

Insert the battery in the appropriate compartment, paying attention to the correct polarities indicated. The batteries provided are also exclusively to evaluate how the unit works and may therefore have a shorter lifespan. Replace the battery when it is depleted. For weight only: Put the scale on a hard, at surface (avoiding carpets). The following scale turns on in response to pressure. Step on the scale; the display show your weight. and select the weight unit : kg/lb/st by the key placed near the battery compartment. Stand normally on the scale with your weight distributed evenly on your two legs .Wait until the scale stabilizes your weight after the number on the display ashes twice. The scale will be auto off if no further using after few seconds. For weight , body fat percentage and body uid percentage: Press the SET key for seconds to set your persnal data. When the screen shows “P1” Choose one of the User Proles slots 0-9 using the “ or ” key. When the number user prole ashes on the screen and once you reach your target number, please press “SET” to conrm (the scale can store data for 10 people). Then to choose Male or Female using the “ or ”key ,when the gender symbol ashes on the screen and then press “SET” to conrm. Then press “ or ” key to reach your target age (10-80) , when“AGE” and the number ashes on the screen and then press “SET” to conrm . Then press “ or ” key to reach your target height (100-240cm) when the number ash on the screen and then press “SET” to conrm. Finally, the screen will shows data of “height” & “Age” which been alrady settled ,and also with 0.0kg. Carry out the above steps to measure your body weight , body fat percentage and body uid percentage: Step on the scale gently and keep your bare feet in touch with the electrodes .Stand still and erect to get your weight measured and your body fat ,Fluid percentage will be displayed respectively on the screen within seconds. These results will be repeated for seconds and the scale will be auto off if no further using. The personal data will be stored once you set. Just conrm your user prole when you use the scale again and your other information will be showed so there is no need to program them again. Values for the percentage of body fat Age Woman Man Slim Normal Lighty over-weight Over-weight Slim Normal Lighty over-weight Over-weight 10-16 < 18% 18-28% 29-35 % > 35% < 10% 10-18% 19-23 % > 23 % 17-39 <20% 20-32 % 33¬38 % >38 % < 12 % 12-20 % 21-25 % >25 % 40-55 < 23 % 23-35 % 36-41 % > 41% <13 13-21 % 22-26 % > 26% 56-80 < 24% 24-36% 37-42 % > 42% <14% 14-22% 23-27% >27% Values for the percentage of body uid: Age Woman Man Low Normal High Low Normal High 10-16 57% 57-67% 67% 58% 58-72% 72% 17-39 47% 47-57% 57% 53% 53-67% 67% 40-55 42% 42-52% 52% 47% 47-61% 61% 56-80 37% 37-47% 42% 42% 42-56% 56% Error message / maintenance: “EEEE” appears in the display when the scale are overloaded “LO” appears on the display when the batteries need to be replaced. “Err” appears on the display when the measurement cannot be carried out correctly8

Tip: Dry your feet again and try to stand as still as possible. Note Please take off shoes and socks and keep your bare feet in touch with the electrodes when taking body fat, uid, percentage measurement. Make sure that the balance and the feet are always kept clean for proper measurement . To ensure accuracy ,we suggest you take measurement at a xed time every day (e.g.19:00- 21:00).

CLEANING AND MAINTENANCE

Use a soft cloth to clean the platform. It is also possible to use a slightly dampened cloth.Do not use chemical or abrasive substances. After cleaning the platform make sure it is completely dry before carrying out a measurement. If the surface is wet or damp it could become slippery. Always position the scales on a stable and at surface. Avoid rugs and similar objects. Avoid jumping on the scales, dropping them or subjecting them to particular knocks. As well as for precision, the internal mechanisms are in fact very delicate, and could easily be damaged. Avoid exposing the product to electromagnetic waves that could cause the loss of data in the memory. The seller is not responsible for loss of data memorised in the scales. The product is made conforming with all the applicable European regulations. DISPOSAL The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with European Directive. Since it must be handled separately from household waste, either carry it to a separately-collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted. The batteries used in this device must be disposed of in the special bins at the end of their life. NOTE: Specications and designs are based on the latest information available at the time of printing and subject to change without notice.
