Brand	Taurus
Model	Munich
Product Type	Kitchen scale (bathroom scale)
Maximum Capacity	150 kg (estimate)
Accuracy	100 g (estimate)
Measurement Units	kg, lb, st
Display	LCD screen
Power Supply	1 x 3V CR2032 battery
Activation	By stepping on the platform
Auto Shut-off	Yes, after a few seconds of inactivity
Platform	Tempered glass (estimate)
Anti-Slip Feet	Yes (estimate)
Low Battery Indicator	Yes ("Lo" display)
Overload	"Er" display
Cleaning	Damp cloth, do not immerse
Repairability	Authorized after-sales service only
Usage	Household use only
Safety	Do not use if glass is cracked, feet are wet, or by children without supervision
Included Accessories	CR2032 battery
Warranty	In accordance with current legislation

Frequently Asked Questions - Munich TAURUS

How to turn on the Taurus Munich scale?

Simply place your foot gently on the platform. The screen displays '0.0' and the scale is ready.

How to change the weight unit?

Press the 'UNIT' button located under the scale. The units cycle: kg, lb, st.

What to do if the scale displays 'Lo'?

'Lo' means the battery is low. Replace it with a 3V CR2032 battery, respecting polarity.

What to do if the scale displays 'Er'?

'Er' indicates the maximum capacity (approximately 150 kg) has been exceeded. Remove excess weight.

How to clean the scale?

Use a damp cloth and dry well. Do not use abrasive products or solvents, and never immerse the scale in water.

Does the scale turn off automatically?

Yes, after a few seconds of inactivity to save the battery. To reactivate it, step on the platform.

What type of battery does it use?

The scale uses a 3V CR2032 lithium battery. Do not mix different battery types.

What to do if the scale does not turn on?

Check the battery: remove the protective film if present, and insert it respecting polarity. If the problem persists, contact after-sales service.

Can I use the scale on a carpet?

No, place the scale on a hard, flat, and stable surface. A carpet may affect the measurement.

Is the scale covered by a warranty?

Yes, the warranty is in accordance with current legislation. Keep your proof of purchase.

USER MANUAL Munich TAURUS

Abstract geometric pattern with triangular mesh and a rectangular outline (no text or symbols)

Color gradient bar with a central crosshair symbol (no text or labels)

Color gradient bar with a central crosshair symbol (no text or labels)

Español

Bathroom Scale Munich

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

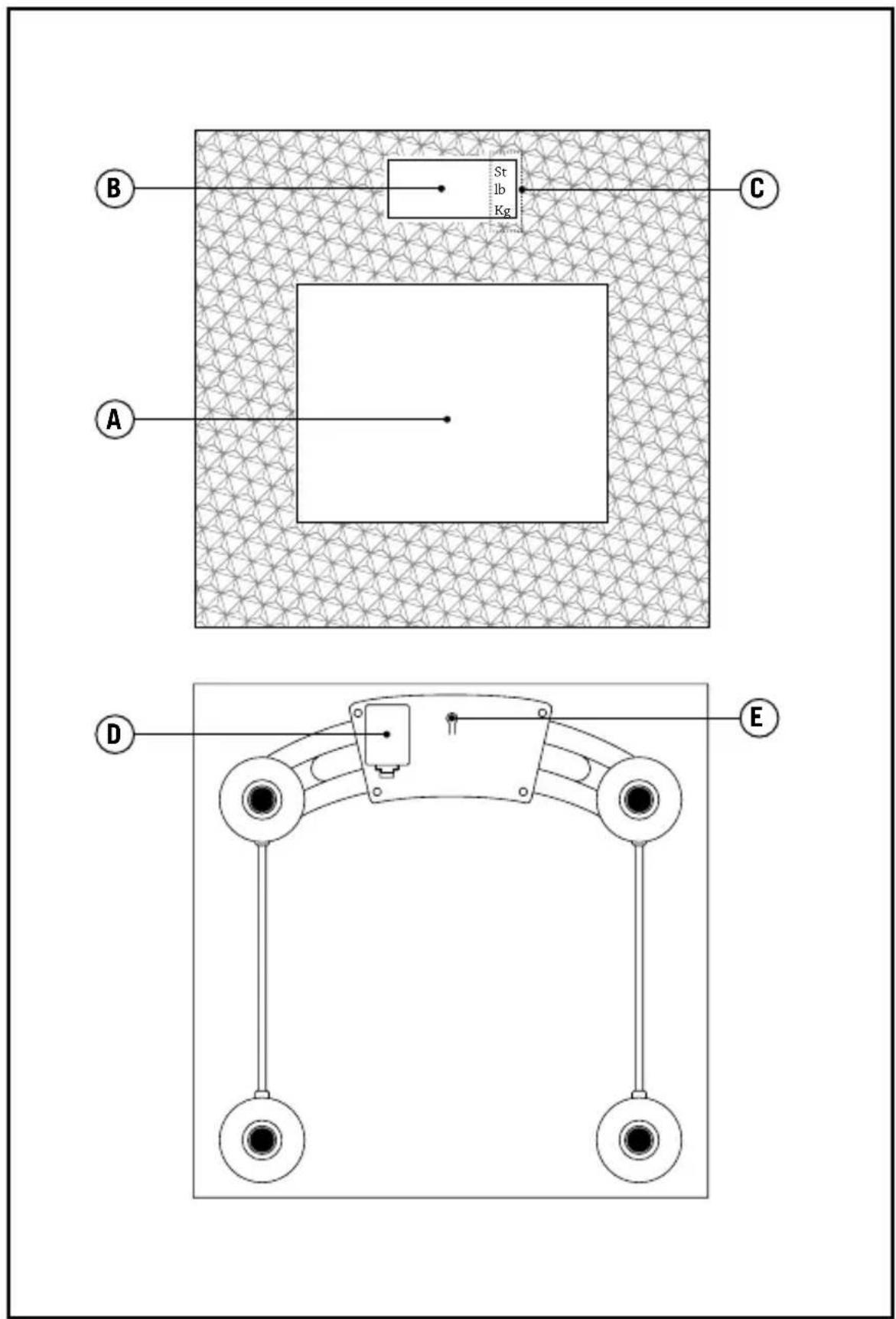

Description

A Platform
B LCD screen
C Kilograms/ pounds/stones symbol
D Battery compartment lid
E Weight unit selector button

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

Use or working environment:

- Place the appliance on a horizontal, hard, rigid, flat, stable surface that is free from vibrations. Avoiding any contact of the weighing area with walls or other objects not to be weighed. Otherwise, it will not show the right weight.

Personal safety:

- Do not use with wet feet.

Use and care:

• Do not move the appliance while in use.
• Do not overload the appliance's weight capacity.
• Remove the batteries from the appliance if you are not going to use it for some time.
• This appliance is for household use only, not professional or industrial use.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance in a vertical position.
• CAUTION: Do not use the appliance if the glass is cracked or broken.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Assembling the battery/s

• PLEASE NOTE: During the handling of batteries, do not touch both poles at the same time, as this will provoke the partial discharge of the stocked energy therefore affecting longevity.
• Remove the cover of the battery compartment.
• Check that the plastic covering that protects the battery has been removed (some batteries are sold with a protective covering).

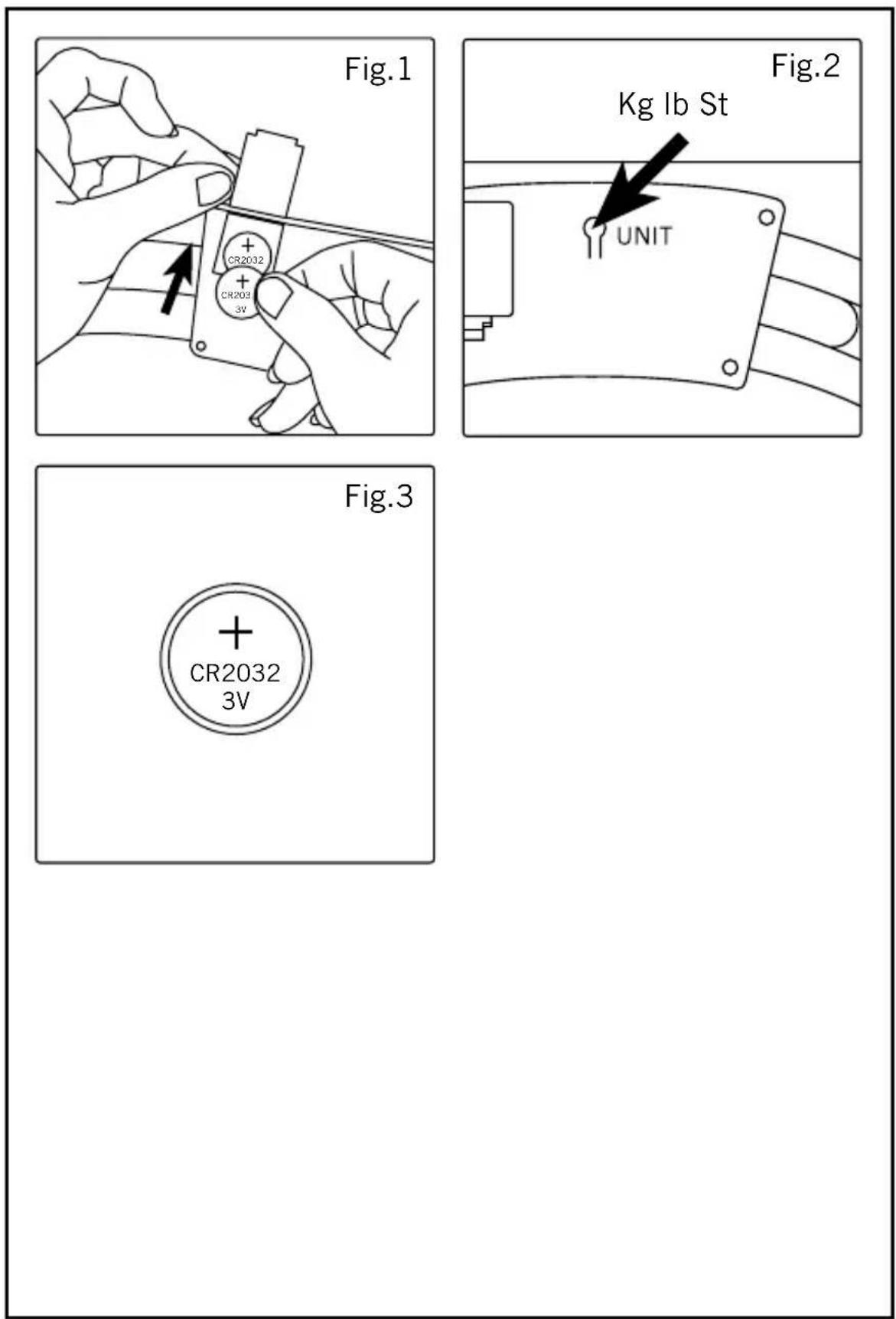

• Put the battery in its compartment, respecting the polarity (Fig. 1)

• Close the cover of the battery compartment.
• It is essential that the batteries should always be the same kind and the same charge. Never mix alkaline batteries with normal one (Carbon-Zinc) and/or rechargeable ones.
• NB: When changing the batteries, the configuration of the appliance will be removed, and you will need to reset the parameters of the appliance.

Instructions for use

Before use:

- Prepare the appliance according to the desired weight unit:

Weighing units selector Kg/Lb/st

- The appliance has a selector of weighing units, put the selector in the position according to those units you want to work with. To do so, press the “unit” button, the measuring unit selected will then be shown on screen one after the other. (Fig .2)

Use:

Weighing system

• Gently place your foot on the surface of the scale to start it, and wait until the “0.0” symbol appears in the display.
• Place yourself in the centre of the platform avoiding abrupt movements, maintaining immobile and without touching other objects, until the appliance shows your weight.

Automatic disconnection function (stand-by):

• To save energy, the appliance goes to standby mode after several seconds of inactivity.
• To return to normal functioning, simply place your foot gently on the platform and wait until the "0.0" symbol appears in the display.

Once you have finished using the appliance:

- Remove the batteries from the appliance if you are not going to use it for some time.

Special messages:

The following messages can appear on the screen:

• Er: means that the body fat percentage measurement error.
• Lo: means that the battery has to be changed/recharged.

Cleaning

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

Supplies

- Only the following type of supplies must be used with the appliance. (Fig. 3)

- Battery type: 3V CR2032

These supplies are available in specialist shops.

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment This appliance contains, or could contain, oil. Remember that one should abide by the regulations concerning the elimination of this type of contaminant.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of

waste electrical and electronic equipment (WEEE)

This symbol means that the product may include a battery or batteries; the user must remove them

before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

This symbol indicates that the scale is slippery when wet.

Recycling:

- This symbol means that the product may include a battery or batteries; the user must remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.
