USER MANUAL PDVS7300 MPMAN

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely. USER'S MANUAL PDVS7300 PDVD-12307 MTK1389Q方案(带EUP) 纯DVD二合一 模拟屏Table of Contents

expose the unit to rain or moisture. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury. Never place heavy or sharp objects on the LCD panel or frame. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty. The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable. Unplug the power from the outlet when the unit is not in use. Attention should be drawn to the environmental aspects of battery disposal. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Important Safety Instructions CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. WARNNING: Excessive sound pressure from earphones or headphones can cause hearing loss. WARNNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable. Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)N Notes on Copyrights: It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear.This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.SERIAL NUMBER: You can find the serial number on the back of the unit.This number is unique to this unit and not available to others.You should record requested information here and retain this guide as a permanent record of your purchase.Model No. ______________________________Serial No. ______________________________Date of Purchase_________________________

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.Warning: do not charging battery on the place of insufficientventilation such as: mattress, sofa, cushion , soft mat......Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.Warning: more than 250mm USB extension cord is prohibited to use for USB portWarning: This digital video disc player employs a laser system.Use of controls,adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.Warning: To prevent direct exposure to laser beam,do not openthe enclosure.Visible laser radiation when open.Warning: Never stare directly into the laser beam.Caution: Do not install this product in a confined space suchas a book case or similar unit.RISK OF ELECTRIC SHOCKDO NOT OPENWARNING charge over heat 40 C strong impactIdentification of Controls Main Unit

15.ON/OFF 16.DC IN 9-12V 1.SOURCE 2.VOL- / VOL+

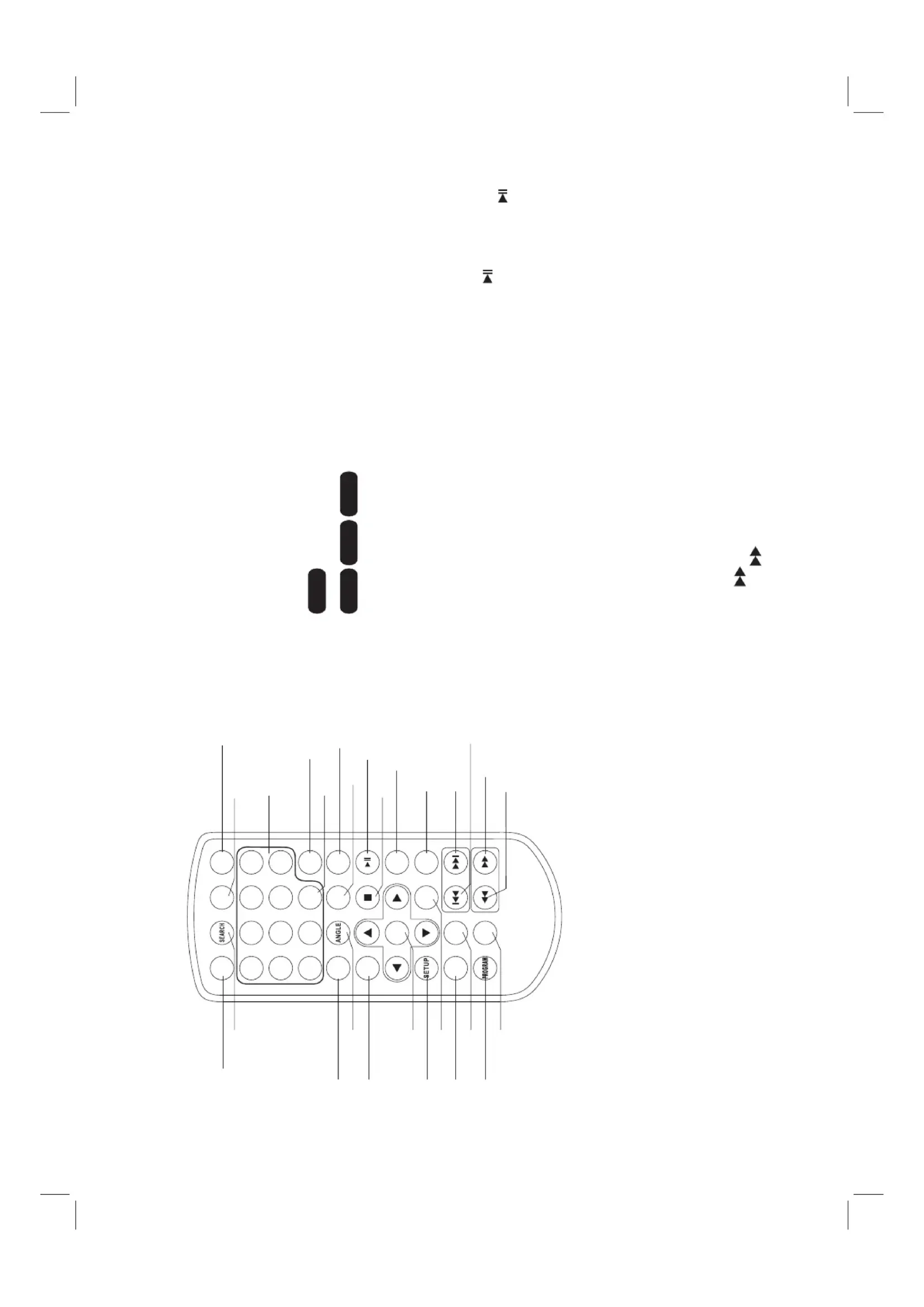

Remote control unit Identification of Controls

Return to DVD root menu(DVD). PBC on/off switch (VCD) . 7.AUDIO Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable. Press AUDIO repeatedly during playback to hear a different audio channel ( Left,Right,Mix,Stereo). DVD VCDCD MP3 10.MODE Set LCD parameter(adjust bightness, contrast,and saturation).

Press BUTTON allow skipping ahead at 5-level speed(X2->X4-> X8->X16->X32->PLAY), press PLAY button return to normal playback. 8.PLAY/PAUSE Press PLAY/PAUSE once to pause playback, pressing PLAY/ PAUSE second time will resume the playback. 13.Reverse Skip Go to previous chapter/ track to the beginning. 12.Forward Skip Go to next chapter/ track. 9.STOP When this buttom is pressed once, the unit records the stopped point,from where playback will resume if PLAY( )is pressed after wards. But if STOP button is pressd again instead of PLAY( ) button, there will be no resume function. 11.VOL+ Adjust volume 23.VOL-

26Identification of Controls

Remote control unit 17.SEARCH Goto time point , title or chapter you want in DVD Mode.

Press BUTTON allow skipping back at 5-level speed(X2->X4-> X8->X16->X32PLAY), press PLAY button return to normal playback.-> 16.STEP Step the motion in DVD mode. 22.SETUP Accesses or removes setup menu. 18.SUBTITLE Press SUBTITLE repeatedly during playback to hear a different subtitle languages. 20.TITLE Return to DVD title menu 21.ENTER Confirms menu selection.. 24.REPEAT Press REPEAT during playback to select a desired repeat mode. : you can play select repeat chapter/title/off. VCD DVD : you can select repeat single/all/off. : you can select repeat single/folder/off.

MP3 19.ANGLE :Press ANGLE will change the view angle, on DVDs that support this feature. DVD 25.SLOW Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2,1/4,1/8,1/16,and normal. 26.PROGRAM :The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu. DVDVCD : Use ZOOM to enlarge or shrink the video image. 1.Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.

2. Each press of the ZOOM button changes the TV screen in the

following sequence: : Use ZOOM to enlarge or shrink the picture. 1.Press 'ZOOM' . 2,Used " " to enlarge,or " " to shorten the picture. Use the button to move through the zoomed picture. DVDVCD JPEG 27.ZOOMSETUP Menu Setting General Setup Page

OSD LanguageYou can select your own preferred language seetings. Wide Squeeze: Set screen mode to 4:3. Angle MarkDisplays current angle setting information on the right hand corner of the TFT screen if available on the disc.Closed CaptionsClosed captions are data that are hidden in the video signal of some discs.Before you select this function,please ensure that the disc contains closed captions information and your TV set also has this function.Screen SaverThis function is used to turn the screen saver On or Off.Stand ByThis function is used to stand by.Audio Setup Page Audio Setup Page Press SETUP button to get the setup menu. Use direction buttons to select the preferred item. After finishing settings, press SETUP again to normal display.The following menu items can be changed:GENERAL: selects the GENERAL PAGE menu.AUDIO: selects the AUDIO PAGE menu.VIDEO: selects the VIDEO PAGE menu.PREFERENCE : selects the PREFERENCE PAGE menu.PASSWORD: selects the PASSWORD PAGE menu.General Setup Page- - GENERALSETUP PAGE - -GOTO GENERAL SETUP PAGETV DISPLAY WIDEANGLE MARK ONOSD LANGUAGE ENGCLOSED CAPTIONS ONSCREEN SAVER ONSTAND BY OFF4:3 PANSCAN4:3 LETTERBOX 16:9 WIDE SQUEEZE

OFF TV DISPLAY: selects the aspect ratio of the playback picture.4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.4:3 LETTERBOX: if you have a normal TV. In this case, a wide picturewith black bands on the upper and lower portions of the TV screen willbe displayed.16:9:wide screen display.----DOWNMINX STR DIGITAL OUTPUT RAW DOLBY DIGITAL LT/RTSTEREOSPDIF/OFFSPDIF/RAWSPDIF/PCMDUAL MONODYNAMIC STR STR L-MONOR-MONOMIX-MONO

2 G 3 PG 4 PG135 PGR 6 R 7 NC178 ADULTRESET TV Type Selecting the colour system that corresponds to your TV when AV outputs.This DVD Player is compatible with both NTSC and PAL. Downmix This options allows you to set the stereo analog output of your DVD Player. Audio Setup Page LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. Stereo :Select this option when output delivers sound from only the two front speakers. Dolby digital The options included in Dolby Digital Setup are: and 'Dynamic '. 'Dual Mono ' Dual Mono Stereo:Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker. L-Mono:Left mono sound will send output signals to Left speaker and Right speaker. R-Mono:Right mono sound will send output signals to Left speaker and Right speaker. Mix-Mono:Left and Right mixed mono sound will send output signals to Left and Right speakers. Dynamic Dynamic range compression. ENGLISHFRENCHGERMANITALIANSPANISHPORTUGUESEOTHERSENGLISHFRENCHGERMANITALIANSPANISHPORTUGUESE OFF OTHERS Digital Output The function is used to select the SPDIF Output:SPDIF Off,SPDIF /RAW,SPDIF/PCM. SPDIF Off: Turns off the SPDIF output. SPDIF/RAW: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver. SPDIF/PCM: Only if your receiver is not capable of decoding multi-channel audio.SETUP Menu Setting

OLD PASSWORD: Enter the OLD password, (Factory setting is 1369), and the cursor will jump automatically to NEW PASSWORD

NEW PASSWORD: Enter the NEW password. Enter 4 digits from the remote control unit numeric buttons, and the cursor will automatically jump to CONFIRM PASSWORD. CONFIRM PASSWORD: Confirm the NEW password by entering it again. If the confirmation is incorrect, the cursor will stay in this column. After entering, the correct new password again, the cursor will jump automatically to OK. OK: When cursor is on this button, press ENTER key to confirm setting. PAL - Select this if the connected TV is PAL system.It will change the video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format. Auto:Chang the video signal output automatic according to the playing disk format. Preference Page Audio:Selects a language for audio (if available). Subtitle:Selects a language for subtitle (if available). Disc Menu:Selects a language for disc menu (if available). Parental Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc.This feature lets you set a playback limitation level.The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes. Default:Back to the factory setting. Password Setup Page Password Setup Page - - PASSWORD SETUP PAGE - -GOTO PASSWORD SETUP PAGEPASSWORD MODE ONPASSWORD

OFF Password mode: Set password mode on/off. If set to off, change parental level will not check password. Note: If the password has been changed, the parentaland disc lock code will also be changed. The default password(1369)is always active even the password has been changed. NItem Standard requirementAudio:Speaker:1WX2, outputHeadphonesVIDEO OUTAUDIO OUT:1.2 Vrms (1 KHz, 0 dB)Power requirements Power consumption Operating humidity: AC 100-240 V , 50/60 Hz: <10W: 5 % to 90 %

Parameters and specifications Electronical parameters System Note: Design and specifications are subject to change prior notice.

Battery Specifications： Output：7.4V Standard charge time: 2h ~ 4h (Varies according to battery capacity) Discharge Time: About 2h (Varies according to battery capacity) Storage and work circumstances：

15.ON/OFF 16.DC IN 9-12V
