USER MANUAL LET46C800HF HAIER

Please read this manual carefully before operating the unit, and keep it for future reference.

Contents

01 Safety Warnings

Welcome....2

Important Information....2

Safety notice....3

Warning and cautions 4

02 Introduction

Main Parameter....5

Base Stand Assembly Instruction....7

Wall Mounting Installation Guidelines......8

Control Panel 9

Rear/Side Sockets....9

Connecting your Haier TV.... 10

Common Interface 11

03 Remote Control

Remote Control....12

Teletext 13

04 Operation

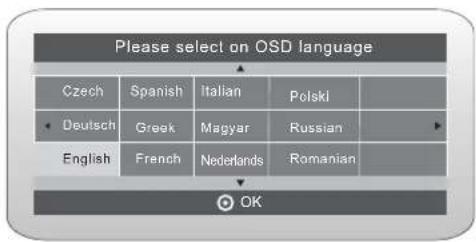

Installation Guide 14

CHANNEL MENU.15....

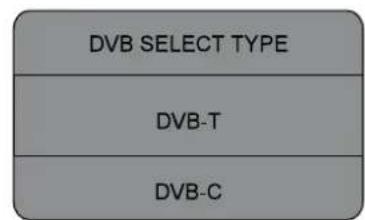

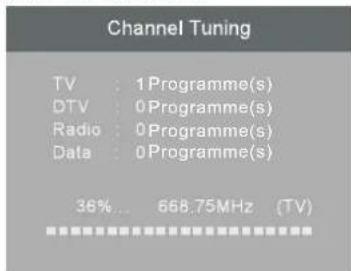

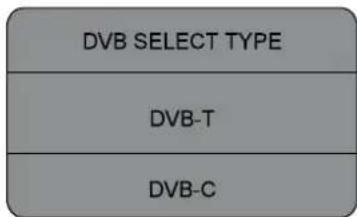

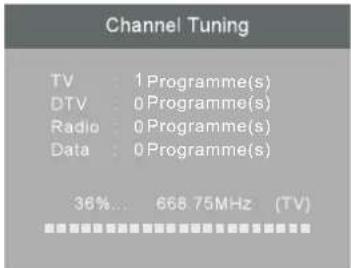

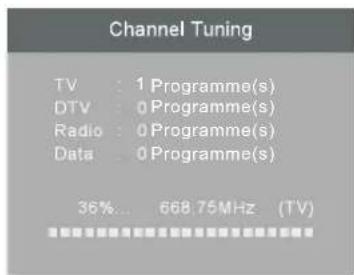

Auto Tuning (DVB-T).15....

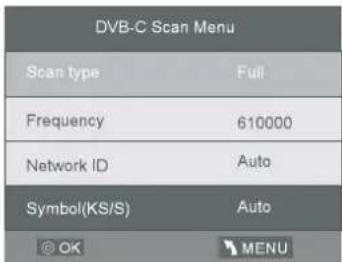

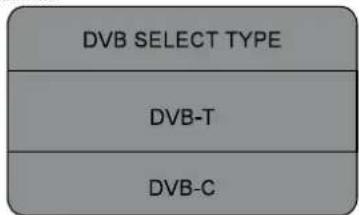

Auto Tuning (DVB-C).16....

DTV Manual Tuning (DVB-T)....17

DTV Manual Tuning (DVB-C)....17

ATV Manual Tuning 18

Program edit 18

CI information....18

PICTURE MENU.18....

SOUND MENU....18

TIME MENU 18

OPTION MENU....19

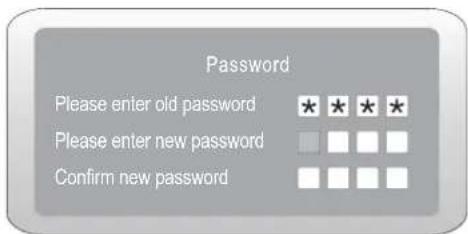

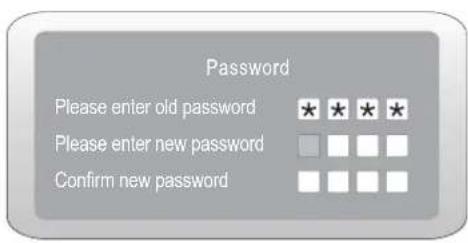

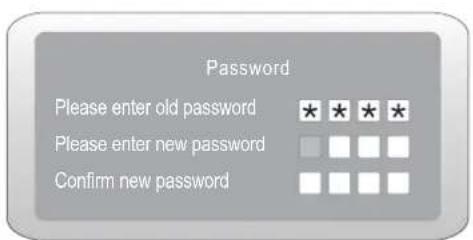

LOCK MENU....19

EPG Menu(Electronic Program Guide)....19

PVR function....20

Prepare to record the program 20

Record the program 21

Play the record 21

Timeshift function....22

Prepare to record the program 22

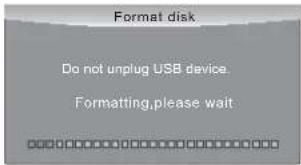

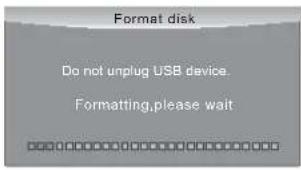

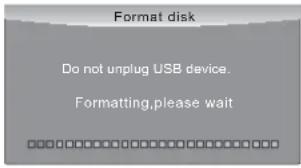

USB Drive Storage Format 22

Record a paused DTV program

to USB storage device....22

Timeshift limitations....23

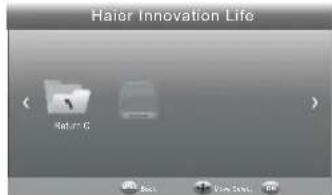

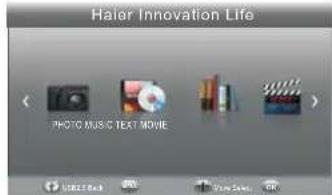

USB Player 24

05 Trouble shooting

Trouble shooting 25

Specification 28....

01 Safety warnings

WELCOME

Thanks for buying this 46" LED LCD TV. This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts check list below:

46" Full HD 1080P Digital LED LCD TV

Remote control

AAA ba x2ttery

Instruction Manual

Quick start guide

Scart Cable x 1

Stand

Now you can get started!

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Safety notice

• Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
• Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
• Do not expose the product to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
• Keep the product away from direct sunlight and heat source such as radiators or stoves.
• Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your product on a cushion, sofa or other similar surface.
• Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
• Never place heavy or sharp objects on the panel or frame.
• Unplug the Power from the outlet when the unit is not in use.
• Attention should be drawn to the environmental aspects of battery disposal.
• WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• WARNING: Only use the attachments/accessories specified provided by the manufacturer.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING AND CAUTIONS

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Caution

Do not trap the power supply cord under the television receiver.

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

02 Introduction

Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment. When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth. During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV service personnel.

Main features

① Used as Television, display terminal, PC display:
② High luminance, wide viewing angle;
③ HDMI interface and SCART Interface;

Main parameter

Panel	46"
TV System	PAL-B/G、I、D/KSECAM-B/G、D/K、L、L'
Video Signal System	PAL/SECAM
Input Power Voltage	AC 100 -240V 50/60Hz
Power consumption	98W
Standby Power consumption	<0.5W
Audio Output Power (THD ≤7%)	2x8W
Signal Input	Analog RGB(PC) x1; PC audio x1High-Definition Multimedia Interface (HDMI)x2Video Input x1Audio Input x1Y Pb Prx1Mini SCART x 1CI x 1USB x 1RF Co-Ax x 1
Horizontal definitio n (TV line)	Composite Video input >=350YPbPr >=400

INSTALLATIONCAUTION

*Locate the TV in the room where light does not strike the screen directly.
*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
*Allow enough space between the TV and the wall to permit ventilation.
*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
*Do not cover the ventilation openings when using theTV.

④ NICAM;
⑤ T; ime-shift

PC

PRESET MODE

	RESOLUTION	V.Freq.(KHz) H.Freq.(KHz)
1	640x480	60	31.47
2	800x600	60	37.88
3	1024x768	60	48.36
4	1360x768	60	47.7
5	1280x1024	60	63.98
6	1920x1080	60	66.64

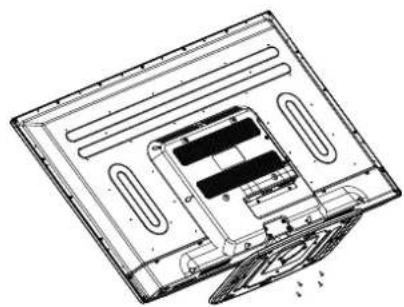

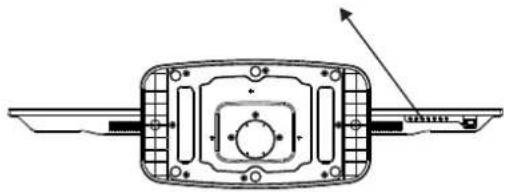

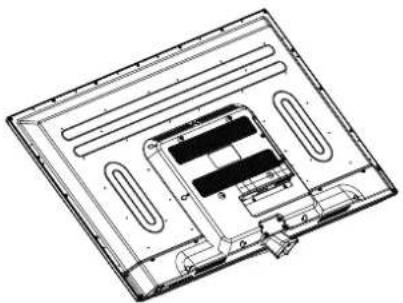

Base Stand Assembly Instruction

1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display. Position the stand base plate onto the bottom of the stand pole.

2. Attach the stand base plate to the stand pole by firmly tightening the supplied screws.

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a 3D electronic device casing with internal compartments and mounting feet (no text or symbols)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Please do not attempt to rotate the TV on the stand.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

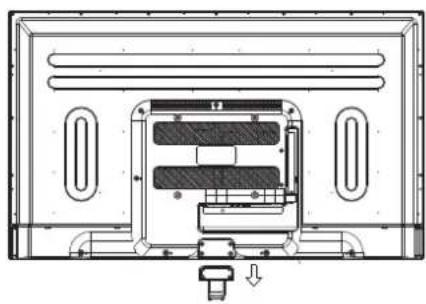

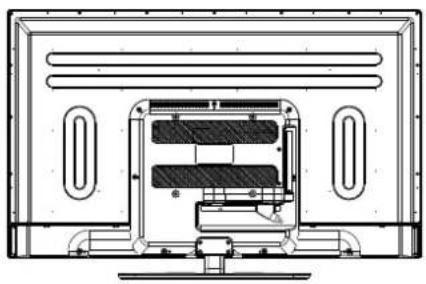

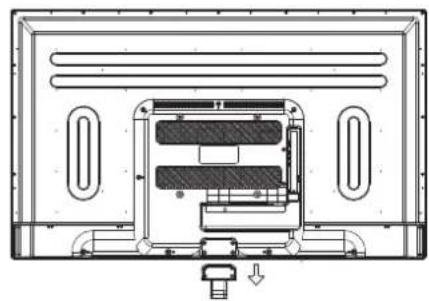

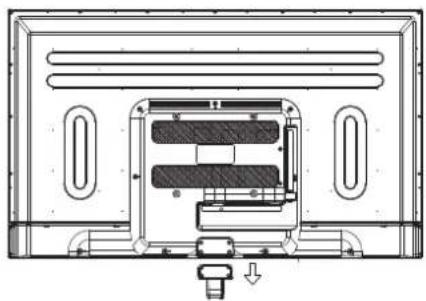

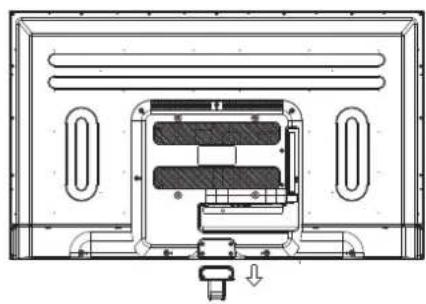

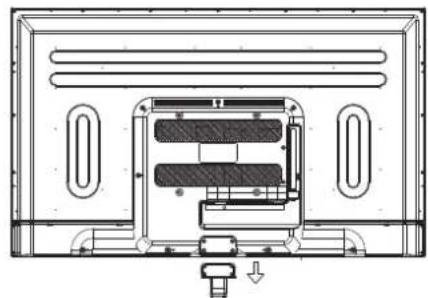

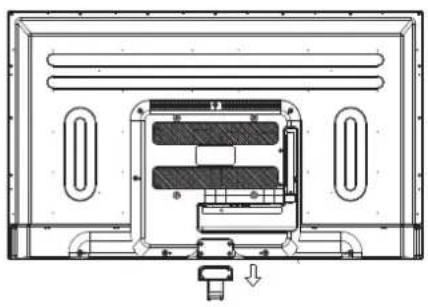

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

2. Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use).

Technical line drawing of a monitor front view showing internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical or electronic component with internal channels and mounting features (no text or symbols)

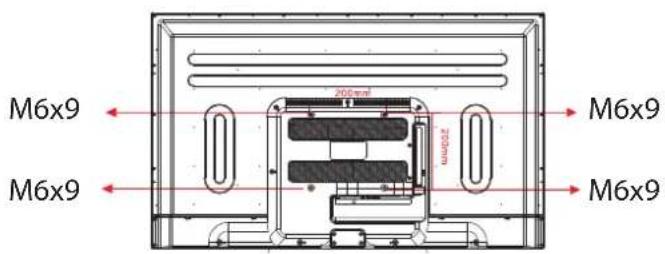

1. Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

M6x9 M6x9 200mm M6x9 M6x9

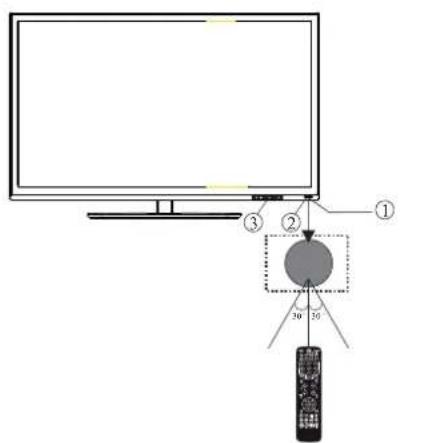

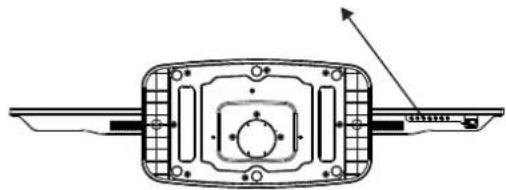

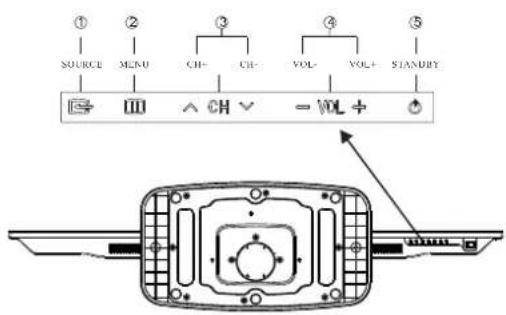

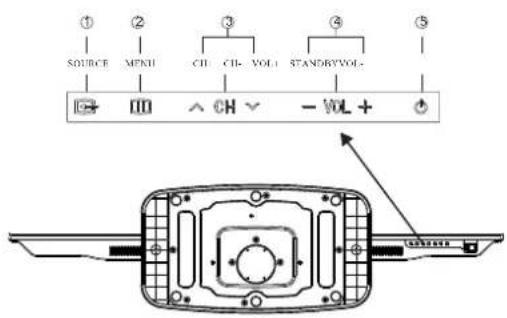

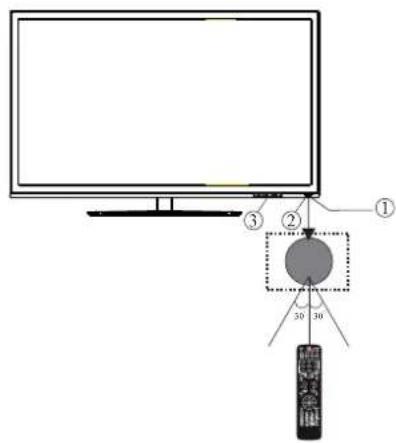

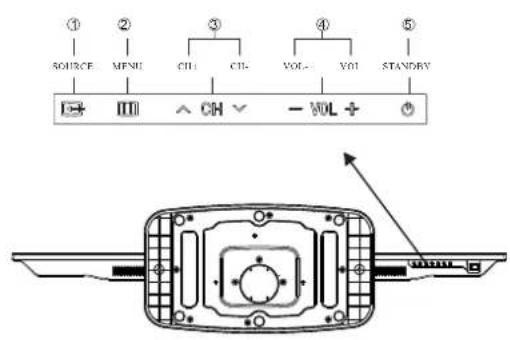

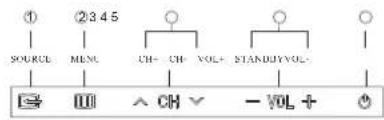

Front control panel

Diagram showing a monitor setup with labeled components and a circular icon, likely illustrating TV or remote control.

① SOURCE ② MENU ③ CH- CH- ④ VOL- VOL+ STANDRY Ⅲ △ CH ▼ = VOL +

1 Remote control sensor.

2 Indicator LED:

BLUE: POWER ON. RED: STAND BY.

3 Key board.

1	SOURCE	Display the input source menu.
2	MENU	Display main MENU.
3	CH+/CH-	In TV mode, press CH+ or CH- to change the channel up and down.In MENU, press CH+ or CH- to select items.
4	VOL+/VOL-	Adjust sound level.In MENU, adjust the item that you selected.
5	STANDBY

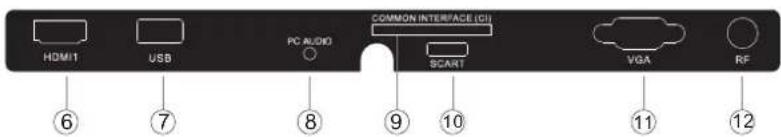

Rear/Side Sockets

AC INPUT 100 240V~50V/60=2 ③ ① ② Y Pb PrVIDEO L R HDMI2 ④ ⑤

COMMON INTERFACE (CJ) HOM1T USB PC AUDIO SCART VGA RF ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫

1	AV	input
2	L/R AUDIO	input
3	AC Power Source	input
4	YPbPr	input
5	HDMI2	input
6	HDMI1	input

7	USB	input
8	PC AUDIO input
9	COMMON INTERFACE(CI)	Input
10	SCART	Input
11	VGA INPUT	Input
12	ANT	input

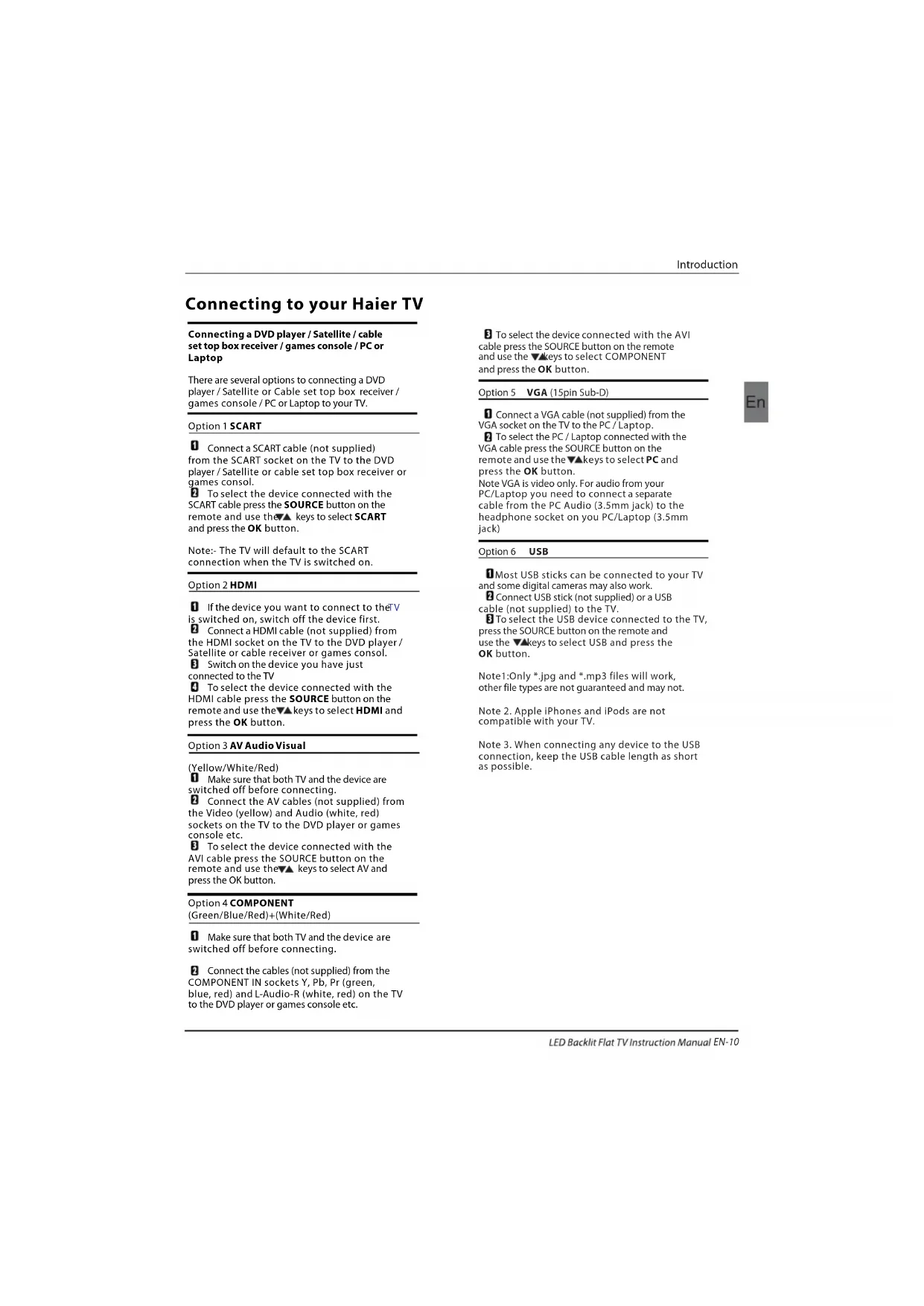

Connecting to your Haier TV

Connecting a DVD player / Satellite / cable set top box receiver / games console / PC or Laptop

There are several options to connecting a DVD player / Satellite or Cable set top box receiver / games console / PC or Laptop to your TV.

Option 1 SCART

Connect a SCART cable (not supplied) from the SCART socket on the TV to the DVD player / Satellite or cable set top box receiver or games consol.

2 To select the device connected with the SCART cable press the SOURCE button on the remote and use the ▲ keys to select SCART and press the OK button.

Note:- The TV will default to the SCART connection when the TV is switched on.

Option 2 HDMI

If the device you want to connect to the TV is switched on, switch off the device first.

Connect a HDMI cable (not supplied) from the HDMI socket on the TV to the DVD player / Satellite or cable receiver or games consol.

3 Switch on the device you have just connected to the TV

To select the device connected with the HDMI cable press the SOURCE button on the remote and use the ▼▲ keys to select HDMI and press the OK button.

Option 3 AV Audio Visual

(Yellow/White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the AV cables (not supplied) from the Video (yellow) and Audio (white, red) sockets on the TV to the DVD player or games console etc.

3 To select the device connected with the AVI cable press the SOURCE button on the remote and use the▼▲ keys to select AV and press the OK button.

Option 4 COMPONENT

(Green/Blue/Red)+(White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the cables (not supplied) from the COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and L-Audio-R (white, red) on the TV to the DVD player or games console etc.

8 To select the device connected with the AVI cable press the SOURCE button on the remote and use the ▼▲keys to select COMPONENT and press the OK button.

Option 5 VGA (15pin Sub-D)

1 Connect a VGA cable (not supplied) from the VGA socket on the TV to the PC / Laptop.

2 To select the PC / Laptop connected with the VGA cable press the SOURCE button on the remote and use the ▼▲keys to select PC and press the OK button.

Note VGA is video only. For audio from your PC/Laptop you need to connect a separate cable from the PC Audio (3.5mm jack) to the headphone socket on you PC/Laptop (3.5mm jack)

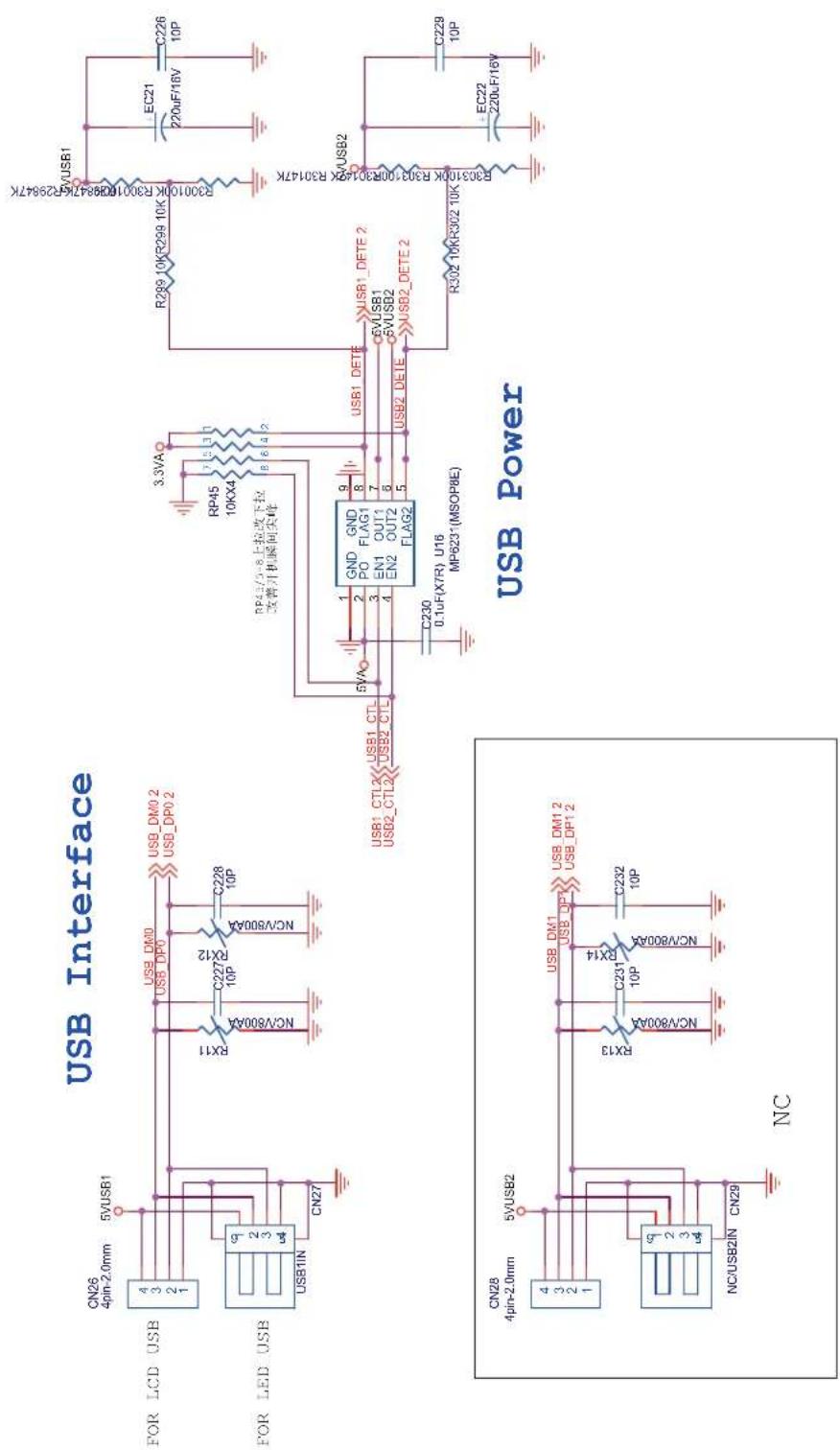

Option 6 USB

1 Most USB sticks can be connected to your TV and some digital cameras may also work.

2 Connect USB stick (not supplied) or a USB cable (not supplied) to the TV.

To select the USB device connected to the TV, press the SOURCE button on the remote and use the ▼▲keys to select USB and press the OK button.

Note1:Only *.jpg and *.mp3 files will work, other file types are not guaranteed and may not.

Note 2. Apple iPhones and iPods are not compatible with your TV.

Note 3. When connecting any device to the USB connection, keep the USB cable length as short as possible.

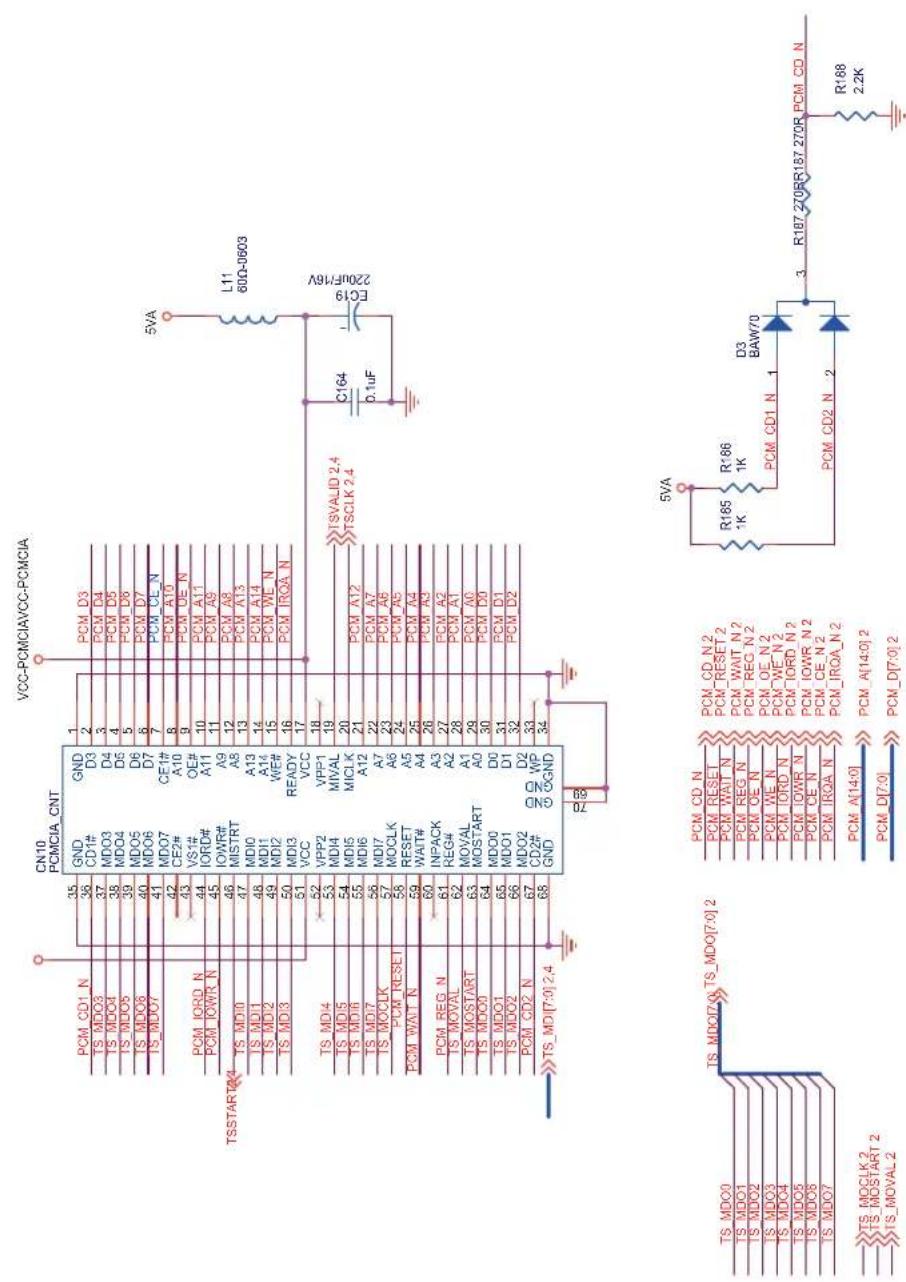

COMMON INTERFACE

The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.

Warning

- Switch off your TV before any module is inserted in the Common Interface slot.

1 Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.

2 Turn on the TV and it will display the below message if the CI module is detected. Wait for few moments until the card is activated.

CI Module Inserted

3 Press the MENU button then press ▲▼ button to select CI Information option.

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

4 Detailed information on the CI card in use is displayed.
5 Press OK button to access the card menu. Refer to the module instruction manual for setting details.
6 When module is removed, the following message will appear on the screen.

CI Module Removed

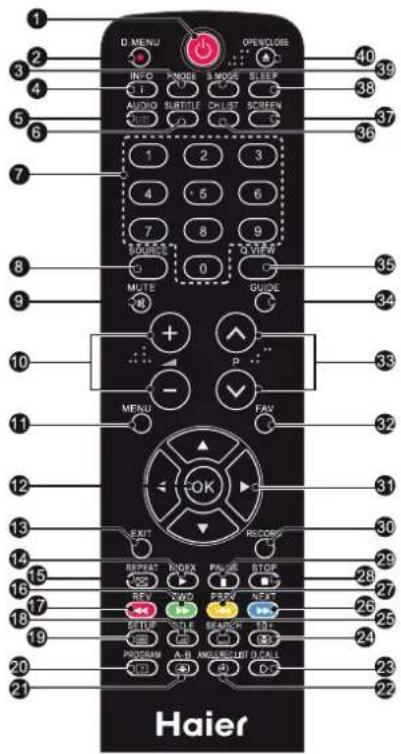

03 Remote Control

D MENU IN/O AUDIO 1 2 3 4 5 6 7 8 9 0 10 MENU P MENU PULSE PULSE STOP STOP RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET HAier

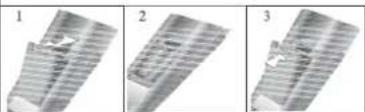

Insert Batteries Into the Remote Control

Three-panel image showing a grid-like structure with internal patterns, labeled 1, 2, and 3 (no text or symbols present)

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity(+ or -) of the batteries matches the polarity marks inside the unit
3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.

Remark:

1) Alkaline Battery Recommended.

2) Remove batteries when they are exhausted or if the remote control is not to be used for long time.

1. POWER: Press to turn on the TV.

2.D.MENU:No function.

3.P.Mode:To switch picture mode.

4.INFO: Press to display the current signal status, including input source and channel audio mode.

1. AUDIO I/II: Press to select MONO, Nicam stereo for ATV channel. Select Audio language for DTV channel.

6.SUBTITLE:Press to turn the subtitle On or Off.

7.Number Buttons: For direct access to channels.

8.SOURCE:To select input source.

9.MUTE:To disable or enable the sound output.

1. Volume Control: To adjust sound level.

2. MENU: To display TV menu.

12.0K: To confirm selection.

1. EXIT: To return to the previous menu or exit menu.

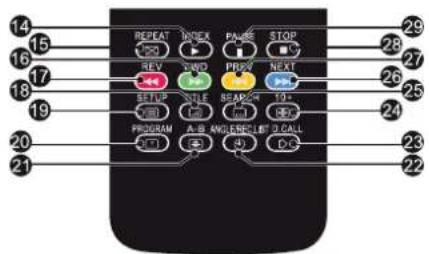

14.Teletext Index/USB PLAY

15.REPEAT: No function

16.Teletext Green Button / USB Fast Forward

17.Teletext Red Button / USB Fast Rewind

18.Teletext Mix

19.Teletext Text

20.Teletext Reveal

21.Teletext Size

22.Teletext Time/ANGLE/REC.LIST(teletext time is no function)

23.Teletext Mode:No function

24.Teletext Hold

25.Teletext Subcode:Teletext Subpage

26.Teletext Blue Button / USB Next File

27.Teletext Yellow Button / USB Previous File

28.USB STOP

29.USB PAUSE

1. START RECORD

31.UP, DOWN, LEFT, RIGHT Cursor: Press to navigate your selection.

32.Fav: To access your favourite channels list in TV or DTV mode.

1. Select Programme: Press ▲▼ Button to select the next or previous TV channel.

34.GUIDE:Press to display electronic programme guide in TV mode.

35.Q.View:To access the previously viewed channel.

36.CH.LIST: Press to display the channel list.

37.Screen:To change picture aspect ratio.

1. Sleep : Set timer to turn off the TV.

39.S.Mode:To switch sound mode.

1. OPEN/CLOSE: No Function

5 6 14 16 17 18 19 20 21 22 24 25

26 27 28 29 :No DVD function

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
LIST	The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the colorkeys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

04 OPERATION

Installation Guide

The installation guide only appear when the TV first time turn on or reset to factory set.

Please select on OSD language Czech Spanish Italian Polski • Deutsch Greek Magyar Russian English French Nederlands Romanian OK

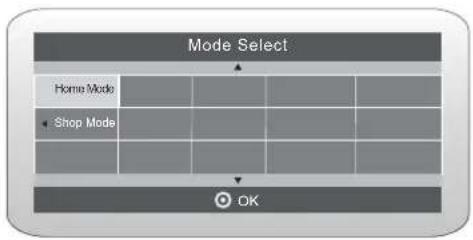

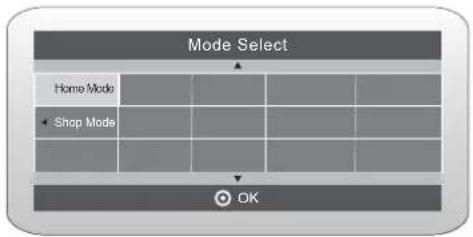

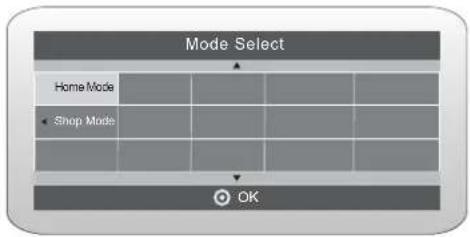

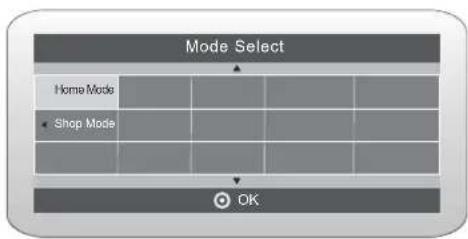

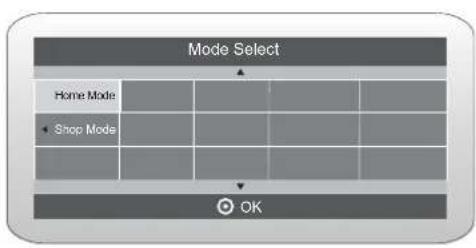

Mode Select Home Mode Shop Mode OK

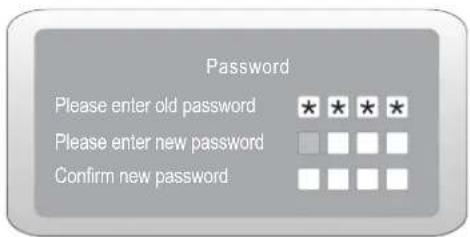

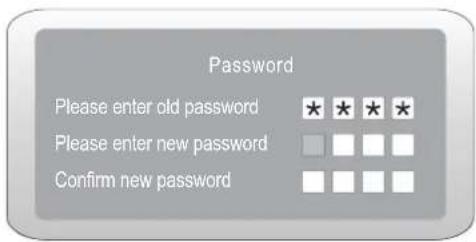

Password Please enter old password * * * * Please enter new password □ □ □ □ Confirm new password □ □ □ □

1). Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm. Select your desired language, Home/Shop Mode to be displayed on the menu.

Note: The default password is 6666.

HOME or SHOP modes

1. Home Mode is an energy-saving Mode. Home Mode is recommended for normal viewing setting and is set as default during manufacturer.
2. Shop Mode is an option for retailers for Advertising or product presentation. Shop Mode has a brighter image than Home Mode.
3. You may switch between Home or Shop Mode as you choose. If you choose Shop Mode, it will enter HDMI1 source automatically, and you will press Exit key to exit POP menu.
   2). Press the buttons to select DVB-T/DVB-C and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C

a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Sy mbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV). Choose the right country, press OK button to start tuning.

DVB-C Scan Menu Scan type Full Frequency 610000 Network ID Auto Symbol(KS/S) Auto OK MENU

3). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
4). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way.

A pop-up screen will be displayed, press the

◀ button to select YES to confirm. You will then go straight to DTV tuning.

You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.

5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (TV)

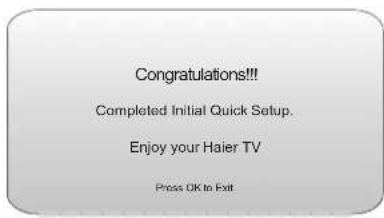

6) Congratulations

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. CHANNEL MENU

1. 1) Auto Tuning (DVB-T)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲buttons to select Auto Tuning and then press the OK button.

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). Press the ▼▲ buttons to select DVB-T/DVB-C Press select DVB-T and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C

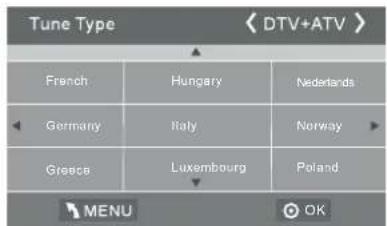

4). In the Tune Type menu, press the ◀▶buttons to select ATV / DTV / DTV + ATV. Press the ▼button and then press the ◀▶▼▲ buttons to select the country where you will operate the TV. Press the OK button to confirm

Tune Type		< DTV+ATV >
French	Hungary	Nondelands
Germany	Italy	Norway
Greece	Luxembourg	Poland

5). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (TV)

1.2) Auto Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲ buttons to select Auto Tuning and then press the OK button.

Auto Tuning CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

3). Press the ▼▲ buttons to select DVB-T/DVB-C Press select DVB-C and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C

4). Press ▼▲buttons to select Scan type/Symbol (Ks/S) press the OK button to confirm.

DVB-C Scan Menu Scan type Full Frequency 610000 Network ID Auto Symbol(KS/S) Auto OK MENU

5). In the Tune Type menu, press the ◀▶buttons to select ATV / DTV / DTV + ATV. Press the ▼button and then press the ◀▶▼▲buttons to select the country where you will operate the TV. Press the OK button to confirm.

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Operation

6). Channel tuning will commence. This operation may take up to 6 minutes. The display will show the progress of the tuning and the number of channels found.
7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning TV : 1Programme(s) DTV : 0Programme(s) Radio : 0Programme(s) Data : 0Programme(s) 36%... 668.75MHz (TV)

Note

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

2.1) DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲buttons to select DTV Manual Tuning and then press the OK button.

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

3). The DTV Manual Tuning screen will pop up. Press the ◀▶buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

2.2) DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲buttons to select CADTV Manual Tuning and then press the OK button.

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

3). The CADTV Manual Tuning screen will pop up. Press the ▼▲buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

CADTV Manual Tuning Frequency 450000 Symbol(Ks/s) 6875 QAM Type QAM 16 NO SIGNAL Bed Normal Good

3) ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels, then storage the channels you selected.

ATV Manual Tuning Storage To 1 System BG Current CH 1 Search Fine-Tune Frequency 424.25 MHz Save MENU

Note

Press teletext red button to storage to channels after manual tuning.

4). Program edit:

You can Delete ,Rename ,Move, Skip , FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Rename:

Only can rename ATV programs.

Move the cursor to the program, press teletext green button to rename the program.

Press ▼▲to choose the character. Press ◀▶ to move the cursor.

Press MENU button to exit edit, Press EXIT to exit the menu.

Note: ATV programs name only can be 5 character, DTV programs name can be 25 character.

Move:

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip:

Press ▼▲to choose the program, press teletext blue button to skip this program, The will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, The will disappear.

Favourite:

Press ▼▲to choose the program, press FAV button, it will show ♥on the right side of the program.Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

5). CI information: (optional)

This menu can display the CI card's information.

2. PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc. Press OK to move, press OK to adjust.

Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen

Note

1).Tint is available in NTSC system only.
2).There are four colors temperature modes can be selected medium, warm, cool, user
3).Screen is available in PC mode only which can adjust Horizontal position, vertical position, size and phase.

3.SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc. Press ▼▲ to move, press OK to adjust.

SoundMode Balance Auto Volume Surround Sound

Note

Auto volume: only available when the input signal volume is too large or distortion.

4.TIME MENU

The forth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc Press ◀ to move, press OK to adjust.

Clock OFF Time OK On Time Sleep Timer Auto Sleep Time Zone

Note

Within 15 minutes there is no signal, the TV will auto sleep, if Auto Sleep is set ON. The clock time can get from the DTV system auto.

5. OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc.

OSD Language OK Aerial Languages Subtable Language Country PVR File System Resto Factory Default Automatic power down(4h) Home/Shop Mode DCR

Automatic Power-down

1. If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes, the TV will start the automatic power down sequence. And pop-up window will appear on screen.

XXX's to automatic power-down

Please press any Key to Cancel

After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control. 2. To cancel the automatic power-down On the Option Menu select Automatic power-down(4H) Press OK. A pop-up message will appear "Are you sure you want to enable automatic power-down?" Use the right arrow key to select NO The TV screen returns to the Option Menu and the Automatic power-down(4H) option will display. Automatic power-down(4H) OFF To return to auto shutdown after 4 hours repeat the above except use the left arrow key to select YES.

In PVR File system menu you can set up USB disk for PVR.

Select Disk Check PVR File System USB Disk Format Time Shift Size Speed (Free Record Limit 5 Hr) OK MENU

Note

Restore factory default will clear all the programs and password.

6. LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

Lock System OK Set Password Block Program Parental Guidance

The default pass word is 0000, if you forget the password, you can use the super password:9443. Block program: Press ▼▲to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu , input the password, then press green button again.Parental guidance: Press ◀▶to choose rating.

7.EPG Menu(Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG bottom, the following menu will be displayed:

PROGRAMME GUIDE < TIME > 26/Jan 11:40 1 TV3 CutsSuper-Valuation. 2 3/24 No Information 3 TVC HD No Information Record INFO Signature Remind OK

1. INFO

Use to choose the programs, Press INFO key, you can display the highlight program's information. 2. Schedule Press the teletext yellow key, It can list all the reminder schedule, press ▲ to choose the list, press red key ● DELETE to delete the schedule list.

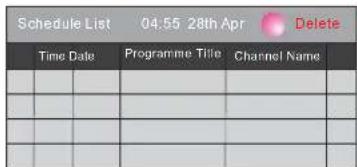

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | | | | | | |

3. Record

Press the red key, It can set the program

to be recorded.

4. Remind

Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the chosen program in the reminder time automatically.

Reminder { 1 TV3 } { 37 Minute } { 11 Hour } { Jan Month } { 26 Date } { Once Mode } OK BACK

8.PVR function

1. Prepare to record the program

PVR function only works in DTV.

From OPTION MENU enter into PVR File System In "OPTION MENU", please choose "check PVR File System". Click "OK", until

"checking" change into "Success"

Note: please check the term "speed". If it is

"HD support", that means the speed of USB device is available for time shift and record. If not, please format the device, to make sure the device available. The default "Free Record Limit" is 6 hour, if the space on the disk is big enough. If the space is not

big enough, the record time should be shorter, depends on the room on the device. During the "check PVR File System" checking, please do not take any other operation until it finished.

The recordings must be done with the TV PVR system. It can only be played in the same TV, not in any other kind of device (computer, DVD, etc.) which is not compatible with . TS, file format.

Please note that in order to carry out any kind of recording, the TV will require you to format the connected USB device to store the recording.

WARNING. WHEN YOU FORMAT, THE

EXTERNAL USB DEVICE YOU WILL LOSE ALL THE FILES AND INFORMATION YOU HAVE STORAGE ON THE DEVICE.

The USB file system will limit the size of the storage size.

File system: NTFS up to 2TB

FAT32 with up to 192GB

FAT16 with up to 2GB

From OPTION MENU enter into PVR File

System as below:

OSD Language Audio Languages Sublitis Language Country PVR File System OK Restore Factory Default Automatic power-down(4h) Home/Shop Mode DCR

Select Disk Check PVR File System USB Disk Format Time Shift Size Speed (Free Record Limit 6 Hr.) OK MENU

Select Disk:select which disc to save the record file.

Select Disk USB 0 Disk C: OK

Check PVR File System: check if the PVR File System set up in the USB device or not.

Format:

File System Size

PVR File System Type Hi Speed FS

PVR File System Size All

SD 104 Mins

HD 29 Mins

File System Size
PVR File System Type	FAT32
SD 104 Mins
HD 29 Mins

Operation

(Suggest to format the device by "High Speed Fs...", which can speed up the record.)

Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

below menu appear after Format finish:

Select Disk	C:
Check PVR File System	Checking
USB Disk	Pass
Format	Pass
Time Shift Size	All
Speed	Checking
Free Record Limit	6 Hr.

Select Disk		C:
Check PVR File System		SUCCESS
USB Disk		Pass
Format		Pass
Time Shift Size		All
Speed	HD Support	2730KB/S
(Free Record Limit)		6 Hr.

If you select the "Hi Speed FS" format mode, then you can change the time shift size:

Time Shift Size
Time Shift Disk Size	512 MB
SB 14 Mins
HD 4 Mins

2. Record the program

As playing the DTV source, choose the channel and click "record", the record frame will pop up. Click "record" again, the record frame will disappear and the "REC" icon still on the left top. It will disappear until you click "stop".

3.Play the record

The program recorded on the "USB" will be saved in the folder "_MSTPVR" on the device.

1. The USB storage size can be between 128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.

2. Video may become pixelated when Video bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV

3. Not all USB devices are compatible. Below is a list of recommended USB drives. Models that are not listed may be compatible, but it is not guaranteed to work. The USB support list are the same as Timeshift function, see the following pages for details.

9.Timeshift function

Prepare to record the program

This TV allows you to pause and record the currently watched digital program to a USB storage device, and to resume to the point where it was paused.

Note

- Formatting a USB 2.0 storage device will be needed. Save your original data before formatting. All the data stored in the USB device will be erased after formatting.

USB Drive Storage Format

Select to format the USB device and allocate the amount of space for the Time Shift function.

Note

- The format process will take at least 2 minutes. Please do not turn off the power or remove the USB device during formatting. - During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may not support the Time Shift function.

Record a paused DTV program to USB storage device

1. While in the DTV input source, insert USB storage device to the USB port on the side of your TV.

2. Press PAUSE 29 to start Time Shift function. The TV program paused. The Time Shift OSD appears, and starts recording.

3. Press STOP 28 to stop Time Shift function and stop recording program.

14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 REPEAT INSURK PAUSE STOP REV CND PRSSV NEXT SETP TITLE SCAR/24 19+ PROGRAM A-B ANGLES/CLENT 2-DALL D/S

Note

• Please do not unplug the USB storage device when the Time Shift function is activated.
  • Approximately 4GB of memory buffers about offer 140 minutes.

Operation

Time Shift limitations:

1. When the Time Shift feature is activated, only the PLAY/PAUSE/STOP/FWD/REV/VOL+/VOL-/MUTE keys and some basic operation keys (ENTER/EXIT/navigation keys) are available.

2. Video playback may not be smooth and skip if USB recording speed does not meet the minimum requirements.

3. Do Not remove USB disk or switch off the power during Time Shift operations. It will abort once the signal is lost.

4. Do Not remove the signal source during Time Shift operations.

5. Do Not quickly and repeatedly change operations between PLAY/PAUSE/FWD/REV.

6. Video may become pixelated when Video bit rate is too low.

7. Not all USB devices are compatible, The USB hard disk drive electricity should be < 500MA. Below is a list of recommended USB drives. Models that are not listed may be compatible, but it is not guaranteed to work.

• San Disk Extreme® Contour™ USB Flash Drive - 8GB SDCZ8 - 8192 - E75
• San Disk Extreme® Contour™ USB Flash Drive - 16GB SDCZ8 - 016 G - A75
• Kingston Data Traveler 410 USB 2.0 Flash Drive-8 GB DT410/8 GB
• Kingston Data Traveler 410 USB 2.0 Flash Drive - 16GB DT410/16 GB
• OCZ Technology Rally 2 USB 2.0 Flash Drive - 4GB OCZUSBR2DC - 4GB
• OCZ Technology ATV USB 2.0 Flash Drive - 8GB OCZUSBATV - 8GB
• OCZ Technology Rally 2 USB 2.0 Flash Drive - 8GB OCZUSBR2DC - 8GB
• SZMSUNG - Hm500 JI -500 G

1. This feature is not available for all digital TV, such as scrambled or audio only channels.

10.USB Player

Press source key, and select USB in source list, press OK button to enter the USB menu.

Haier Innovation Life PHOTO MUSIC TEXT MOVIE

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing ◀▶, press OK button to enter the disk selection menu.

Haier Innovation Life Ku171G

Press the ◀▶ to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Picture 001.jpg Return 725.487 1000Lp F043a OK

Select the media file by pressing◀▶ or▼▲ , then the preview frame will pop up. Press the button ▶ to play the media file in full screen. When the media file (photo, Movie, or text type) is playing, press the OK or Info button can display the control bar.

Press ◀▶ to select the function icon, press OK button to confirm the function. Press ▼ or EXIT button to exit the control bar except for music.

Note

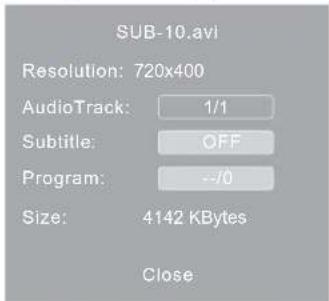

You can adjust the audio track, or program in the Info menu while Playing the video file.Choose the Info icon and press OK can display the Info MENU.

SUB-10.avi Resolution: 720x400 AudioTrack: 1/1 Subtitle: OFF Program: --/0 Size: 4142 KBytes Close

USB playback is supported for the following photo file formats:

-JPEG(JPEG format, files with the extension ".jpg")
-BMP (files with the extension ".bmp")
-PNG (files with the extension ".png")
USB playback is supported for the following music file formats:
-MP3 (files with the extension ".mp3")
-WAV (files with the extension ".wav")
USB playback is supported for the following text file formats:
-TXT (files with the extension ".txt")

USB playback is supported for the following movie file formats:

-AVI (file with the extension".avi")

-TS (MPEG2 & H.264)

05 Trouble shooting

Trouble phenomenon Symptom			Inspection Check
Picture Audio
	Snow Noise		antenna position, direction or connection
	Ghost	Normal audio	antenna position, direction or connection
	Interference	Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute		Power cord is not insertedPower switch is not openedContrast and brightness/volume setupPress standby key on the remote control for inspecting
	No colour Norma	ur control
	Picture breaking up	Normal audio or weak	retune channel
	No colour	Noise	TVsystem
	There is black bar on top and bottom	Normal audio	Change aspect to zoom

Trouble Shooting

My TV does not display the picture on my laptop / PC when connected.	Most PC's and laptops when connected with a VGA Plug (the blue 15 pin plug on your PC or laptop) require you to press some buttons on your key board to get a picture on a TV or other external display. This is usually the F7 (Dell) or F4 (HP / Samsung) or F5 (Toshiba). On laptops, you have to press the "Fn" key at the same time as the "F" key.
I have connected my PC/Laptop to the TV and get a picture but no sound. Why ?	The VGA cable only carries the video or picture information. You need to connect a separate cable connected to the earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m (PC Audio IN) socket on your TV. You will need to select "PC" using the Source button on your remote.Alternatively connect your PC/Laptop using a HDMI cable if you PC/Laptop has a HDMI connector. HDMI is both audio and video.
The picture is not auto resizing when changing channels.	Check that the TV picture Aspect Ratio is set to 'Auto' on all inputs ATV, DTV, SCART, HDMI 1, 2 etc.To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button start at ATV and repeat the sequence below for all input sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is controlled separately.Press TV Menu buttonPress Right Arrow to access Picture sub menuPress Down Arrow to select Aspect RatioSelect AutoPress ExitRepeat for all input sources.
I have just plugged in a DVD player or another item into my TV and it doesn't work.	This is applicable to any item of equipment plugged to the TV1. Turn both TV & DVD player off (plugs out of the wall socket, not standby).2. Turn off any equipment connected to the SCART socket.3. Disconnect the SCART plug from the TV.4. Plug in and turn TV on5. Plug in and turn DVD player on6. Select HDMI from Source Menu7. Press play on DVD player and check movie plays okNOTE: The SCART socket has priority over HDMI and it is important that the equipment connected to the SCART socket on the TV is switched OFF (not in standby).Please follow this information. If the advice works and the DVD player works, the TV is OK it is just a bit confused.Probably HDMI plugs have been removed and plugged back in when the TV is switched on.Never remove or plug in HDMI cables or any digital equipment with the equipment switched on.Always switch off all equipment when unplugging or connecting any digital equipment.

Trouble Shooting Digital TV Problems and possible Solutions.

Picture Breaks into Pixels

A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing, sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all. Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a pre-amplifier. This will boost your signal strength and fix the pixel problem.

If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and satellite is in bare or in full leaf.

Missing channels

It may be that you find that there are channels missing, or you're receiving channels from the wrong region. Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials

TV Aerials

Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV (Freeview) for example you get BBC1, BBC2, Channel 4, but not ITV or Channel 5, this is usually because your aerial is a narrow band type, and needs to be changed to a wide band type.

Faulty Leads and Cables

Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture) problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART plugs firmly in, this should fix the problem.

HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic part of the HDMI plug should be very close or touching the body of the TV or component. When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the other component is switched on. Always switch off both the TV and the component you are plugging in. If you have checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on again.

I have connected my PC to the TV. There is no sound.

If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a separate audio cable to the TV from the PC or laptop.

Unnatural Colours and Flesh Tones

Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture menu.

White Outlines

White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.

Choppy Video

At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the help of an amplifier.

The picture does not fill the screen

When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or laptop (Windows > Start > Control Panel > Appearance and Personalization > Display settings) and select the best resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.

USB Connection

The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple different file formats, there is no guarantee that these other file formats will work.

Specification

46" Full HD 1080P Digital LED LCD TV

Television picture quality:	FULL HDIntegrated digital.Screen Size: cm117Resolution 1920 x 1080 pixels 50Hz.
Connectivity:	2 HDMI sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.
Sound quality:	NICAM stereo sound system.2 x 8 watts RMS power output.
Standby Power consumption	<0.5W
Digital features:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Additional features:	UHF/VHF tuner.Sleep timer.Child lock.Picture and text.Remote control batteries required 2 x AAA (included).VESA Mount Size: 200 x 200 mmPackage Size (WxHxD): 1285x780 mmx170Set Size (WxHxD) with Stand: 1074x703 mmx280Set Size (WxHxD) without Stand: 1074x645 mmx78Package weight: 17kgSet weight with stand: kg13.7Set weight without stand: kg 11.8

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no scart output signal.

Haier®

Haier®

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a rectangular electronic device with internal compartments and mounting feet (no text or symbols)

HINWEISE ZUR INSTALLATION

Technical line drawing of a mechanical or electronic component with no visible text or symbols

Technical line drawing of a mechanical or electronic component with internal channels and mounting features (no text or symbols)

Diagram showing a monitor connected to a circular device with labeled components and a remote control, likely illustrating a TV or broadcast setup.

① SOURCE MENL CH-CH-VOL+ STANDUYVOL- III ∧ CH ∨ -VOL+ ②345

Technical diagram of a mechanical component with internal channels and mounting holes (no text or labels)

Three-panel image showing a solar panel array with three different configurations (no text or symbols visible)

25.Teletext Untercode: Teletext Unterseite

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1.KANALMENÜ

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning CAUTV Manual Tuning ATV Manual Tuning Programmo Edit Signal Information CI Information Software Update(USB)

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen

BITTE BEACHTEN SIE:

Sound Mode Standard Music Traveler Sports User Balance Auto Volume Surround Sound

Bitte beachten Sie:

OSD Language OK Auricis Languages Sabittle Language Country PVR File System RestoFS Factory Default Automaticpower down(4h) HomeiShop Mode DCR

Lock System OK Set Password Block Program Parental Guidance

BITTE BEACHTEN SIE:

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | |

Select Disk USB 0 Disk C: OK

File System Size
PVR File System Type	Hi Speed FS
PVR File System Size	All
SD 104 Mins
HD 29 Mins

File System Size
PVR File System Type	FAT32
SD 104 Mins
HD 29 Mins

Format disk Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

Haier Innovation Life ( Return 0 ) Bolt Win Buy OK

Installation Murale 7

Wandmontage 8

RISQUES D'ELECTROCUTION

NE PAS OUVRIR

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a rectangular electronic device with internal compartments and mounting feet (no text or symbols)

REMARQUES SUR L'INSTALLATION

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Technical line drawing of a mechanical or electrical component with internal channels and mounting features (no text or symbols)

M6x9 200mm M6x9 M6x9 200mm M6x9

Panneau frontal

Diagram showing a monitor connected to a device with labeled components and a remote control panel below

① SOURCE MENU CH CH VOL VOL STANDRY III ▲ CH - VOL + ② ③ ④ ⑤

Option 5 VGA (Sub-D 15 broches)

Three-panel image showing a grid-like structure with internal features, labeled 1, 2, and 3 (no text or symbols present)

31. TOUCHES DE DEPLACEMENT

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. MENU CANAL

Auto Tuning DTC Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning CATT CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Utilisation

DTV Manual Tuning VHF CH D Press OK to search Bad Nomal Good

2. 2) Recherche manuelle DTV (DVB-C)

Picture Media Color Temperature Aspect Ratio Noise Reduction Screen

Remarque:

Sound Mode Balance Auto Volume Surround Sound

Remarque:

Lock System OK Set Password Block Program Parental Guidance

Remarque:

Schedule List 04:55:28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | | | | | | | |

Select Disk USB 0 Disk C: OK

File System Size

PVR File System Type Hi Speed FS

PVR File System Size All

SD 104 Mins

HD 29 Mins

File System Size
PVR File System Type	FAT32
SD 104 Mins
HD 29 Mins

Format disk Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

Haier Innovation Life (Rot+C) OK Run Show Run OK Run

OPSLAGAPPARAAT....22

TIJDVERPLAATS-beperkingen: 23

USB-speler 24

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a 3D electronic device casing with internal compartments and mounting feet (no text or symbols)

INSTALLATIE-OPMERKINGEN

Technical line drawing of a monitor or electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a mechanical or electronic component with internal channels and mounting features (no text or symbols)

Diagram showing a monitor setup with labeled components including a remote, a circular button, and directional arrows indicating orientation.

① SOURCE MPKH ② CH CH VOL ③ VOL ④ STANDRYVOL- ⑤ Ⅲ ~ CH ~ - VOL + ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟+

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programma Edit Signal Information CI Information OK Software Updates(USB)

Three-panel image showing a grid-like structure with internal features, labeled 1, 2, and 3 (no text or symbols present)

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!! Completed Initial Quick Setup. Enjoy your Haier TV. Press OK to Exit

1. KANAAL MENU

1.1) Automatisch afstemmen (DVB-T)

Tune Type		< DTV+ATV >
French	Hungary	Nederlands
Germany	Italy	Norway
Greece	Luxembourg	Poland

Auto Tuning CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

Tune Type < DTV+ATV > French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

DE WERKING

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

2.2)DTV handmatig afstemmen (DVB-C)

Sound Mode Balance Auto Volume Surround Sound

Opmerking:

Lock System SET Password Block Program Parental Guidance

OPMERKING:

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | |

Opnemen

Select Disk USB 0 Disk C: OK

File System Size

PVR File System Type Hi Speed FS

PVR File System Size All

SD 104 Mins

HD 29 Mins

File System Size
PVR File System Type	FAT32
SD 104 Mins
HD 29 Mins

Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

Haier Innovation Life (Rater C)

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a rectangular electronic device with internal compartments and mounting feet (no text or symbols)

Technical line drawing of a computer monitor with front panel and rear panels (no text or symbols)

Technical line drawing of a mechanical or electronic component with internal channels and mounting features (no text or symbols)

M6x9 M6x9 200mm 200mm M6x9 M6x9

Panel frontal de control

Diagram showing a monitor setup with labeled components and a remote control panel, likely illustrating TV or remote navigation.

Three-panel image showing a grid-like structure with internal features, labeled 1, 2, and 3 (no text or symbols present)

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password * * * * Please enter new password Confirm new password

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to Exit

1. MENÚ CHANNEL

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Auto Tuning CABTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

Tune Type French Hungary Nederland Germany Italy Norway Greece Luxembourg Poland MENU OK

FUNCIONAMIENTO

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Updates(USB)

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

Sound Mode Balance Auto Volume Surround Sound

Nota:

Lock System OK Set Password Block Program Parental Guidance

NOTA:

Schedule List 04-55 28th Apr Delete Time Data Programme Title Channel Name The Time The The The

Grabar

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

Haier Innovation Life (Rot+C) OK Add View Add Help

Common interface....11

03 Telecomando

Telecomando....12

Technical line drawing of a rectangular electronic device with internal components and mounting brackets (no text or symbols)

Technical line drawing of a rectangular electronic device with internal compartments and mounting feet (no text or symbols)

Technical line drawing of a computer monitor with front panel and internal components (no text or symbols)

Technical line drawing of a mechanical or electronic component with internal channels and mounting features (no text or symbols)

Diagram showing a monitor connected to a remote control unit with labeled components ①, ②, and ③.

① SOURCE MFGU CHI CHI- VOL 4 STANDRYVOL- ⑤ - VOL + ④ ③ ^ CH

Technical line drawing of a mechanical component with no visible text or symbols

Three-panel grayscale image showing a grid-like structure with internal features, labeled 1, 2, and 3 (no text or symbols present)

Please select on OSD language Czech Spanish Italian Polski Deutsch Greek Magyar Russian English French Nederlands Romanian OK

Mode Select Home Mode Shop Mode OK

Password Please enter old password Please enter new password Confirm new password

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Congratulations!!! Completed Initial Quick Setup. Enjoy your Haler TV Press OK to Exit

1. MENU CANALI

Tune Type French Hungary Netherlands Germany Italy Norway Greece Luxembourg Poland MENU OK

Tune Type French Hungary Nederlands Germany Italy Norway Greece Luxembourg Poland MENU OK

OPERATIVITÀ

Auto Tuning OTV Manual Tuning OK ATV Manual Tuning Programma Edit Signal Information CI Information Software Updates(USB)

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen

NOTA:

Sound Mode Balance Auto Vol and Surround Sound

Nota:

Lock System OK Set Password Block Program Parental Guidance

NOTA:

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | | | | | | |

3. Registrare

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Format disk Warning! All data will be lost. ( Start Exit )

Format disk Do not unplug USB device. Formatting,please wait

SCH block diagram for MSD309PT, showing signal flow from TUNER through HDMI, audio, and display to power and AC input.

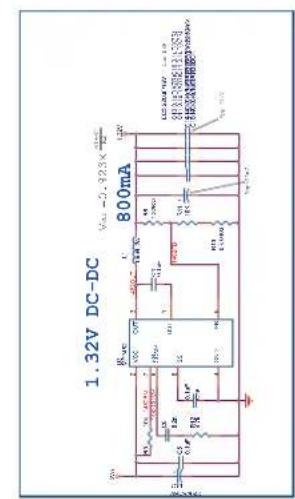

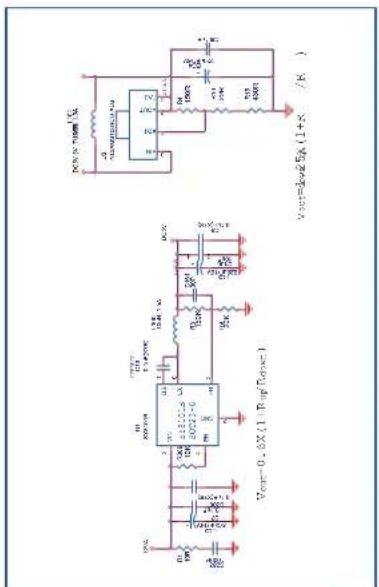

1.32V DC-DC 800mA

Vout=0.6X(1+Rup/Rout) Vout=low25X(1+x /K)

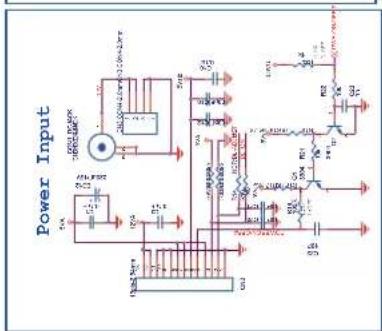

Power Input Input 10A 10A 20A 30A 40A 50A 60A 70A 80A 90A 100A 110A 120A 130A 140A 150A 160A 170A 180A 190A 200A 210A 220A 230A 240A 250A 260A 270A 280A 290A 300A 310A 320A 330A 340A 350A 360A 370A 380A 390A 400A 410A 420A 430A 440A 450A 460A 470A 480A 490A 500A 510A 520A 530A 540A 550A 560A 570A 580A 590A 600A 610A 620A 630A 640A 650A 660A 670A 680A 690A 700A 710A 720A 730A 740A 750A 760A 770A 780A 790A 800A 810A 820A 830A 840A 850A 860A 870A 880A 890A 900A 910A 920A 930A 940A 950A 960A 970A 980A 990A 1000A

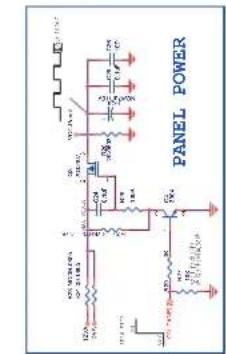

PANEL POWER

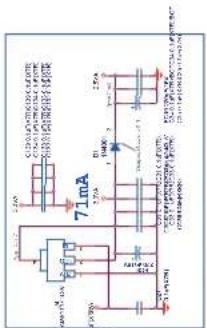

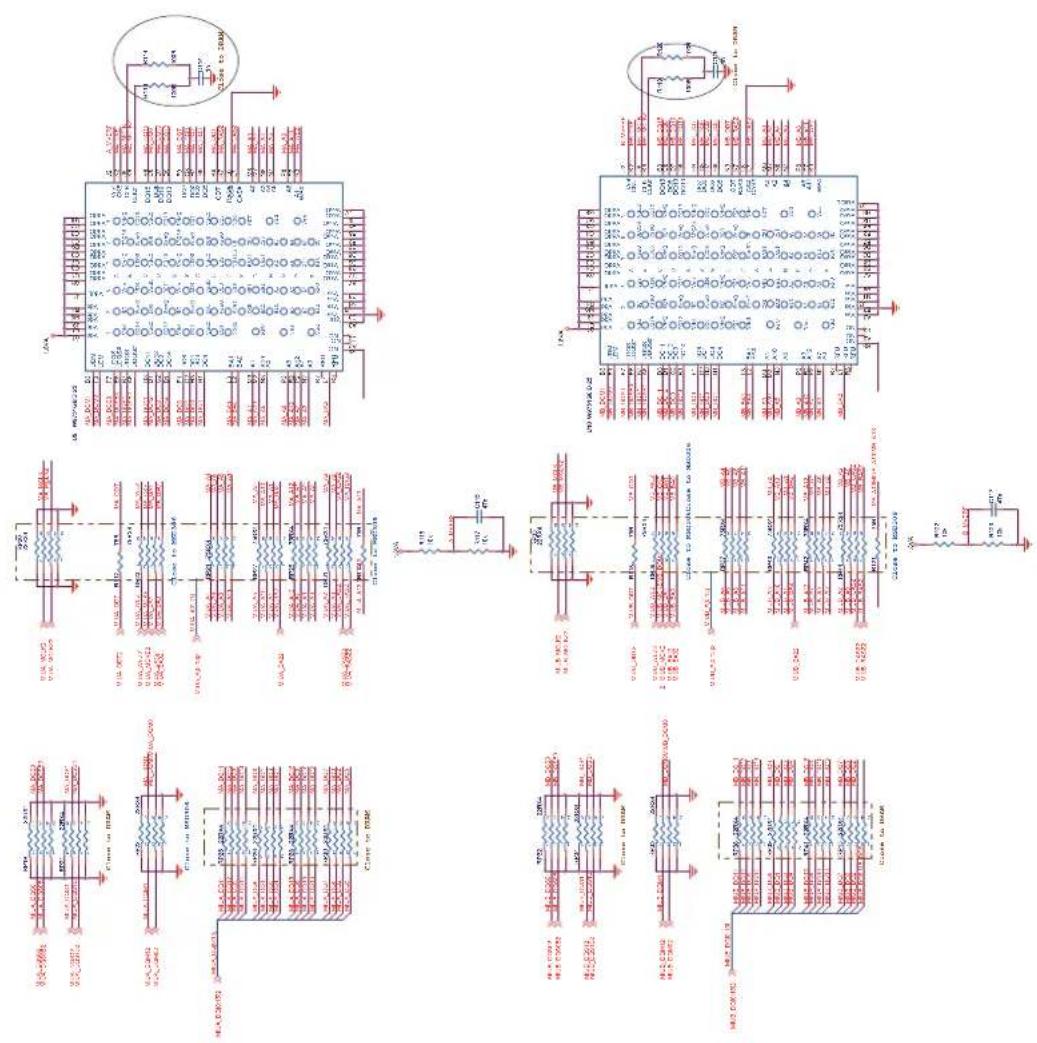

71mA 2.6V 3.7V 2.5V 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kA 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kM 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kO 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN 10kN

MST Power supply 45mA

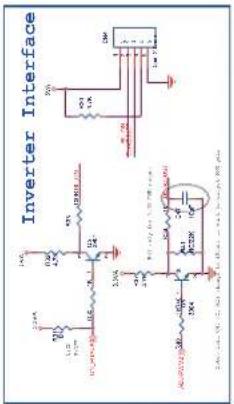

Inverter Interface 1.2V 3.0V 4.5V 6.5V 8.5V 10.5V 12.5V 15.5V 18.5V 21.5V 24.5V 27.5V 30.5V 33.5V 36.5V 39.5V 42.5V 45.5V 48.5V 51.5V 54.5V 57.5V 60.5V 63.5V 66.5V 69.5V 72.5V 75.5V 78.5V 81.5V 84.5V 87.5V 90.5V 93.5V 96.5V 99.5V

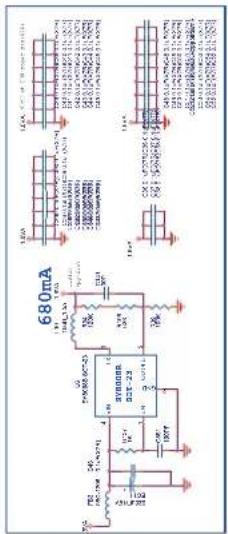

680mA 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V-120A 5V-120B 5V-120C 5V-120D 5V-120E 5V-120F 5V-120G 5V-120H 5V-120I 5V-120J 5V-120K 5V-120L 5V-120M 5V-120N 5V-120O 5V-120P 5V-120Q 5V-120R 5V-120S 5V-120T 5V-120U 5V-120V 5V-120W 5V-120X 5V-120Y 5V-120Z 5V-120A 5V-120B 5V-120C 5V-120D 5V-120E 5V-120F 5V-120G 5V-120H 5V-120I 5V-120J 5V-120K 5V-120L 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V/7.5V 5V 120A 5V 120B 5V 120C 5V 120D 5V 120E 5V 120F 5V 120G 5V 120H 5V 120I 5V 120J 5V 120K 5V 120L 5V 120M 5V 120N 5V 120O 5V 120P 5V 120Q 5V 120R 5V 120S 5V 120T 5V 120U 5V 120V 5V 120W 5V 120X 5V 120Y 5V 120Z 5V 120A 5V 120B 5V 120C 5V 120D 5V 120E 5V 120F 5V 120G 5V 120H 5V 120I 5V 120J 5V 120K 5V 120L 5V/7.5V 5V/7.5V

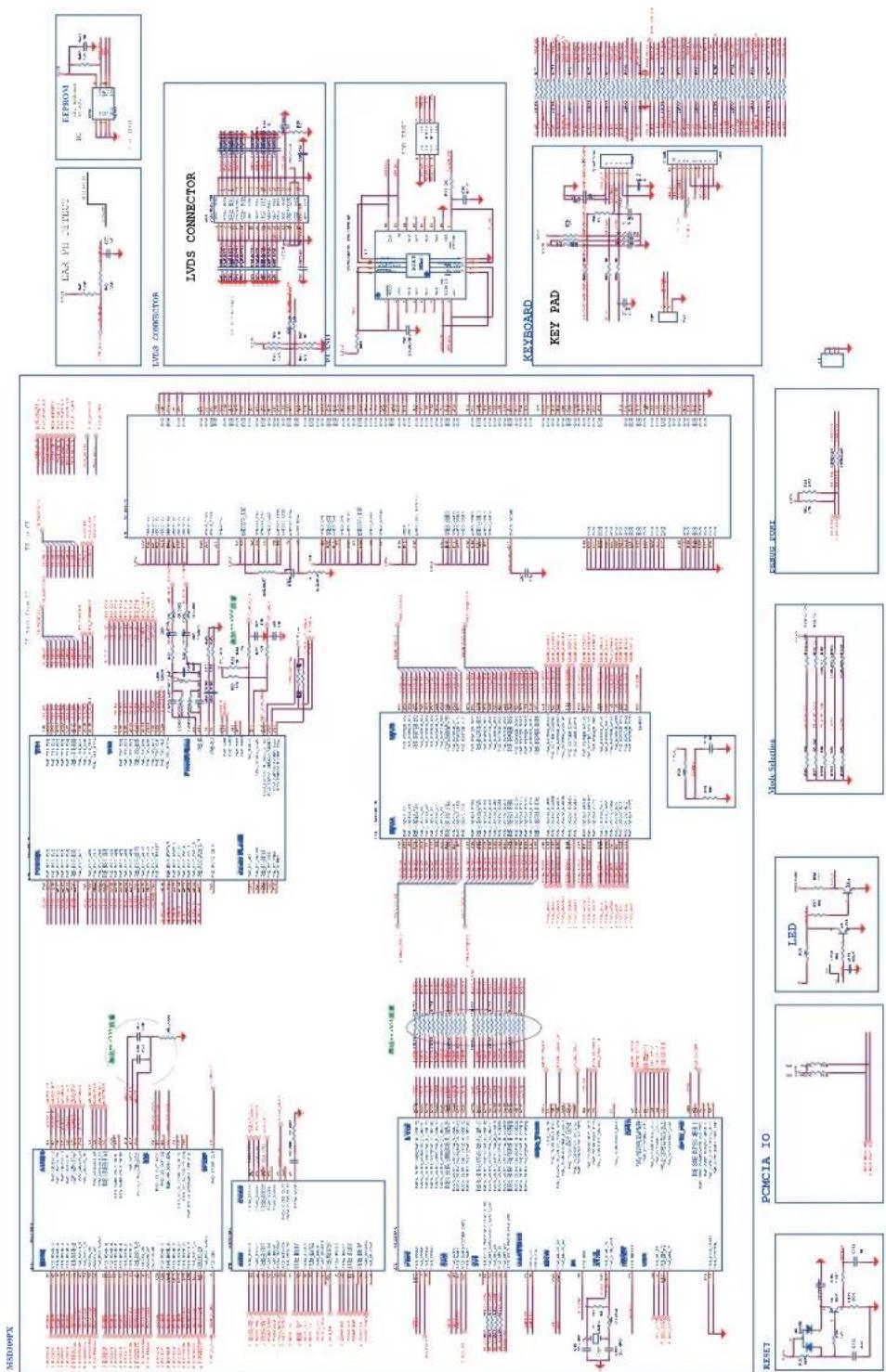

KEY PAD KEYBOARD I/O I/O Connector I/O Connection EXERCIAL MAX 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74 MAX 125.74

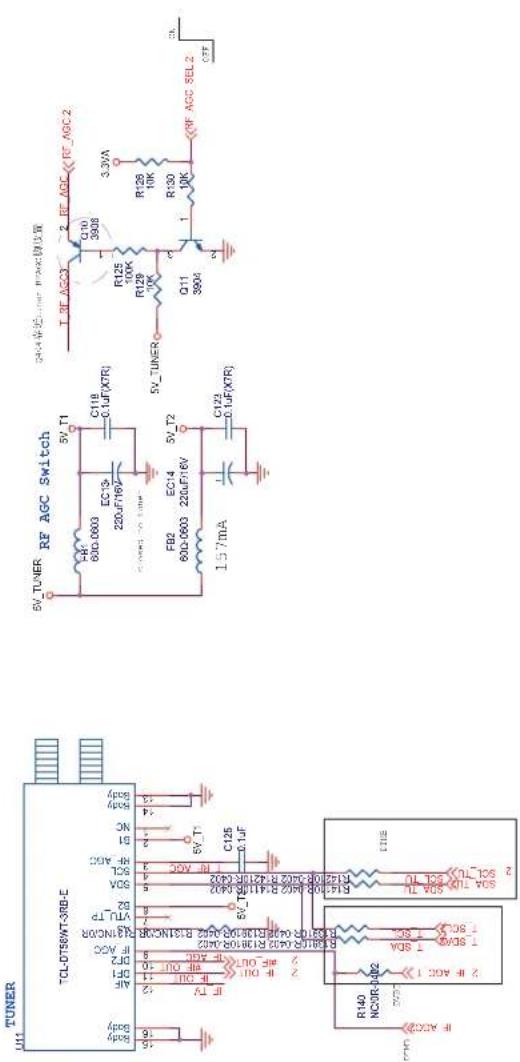

TUNER U11 TCL-DT58WT-3RB-E Body Body AF DF1 DF2 IF ACC IF OUT IF TV IF OUT IF AGC IF AGC R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R43 NCOR R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R40 R 5V_T1 5V_T2 5V_T3 5V_T4 5V_T5 5V_T6 5V_T7 5V_T8 5V_T9 5V_T10 5V_T11 5V_T12 5V_T13 5V_T14 5V_T15 5V_T16 5V_T17 5V_T18 5V_T19 5V_T20 5V_T21 5V_T22 5V_T23 5V_T24 5V_T25 5V_T26 5V_T27 5V_T28 5V_T29 5V_T30 5V_T31 5V_T32 5V_T33 5V_T34 5V_T35 5V_T36 5V_T37 5V_T38 5V_T39 5V_T40 5V_T41 5V_T42 5V_T43 5V_T44 5V_T45 5V_T46 5V_T47 5V_T48 5V_T49 5V_T50 5V_T51 5V_T52 5V_T53 5V_T54 5V_T55 5V_T56 5V_T57 5V_T58 5V_T59 5V_T60 5V_T61 5V_T62 5V_T63 5V_T64 5V_T65 5V_T66 5V_T67 5V_T68 5V_T69 5V_T70 5V_T71 5V_T72 5V_T73 5V_T74 5V_T75 5V_T76 5V_T77 5V_T78 5V_T79 5V_T80 5V_T81 5V_T82 5V_T83 5V_T84 5V_T85 5V_T86 5V_T87 5V_T88 5V_T89 5V_T90 5V_T91 5V_T92 5V_T93 5V_T94 5V_T95 5V_T96 5V_T97 5V_T98 5V_T99 5V_T100 RF AGC Switch 2 RF AGC RF_AGC 2A GAC 安诺 Tuner M2/DC 钢设置 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 1. A C C B C D E F B C D E F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F F/F

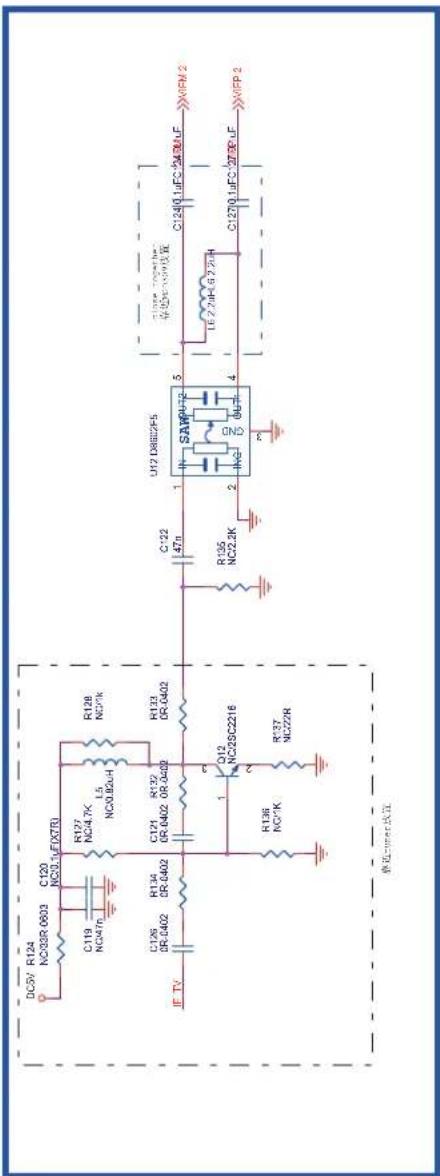

SAW Drive

DC5V R124 NC033R 0603 C120 NC0.1uFX(7R) C119 NC047n R127 NC04.7K L5 NC0.80uH R128 NC01k C126 DR-0402 R134 DR-0402 C121 OR-0402 R132 OR-0402 R133 OR-0402 IF TV C122 1.47n R136 NC0.2K O12 NC02SC2216 R137 NC022R U12 D882F5 SAR/FF2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 CEA together 地址D882F5位置 CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA together CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA jointer位置 CEA Jointer Location

FOR EUROPE

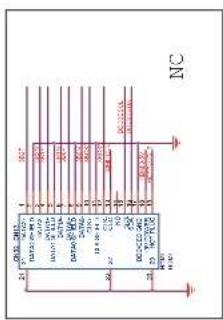

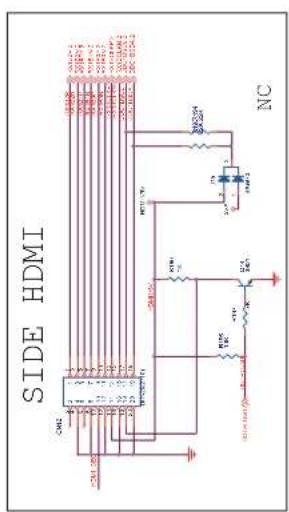

SIDE HDMI NC

AC-1 AC-2 AC-3 AC-4 AC-5 AC-6 AC-7 AC-8 AC-9 AC-10 AC-11 AC-12 AC-13 AC-14 AC-15 AC-16 AC-17 AC-18 AC-19 AC-20 AC-21 AC-22 AC-23 AC-24 AC-25 AC-26 AC-27 AC-28 AC-29 AC-30 AC-31 AC-32 AC-33 AC-34 AC-35 AC-36 AC-37 AC-38 AC-39 AC-40 AC-41 AC-42 AC-43 AC-44 AC-45 AC-46 AC-47 AC-48 AC-49 AC-50 AC-51 AC-52 AC-53 AC-54 AC-55 AC-56 AC-57 AC-58 AC-59 AC-60 AC-61 AC-62 AC-63 AC-64 AC-65 AC-66 AC-67 AC-68 AC-69 AC-70 AC-71 AC-72 AC-73 AC-74 AC-75 AC-76 AC-77 AC-78 AC-79 AC-80 AC-81 AC-82 AC-83 AC-84 AC-85 AC-86 AC-87 AC-88 AC-89 AC-90 AC-91 AC-92 AC-93 AC-94 AC-95 AC-96 AC-97 AC-98 AC-99 AC-100

Electrical schematic diagram showing connections between resistors, capacitors, and a power supply with labeled terminals and components.

125V 10V 1.0V 400mA 30mA 10A 60mA 20mA 10A 80mA 10mA 10A 10mA 5mA 10A 12mA 5mA 10A 15mA 5mA 10A 18mA 5mA 10A 20mA 5mA 10A 22mA 5mA 10A 25mA 5mA 10A 28mA 5mA 10A 30mA 5mA 10A 32mA 5mA 10A 35mA 5mA 10A 38mA 5mA 10A 40mA 5mA 10A 42mA 5mA 10A 45mA 5mA 10A 48mA 5mA 10A 50mA 5mA 10A 52mA 5mA 10A 55mA 5mA 10A 58mA 5mA 10A 60mA 5mA 10A 62mA 5mA 10A 65mA 5mA 10A 68mA 5mA 10A 70mA 5mA 10A 72mA 5mA 10A 75mA 5mA 10A 78mA 5mA 10A 80mA 5mA 10A 82mA 5mA 10A 85mA 5mA 10A 88mA 5mA 10A 90mA 5mA 10A 92 mA 95 mA 98 mA 10 mA

NC 1.0 Vdc 200A 2.0 Vdc 200B 3.0 Vdc 200C 4.0 Vdc 200D 5.0 Vdc 200E 6.0 Vdc 200F 7.0 Vdc 200G 8.0 Vdc 200H 9.0 Vdc 200I 10.0 Vdc 200J 11.0 Vdc 200K 12.0 Vdc 200L 13.0 Vdc 200M 14.0 Vdc 200N 15.0 Vdc 200O 16.0 Vdc 200P 17.0 Vdc 200Q 18.0 Vdc 200R 19.0 Vdc 200S 20.0 Vdc 200T 21.0 Vdc 200U 22.0 Vdc 200V 23.0 Vdc 200V 24.0 Vdc 200V 25.0 Vdc 200V 26.0 Vdc 200V 27.0 Vdc 200V 28.0 Vdc 200V 29.0 Vdc 200V 30.0 Vdc 200V 31.0 Vdc 200V 32.0 Vdc 200V 33.0 Vdc 200V 34.0 Vdc 200V 35.0 Vdc 200V 36.0 Vdc 200V 37.0 Vdc 200V 38.0 Vdc 200V 39.0 Vdc 200V 40.0 Vdc 200V 41.0 Vdc 200V 42.0 Vdc 200V 43.0 Vdc 200V 44.0 Vdc 200V 45.0 Vdc 200V 46.0 Vdc 200V 47.0 Vdc 200V 48.0 Vdc 200V 49.0 Vdc 200V 50.0 Vdc 200V

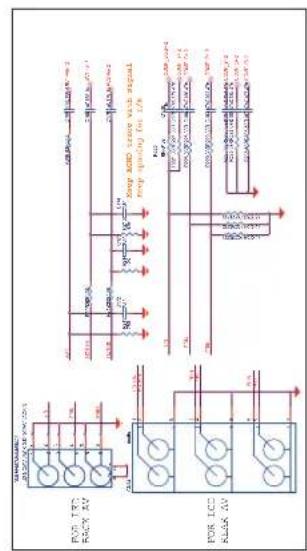

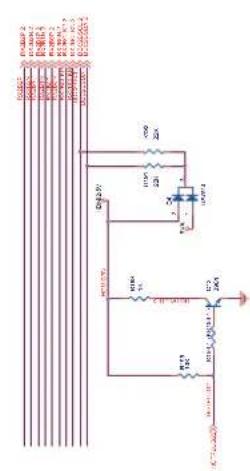

FOR LDC RACX NV FOR LDC KLAX NV

DC 12V 5V 3V 10V 5V 15V 20V 25V 30V 35V 40V 45V 50V 55V 60V 65V 70V 75V 80V 85V 90V 95V 100V 105V 110V 115V 120V 125V 130V 135V 140V 145V 150V 155V 160V 165V 170V 175V 180V 185V 190V 195V 200V 205V 210V 215V 220V 225V 230V 235V 240V 245V 250V 255V 260V 265V 270V 275V 280V 285V 290V 295V 300V 305V 310V 315V 320V 325V 330V 335V 340V 345V 350V 355V 360V 365V 370V 375V 380V 385V 390V 395V 400V 405V 410V 415V 420V 425V 430V 435V 440V 445V 450V 455V 460V 465V 470V 475V 480V 485V 490V 495V 500V

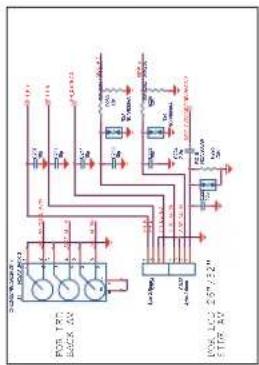

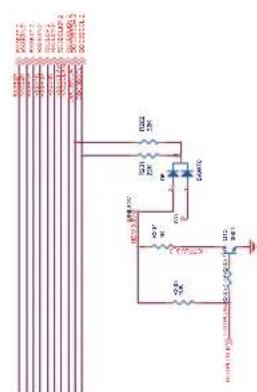

POR TINT BACK ON 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A 10V 200A

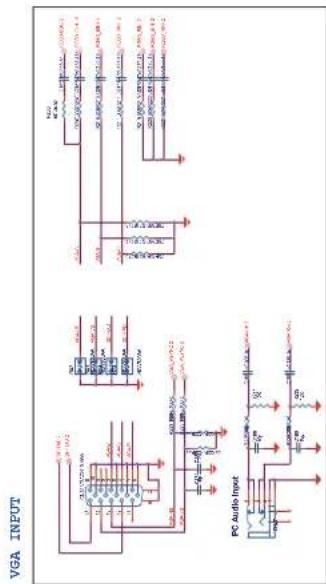

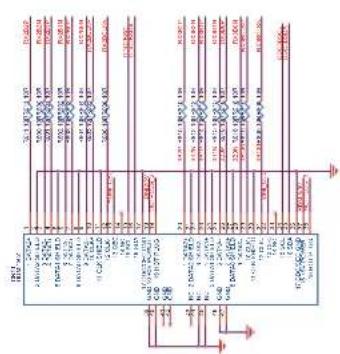

VGA INPUT PC Audio Input

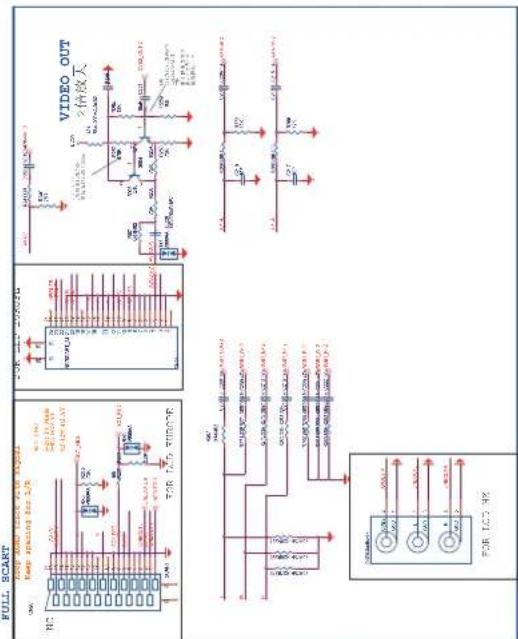

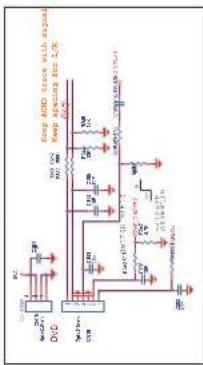

FULL SCART Keep audio track 500 MHz Keep spacing for 1/8 FOR IAD YUROR FOR LCD 20000V VIDEO OUT 2倍放天 FOR IAD RX

SPDIF Output

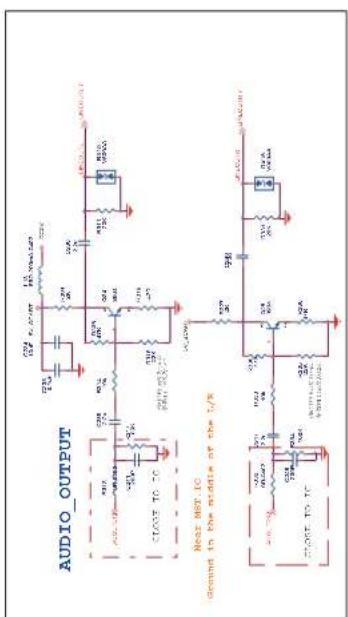

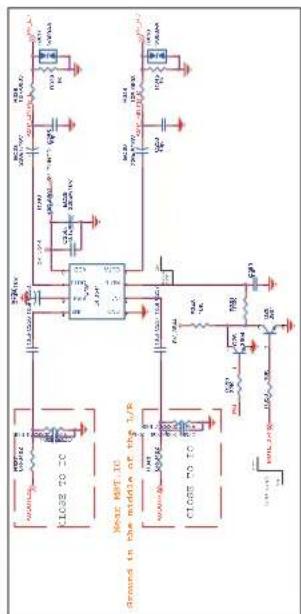

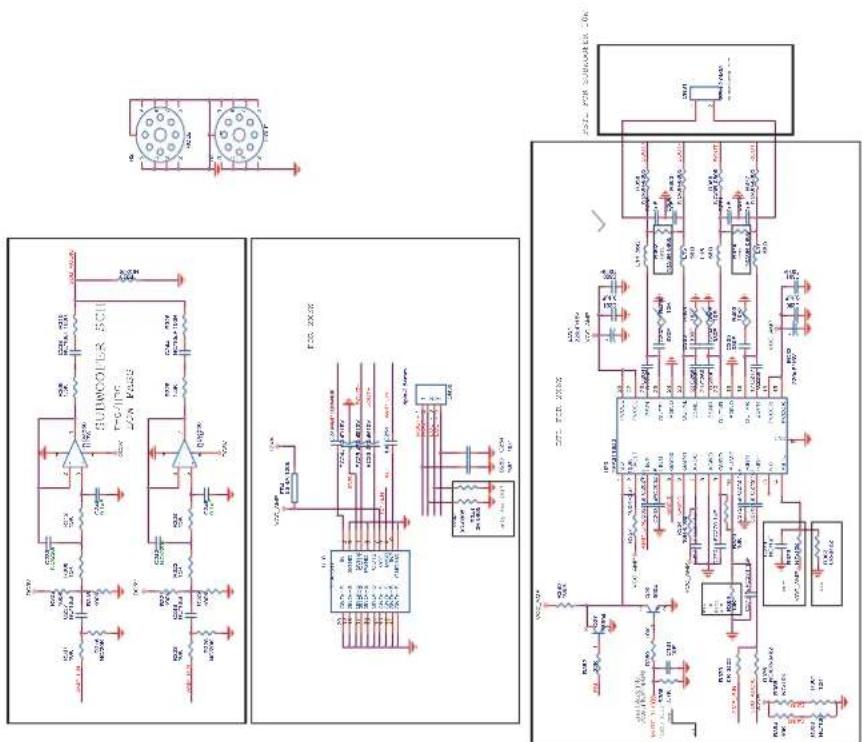

AUDIO OUTPUT AUXO FOR 100V 50V 20V 10V 5V 3V 2V 1V Ground in low media of the I/R CLOVE TO TO NEAR MET-IO Ground in low media of the I/R

Electrical schematic diagram with labeled components, ICs, resistors, capacitors, and voltage sources

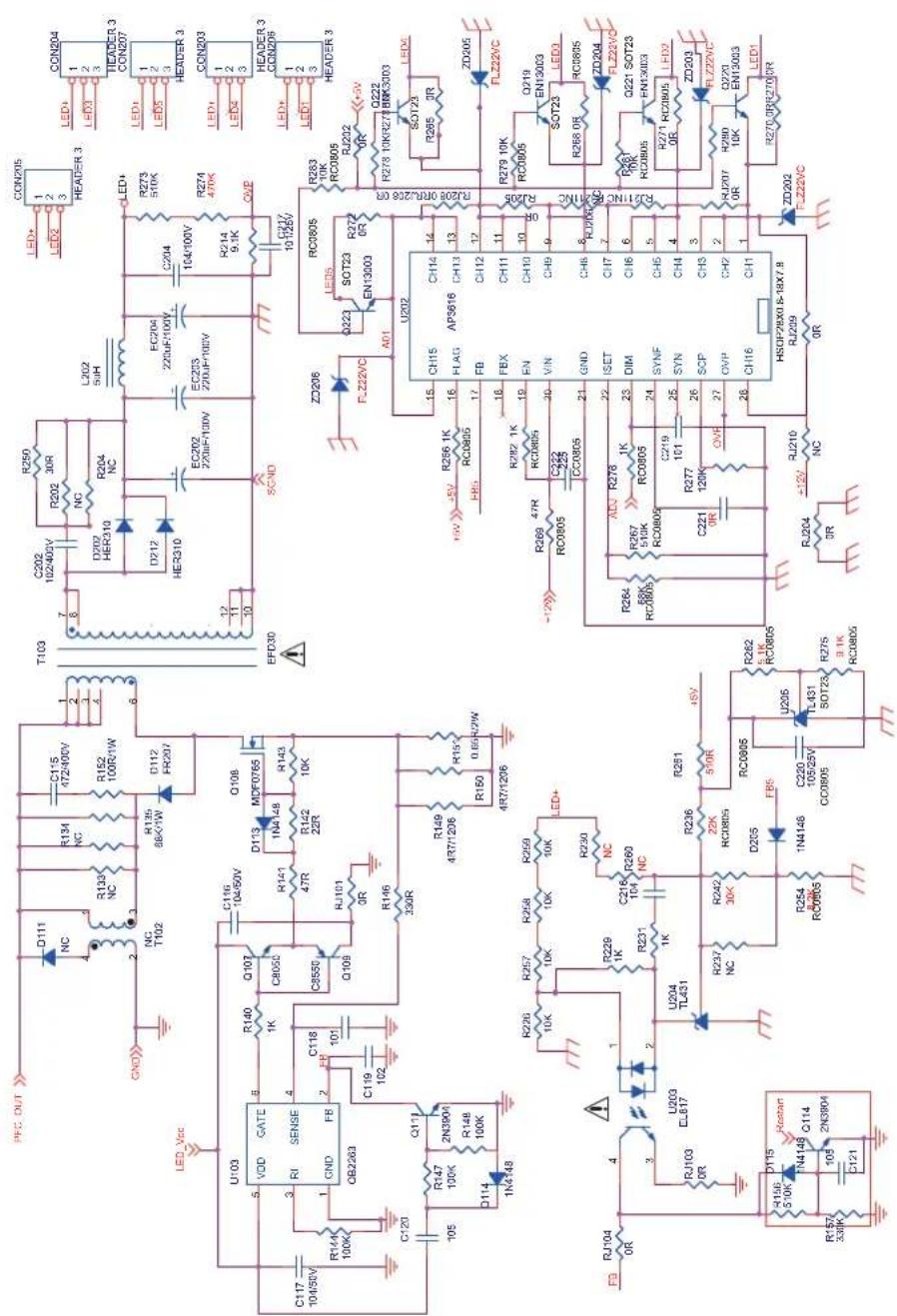

Electrical schematic diagram with labeled components, ICs, resistors, capacitors, and signal paths for a power supply or control circuit.

Haier®
