Product Type	4K UHD LED TV
Brand	Haier
Model	H98S900UX
Screen Diagonal	98 inches (approx 249 cm)
Resolution	3840 x 2160 pixels (4K UHD)
Display Technology	LED Backlight
HDR	HDR10, HLG, Dolby Vision
Operating System	Android TV 11
Processor	Quad Core
Connectivity	4x HDMI, 2x USB, Ethernet, Wi-Fi 5, Bluetooth 5.0
Tuner	DVB-T2/C/S2
Audio Power	40 W (2 x 20 W)
Dimensions with Stand (W x H x D)	2190 x 1270 x 400 mm
Dimensions without Stand (W x H x D)	2190 x 1250 x 70 mm
Weight with Stand	55 kg
Weight without Stand	53 kg
Power Supply	220-240 V, 50/60 Hz
Typical Power Consumption	200 W
Standby Power Consumption	Less than 0.5 W
Maintenance and Cleaning	Use a soft, dry cloth. Avoid chemical products.
Safety	Check the stability of the wall mount or furniture. Do not block ventilation slots.
Spare Parts and Repairability	Repairability index: 7.6/10 (estimate). Parts available from after-sales service.
Warranty	2 years (according to applicable legislation)

Frequently Asked Questions - H98S900UX HAIER

How to install the Haier H98S900UX TV?

Carefully remove the TV from the packaging. Attach the provided stand or use a wall mount suitable for the screen weight (55 kg). Connect the HDMI, antenna, and power cables. Turn on and follow the Android TV setup wizard.

What is the screen resolution?

The TV has a 4K UHD resolution of 3840 x 2160 pixels, compatible with HDR10, HLG, and Dolby Vision.

How to clean the screen without damaging it?

Use a slightly damp microfiber cloth (no direct water). Wipe gently. Never use abrasive cleaners, alcohol, or products containing ammonia.

Why is the image frozen or stuttering?

Check the HDMI source (cable, bandwidth). Enable Game Mode or Smooth Motion in settings. Ensure the signal is 4K/60 Hz. Restart the TV.

How to connect a Bluetooth speaker?

Go to Settings > Remote & Accessories > Bluetooth. Enable Bluetooth, then put the speaker in pairing mode. Select it from the list.

The sound is low or distorted, what to do?

Check the audio settings (equalizer, modes). Make sure the Surround Sound mode does not cause distortion. If the problem persists, test with an external source.

How to update the TV software?

Go to Settings > Device Preferences > About > System Update. The TV will search for an update. Download and install if available. An internet connection is required.

Can I use a soundbar with this TV?

Yes, via the HDMI ARC port (HDMI 1) or the optical digital output. Connect the soundbar, then select the corresponding source in the audio settings.

How to reset the TV to factory settings?

Go to Settings > Device Preferences > Reset. Confirm the reset. All data will be erased. This can resolve persistent issues.

What is the lifespan of the LED backlight?

The LEDs have an estimated lifespan of about 50,000 hours (over 17 years at 8 hours per day). Brightness may gradually decrease.

USER MANUAL H98S900UX HAIER

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this product near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, install in accordance with the instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Unplug this apparatus during lightning storms or when unused for long periods of time. 13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable. 15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc. 16) No naked flame sources, such as lighted candles, should be placed on the apparatus. 17) Attention should be drawn to the environmental aspects of battery disposal. 18) The use of apparatus in moderate climate. 19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 20) Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

This symbol indicates AC voltage.

This symbol indicates DC voltage.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions provided in the user manual given with this unit.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as radiators, fire or the like.

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

EU Battery Regulation

This symbol on the battery(ies) or on the packaging indicates that the battery(ies) provided with this product shall not be treated as household waste. Instead, please separate battery(ies) from other types of waste and recycle it(them) through your local recycling system to protect environment and health.

The chemical symbol for lead (Pb) is added under this symbol if the battery(ies) contains more than 0.004 % lead. For more detailed information about recycling of this battery(ies), please contact your local authority or the shop where you purchased the product or battery(ies).

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Stability Hazard

A display may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the display.
• ALWAYS use furniture that can safely support the display.
• ALWAYS ensure the display is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the display or its controls. * ALWAYS route cords and cables connected to your display so they cannot be tripped over, pulled or grabbed. * NEVER place a television set in an unstable location.
• NEVER place the display on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the display to a suitable support.
• NEVER place the display on cloth or other materials that may be located between the display and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the display or furniture on which the display is placed.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Warning for Apparatus containing COIN / BUTTON CELL BATTERIES (Below instruction only used for the apparatus containing a user-replaceable coin/button cell battery)

WARNING:

Do not ingest the battery, Chemical Burn Hazard (The remote control supplied with) this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Precautions For Using Battery

Improper using of the battery wil cause leakage. So please do as the following methods and use carefully.

• Please note the batteries' polarity, to avoid short circuit.
• When the battery's voltage is insufficient which affect the use range, you should replace newbattery,.
• Remove the batteries from the remote control unit if you do not intend to use it for a longtime.
• Do not use different types of batteries (for example, Manganese and Alkaline batteries) together.
• Do not put the battery into fire, and charge or decompose the battery.
• Please dispose batteries abide by relevant environment protection regulation.

Warning

Don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a Battery.

Don't leaving a battery in an extremely high temperature surrounding environment.

To avoid battery subjected to extremely low air pressure. The batteries battery pack or batteries installed) shall not be exposed to excessiveheat such as sunshine, fire or the like.

License

Dolby

VISION IQ

Dolby

ATMOS

Dolby, Dolby Vision, Dolby Vision IQ, Dolby Atmos, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright

©2012–2024 Dolby Laboratories. All rights reserved.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI

Licensing Administrator, Inc.

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Do not trap the power supply cord under the television receiver.

If you are going to clean the product, unplug the TV, use soft fabric, no water, never chemicals.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Note: the use of apparatus in moderate climates.

Note: This product uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may by a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

IMPORTANT: Do not apply pressure to the screen display area which may compromise the integrity of the display. The manufacturer's warranty does not cover user abuse or improper installations.

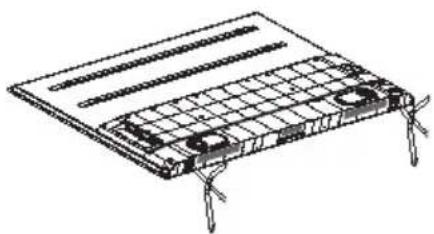

ATTACHING THE STAND

IMPORTANT: The stand of the TV must be assembled prior to usage.

1. Place the TV unit face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.
2. Fix the stand to the base with four screws. For reminder, the base is heavy, please hold it with hand carefully.

PREPARING YOUR TV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference. Before mounting your TV on the wall, you need to remove the stand.

For your safety, please use only with a UL listed wall mount bracket with minimum weight of the TV without stand.

To attach a wall mount bracket to your TV:

1. Remove the screws holding your TV to the stand.
2. Remove the stand from your TV. For reminder, the base is heavy, please hold it with hands carefully.
3. Secure the wall mount bracket to the back of your TV using six screws. Follow the instructions of the user manual that came with the wall mount bracket to install.

NOTE

The wall mount bracket are not included.

1. Fix the wall mount screws (M8x16mm/6pcs) into the rear side of the TV, using the torque of 10kgf·cm.

TURNING ON THE TV

1. Install the stand and place the TV on a solid surface.

NOTE

• Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. • To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.
• Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.
• Connect the antenna cable or cable TV cable to the ANT IN aerial socket on the back of the TV set.
• Power: Plug the cord into a working power outlet.

1. Turn the TV on: Press ⏻ on the remote control or POWER button on the side control panel of the TV.

BUTTON CONTROL

In the standby mode, press the button to turn on the TV. In the boot state, long press the button to shut down.

ACCESSORIES

Remote Control - 1 pc

User's Manual - 1 pc

Screws - 4 pcs

Base stand - 2 pcs

QSG - 1 pc

Warranty Card - 1 pc

RCA to 3.5mm Jack Composite A/V Cable - 1 pc

PERIPHERAL CONNECTION

All the terminals are (from left to right):

HDMI2, HDMI1, HEADPHONE, AV IN adapter, COMMON INTERFACE (CI)

You can use the input terminals on the TV set rear as follows.

1. RF: Antenna/closed circuit TV
2. EARPHONE: Earphone output.
3. USB: Connect USB device.
4. HDMI: Connect to high-definition multimedia signal source.
5. AV INPUT: Video input/Audio input.

# Item Description
1	POWER ( ⏻ )	Turn the TV on or to standby mode.
2	SOURCE ( ⊖ )	Press this button to access the source list or select the desired source as you need.
3	......	Access the virtual keyboard including usually-used buttons like number buttons, color buttons and so on.
4	[IMAGE]	Switch Google accounts in Google TV mode.
5	▲▼◀▶	Navigate the menu to select the content you need.
6	OK	Confirm, enter or execute the selected item, or access the channel list.
7	BACK ( ← )	Return to upper-level content, exit the current screen, or back to the previously -viewed channel.
8	Channel ( ∧/∨)	Push this button upwards/downwards to select the desired source in the source list, or change channels in TV mode.
9	APPs Button	Access to All installed applications directly.
10	MUTE ( ◎× )	Press this button to mute or restore the TV sound.
11	MIC ( ↓ )	Start using the near field voice function.
12	Settings ( ⚙ )	Access the system settings of TV.
13	HOME ( □ )	Short press to access the home page, and long press to access the application center.
14	GUIDE ( ☑ )	Access the EPG interface in DTV mode.
15	VOLUME( +/- )	Push this button upwards/downwards to adjust the sound volume.
16	MENU ( ≡ )	Access the menu of quick settings.
17	▶II	Click to play/pause in multimedia mode.
18	AUDIO	Click to switch Audio channels.
19	Light panel	Convert Light Energy to Electric Energy.
20	Type-C port	Type-C port for quick charging.

INITIAL SETUP

The first time you turn on your TV, the setup wizard will guide you through setting up basic settings. Please follow the text prompts to complete the first-time setup.

This function is used for the remote control pair code. After the code is successful, you can use the Bluetooth remote control to operate the TV.

Press to select the system language and press OK to confirm the language.

Press to select the region/country of your device and press OK to confirm.

Press to select "Set up basic TV" for your device and press OK to complete the setup.

Press to select the Wi-Fi to connect, press and enter the password to confirm the connection is successful.

By accepting the Google Terms of Service to improve the product experience, select "Accept" to accept this condition.

Used to set your device's password to ensure security and privacy.

Press OK to pop up the soft keyboard, and use the remote control to enter the 4-digit password. It will automatically jump to the next interface.

Confirm the password again and keep it consistent. Use the remote control to enter the password and complete the password setup.

For selecting the mode, press mode and press "Yes" key to select Home.

Select "Saving Mode" and proceed to the next step.

To select the Tuner mode for searching, press to select and press OK to confirm.

• Once in the user interface, you can switch from basic TV to Google TV settings.

Press to select "Set up Google TV" for your device and press OK to complete the setup. Use your Google Account to sign in. Follow the Google Guide.

E-Manual

E-Manual is built into your TV and can be displayed on the screen. To learn more about your TV features, access your E-Manual by referring to the following. E-Manual may be available depending on the region or model.

1. Press HOME button to access the home page.
2. Press UP/DOWN/LEFT/RIGHT and OK button to select and enter "E-Manual" in "Apps".

Note: The picture is only for reference.
