USER MANUAL S 3200 E Wolf Garten

Diagram of a cable clamp or connector being inserted into a cable, showing internal components and wiring (no text or symbols present)

F 1. 2. 3.

H

click click

Line drawing of a hand operating a car trunk with arrows indicating motion or movement (no text or symbols)

K

Diagram illustrating cable installation steps with labeled components and directional arrows

Line drawing of a lawn mower on grass, showing blade and blade blades (no text or symbols)

M

1. 2.

N

O 15 NM

1 2 3 4 5 6

D

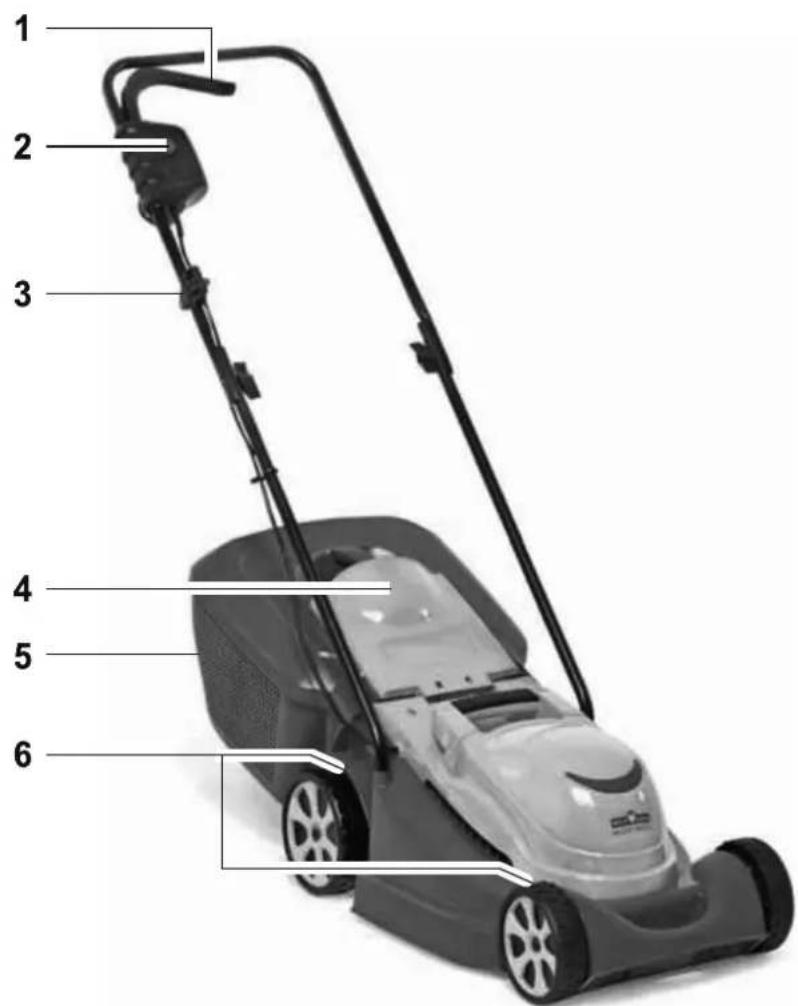

1 Operator presence bail arm
2 On-/Off-switch
3 Cable-kink protection
4 Deflector plate
5 Grass collection basket
6 Height adjustment

F

Congratulations on your purchase of a WOLF-Garten lawn mower

It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the machine may cause serious or fatal injury. The user is responsible for any accidents involving other people or other people's property.

Never let children or other persons who are not familiar with the operating instructions use the lawnmower. Juveniles under 16 years may not use the equipment. Local regulations may specify the minimum age of the operator.

Contents

Safety instructions ..... 10

Assembly....11

Operation 11

Maintenance....12

Spare parts. 12

Faults and how to remedy ..... 13

Warranty 13

Safety instructions

Meaning of the symbols

Attention!

Read instruction manual before use!

Keep bystanders away!

Attention!

- Sharp knives - before performing a maintenance work or if the cable is damaged pull out the plug!

Keep the sup- ply flexible cord away from the cutting blade!

General information

●This lawnmower is designed for domestic grass and lawn surfaces. Because of the physical risk to the user or to others, the lawnmower must not be used for other purposes.
- Never mow the lawn if others – in particular children and animals – are in the vicinity.
- Only mow the lawn during daylight or with the aid of appropriate artificial light.

Before mowing

●Always wear sturdy shoes and long trousers when mowing. Never mow while barefoot or wearing flimsy sandals.
- Check the site on which the machine is to be used, and remove all items which could be caught and ejected
- Check the line and connection cable fitted to the outside of the lawnmower for damage and ageing (brittleness). Only use if in perfect condition.
●Only have the cable repaired by a qualified person.
- Check the grass catchment device regularly for wear-and-tear and deformation.
- Check the protective flap frequently for brittleness and to ensure that it is attached firmly.

●Before use, carry out a visual inspection to check whether the cutting gear and its mounts are blunt or damaged. In order to avoid generating an imbalance, replace blunt or damaged cutting gear as an entire set.

Cable

Caution! Risk of electrocution from damaged cables

The fuse does not always respond if the cable is cut or damaged.

• Do not touch the cable before the plug has been removed from the plug socket.
• Damaged cables should be replaced completely. It is prohibited to mend the cable using insulating tape.

●Repairs to the cable should only be undertaken by an expert.

- Attach the cable to the tension relief unit. Do not let it rub up against edges, points or sharp items.

- Do not squash the cable by putting it through door gaps or gaps in windows.

- Switching devices must not be removed or bridged out (e.g.strapping the switching lever to the guide bar).

- Use only extension cables with a minimum cross-section of 3 × 1.5 ~m^2 and a length of max. 25 ~m :

- When using rubber-sheathed cables, they must be of type HO 7 RN-F or heavier.

- When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use - e.g. underground installation for the connection of an outdoor socket or pond pump, or outdoor storage).

●The cables must be water spray protected.

When mowing

• Do not tilt the lawnmower when switching on the motor, unless the lawnmower has to be tilted when starting. If that is the case, do not tip the lawnmower more than absolutely necessary, and only lift the part furthest removed from the user. Always ensure that both hands are in the operating position before replacing the lawnmower on the ground.
  ●Caution, danger! Cutting gear will continue running!
  ●Maintain the safety distance prescribed by the handle bars.
• Only switch on the motor if your feet are at a safe distance from the cutting gear.
  ●Take care to ensure a safe and stable position, especially on slopes. Never run; always walk calmly forward.

●Always mow slopes at right angles to the incline; never mow up and down.
- When mowing slopes, be especially careful when changing direction.
●Never mow steep slopes.
- Be especially careful when mowing backwards and pulling the lawnmower towards you.
- Switch the mower off when tilting it, running on empty or transporting the lawnmower, e.g. to/from a lawn or along paths.
●Never use the lawnmower if safety devices are faulty or missing, such as deflector and/or grass catchment devices.
●Caution: do not touch running cutters.
●Always keep hands and feet away from rotating parts. Do not stand in front of the grass ejector opening.
●Never lift or carry a lawnmower while the motor is running.
●Never open the guard flap while the motor is still running.
●Before removing the grass catchment device, turn off the motor and wait until the cutting gear has stopped running. After emptying the grass catchment device, reattach carefully.
- Never drive across gravel while the motor is running – impacting stones!
●Avoid mowing wet grass where possible.
- Switch off the lawnmower, pull the mains plug and wait for the lawnmower to stop running if, for example:
— leaving the lawnmower
- unblocking a blade
— intending to check, clean or work on the lawnmower
- you have encountered a foreign object, in which case you should check the lawnmower for damage and carry out any necessary repairs.
- the lawnmower is vibrating heavily (switch off immediately and ascertain the cause).
- you wish to change the settings or carry out cleaning work.

• you wish to check whether the connection cables have become tangled or damaged.
• If the connection cable is damaged during use, it must be immediately disconnected from the mains power supply. Do not touch the cable before it has been disconnected from the mains power supply.

Maintenance

Attention! Rotary cutter blade

Before all maintenance and cleaning work:

●Pull out the power plug.
●Do not touch running blades.

●Never spray down the lawnmower using water, especially not at high pressure.
● Regularly check and tighten all visible screws and nuts, especially those relating to the cutting bar, to ensure a firm fit.
●Always have blades changed or re-sharpened by a specialist workshop, since a balance test must be carried out as specified in the safety regulations following any removal of parts.
- Only use original WOLF-Garten spare parts. Otherwise we can't guarantee that your mower conforms to the safety regulations.
●Never park your lawnmower in damp rooms.
●For safety reasons, replace worn or damaged parts.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Assembly

Fasten handle bars A B C D E

Caution!

The cable can be damaged while folding up or pulling out the handle bar.

• When adjusting the handle height take care that the cable is not crimped
• See illustrations.

Operation

Operating times

- Please check noise abatement regulations prevailing in your country.

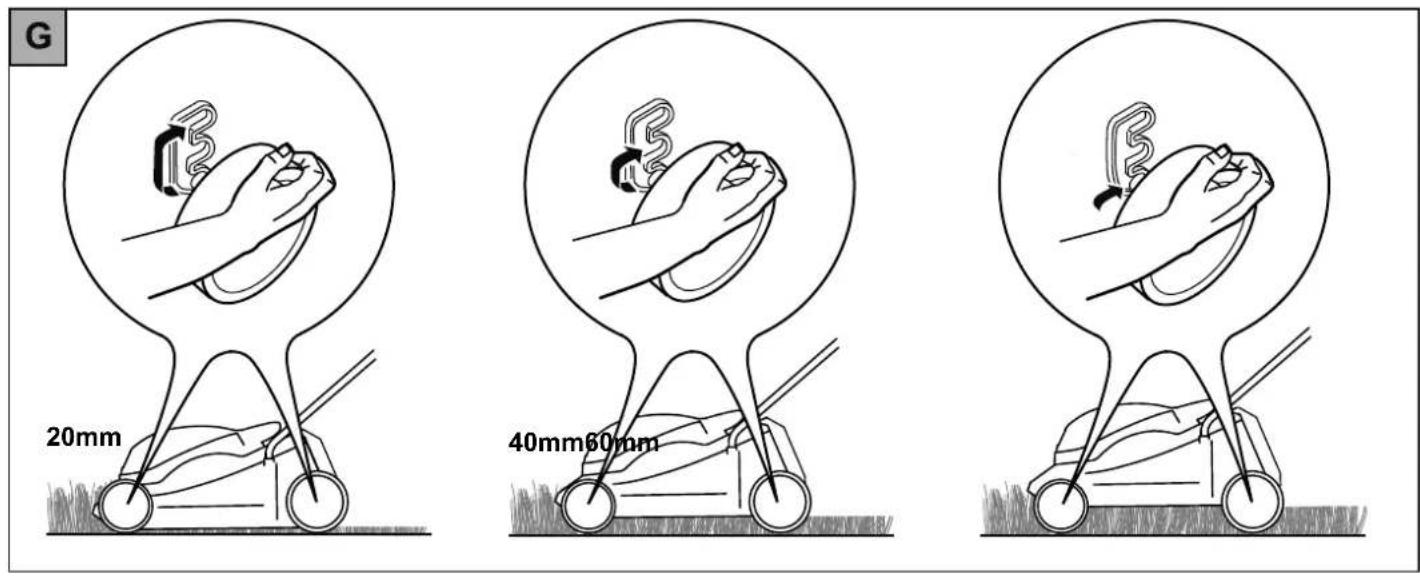

Adjust cutting height G

Caution! Rotating knife

Working on or adjusting the machine only with the machine turned off and stationary cutting tool.

●Turn off motor and pull out the plug.

1. Pull wheels to the front
2. Let the wheels lock into the desired position.

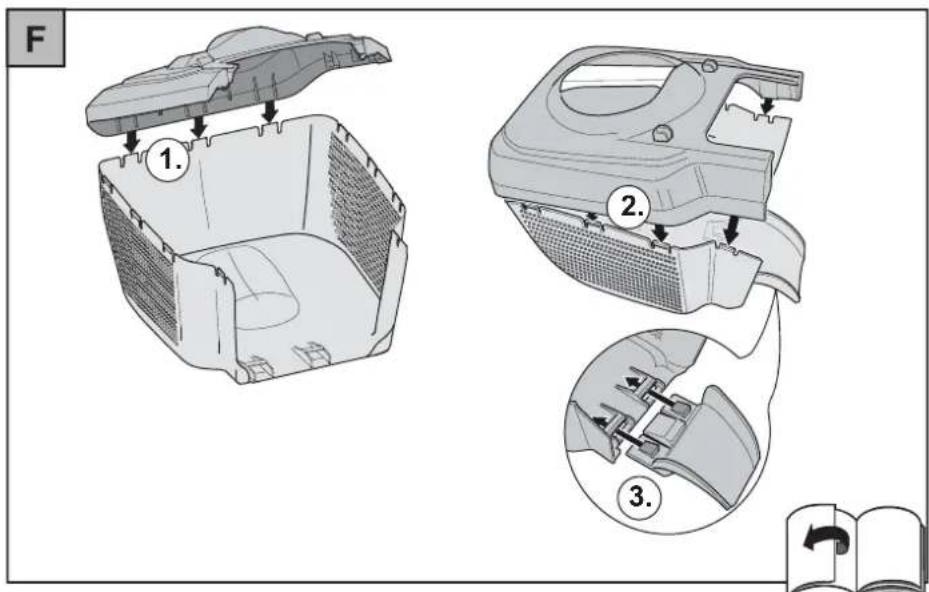

Mount the collecting bag F

- See illustrations.

⚠️ Take care that all the wheels are at the same cutting height.

i Cutting height - Grass growth

Mow dry grass, far as possible, so as not to mar the sward. It is advisable to mow with greater cutting height (60 mm) in case of moist or high grass.

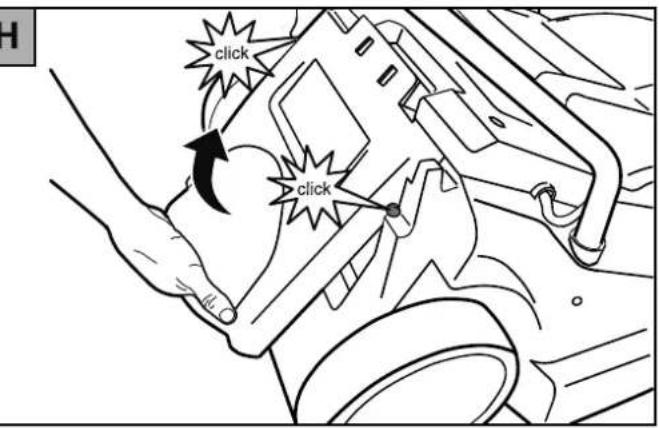

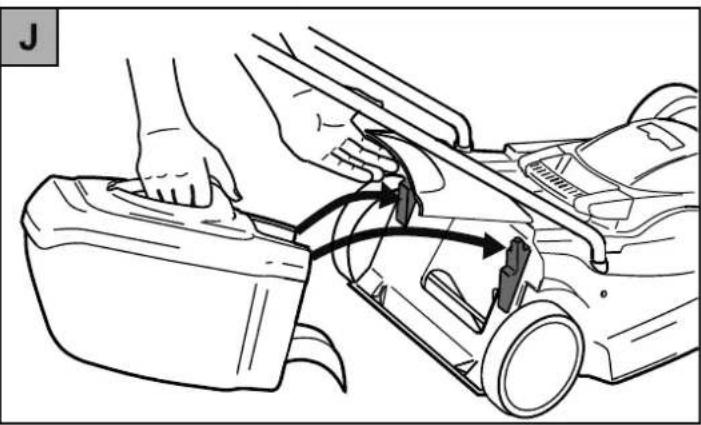

Fit the collecting basket H J

Caution! Rotating cutters

Settings only to be carried out on the mower with the motor switched off and with the cutting tools at a standstill.

- Only insert the collection basket when your feet are at a safe distance from the cutting tools.

1. Lift the protection cover.
2. Hang the collection basket in the notches in the chassis (see arrow) using the hooks.
3. Apply the protection cover.

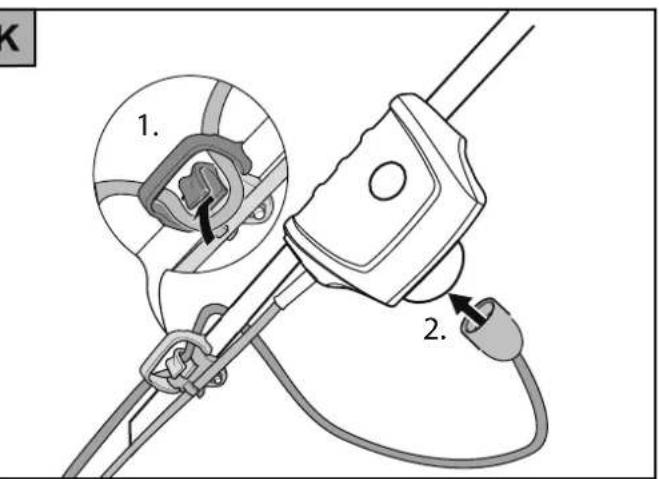

Feed cable through the strain relief K

- Please feed cable through the strain relief.

Connecting to the mains (230 Volts, A.C., 50 Hz)

●The mower operates from any normal household mains supply, provided with a 16 Amps. fuse.

Note: Residual current protection device

These protection devices safeguard while touching damaged wires, from insulation flaws and in certain cases, also while damaging live wires.

• We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of not more than 30 mA.
  ●Retrofit kits are available for old installations. Consult an electrician.

Starting and Stoping

• Switch on motor with mowerplaced on level and firm ground.

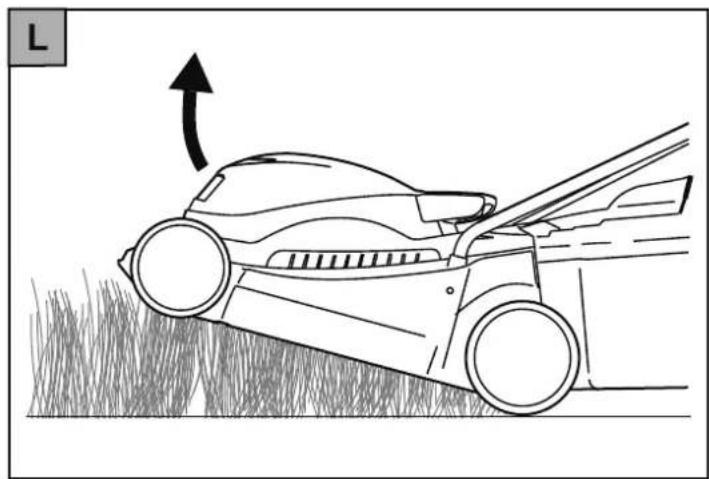

  ●not in high grass - alternatively tilt slightly . L

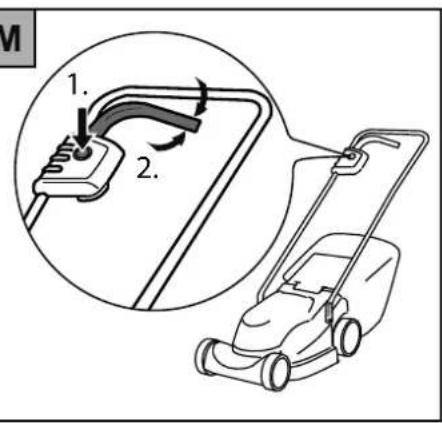

Switch-on motor M

1. Depress button and hold (1).
2. Lift up bar (2).
3. Release bar (1).

Switch-off motor M

- Release bar (2).

Emptying of Grassbox

The grassbox is full and should be emptied as soon as grass clippings remain uncollected on the ground behind your mower.

Attention! Rotary cutter blade

Undertake adjustments on the equipment only after the motor is switched off and the cutting tool has come to a standstill.

●Empty collection bag.
- Remove potential blockages in the cutting space before starting.

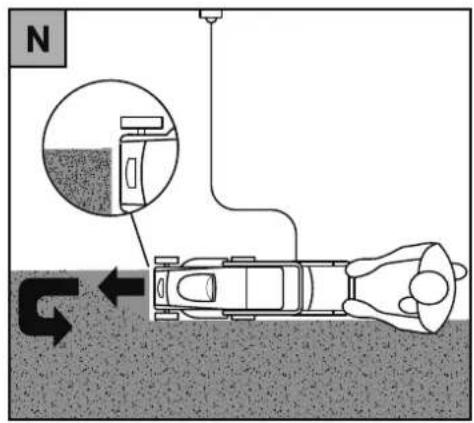

Tips for mowing

● To prevent strips of grass from being left unmowed, the cutting paths must always overlap a few centimeters N
●Always let cable trail on the cut side of the lawn.

Maintenance

General

Attention! Rotary cutter blade

Before all maintenance and cleaning work:

• pull out the power plug.
• Do not touch running blades.

Cleaning

●Clean mower thoroughly after each mowing with cloth or brush.
- Do not spray with water.

Winter Storage

●Clean mower thoroughly before storing away.
●Have your mower thoroughly checked once a year by an approved Service Centre.
●Do not store it in a wet or humid place.

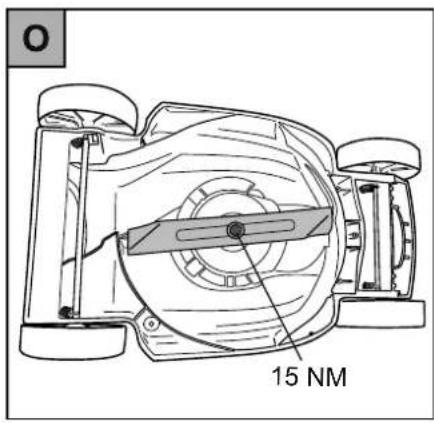

Cutter bar O

- Before undertaking any work on coupling and cutter bar, first pull out the plug and wear safety gloves.

Caution!

Let a specialist workshop attend to work on knife.

• At the conclusion of any work on coupling and cutter bar, carry out insulation test according to the prevailing valid standard.
  ●Regrinding the knife may result in mass imbalance. Therefore, unbalance test according to the corresponding safety requirement is essential.
  ● To replace the cutter bar, a torque wrench of size 13 mm is very essential. Bolt tightening torque: 15 Nm.

- Use only the original WOLF-Garten spares.

Spare parts

Item number Order description Product information

WG742-04355 Vi 32 D Replacement blade 32 cm

WG742-04359 Vi 38 D Replacement blade 38 cm

Faults and how to remedy

Problem Possible cause		Remedy (X) by:
		WOLF-Garten service-workshop	Yourself
Uneven running, heavy vibrations in the mower	Blades damaged	X ---
	Blades loose in the fastening parts	--- X
Motor will not run	Fuse blown	--- X
	Cable damaged:[4062] Attention! Electric shock through cable damageWhen the cable is cut through or damaged, the safety fuse doesn't always trip.Do not touch cable, before pulling out the power plug from the socket.Damaged cable has to be completely replaced.Patching cable with insulating tape is forbidden.	X	---
Poor mowing-/ catching	Blunt blades	X ---
	Catcher bag blocked	--- X
	Incorrect cutting height	--- X

When in doubt, always consult a WOLF-Garten service workshop.
Important: switch off the mower and disconnect the mains plug before inspecting, cleaning or working on the blades.

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.
