USER MANUAL GSD3300KBB GE

Safety Instructions. 2-5

Operating Instructions

Care and Cleaning 14

Control Panels 8

Control Settings 6-7

Dial Cycles 9

Flashing Display Lights 10

Loading the

Dishwasher Racks 12

Loading Place Settings . . . 1 3 - 1 4

Optional Accessories 15

Using the Dishwasher . . . 10 , 1 1

Troubleshooting Tips 16-17

Consumer Support

Consumer Support 19

Warranty 18

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the tub wall just inside the door.

Owner's Manual

Standard Tub Dishwashers

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING —

SAVE THESE INSTRUCTIONS

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

WARNING

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at GEAppliances.com. In Canada, visit www.GEApliances.ca.

• Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

• Dispose of discarded appliances and shipping or packing material properly.

• Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury.
  To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

WARNING

When using your dishwasher, follow basic precautions, including the following:

Use this appliance only for its intended purpose as described in this Owner's Manual.
Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on or stand on the door or dish rack of the dishwasher.
  To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time.
• Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
• Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

WARNING

RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous...even if they will sit for "just a few days." If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.

■ Do not allow children to play with, on, or inside this or any discarded appliance.
■ Do not discard a dishwasher without first removing the door of the washing compartment or remove the latch by removing the two screws from the door latch keeper (as shown).

CAUTION

To prevent minor injury and property damage

During or after wash cycle, contents may be hot to the touch. Use care before handling.
- Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched.

Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.
- Load light-weight, plastic items so they do not become dislodged and drop to the bottom of the dishwasher—they might come into contact with the heating element and be damaged.

CAUTION

ELECTRICAL REQUIREMENTS

This appliance must be supplied with 120V, 60 Hz, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time-delay fuse.
If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

• Your dishwasher circuit should not be used for any other appliance while the dishwasher is in operation as the dishwasher requires the full capacity of the circuit.

NOTICE

If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.
If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize.

Use only powder, Cascade® All-in-1 ActionPacs™ liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Cascade® All-in-1 ActionPacs™ Automatic Dishwashing Detergent, and Cascade® Rinse Aid™ rinse agents have been approved for use in all GE Appliances dishwashers.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

An indicator light above the selected pad will be ON to indicate which CYCLE has been selected, on some models.

POTS & PANS/ For heavily soiled dishes or cookware with dried-on or baked-on soils. Everyday dishes may be included. HEAVY WASH This cycle will not remove burned-on foods. (on some models)

NORMAL/ This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy.

SHORT WASH For quickly washing loads of everyday dishes with medium soft sat have not dried on, such as loads (on some models) consisting mostly of glasses.

WATER SAVER For dishes with light soils. LIGHT WASH (on some models)

RINSE ONLY For rinsing partial loads that will be washed later. Do not use detergent.

DRYING For warming clean dishes and serving plates. This cycle will take approximately 30 minutes. PLATEWARMER

HOT PREWASH Preheats wash water to the correct temperature. HOT START

CHINACRYSTAL For lightly soiled china and crystal. (on some models)

Options

An indicator light above the selected pad will be ON to indicate which OPTION has been selected, on some models.

HI TEMP RINSE (on some models)	Turns on the heater in all final rinse cycles to help prevent spotting on dishware. This option may be turned ON or OFF during the wash cycle.
HI TEMP WASH	Energizes the heater to boost water temperature in prewash and main wash fill cycles. Recommended for use with heavily soiled dishes. Option may be turned ON or OFF during the wash cycle.
HEATED DRY OFF	Shuts off the drying heat option. Dishes air dry naturally and energy is saved. Open the dishwasher door to speed drying.
HEATED DRY ON	Turns the heater on for fast drying. This cycle will extend the time to your wash cycle by 30 minutes. DO NOT use with RINSE ONLY cycle.
LOCK (electronic models only)	When the LOCK pad is touched twice within 3 seconds, all pads become inoperative. You can lock the controls to prevent any selections from being made. Or you can lock the controls after you have started a cycle or selected DELAY START so the cycle or DELAY START is not interrupted. Children cannot accidentally start dishwasher by touching pads with this option selected. To unlock the dishwasher after it has been locked, touch the LOCK pad twice within 3 seconds. The light above the LOCK pad will turn off.
DELAY HOURS (on some models)	Delays the start of a wash cycle for up to 8 hours.
RESET (timer models)	Touch RESET to cancel options.

START/RESET

Touch START/RESET one time to start dishwasher cycle. Touch START/RESET a second time to pump out (electronic models) and then turn off the dishwasher. Do not touch START/RESET more than one time unless you intend to end the cycle.

Control Settings

CycleChart

Models Cycle Water Usage (gal.) Cycle Time (min.)
Timer Models Hot Start Option 1Heavy Wash 4.9 - 7.0 120Pots & Pans 6.0 - 7.0 118Normal Wash* 3.5 - 5.0 106Rinse Only 2.2 58Plate Warmer/Drying 0.0 45			2.5
Electronic Models Pots & PansHeavy WashNormal WashChina/CrystalRinse Only 1.3 5			8.8	121
			115109

1Hot Start Option adds water amount and cycle time shown when selected.
*Normal Wash button (on some models) should be pushed to run this cycle.

10

NOTE: Not all models have every cycle listed.

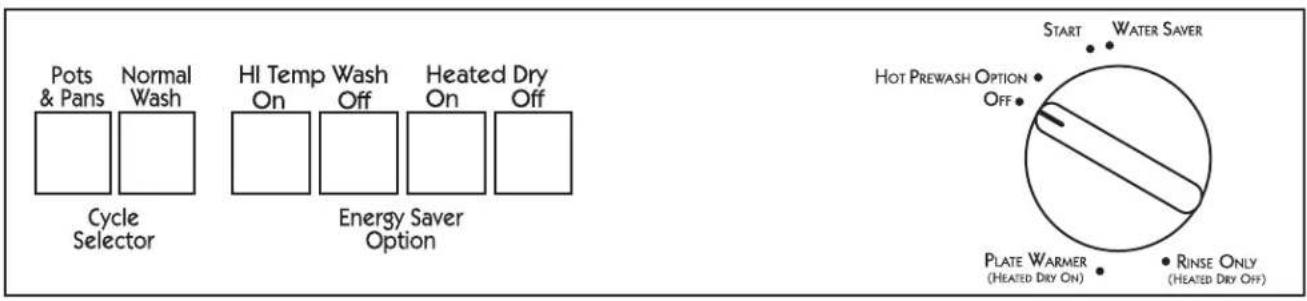

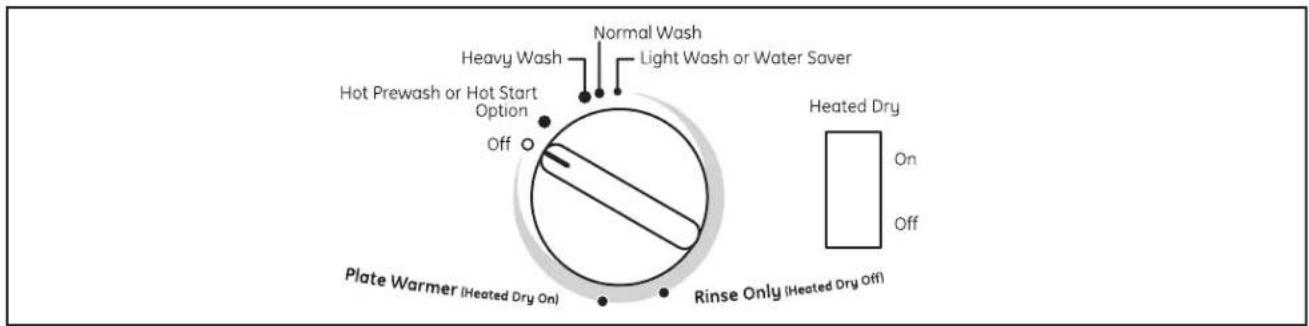

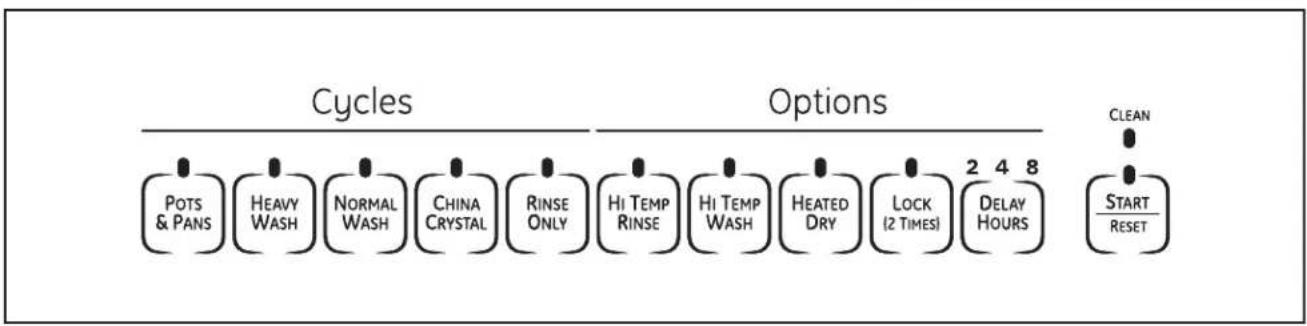

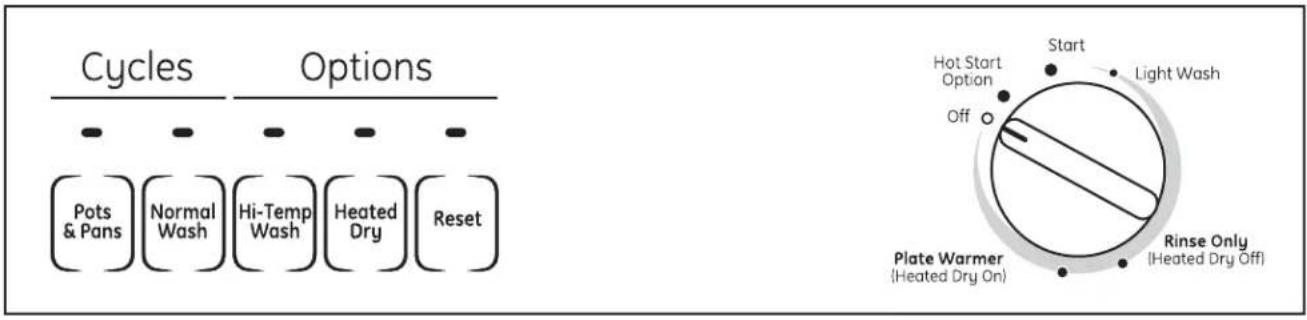

About the dishwasher control panel

You can locate your model number on the left tub wall just inside the door. Throughout this manual, features and appearance may vary from your model.

Please match the control panel for your unit to a similar control panel below.

Rinse Only

For rinsing partial loads that will be washed later. Do not use detergent.

1 Make sure HEATED DRY is not selected.
2 Be sure the door is unlatched.

3 Slowly turn the Dial to RINSE ONLY.
4 Latch the door to start the cycle.

Plate Warmer or Drying

For warming clean dishes and serving plates. This cycle will take approximately 39 minutes.

1 Load clean dishware to be warmed.
2 Select HEATED DRY ON.
3 Be sure the door is unlatched.

4 Slowly turn the Dial to PLATE WARMER or DRYING.
5 Latch the door to start the cycle.

Hot Start or Hot Prestart Option

Preheats wash water.

1 Select the HOT START or HOT PRESTART cycle and any other option on the push button pad.
2 Be sure the door is unlatched.

3 Slowly turn the Dial to HOT START or HOT PRESTART.
4 Latch the door to start the cycle.

Short Wash or Light Wash or Water Saver

For quickly washing loads of everyday dishes with light to medium soils that have not dried on.

1 Be sure the door is unlatched.
2 Slowly turn the Dial to SHORT WASH, LIGHT WASH or WATER SAVER.

3 Latch the door to start the cycle.

Start (Models with a Dial)

Slowly turn the Dial to the START or ON position, or the selected cycle. Don't turn it past the START, ON or cycle position; you could accidentally miss a prewash.

There is a time delay between start-up and water fill so you will not hear any wash action right away.

Latch the door to begin the cycle.

Using the Dishwasher Door

1 The door must be closed and locked into place to select a LOAD SELECTION or an OPTION.
2 If the door is opened during a cycle and left open, the dishwasher will beep once every 30 seconds until the door is closed and latched into place.

Start

Close and latch the door. Touch the START/RESET pad to begin the cycle. Water fill begins and approximately 60 seconds later the wash action begins.

NOTE: The dishwasher remembers your last cycle so you don't have to reprogram each time. When the dishwasher is loaded and the door latch is in the locked position, the control panel lights will be ON and display the last settings you selected.

If you don't want to change any of the settings, simply touch the START/RESET pad to begin the cycle.

Also, if a power failure occurs, NORMAL and HEATED DRY will automatically be programmed. Make any new selections and touch the START/RESET pad to begin the cycle.

Clean

This light is illuminated when a wash cycle is complete. The light will stay ON until the door is opened.

Flashing Display Lights

Lights What It Means What To Do

This is normal. Allow the dishwasher to drain and reset before you start a new

The START/RESET pad wash cycle.

Press the START/RESET pad to turn off the beeper. If the CLEAN

PLUS A

BEEPING

SOUND

Control Error Press the START/RESET pad to turn off the beeper and the

dishwasher will attempt to reset. Restart the wash cycle.

r continues, turn off the power to the dishwasher at a breaker for 30 seconds. Try the dishwasher again.

is still present, call for service.

PLUS A

BEEPING

SOUND

Check the Water Temperature

The entering water must be at least 120^ and not more than 150^ , for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water

run continuously into the glass until the temperature stops rising.

Adjust the maximum/minimum temperature of the water heater if necessary to deliver water at the proper temperature.

Use a Rinse Agent such as Cascade® Rinse Aid™

Rinse agents, such as Cascade® Rinse Aid™ are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Dispenser

Fill the rinse agent dispenser until it reaches the bottom of lip inside the opening. Replace cap.

To check if rinse agent is needed, remove the cap and look into the dispenser.

A full dispenser should last about one month.

If the rinse agent spills, wipe up the excess.

Proper Use of Detergent

Use only detergent specifically made for use in dishwashers. Cascade® Automatic Dishwashing Detergents have been approved for use in all GE Appliances dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

The amount of detergent to use depends on whether your water is hard or soft. With hard water, you need extra detergent. With soft water, you need less detergent.

Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. Too much detergent with soft water can cause a permanent cloudiness of glassware, called etching.

Use the information in the table below as a guideline to determine the amount of automatic dishwasher detergent to place in the dispenser.

Number of Grains	Detergent Cups to Fill
Less than 4	Fill to 1/3 of main cup
4 to 8	Fill to 2/3 of main cup
8 to 12	Fill main cup
Greater than 12	Fill main cup and open cup

You'll find two detergent dispensers on the inside door of your dishwasher. All wash cycles require detergent in the main cup. When using automatic dishwashing detergent tabs, such as Cascade® Platinum Pacs, simply place one tab in the main cup and close.

Be sure the Dial is OFF before adding detergent. Otherwise, the detergent cup will not close and latch properly. Add detergent then close the main cup.

NOTE: To open detergent cup after it has been closed, simply turn the detergent cup handle counterclockwise until it releases. A snapping sound may be heard.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated to work with dishwashers.

Loading the dishwasher racks

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

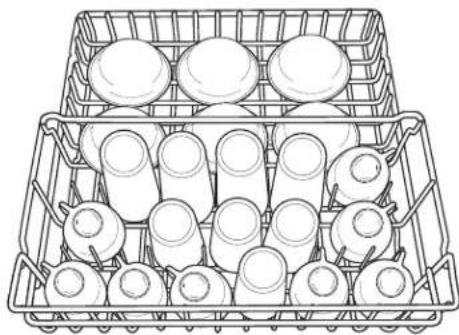

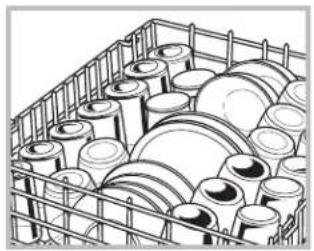

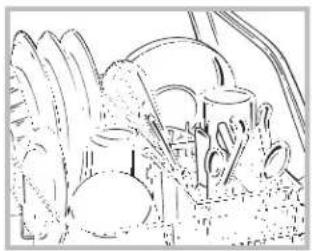

Upper Rack

The upper rack is for glasses, cups and saucers. Cups and glasses fit best along the sides. This is also a secure place for dishwasher-safe plastics. The upper rack is good for all kinds of odd-shaped utensils. Saucepans, mixing bowls and other items should be placed face down.

Secure larger dishwasher-safe plastics over two fingers when possible.

Make sure small plastic items are secure so they can't fall onto the heating element.

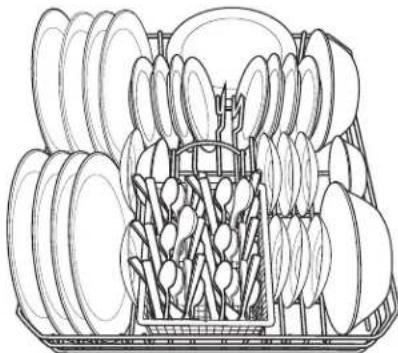

Lower Rack

When loading the lower rack, do not load large platters or trays in the front right corner. They may prevent detergent from circulating during the wash cycle.

The lower rack is best used for plates, saucers and cookware. Large items such as broiler pans and racks should go along the sides. Load platters, pots and bowls along the sides, in corners or in the back. The soiled side of items should face the center of the rack.

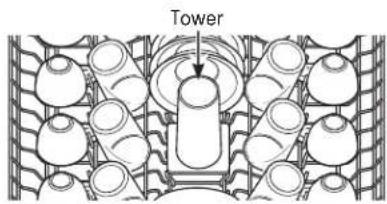

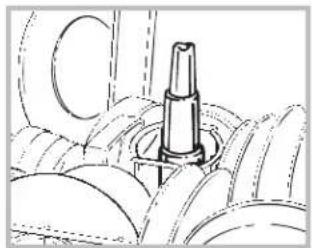

Wash Tower

Keep the center area clear in the lower rack.

The wash tower rises through the center of the lower rack during the wash and rinse portions of the cycle.

Don't block the wash tower or load tall things next to it.

Be sure items don't fall through rack and block rotation of the spray arm.

Also, be careful not to let a portion of an item such as a pot or dish handle extend through the bottom rack. This could block the wash arm and cause poor washing results.

Do not cover upper rack tower (not present on all models)

Don't block the upper rack wash tower.

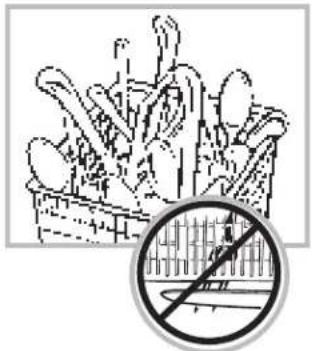

Silverware Basket

Put flatware in the removable basket with fork and knife handles up to protect your hands. Place spoons in the basket with handles down. Mix knives, forks and spoons so they don't nest together. Distribute evenly. Small plastic items, such as measuring spoons and lids from small containers, should go in the bottom of the silverware basket with silverware on top.

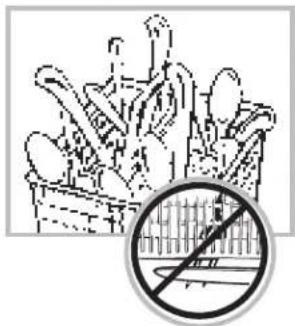

DON'T LET ANY ITEM EXTEND THROUGH BOTTOM OF SILVERWARE BASKET AND RACK, TO ENSURE PROPER FUNCTION OF SPRAY ARM.

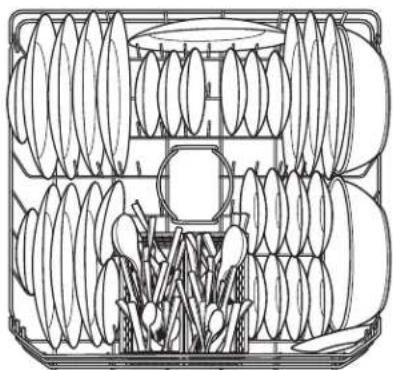

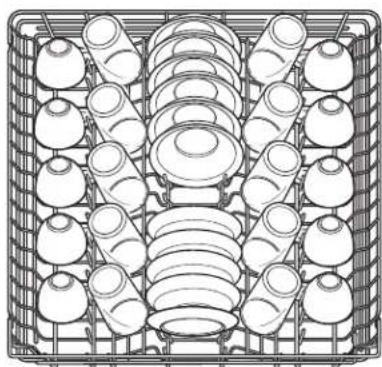

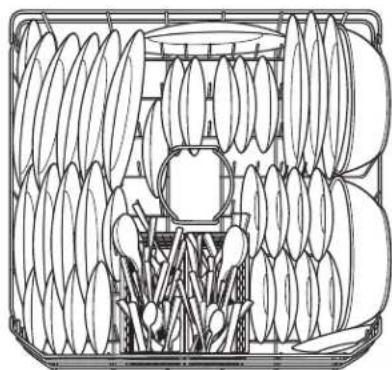

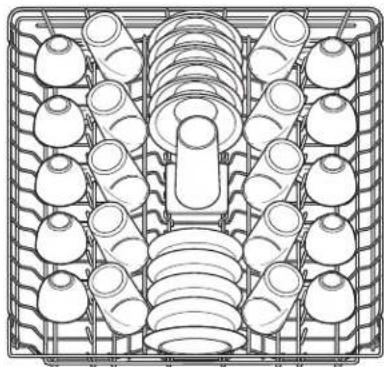

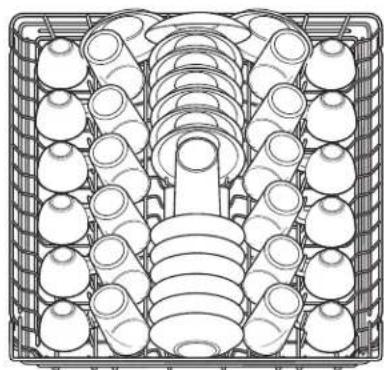

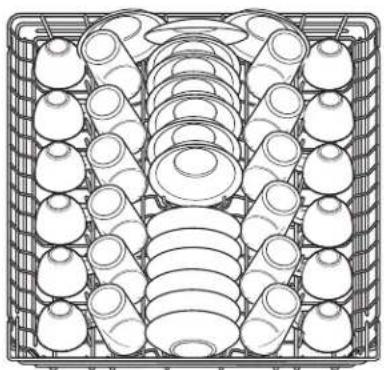

Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack-8 place settings Undersink Models

Lower Rack-8 place settings Undersink Models

Upper Rack-10 place settings

Upper Rack-10 place settings

Lower Rack-10 place settings

Upper Rack-12 place settings

Upper Rack-12 place settings

Lower Rack-12 place settings

Forget to Add a Dish?

A forgotten dish can be added any time before the main wash.

1 Push the door latch to the left.
2 Once the water calms, open the door. Steam may rise out of the dishwasher.
3 Add forgotten dish.
4 Close the door and push the latch to the far right.

Tips for Loading and Good Wash Performance

Don't block the lower rack wash tower.

• Don't let items fall through rack and block spray arms.

To clean the control panel, use a lightly dampened cloth, then dry thoroughly. To clean the exterior, use a good appliance polish. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing If your dishwasher is left in an unheated place during the winter, ask a service technician to: 1 Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker. 2 Turn off the water supply and disconnect the water inlet line from the water valve.	3 Drain water from the inlet line and water valve. (Use a pan to catch the water.) 4 Reconnect the water inlet line to the water valve. 5 Remove the plastic sump cover in the tub bottom and use a sponge to soak up water in the rubber boot.
Does Your Dishwasher Have an Air Gap? An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.	The air gap is easy to clean. 1 Turn off the dishwasher and lift off the chrome cover. 2 Unscrew the plastic cap and clean with a toothpick.
Stainless Steel Panels For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.	For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through GE Appliances Parts by calling 877.959.8688. In Canada, call 1.800.661.1616.
Optional accessories
Non-wood countertop bracket kit—This is for installations which have non-wood countertops and includes side-mounting brackets and instructions for securing the dishwasher: ■ GPF65 Consult your GE Appliance dealer to get the correct kit for your model.	These accessories are available at extra cost from GE Appliances. Call 877.959.8688 to order, or see your authorized GE Appliances dealer. Visa, MasterCard or Discover cards are accepted. Specify accessory number when ordering.

Before you call for service...

Troubleshooting Tips Save time and money! Review the charts on the following pages, or visit GEAppliances.com. You may not need to call for service.
Problem	Possible Causes	What To Do
Dishwasher won't run circuit breaker tripped	Fuse is blown, or the from the circuit.	Replace fuse or reset circuit breaker. Remove any other appliancesTry pressing the START/RESET pad (Electronic models) two times.
	Power is turned off switch, often located next to the disposer switch.	In some installations, power to the dishwasher is provided through a wall make sure it is on.
Noise you'll hear are normal	Some of the sounds	Hard food dispenser shredding action.Drain valve opening to pump water out.Timer control as cycle progresses.Detergent cup opening.The motor stopping during the drying period.Water draining out of tub immediately after touching the START/RESET pad.
	Utensils are not secure	Make sure everything is secured in dishwasher.
in rack or something small has dropped into rack	Rattling dishes when the spray arm rotates	Make sure dishes are properly loaded. See the Loading the dishwasher racks section.
	Motor hums	Dishwasher has not been used on a regular basis. If you do not use this will help keep the seal moist.
Water standing in the bottom of the tub	This is normal	A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated.
Water won't pump out of the tub	Drain is clogged	If you have an air gap, clean it. Check to see if your kitchen sink is draining well. If not, you may need a plumber.If the dishwasher drains into a dispenser, run dispenser clear.
Suds in the tub	Automatic Dishwashing Detergents have been approved for use in all GE Appliances dishwashers.Add 1 gallon of cold water to the tub. On Models with a Dial:Close and latch the dishwasher. Pump out water by slowly turning the Dial until a drain period is reached. Repeat if necessary. Electronic Control: Pump out water by pressing the START/RESET pad, then 10 seconds later, press START/RESET pad again. Repeat if necessary.
	Rinse agent was spilled	Always wipe up rinse agent spills immediately.
Stained tub interior and 3 cups warm water	Some tomato-based foods can cause reddish stains	Use of the RINSE ONLY cycle after adding the dish to the load can decrease the level of staining. GE Appliances recommends Cascade® Plastic Booster to help remove these types of stains.
	Tea or coffee stains	Remove the stain by hand, using a solution of 1/2 cup bleach警告 before cleaning interior, wait at least 20 minutes after a cycle for the heating elements to cool down. Failure to do so can result in burns.ANDVERTENCIA Antes de limpiar el interior, espere por lo menos 20 horas despues de un ciclo para que los elementos calentadores se enfiern. No hacerlo pueda provocar quemadas.
	An overall yellow or brown film can be in water	A special filter in the water supply line is the only way to correct this problem. Contact a water softener company.
	White film on inside surface—hard water minerals	GE Appliances recommends Cascade® Rinse Aid to help prevent hard water mineral deposits from forming.Run dishwasher with citric acid to remove mineral deposits. Citric acid

16 Part number:WD35X151) can be ordered through GE Appliances
Parts. See back cover for ordering information.

Before you call for service...
GEAppliances.com

Problem	Possible Causes	What To Do
Dishes don't dry	Low inlet water temperature.	·Make sure inlet water temperature is at least 120°F. Select HEATED DRY. ·Use HOT START and ADDED HEAT options. ·Select a higher cycle, such as POTS & PANS or HEAVY WASH.
is empty	Rinse agent dispenser	·Check the rinse agent dispenser and fill as required.
Dishes and flatware not clean	Inlet water temperature is below 120°F.	·Raise the water heater temperature to 120°F. ·Use HOT START, POTS & PANS or HEAVY WASH and HI TEMP WASH.
	Too little detergent detergent recommendations.	·See Using the dishwasher section, refer to Proper Use of Detergent for detergent recommendations.
	Old or damp powdered detergent	·See Using the dishwasher section, refer to Proper Use of Detergent for detergent recommendations.
	Water pressure is temporarily low	·Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher.
	Air gap is clogged	·Clean the air gap.
	Improper rack loading	·Make sure large dishware does not block detergent dispenser or wash arm.
	No air gap or high drain loop	·Verify that you have an air gap or a high drain loop. Refer to the Installation Instructions.
Spots and filming on glasses and flatware	Extremely hard water Low inlet water temperature Overloading the dishwasher Improper loading Old or damp powder detergent Rinse agent dispenser empty Too little detergent acid crystals instead of vinegar.	·Use Cascade® Rinse Aid™ rinse agents to remove spots and prevent new film buildup. ·To remove stubborn spots and pre-existing film from glassware: 1 Remove all metal utensils from the dishwasher. 2 Do not add detergent. 3 Select the longest cycle. 4 Start the dishwasher and allow to run for 18 to 22 minutes. Dishwasher will now be in the main wash. 5 Open the door and pour 2 cups (500 ml) of white vinegar into the bottom of the dishwasher. 6 Close the door and allow to complete the cycle. If vinegar rinse doesn't work: Repeat as above, except use 1/4 cup (60 ml) of citric acid crystals instead of vinegar.
Cloudiness on glassware	Combination of soft water and too much detergent	·This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean.
entering the dishwasher exceeds 150°F.	Water temperature	·Lower the water heater temperature.
Detergent cup lid won't latch	Dial is not in the OFF position	·Turn the Timer Dial to OFF.
Detergent left in dispenser cups	Dishes are blocking the detergent cups	·Reposition the dishes.
Steam	This is normal when water is being pumped out.	·Steam comes through the vent by the door latch during drying and when water is being pumped out.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	·Remove marks with a mild, abrasive cleaner.
Control panel lights go off when you are setting controls	Time too long between touching or selecting pads	·Each pad must be touched within 30 seconds of the others. To relight, touch any pad again or unlatch and relatch the door.
Control panel responded to inputs but dishwasher never filled with water	Door latch may not be properly seated	·Call for service.

GE Appliances Dishwasher Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the United States. In Canada, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Appliances Will Replace:

One Year

From the date of the original purchase

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE Appliances will also provide, free of charge, all labor and in-home service to replace the defective part.

What GE Appliances Will Not Cover (for customers in the United States):

Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Replacement of house fuses or resetting of circuit breakers.
Product not accessible to provide required service.

• Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
• Cleaning or servicing of the air gap device in the drain line.
• Damage caused after delivery, including damage from items dropped on the door.

EXCLUSION OF IMPLIED WARRANTYES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. Proof of original purchase date is needed to obtain service under the warranty. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, Louisville, KY 40225

What Is Not Covered (for customers in Canada):

Service trips to your home to teach you how to use the product.
Improper installation.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities.

Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Replacement of house fuses or resetting of circuit breakers.
- Damage to the product caused by accident, fire, floods or acts of God.
Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES.

Warrantor: MC COMMERCIAL, Burlington, L7R 5B6

Consumer Support.

GE Appliances Website

In the U.S.: GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada, visit: www.GEApliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE Appliances supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE Appliances Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, MC Commercial Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Appliances Consumer Home Services will still be there after your warranty expires. In Canada, consult your local listings for an extended warranty provider.

Parts and Accessories

In the U.S.: GEApplianceparts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

In Canada, consult your local listings for your nearest GE Appliances parts distributor or call 800.661.1616.

Contact Us

In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada, write to: Director, Consumer Relations, MC Commercial

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

For questions on installation call 800-626-2005 (US) or 877.994.5366 (Canada).

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line-at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada, visit: www.GEApliances.ca

Lave-vaisselle
