USER MANUAL Profile PZF560HGWBB GE

SAFETY INFORMATION 3

USING THE DISHWASHER

Getting Started 6

Appliance Communication 8

Detergent Cup 9

Loading 10

Accessories 11

Unicouple connection - Optional 12

Plumed connection - Optional 14

CARE AND CLEANING 16

TROUBLESHOOTING TIPS 18

LIMITED WARRANTY 21

CONSUMER SUPPORT 24

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the tub wall just inside the door.

OWNER'S MANUAL

PZF560 Series

ENGLISH/FRANÇAIS/ ESPÁÑOL

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

Profile

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING - ELECTRICAL SHOCK HAZARD

Plug into a grounded 3-prong outlet.
DO NOT use an adapter.
DO NOT remove ground prong.
DO NOT use an extension cord.

Failure to follow these instructions can result in death, fire or electrical shock.

ELECTRICAL REQUIREMENTS

CIRCUIT - Individual, properly polarized and grounded 15 or 20 amp circuit breaker or time-delay fuse. POWER SUPPLY - 2 wire plus ground, 120 Volt, single phase, 60 Hz, alternating current.

Outlet Receptacle - Properly grounded 3-prong receptacle to be located so the power cord is accessible when the dishwasher is in position. If a 2-prong receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded 3-prong grounding type receptacle.

Unit must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, with latest edition of the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 or CANADIAN ELECTRICAL CODE, CSA C22.1. Check with a licensed electrician if you are not sure that the dishwasher is properly grounded.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician, or service representative or personnel, if you are in doubt as to whether the appliance is properly grounded. DO NOT modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

BUILT-IN APPLICATIONS ONLY

WARNING To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

This dishwasher must be properly located in accordance with these instructions before it is used.

To minimize the possibility of electric shock, disconnect this appliance from the power supply before cleaning or attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

• Never unplug your dishwasher by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.

• Do not operate this dishwasher if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged power supply cord or plug.

• Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

• Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

TIP-OVER HAZARD

Do not push down on an open door.

Failure to follow these instructions can result in death, serious injury or cuts.

WARNING

WHEN USING YOUR DISHWASHER, FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

Use this appliance only for its intended purpose as described in this Owner's Manual.
Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
If a dishwasher cleaner is used, we strongly recommend a wash program with detergent should be run immediately afterward, to prevent any damage to the dishwasher.
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

• Do not operate your dishwasher unless all enclosure panels are properly in place.
  Do not tamper with controls.
• Do not touch the filter plate (the metal disc in the dishwasher base) during or immediately after use, as it may be hot from the heater plate underneath.
• Do not abuse, lean on, sit on or stand on the door or dish rack of the dishwasher.
• Do not place objects on top of compact dishwasher.
  Do not sit or stand on top of compact dishwasher.
  To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time.
• Small parts can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.
• Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

WARNING RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous...even if they will sit for "just a few days." If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.

Do not allow children to play with, on, or inside this or any discarded appliance.
Take off the door of the washing compartment.

CAUTION TO PREVENT MINOR INJURY AND PROPERTY DAMAGE

During or after wash cycle, contents may be hot to the touch. Use care before handling.
- Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door due to the possibility of small fingers being pinched.

Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.

NOTICE

If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.
If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching START to allow the control to initialize.

• Do not use liquid or gel detergent.
  Use only powder, CascadePlatinumTM ActionPacsTM or Finish Quantum Automatic Dishwashing Detergent recommended for use in a dishwasher and keep them out of the reach of children. Cascade PlatinumTM ActionPacsTM or Finish Quantum Automatic Dishwashing Detergents have been approved for use in all GE Appliances dishwashers.

Proper Disposal of your Appliance

• Dispos of or recycle your discarded appliance in accordance with Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your discarded appliance.
  Consider recycling options for your appliance packaging material.

Getting started

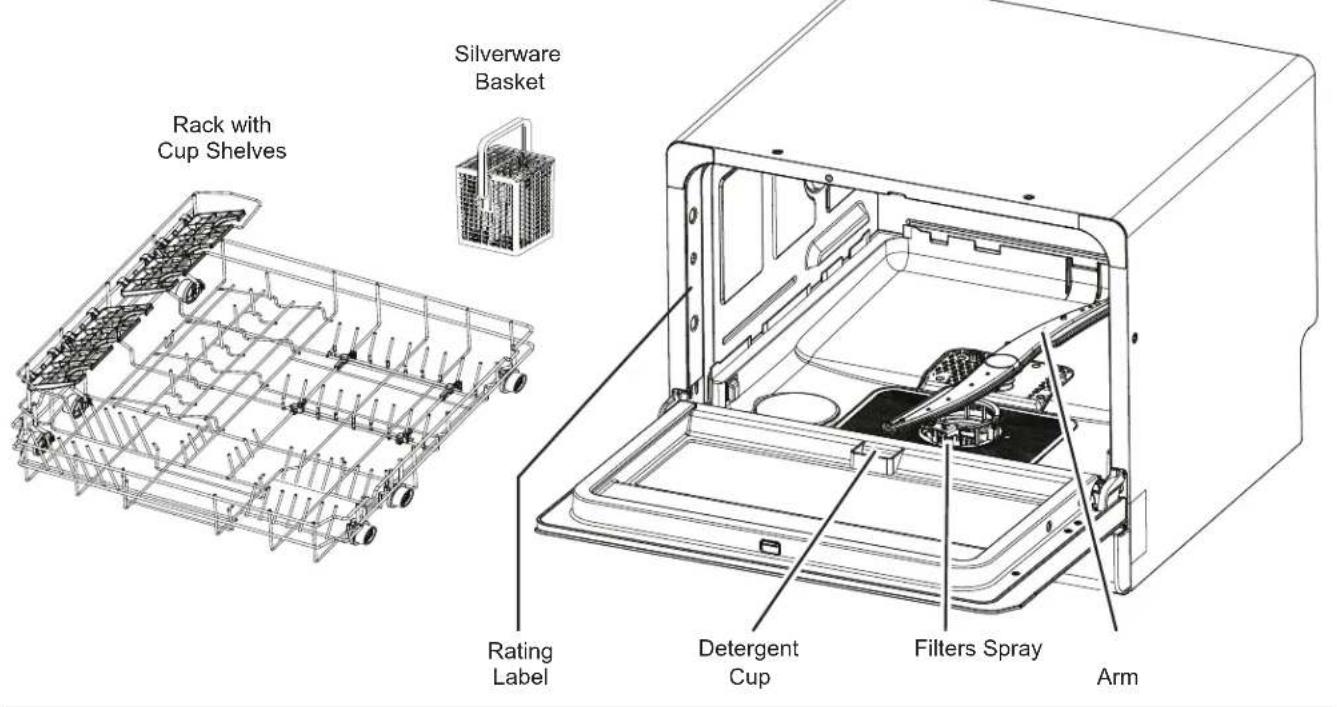

Features and appearance will vary throughout this manual

1 Scrape off scraps, load dishes and silverware

2 Add detergent

3 Select cycle

4 Select options
30 Minute Custom
5 Start and close the door within 4 seconds

START

Cancel Hold 3 Sec

Wif

Clean

Sanitized

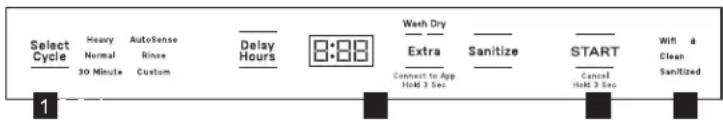

1 Select Cycle

Press the Select Cycle pad for the desired wash cycle. The light next to pad will illuminate to indicate which wash cycle has been selected.

NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.

Heavy	This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils. Everyday dishes are safe to be used in this cycle. *Time: 2 hours 54 minutes.
Normal	This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 2 hour 11 minutes. NOTE: Normal (with no additional options selected) was used to rate the energy efficiency of this dishwasher.

30 Minute This cycle will quickly wash lightly soiled dishes. *Time: 30 minutes.

AutoSense This cycle automatically senses the soil level and adjusts the wash cycle accordingly.

*Time range: Approximately 1 hour 55 minutes (will vary based on soil load).

Rinse For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the rinse cycle. *Time: 10 minutes.

Custom Expand the use of your dishwasher by connecting it to WiFi and using the SmartHQ App to assign a cycle, from an expanded cycle list, to this button.

• Washing time only. Does not include drying time or options.

2 Select Options

The light by the selected pad will be lit to indicate which Option has been selected.

Delay Press Delay Hours to delay the start of a wash cycle up to 8 hours. Select the number of hours and then press START to begin countdown. The cycle will start once allotted time has expired. Hours

Extra Wash - Press the Extra pad once to light the Wash LED and select the Extra Wash feature to increase the wash temperature to help clean heavily soiled dishes. It will increase the cycle time up to 50 minutes. Option must be selected prior to starting cycle.

Extra Dry - Press the Extra pad twice to light the Dry LED and select the Extra Dry feature to add additional heating and rinse time to enhance the dishwasher's performance for difficult to dry items.

Extra Wash and Extra Dry - Press the Extra pad three times to light both the Wash LED and the Dry LED to select both Extra Wash and Extra Dry options. See above for cycle descriptions.

Off - Press the Extra pad four times to turn off both the Extra Wash and Extra Dry features.

Sanitize This option raises the water temperature in the final rinse to sanitize your dishware but may increase cycle time up to 60 minutes. The cycle length will vary depending on the temperature of your inlet water.

NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved, the sanitizing conditions may not be met. In these cases, the Sanitized light will not illuminate at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, of the NSF 184 Standard for soil removal and sanitization efficacy.

NOTE: Certified residential dishwashers are not intended for licensed food establishments.

Lock You can lock the controls to prevent selections from being made. You can also lock the controls Controls after you have started a cycle to prevent cycle changes. For example, children cannot accidentally start the dishwasher by pressing pads with this option selected.

To Lock dishwasher controls use the SmartHQ App.

To Unlock dishwasher controls use the SmartHQ App or press and hold START pad for 3 seconds.

The (lock) light will turn on to indicate control is locked and off to indicate control is unlocked.

Auto Door As part of the drying process, the door will automatically open at the end of each cycle and the Open Clean light will display when the cycle is completed. This feature can be turned off or on using the settings menu in the SmartHQ App.

WiFi Press and hold the Extra pad for 3 seconds to connect your dishwasher to the App. Connect Follow instructions provided through your SmartHQ App to connect.

Getting started

Start Dishwasher

Start	Press the START pad to start the cycle or begin the Delay Hours countdown. The display will turn off if the door is open for more than two minutes. To activate the display, close and open the door or press any pad.
Interrupt or Pause	To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to pause. You can also pause the cycle by pressing the START pad. When the cycle is pause the LED's on the display will flash. To restart or resume the cycle, press START, and close the door within 4 seconds.
Cancel	To cancel a wash cycle, press and hold the START pad for 3 seconds. The dishwasher will drain, emit a beep sound, and the wash cycle light will turn OFF.

Cycle Indicator Lights and Sounds

WiFi	Solid light indicates your dishwasher is connected to WiFi through the SmartHQ App. WiFi Connect will unlock enhanced capabilities and help maintain optimal wash and dry performance. See the Appliance Communication section for instructions on how to connect.
Clean	Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean. The light will turn off when the door is opened.
Sanitized	Displayed at end of the cycle when Wash Temp Sani or Sanitize Temp has been selected and dishwasher has met requirements for sanitization. See Wash Temp Sani or Sanitize Temp, for complete description. Closing door or pressing any pad will turn off light.
Sounds	The dishwasher will emit a sound to indicate cycle completion, pad presses, and door ajar.
Mute To turn the dishwasher control sounds ON/OFF use the SmartHQ App.
®	Indicates that the controls are locked. Unlock using the SmartHQ app or press and hold the START pad for 3 seconds.

Appliance Communication

WiFi Connect (on some models) (for customers in the United States)

Your dishwasher is GE Appliances WiFi Connect capable. A WiFi communication card is built into the product allowing it to communicate with your smartphone for remote monitoring, control and notifications.

1) Use the QR code to download and access the SmartHQ App or visit www.GEApliances.com/connect.
2) Follow the instructions in the App to connect your dishwasher.

WiFi Connectivity: For assistance with the appliance or the U+Connect network connectivity, please call GE Appliances at 800.220.6899.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Check the Water Temperature

The entering water should be at least 120^ (49^) and not more than 150^ (66^) for the most effective cleaning performance and to prevent dish damage.

Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.

Detergent Cup

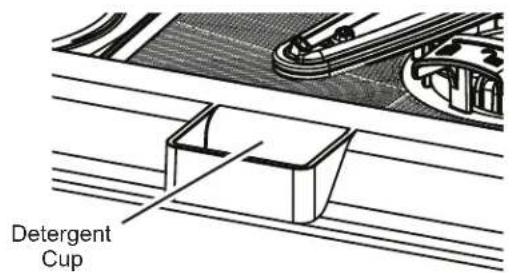

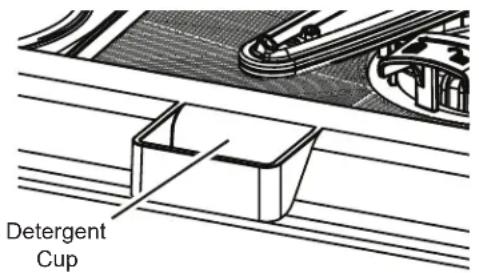

The detergent cup is located in the center bottom of the dishwasher inner door.

NOTE: Do not block detergent cup with large or tall dishware.

IMPORTANT! Do not use liquid or gel detergent.

You may use tablet, packet or powder automatic dishwasher detergent. Make sure you use only detergents specifically labeled for use in automatic dishwashers. Never use liquid hand dish detergent in an automatic dishwasher. Sudsing and poor wash performance will result with the use of improper detergents.

Detergents should be stored in a dry location and in their original container to prevent loss of effectiveness. Place detergent in the cup just prior to starting the dishwasher.

Filling the Detergent Cup

GE Appliances recommends using high quality detergent in tablet or packet form. Independent testing has shown this form of detergent is very effective in the dishwasher. Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Powerball® are examples of this type of detergent. However, some single dose detergents are not designed for shorter cycles. If you experience wash-out issues with these tablets or packets, follow the instructions below:

Rinse cycle - DO NOT use detergent. (This cycle is designed for rinsing dishes only, not soil removal.)

Washing cycles less than 60 minutes (not including additional dry or wash options) - Place a tablet or packet directly into the bottom of the dishwasher. (These cycles are designed to be shorter which could result in bad detergent wash-out if the detergent is placed in the detergent cup. Wash performance will be diminished as a result.)

Washing cycles 60 minutes or longer (not including additional dry or wash options) - Put a tablet or packet into the detergent cup. These cycles are designed for tougher soils and will likely have more fills/drains than the shorter cycles.

If you choose to use detergent in powder form, the amount of detergent you use will be determined by the hardness of your water, the temperature of your water, and the food soil load inside the dishwasher. Contact your water company to get information about the hardness of the water in your area. Water hardness is measured in grains per gallon. Use this information and the table below to determine the amount of detergent to use. You may purchase a hard water test strip from GE Appliances. Visit Bodewell.com/parts-search or call 833-4BODEWELL (833-426-3393) and ask for part number WD01X10295. In Canada, call 800-661-1616.

Number of Grains/Gal.	Detergent Cup(s) to Fill
Less than 4 Fill cup	cup to 1/3 full
4 to 8 Fill cup	to 2/3 full
Greater than 8 Fil	cup completely full

Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware.

Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering countertops and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated for automatic dishwashers.

Loading

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Rack

When loading the rack, do not load large platters or trays in the front left. They may prevent detergent from circulating during the wash cycle.

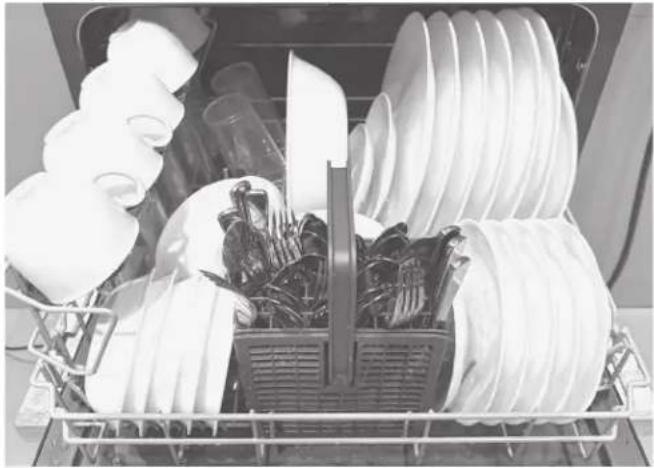

Place Settings

This dishwasher is rated for a maximum of six place settings.

NOTE: This loading configuration was utilized to determine annual energy usage for the dishwasher.

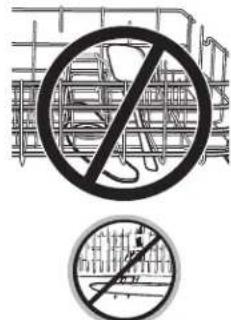

IMPORTANT: Ensure that items do not protrude through the bottom of the rack or the silverware basket where they will block the rotation of the spray arm. This could result in noise during operation and/or poor wash performance.

NOTE: For best performance, do not force glasses or other items into the corners. Items should fit freely without interfering with the sides of the rack or the tines.

Loading

Silverware Basket

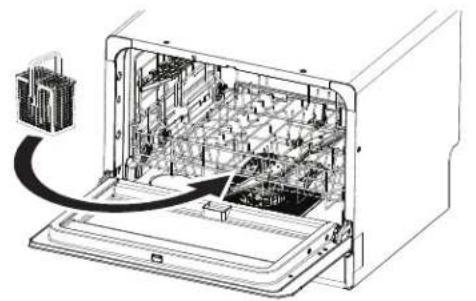

The silverware basket may be used without the topper for quick loading. With the topper, flatware is better positioned for the dishwasher to thoroughly wash and dry all pieces by preventing nesting.

Without the topper

Put the flatware in the removable basket with fork and knife handles up to protect your hands. Place spoons in the basket with handles down. Mix knives, forks and spoons so they don't nest together. Distribute evenly. Small plastic items, such as measuring spoons and lids from small containers, should go in the bottom of the silverware basket with silverware on top.

With the topper

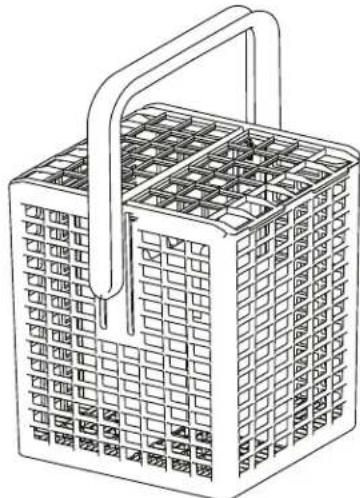

Place small plastic items, such as measuring spoons and lids from small containers, in the bottom of the basket and snap the topper in place. Insert spoons and forks, handles first, through the holes in the topper. Place knives, blades first, through the holes in the topper.

IMPORTANT: Do not load large or tall utensils where they may block the detergent cup. This could result in poor wash performance.

Accessories

Looking For Something More?

GE Appliances offers a variety of accessories to improve your experiences.

The following products and more are available:

Part Number Accessory Description

PCDBIO1KITFS Built-In Kit allows you to install the dishwasher into a kitchen cabinet.
PCDUS01KITFS Undersink	Kit allows you to install the dishwasher in an under the sink or standard dishwasher install.
PCDDR01KIT Drain Hose	Kit provides a solution to connect the dishwasher to a garbage dispenser or direct plumb to an air gap.

Order on-line at Bodewell.com/parts-search today, 24 hours a day or by phone at 833-4BODEWELL (833-426-3393) during normal business hours. In Canada, visit your local GE Appliances parts distributor or call 800.661.1616 or GEAppliances.ca/en/products/parts-filters-accessories.

Unicouple connection - Optional

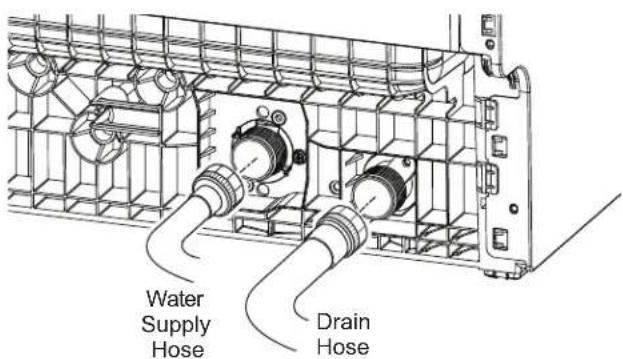

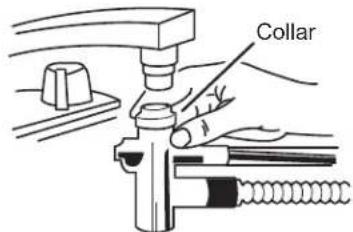

Connect Unicouple Water Supply Hose and Drain Hose to Dishwasher

Unplug electrical cord before installing hoses.

Water Supply Hose: If not installed, install rubber washer in one end of water supply hose. Thread the water supply hose onto the inner connector on the rear of the dishwasher. Hand tighten and use pliers to tighten hose between 1/8 and 1/4 turn beyond hand-tight.
- Drain Hose: If not installed, install rubber washer in one end of drain hose. Thread the drain hose onto the outer connector on the rear of the dishwasher. Hand tighten and use pliers to tighten hose between 1/8 and 1/4 turn beyond hand-tight.

NOTE: Be sure to not kink the drain hose for proper draining. Improper drain hose routing can cause the unit to be unable to fully drain, leading to water overflowing the dishwasher.

InstallFaucetAdapter

IMPORTANT: A sink spray attachment hose can burst if it is installed on the same faucet as your dishwasher. We suggest that you disconnect the sink spray attachment, if your sink has one, and place a cap over the opening.

The special faucet adapter supplied with your dishwasher must be attached to the sink faucet before you can use your dishwasher.

The faucet adapter and included threaded adapters are designed to fit most faucets.

Remove Current Facet Adapter

To install faucet adapter, first remove the old aerator or trim ring on your faucet spout.

Attach the Faucet Adapter External Threads

If faucet has external threads: Insert the thinner of the two washers into the faucet adapter and attach it to the faucet spout.
- Tighten with pliers.

Internal Threads

If faucet has internal threads: Insert both of the washers into the faucet adapter and attach it to the faucet spout.
- Tighten with pliers.

Non-Standard Threads

If the faucet adapter threads do not match your faucet spout, your local hardware or plumbing supply store normally has additional fittings to adapt your faucet spout to the special faucet adapter.

Connect the Unicouple to the Facet

• Run garbage disposser, if you have one, to clean out the dispenser and thus allow water to drain from the sink through the dispenser and down the drain.
• Run hot water faucet to purge cold water from the hot water line. The hot water must be between 120^ and 150^ for best wash performance.
• Attach the unicouple to the faucet adapter following the three steps below:

-Depress the locking collar at the top of the unicouple.

• Place the unicouple completely over the faucet adapter.
• Release the locking collar. The unicouple should now be locked onto the faucet adapter.

Turn on the hot water faucet and check for leaks. If a unicouple leak was observed, take whatever actions are necessary to repair the leak. This may be as simple as tightening the faucet adapter. Or, it may require the services of a plumber if water is leaking from the interface between the moveable faucet arm and the fixed part of the faucet fastened to the sink.

NOTE: The unicouple's small hose carries water from the faucet to the dishwasher. The large hose carries water from the dishwasher to the sink. Orient the faucet with the unicouple attached so water from the unicouple will run into the sink drain.

Plug the dishwasher power cord into the electrical outlet.

Unicouple connection - Optional

Disconnect and Store Your Dishwasher Remove Power

Unplug the dishwasher.
Turn off hot water.
Relieve water pressure from the unicouple assembly before disconnecting it from the faucet by depressing the red pressure relief button on the unicouple.

Press red button to release water pressure

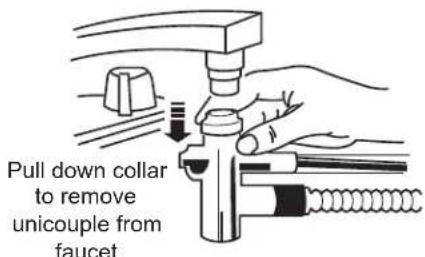

• Depress the locking collar and remove the unicouple from the faucet.

Plumed connection - Optional

Drain Hose Connector

• The molded end of the drain hose will fit 5/8'' through 1'' diameter inlet ports on the air gap or waste tee.
• Determine size of inlet port. If required, cut drain hose connector on the marked line, to fit the inlet port.

IMPORTANT: Do not cut this portion of hose.

Connect to Drain

Follow local codes and ordinances.
Total drain hose length must not exceed 10' from the rear of the dishwasher for proper drain operation.
A high drain loop must be used if waste teecnnection is less than 18" above floor to prevent siphoning or if space is limited.

Determine Drain Method

The type of drain installation depends on the following questions:

■ Is space limited or do local codes or ordinances require a high drain loop?
■ Is waste tee less than 18^ above floor?

If the answer to either question is YES, Method 1 MUST be used.

If the answers are NO, either method may be used.

Method 1-High Drain Loop to Waste Tee

Securely install a drain hose hanger to high loop the drain hose. Secure the drain hose to the waste tee with a hose clamp.

Method 2 - Straight Connect to Waste Tee

Connect the drain hose straight to the waste tee. Secure the drain hose to the waste tee with a hose clamp.

Plumed connection - Optional

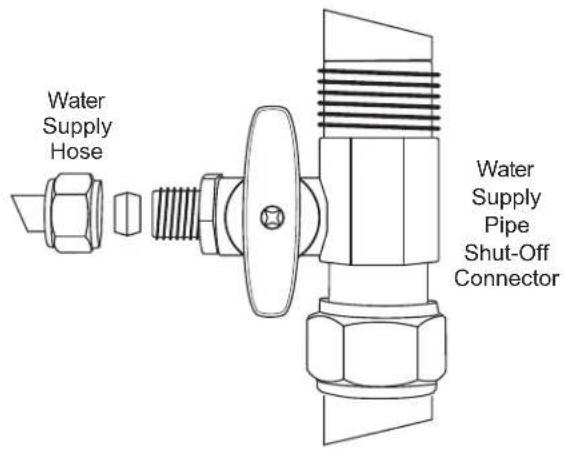

Connect to Water Supply

Turn off the water supply.

If using a flexible braided supply hose, label the hose with the installation date to use as reference. Flexible braided hoses, elbows and gaskets should be replaced in 5 years.
Install a hand shut-off valve connector in an accessible location, such as under the sink. (Optional, but strongly recommended and may be required by local codes.) NOTE: Do not use a self piercing saddle type valve.
Install the water inlet line, using no less than 1/4 tubing or a flexible braided hose. For best performance connet to hot water line.
Adjust water heater for 120^ to 140^ temperature.
Flush water line to clean out debris.
The hot water supply line pressure must be 20-120 PSI.

NOTE: Periodically inspect all water inlet hoses for water leaks, wear, cuts, corrosion, and bulges. Replace all hoses immediately if any sign of these failures appear. All hoses should be replaced every 5 years of use to reduce risk of hose failures and possible water damage. When replacing hoses, refer to the Installation Instructions for proper installation. DO NOT overtighten or cross thread fittings. DO NOT allow the hose to rub against sharp objects, become kinked, or become over stretched. Always ensure hose rubber gaskets are installed and free from leaks when pressurized.

Connect Water Supply Hose and Drain Hose to Dishwasher

Unplug electrical cord before installing hoses.

Water Supply Hose: If not installed, install rubber washer in one end of water supply hose. Thread the water supply hose onto the inner connector on the rear of the dishwasher. Hand tighten and use pliers to tighten hose between 1/8 and 1/4 turn beyond hand-tight.
- Drain Hose: If not installed, install rubber washer in one end of drain hose. Thread the drain hose onto the outer connector on the rear of the dishwasher. Hand tighten and use pliers to tighten hose between 1/8 and 1/4 turn beyond hand-tight. NOTE: Be sure to not kink the drain hose for proper draining.

Care and cleaning

Control Panel

To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the panel—they can damage it. Some paper towels can also scratch the control panel.

Glass Door

Use a glass cleaner or mild soap and water and a soft cloth to clean the glass door.

Do not use scouring pads or powered cleaners because these products can scratch the finish.

Door Seal

It's important to keep the area clean where the door seals against the dishwasher.

Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Dishwasher Interior

To clean and de-odorize your dishwasher, use citric acid, or Cascade® Platinum™ Dishwasher Cleaner or Finish® Dishwasher Cleaner, a detergent additive. They will break up mineral deposits, and remove hard water film and stains.

You can order citric acid GE Appliances kit # WD35X151 through GE Appliances Parts by visiting Bodewell.com/ parts-search or calling 833-4BODEWELL (833-426-3393). In Canada, call 800-661-1616. You can purchase dishwasher cleaners at your local grocery store.

Stainless Steel Tub

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE Appliances dishwasher.

If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

Spray Arm

Because hard water chemicals will clog the spray arm jets, it is necessary to clean the spray arm regularly.

To remove the spray arm, remove the lower rack and lift spray arm out.

To replace the spray arm, seat its center post in the dishwashers mounting base. Check that the spray arm is secure and that it rotates freely.

Wash the arm in soapy, warm water and use a soft brush to clean the jets. Rinse thoroughly, replace it and the rack.

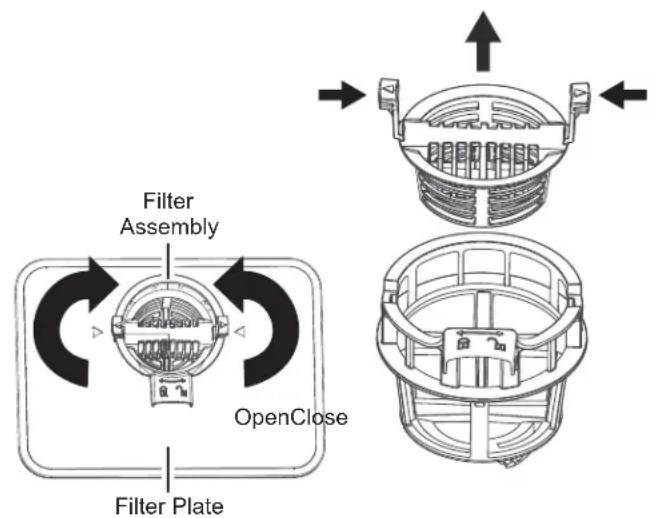

Filter Assembly

Inspect and clean the filter periodically. This should be done every month or more depending on usage. If there is a decrease in wash performance or dishes feel gritty, this is also an indication the filter needs to be cleaned.

To clean the filter assembly, remove the rack and spray arm. Twist the filter assembly counterclockwise and lift to remove. Separate the filter assembly by pressing in on its top tabs and pulling the top up and out.

Lift and remove the filter plate from the dishwasher.

Rinse the filters with warm soapy water. Scouring pads or brushes can scratch the filter surfaces but a soft brush or sponge may be needed to remove stubborn soils or calcium deposits caused by hard water.

IMPORTANT: Before replacing, make sure no objects have fallen into the opening in the bottom of the dishwasher.

Once cleaned, replace the filter plate, snap the filter assembly back together and insert it into the dishwasher base plate and twist it clockwise until it locks in place.

Make sure the filters are fully seated as improper replacement of the filters may reduce the performance level of the appliance. Replace the spray arm and rack.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

Unplug the dishwasher from the wall outlet.
Turn the water off and remove the Unicouple from the faucet.
Drain water from the Unicouple hose. (Use a pan to catch the water.)

Winterization Mode - For Hard Plumed RV installations or similar applications only

This dishwasher has a winterization feature that utilizes a fill, circulate and drain sequence to aid in the winterization of the dishwasher in the event that it is hard plumbed in Recreational Vehicle (RV) installations or similar applications only.

NOTE: The dishwasher will attempt to fill, circulate, and drain 3 times while in this mode. If at any time the dishwasher does not detect enough water it will drain and exit the mode. After the unit fills, circulates and drains 3 times, the unit will exit the mode. This mode can be canceled at any time by holding the START button for 3 seconds.

1 Unhook the water supply from the RV.
2 Attach an air pump to the water line to purge all water from the water lines.
3 Press and hold the Sanitize pad for 10 seconds. The dishwasher will attempt to fill, circulate and drain.

NOTE: If the dishwasher does not detect enough water to circulate, it will proceed directly as needed to drain.

Repeat step 3 until water lines are fully purged.

4 Attach RV rated non-toxic anti-freeze to the water supply system.

Repeat step 3 again to circulate anti-freeze through the dishwasher. (Verify that the dishwasher circulates the anti-freeze so that it is properly winterized.)

Troubleshooting Tips... Before you call for service

Problem Poss	ble Cause What To Do
START status indicator light flashing	The door was opened or the cycle was interrupted.	Press the START pad once and close the door within 4 seconds to start the dishwasher. Press the START pad a second time when the dishwasher is running only if you wish to cancel the cycle.
Dishwasher BEEPS once every minute	This is a reminder that your dishwasher door has been left open during operation. It will continue beeping until you press START and close the door.	Press START and close the door.
Beeping at the end of the cycle	This is normal. Dishwasher will beep at end of cycle.	The dishwasher will beep (unless interrupted) and the Clean light will display at the end of the wash cycle.
Dishes and flatware not clean	Filter assembly is clogged	See the CARE AND CLEANING section.
	Low inlet water temperature	Make sure inlet water temperature is correct (see the USING THE DISHWASER section). Turn on the hot water faucet nearest the dishwasher, let run until the water temperature stops rising. Then start the dishwasher and turn off the faucet. This ensures the entering water is hot. Select Wash Temp - Boost.
	Water pressure is temporarily low	Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher. Normal water pressure to the dishwasher should be 20-120 psi.
	Air gap or dispenser clogged (Built-In Models Only)	Clean the air gap or flush the dispenser.
	High drain loop or air gap not installed (Built-In Models Only)	Refer to the Installation Instructions for proper drain line installation.
	Improper rack loading Make sure large dishware or utensils do not block detergent cup or the wash arm. See the Loading section.
	Poor performing detergent	Use high quality detergents such as Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Automatic Dishwashing Detergent.
Spots and filming on glasses and flatware	Extremely hard water	Use high quality detergents such as Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Automatic Dishwashing Detergent. If water is extremely hard, a softener may be required.
	Low inlet water temperature	Make sure inlet water temperature is at least 120°F (49°C).
	Overloading or improper loading of the dishwasher	Load dishwasher as shown in the Loading section.
	Old or damp powder detergent	Make sure detergent is fresh. Use high quality detergents such as Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Automatic Dishwashing Detergent.
	Too little or low performing detergent	Make sure you use the proper amount of highly rated detergent.
Cloudiness on glassware	Combination of soft water and too much detergent	This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean.
	Low performing phosphate-free detergent	See A white film on glassware, dishwasher and the interior in this TROUBLESHOOTING TIPS section.
	Water temperature entering the dishwasher exceeds 150°F (66°C)	This could be etching. Lower the water heater temperature.

Troubleshooting Tips... Before you call for service

Problem Possible Cause What To Do
Excessive suds in the tub	Wrong detergent Use only high quality automatic dishwasher detergents to avoid sudsing. Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Automatic Dishwashing Detergent have been approved for use in all GE Appliances dishwashers.Try changing detergents or adjusting the amount of detergent used.
Detergent left in dispenser cup	Dishes or utensils are blocking the detergent cup	Reposition the dishes, so the water from the lower spray arm can flush the detergent cup. See the Loading section.Try changing detergents or adjusting the amount of detergent used.
Undesolved detergent left on dishware	Poor quality or too much detergent	Try changing detergents or adjusting the amount of detergent used.Reposition the dishes.Try using a heavier cycle or options.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Remove marks with a mild, abrasive cleaner.
Dishes don't dry	Auto Open Door not active.	Activate using the SmartHQ app.
	Low inlet water temperature	Make sure inlet water temperature is at least 120°F.Use Extra Dry option.Select a higher cycle, such as Heavy.
Control panel responded to inputs but dishwasher never filled with water	Door may not be completely closed	Make sure the door is firmly closed.
	Water valve may be turned off	Make sure water valve (usually located under the sink) is turned on.
Stained tub interior An overall yellow or brown film can be caused by iron deposits in water		A special filter in the water supply line is the only way to correct this problem. Contact a water softener company.
		White film on inside surface—hard water minerals	Run dishwasher with citric acid to remove mineral deposits.Citric acid (Part number:WD35X151) can be ordered through GE Appliances Parts. See back cover for ordering information. Alternatively, purchase Cascade® Platinum™ Dishwasher Cleaner or Finish® Dishwasher Cleaner and follow the directions on the label.
Dishwasher won't run	Fuse is blown or circuit breaker is tripped	Replace fuse or reset circuit breaker. Remove any other appliances from the circuit.
	Power is turned off In some installations, the power to the dishwasher is provided through a wall switch, often located next to the dispenser switch. Make sure it is on.
	Control panel is locked	Unlock control panel. See the Getting started section.
	Reboot your control Turn off	power to the dishwasher (at circuit breaker or wall switch) for 30 seconds, then turn back on.
Control panel lights go off when you're setting controls	Time too long between touching of selected pads	Each pad must be touched within 30 seconds of the others. To relight, touch any pad again or open the door and unlock.
Water standing in the bottom of the tub	Air gap is clogged	Clean the air gap. See the Care and cleaning section.
	Drain hose is kinked	Verify that the drain hose is not kinked.
	High drain loop or air gap not installed	Refer to the Installation Instructions for proper drain line installation.

Troubleshooting Tips... Before you call for service

Problem Possible Cause What To Do
Water won't pump out of the tub	Drain is clogged	If you have an air gap, clean it. See the Care and cleaning section. (Built-In Models Only) If the dishwasher drains into a dispenser, run dispenser clear. Check to see if your kitchen sink is draining well. If not, you may need a plumber.
	Drain hose is kinked Verify that the drain hose is not kinked.
Sanitized light does not illuminate at the end of the cycle	The door was opened and the cycle was interrupted during final rinse	Do not interrupt the cycle by opening the door during the wash cycle.
	The incoming water temperature was too low	Raise the water heater temperature to between 120°F and 150°F.
Noise Normal operating sounds: Beeping at the end of the cycle Detergent cup opening Water entering dishwasher Motor stops and starts at various times during cycle Spray arms start and stop at various times Drain pump sounds during pump out Drain pump starts and stops several times during each drain Drain pump start and stops several times at the beginning of each cycle.	These are all normal. No action is required.
	Rattling dishes when the spray arm rotates	Make sure dishes are properly loaded. See the Loading section.
	Rattling silverware against door during wash	Tall utensils may be placed in the upper rack to avoid bumping against inner door during wash cycle.
A white film on glassware, dishware and the interior	This problem is likely caused by a low quality phosphate-free dishwasher detergent	To remove the white film, run your dishes through a dishwasher cycle with citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Finish® Dishwasher Cleaner found at your local grocery store. Pour the citric acid in the detergent cup. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishwasher, and dishwasher should come out film free. This may be repeated several times a year as needed. The use of high quality detergents such as Cascade® Platinum™ ActionPacs™ or Finish® Quantum® Automatic Dishwashing Detergent will help prevent film build-up.
Water leaking out of unit when laying on its back or sides	This is normal for the unit when it is not in its upright position.	Set the unit in its upright position.

Forget to Add a Dish?
Additional items may be added to the dishwasher at any time, ideally items would be added shortly after starting a wash cycle.
1 Press START to pause the cycle or carefully open the door.
2 Do not open the door all the way until the water spray action stops. Steam may rise out of the dishwasher.

GE Appliances Dishwasher Limited Warranty

GEAppliances.com

All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at Bodewell.com/schedule-repair-service, or call GE Appliances at 833-4BODEWELL (833-426-3393). Please have your serial number and your model number available when calling for service.

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.

For the period of: We will replace:

One year

From the date of the original purchase

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited one-year warranty, we will also provide, free of charge, all labor and related service to replace the defective part.

What is not covered:

Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
- Replacement of house fuses or resetting of circuit breakers.
- Products which are not defective or broken, or which are working as described in the Owner's Manual.

• Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
  Defects or damage due to operation in freezing temperatures.
• Damage caused after delivery including damage from items dropped on the door.
  Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTYIS

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

In the United States:

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier Company, Louisville, KY 40225

In Canada (including the province of Quebec):

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada including Quebec for home use within Canada including Quebec. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location.

Some provinces including Quebec do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from province to province including Quebec. To know what your legal rights are, consult your local or provincial consumer affairs office.

For Quebec consumers only - Notice on the warranty of availability of spare parts, repair services and information necessary for repair or maintenance (s. 39 of the Consumer Protection Act):

Please be advised that MC Commercial Inc. ("MC Commercial") does not guarantee, within the meaning of section 39 of the Consumer Protection Act, CQLR, c. P-40.1 and sections 79.18 to 79.20 of the Regulation respecting the application of the Consumer Protection Act, CQLR, c P-40.1, r. 3, the availability of replacement parts, repair services, or the information necessary for the maintenance or repair of goods manufactured, imported, advertised, or sold by MC Commercial.

Please note that MC Commercial Inc. continues to offer the manufacturer's limited warranty as stated in the Owner's Manual or Quick Guide, and that this limited warranty is distinct from the statutory warranty of availability provided for under section 39 of the Consumer Protection Act.

Warrantor: MC Commercial Inc., Burlington, ON, L7L 6B2

Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at bodewellcareplan.com or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.

Notes

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. In the US: GEAppliances.com

In Canada: GEAppliances.ca

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register

In Canada: GEAppliances.ca/after-sales-support

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year. In the US: bodewell.com/schedule-repair-service or call 833-4BODEWELL (833-426-3393) during normal business hours.

In Canada: GEAppliances.ca/after-sales-support or call 800.561.3344.

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires. In the US: bodewellcareplan.com or call 800.626.2224 during normal business hours.

In Canada: GEAppliances.ca/purchase-extended-warranty or call 866.277.9842.

Remote Connectivity

For assistance with wireless network connectivity (for models with remote enable), in the US visit our website at GEAppliances.com/connect or call 800.220.6899.

In Canada: GEAppliances.ca/connected-appliances or call 800.220.6899

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

In the US: Bodewell.com/parts-search or by phone at 833-4BODEWELL (833-426-3393) during normal business hours.

In Canada: GEAppliances.ca/parts-filters-accessories or call 800.661.1616.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact or call 800.626.2000

In Canada: Director, Customer Relations | MC Commercial Inc. | Suite 300, 5420 North Service Road | Burlington, ON L7L 6C7

GEAppliances.ca/contact-us or call 877.994.5366

Compact

LAVE-VAISSELL

INFORMATION DE SECURITE...3

UTILISATION DU LAVEVAISSELL

Comment demarrer 6

Connect to App Hold 3 Sec

Sanitize

Garant:MCCommercialInc.,Burlington,ON,L7L6B2

Remarques

Connectivite a distance

Au Canada : Director, Customer Relations | MC Commercial Inc. | Suite 300, 5420 North Service Road | Burlington, ON L7L 6C7 electromenagersge.ca/contactez-nous ou composer le 877.994.5366

Compactos

LAVAVAJILLAS

Connect to App Hold 3 Sec

START

Cancel

Hold 3 Sec

Wifi

Clean

Sanitized

Louisville, KY 40225

GEAppliances.com/service

GEAppliances.com/extended-warranty

General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact o comuniquese al 800.626.2000
