USER MANUAL GVW945ONY Pelgrim

Line drawing of a simple kitchen appliance with front panel and side handles (no text or symbols)

Inhoud

Hand holding a button on a surface with a tool, labeled '4' and 'MA16' (no text or symbols on the diagram itself)

Black-and-white photo of a plastic bag with multiple small round objects arranged in rows (no visible text or symbols)

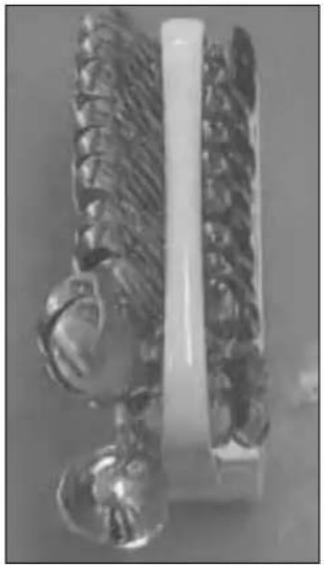

Close-up of a metallic mechanical component with coiled and threaded surfaces (no visible text or symbols)

Rangschikking in de bestekmand

Cross-sectional view of a plastic container with coiled and porous material (no visible text or symbols)

Important safety information 17

Installation instructions 18

Water supply connections 18

Protection against flooding 18

Water outlet hose connection 19

Electrical connection 19

Before use 20

Setting the water softener 20

Filling with salt 21

Rinse aid 22

Use of detergent 23

Hints and tips 24

Maintenance and cleaning 25

Internal cleaning 25

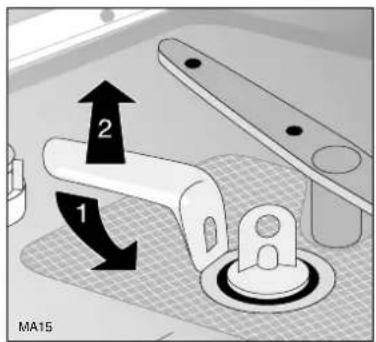

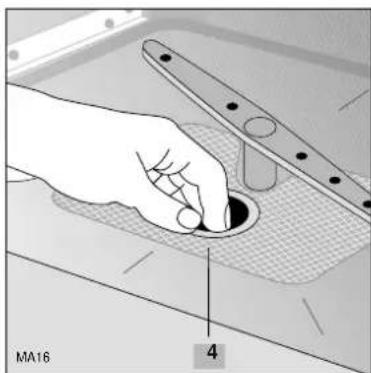

Cleaning the filters 25

External cleaning 26

Prolonged periods of non-operation 26

Frost precautions 26

Moving the machine 26

Something not working 27

Service and spare parts 28

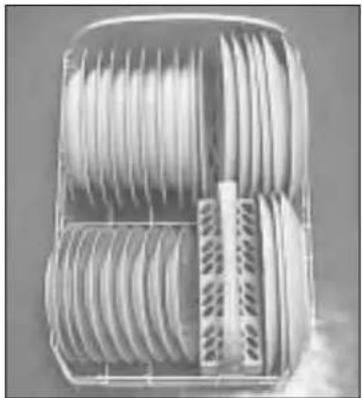

Hints for test centres 29

Technical specifications 29

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

1.2.3. Step by step

Hints and tips

Environmental information

Important safety information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Child Safety

• This appliance is designed to be operated by adults.
  Children should not be allowed to tamper with the controls or play with the product.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children's reach.

During Use

• Items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.
• Under no circumstances should you open the door whilst the appliance is in operation. Always turn off the appliance before opening the door.
• Only use detergent specifically designed for use in dishwashers.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

• When finishing loading or unloading close the door, as an open door can be a hazard.

• Do not sit or stand on the open door.

• Isolate the appliance from the power supply and turn off the water supply after use.
• Care should be taken when cleaning the bottom door seal and hinge area as any exposed metal edges may cut if care is not taken.
• This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

• Materials marked with the symbol are recyclable.
• Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.
• When the appliance is to be scrapped, cut off the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.
• Help to keep your country tidy - use authorised disposal sites for your old appliance.

Installation instructions

Remove all packaging before positioning the machine.

If possible, position the machine next to a water tap and a drain.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.

Water supply connections

Your dishwasher can be connected to either a cold or hot water supply of max. 60°C.

Never connect your dishwasher to open hot appliances and continuous flow heaters!

Nevertheless we advise you a cold water supply. A hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes.

Avoid bends or kinks in the hose which could prevent or slow down the water supply.

If the machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose. This will prevent deposits of sand or rust clogging the inlet hose filter.

The water pressure must be within the limits given in the technical specifications.

Your local Water Authority will advise you on the average mains pressure in your area.

Your dishwasher has been built in accordance with the valid regulations governing water-consuming appliances and is equipped with safety devices which prevent used water from flowing back into the drinking water mains.

Do not use, for connection, old hoses which have been used in another appliance.

Protection against flooding

The machine is fitted with a device in the bottom of the machine to protect against flooding. The device will operate if there are any water leaks in the machine, however it will only operate if the machine is on.

In case of interventio a fault code will appear on the control panel. The fault is recognised by the fact that the indicator light of the programme "Normal 65°" is flashing.

In this case turn off the water tap and call the Service Force Centre.

Water outlet hose connection

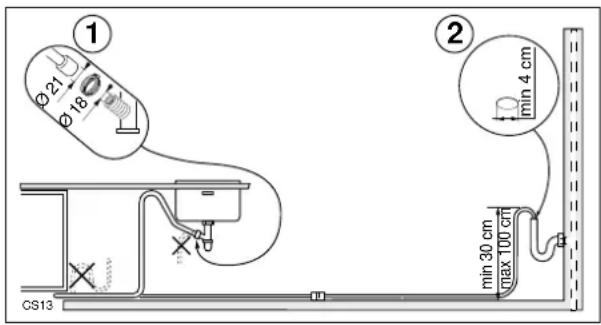

The end of the drain hose can be connected in the following ways:

1. To the sink outlet spigot, securing it if necessary with a clip.
2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.

The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher.

The drain hose can face either to the right or left of the dishwasher

Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.

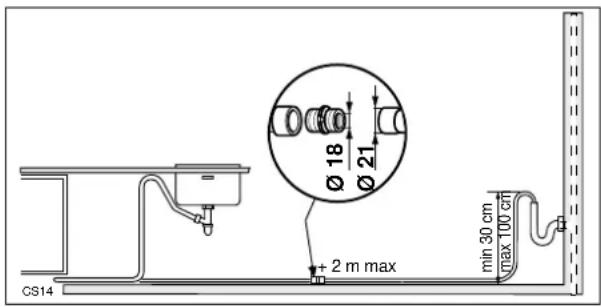

If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided.

The sink plug must not be in place when the machine is draining as this could cause the water to siphon back into the machine.

① ∅ 21 ∅ 18 CS13 ② min 4 cm min 30 cm max 100 cm

GS14 Ø 18 Ø 21 + 2 m max min 30 cm max 100 cm

Electrical connection

Before plugging the appliance into the wall socket, make sure that:

1. The mains voltage corresponds to the voltage given in the "Technical specifications".
2. The meter, fuses, mains power supply and wall socket can all take the maximum load required. Make sure that the socket and plug are compatible without having to use any type of adaptor. If necessary, have the domestic wiring system socket replaced.

Safety standards require the appliance to be earthed.

The manufacture accepts no liability for failure to observe the above safety precautions.

This appliance complies with the following E.E.C. Directives:

• 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Before use

Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply with the installation instructions
2. Remove all packaging from inside the appliance
3. Set the water softener
4. Pour 1 litre of water inside the salt container and then fill with salt
5. Fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these salts, the harder your water is.

Water hardness is measured in equivalent scales, German degrees, French degrees and PPM (parts per Million).

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

The dishwasher is factory set at level 3.

If this level is not suitable for your area the softener should be adjusted.

You may change the factory level setting by means of the wash programme selector push buttons. each button corresponds to a different level.

If your water is level 1 it is already soft and therefore there is no need to use salt. With the setting of the water softener at level 1 the salt indicator light on the control panel will always remain off.

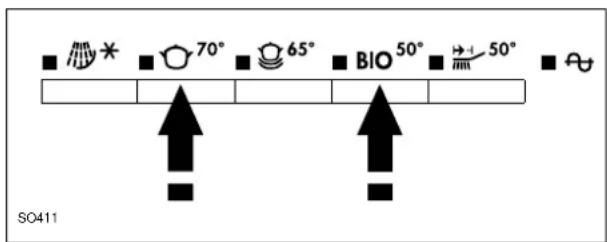

To set a different level proceed as follows:

1. Press "Intensive 70°" and "BIO 50°" programme push buttons simultaneously for about 5 seconds. The indicator light corresponding to the current level flashes.

2. Press within 5 seconds the programme push button corresponding to the required level. After 5 seconds the dishwasher will memorise the new level setting and will return to programme setting mode.

The setting will remain memorised after switching off the dishwasher.

Level	Water hardness			Use of salt
	German degrees	French degrees (°TH)	PPM (Parts per Million)
1	0 - 4	0 - 8	0 - 80	NO
2	5 - 11	9 - 20	81 - 200	YES
3	12 - 22	21 - 40	201 - 400	YES
4	23 - 39	41 - 70	401 - 700	YES
5	40 - 50	71 - 90	701 - 900	YES

Level 1 = programme push button "Rinse and Hold"	###*
Level 2 = programme push button "Intensive 70°"	###70°
Level 3 = programme push button "Normal 65°"	###65°
Level 4 = programme push button "BIO 50°"	BIO50°
Level 5 = programme push button "Quick wash 50°"	###50°

70° 65° BIO 50° 50° SO411

Filling with salt

Only use salt specifically designed for use in dishwashers.

All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.

Only fill with salt just before starting one of the complete washing programmes (not the "Rinse and Hold" programme).

This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

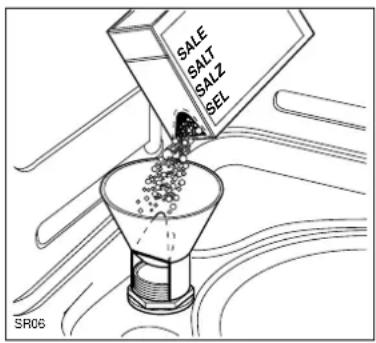

To fill:

1. To fill with salt, unscrew the cap of the salt container.
2. Pour 1 litre of water inside the container (this is necessary only before filling with salt for the first time).
3. Using the funnel provided, pour in the salt until the container is full.
   Do not worry if water over flows from the unit when filling with salt, this is quite normal.
4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.

The salt container will require topping up periodically.

You are reminded of this by the salt indicator light on the control panel which comes on when the salt has finished.

The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected.

SALE SALT SALT SEL SR06

Rinse aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.

Filling with rinse aid

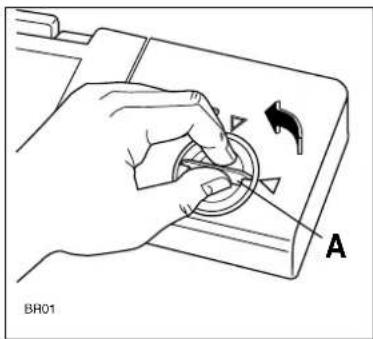

1. Open the container by turning the lid (A) anticlockwise.
2. Add the rinse aid until the container is completely full. The indicator (B) will be completely dark.
3. Top up the rinse aid when the rinse aid indicator light on the control panel illuminates.

Ensure that the lid is closed after every refill.

Do not put liquid detergent in the rinse aid compartment. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

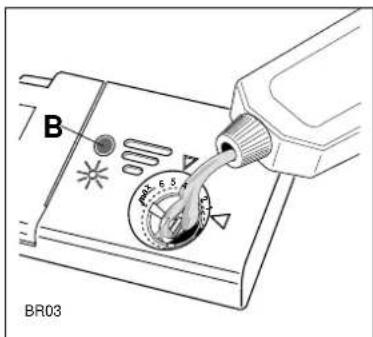

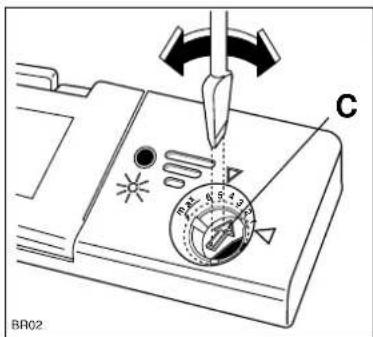

Adjusting the dose

According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage).

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes.

A BR01

B 6.5 7 BR03

C BR02

Use of detergent

Only use detergents specifically designed for use in dishwashers.

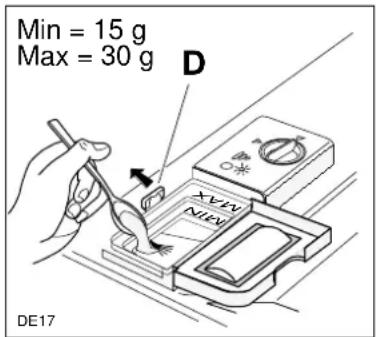

If using powder detergents proceed as follows:

1. Open the dispenser lid by pulling the catch (D).
2. Add the detergent according to the recommended quantity given in the "Washing programmes" chart. As all detergents are not the same, you should consult the instructions from the manufacturer of your brand.
3. Always close the lid.
4. The programmes with prewash require a small amount of detergent to be poured over the lid of the dispenser. Follow the recommended quantity of detergent given in the "Washing programmes" chart.

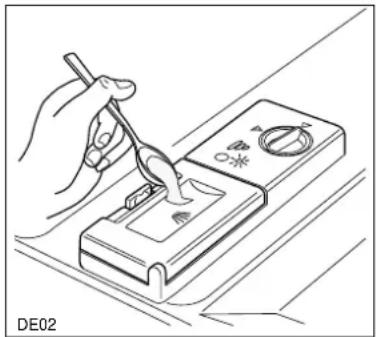

If using detergent in tablets proceed as follows:

1. For all programmes; place 1 tablet inside the detergent dispenser.
2. Always close the lid.
3. For all programmes with prewash; place a portion of a further tablet on the lid of the detergent dispenser.

Insufficient quantities of detergent will produce poor washing results, whereas an excessive amount of detergent will not improve washing results and is also wasteful.

Using no more than the correct amount also contributes to reducing pollution.

Compact detergents with enzymes

In these compact powders the environmentally unfriendly components have been replaced by natural enzymes and other more biodegradable substances.

The enzymes deploy their full dirt dissolving power at a temperature as low as 50^ C.

By choosing the "Bio 50°C" programmes you can therefore achieve the same cleaning results that would otherwise be achievable only with 65°C programmes and conventional detergents.

Min = 15 g Max = 30 g D MAX MAX DE17

Line drawing of a hand using a tool to clean or inspect a device with a dial (no text or symbols visible)

Hints and tips

To save energy

Place dishes in the machine immediately after every meal and wait until the dishwasher is full before washing.

If necessary run the "Rinse and Hold" programme (see "Washing programmes" chart) so that any food scraps do not become caked on the dishes while you are waiting to run the complete wash programme.

Do not prewash dishes under running water.

Select an economic programme when dishes are not very soiled, following the instructions given in the "Washing programmes" chart.

For best washing results

Before loading, remove all scraps of food and soak very heavily soiled pots and pans.

Arrange saucepans, cups and glasses etc. upside-down.

Tilt items with convex or concave surfaces so that the water drains off easily.

Avoid contact between the dishes as far as possible.

Items not suitable for dishwashers

The following items should not be washed in the dishwasher (unless they are sold as dishwasher proof):

• Cutlery with wooden or horn handles or glued parts
• bronze cutlery
• saucepans with wooden handles
• aluminium ware
• crystal ware
• leaded glass
• plastic items
• antique or fine decorated china

Certain types of decoration can discolour when washed in a dishwasher.

Crystal-ware and plastic objects, if not guaranteed dishwasher proof should be washed by hand.

Certain types of glass can also become opaque after being washed several times in a dishwasher.

A chemical reaction can occur between silver cutlery and stainless steel cutlery. As a precaution, do not wash together.

Iron and cast iron objects can rust and stain other items.

Aluminium tends to go black, copper, pewter and brass tend to stain.

If in doubt check with manufacturer of the item.

When buying new dishes, ensure that they are dishwasher proof.

Maintenance and cleaning

Internal cleaning

Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth.

We recommend every 3 months to run a 65°C wash programme without dishes using detergent.

Cleaning the filters

The filters in the base of the washing compartment are to large extent self-cleaning. Nevertheless the filters should be checked and cleaned from time to time. Dirty filters will degrade the washing result.

1. Open the door, remove the lower basket.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter and a flat filter. Unlock the filter system using a handle on the microfilter, and remove.
3. Turn the handle about 14 a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1/2) by the handle with the hole and remove from the microfilter (3).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter (4) from the base of the washing compartment and clean both faces thoroughly.
7. Put the flat filter back in the base of the washing compartment.
8. Place the coarse/fine filter in the microfilter and press together.
9. Put the filter combination in place and lock by turning the handle clockwise to the stop. During this process ensure that the flat filter does not protrude above the base of the washing compartment.

2 1 MA15

1 2 3 MA17

Hand holding a knob on a mechanical component, labeled '4' and 'MA16' (no text or symbols on the diagram itself)

The dishwasher must not be used without filters.

Incorrect repositioning and fitting of the filters will produce poor washing results. Cleaning the filters is vital to ensure correct operation of the machine.

External cleaning

Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc....).

Prolonged periods of non-operation

If you are not using the machine for any period of time you are advised to:

1. Unplug the appliance and then turn off the water.
2. Fill the rinse aid dispenser.
3. Leave the door ajar to prevent the formation of any unpleasant smells.
4. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the temperature is below 0^ C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving house etc....):

1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
   Avoid over tilting the machine during transportation.

Something not working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer.

The dishwasher is fitted with a number of alarm systems which can help you to quickly determine the cause of any problems.

The dishwasher will not start or stops during operation, all push buttons are inoperative except for the On/Off push button. On the control panel one or more programme indicator lights are flashing and an audible signal will inform you of the alarm intervention.

Open the door and press the On/Off push button to switch off the dishwasher, carry out the following suggested corrective actions listed below.

Once the checks have been carried out switch on the dishwasher and start a washing programme, if the fault code reappears in the digital display, contact your local Service Force Centre.

Symptom Fault code Solution
The machine will not start		The door has not been properly closed.The plug is not properly inserted in the power socket.There is a power failure.
The machine does not fill "Rinse and Hold" and with water "Normal 65°" indicatorlights are flashing		Ensure the water tap is open.Ensure the mains water supply has not been cut off.The inlet hose may be squashed or bent. Reposition the hose.The inlet hose may be blocked. Switch off the water supply and clean the filter.
The dishwasher will "Intensive 70°" and not drain "Normal 65°" indicator hose.lights are flashing		The drain hose may be squashed or bent. Reposition theThe sink may be blocked. Clear any blockages.The drain hose extension is not correct. Follow the instructions for connecting to the waste.There is no vent in the end of the drain hose.
Protection against flooding "Normal 65°" indicator is active light is flashing Centre.		Close the water tap and contact the Service Force
General Other indicator lightsor combinations of programme. If the alarm reappears, call the local lights are flashing Service Force Centre.		Switch off the dishwasher. Switch it back on and start the
The machine is noisy		Dishes are rattling against each other, refer to "Loading your machine".The spray arms are knocking against the dishes. Refer to "Loading your machine".
The door is difficult to close		The dishwasher is not level, or not properly built-in.
Visible lime deposits or white film on the dishes		Check that there is salt and that the salt cap is tight.Check that the right level of the water softener is setted.
The dishes are not quite dry		The rinse aid has run out or too little is being used.
The dishes are not clean (poor wash)		The baskets are too full.The dishes have not been arranged properly.The spray arms do not rotateThe spray arms are clogged.The filters are clogged.The filters are not in the correct position.Not enough detergent has been used or it is unsuitable.The detergent is old or has gone hard.The salt container cap is not properly closed.The washing programme selected is too gentle.

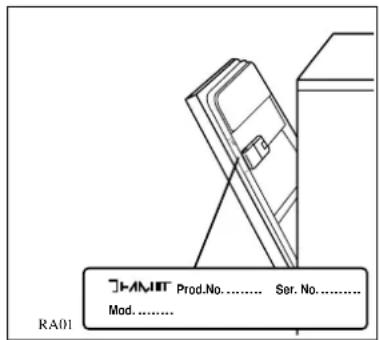

If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door (see picture).

Service and spare parts

This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

JAMIT Prod.No...... Ser. No...... Mod...... RA01

Hints for test centres

Before starting any test it is necessary to fill completely with salt the salt container and with rinse aid the rinse aid dispenser.

Test standard EN 50242
Reference programme: BIO 50°
Load: 9 standard place settings
Rinse aid selector: position 4
Detergent dosage : 20 g in the dispenser5 g on the dispenser lid

3D-printed plastic tray with multiple small white objects arranged around it, no visible text or symbols.

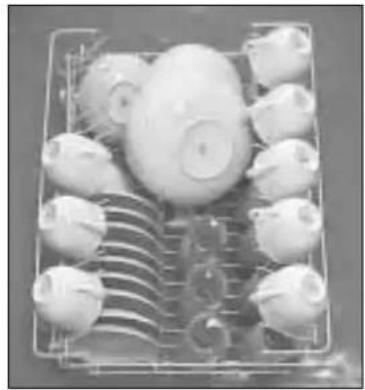

Arrangement upper basket

Close-up of a metallic mechanical component with coiled and threaded surfaces (no visible text or symbols)

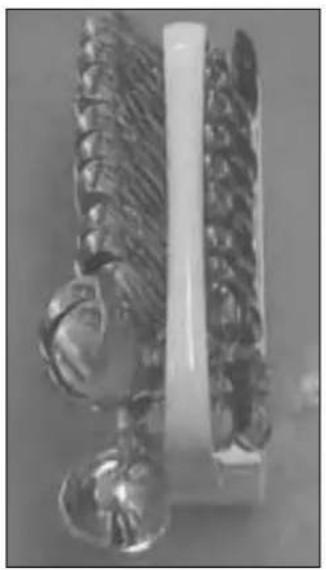

Arrangement cutlery basket

Cross-sectional view of a mechanical component with coiled spring and internal channels (no text or symbols visible)

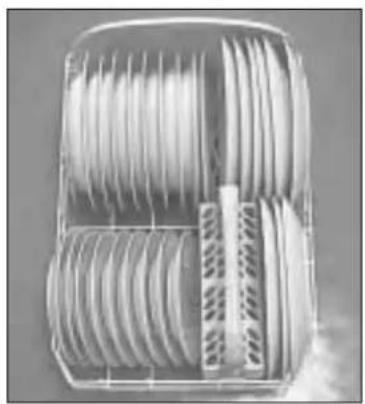

Arrangement lower basket

Technical specifications

DIMENSIONS Width 44.6 cm	Height with worktop 81.8 - 87.8 cmMax depth 55.5 cmMax depth with open door 111.4 cm
ELECTRICAL CONNECTION Voltage 230 V - 50 HzMOTOR RATING DURING WASH 200 WPOWER OF HEATING ELEMENTOVERALL POWER		2100 W2300 W
WATER SUPPLY PRESSURE	MinimumMaximum	50 kPa (0.5 bar)800 kPa (8 bar)
CAPACITY		9 place settings

Sommaire

Avertissements importants 31

Emplacement 33

Line drawing of a hand using a tool to adjust or install a device on a table (no text or symbols visible)

Hand holding a button on a textured surface with a ruler and a numbered label (4), no readable text or symbols present.

Nettoyage extérieur

Black-and-white photo of a plastic tray with multiple egg-shaped objects arranged around it (no visible text or symbols)

Close-up of a metallic mechanical component with coiled and threaded surfaces (no visible text or symbols)

Cross-sectional view of a coiled cable or plastic component (no visible text or symbols)

C 51.4 30.7 6 5 BR02

Reinigerzugabe

Illustration of a hand using a tool to clean or inspect a device with a dial (no text or symbols visible)

Hand holding a circular component on a textured surface, with part number 4 and label MA16 (no text or symbols on the diagram itself)

Außenreinigung

Black-and-white photo of a plastic container with multiple spherical objects arranged around it (no visible text or symbols)

Oberen Korb laden

Close-up of a metallic mechanical component with coiled and textured surfaces (no visible text or symbols)

Besteckkorb laden

Cross-sectional view of a mechanical component with coiled spring and internal channels (no visible text or symbols)

Unteren Korb laden

Technische Daten
