USER MANUAL GVW360XL Pelgrim

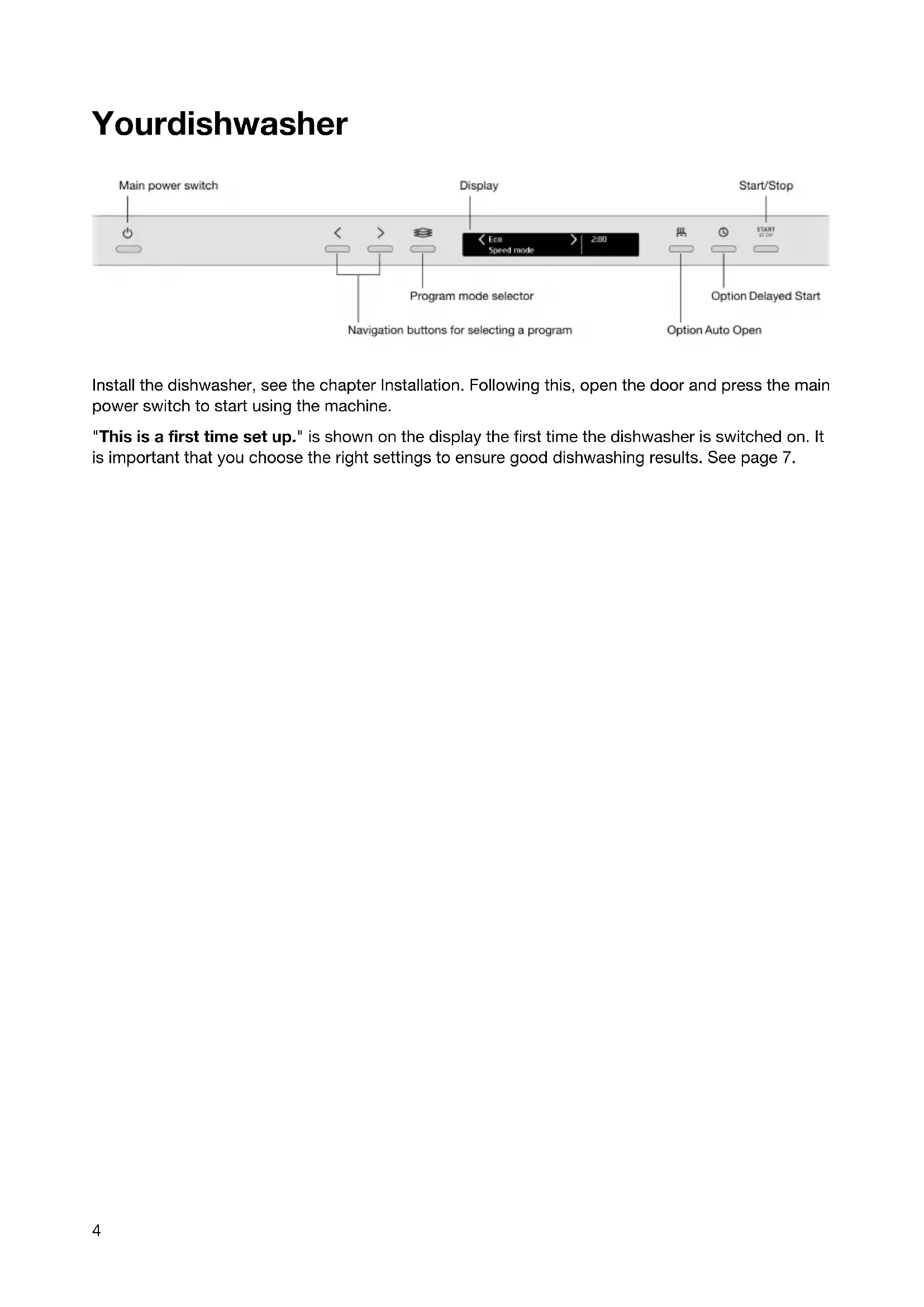

• Read the operating instructions and keep them in a safe place!

• Number of standard place settings: 14

• Never use the dishwasher for any purpose other than that specified in these operating instructions.

• Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

• Never leave the dishwasher door open as someone may trip on it.

• Use only dishwasher detergent!

• This machine can be used by children aged 8 and upwards, and by people with reduced physical capacity, mental ability, memory loss or lacking experience and knowledge. These individuals must be supervised when using the machine or have instructions on how to use the machine and understand the risks that can occur. Cleaning of the machine must not be carried out by children without supervision.

• Damaged mains cables must only be replaced by a qualified electrician.

• Only use the dishwasher in household-type environments for dishwashing household dishes. All other use is prohibited.

• Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Nor may dishes that contain ash, wax or lubricants be washed in the dishwasher.

• Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. 5WARNING! Children must be supervised – dishwasher detergent is corrosive! Activate child lock (button lock) You can activate the child lock (button lock) to prevent children from starting the dishwasher. See the chapter Settings. Installation See the chapter Installation. Winter storage/Transport Store the dishwasher above freezing and avoid long transport distances in very cold weather. Transport the dishwasher upright or laying on its back. Overflow guard function The overflow protection starts pumping out the machine and turns off the water supply if the water level in the dishwasher exceeds the normal level. If the overflow protection is triggered, Overfilling water appears on the display. Turn off the water supply and contact your nearest service centre. Packaging The outer packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:

• Corrugated cardboard made from up to 100% recycled material.

• Expanded polystyrene (EPS) with no added chlorine or fluorine.

• Supports made from untreated wood.

• Protective plastic made from polyethylene (PE). Disposal The dishwasher is manufactured and labelled for recycling. When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible. Contact your local authority for information about where and how your dishwasher should be correctly recycled. 6Before washing for the first time 1 Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using the German water hardness scale (°dH) or the French water hardness scale (°fH). A water supply with a water hardness in excess of 6°dH (9°fH) must be softened. This is done automatically with the aid of the built-in water softener. In order for the water softener to function optimally, it must be adjusted to the hardness of the water supply. Once you have adjusted the water softener, use detergent and rinse aid doses suitable for soft water. Contact the local waterworks to check the water hardness in your area. Make a note of the water hardness:____________ Recommended settingFrench water hardness scaleGerman water hardness scale 00-9°fH0-5°dH 110-14°fH6-8°dH 215-20°fH9-11°dH 321-25°fH12-14°dH 426-34°fH15-19°dH 535-43°fH22-24°dH 644-52°fH25-29°dH 753-70°fH30-39°dH 871-88°fH40-49°dH 989°fH50°dH If the water hardness exceeds 50°dH (89°fH), we recommend connecting an external water softener. Increased consumption during regeneration The dishwasher's built-in water softener is regularly regenerated to maintain its function. Regeneration extends the dishwashing program and increases energy and water consumption. Just how often the dishwasher's water softener is regenerated depends on the selected setting. Example: If the Ecoprogram is run with a water hardness of 14 °dH (25 °fH), the water softener is regenerated at regular intervals (after 6 dishwashing cycles), energy consumption increases by 0.015 kWh and water consumption increases by 2.3 litres while the program time is extended by 3 minutes. Regeneration occurs during the program's main wash. WARNING! Hard water leaves a white coating on dishes and inside the dishwasher. It is therefore important that you select the right setting for the water softener! See Water hardness. Never run the dishwasher with an empty salt compartment if the water supply has a water hardness in excess of 6°dH (9°fH). 72 Basic settings Open the door and press the main power switch. "This is a first time set up." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. Confirm setting Select setting Main power switch Settings Language1 Select the language to be shown on the display. Rinse aid 0/1/2/3/4/5/TAB2 Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. Select rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB. Read more about all-in-one detergent in the chapter Using the dishwasher. Pre-selected at factory: 5 Top up rinse aid Press to open

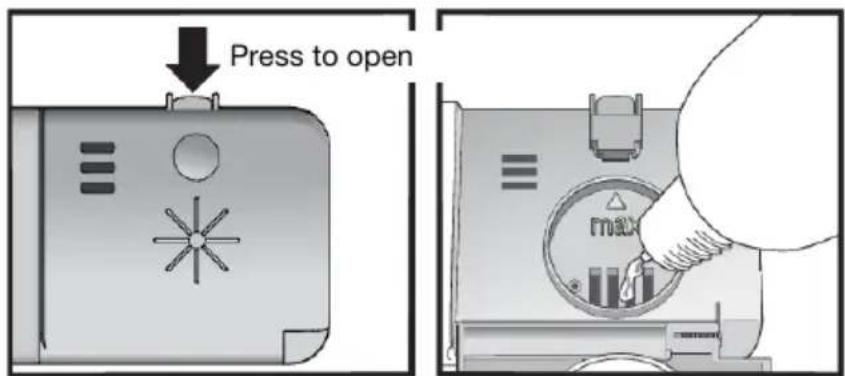

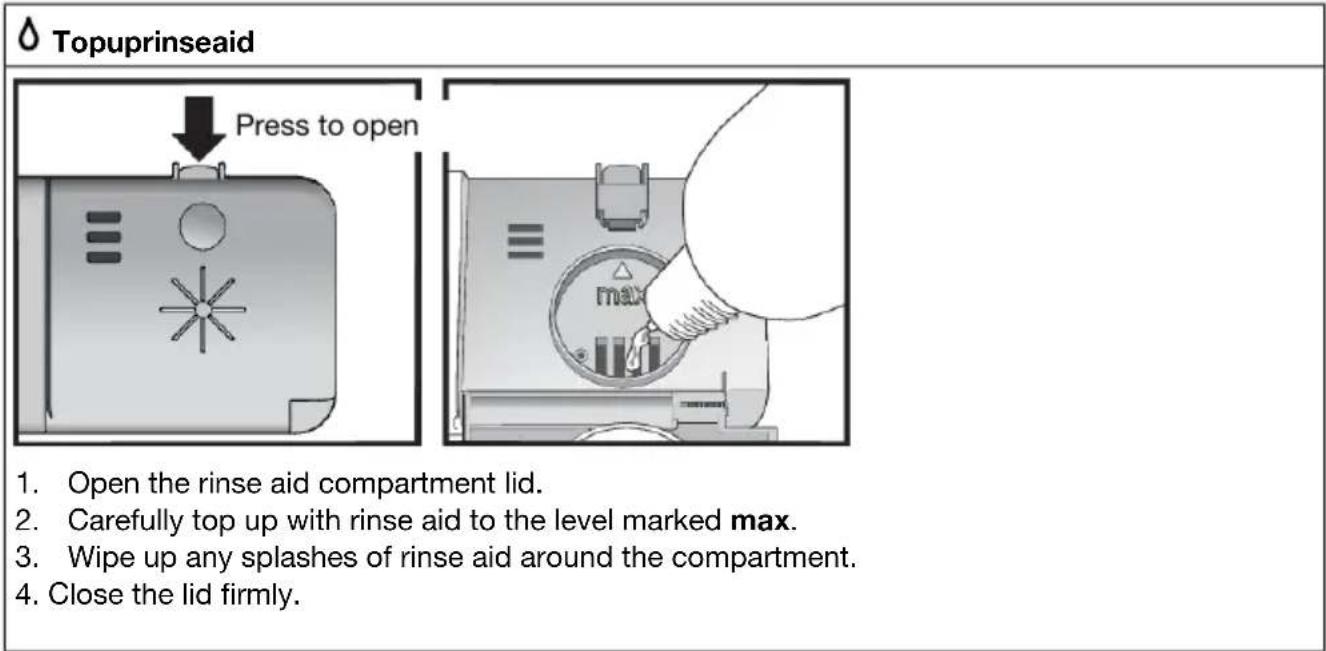

1. Open the rinse aid compartment lid.

2. Carefully top up with rinse aid to the level marked max.

3. Wipe up any splashes of rinse aid around the compartment.

4. Close the lid firmly.

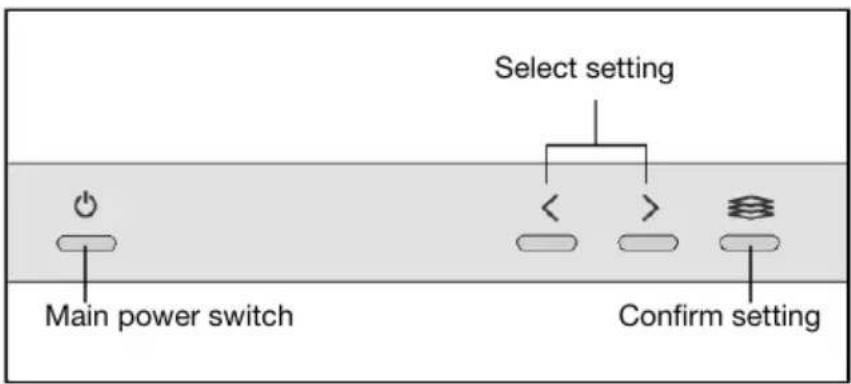

8Water hardness 0/1/2/3/4/5/6/7/8/93 Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! Do not forget to put salt in the salt compartment after you have set the water softener to 1 - 9. For a water supply with a hardness under 6°dH (9°fH), select 0. The water softener is deactivated and no salt is needed. Pre-selected at factory: 4 Top up salt Salt compartment lid

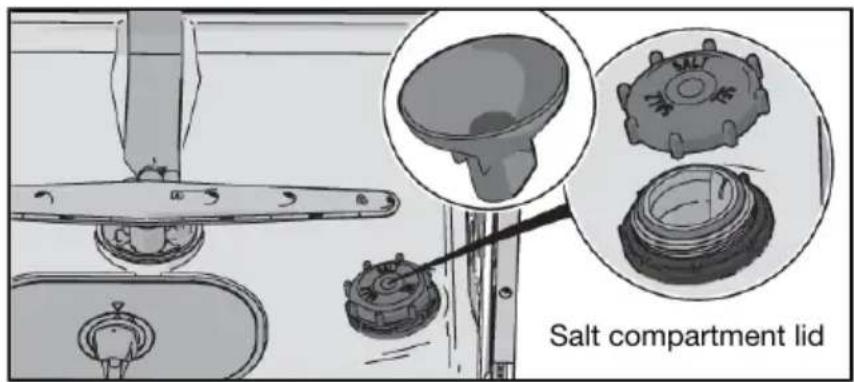

1. Unscrew the salt compartment lid.

2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour

in about 1 l of water.

3. Then add salt, a maximum of 630 gram, until the compartment is full. Use large grain salt or

special dishwasher salt.

4. Wipe up any excess salt so that the lid can be screwed on firmly.

In order to avoid rust stains a dishwashing program must be started immediately after adding salt. To change the selected setting, see the chapter Settings. 9Greener dishwashing The dishwasher saves energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. Simply scrape off large food particles before loading the dishwasher. Choose a green detergent Read the environmental declaration on the packaging! Too much detergent, rinse aid and salt can result in less effective dishwashing and also entail greater environmental impact. Run a fully loaded dishwasher Save energy and water by waiting until the dishwasher is full before running a program (see number of standard place settings). Use the Rinse and hold program to rinse the dishes if there are any unpleasant odours. Run programs at a lower temperature If the dishes are only slightly dirty, you can select a program with a low temperature. Select dishwashing program – Eco This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign. The dishwashing program is designed for an effective wash using as little energy and water as possible. The program washes at a low temperature for a long time. Select program mode – Green mode The dishwasher has different program modes. To save energy and water, use Green mode. (Available with: Universal) Select option – Auto Open A shorter dishwashing program and better drying results are achieved if you use the Auto Open option, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dishwasher. Connect to cold water Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. 10Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" marking. Fragile decoration Porcelain with decoration on top of the glazing (the items feel rough) should not be washed in a dishwasher. Crystal/Glass Wash fragile items made of crystal/glass using the gentle dishwashing program Crystal glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. Drying is faster and a better result is achieved if you use rinse aid. You will also achieve a better dishwashing result with clear and spotless dishes. Hand-painted glassware, as well as antique and very fragile items, should not be washed in a dishwasher. Silver Silver and stainless steel items should not come into contact, as the silver can become discoloured. Aluminium Aluminium can lose its shine if washed in a dishwasher. However, good quality aluminium pans can be washed in a dishwasher, even if some of the shine will be lost. Cutlery with glued handles Some types of glue are not dishwasher safe. In such cases, the handles may loosen. Loading affects the results Load the dishes carefully to ensure the best washing and drying results with the lowest possible energy and water consumption. Give your dishwasher the best chance to reach and clean all surfaces, as well as to dry the dishes as thoroughly as possible.

• All dirty surfaces should face inwards and downwards!

• Dishes should not be placed in or on each other.

• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

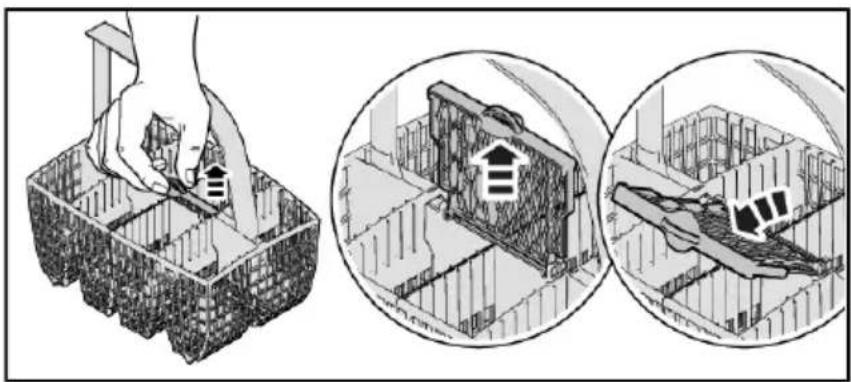

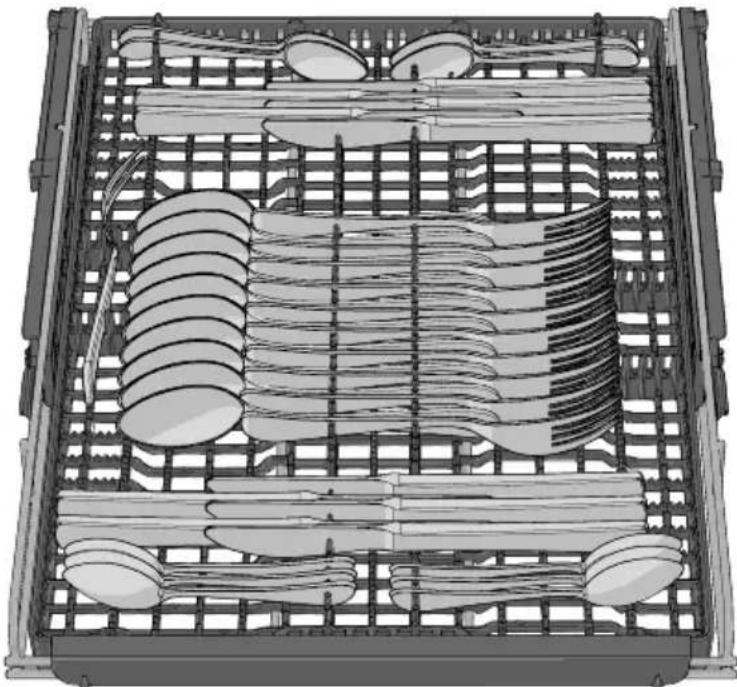

• Make sure small items cannot fall through the dishwasher basket; place them in the top cutlery tray. NOTE! Check that the spray arms can rotate freely. The dishwasher's baskets The dishwasher is equipped with a top cutlery tray, an upper basket and a lower basket with a cutlery basket. The appearance of the baskets may differ depending on the dishwasher setup. 11Top cutlery tray The top cutlery tray has space for cutlery, ladles, whisks, serving cutlery and similar items. Raising the top cutlery tray

1. Pull out the top cutlery tray.

2. Pull forward the two locking handles on either side to raise the top cutlery tray.

Lowering the top cutlery tray

1. Make sure the upper basket is in the lowest position.

2. Pull out the top cutlery tray.

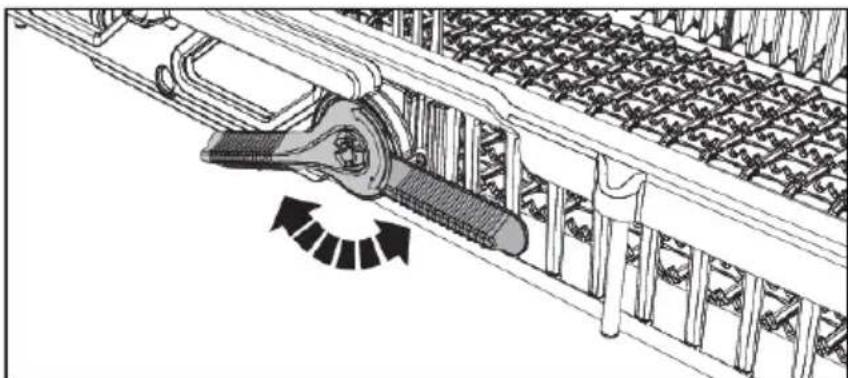

3. Slide the two locking handles on either side downwards and backwards to lower the top cutlery

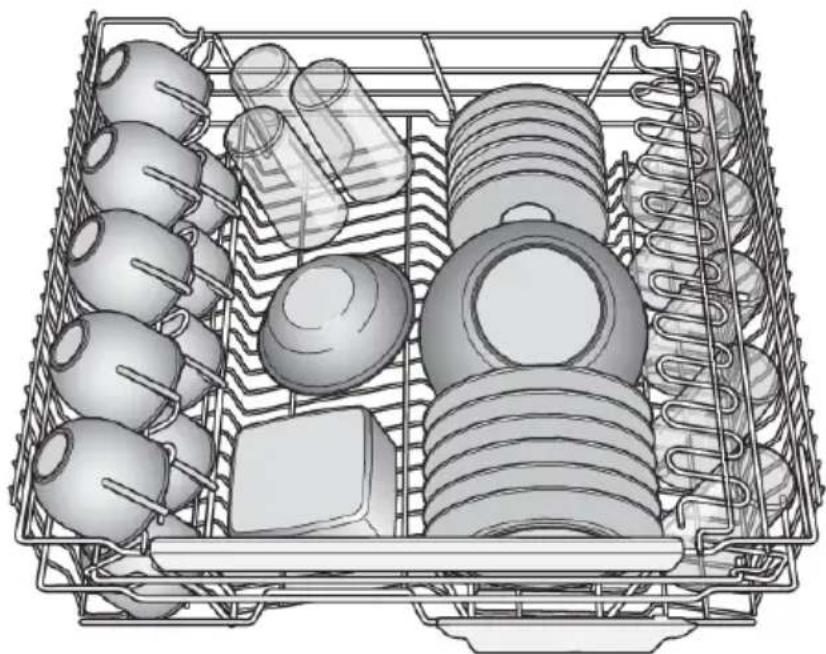

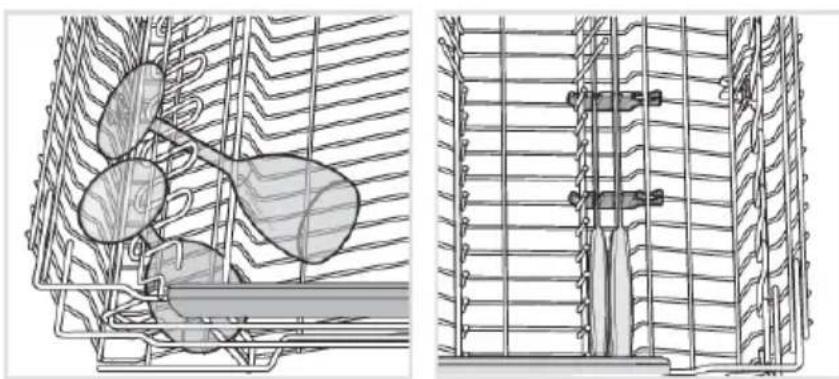

tray. 12Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right. Raising the upper basket

1. Pull out the upper basket.

2. Grab the sides of the upper basket with both hands and lift it up.

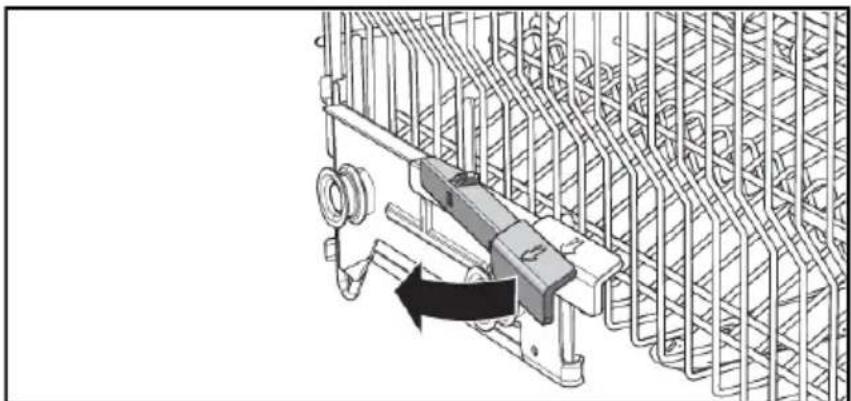

2. Pull out the two locking handles on either side to lower the upper basket.

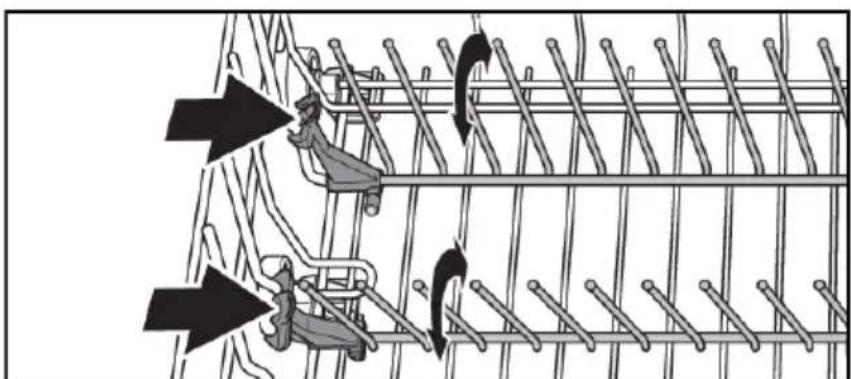

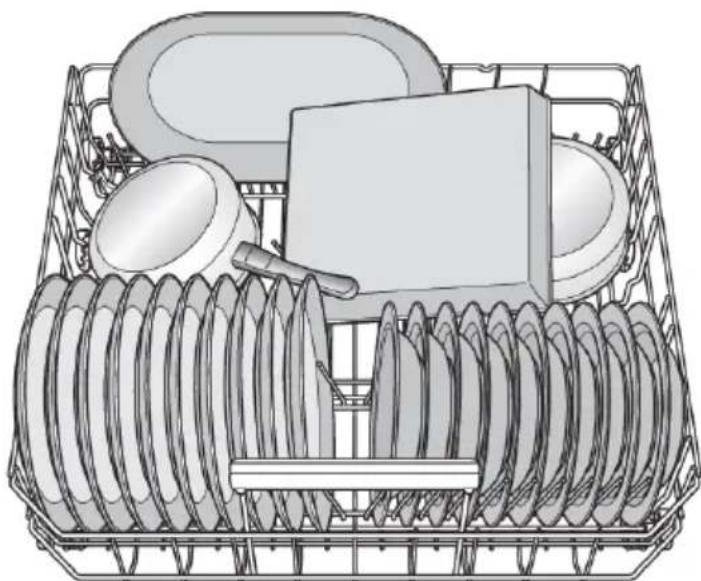

13Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Place pots and pans in the rear right part of the lower basket to best utilise dishwashing performance from the rear of the two spray nozzles, which are intended for these types of dishes. Foldable tines Lower the foldable tines (plate supports) when washing pots. Release the foldable tines by pressing the catch inwards before adjusting their position. Washing large plates Move foldable tines and their mounts to widen the distance between the tine rows to adapt the lower basket to plates with a diameter greater than 25 cm. 14Cutlery basket Place cutlery with the handles facing down, except for knives, and spread them out as much as possible. Ensure that spoons do not stack inside each other. The cutlery basket is best placed in the middle at the front of the lower basket to best utilise dishwashing performance from the unique spray nozzle, which is intended for the cutlery basket. WARNING! Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets. Fold-down section for small items The cutlery basket has a fold-down section in the middle for small items, or small shafts, such as electric whisk attachments. 15Using the dishwasher Add detergent Press to open

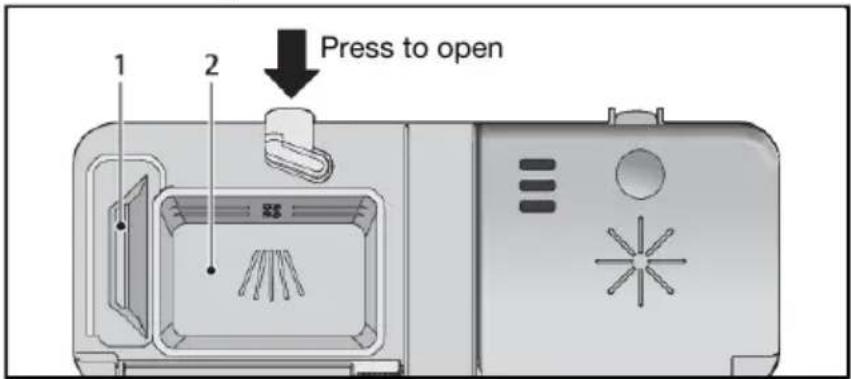

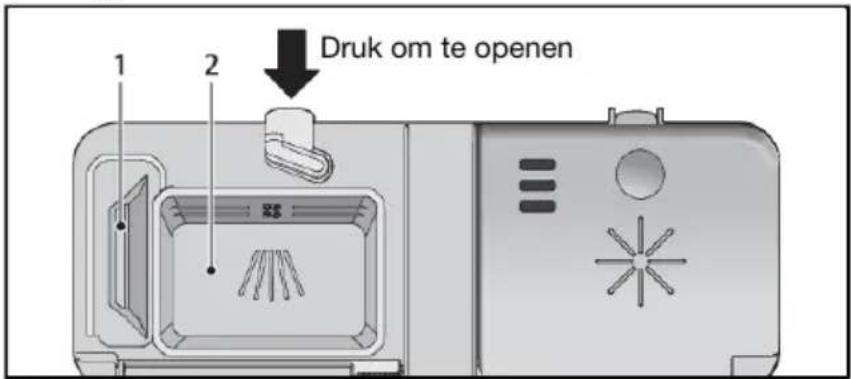

1. Prewash detergent compartment

2. Main wash detergent compartment

Detergent is added according to water hardness. Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. Too much detergent can result in less effective dishwashing and also entails greater environmental impact. The detergent compartment must be dry when adding detergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent. NOTE! Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively. Dishwasher tablets Halve the tablet if it is difficult to close the dispenser lid. There is a risk that the detergent will not be released properly if the lid is tight and will not open correctly. NOTE! Dishwasher tablets are not recommended for short programs (less than 75 minutes). Use powder or liquid dishwasher detergent instead. All-in-one detergent There are many types of all-in-one detergents on the market. Read through the directions for these products carefully. When using an all-in-one detergent that contains rinse aid, you can activate the setting TAB. Note that the salt compartment must be filled with salt. NOTE! Optimal washing and drying results are achieved by using normal detergent together with separately dispensed rinse aid and salt. 16Starting the dishwasher Select program mode Select option Open the door and press the main power switch. Select program The main power switch Open the door and press the main power switch. Also turn on the water tap if it is turned off. Select program Eco is always pre-selected. To select another program, press the navigation button or until the desired program is shown on the display. Select a program to suit the type of dishes and how dirty they are. Eco This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign. You can read more about greener dishwashing in the chapter Greener dishwashing. Universal An effective program for daily use for slightly dried leftovers. (This program is not intended for burnt food, such as on oven dishes.) Time program The program adapts to the specified running time or finish time. With this program it is important to choose a time suited to how dirty the dishes are. Slightly dirty dishes0:15-0:45 Normally dirty dishes1:00-1:30 Very dirty dishes2:00-2:30 Press the option button to set the desired program time. Rinse and hold Used to rinse dishes while you wait for the dishwasher to become fully loaded. Plastic A program intended for washing plastic items that are dishwasher safe. This program has an extra long drying cycle. Porcelain and glasses can also be washed. Hygiene This program is ideal to use where demands on hygiene are extra high, e.g. for baby bottles and cutting boards. The temperature is high both in the main wash and in the final rinse. 17Crystal glass A gentle dishwashing program with a low temperature for washing fragile items made of crystal/glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. See also Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried leftovers can also be washed using this program. Preheated (30 min + 20 min) A dishwashing program with a preheating phase (the water is heated for 30 min) and a dishwashing phase (the dishes are washed for 20 min). This program is designed to offer you a quick dishwashing program that can be started within 180 minutes of the preheating phase ending. You can load the dishes throughout the preheating phase. This program is not intended for dried leftovers. Remember to scrape off larger food particles before loading the dishwasher. Step 1: To start the preheating phase, press Start/Stop. Close the door. (The spray arms rotate and the status light is red while the water is being preheated.) Wait until the status light turns blue. When you open the door, the display shows "Preheating phase completed", indicating that the dishwashing phase is ready to be started within 180 minutes. Step 2: To start the dishwashing phase, press Start/Stop. Self-cleaning Self-cleaning program for hygienic cleaning of the dishwasher tub, spray arms and spray pipes. This program should be run (with no dishes in the machine) using normal dishwasher detergent or citric acid. Special dishwasher cleaners are also available on the market. For the removal of limescale deposits, see Dishwasher tub in the chapter Care and cleaning. Upper half You can use this program if you only have cups and glasses that need washing in the upper basket. Slightly dirty dishes can also be placed in the lower basket. Lower half You can use this program when you only want to wash plates and cutlery in the lower basket. Slightly dirty dishes can also be placed in the upper basket. Select program mode To select a program mode, press the program mode selector until the desired mode is shown on the display. The available program modes vary between programs. Green mode The dishwasher uses less energy and water. The program time is extended. Speed mode The program time is shortened, but the dishwasher uses more energy. Night mode Lower noise level during the dishwashing program. The program time is extended. Intensive mode The higher temperature dissolves grease on very dirty dishes, but the dishwasher consumes more energy and water. The program time is extended. Select option To select an option, press the option button until the desired option is shown on the display. The available options vary between programs. 18Auto Open

The dishwasher door opens automatically, which shortens the program time and improves the drying results. Wait until the dishwasher indicates that the program has ended and the dishes have cooled before unloading the dishwasher. The drying time for the Auto Open option varies between programs. NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically. Doing so may damage the door lock mechanism. Wait at least 5 minutes before closing the door. Delayed Start When you select Delayed Start, the dishwasher will start 1-24 hours after you have pressed the button Start/Stop and closed the door.

1. Press the button once to activate Delayed Start. Press the button several times – or hold it in – to

set the desired number of hours.

2. Press Start/Stop and close the door. The timer counts down and the dishwasher starts after the

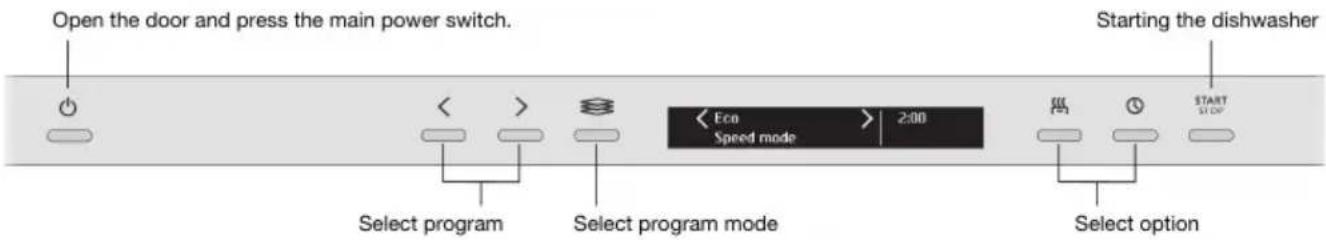

selected delay. If you want to cancel the Delayed Start option, open the door then press and hold Start/Stop for three seconds. Starting the dishwasher Press Start/Stop until the display shows "Program started, close door". This indicates that the dishwasher is ready to start. Close the door properly, otherwise the dishwasher will not start. If the dishwasher is not started or the door is not closed within 2 minutes of the last button press, the machine switches off. Remaining time Once you have selected a program, program mode and options, the time the program took when last used is displayed.

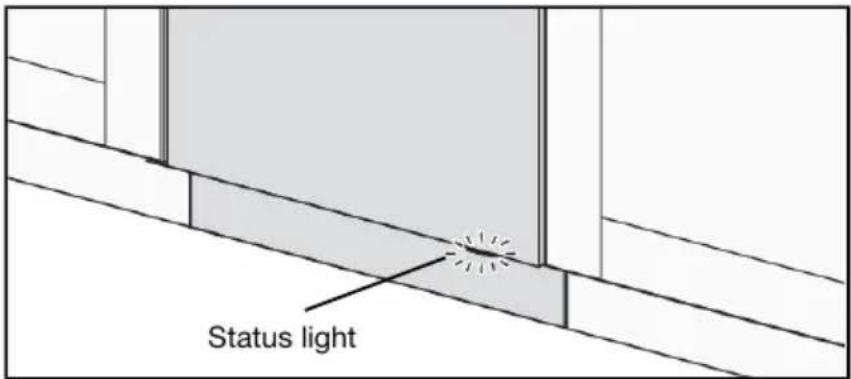

The Auto Open option is pre-selected for some programs. 19Status light The status light at the bottom on the dishwasher provides information by means of 3 different colours. Status light Blue - Load more The program has started, but you can still load more dishes. Red - Do not load You should not load more dishes (risk of poorer dishwashing result). A flashing light indicates that the door has been opened while a program is in progress. If it flashes when the door is closed, an error has occurred. See the chapter Troubleshooting. Green - Unload The dishwashing program is finished. The status light stays on for 15 minutes. Stopping or changing a program If you want to change program after starting the dishwasher, open the door then press and hold Start/Stop for three seconds. Add more detergent if the lid of the detergent dispenser has opened. Then select a new program, press Start/Stop and close the door. If you want to load more dishes Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the program. If the dishwasher is turned off due to a power failure If the dishwashing program was not finished, the interrupted program continues when power is restored. NOTE! During drying, the program is interrupted if the power is cut or the door is open for more than 2 minutes. Once the program has finished The end of the program is indicated by one short signal from the buzzer. The chapter Settings describes how to change this function. Moreover, the end of the program is indicated by the status light turning green. The dishwasher switches off automatically after the program ends. Shut off the water tap after each use. 20How to get the best drying results

• Fully load the dishwasher.

• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for plastic items.

• Top up with rinse aid or increase the rinse aid dosage level.

• Activate the Auto Open option.

• Activate the Extra Dry setting. See the chapter Settings.

• Allow the dishes to cool before unloading the dishwasher. Unloading the dishwasher Hot porcelain is more fragile. Leave the dishes to cool in the dishwasher before unloading them. Unload the lower basket first to avoid any water drops from the upper basket falling onto the dishes in the lower basket. 21Program chart Consumption values

Final rinse Number of rinses Main wash Pre- washes Program mode / Option Deter- gent, compart- ment 2 (ml) Program Water cons. (liter) Hot water

Energy (approx. kWh) Dish- washing time (approx. hrs:min) Energy (approx. kWh) Dish- washing time (approx. hrs:min)

3.50.010:070.010:07--- °C1Rinse and hold

9.00.60:451.01:0570 °C270 °CSelf-cleaning

Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more. The values for the Eco program are accurate, others are indicative only.

Connection to cold water, approx. 15 °C.

Connection to hot water, approx. 60 °C.

This program is suitable for washing normally dirty dishes and is the most effective program in terms of combined energy and water consumption. This program is used to assess compliance with EU legislation on ecodesign.

Auto Open 22Settings Open the dishwasher's Settings menu To open the dishwasher's Settings menu, press the Navigation button or until Settings menu is shown on the display and confirm your selection with the mode selector . To exit the dishwasher's Settings menu, select Exit and confirm your selection with the mode selector

Language1 Programs can be shown or hidden in the menu. Choose between On and Off. Eco On/Off Universal On/Off Time program On/Off Rinse and hold On/Off Plastic On/Off Hygiene On/Off Crystal glass On/Off Preheated On/Off Self-cleaning On/Off Upper half On/Off Lower half On/Off Select programs2 (Eco cannot be hidden in the menu.) You can activate the child lock (button lock) to prevent children from starting the dish- washer. On/OffChild lock3 To temporarily deactivate and activate the child lock, press and hold the left Navig- ation button and the option button Delayed Start for 3 seconds. 23Table continued from last page OptionsSettings For adjusting the contrast of the display.Contrast top dis- play1/2/3/4 Display settings4 This sound is used to confirm each button press. 0/1/2/3Feedback sound5 The buzzer indicates when a dishwashing program has ended. 0/1/2/3Buzzer volume6 Error messages are always indicated by a loud buzzer. Setting for rinse aid dosage. The rinse aid dispenser can be adjusted between 0 (Off) and 5 (High dosage). 0/1/2/3/4/5/TABRinse aid7 Increase the rinse aid dosage:

• If the dishes have water marks. Decrease the rinse aid dosage:

• If the dishes have a sticky white/blue film.

• If the dishes are streaked.

• Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water. When using an all-in-one detergent that contains rinse aid, you can activate the set- ting TAB. Super rinse adds two extra rinses.On/OffSuper rinse8 Activated in the following programs: Eco Universal Plastic Upper half Lower half Activate the setting Extra Dry to improve the drying results. Energy consumption is slightly increased. On/OffExtra Dry9 Activated in the following programs (although not if the Auto Open option is selected): Eco Universal Plastic Upper half Lower half Adjusting the water softener. Select a setting depending on the hardness of the water supply. It is important that this setting is correct! 0/1/2/3/4/5/6/7/8/9Water hardness10 24loading-circle-1Care and cleaning Top up rinse aid When the rinse aid needs topping up, the above symbol lights on the display. Press to open

1. Open the rinse aid compartment lid.

2. Carefully top up with rinse aid to the level marked max.

3. Wipe up any splashes of rinse aid around the compartment.

4. Close the lid firmly.

After topping up, it may take a while before the symbol goes out. Top up salt When the salt needs topping up, the above symbol lights on the display. Salt compartment lid

1. Unscrew the salt compartment lid.

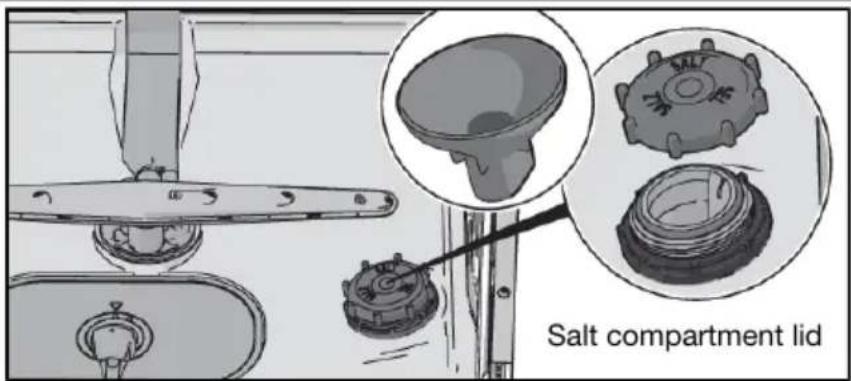

2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. (Water is only

needed the first time.)

3. Then add salt, a maximum of 630 gram, until the compartment is full. Use large grain salt or special

4. Wipe up any excess salt so that the lid can be screwed on firmly.

After topping up, it may take a while before the symbol goes out. WARNING! In order to avoid rust stains a dishwashing program must be started immediately after adding salt. Never pour dishwasher detergent into the salt compartment. This destroys the water softener! 26Cleaning the filters Coarse filter The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Coarse filter

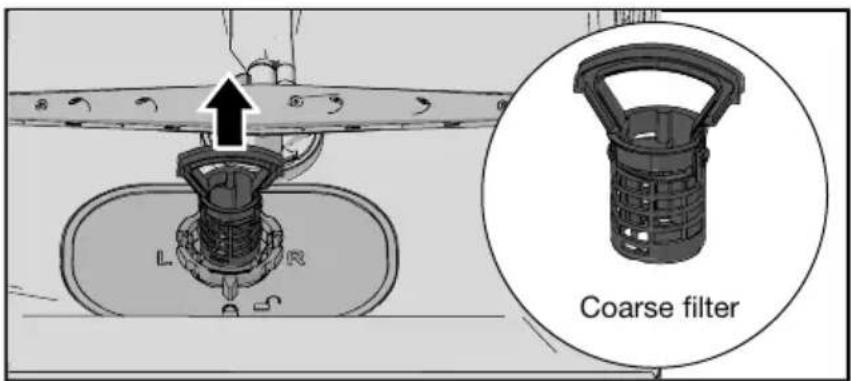

1. Lift the coarse filter by the handle.

2. Empty the coarse filter.

3. Refit the coarse filter. Press it down until it clicks into place.

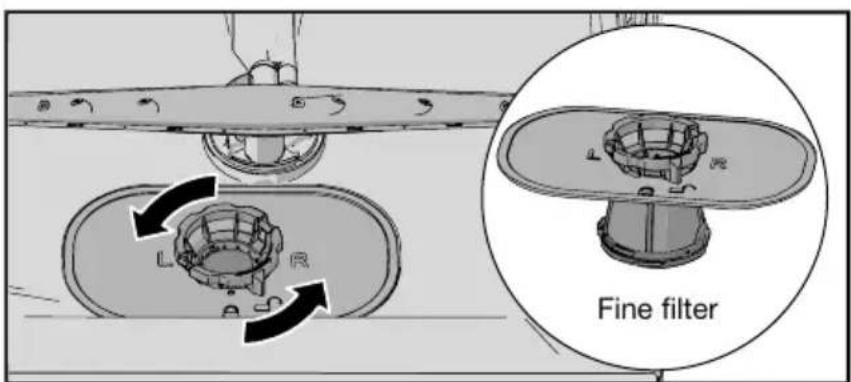

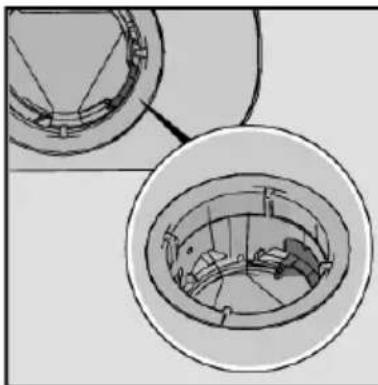

Fine filter Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used. Fine filter

1. Turn the locking ring anticlockwise and lift the fine filter straight up.

2. Clean the fine filter.

3. Refit the fine filter and turn the locking ring clockwise to its stop position. Check that the edges

seal properly. Remember to refit the coarse filter! 27Check that the coloured stop on the right in the bottom drain is in place. NOTE! Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The dishwasher must not be used without the filters in place! Cleaning the spray arms Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath. To facilitate cleaning you can remove the spray arms. Remember to fit them firmly back into place afterwards. Top spray arm

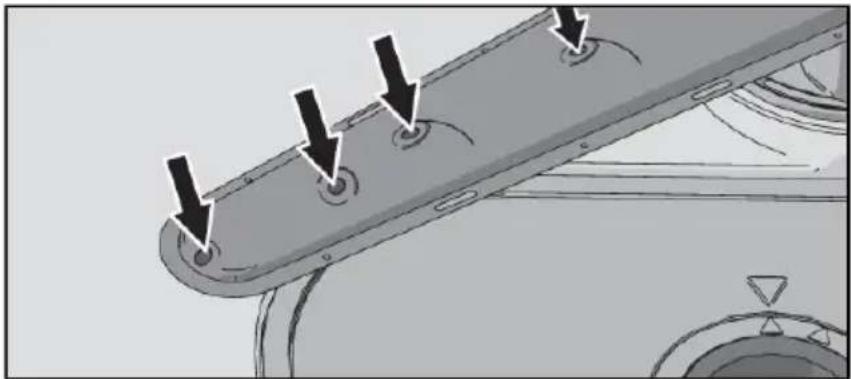

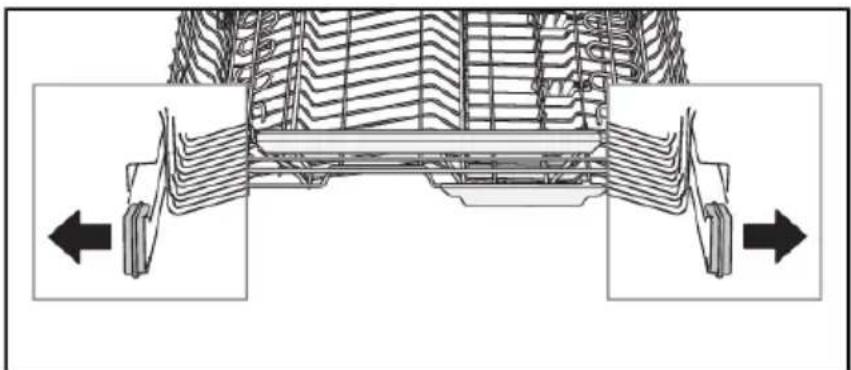

• The upper basket must be removed before the top spray arm can be released. Pull out the upper basket and turn the basket catch on each runner outwards (see illustration). The basket can now be removed.

• Pull out the top cutlery tray. Press the top spray arm up and unscrew the spray arm bearings counterclockwise to remove the spray arm. 28Upper spray arm

1. Pull out the upper basket.

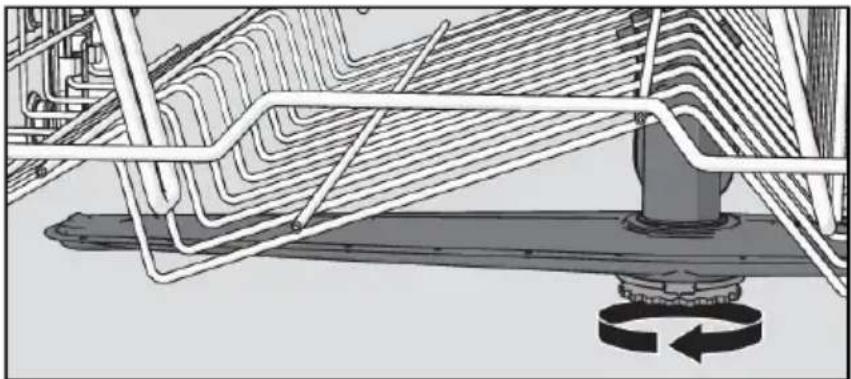

2. Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket.

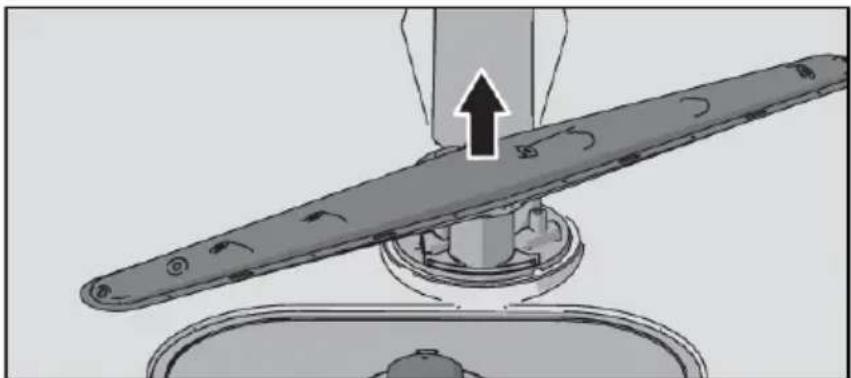

• Pull the lower spray arm straight up to release it. Clean the dishwasher inside and out Door and door seal Open the door. Clean the sides of the door and the door seal regularly with a slightly damp cloth. Clean the door seal at the lower front edge of the dishwasher with a washing-up brush. Display and buttons Keep the display and the buttons clean. If necessary, wipe them with a dry or slightly damp cloth. Never use cleaning products – they may scratch the surface. Use the main power switch to switch off the dishwasher when cleaning the buttons to avoid activating them inadvertently. Dishwasher tub The dishwasher tub is made of stainless steel and is kept clean through normal use (when used regularly). If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Self-cleaning program with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine). Special dishwasher cleaners are also available on the market. 29Remove blockages Unblocking the drainage pump If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump. Such blockages are easily removed.

1. Turn off the machine using the main power switch and unplug it from the wall socket.

2. Remove the coarse filter and the fine filter.

3. Scoop out the water from the dishwasher tub.

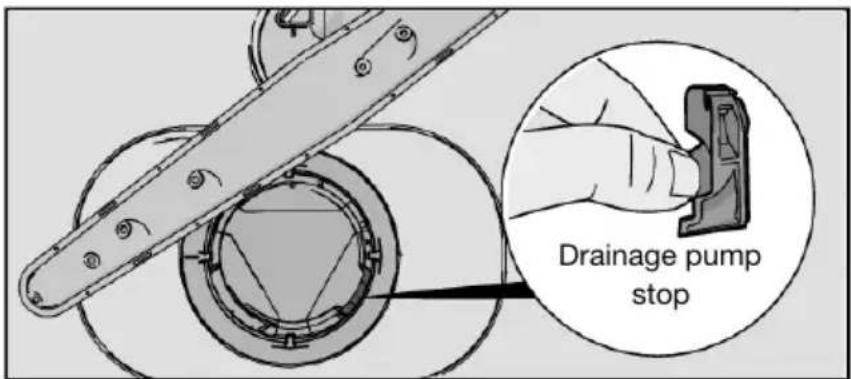

4. In order to inspect the drainage pump, remove the coloured stop on the right in the bottom drain.

5. Turn the pump wheel located behind the drainage pump stop by hand. Carefully remove any items.

6. Refit the drainage pump stop along with the fine and coarse filters.

7. Plug the machine in again.

If the dishwasher still does not start and a whirring sound is heard, the overflow protection has been activated.

• Remove the plug from the wall socket.

• Call the service department. Drainage pump stop NOTE! Do not forget to refit the drainage pump stop. Unblocking the inlet hose filter If the water supply contains small particles, the outer filter on the inlet hose may become blocked, which results in Water inlet fault.

1. Turn off the machine using the main power switch and unplug it from the wall socket.

2. Turn off the water tap.

3. Unscrew the inlet hose.

4. Carefully remove the outer filter from the inlet hose and clean it.

5. Refit the filter and check that the gasket is correctly positioned.

6. Screw the inlet hose firmly into place.

307. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for

a while and check that the connection is watertight. Outer filter on inlet hose Gasket 31Troubleshooting ActionType of fault on the display Clear the drainage pump. See the chapter Care and cleaning. If the problem persists, call the service department. Overfilling water 1F10 See “Water remains in the dishwasher” in the table “Problem” below. If the problem persists, call the service department. Water outlet faultF11 Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call the service department. Water inlet faultF12 Turn off the water tap and call the service department.Inlet valve leakageF40 Clean the coarse and fine filters. Check that the outer filter on the inlet hose is not blocked. If the problem persists, call the service department. Clean the filters (Water level fault) F52 Turn off the water tap and call the service department.Overfilling water 2F54 Call the service department.Circ. pump faultF56 Check that the water tap is on. Check that the outer filter on the inlet hose is not blocked. See Unblocking the inlet hose filter in the chapter Care and cleaning. If the problem persists, call the service department. Water inlet faultF67 Press any button to clear the error message. ActionPossible causesProblem Wait a moment then try again.You have pressed the buttons too soon after opening the door. The buttons do not react when pressed. See the chapter Settings.Child lock (button lock) activ- ated. Open the door. The buttons only react to use when the door is open. The door is closed. Clean with a dry or slightly damp cloth. The buttons are dirty. Check that the baskets are cor- rectly positioned horizontally. The baskets are not correctly positioned. Cannot close door. Check that the dishes are not blocking the baskets from slid- ing properly into place. Check the door lock. If it does not click into place and lock, open the door. The door lock does not click in- to place and lock. 32Table continued from last page ActionPossible causesProblem Press and hold the left navigation button and the Auto Open option button until the display starts flashing. Wait until it stops flashing (60 seconds). Close the door. Check that the door lock clicks into place and locks. Press and hold Start/Stop until the display shows "Program started, close door". The Start/Stop start button has been pressed for too short a time. The dishwasher does not start. Check.The door is not properly closed. Close the door and wait. After a while, the dishwasher contin- ues the program. You have opened the dishwash- er to add more dishes while a program is in progress. Check the door lock. If it has not clicked into place and locked, open the door. The door lock has not clicked into place and locked. Press and hold the left navigation button and the Auto Open option button until the display starts flashing. Wait until it stops flashing (60 seconds). Close the door. Check that the door lock clicks into place and locks. Check.A fuse/circuit breaker has been tripped. Check.The plug is not plugged into the wall socket. Check.The water tap is turned off. Check.Overflow/leaks. Turn off the water tap. Pull out the plug and call the service department. A whirring sound (the drainage pump) is heard from the dish- washer and does not stop when the main power switch is turned off. Press and hold Start/Stop for three seconds if you want to cancel the Delayed Start option. Check that the Delayed Start option has not been selected. Check that the dishes are not blocking the spray arms. The spray arms do not rotate.The dishes are not clean. Clean the spray arms. See the chapter Care and cleaning. Spray arm holes or bearings blocked. 33Table continued from last page ActionPossible causesProblem Select a program with Intensive mode. The program will use a higher temperature to dissolve grease on very dirty dishes. Unsuitable dishwashing pro- gram. Dose according to water hard- ness. Far too much or far too little detergent results in poorer dishwashing results. Incorrect detergent dosage. Avoid large packages.Old detergent. Detergent is a perishable product. Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets. Dishes loaded incorrectly. Place dishes to sit steady.Glasses and cups have toppled over during the program. Check that the filter handle is locked in the stop position. The filters are not fitted cor- rectly. Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. Drainage pump stop missing. Rinse off these types of food- stuffs if not starting the dish- washer immediately. Use the Rinse and hold program. Some foodstuffs, such as mus- tard, mayonnaise, lemon, vineg- ar, salt and dressings, can cause spots on stainless steel if left for too long. Spots on stainless steel or sil- ver. In order to avoid marks and tar- nishing, separate dishes made from different metals, such as silver, stainless steel and alu- minium. All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes. See the chapter Settings.Incorrect rinse aid dosage set- ting. Spots or films on the dishes. Switch all-in-one detergents or deactivate the setting TAB and top up with salt and separate rinse aid. See Rinse aid in the chapter Settings. The setting TAB is activated and all-in-one detergent with insuffi- cient drying effect is being used. Top up with salt. See the chapter Care and cleaning. Salt compartment empty. See Water hardness in the chapter Settings. Incorrect water softener setting. 34Table continued from last page ActionPossible causesProblem Check that the salt compart- ment lid is properly tightened. Otherwise call the service de- partment. The water softener is leaking salt. Wash crystal at a low temperat- ure and with a conservative amount of detergent. Contact the detergent manufacturer. Too high temperature and/or too much detergent can cause etching on crystal. Unfortu- nately, this cannot be repaired, only prevented. Reduce the dosage. See the chapter Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water. Rinse aid dosage setting too high. The dishes have a sticky white/blue film. Use a detergent with a bleach- ing agent. Lipstick and tea can be difficult to wash off. Spots left after washing. The detergent compartment must be dry when adding deter- gent. The detergent compartment was damp when adding deter- gent. Detergent residue in the deter- gent compartment after dish- washing. Check that the dishes are not preventing the detergent com- partment from opening. The detergent compartment has been blocked. Check that the dishes are placed securely. Spin the spray arms to make sure they can ro- tate. The dishes are not correctly placed or the spray arms are not rotating. Rattling sound when dishwash- ing. Clean the coarse and fine filters.The filters are blocked.Water remains in the dishwash- er. Check that the filter handle is locked in the stop position. The filters are not fitted cor- rectly. Clean the drainage pump. See the chapter Care and cleaning. Debris in the drainage pump. Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning. Drainage pump stop missing. Check that the hose is free from kinks and sharp bends. Kink in drainage hose. Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diamet- er of at least 14 mm. Blocked drainage hose. Clean with washing-up brush and low foaming cleaner. Dirt around the seals and in corners. Bad odour in dishwasher. 35Table continued from last page ActionPossible causesProblem Run a program with a high tem- perature once or twice a month. Or run a self-cleaning program. See Self-cleaning in the chapter Using the dishwasher. Low temperature programs have been selected for a pro- longed period. Select a program with Intensive mode. The program will use a higher temperature to dissolve grease on very dirty dishes. Or run a self-cleaning program once or twice a month. See Self-cleaning in the chapter Us- ing the dishwasher. Low temperature programs have been selected for a pro- longed period. Grease deposits in the dish- washer. Activate the Auto Open option.The Auto Open option is not activated. The dishes are not dry enough. Fully load the dishwasher.The dishwasher is not fully loaded. Top up with rinse aid or in- crease the rinse aid dosage level. See the chapter Settings. Rinse aid needs topping up or dosage is set too low. Switch all-in-one detergents or deactivate the setting TAB and top up with salt and separate rinse aid. See Rinse aid in the chapter Settings. The setting TAB is activated and all-in-one detergent with insuffi- cient drying effect is being used. 36Installation [mm] Nominal dimensions. Actual measurements may vary. *Remove the locking nuts when installing in a recess measuring 860-861 mm. **Door length. It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. Safety instructions

• Connections to electricity, water and drainage must be performed by a qualified professional.

• Always follow applicable regulations for water, drainage and electricity.

• Take care during installation! Wear protective gloves! There must always be two people!

• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.

• Before screwing the dishwasher into place, test the dishwasher by running the Rinse and hold program. Check that the dishwasher fills with water and drains. Check also that none of the connections leak. WARNING! Turn off the water supply when installing the dishwasher! The plug must be disconnected or power to the socket turned off while the work is carried out! Setup

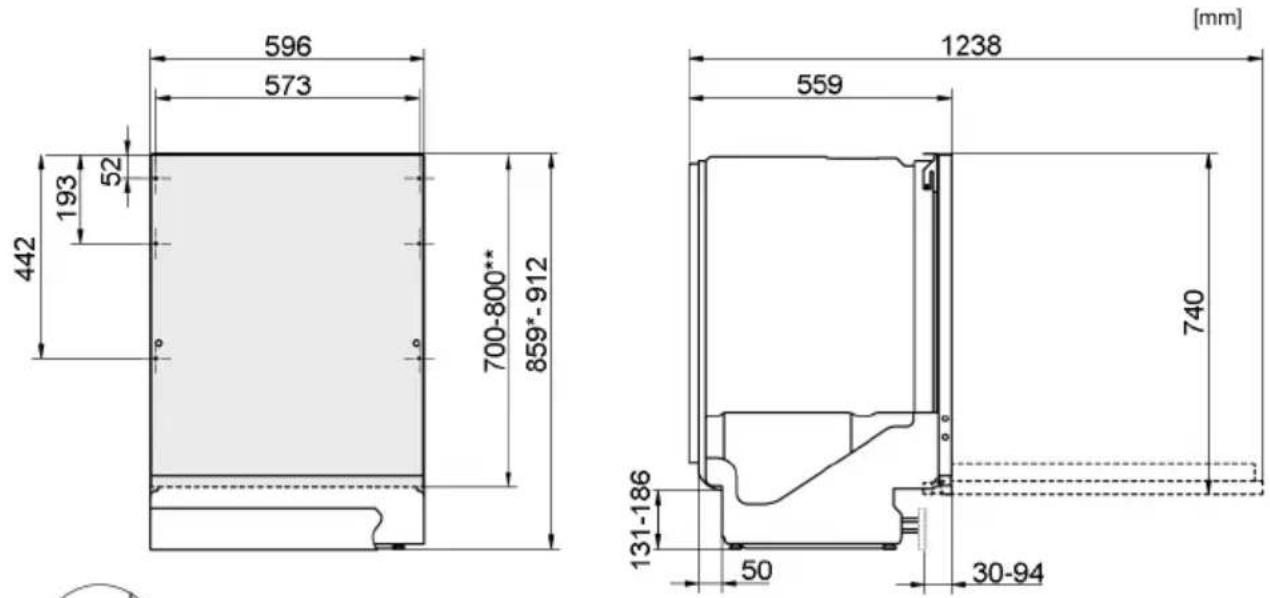

• The recess and connection dimensions are included in the separate installation instructions. Check that all dimensions are correct before starting the installation. Note that the height of the cover door can be adjusted to match other fittings.

• Make sure the area on which the dishwasher is to be installed is firm. Adjust the adjustable feet so that the dishwasher is level. Tighten the lock nuts.

• If the dishwasher is built-in the surrounding furnishings must be resistant to any condensation from the dishwasher. 37• Affix the protective film (packed in the document bag) to the underside of the worktop. The protective film is to protect the worktop from moisture.

• Check that the machine is installed such that the door opens freely, otherwise door lock functionality may be disrupted.

• Note that the door springs may need adjusting after a cover door has been fitted. Adjust the left and right door springs equally until the door is evenly balanced. Drainage connection See the separate installation instructions for necessary information. This dishwasher is suitable for installing in a raised recess (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose runs to a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent the machine from being emptied of water during the wash cycle. The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14 mm. The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins. No part of the drainage hose may be more than 950 mm above the bottom of the dishwasher. Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks. Connection to water supply Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses. The supply pipe must be fitted with a water tap (stopcock). The water tap must be easily accessible, so that the water can be shut off if the dishwasher has to be moved. Once the installation is complete, turn on the water tap and allow the pressure to settle for a while. Check that all connections are watertight. Connection to cold water supply Connect the dishwasher to the cold water supply if the building is heated using oil, electricity or gas. Connection to hot water supply Connect the dishwasher to the hot water supply (max. 70 °C) if the building is heated using an energy-efficient means such as district heating, solar power or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption. NOTE! Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. See Fragile dishes in the chapter Loading the dishwasher. Electrical connection Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply. The dishwasher must be connected to an earthed socket. 38The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord! NOTE! Any repair and maintenance pertaining to safety or performance should be done by trained experts. 39Service Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.pelgrim.nl. Our website also has information about spare part availability and what you can repair yourself. When making contact, provide the details on the serial number plate. Include the article number (1) and the serial number (2). Please note that non-professional repairs may risk user safety and affect the warranty. 40Technical data and energy labelling Technical data 859-912 mmHeight: 596 mmWidth: 559 mmDepth: 55 kg

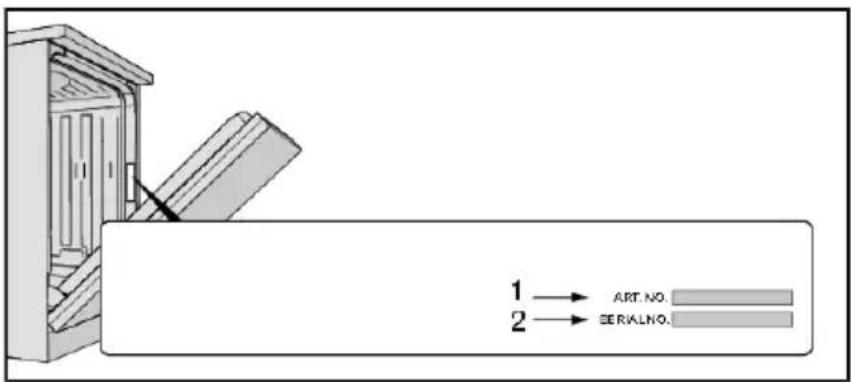

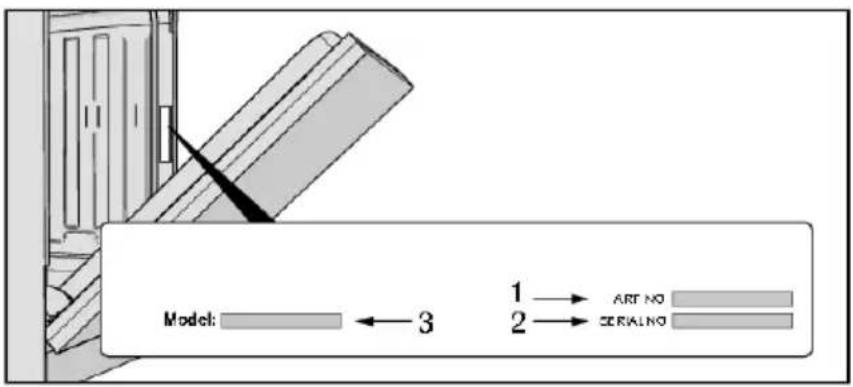

Number of standard place settings: 0.03–1.0 MPaWater pressure: See serial number plateElectrical connection: See serial number plateRated power:

Weight can vary due to different specifications.
