USER MANUAL ZDT16020FA ZANUSSI

Simple line drawing of a washing machine on a dark background (no text or symbols)

ZDT16020FA

Line drawing of a mechanical component with a circular inset showing a central feature (no text or symbols)

Diagram showing a mechanical assembly with a rotating component and a base, no text or symbols present.

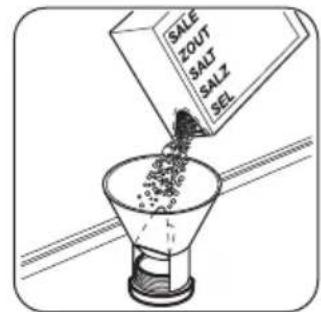

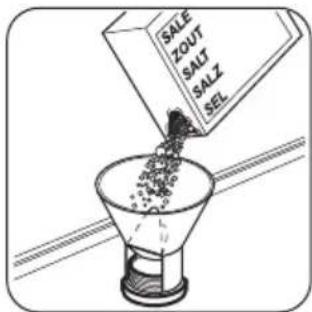

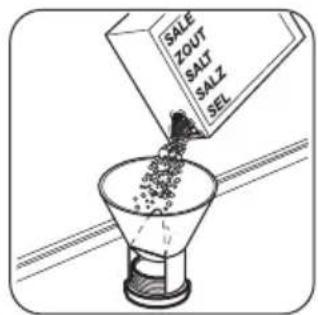

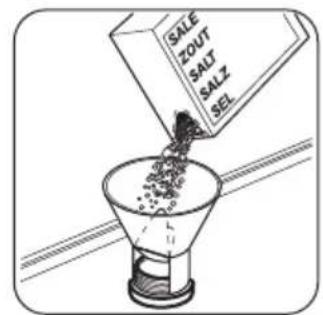

SALE ZOUT SALT SALZ SEL

Illustration of a hand cleaning a wall with a rotating knob (no text or symbols)

Line drawing of a refrigerator interior with a highlighted internal component (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating motion or direction (no text or symbols)

Diagram showing a mechanical component with labeled parts A and a tool interacting with a shaft or rod inside a car intake.

Hand holding a device with a curved arrow pointing to a button (no text or symbols visible)

Line drawing of a refrigerator interior with a magnified inset showing the front portion of the door (no text or symbols)

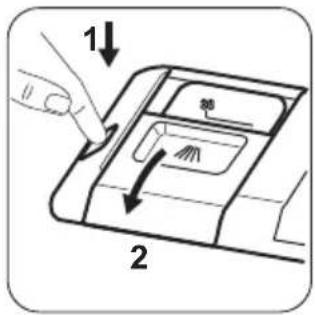

1 2

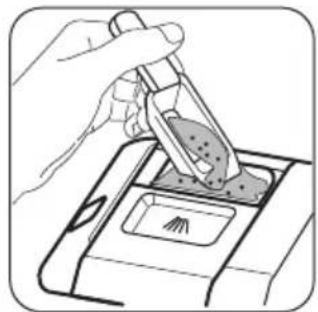

Illustration of a hand using a tool to apply granular material into a digital device (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

Line drawing of a refrigerator interior with a close-up inset showing the front portion of the tray (no text or symbols)

1 20 2

Diagram showing hands installing a component with an arrow labeled 'a' pointing to a device panel

Hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a folding panel with an arrow indicating rotation (no text or symbols)

DE DEUR OPENEN ALS HET APPARAAT IN WERKING IS

HET PROGRAMMA ANNULEREN

Simple line drawing of a door latch or latch mechanism with an arrow indicating rotation (no text or symbols)

AUTO ECO 50° 45°-70° 70° 45° 60°-A 30'

Diagram illustrating a medical procedure with labeled arrows and symbols, including a syringe, droplet, and a circular symbol with a 'no' arrow.

Line drawing of a refrigerator interior with an inset showing a close-up of the lid (no text or symbols)

Illustration of a hand holding a rolled-up document with a magnified view of the paper (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

B A

Illustration of a hand holding a curved object with a circular arrow, labeled 'C' (no text or symbols on the object itself)

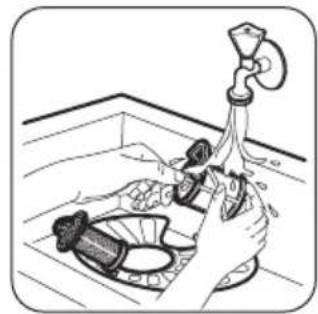

Illustration of hands washing a showerhead with a faucet, no text or symbols present

Illustration of a hand holding a curved object with a checkmark and arrow, no text or symbols present

Diagram showing a mechanical or electrical component with an inset image of a device labeled '1000' and '25-40'.

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to lift a valve on a ruler, with no visible text or symbols.

Technical diagram of a mechanical assembly with no visible text or symbols

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• Cleaning and user maintenance shall not be made by children without supervision.

GENERAL SAFETY

- This appliance is intended to be used in household and similar applications such as:

• farm houses; staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels, bed & breakfast and other residential type environments.

- Do not change the specification of this appliance.

- The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)

- Obey the maximum number of 13 place settings.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

• Do not keep the appliance door open without supervision to prevent to fall on it.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

SAFETY INSTRUCTIONS

INSTALLATION

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• This appliance complies with the E.E.C. Directives.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use fuse: 13 amp ASTA (BS 1362).

WATER CONNECTION

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

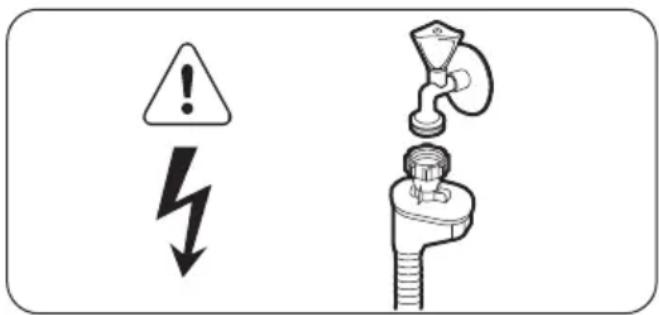

• The water inlet hose has a safety valve and a sheath with an inner mains cable.

Safety warning symbol and diagram showing a warning sign with lightning bolt and a valve above a plug

WARNING! Dangerous voltage.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

USE

• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

SERVICE

• Contact the Authorised Service Centre to repair the appliance. We recommend only the use of original spare parts.
• When you contact the Authorised Service Centre, ensure that you have the following information that is available on the rating plate. Model :

PNC :

Serial Number :

DISPOSAL

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

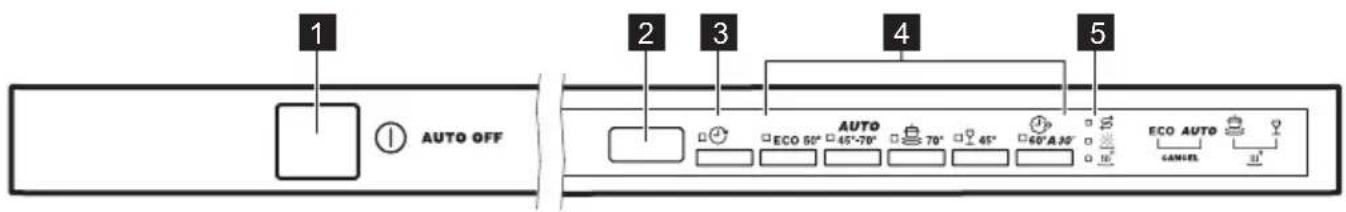

EASY START

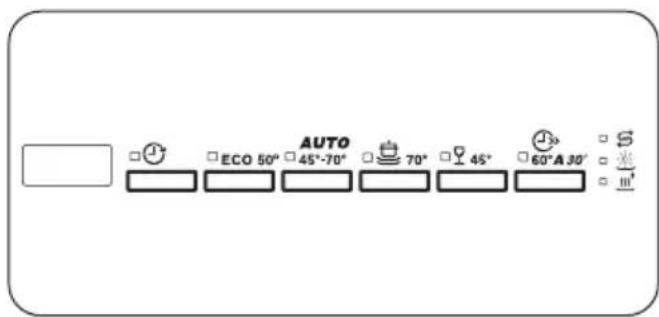

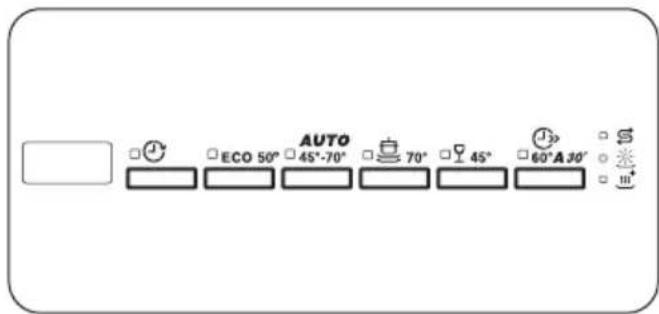

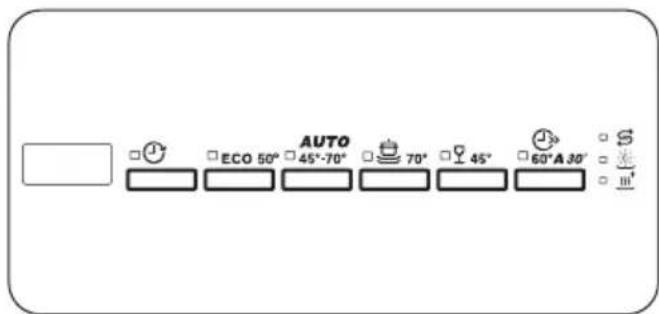

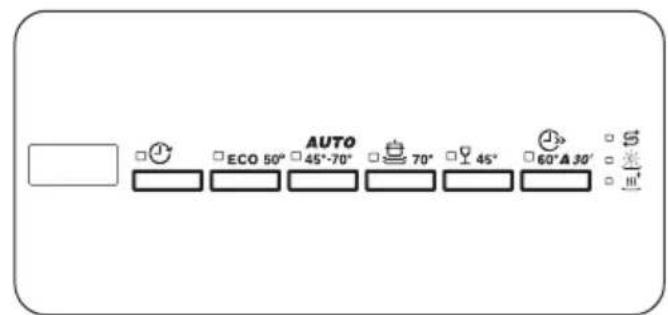

1 AUTO OFF 2 3 4 5 AUTO ECO 50° 45°-70° 70° 45° 60°A.30° ECO AUTO CANCEL

1 On/off button
2 Display
3 Delay button

4 Programme buttons
5 Indicators

INDICATORS

XtraDry indicator.

Salt indicator. It is always off while the programme operates.

Rinse aid indicator. It is always off while the programme operates.

PROGRAMMES

Programme	Degree of soilType of load	Programme phases Options
P1ECO 1)	Normal soilCrockery and cutlery	PrewashWash 50 °CRinsesDry	XtraDry
P2AUTO 2)	AllCrockery, cutlery, pots and pans	PrewashWash from 45 °C to 70 °CRinsesDry	XtraDry
P33)	Heavy soilCrockery, cutlery, pots and pans	PrewashWash 70 °CRinsesDry	XtraDry
P4 Normal or lightY	soilDelicate crockery and glassware	Wash 45 °CRinsesDry	XtraDry
Programme	Degree of soil Type of load	Programme phases Options
P5(4)	Fresh soilCrockery and cutlery	Wash 60 °CRinses	XtraDry

1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and the quantity of water, the energy consumption and the programme duration.
3) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

CONSUMPTION VALUES

Programme 1)	Water (l)	Energy (kWh)	Duration (min)
P1 10.2 0.932 225 ECO
P2 7 - 14 0.6 - 1.6 40 AUTO	160
P3 12.5 - 14.5 1.4 - 1.8	169 - 179
P4 12 - 14 0.7 - 0.9 75	-85
P5 10 0.9 30

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

INFORMATION FOR TEST INSTITUTES

For all the necessary information for test performance, send an email to: [e-mail]

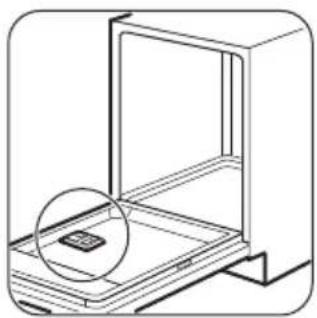

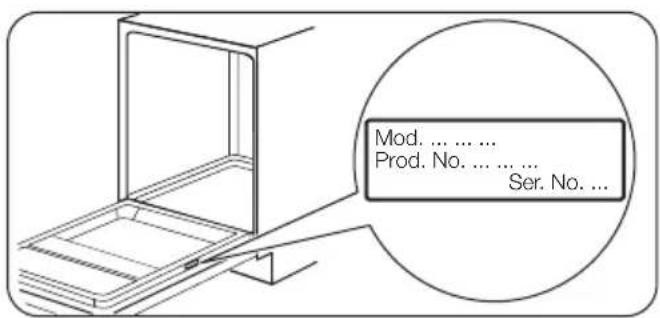

Write down the product number (PNC) that is on the rating plate.

SETTINGS

PROGRAMME SELECTION MODE AND USER MODE

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.

In user mode, the following settings can be changed:

• The level of the water softener according to the water hardness.
• The activation or deactivation of the rinse aid dispenser.

These settings will be saved until you change them again.

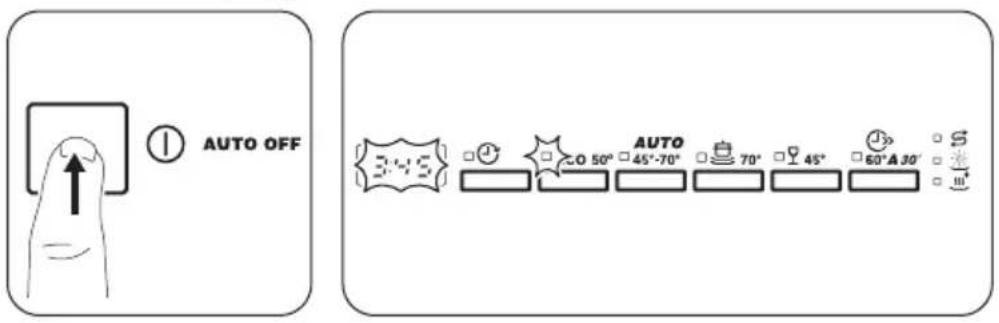

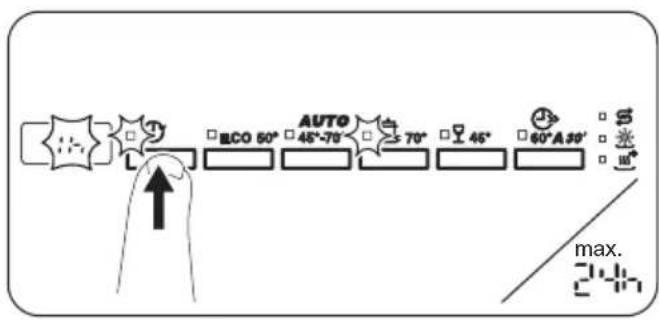

How to set the programme selection mode

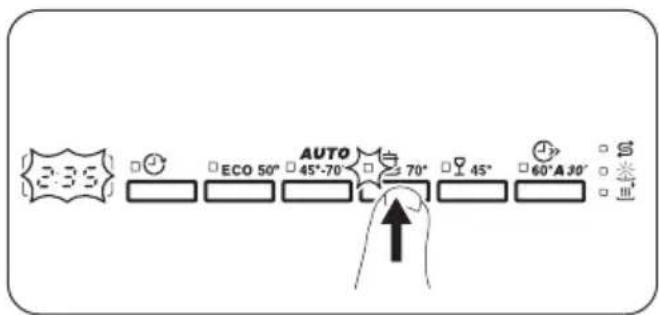

AUTO OFF 3:45° O 50° AUTO 45°-70° 70° 45° 60°A 30° 50°

The appliance is in programme selection mode when the programme indicator is on and the display shows the programme duration.

When the appliance is in programme selection mode, it is possible to set a programme and to enter the user mode.

If the control panel does not show this condition, do the cancel function.

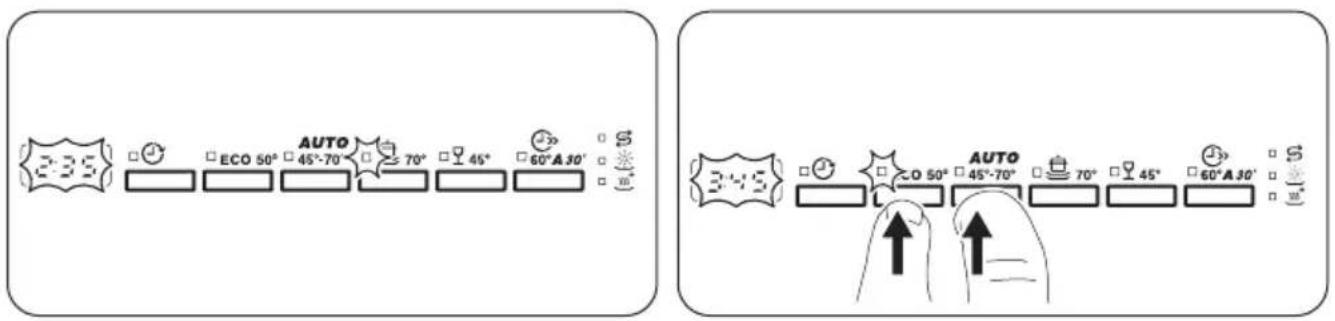

Cancel function

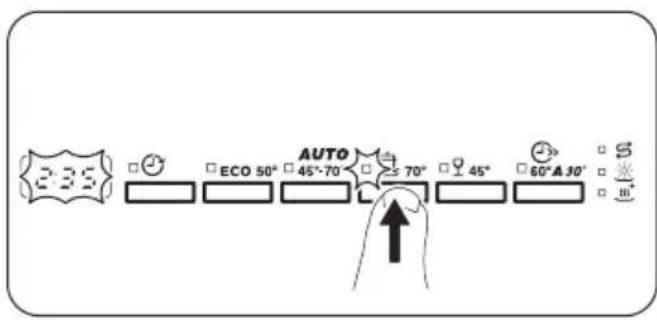

2:35 ECO 50° AUTO 45°-70° 70° 45° 60°A.30' 3:45 O 50° AUTO 45°-70° 70° 45° 60°A.30'

Press and hold simultaneously and until the appliance is in programme selection mode.

With this function you can cancel the running programme or the delay start.

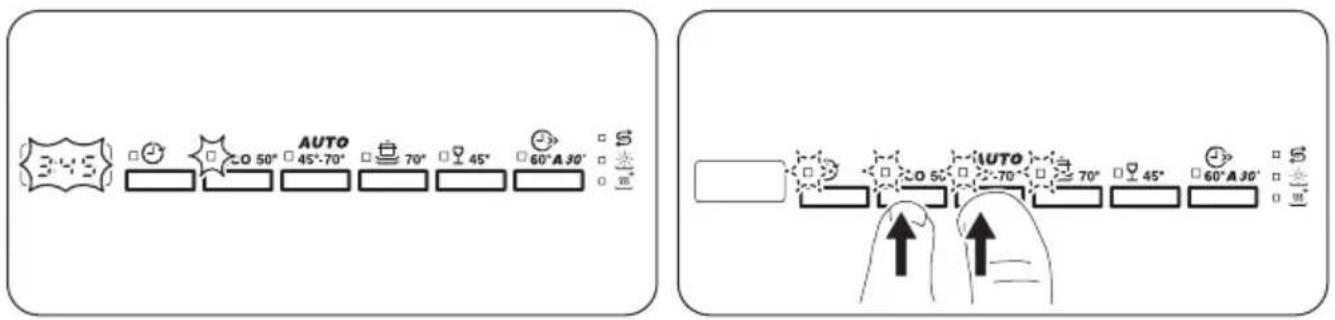

User mode

AUTO 345° 50° 45°-70° 70° 45° 60°A 30° O 50° AUTO 70° 45° 60°A 30°

Press and hold simultaneously and until the indicators, , and

start to flash and the display is blank.

ECO AUTO

THE WATER SOFTENER

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right

level of the water softener to assure good washing results.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol/l	Clarke de-grees	Water softener level
47 - 50 84 -	90 8.4 - 9.0 58 - 63 10
43 - 46 76 -	83 7.6 - 8.3 53 - 57 9
37 - 42 65 -	75 6.5 - 7.5 46 - 52 8
29 - 36 51 -	64 5.1 - 6.4 36 - 45 7
23 - 28 40 -	50 4.0 - 5.0 28 - 35 6
19 - 22 33 -	39 3.3 - 3.9 23 - 27			5^1)
15 - 18 26 -	32 2.6 - 3.2 18 - 22 4
11 - 14 19 -	25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18	0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5				1^2)

1) Factory setting.
2) Do not use salt at this level.

If you use multi-tablets containing salt and the hardness of your water is lower than 21^ dH, you can set the lowest water softener level. It deactivates the salt refill indicator.

If you use standard detergent or multi-tablets without salt, set the proper water hardness level to keep the salt refill indicator active.

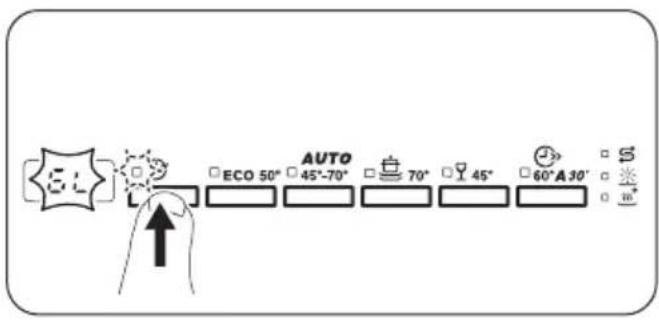

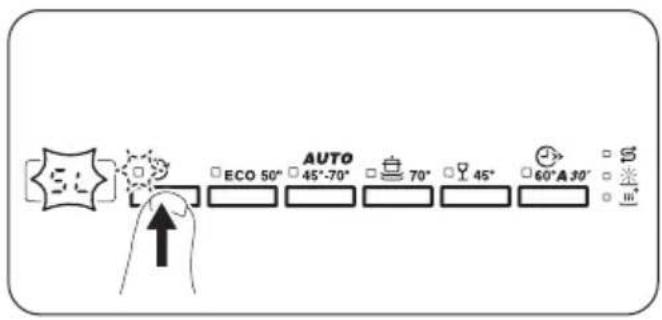

Adjusting the water softener

ECO 50° AUTO 45°-70° 70° 45° 60°A 30° m²

ECO ECO 50° AUTO 45'-70° 70° 45° 60°A 30° 15°

While the appliance is in user mode:

1. Press

• The indicators, ECO AUTO and go off
• The indicator continues to flash.

• The display shows the current setting: e.g. 5 ≤ level 5.

• Press ⏻ to change the setting. Each time you press the button, the level increases. After level 10 you will start again from level 1.

• Press the on/off button to confirm the setting.

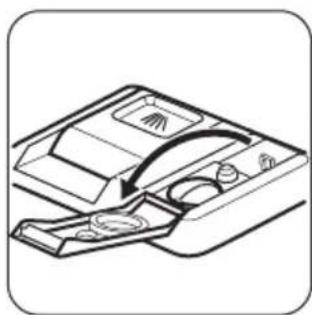

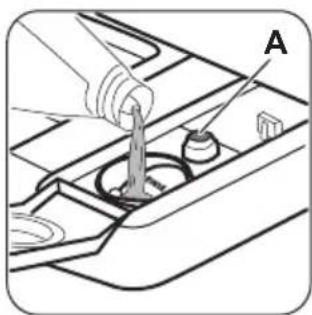

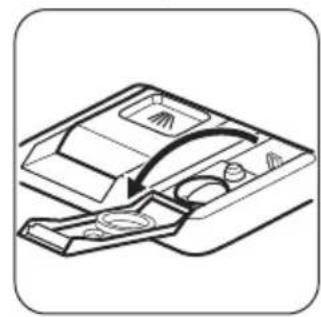

THE RINSE AID DISPENSER

The rinse aid helps to dry the dishes without streaks and stains.

The rinse aid is automatically released during the hot rinse phase.

You can set the released quantity of rinse aid between level 1 (minimum quantity) and level 6

(maximum quantity). Level 0 will deactivate the rinse aid dispenser and no rinse aid will be released.

Factory setting: level 4.

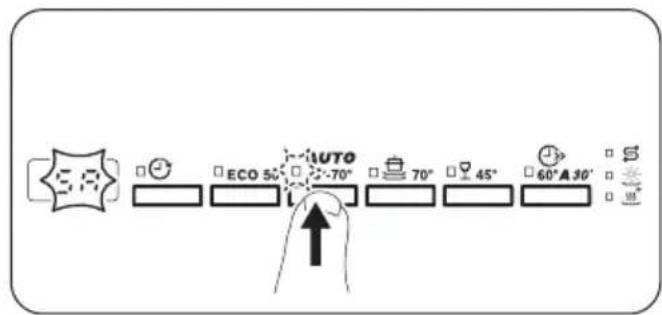

Adjusting the rinse aid level

ECO 50° AUTO -70° 70° 45° 60° A 30°

ECO 50° AUTO -70° 70° 45° 60° A 30°

While the appliance is in user mode:

1. Press .AUTO

2. The indicators, and go off.

3. The indicator continues to flash.

- The display shows the current setting: e.g. = level 4.

1. Press to change the setting.

2. Press the on/off button to confirm the setting.

THE RINSE AID EMPTY NOTIFICATION

When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If you are using multi-tabs containing rinse aid and you are satisfied with the drying result, you can deactivate the notification for refilling rinse aid.

However, we recommend that you always use rinse aid for best drying performance.

If you use standard detergent or multi-tablets without rinse aid, activate the notification to keep the rinse aid refill indicator active.

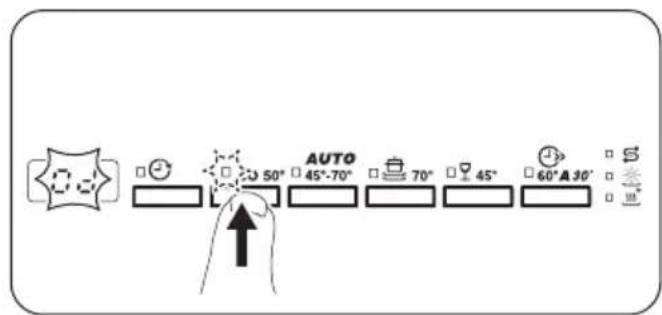

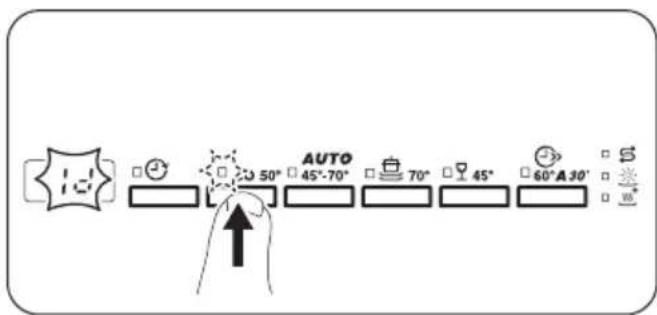

Deactivating the rinse aid dispenser

AUTO 50° 45°-70° 70° 45° 60°A 30°

AUTO 50° 45°-70° 70° 45° 60°A 30°

While the appliance is in user mode:

1. Press .ECO

- The indicators

AUTO and geof.

[NO TEXT]

- The indicator continues to flash.

- The display shows the current setting: rinse aid dispenser activated (factory setting).

1. Press to change the setting. = rinse aid dispenser deactivated.
2. Press the on/off button to confirm the setting.

ACOUSTIC SIGNALS

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.

There is also an acoustic signal that sounds when the programme is completed. By default this

acoustic signal is deactivated but it is possible to activate it.

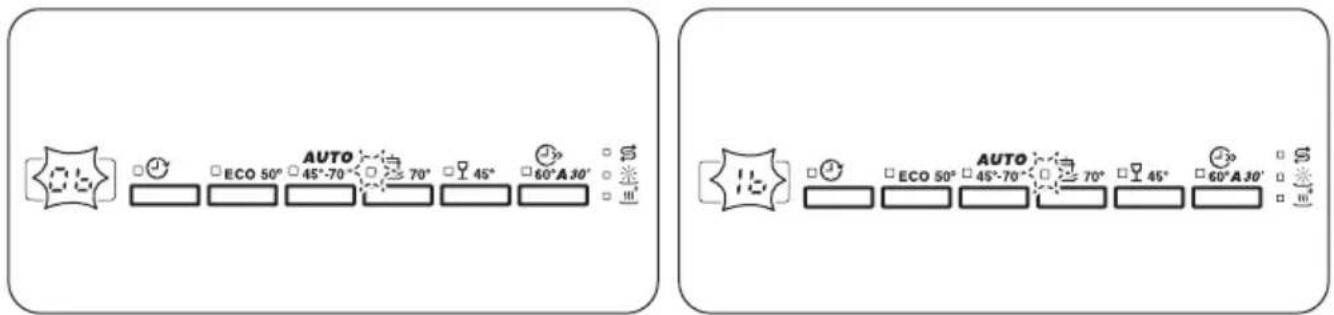

Activating the acoustic signal for the end of programme

AUTO ECO 50° 45°-70° 70° 45° 60°A 30°

By default this acoustic signal is deactivated but it is possible to activate it.

While the appliance is in user mode:

1. Press .

2. The indicators, and go off. ECO AUTO

3. The indicator continues to flash.

4. The display shows the current setting:

5. =acoustic signal off.

6. ≠acoustic signal on.

7. Press to change the setting.

8. Press the on/off button to confirm the setting.

OPTIONS

Desired options must be activated every time before you start a programme.

It is not possible to activate or deactivate options while a programme is running.

Not all options are compatible with each other. If you have selected non compatible options, the appliance will automatically deactivate one or more of them. Only the indicators of the options still active will stay on.

XTRADRY

Activate this option when you want to boost the drying performance. With the use of this option, the duration of some programmes, water consumption and the last rinse temperature can be affected.

The option XtraDry is not a permanent option and must be selected at every cycle.

How to activate XtraDry

Press and hold simultaneously and until the indicator comes on.

If the option is not applicable to the program, the related indicator does not come on or it flashes quickly for a few seconds and then goes off.

The display shows the updated program duration.

BEFORE FIRST USE

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance.

Do not use detergent and do not load the baskets.

When you start a programme, the appliance can take up to 5 minutes to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure will be repeated periodically.

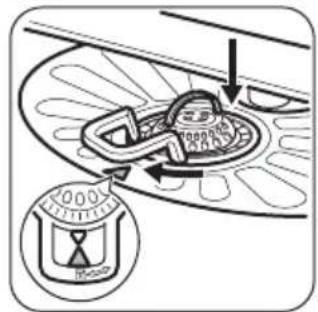

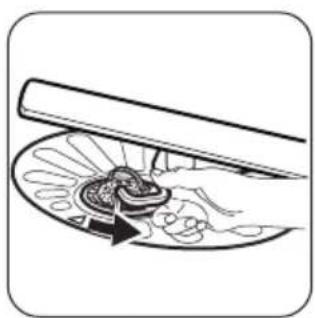

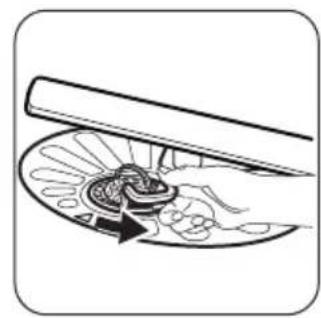

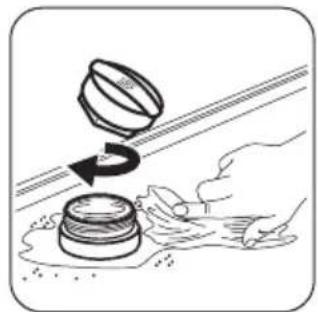

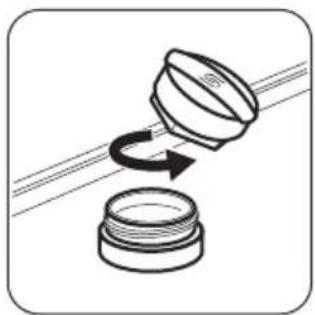

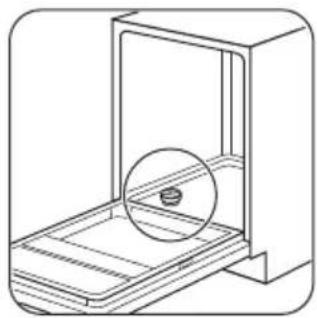

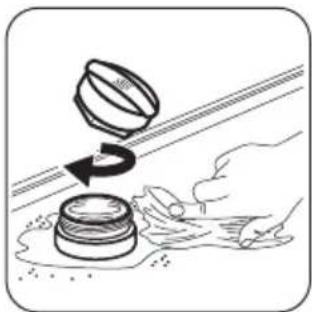

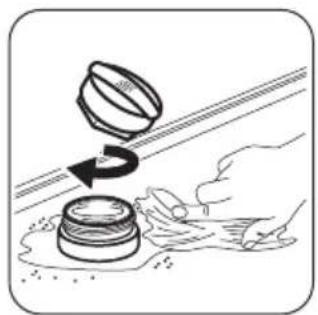

ADDING SALT

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

SALE ZOUT SALT SALZ SEL

Illustration of a hand using a tool to press or rotate a mechanical component, no text or symbols present

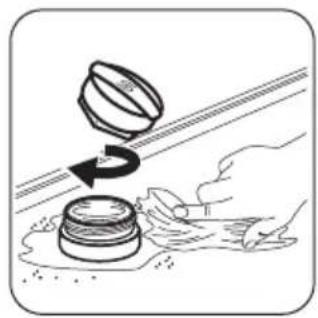

Before first use put one litre of water in the salt container.

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

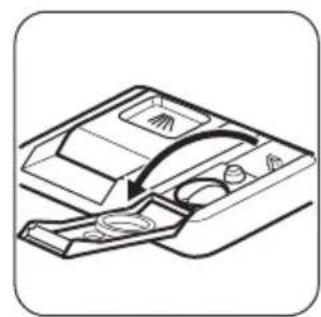

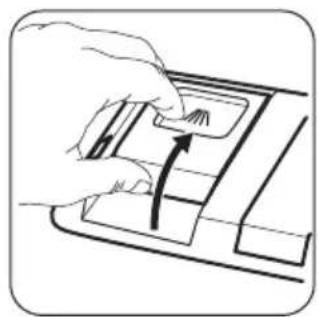

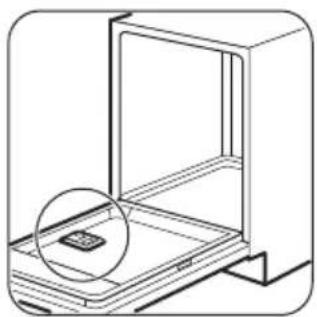

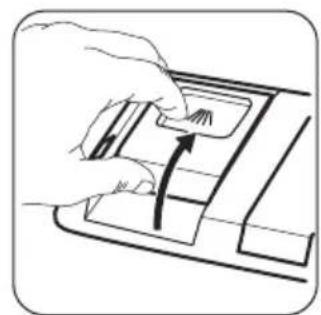

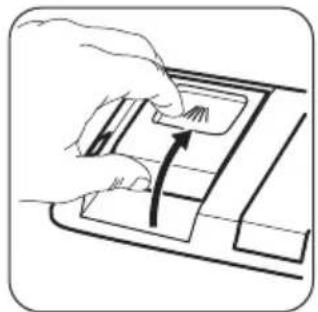

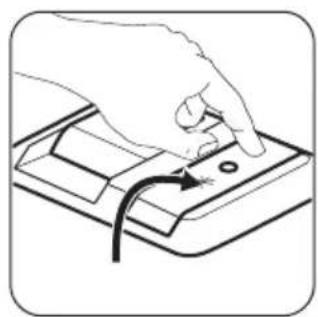

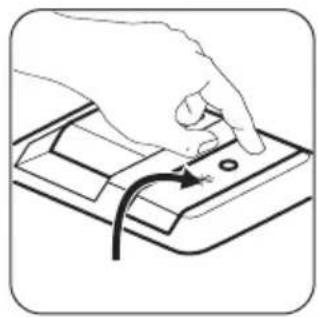

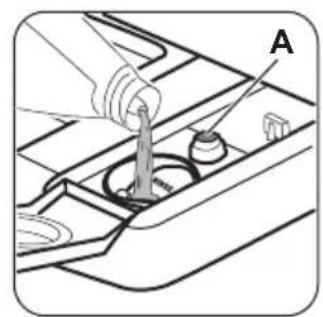

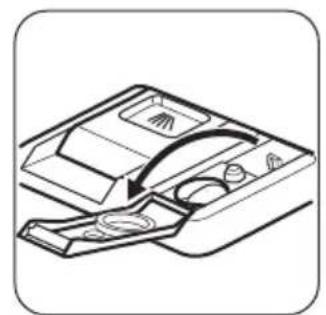

ADDING RINSE AID

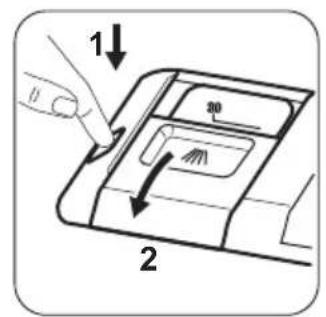

Line drawing of a refrigerator interior with a magnified inset showing the front portion of the door (no text or symbols)

Diagram of a device interior showing a handle and control panel with arrows indicating direction (no text or symbols)

Mechanical diagram showing a hand turning a shaft into a car intake manifold (no text or symbols visible)

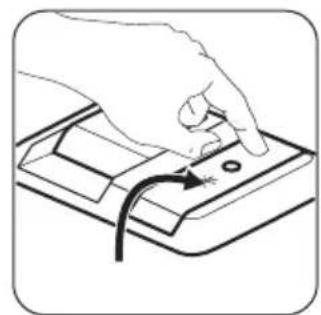

Illustration of a hand pressing a button on a device (no text or symbols visible)

The rinse aid helps to dry dishes without streaks and stains. It is automatically released during the hot rinse phase.

• Fill the rinse aid dispenser until the rinse aid dispenser reaches the marking "MAX".
• Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.

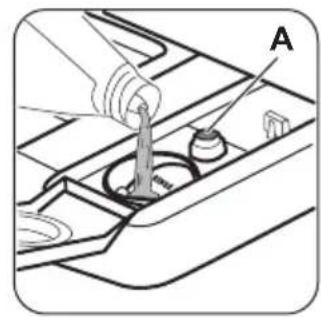

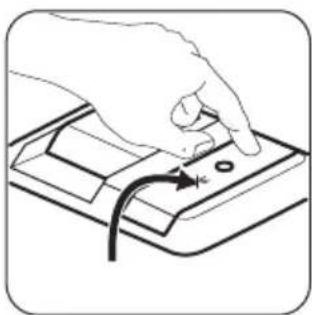

• Fill the rinse aid dispenser when the indicator (A) becomes clear.

DAILY USE

1. Open the water tap.
2. Press the on/off button to activate the appliance.

Make sure that the appliance is in programme selection mode.

• If the salt indicator is on, fill the salt container.
• If the rinse aid indicator is on, fill the rinse aid dispenser.

- Make sure that there is rinse aid in the rinse aid dispenser.

1. Load the baskets.

2. Add the detergent.

3. Set and start the correct programme for the type of load and the degree of soil.

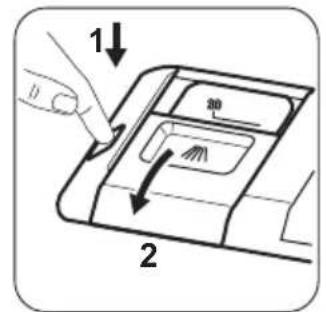

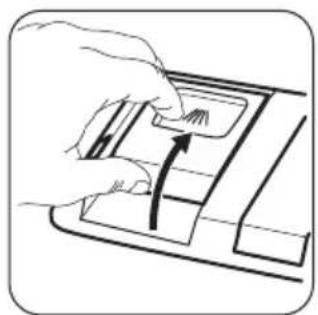

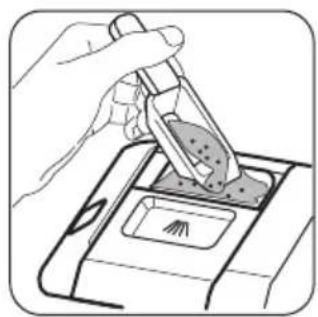

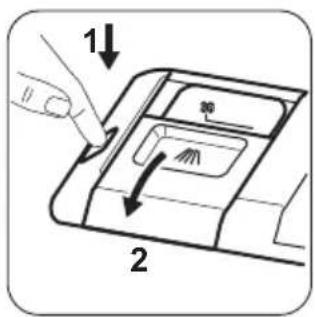

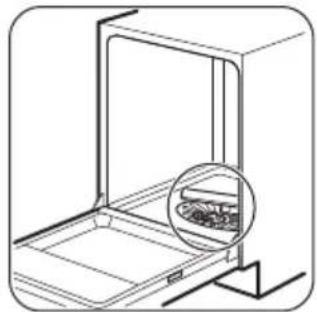

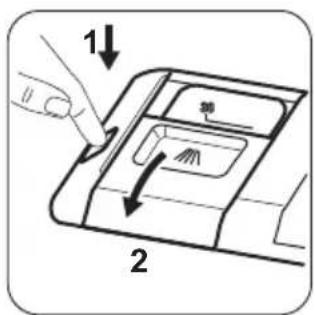

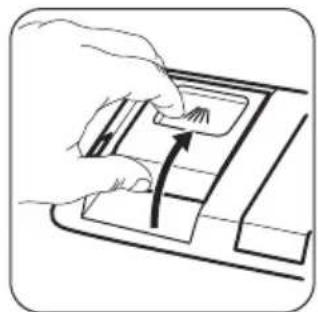

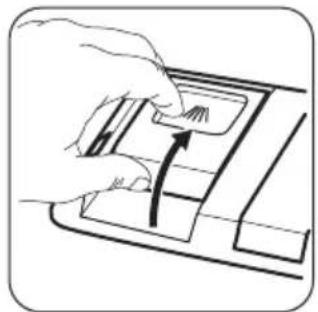

ADDING DETERGENT

Line drawing of a refrigerator interior with a highlighted section showing a small object (no text or symbols)

1 2

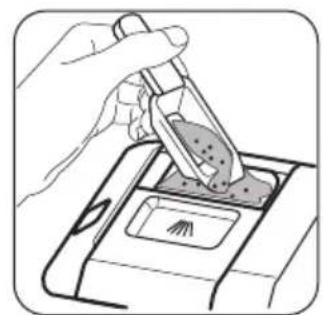

Illustration of a hand using a tool to apply granular material into a digital device (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door.

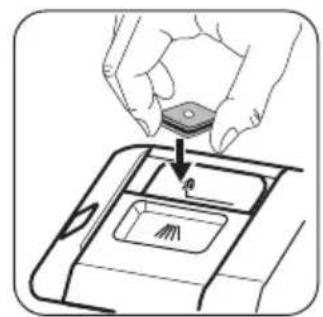

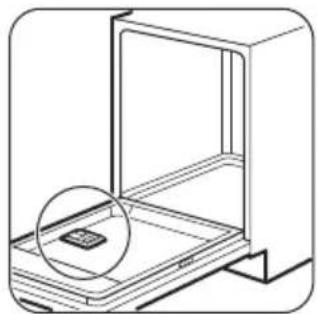

ADDING MULTI-TABLETS

Line drawing of a door with a small inset showing a grid on the floor (no text or symbols)

1 2

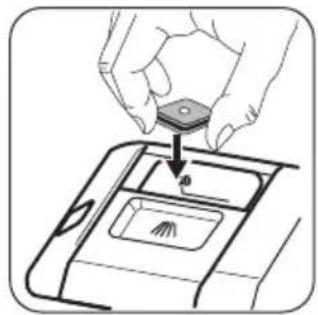

Illustration of hands holding a small object with a downward arrow pointing to a device component (no text or symbols visible)

Hand placing a button into a device component with an arrow indicating motion (no text or symbols)

• Do not fill the salt container and the rinse aid dispenser.
• Adjust the water softener to the lowest level.
• Set the rinse aid dispenser to the lowest position.

THE AUTO OFF FUNCTION

This function decreases energy consumption by deactivating automatically the appliance when it is not operating.

The function comes into operation:

• 5 minutes after the completion of the programme.
• After 5 minutes if the programme has not started.

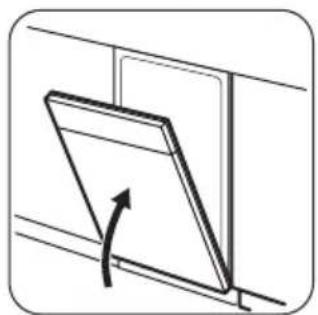

STARTING A PROGRAMME

AUTO OFF

2:35 ECO 50° 45°-70° AUTO 70° 45° 60°A 30°

Simple line drawing of a door frame with an arrow indicating rotation (no text or symbols)

1. Keep the appliance door ajar.

2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.

3. Press the programme button until the indicator of the programme you want to set comes on. The display shows the programme duration.

4. Set the applicable options.
5. Close the appliance door to start the programme.

OPTION DELAY

2:35 ECO 50° 45°-70° AUTO 70° 45° 60°A.30' 5

AUTO 80° 50° 45°-70° 70° 46° 60°A 90° max.

1. Set the programme.
2. Press until the display shows the delay time you want to set (from 1 to 24 hours).
3. Close the appliance door to start the countdown.

When the countdown is completed, the programme starts.

OPENING THE DOOR WHILE THE APPLIANCE OPERATES

If you open the door while a programme is running, the appliance stops. It may affect the energy consumption and the programme duration. When you close the door, the appliance continues from the point of interruption.

If the door is opened for more than 30 seconds during the drying phase, the running programme will end.

When you cancel the delay start you have to set the programme and options again.

Press and hold simultaneously ECO and AUTO until the appliance is in programme selection mode.

CANCELLING THE PROGRAMME

Press and hold simultaneously and

AUTO until the appliance is in programme selection mode.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

END OF THE PROGRAMME

Simple line drawing of a door latch or latch mechanism with an arrow indicating rotation (no text or symbols)

AUTO ECO 50° 45°-70° 70° 45° 60°A 30°

Diagram illustrating a water spray or droplet impact on a faucet, showing liquid droplets and an arrow indicating flow direction.

When the programme is completed and you open the door, the appliance is automatically deactivated. Close the water tap.

GENERAL

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
• Always use the whole space of the baskets.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3in1", "4in1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

USING SALT, RINSE AID AND DETERGENT

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• Multi-tablets are usually suitable in areas with a water hardness up to 21 °dH. In areas exceeding this limit, rinse aid and salt must be used in addition to the multi-tablets. However, in areas with hard and very hard water we recommend to use solo-detergent (powder, gel, tablets without additional functions), rinse aid and salt separately for optimal cleaning and drying results.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

WHAT TO DO IF YOU WANT TO STOP USING MULTI-TABLETS

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.

2. Make sure that the salt and rinse aid containers are full.

3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.

4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid dispenser.

LOADING THE BASKETS

• Only use the appliance to wash items that are dishwasher-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove larger residues of food from the dishes into the waste bin.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that glasses do not touch other glasses.
• Put cutlery and small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
• Make sure that the spray arms can move freely before you start a programme.

BEFORE STARTING A PROGRAMME

Make sure that:

• The filters are clean and correctly installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tablets).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

UNLOADING THE BASKETS

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged.
2. First remove items from the lower basket, then from the upper basket.

At the end of the program water can still remain on the sides and on the door of the appliance.

WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

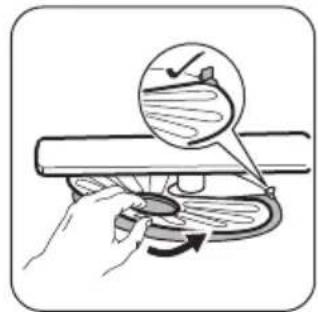

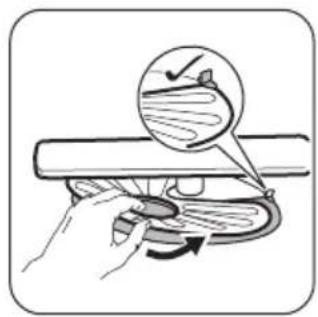

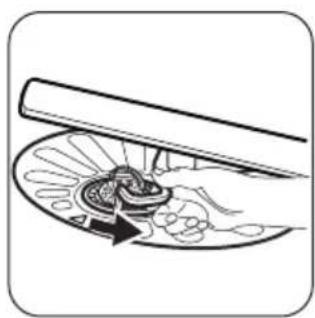

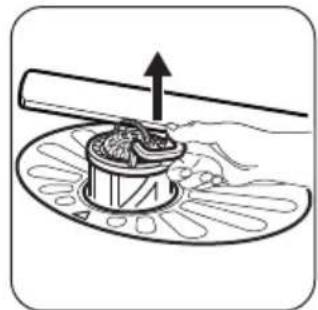

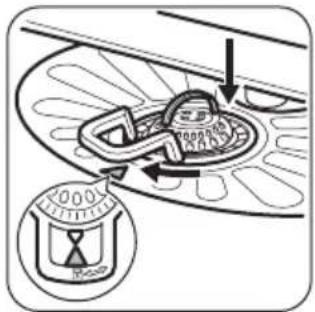

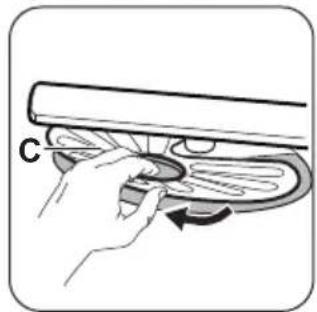

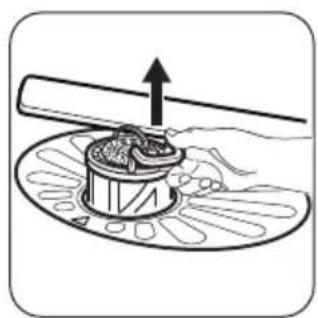

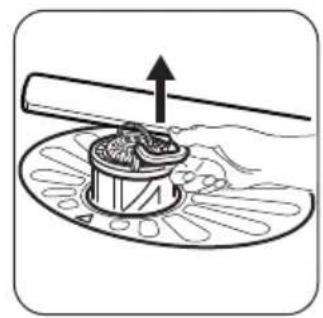

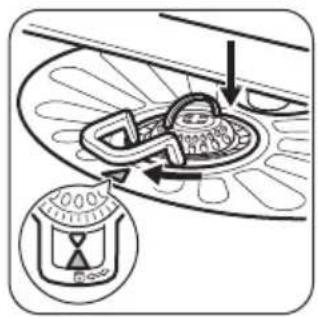

CLEANING THE FILTERS

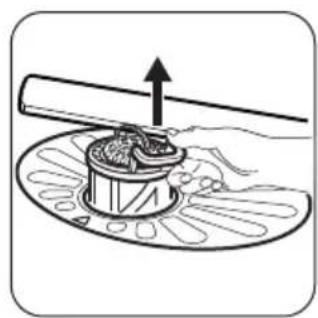

Line drawing of a refrigerator interior with an inset showing a close-up of the lid (no text or symbols)

Diagram of a hand holding a rolled-up sheet with a curved arrow indicating rotation or movement (no text or symbols)

Diagram of a cooking step showing a bowl with meat being rolled into a pan (no text or symbols)

B A

Illustration of a hand holding a curved object with a label 'C' and an arrow indicating rotation (no text or symbols on the object itself)

Illustration of a hand washing a showerhead into a sink with a water bottle (no text or symbols)

Illustration of a hand holding a curved object with a magnified circular detail showing a checkmark (no text or symbols present)

Diagram showing a car interior with a hand valve and a magnified view of the dashboard dial.

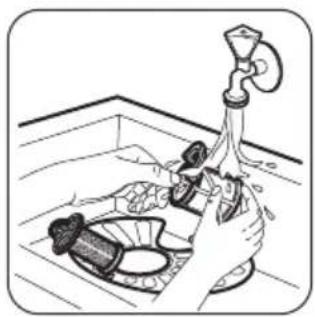

• Make sure that there are no residues of food or soil in or around the edge of the sump.

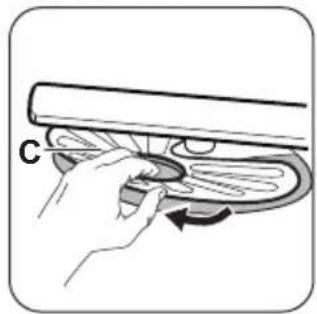

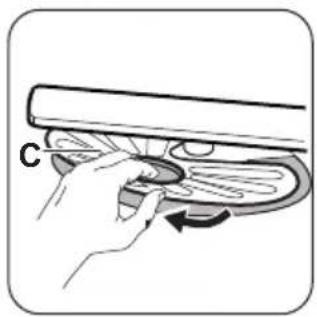

• Put back in place the flat filter (C). Make sure that it is correctly positioned under the 2 guides.
• Reassemble the filters (A) and (B).

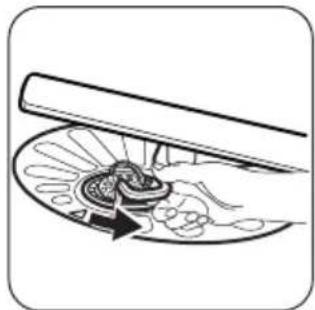

• Put back the filter (A) in the flat filter (C). Turn it clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance

CLEANING THE SPRAY ARMS

Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

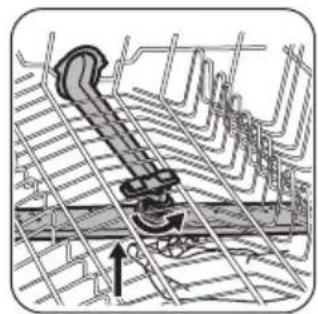

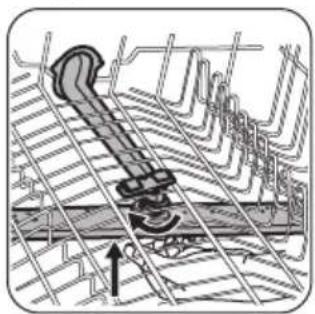

CLEANING THE UPPER SPRAY ARM

We recommend to clean regularly the upper spray arm to avoid soil to clog the holes. Clogged holes can cause unsatisfactory washing results.

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to lift a pipe with a faucet (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

• Pull out the upper basket.

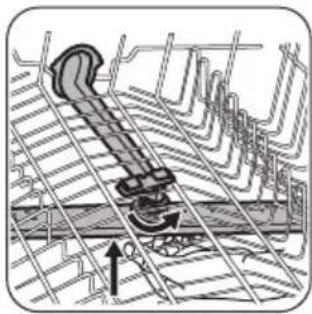

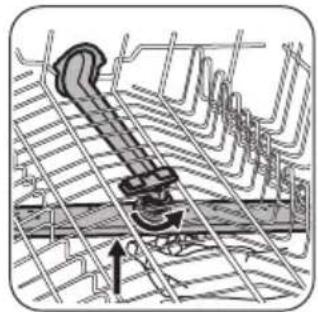

• To disengage the spray arm from the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it clockwise.

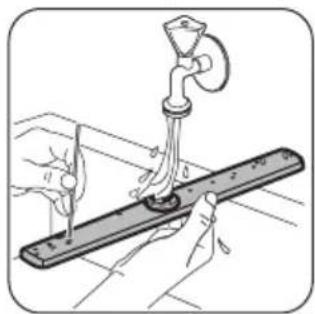

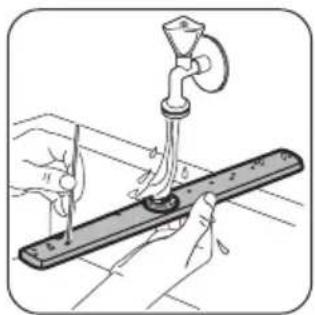

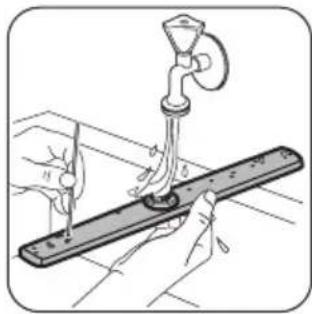

• Wash the spray arm under running water. Use a thin pointed tool, e.g. toothpick, to remove particles of soil from the holes.

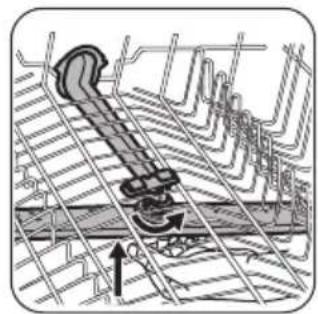

• To engage again the spray arm to the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it counterclockwise until it locks into place.

EXTERNAL CLEANING

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

INTERNAL CLEANING

- Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.

• If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend to run long duration programmes at least 2 times per month.
• To maintain the performance of your appliance at its best, we recommend to use monthly a specific cleaning product for dishwashers. Follow carefully the instructions on the packaging of the product.

TROUBLESHOOTING

If the appliance does not start or it stops during operation. Before you contact an Authorised Service Centre, check if you can solve the problem by yourself with the help of the information in the table.

WARNING! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

With some problems, the display shows an alarm code.

The majority of problems that can occur can be solved without the need to contact an Authorised Service Centre.

Problem and alarm code Possible cause and solution
You cannot activate the appli-ance.	Make sure that the mains plug is connected to the mains sock-et.Make sure that there is no damaged fuse in the fuse box.
The program does not start. Make sure that the appliance door is closed.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.The display shows	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low.For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.The display shows 120	Make sure that the sink spigot is not clogged.Make sure that the filter in the outlet hose is not clogged.Make sure that the interior filter system is not clogged.Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.The display shows 130	Close the water tap and contact an Authorised Service Centre.
The appliance stops and starts more times during operation.	It is normal. It provides optimal cleaning results and energy sav-ings.
The program lasts too long. If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
The remaining time in the dis-play increases and skips nearly to the end of program time.	This is not a defect. The appliance is working correctly.
Small leak from the appliance door.	The appliance is not level. Loosen or tighten the adjustable feet (if applicable).The appliance door is not centred on the tub. Adjust the rear foot (if applicable).
The appliance door is difficult to close.	The appliance is not level. Loosen or tighten the adjustable feet (if applicable).Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	The tableware is not properly arranged in the baskets. Refer to basket loading leaflet.Make sure that the spray arms can rotate freely.
The appliance trips the circuit-beaker.	The amperage is insufficient to supply simultaneously all the ap- pliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use.Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

For alarm codes not described in the table, contact an Authorised Service Centre.

Once you have checked the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre.

THE WASHING AND DRYING RESULTS ARE NOT SATISFACTORY

Problem Possible cause and solution
Poor washing results.	Refer to "Daily use", "Hints and tips" and basket loading leaflet.Use more intensive washing programmes.Clean spray arm jets and filter. Refer to "Care and Cleaning".
Poor drying results. Tableware has been left for too long inside a closed appliance.There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level.Plastic items may need to be towel dried.For the best drying performance activate the option XtraDry.We recommend to always use rinse aid, even in combination with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.The quality of the rinse aid can be the cause.
The dishes are wet. For the best drying performance activate the option XtraDry.The programme does not have a drying phase or has a drying phase with low temperature.The rinse aid dispenser is empty.The quality of the rinse aid can be the cause.The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.Keep the dishwasher door ajar for some time before removing tableware.
The interior of the appliance is wet.	This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing. Use the detergent for dishwashers only.There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.
Traces of rust on cutlery. There is too much salt in the water used for washing. Refer to "The water softener".Silver and stainless steel cutlery were placed together. Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the end of the programme.	The detergent tablet got stuck in the dispenser and therefore was not completely washed away by water.Water cannot wash away the detergent from the dispenser.Make sure that the spray arm is not blocked or clogged.Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance. Refer to "Internal cleaning".
Limescale deposits on the table-ware, on the tub and on the in-side of the door.	Refer to "The water softener".
Dull, discoloured or chipped tableware.	Make sure that only dishwasher-safe items are washed in the appliance.Load and unload the basket carefully. Refer to basket loading leaflet.Place delicate items in the upper basket.

Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.

TECHNICAL INFORMATION

Dimensions Width / height / depth (mm) 596 / 818-898 / 550
Electrical connection1) Voltage (V) 220 - 240
Water supply pressure bar (minimum and maximum) 0.5 - 8
Water supply	Cold water or hot water2) max 60 °C
Capacity Place settings 13
Power consumption Left-on mode (W) 5.0
Power consumption Off-mode (W) 0.10

1) Refer to the rating plate for other values.

2) If the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

RATING PLATE

Mod. .... Prod. No. .... Ser. No. ...

Recycle the materials with the symbol .Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with

the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Safety warning symbol and diagram showing a warning sign with lightning bolt and a valve above a pipe fitting

AVERTISSEMENT! Tension dangereuse.

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

Diagram showing a mechanical component being rotated by a curved arrow, with no visible text or symbols.

SALE ZOUT SALT SALZ SEL

Illustration of a hand pressing down on a mechanical component with a rotating arrow (no text or symbols)

Diagram of a refrigerator interior showing the exterior and front view with a magnified inset (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Mechanical assembly diagram showing a hand turning a shaft into a car intake manifold (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Line drawing of a door opening with a magnified inset showing a small object inside (no text or symbols)

1 2

Illustration of a hand using a tool to apply granular material into a digital device (no text or symbols visible)

Hand pressing a button on a device panel (no text or symbols visible)

Technical line drawing of a mechanical component with a magnified inset showing a small component (no text or symbols)

1 2

Illustration of hands holding a small electronic device with a power button, no text or symbols present

Hand placing a button into a device component with an arrow indicating motion (no text or symbols)

Simple line drawing of a door with an arrow indicating rotation (no text or symbols)

ANNULATION DU DÉPART DIFFÉRÉ AU COURS DU DÉCOMPTE

ANNULATION DU PROGRAMME

Simple line drawing of a door latch with an arrow indicating rotation (no text or symbols)

AUTO ECO 50° 45°-70° 70° 45° 60°A 30°

Diagram illustrating a water spray or droplet impact on a surface with labeled components and directional arrows

Line drawing of a refrigerator interior with an open door and a magnified inset showing internal components (no text or symbols)

Illustration of a hand holding a rolled-up document with a magnified view of the paper (no text or symbols)

Illustration of a rolling pin cutting into a circular object with a handle, no text or symbols present

B A

Illustration of a hand holding a curved object with an arrow indicating rotation (no text or symbols)

Illustration of a hand washing a showerhead into a bathtub with a water bottle (no text or symbols)

Illustration of a hand holding a curved object with a magnified circular detail showing a checkmark (no text or symbols present)

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a water level measurement.

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to lift a surface with a faucet, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Mod. .... Prod. No. .... Ser. No.

EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT

Safety warning symbols and diagram showing a warning triangle with lightning bolt and a valve above a plug.

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

SALE ZOUT SALT SALZ SEL

Illustration of a hand pressing down on stacked containers with a curved arrow indicating motion (no text or symbols)

Line drawing of a refrigerator interior with a highlighted tray and base (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

A

Hand inserting a cable into a device (no text or symbols visible)

Technical line drawing of a mechanical assembly with a magnified inset showing a small component (no text or symbols)

1 2

Illustration of a hand using a tool to apply granular material into a digital device (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

Line drawing of a door opening with a small inset showing a small object inside (no text or symbols)

1 2

Illustration of hands holding a small object with an arrow pointing to a device component (no text or symbols visible)

Hand pressing a button on a device (no text or symbols visible)

Simple line drawing of a door or shelf with an arrow indicating rotation (no text or symbols)

Simple line drawing of a door latch with an arrow indicating rotation (no text or symbols)

AUTO ECO 50° 45°-70° 70° 45° 60°A 30°

Diagram of a hand holding a tool with arrows indicating motion, no text or symbols present

Line drawing of a refrigerator interior with an inset showing a close-up of the lid (no text or symbols)

Diagram of a mechanical component with a rotating arm and curved base, showing internal structure (no text or symbols)

Diagram of a mechanical device with a rotating roller and a circular base, showing motion direction (no text or symbols)

B A

Illustration of a hand holding a curved object with an arrow indicating rotation (no text or symbols)

Illustration of a hand washing a showerhead into a tiled room (no text or symbols)

Illustration of a hand holding a curved object with a magnified circular detail showing a checkmark (no text or symbols present)

Diagram illustrating a mechanical or electrical component with labeled parts and an inset showing a dial indicator.

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a hand using a tool to lift a valve on a ruler, with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mod. .... Prod. No. .... Ser. No.

UMWELTTIPPS
