USER MANUAL ZDT11001FA ZANUSSI

Koud water of warm water

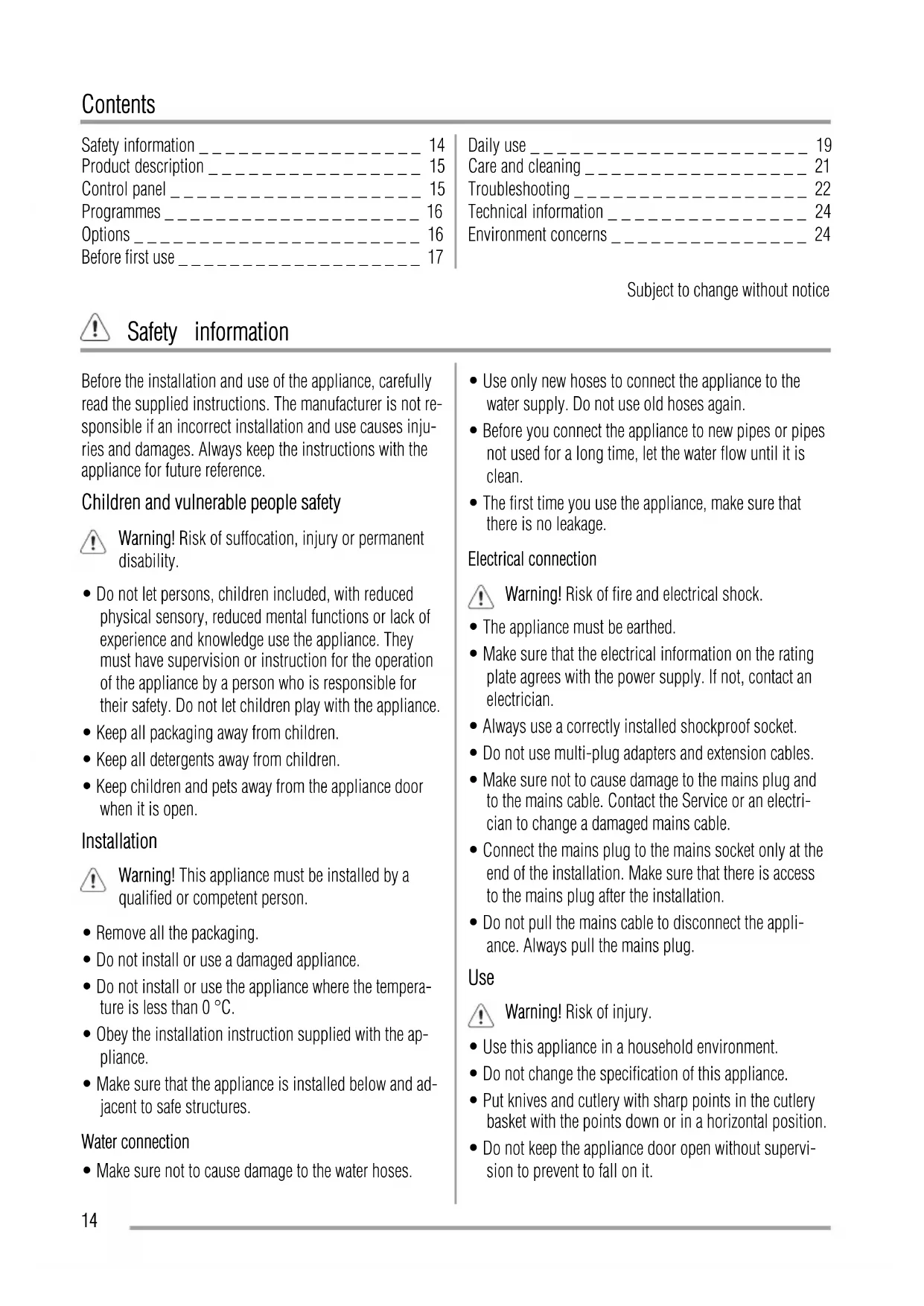

13Contents Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14 Product description _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15 Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15 Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16 Options _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16 Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19 Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21 Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 22 Technical information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24 Environment concerns _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 24 Subject to change without notice Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not re- sponsible if an incorrect installation and use causes inju- ries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety. Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door when it is open. Installation Warning! This appliance must be installed by a qualified or competent person.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the tempera- ture is less than 0 °C.

• Obey the installation instruction supplied with the ap- pliance.

• Make sure that the appliance is installed below and ad- jacent to safe structures. Water connection

• Make sure not to cause damage to the water hoses.

• Use only new hoses to connect the appliance to the water supply. Do not use old hoses again.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage. Electrical connection Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electri- cian to change a damaged mains cable.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appli- ance. Always pull the mains plug. Use Warning! Risk of injury.

• Use this appliance in a household environment.

• Do not change the specification of this appliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

• Do not keep the appliance door open without supervi- sion to prevent to fall on it. 14• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes. Warning! Risk of electrical shock, fire or burns.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appli- ance.

• The appliance can release hot steam if you open the door while a programme operates. Disposal Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and dispose of it.

• Remove the door catch to prevent children and pets to get closed in the appliance. Customer Care and Service Contact the Service to repair the appliance. We recom- mend only the use of original spare parts. When you contact the Service, ensure that you have the following information that is available on the rating plate. Model : .............................. PNC : ................................ Serial Number : ................. Product description

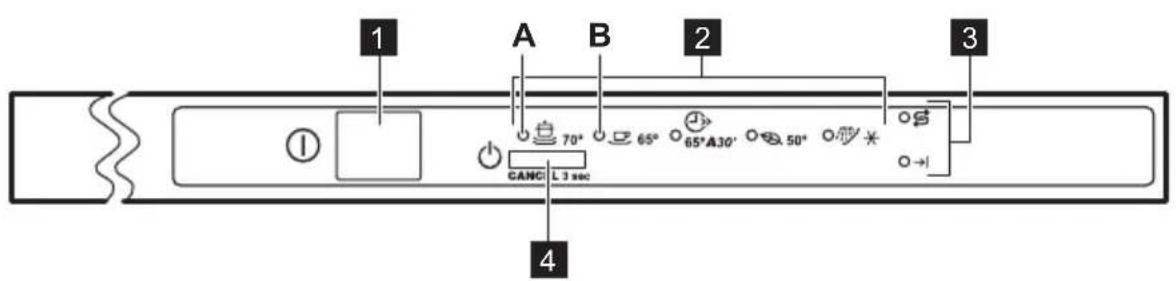

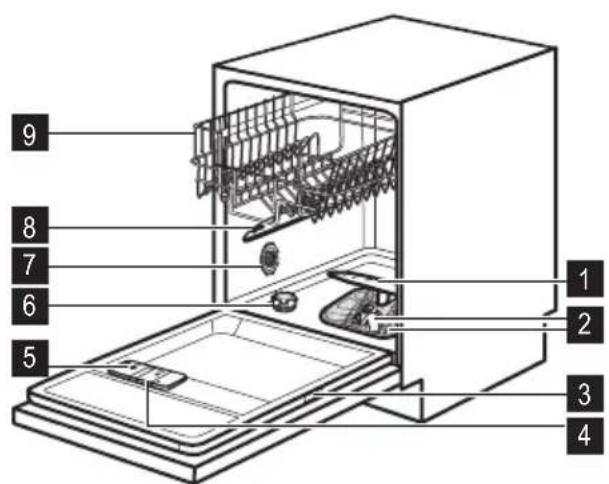

Upper basket Control panel

Degree of soil Type of load Programme phases Duration (min) Energy (kWh) Water (l) Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry 85-95 1,8-2,0 22-25 Normal soil Crockery and cutlery Prewash Wash 65 °C Rinses Dry 100-110 1,4-1,6 19-21

All Prewash 12 0,1 5 1) The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values.

2) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

3) This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information. 4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this programme. Options Acoustic signals The acoustic signals operate in these conditions:

• When the programme is completed.

• A malfunction occurs to the appliance. Factory setting: on. You can deactivate the acoustic signals. Deactivating the acoustic signals

1. Press the on/off button to activate the appliance.

2. Make sure that the appliance is in setting mode. Refer

to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold the programme button until the pro-

gramme indicator (A) flashes and the programme in- dicator (B) comes on.

4. Press immediately the programme button.

• The programme indicator (A) comes on with a fixed light.

• The programme indicator (B) starts to flash.

165. Wait until the programme indicator (A) goes off and

the end indicator comes on (the programme indicator (B) continues to flash).

• The acoustic signals are on.

• The acoustic signals are off.

7. Deactivate the appliance to confirm.

Activating the acoustic signals

1. Refer to ‘Deactivating the acoustic signals’, step (1)

2. Wait until the programme indicator (A) goes off. The

end indicator is off and programme indicator (B) con- tinues to flash.

• The acoustic signals are off.

• The acoustic signals are on.

4. Deactivate the appliance to confirm.

1. Make sure that the set level of the water softener

agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water au- thority to know the water hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the appliance. Start a

programme to remove them. Do not use detergent and do not load the baskets. Adjusting the water softener Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water softener clean and in good conditions. Refer to the table to adjust the water softener to the right level. It makes sure that the water softener uses the correct quantity of dishwasher salt and water. You must adjust the water softener manually and electronically. Water hardness Water softener adjustment German degrees (°dH) French degrees (°fH) mmol/l Clarke degrees Manual Electronic

2) Do not use salt at this level.

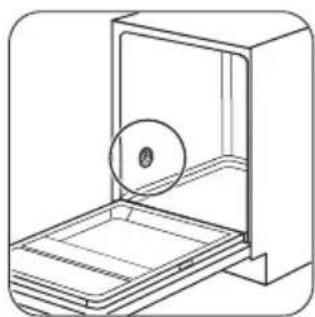

Turn the water hardness dial to the position 1 or 2. Electronic adjustment

1. Press the on/off button to activate the appliance.

2. Make sure that the appliance is in setting mode. Refer

to ‘SETTING AND STARTING A PROGRAMME’.

3. Press and hold the programme button until the pro-

gramme indicator (A) flashes and the programme in- dicator (B) comes on.

4. Wait until the programme indicator (B) goes off and

the end indicator starts to flash (the programme indi- cator (A) continues to flash).

5. Press the programme button.

• The end indicator flashes intermittently. The num- ber of flashes shows the level of the water softener. Example: 5 flashes + pause + 5 flashes = level 5.

6. To adjust the level of the water softener, press the

programme button. Each time you press the pro- gramme button you go to the next level.

7. Deactivate the appliance to confirm.

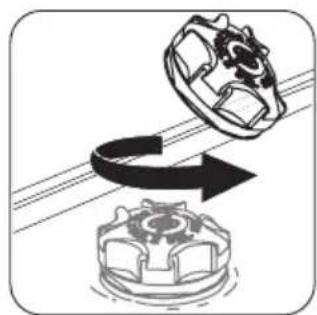

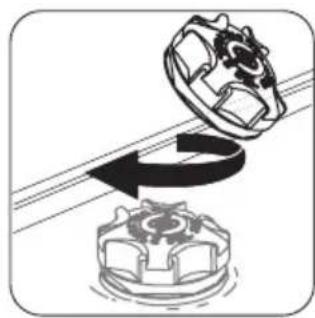

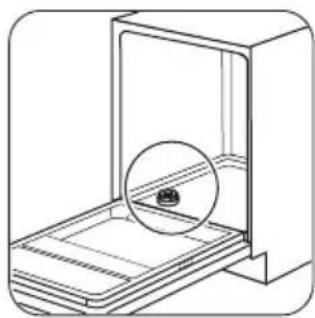

Filling the salt container Caution! Only use dishwasher salt. Other products can cause damage to the appliance. Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

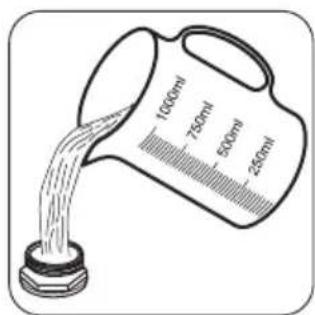

Put 1 litre of water in the salt container (only for the first time).

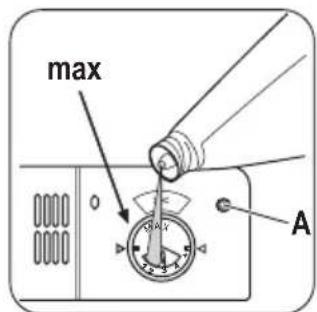

Filling the rinse aid dispenser Caution! Only use rinse aid for dishwashers. Other products can cause damage to the appliance. The rinse aid, during the last rinsing phase, helps to dry the dishes without streaks and stains.

Fill the rinse aid dispenser when the lens (A) is clear.

To adjust the released quantity of rinse aid, turn the selector between posi- tion 1 (lowest quantity) and position 4 (highest quantity). Daily use

1. Open the water tap.

2. Press the on/off button to activate the appliance.

Make sure that the appliance is in setting mode. Refer to ’SETTING AND STARTING A PROGRAMME’.

• If the salt indicator is on, fill the salt container.

3. Make sure that there is rinse aid in the rinse aid dis-

4. Load the baskets.

5. Add the detergent.

6. Set and start the correct programme for the type of

load and the degree of soil. Loading the baskets Refer to the supplied leaflet with examples of the load of the baskets.

• Only use the appliance to wash items that are dish- washer-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• Make soft the remaining burned food on the items.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond togeth- er. Mix spoons with other cutlery.

• Make sure that glasses do not touch other glasses.

• Put small items in the cutlery basket.

• Put light items in the upper basket. Make sure that the items do not move.

• Make sure that the spray arms can move freely before you start a programme. 19Using the detergent Caution! Use only detergents for dishwashers. Do not use more than the correct quantity of deter- gent. Refer to the instructions on the detergent packaging.

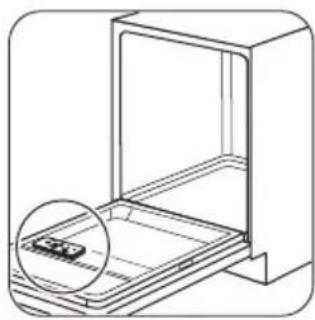

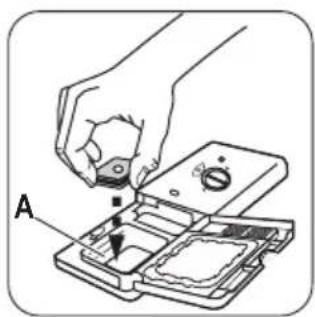

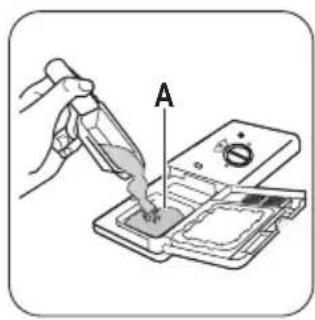

Put the detergent or the tablet in compartment (A).

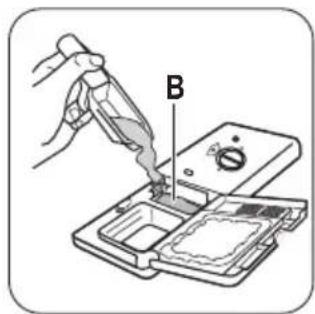

If the programme has a prewash phase, put a small quantity of detergent in compartment (B).

Detergent tablets do not fully dissolve with short programmes and detergent residues can stay on the dishes. We recommend that you use detergent tablets with long programmes. Combi detergent tablets These tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the wa- ter hardness in your area. Refer to the instructions on the packaging of the products. When you use tablets, that contain salt and rinse aid, do not fill the salt container and the rinse aid dispenser. The rinse aid indicator always comes on if the rinse aid dis- penser is empty.

1. Adjust the water softener to the lowest level.

2. Set the rinse aid dispenser to the lowest position.

If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Press the on/off button to activate the appliance.

2. Set the water softener to the highest level.

3. Make sure that the salt container and the rinse aid

4. Start the shortest programme with a rinsing phase,

without detergent and without dishes.

5. Adjust the water softener to the water hardness in

6. Adjust the released quantity of rinse aid.

Setting and starting a programme Setting mode The appliance must be in setting mode to accept some operations. The appliance is in setting mode when, after the activa- tion:

• All the programme indicators are off.

• The end indicator flashes. If the control panel shows other conditions, press and hold the programme button until the appliance is in set- ting mode. Starting a programme

1. Open the water tap.

2. Press the on/off button to activate the appliance.

Make sure that the appliance is in setting mode.

3. Press continuously the programme button until the

indicator of the programme you want to set comes on.

4. Close the appliance door. The programme starts.

20Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the appliance continues from the point of inter- ruption. Cancelling the programme

1. Open the appliance door.

2. Press and hold the programme button until the indi-

cator of the set programme goes off and the end indi- cator flashes. Make sure that there is detergent in the detergent dispenser before you start a new programme. At the end of the programme When the programme is completed, an intermittent acous- tic signal operates.

1. Open the appliance door.

• The end indicator is on.

2. Press the on/off button to deactivate the appliance.

3. Close the water tap.

• For better drying results, keep the appliance door ajar for some minutes.

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

• First remove the items from the lower basket, then from the upper basket. There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes. Care and cleaning Warning! Before maintenance, deactivate the appliance and discon- nect the mains plug from the mains socket. Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them. Cleaning the filters

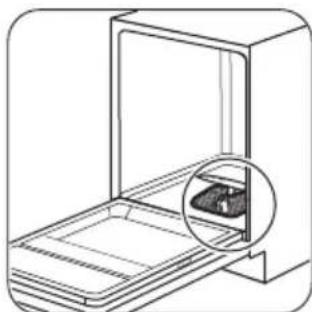

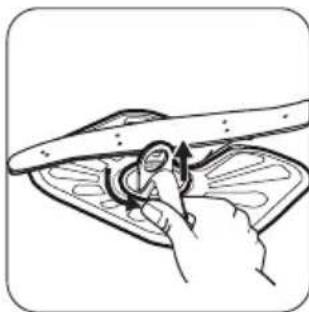

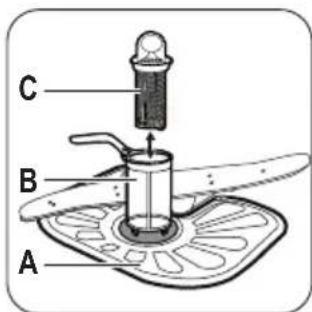

To remove filters (B) and (C), turn the handle coun- terclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water.

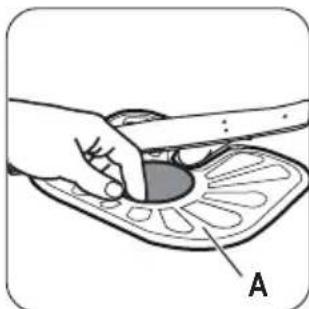

Remove filter (A). Wash the filter with water. 21D

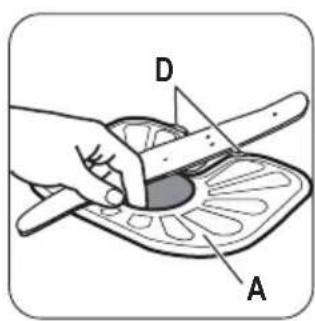

Put filter (A) to its initial position. Make sure that it assembles correctly under the two guides (D).

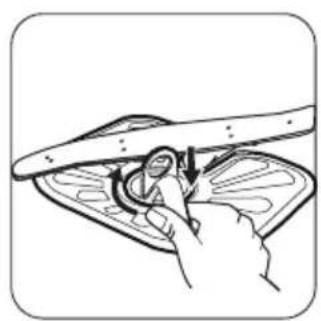

Assemble filters (B) and (C). Put them into position in filter (A). Turn the han- dle clockwise until it locks. An incorrect position of the filters can cause bad washing results and damage to the appliance. Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, remove remain- ing parts of soil with a thin pointed object. External cleaning Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive prod- ucts, abrasive cleaning pads or solvents. Troubleshooting The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the ta- ble). If not, contact the Service. With some problems, some indicators flash continuously and/or intermittently at the same time to show an alarm code. Alarm code Problem

• The indicator of the set programme flashes continu- ously.

• The end indicator flashes 1 time intermittently. The appliance does not fill with water.

• The indicator of the set programme flashes continu- ously.

• The end indicator flashes 2 times intermittently. The appliance does not drain the water. Warning! Deactivate the appliance before you make the checks. Problem Possible cause Possible solution The programme does not start. The mains plug is not connected in the mains socket. Connect the mains plug. The appliance door is open. Close the appliance door. The fuse in the fuse box is damaged. Replace the fuse. The appliance does not fill with water. The water tap is closed. Open the water tap. The water pressure is too low. Contact your local water authority. The water tap is clogged or there is lime- scale on it. Clean the water tap. 22Problem Possible cause Possible solution The filter in the water inlet hose is clog- ged. Clean the filter. The water inlet hose has a kink or a bend. Make sure that the position of the hose is correct. The appliance does not drain the water. The sink spigot is clogged. Clean the sink spigot. The water drain hose has a kink or a bend. Make sure that the position of the hose is correct. After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service. If other alarm codes show, contact the Service. The washing results and drying results are not satisfactory Problem Possible cause Possible solution The dishes are not clean. The filters are clogged. Clean the filters. The filters are not correctly assembled and installed. Make sure that the filters are correctly as- sembled and installed. The spray arms are clogged. Remove remaining soil with a thin pointed object. The programme was not applicable for the type of load and soil. Make sure that the programme is applica- ble for the type of load and soil. Incorrect position of the items in the baskets. Water could not wash all items. Make sure that the position of the items in the baskets is correct and that the water can easily wash all items. The spray arms could not turn freely. Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms. The quantity of detergent was not suffi- cient. Make sure that you add the correct quan- tity of detergent in the dispenser before you start a programme. There was no detergent in the detergent dispenser. Make sure that you add detergent in the dispenser before you start a programme. Limescale particles on the dishes. The salt container is empty. Make sure that there is dishwasher salt in the salt container. The set level of the water softener is in- correct. Make sure that the set level of the water softener agrees with the water hardness in your area. The cap of the salt container is loose. Tighten the cap. 23Problem Possible cause Possible solution Whitish streaks and stains or bluish layers on glasses and dishes. The released quantity of rinse aid is too much. Decrease the released quantity of rinse aid . The quantity of detergent was too much. Make sure that you add the correct quan- tity of detergent in the dispenser before you start a programme. Dry water drop stains on glasses and dishes. The released quantity of rinse aid was not sufficient . Increase the released quantity of rinse aid. The quality of the detergent can be the cause. Try a different brand of detergent. The dishes are wet. • The programme had no drying phase.

• The programme had a low tempera- ture drying phase. For better drying results, keep the door ajar for some minutes. The dishes are wet and matt. The rinse aid dispenser is empty. Make sure that there is rinse aid in the rinse aid dispenser. The quality of the rinse aid can be the cause. Try a different brand of rinse aid. Technical information Dimensions Width / Height / Depth (mm) 596 / 818-898 / 555 Electrical connection Refer to the rating plate. Voltage 220-240 V Frequency 50 Hz Water supply pressure Min. / max. (bar / MPa) (0.5 / 0.05 ) / (8 / 0.8 ) Water supply

Cold water or hot water

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption. Environment concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

• Discard correctly the packaging material. Recycle the materials with the symbol
