USER MANUAL ZDF16021WA ZANUSSI

Koud water of warm water

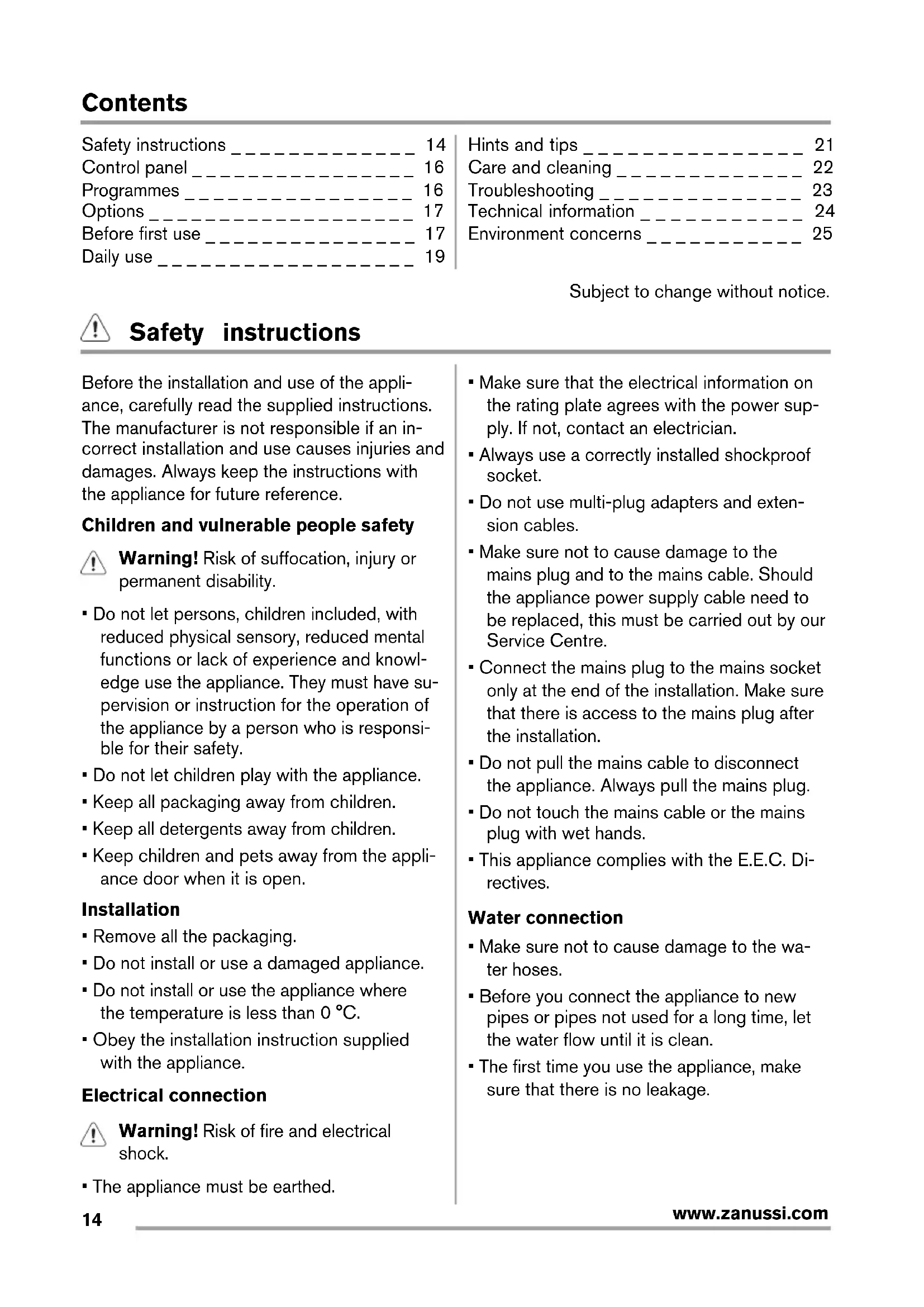

www.zanussi.comContents Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ 14 Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16 Programmes _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16 Options _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17 Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19 Hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21 Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 22 Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ 23 Technical information _ _ _ _ _ _ _ _ _ _ _ 24 Environment concerns _ _ _ _ _ _ _ _ _ _ _ 25 Subject to change without notice. Safety instructions Before the installation and use of the appli- ance, carefully read the supplied instructions. The manufacturer is not responsible if an in- correct installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowl- edge use the appliance. They must have su- pervision or instruction for the operation of the appliance by a person who is responsi- ble for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep all detergents away from children.

• Keep children and pets away from the appli- ance door when it is open. Installation

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Do not install or use the appliance where the temperature is less than 0 °C.

• Obey the installation instruction supplied with the appliance. Electrical connection Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power sup- ply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and exten- sion cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Do not touch the mains cable or the mains plug with wet hands.

• This appliance complies with the E.E.C. Di- rectives. Water connection

• Make sure not to cause damage to the wa- ter hoses.

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

• The first time you use the appliance, make sure that there is no leakage.

www.zanussi.com• Warning! Dangerous voltage. The water inlet hose has a safety valve and a sheath with an inner mains cable.

• If the water inlet hose is damaged, immedi- ately disconnect the mains plug from the mains socket. Contact Service to replace the water inlet hose. Use

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other resi- dential type environments – Bed and breakfast type environments. Warning! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this ap- pliance.

• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

• Do not keep the appliance door open with- out supervision to prevent to fall on it.

• Do not sit or stand on the open door.

• Dishwasher detergents are dangerous. Obey the safety instructions on the deter- gent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appli- ance until the programme is completed. There can be detergent on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not use water spray and steam to clean the appliance. Disposal Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to get closed in the appliance. Service

• Contact the Service to repair the appliance. We recommend only the use of original spare parts.

• When you contact the Service, ensure that you have the following information that is available on the rating plate. Model : PNC : Serial Number :

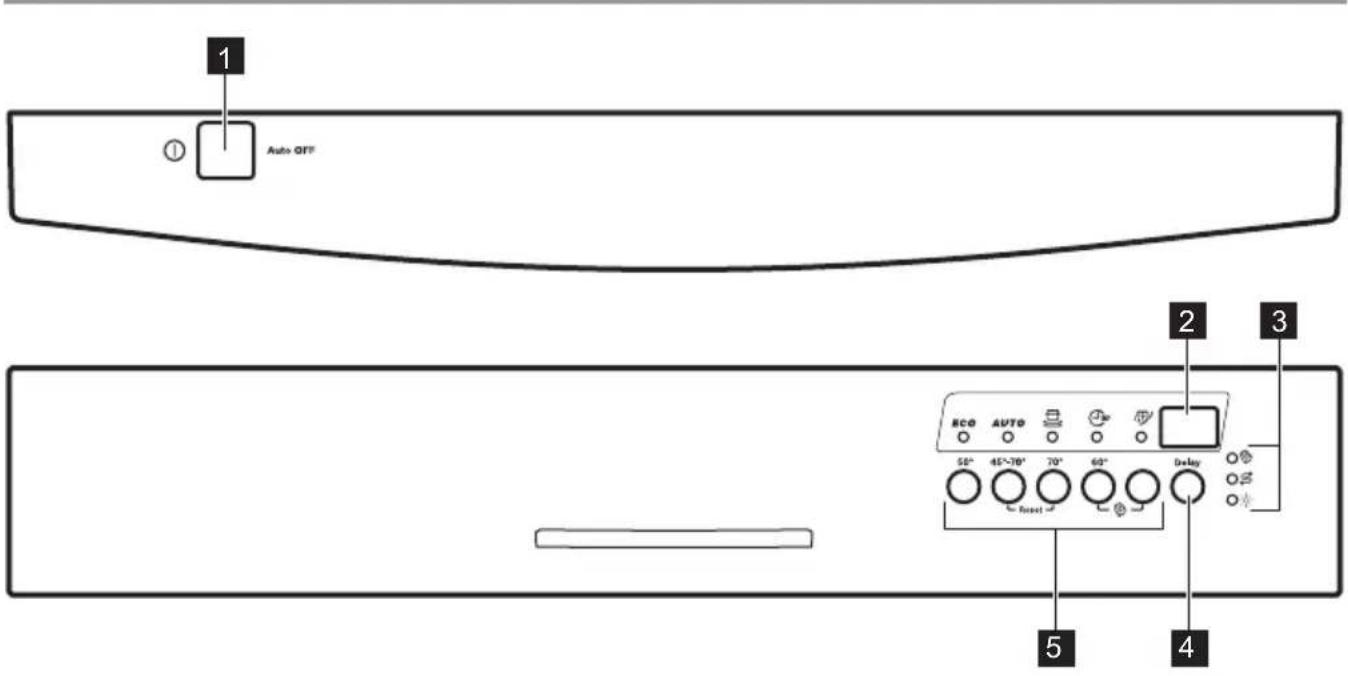

Programme buttons Indicators Description Multitab indicator. Salt indicator. This indicator is off while the programme operates. Rinse aid indicator. This indicator is off while the programme operates. Programmes Programme

Degree of soil Type of load Programme phases Duration (min) Energy (kWh) Water (l)

Normal soil Crockery and cut- lery Prewash Wash 50 °C Rinses Dry

All Crockery, cutlery, pots and pans Prewash Wash from 45 °C to 70

Heavy soil Crockery, cutlery, pots and pans Prewash Wash 70 °C Rinses Dry

Degree of soil Type of load Programme phases Duration (min) Energy (kWh) Water (l)

Fresh soil Crockery and cut- lery Wash 60 °C Rinse

1) The pressure and the temperature of the water , the variations of the mains supply, the options and the

quantity of dishes can change the values.

2) With this programme you have the most efficient use of water and energy consumption for crockery and

cutlery with normal soil. (This is the standard programme for test institutes).

3) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts

the temperature and quantity of the water, the energy consumption and the programme duration.

4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

5) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes

and bad odours to come out from the appliance. Do not use detergent with this programme. Information for test institutes For all the necessary information for test performance. send an email to: info.test@dishwasher-production.com Write down the product number (PNC) that is on the rating plate. Options Multitab Activate this option only when you use the combi detergent tablets. This option deactivates the flow of rinse aid and salt. The related indicators are off. The programme duration can increase.

1. Press the on/off button to activate the ap-

2. Make sure that the appliance is in setting

mode, refer to ‘Setting and starting a pro- gramme'.

Press and hold at the same time and until the multitab indicator comes on. If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Set the water softener to the highest level.

2. Make sure that the salt container and the

rinse aid dispenser are full.

3. Start the shortest programme with a rins-

ing phase, without detergent and without dishes.

4. Adjust the water softener to the water

hardness in your area.

5. Adjust the released quantity of rinse aid.

This option is not applicable to

1. Make sure that the set level of the water

softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.

4. Open the water tap.

5. Processing residues can stay in the appli-

ance. Start a programme to remove them. Do not use detergent and do not load the baskets. Adjusting the water softener Water hardness Water softener adjustment German degrees (°dH) French degrees (°fH) mmol/l Clarke degrees Level

2) Do not use salt at this level.

How to adjust the level of the water softener

1. Press the on/off button to activate the ap-

pliance. Make sure that the appliance is in setting mode, refer to “Setting and starting a programme”.

2. Press and hold, at the same time,

and until the indicators of , and start to flash.

The indicators of and go off.

The indicator of continues to flash.

• The display shows the current setting of the water softener, e.g. = level 5.

Press again and again to change the setting. Each time you press the button you select the next level.

5. Deactivate the appliance to confirm the

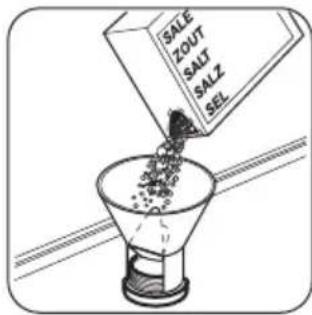

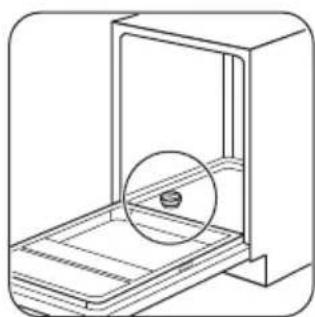

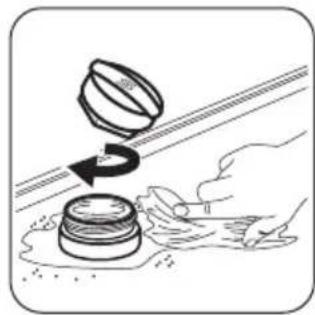

setting. Filling the salt container Caution! Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

Put 1 litre of water in the salt container (only for the first time). Filling the rinse aid dispenser

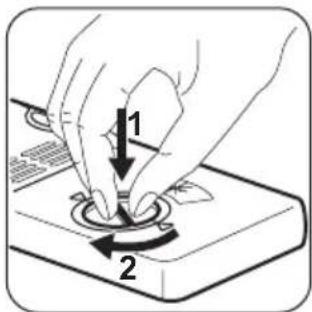

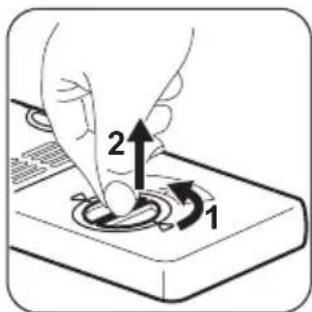

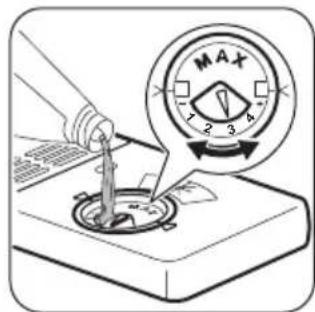

To adjust the released quantity of rinse aid, turn the selector between position 1 (lowest quantity) and position 4 (highest quantity). Daily use

1. Open the water tap.

2. Press the on/off button to activate the ap-

pliance. Make sure that the appliance is in setting mode, refer to “Setting and starting a programme”.

• If the salt indicator is on, fill the salt con- tainer.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

3. Load the baskets.

5. Set and start the correct programme for

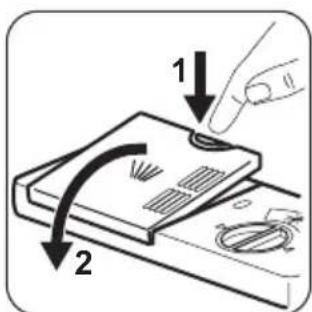

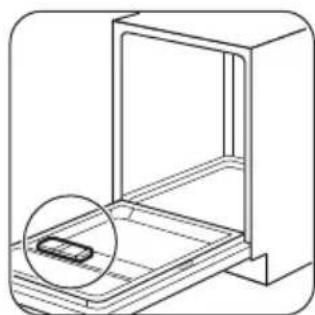

the type of load and the degree of soil. Using the detergent

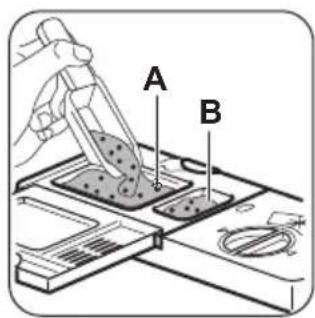

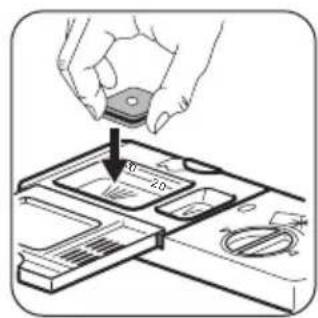

Put the detergent or the tablet in compartment (A) If the programme has a prewash phase, put a small quantity of detergent in compart- ment (B). Setting and starting a programme Setting mode For some settings it is necessary that the ap- pliance is in setting mode. Press the on/off button to activate the appli- ance. The appliance is in setting mode when all the programme indicators come on and the display shows 2 horizontal status bars. If the control panel does not show this condi- tion, press and hold at the same time and until the appliance is in setting mode. Starting a programme without delay start

1. Open the water tap.

2. Press the on/off button to activate the ap-

pliance. Make sure that the appliance is in setting mode.

3. Press the button of the programme you

• The related programme indicator flashes while all the other programme indicators go off.

• The display shows the programme dura- tion.

4. Close the appliance door, the programme

• The related programme indicator comes on.

• The programme duration starts to de- crease with steps of 1 minute Starting a programme with delay start

1. Set the programme.

2. Press the delay start button again and

again until the display shows the delay time you want to set (from 1 to 24 hours).

• The delay time comes on in the display.

• The related programme indicator flashes.

3. Close the appliance door, the countdown

• The countdown decreases with steps of 1 hour.

• The related programme indicator comes on.. When the countdown is completed, the pro- gramme starts. You can set a programme, applicable op- tions and the delay start also with the ap- pliance door closed. In this condition, you only have 3 seconds after each setting before the appliance starts to operate automatically. Opening the door while the appliance operates If you open the door, the appliance stops. When you close the door, the appliance con- tinues from the point of interruption. Cancelling the delay start while the countdown operates When you cancel the delay start, also the pro- gramme is cancelled.

1. Press and hold at the same time

and until all the programme indicators come on and the display shows 2 horizontal status bars. Cancelling the programme

1. Press and hold at the same time

and until all the programme indicators come on and the display shows 2 horizontal status bars. Make sure that there is detergent in the detergent dispenser before you start a new programme. At the end of the programme

www.zanussi.com1. Press the on/off button to deactivate the appliance.

2. Close the water tap.

If you do not press the on/off button, the Auto Off function automatically deacti- vates the appliance a few minutes after the end of the programme. This helps to decrease the energy consump- tion, Important

• Let the dishes become cold before you re- move them from the appliance. Hot dishes can be easily damaged.

• First remove the items from the lower bas- ket, then from the upper basket.

• There can be water on the sides and on the door of the appliance. Stainless steel be- comes cool more quickly than the dishes. Hints and tips The water softener Hard water contains a high quantity of miner- als that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water softener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dishwasher salt and water. Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.

• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.

• Combi detergent tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the wa- ter hardness in your area. Refer to the in- structions on the packaging of the products.

• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long pro- grammes. Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging. Loading the baskets Refer to the supplied leaflet with exam- ples of the load of the baskets.

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.

• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cut- lery.

• Make sure that glasses do not touch other glasses.

• Put the small items in the cutlery basket.

• Put the light items in the upper basket. Make sure that they do not move.

• Make sure that the spray arms can move freely before you start a programme. Before starting a programme Make sure that:

• The filters are clean and correctly installed.

www.zanussi.com• The spray arms are not clogged.

• The position of the items in the baskets is correct.

• The programme is applicable for the type of load and for the degree of soil.

• The correct quantity of detergent is used.

• There is dishwasher salt and rinse aid (un- less you use combi detergent tablets).

• The cap of the salt container is tight. Care and cleaning Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Dirty filters and clogged spray arms de- crease the washing results. Make a check regularly and, if necessary, clean them. Cleaning the filters

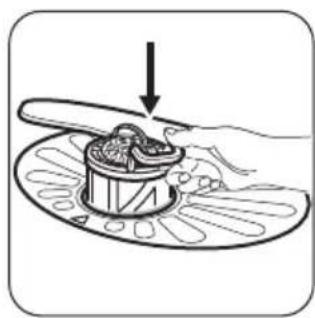

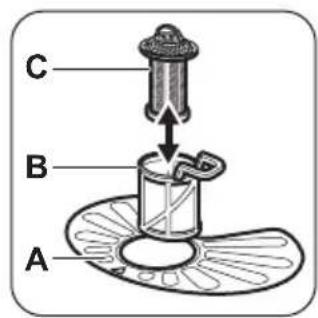

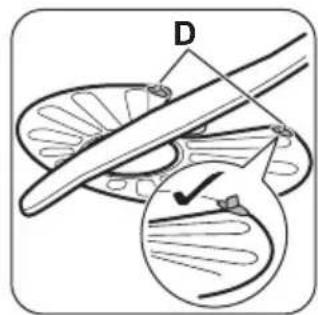

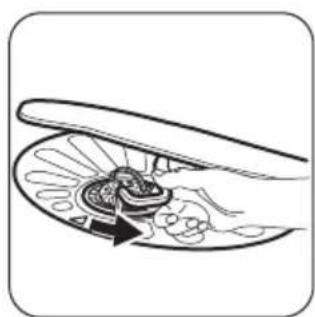

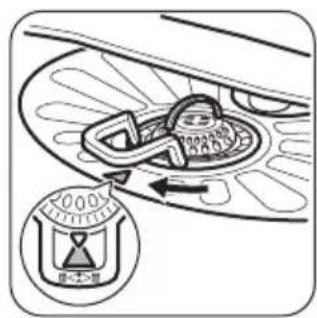

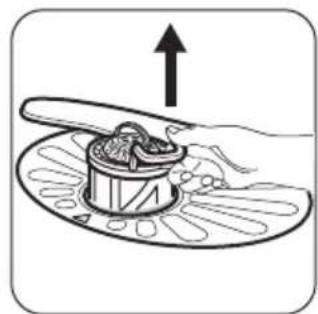

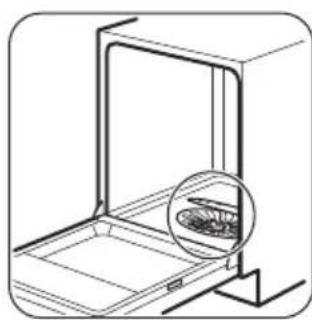

To remove filters (B) and (C), turn the handle counterclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water. Remove filter (A). Wash the filter with water. Before you put the filter (A) back, make sure that there are no residues of food or soil in or around the edge of the sump. Make sure that filter (A) is correctly positioned under the 2 guides (D). Assemble filters (B) and (C). Put them back in filter (A). Turn the handle clockwise until it locks. An incorrect position of the filters can cause bad washing results and damage to the appliance. Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, re- move remaining parts of soil with a thin poin- ted object. External cleaning Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abra- sive products, abrasive cleaning pads or sol- vents.

www.zanussi.comInternal cleaning If you regularly use short duration pro- grammes, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend to run long duration programmes at least 2 times per month. Troubleshooting The appliance does not start or it stops during operation. Before you contact the Service, refer to the in- formation that follows for a solution to the problem. With some problems, the display shows an alarm code:

- The appliance does not fill with water.

- The appliance does not drain the wa- ter.

- The anti-flood device is on. Warning! Deactivate the appliance before you do the checks. Problem Possible solution You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket. Make sure that there is not a damaged fuse in the fuse box. The programme does not start. Make sure that the appliance door is closed. If the delay start is set, cancel the setting or wait for the end of the countdown. The appliance does not fill with water. Make sure that the water tap is open. Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not clogged. Make sure that the inlet hose has no kinks or bends. The appliance does not drain the water. Make sure that the sink spigot is not clogged. Make sure that the drain hose has no kinks or bends. The anti-flood device is on. Close the water tap and contact the Service. After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Serv- ice. If the display shows other alarm codes, con- tact the Service. If the washing and drying results are not satisfactory Whitish streaks or bluish layers on glasses and dishes

• The released quantity of rinse aid is too much. Adjust the rinse aid selector to a low- er position.

• The quantity of detergent is too much.

www.zanussi.comStains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not suf- ficient. Adjust the rinse aid selector to a higher position.

• The quality of the detergent can be the cause. Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the cause.

• The quality of the combi detergent tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid together with the combi detergent tablets. Refer to ‘HINTS AND TIPS’ for other pos- sible causes. How to activate the rinse aid dispenser

1. Press the on/off button to activate the ap-

pliance. Make sure that the appliance is in setting mode, refer to “Setting and starting a programme”.

2. Press and hold, at the same time,

and until the indicators of , and start to flash.

The indicators of and go off.

The indicator of continues to flash.

• The display shows the current setting. Rinse aid dispenser off. Rinse aid dispenser on.

Press to change the setting.

5. Press the on/off button to deactivate the

appliance and to confirm the setting.

6. Adjust the released quantity of rinse aid.

Cold water or hot water

1) Connect the water inlet hose to a water tap with a 3/4'' thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot

water supply to decrease energy consumption.

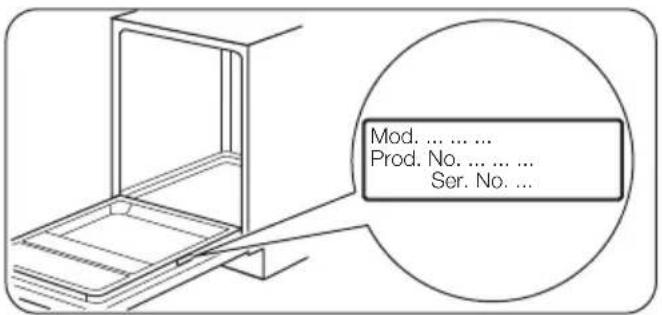

www.zanussi.comRating plate Mod. ... ... ... Prod. No. ... ... ... Ser. No. ... Environment concerns Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

• Discard correctly the packaging material. Recycle the materials with the symbol
