USER MANUAL HN235 INVENTUM

explanation of symbols page10

1. safety instructions page 11
   2.appliance description page 13
2. intended use page 13
3. operation page 13
4. cleaning & maintenance page 14
5. storage page 15
6. disposal page 15
   8.problems & solutions page 15

guarantee & after sales service page 29

Deutsch

	Read the instructions!	Woolens30/	programme 30°C.
			Do not bleach.
	Do not pierce with needles!		Do not tumble dry.
			Do not iron.
	Do not use when folded or creased!		Do not clean chemically.
		TEXTILES VERTRAUEN Geprüft auf Schadstoffe Testé substances nocives Getest op schadelijk stoffen nach / d'après / volgens Oeko-Tex® Standard 100 06.0.43510 Hohenstein	The textiles used for this device meet stringent human ecological requirements of Oeko Tex Standard 100, as verified by Hohenstein Research Institute.
0-3	Not to be used with very young children (0-3 years).
	WARNING; Warning of risk of injury or danger to your health.
	CAUTION; Safety information about possible damage to the device/accessories.
i	NOTE; Refers to important information.

1 safety instructions

Important safety instructions - read carefully and keep for later use!

WARNING

• Failure to observe the information provided below van lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. Therefore, observe this safety information and pass these instructions together with the product.
• This electric underblanket must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating.
• This electric underblanket may not be used by very young children (0-3 years old) due to their inability to react to overheating.
• This electric underblanket may not be used by young children (3-8 years old) unless the controller has been pre-set by a parent or guardian and unless the child has been adequately instructed how to operate the electric underblanket safely.
• This electric underblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the electric underblanket.
• Cleaning and user maintenance shall not be made by children without supervision.
• This electric underblanket is not intended for use in hospitals.
• Do not insert pins.
• Do not use folded or bunched up.
• Do not use if wet.
• Before using on an adjustable bed, check that the electric underblanket and the cables are not, for example, trapped in a hinge or bunched up.

• This electric underblanket must be used with the type of control that is marked on the rating label of the electric blanket, only.

• The electrical and magnetic fields emitted by this electric underblanket may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this electric underblanket.

• Do not pull, twist or make sharp bends in the cables.
• This electric underblanket must be examined frequently for signs of wear or damage. If there are such signs, if the electric underblanket has been mis-used or does not work, return it to the supplier before switching it on again.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• While this electric underblanket is switched on
• never place any objects on it (e.g. suitcase or washing basket)
• never place any heat source on it (e.g. hot water bottle, heating pad or similar).
• When in use, the electronic components in the control of the electric underblanket make the control slightly warm. The control should therefore never be covered or placed on the electric underblanket when it is in operation.
• If you should have any questions about using our devices, please contact Customer Services.
• Always observe the notes on operation (section 4), cleaning and maintenance (section 5) and storage (section 6).

12·English

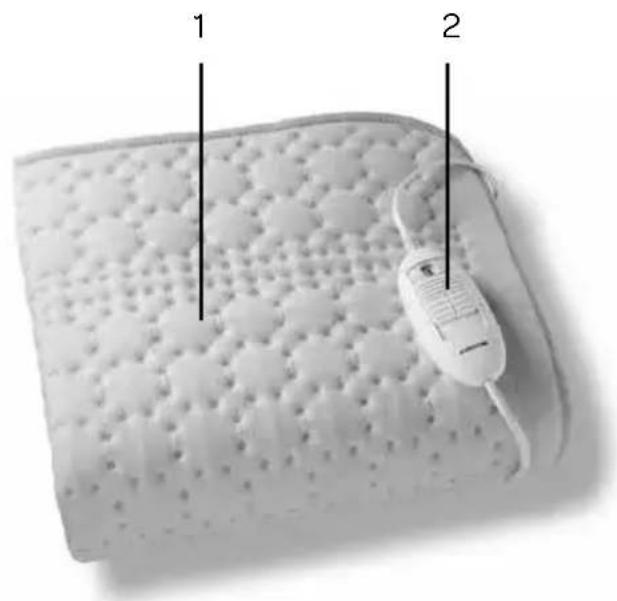

2 appliance description

1. Electric underblanket
2. Switch with 3 positions and illumination

HN135

1-person electric underblanket

Dimensions: 150 × 80 cm

Switch with 3 illuminated settings

Detachable cord

Machine washable, 30^

60 Watt

Material: completely made from fleece

HN235

2-persons electric underblanket

Dimensions: 150 × 140 cm

Two switches with 3 illuminated settings

Two detachable cords

Machine washable, 30^

2 × 60 Watt

Material: completely made from fleece

3 intended use

CAUTION

This electric underblanket is designed for warming beds, only.

4 operation

4.1 Safety

CAUTION

This electric underblanket is fitted with the INVENTUM SAFETY SYSTEM (ISS). This electronic sensor technology prevents the entire surface of the electric underblanket from overheating by automatically switching off in the event of a fault. If the safety system switches off the electric underblanket automatically as a result of a fault, the settings are no longer illuminated even when the electric underblanket is switched on.

Please note that, after a fault has occurred, the electric underblanket can no longer be used for safety reasons and must be sent to the service address indicated.

4.2 Initial use

Spread the electric underblanket flat onto your mattress starting at the foot end so that the cable entrance is located approximately at shoulder height. The electric blanket can be used on both sides. Then put on your bedsheet in the usual manner so that the electric underblanket is between your mattress and the bedsheet.

CAUTION

Make sure that the underblanket is spread out entirely flat and that it will not rumple up or crease when in use. Check its position when making the bed.

To operate the electric underblanket connect the controller to the underblanket by plugging in the connector.
- Then plug in the supply plug into the mains outlet.

4.3 Switching on

To switch on the electric underblanket, set the slider for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature setting is illuminated when switched on.

4.4 Setting the temperature

Setting 0: OFF

Setting 1: minimum heat

Setting 2: medium heat

Setting 3: maximum heat

CAUTION

If the electric underblanket is used continuously (for several hours) it is recommended to use the lowest setting (1) of the control to avoid overheating of the user.

NOTE

The quickest way to heat up the electric underblanket is to select the highest temperature setting of the controller, first.
- We strongly recommend switching on the electric underblanket approx. 30 minutes before going to bed and covering it with the quilt to prevent the warmth from escaping.

4.5 Switching off

To switch off the electric underblanket, set the slider for ON/OFF and temperature settings to the OFF (0) position. The temperature settings are then no longer illuminated.

NOTE

If the electric underblanket is not used for several days, set the slider for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket. Then remove the control from the electric underblanket by disconnecting it at the connector.

5 cleaning & maintenance

WARNING

Always remove the supply plug from the mains outlet and remove the controller from the electric underblanket by disconnecting it at the connector.

CAUTION

• The controller must never get in contact to water or other liquids. Otherwise, the controller may be damaged.

To clean the controller, use a dry, lint-free cloth. Do not use any chemical or abrasive cleaning agents.

Small marks on the electric underblanket can be removed with a damp cloth or sponge, or if necessary, with a little liquid detergent for delicate laundry.

CAUTION

Note that the electric blanket must not be dry-cleaned, wrung out, machine dried, pressed or ironed.

In case of heavier soiling, this electric blanket can be washed in a washing machine. Set the washing machine to a particularly gentle,

30^ cycle (woolens programme). Use a wool laundry detergent and follow the manufacturer's instructions.

CAUTION

Note that excessive washing will wear out the electric blanket. For this reason, the electric blanket should only be machine-washed a maximum of 5 times throughout its entire life.

While the electric blanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry.

14·English

• Do not attach the electric underblanket to washing lines with washing pegs or similar. Otherwise the electric underblanket may be damaged.
• Only reconnect the controller to the electric underblanket after the connector and the electric underblanket are completely dry. Otherwise the electric underblanket may be damaged.
• Under no circumstances switch on the electric underblanket to dry it. Otherwise, there is a risk of an electric shock.

6 storage

When not in use we recommend to store the electric underblanket in its original packaging.

CAUTION

Please allow the electric underblanket to cool down first.

Otherwise, the electric underblanket may be damaged. To avoid sharp folds in the electric underblanket, do not place any objects on top of it while it is being stored.

7 disposal

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

8 problems & solutions

Problem Cause Remedy
The temperature settings are not illuminated while the controller is fully connected to the electric underblanket; - the supply plug is connected to the mains outlet with correct function; - the setting is 1, 2 or 3.	The safety system switched off the electric underblanket irreversible.	Send the electric underblanket together with the controller to the service department.

Dimension: 150 × 80 cm

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.
• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.
• Guarantee is not valid in case of:

normal wear;
- damage through misuse use or when the instructions were not followed correctly;
- lack of maintenance;
- not following the operation- and safety instructions;
- incompetent montage or repairs made by yourself or others;
- using accessories and spare parts which are not suitable for the appliance;

for assessment by our technical department.

The guarantee is not valid for:

• normal wear;
  external cables;

• (interchangeable) signal- and controllamps

for assessment by our technical department.

after sales service

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Garantie

twitter.com/inventum1908

facebook.com/inventum1908

youtube.com/inventum1908

HN135-HN235/02.0814V-750.192-0814
