Operating Instructions

(Household) AC/Rechargeable Beard/Hair Trimmer

Model No. ER-GB80/ER-GB70/ER-GB60

Contents

Safety precautions 4

Intended use ....8

Parts identification 8

Charging the trimmer....9

Using the trimmer....9

Using the comb attachment .....10

Trimming beard.... 11

Trimming hair....13

Trimming body hair 14

Cleaning the trimmer....14

Troubleshooting 16

Frequently asked questions......16

Blade life....17

Battery life....17

Removing the built-in rechargeable battery ....17

Specifications ....18

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

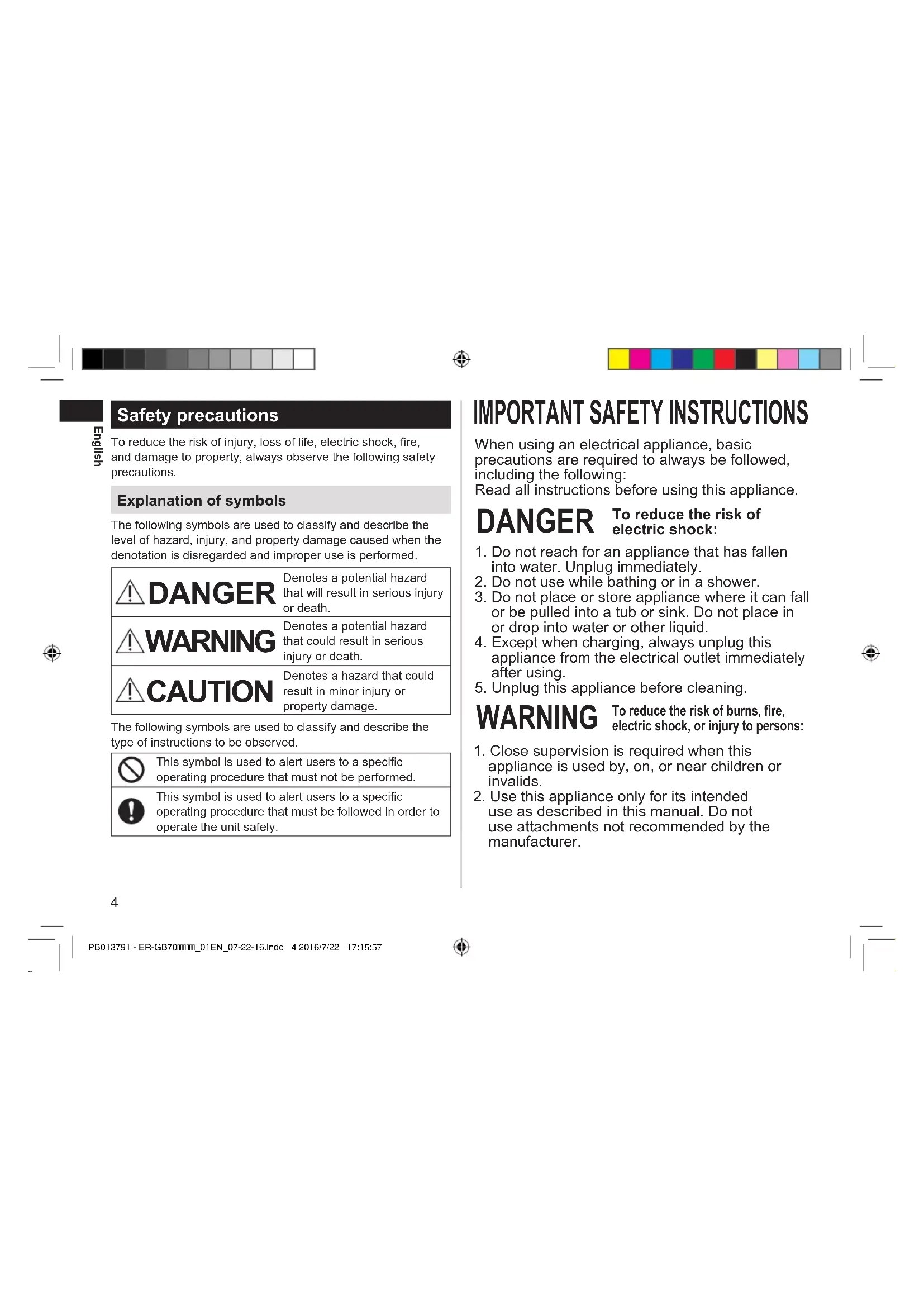

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions are required to always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not use while bathing or in a shower.
3. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
5. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is required when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

1. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.
2. Keep the cord away from heated surfaces.
3. Never drop or insert any object into any opening.
4. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
5. Do not use this appliance with damaged or broken comb as it has the potential to result in facial injury.
6. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

WARNING

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the power cord.

Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

This product has a built-in rechargeable battery. Do not throw into flame or heat.

Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change, etc.).

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

WARNING

Do not clean with water when the AC adaptor is attached.

Doing so may cause electric shock or fire due to a short circuit.

Do not use anything other than the supplied AC adaptor. Also, do not charge any other product with the supplied AC adaptor.

- Doing so may cause burn or fire due to short circuit.

Do not store within the reach of children or infants. Do not let them use it.

- Putting the blade, the cleaning brush and/or oil container in the mouth may cause accidents and injury.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

- The main unit or AC adaptor is deformed or abnormally hot.

• The main unit or AC adaptor smells of burning.

• There is abnormal sound during use or charging of the main unit or AC adaptor.

- Immediately request inspection or repair at an authorized service center.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

- Failure to do so may result in physical problems.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- Failure to do so may cause an accident or injury.

CAUTION

Do not press the blade against the skin.

Do not use this product for any purpose other than trimming beard, hair and body hair.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

- Doing so may cause skin injury.

Do not allow pins or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Check that the blades are not damaged or deformed before use.

- Failure to do so may cause skin injury.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

- Failure to do so may cause electric shock or injury.

▶ Disposing of the rechargeable battery

DANGER

The rechargeable battery is exclusively for use with this trimmer. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not solder, disassemble, or modify the battery.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
  • Never peel off the tube.
• Doing so may cause fluid leak, overheating, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

- The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

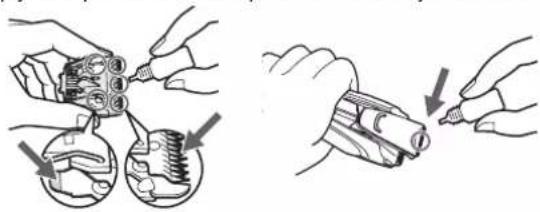

• Before and after each use, apply oil at the places marked with arrows. (See page 15.)
• The trimmer may become warm during operation and/or charging. This is normal.
• Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.
• Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.
• Store the trimmer in a place with low humidity after use.
  • The appliance should not be used on animals.

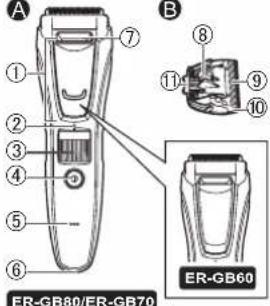

Parts identification

A

A ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑬ ER-GB80/ER-GB70 B ER-GB60

B

©

F

D

G

H

E

1

A

Main body

① Precision trimmer ER-GB80/ER-GB70
② Trimming height indication mark
③ Dial (Height adjustment control)
④ Power switch
⑤ Charge status lamp
⑥ Appliance socket
⑦ Water inlet

B

Blade

⑧ Cleaning lever
⑨ Moving blade
⑩ Stationary blade
⑪ Mounting hook

©

Comb attachment for beard [A] (1 mm (1/32") to 10 mm (13/32"))

D

Comb attachment for hair [B] (11 mm (7/16") to 20 mm (51/64")

E

Comb attachment for body hair ER-GB80

F

AC adaptor (RE9-70/RE9-86)

⑫ Adaptor
⑬ Power plug
⑭ Cord
⑮ Appliance plug

Accessories

Cleaning brush
H Oil
Pouch

Charging the trimmer

Make sure that the trimmer is turned off.

1. Connect the appliance plug to the appliance socket.

2. Plug in the adaptor into a household outlet.

3. Check that the charge status lamp glows.

4. Charging is completed after approx. 1 hour.

5. Disconnect the adaptor when the charge status lamp stops glowing.

• Recommended ambient temperature for charging is 0 – 35 °C (32 – 95 °F). Battery performance may decrease under extremely low or high temperatures, and the battery may not be charged properly.
• A full charge supplies enough power for approximately 50 minutes of use. The operating time may differ depending on the frequency of use, the operating method and the ambient temperature
• When charging the trimmer for the first time or when it has not been in use for more than 6 months, the lamp on the main body may not glow for a few minutes, or the operating time may shorten. Please charge it for more than 8 hours in such cases.
• If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration.

AC operation

If you connect the AC adaptor to the trimmer in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
  • The battery will be discharged, even with the AC operation.

Using the trimmer

• Make sure that the trimmer is turned off.
- We recommend using the trimmer in an ambient temperature range of 0 – 35 °C (32 – 95 °F). If used outside this range, the appliance may stop operating.

1. Mount the desired comb attachment and adjust the trimming height as needed. (See page 10.)

2. It can also be used without the comb attachment. (Trimming height: approx. 0.5 mm (1/64"))
   • Actual hair length will be a little longer than the height you set.

3. Press the power switch to turn on the power.

English

Using the comb attachment

• Be careful not to cut your hand with the blade when attaching or removing the comb attachment.
  • Make sure that the trimmer is turned off.

• Mount the comb attachment to the main body until it clicks.

Trimming height (estimate)	Comb attachment
1 mm (1/32") to 10 mm (13/32")	Comb attachment for beard [A]
11 mm (7/16") to 20 mm (51/64")	Comb attachment for hair [B]

• Setting of 10.5 mm (0.41") is unavailable.

• The trimming height of the comb attachment for body hair cannot be adjusted. This comb attachment trims to a length of approximately 1.5 mm (1/16").

• Turn the dial and adjust the trimming height indication mark to the desired height.

Technical diagram of a hairbrush with labeled parts and an inset showing a measurement device with values 1, 2, and 11.

▶ Comb attachment for beard [A]

Indicator	1 2 3	4 5	•		•		•		•		•
Trimming height (estimate)	mm	1 1.5	2 2.5	3 3	5 4	4.5	5	5.5
	inch	1/32	1/16	5/64	3/32	1/8	9/64	5/32	11/64	3/16	7/32

Indicator	6 7 8	9 10	•		•		•		•
Trimming height (estimate)	mm	6 6.5	7 7.	5 8 8	5 9	9.5	10
	inch	15/64	1/4	9/32	19/64	5/16	11/32	23/64	3/8	13/32

▶ Comb attachment for hair [E]

Indicator	11		•	12	13	14	15	•		•		•
Trimming height (estimate)	mm	11	11.5	12	12.5	13	13.5	14	14.5	15	15.5
	inch	7/16	29/64	15/32	1/2	33/64	17/32	9/16	3/64	19/32	39/64

Indicator		16	•	17	•	18	•	19	•	20
Trimming height (estimate)	mm	16	6.5	17	17.5	18	18.5	19	19.5	20
	inch	5/8	21/32	43/64	11/16	23/32	47/64	3/4	49/64	51/64

Removing the comb attachment

Remove the comb attachment from the main body.

Trimming beard

- Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.

Adjusting the beard length

• Make sure that the trimmer is turned off.

1. Attach the comb attachment for beard to the main body. (See page 10.)

2. Set the trimming height.

3. Holding the trimmer with the power switch facing upward, trim by bringing the blade in contact with the skin and moving the trimmer against the flow of the beard.

• Hair trimmings may collect inside the attachment when a large volume of beard is cut, so discard hair trimmings after each use.

Illustration of a person using a tool to brush or mark, with a close-up showing the tip of the brush (no text or symbols present)

Trimming without the comb attachment/trimming the downy hair

1. Remove the comb attachment.

2. Holding the trimmer with the power switch facing outwards, trim by bringing the blade in contact with the skin.

- The trimmer cannot trim hair to lengths less than 0.5 mm (1/64").

Beard shaping

Use the trimmer without any comb attachments to properly shape your beard.

- Use the precision trimmer for trimming narrow areas and for detailed trimming. (See page 12.)

▶ Above and below lips

Holding the trimmer with the power switch at the bottom, cut across a line with the blade at a 90° angle to the skin.

Illustration showing a person applying hair to a toothbrush, with magnified views of the tooth being cut out.

English

▶ Ends of moustache

Holding the trimmer with the power switch facing outward, trim gradually from the ends by bringing the blade in contact with the skin.

▶ Sideburns

Holding the trimmer with the power switch at the bottom, trim by moving the trimmer downward with the blade at a 90^ angle to the sideburns.

Illustration showing a hairpin being brushed down on a person's head, with magnified detail highlighting the tip and tail.

▶ Beard

Holding the trimmer with the power switch facing outward, trim by bringing the blade in contact with the skin and cutting along a line while moving the trimmer forward.

Using the precision trimmer ER-GB80/ER-GB70

Use the precision trimmer for trimming narrow areas and for detailed trimming.

1. Remove the comb attachment.

2. Slide the precision trimmer up to its maximum height.

3. Holding the trimmer with the power switch facing the skin, trim by bringing the blade in contact with the skin.

Illustration of a person using a tool to apply a specific technique, with an arrow indicating the process (no text or symbols present)

Trimming hair

• Make sure that the trimmer is turned off.
- To maintain sharpness, remove hair trimmings between usages.

Trimming to an even length

1. Attach the comb attachment for hair to the main body. (See page 10.)
2. Set the trimming height.
3. Holding the trimmer with the power switch upward, trim by moving the trimmer slowly against the flow of hair and toward the crown of your head.

Illustration showing a hair styling technique with a brush and a close-up of the head (no text or symbols)

1. Trim slowly while crisscrossing from various directions to avoid missing any spots.

Adjusting the length around the ears and neckline

1. Attach the comb attachment for hair to the main body. (See page 10.)
2. Set the trimming height.
3. Holding the trimmer with the power switch upward, trim around the ears and neckline (☐) by lifting the tip of the comb attachment little by little from the hairline.

- When trimming the entire area to 12 mm (15/32"), use 9 mm (23/64") as a rough standard trimming height for the neckline.

- When trimming the entire area to 9 mm (23/64"), use 6 mm (15/64") as a rough standard trimming height for the neckline.

Trimming the downy hair around the neckline

1. Remove the comb attachment.
2. Holding the trimmer with the power switch at the bottom, touching the blade perpendicular to the area of downy hair, and move the trimmer downward along the skin.
3. It is recommended to ask someone else to trim around your own ears and neckline.

English

Trimming body hair

Trim armpits and bikini lines with the comb attachment for body hair. ER-GB80

- The trimming height is approximately 1.5 mm (1/16").

- Do not use when body hair is wet. Wet body hair may stick to the skin or bunch up, making it difficult to trim.

1. Attach the comb attachment for body hair to the main body. (See page 10.)

2. Holding the trimmer with the power switch at the bottom, trim by bringing the blade in contact with the skin and slowly moving the trimmer in the direction as illustrated.

Illustration showing two different techniques for a person's shoulder joint or muscle compression (no text or symbols present)

- The desired results may not be achieved if hair is too long. In this case, trim the hair to a length of about 10 mm (13/32") before using the trimmer.

Cleaning the trimmer

• It is recommended to clean after every use.
• Remove the trimmer from the AC adaptor.

To remove light dirt To remove heavy dirt

1. Remove the comb attachment and turn the trimmer on.
2. Run water down the water inlet at the front of the main body, rinse thoroughly for approximately 20 seconds, and then turn the trimmer off.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

- Rinse with water and shake up and down several times to remove the water.

1. Remove the comb attachment and blade.
2. Clean the trimmer, the blade and the comb attachments with running water.

Three-step illustration showing hand positioning of a tool or device, with no visible text or symbols.

- Rinse with water and shake up and down several times to remove the water.

1. Wipe off the water with a towel and let it dry naturally.

2. It will dry faster with the blade removed.

3. Apply the oil to the blade after drying.
4. Attach the comb attachment and blade to the trimmer.

The mark on the left means suitable for cleaning under an open water tap.

Cleaning with the brush

1. Remove the trimmer from the AC adaptor.
   • Make sure that the trimmer is turned off.
2. Remove the comb attachment.
3. Hold the main body, place your thumb against the blades and then push them away from the main body.
4. Brush off any hair trimmings from the main body and from around the blade.

1. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever to raise the moving blade.
2. Apply the oil to the blade.
3. Attach the comb attachment and blade to the trimmer.

English

Lubrication

Apply the oil to the trimmer before and after each use. Apply a drop of the oil to the points indicated by the arrows.

Illustration showing two-step mechanical assembly steps: one with a tool inserted into a component, the other with a tool inserted into a cylindrical component (no text or symbols present)

Remounting the blade

Fit the mounting hook into the blade mounting on the trimmer and then push in until you hear a click.

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

English
Troubleshooting

Problem Action
The trimmer has become blunt.	Charge the trimmer. (See page 9.)
	Clean the blade and apply oil. (See pages 14 and 15.)
	Replace the blade. (See page 15.)
Trimmer stopped functioning.	Charge the trimmer. Or use with the AC operation. (See page 9.)
	Charge the battery for approximately 8 hours continuously to rejuvenate it. If few uses remain even after charging, the battery has reached the end of its life. (Fluid may be leaking due to degradation at the end of battery life.) Contact an authorized service center for repair.
The trimmer cannot be charged.	Push the appliance plug into the main body all the way and make sure the charge status lamp glows.
	Charge within the recommended charging temperature of 0 °C (32 °F) to 35 °C (95 °F).

Problem Action

Trimmer can be used for only about 10 minutes even after charging.	Have the battery replaced by an authorized service center.
The trimmer cannot be properly cleaned even after water is poured from the water inlet.	When the trimmer is very dirty, remove the blade and wash with water. (See page 14.)
Makes a loud sound.	Confirm that the blade is properly attached.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Frequently asked questions

Question Answer
Will the battery be exhausted after a long period of disuse?	When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.
Can the battery be charged before every use?	Yes, but it is recommended that you charge the battery when it is empty. The life of the battery will vary depending upon usage and storage conditions.

Blade life

Blade life varies according to the frequency and period of use of the trimmer.

For example, the blade life is approximately 3 years when using the trimmer for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

Removing the built-in rechargeable battery

ATTENTION:

A nickel metal hydride battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

Remove the built-in rechargeable battery before disposing of the trimmer.

This figure must only be used when disposing of the trimmer, and must not be used to repair it. If you dismantle the trimmer yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the trimmer from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑮ and lift the battery, and then remove it.
• Please take care not to short-circuit the battery.

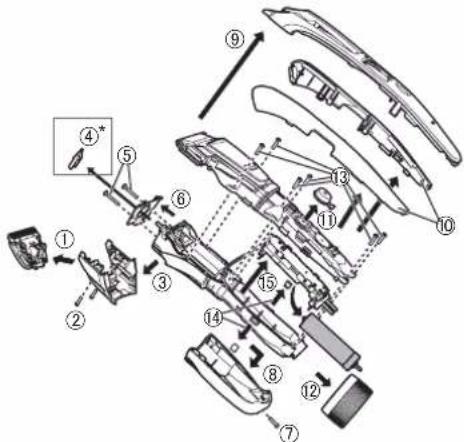

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

*for ER-GB80/ER-GB70 only

English
Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage 1.2 V	---
Charging time Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Personal Care & Beauty Care Products

FOR USA ONLY

30-Day Quality Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Panasonic®

Mode d'emploi

A ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑬ ER-GB80/ER-GB70 ER-GB60

F 12 13 14 15 G H I

Technical diagram of a hairbrush with labeled parts and an inset showing a measurement scale.

Illustration of a person using a tool to brush or mark a surface, with a close-up of the tool's tip (no text or symbols present)

Illustration showing facial hair application technique with magnified views of the tooth and mouth

30

Illustration showing a person using a tool to apply facial massage or facial pressure technique, with an inset magnified view of the action.

▶ Barbe

Illustration of a person using a tool to apply a hairpin, with a close-up showing the tip of the tool (no text or symbols present)

Coupe des cheveux

Illustration showing a hair styling technique with a brush and head view (no text or symbols)

Illustration showing two different techniques for a person's leg, one applying force to the other (no text or symbols present)

Illustration of a hand using a tool to lift a pipe, with an inset showing a close-up of the pipe (no text or symbols)

Three-step illustration showing hand holding a tool, pouring liquid into a container, and pulling a stick (no text or symbols)

Illustration of hands connecting mechanical components to a central device, with arrows indicating assembly or connection (no text or symbols present)

Illustration of hands using a tool to apply a pen tip (no text or symbols present)

Réinstallation de la lame

Illustration of a hand holding a small object with a magnified inset showing a mechanical component (no text or symbols)

Dépannage

Problème Action

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

*ER-GB80/ER-GB70 uniquement

Caractéristiques

A ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑬ ER-GB80/ER-GB70 B ER-GB60

Diagram showing labeled parts of a tool or device with numbered labels 12 to 15 and corresponding illustrations.

A Cuerpo principal

Technical diagram of a hairbrush with labeled parts and an inset showing a measurement device with values 1, 2, 11, 12.

Illustration of a person using a tool to brush or mark, with a close-up of the tool tip (no text or symbols present)

Corte sin peine/corte del vello

Medical illustration showing a person using a tool to apply eye examination with magnified views of the device.

Español

▶ Extremos del bigote

Illustration showing facial massage technique with magnified detail of the head and eyelid

Barba

Illustration of a person using a tool to apply a hairpin, with a close-up showing the tip of the brush (no text or symbols present)

Español

48

PB013791 - ER-GB7000000_03E_07-22-16.indd 48 2016/7/22 17:11:25

Corte de pelo

Illustration showing a hair styling technique with a brush and a close-up of the head (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing the same part (no text or symbols present)

Three-step illustration showing hand positioning of a tool or device with motion lines indicating movement (no text or symbols)

Illustration showing two-step mechanical assembly steps: one with a tool, the other with a tool inserted into a component (no text or symbols present)

Exploded view diagram of a mechanical assembly with numbered components for identification

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC:

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

EN MÉXICO CONTACTE CON:

Service • Assistance • Accessories

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

http://www.panasonic.com

© Panasonic Corporation 2016

⑤ EN, CA, ES

PB013791 - ER-GB7000000_03E_07-22-16.indd 56 2016/7/22 17:11:29

Printed in China

Imprimé en Chine

Impreso en China

ER9700GB802551 Y0000-10716
