USER MANUAL Ceiling Fan 48 Eurom
Instruction manual (EN) (page 9)
Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.
To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.
Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.
We wish you a lot of fun with the Ceiling Fan 48!
Eurom
Kokosstraat 20
8281 JC Genemuiden (NL)
info@eurom.nl
www.eurom.nl
This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.
Technical specifications
| Connected power | 220-240V~50Hz |
| Output capacity | 65W |
| Capacity positions | 3 |
| Ø blades | 48" (122 cm) |
| Weight | 4,4 kg |
| Dimensions | Ø 122 x 36 cm |
General safety guidelines
- This device is only to be used indoors.
- Before every use, check that the voltage on the socket to be used matches the voltage indicated on the device's specification plate: 220 - 240V 50Hz .
- Check fan and cable for damage before use. If you discover any damage (even if this is found later, after a fall for example) or if the device fails to operate properly, do not use and ask a
supplier/trained electrician to repair it. Never open up the device, remove components/screws or carry out repairs yourself!
- The distance between the fan blades and the floor must be at least 230~cm . The connection point, to which the fan is connected, must be able to bear a weight of 100~kg . Never hang the fan on the connection point itself; connect it to the ceiling.
- The electrical installation and wiring must comply with national and local regulations.
- The fan must be earthed correctly in order to avoid the risk of electric shocks.
- Never touch a device that is rotating and never insert any part of your body between the rotating turbines!
- Never hang the fan in a damp or wet room. Never touch the operating unit with wet hands!
- Do not leave a fan operating unsupervised in a room.
- Never hang things over the device. Ensure that curtains, clothing etc. do not come into the vicinity of the fan.
- Never spray any products (anti-insect, cleaning agent etc.) on or in the fan.
- Do not store or use the fan near acids, alkalis, oil or other corrosive substances.
- Do not store or use the fan near flammable, explosive or gaseous substances;
- This device is not suitable to be used by children or persons with a physical, sensual or mental disability or those who lack experience and knowledge, irrespective of whether they are being supervised or there is a responsible person present. Keep these persons and household pets out of the vicinity of the fan.
- This device should only be used for the purposes set out in the booklet. Any other usage may be dangerous (could cause fire, injury, damage, electric shock etc.) and will invalidate the liability of the supplier and the guarantee.

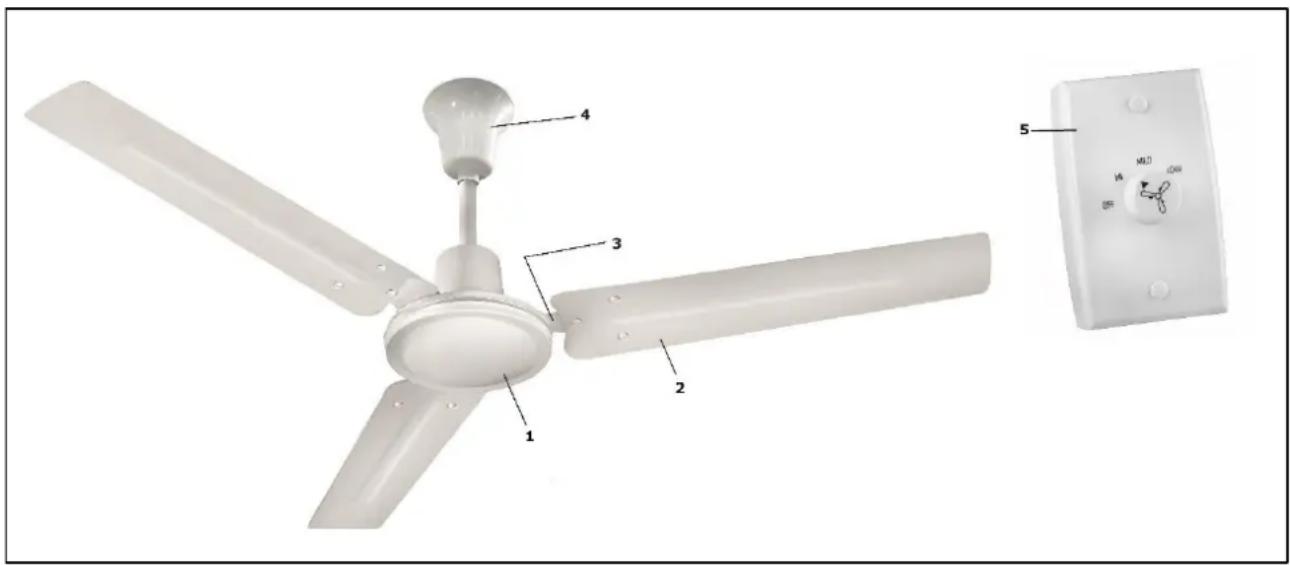

Diagram of components
- motor housing
- fan turbine
-
connection bracket
-
upper protective cap
- operating unit
Description
The Ceiling Fan 48 is intended to provide a refreshing flow of air in the relevant room. It has been designed to be connected to an electrical point in the ceiling. It is operated using a special, wall-mounted operating unit that is connected to the connection point in the ceiling.
This wall-mounted contact unit enables the fan to be set to 3 different settings (LOW - MED - HI) and switched off (OFF).
Installation
Electrical installation
Before beginning to install the fan and/or the operating unit, the electrical installation must be adequately prepared.
Choose the location on the ceiling where you would like to hang the fan. At this location, there must be an electrical connection point (220-240V~50HZ) with the correct cabling that is connected to the wall-mounted unit in order to operate the fan. This connection point must only be installed by an approved electrician. The ceiling must also be:
- At least 266 cm above the floor.
- Made of material that is suitable and sturdy enough to bear the fan (also during use), i.e. concrete, wooden beams or similar but not plaster, soft boards, scrap etc. able to bear at least 100kg .
Ceiling fan
Your ceiling fan should be installed by someone with an understanding of electrical cabling.
- Disconnect the power.
- Remove the packaging materials.
- De not remove the 3 cardboard discs on the motor housing, the provide stability.

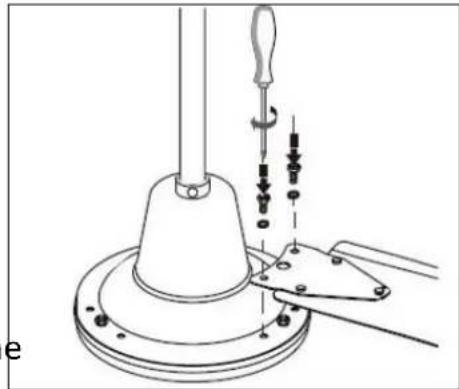

- Screw the three turbines to the motor casing securely with 2 nuts and rings each; the connection bracket should face the ceiling (see diagram).
-

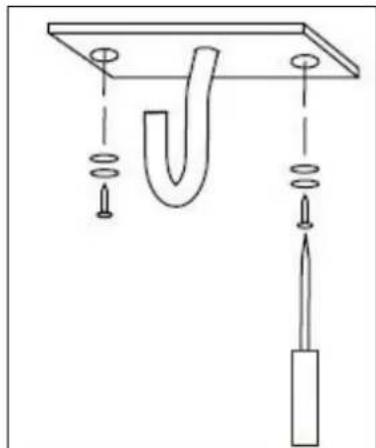

Secure the plate with the suspension hook to the ceiling, directly next to the electrical connection point.
-
Decide which screws (and plugs or bolts) are required for your base material. The materials which are enclosed are suitable for wood. If you have another base and you are not sure, ask for advice regarding which materials are required!
- Mark the right location for the screws. If necessary, drill holes and use plugs/ key bolts.
-
Screw the plate (suspension hook downwards) into place securely. Use a flat ring and a spring washer between the screw and plate for extra rigidity. Make sure no wires are trapped between the ceiling and the plate!
-

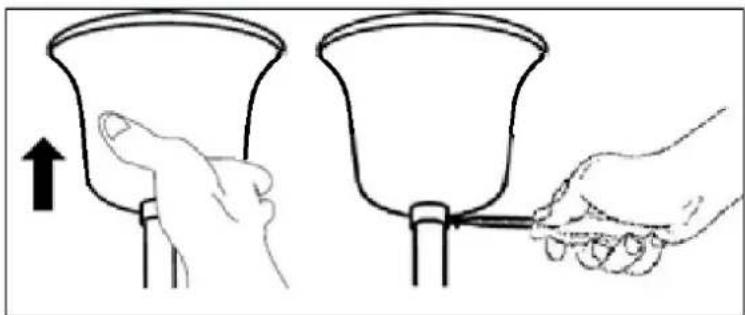

Slide the upper protective cap on the fan downwards and hang the fan on the suspension hook using the pulley. Make sure that no wires become trapped between hook and pulley!
Check to make sure that everything is secure.

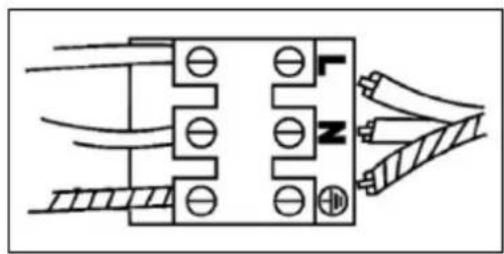

- Connect the wires from the connection point to the corresponding wires in the connector: Brown = L (phase), Blue = N (neutral), green/yellow = earth .
Important! Do not switch any wires; this will damage the device!
- Slide the upper protective cap over the connection point and hanging point to the ceiling and screw it into place onto the piping.
Operating unit
The operating unit (220-240V~50Hz) must be installed by an electrician.

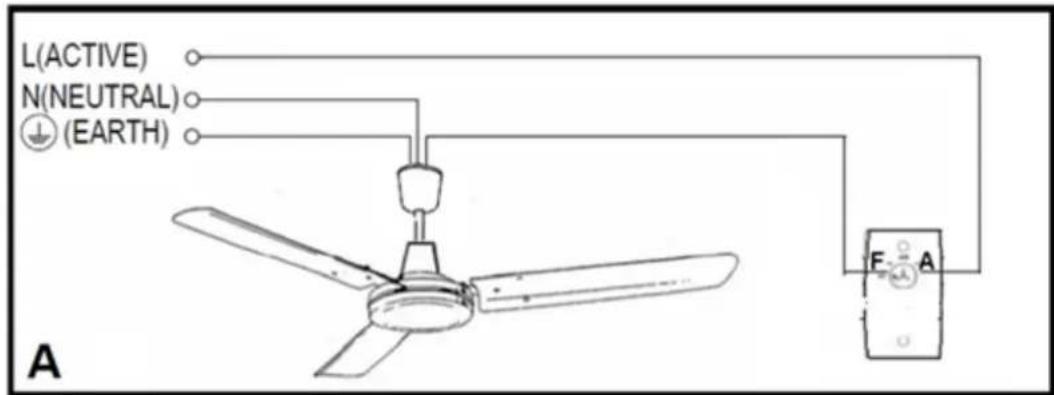

Wiring diagram
Once installation is completed, you can switch the power back on with the main switch. Your ceiling fan is now ready for use.
Operation
Check that you have complied with all safety regulations; you can then switch on the device by turning the operating button clockwise from OFF to HI. The fan will start to rotate at the highest setting. By turning further, to MED or LOW, you will slow the fan down. In order to switch the fan off, turn the button clockwise to OFF.
Cleaning and maintenance
Switch the fan off in order to clean it. The fan only needs general, exterior maintenance. Dust it regularly with a soft cloth or duster or use a vacuum cleaner with a soft brush to clean. If it becomes very dirty, clean with a slightly damp cloth and a mild household cleaning product. Dry everything thoroughly and allow the fan to dry properly before using again. Ensure that water does not come into contact with anything other than the casing and the turbines! Never rinse or spray the fan!
In order to prevent material discoloration or deformities, never use aggressive or corrosive (cleaning) products.
Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure.
Repairs must be carried out by qualified engineers. This also applies to repairs to the electrical elements. Make sure that the power is always switched off via the main switch. Please request original parts if the device needs to be repaired. Never open up the device yourself!
If the device is subjected to modifications or repairs are carried out by unqualified persons, the guarantees from the supplier, importer and manufacturer will become null and void.
Removal
In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.
CE - declaration
Euromac BV, Kokosstraat 20, 8281 JC Genemuiden, The Netherlands hereby declares that the ceiling fan, brand EUROM, type Ceiling Fan 48, complies with the requirements of the Low Voltage Directives 2014/35/EU and EMC 2014/30/EU and fulfils the requirements below:
LVD 2014/35/EU
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-80:2003+A1:2004+A2:2009
EN 62233:2008
EMC 2014/30/EU
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
RoHS 2011/65/EU&(EU)2015/863
Genemuiden, 20-10-20210
W.J. Bakker, gen. man.
