USER MANUAL TCR107091 Emerio

Black industrial machine with a flat-screen slide and handle, no visible text or symbols

Traditional Cheese Raclette (EN)

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

7. Read these instructions carefully and keep them in a safe place.

8. Only use the appliance as described in this manual.

9. In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.

10. Keep the appliance out of the reach of children.

11. Always remove the power cord and let it cool: before moving the unit; before the unit is stored; before you go

mounting or dismantle parts; before cleaning or maintenance work; after use.

1. Only have the appliance repaired by a qualified service centre.
2. Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

1. Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
2. Always plug the appliance into an earthed plug socket.
3. Regularly check the power cord for damage.
4. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
5. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
6. Make sure the power cord does not come into contact with hot surfaces or steam.
7. Always remove the plug from the plug socket before you move the appliance.
8. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
9. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

10. To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.

11. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.

12. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and do not use it again.
13. Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

1. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

2. Only use the appliance indoors, in dry areas away from water.

3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.

5. Place the appliance on a stable, level surface from which it cannot fall of.

6. Use the appliance on a flat, dry and heat resistance surface, not on varnished furniture.

7. Place the appliance at least 5cm of the wall or flammable objects (such as curtains, candles or towels).

8. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).

9. Disconnect the mains plug: after each time operating; if there is any interference with operation; before cleaning.

10. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

11. Do not use the appliance if the mains cable or plug show signs of damage, if the appliance has fallen on the floor or has other parts been damage. In such cases take the appliance to a specialist for checking and repair is necessary.

12. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

13. Close supervision is necessary for any appliance being used by or near children.
14. Never leave the appliance unattended during use.
15. It is necessary to keep this appliance clean because it is in direct contact with food.
16. Warning:

Please do not touch surface while in use. The accessible surface may get hot when the appliance is operating.

German

SICHERHEITSHINWEISE

Allgemeines

Labeled diagram of a laboratory instrument with numbered parts for identification

13 14

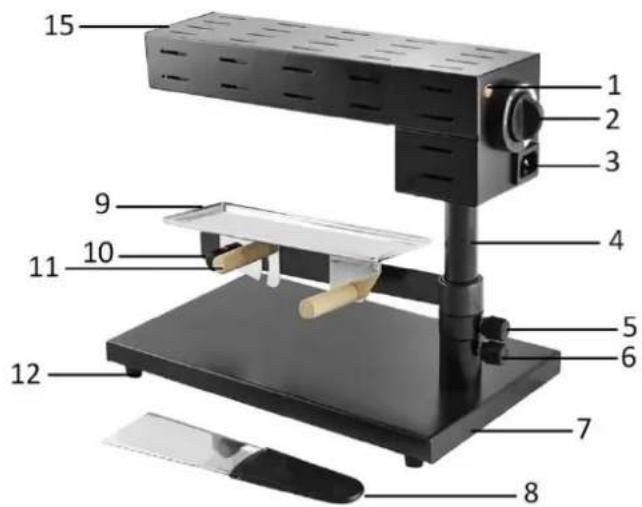

1. Temperature control light
2. Thermostat knob
3. Connection for removable cord
4. Support arm
5. Screw on height regulator
6. Screw on support opening
7. Base
8. Cheese scraper
9. Stainless steel cheese tray
10. Screw for inclination till 45°
11. Handles for cheese tray
12. Feet
13. Height regulator
14. Support opening
15. Heat reflector

BEFORE THE FIRST USE

1. Remove all packaging and stickers. Keep packing materials away from children.
2. The appliance is not assembled. Assemble it as described under "Assemble the appliance".
3. Clean the appliance as described under "cleaning and maintenance".
4. When first use the appliance, some smoke will occur. This is normal and the smoke will disappear automatically.
5. The appliance is ready for use.

ASSEMBLE THE APPLIANCE

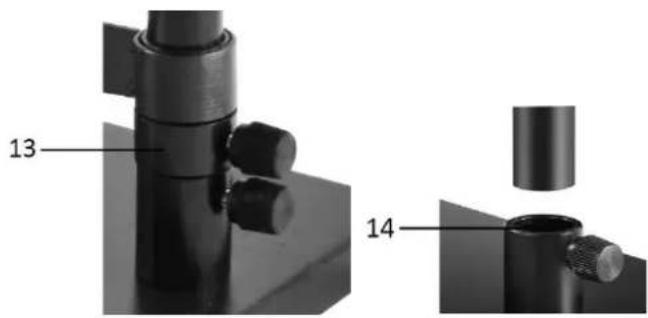

1. Slide the height regulator (13) over the support (4) and then put the support in the support opening (14) on the base (7).
2. Slide the height regulator to the desired height and tightly fasten the screw (5) on the height regulator.
3. Tightly fasten the screw (6) on the support opening.
4. Insert the power cord in the connection (3).
5. The appliance is ready for use.

USE

1. Place the appliance on a stable surface.
2. Turn the cheese tray (9) towards the outside and put a piece of cheese on the tray.
3. Slide the cheese tray to the desired height with the height regulator (13), depending on the thickness of the cheese.
4. If you use a part of cheese, you can turn the cheese tray into a corner of 45^ by using the screw (10) for inclination to adjust the cheese tray so that the upper side of the cheese lies horizontally. Then tighten the screw (10).
5. Insert the plug in the socket and turn the thermostat knob (2) to the desired position. The temperature control light (1) will illuminate. As soon as the desired temperature is reached the control light will go out.
6. Turn the cheese tray below the heating element. Let the cheese melt. Caution: the appliance is very hot during operation, please don't touch the appliance surface.

Tips: If the cheese does not melt (enough), please check below:

• Check if the plug is correctly inserted into the socket and into the connection of the appliance.
• The cheese is too far away from the heating element. Please place the cheese tray under the heating element and adjust the height by the screw.
  • The chosen temperature is too low. Turn the thermostat knob clockwise to a higher temperature.

• The used cheese is not suited to melt. Please use raclette cheese.

• Turn the cheese tray away from the appliance with the handles as soon as the cheese is sufficiently melted.

• Scrape the amount of cheese as you desire.
• After 2 or 3 portions, remove the excessive crust before you continue.
• Push the cheese tray back below the heating element. If necessary, adjust the height of the cheese tray. Attention: the appliance is hot! To change the height of the cheese tray while in use, please use oven gloves.
• After use, turn off the thermostat knob and unplug the appliance from the socket and then from the supply cord connection on the appliance.

CLEANING AND MAINTENANCE

1. Let the appliance completely cool down before you move, disassemble or clean the appliance.
2. Clean the cheese tray with warm soapy water. Do not use any scourer or abrasive products.
3. Wipe the appliance with a clean humid cloth and dry thoroughly.
4. If needed, remove the heat reflector (pull out from the upper heating element) and clean with warm soapy water. Do not use any scourer of abrasive products.
5. No parts can be cleaned in a dishwasher.

TECHNICAL DATA

Supply voltage: 230V \~ 50Hz

Power: 600W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs

by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]
