USER MANUAL HPS121313 Emerio

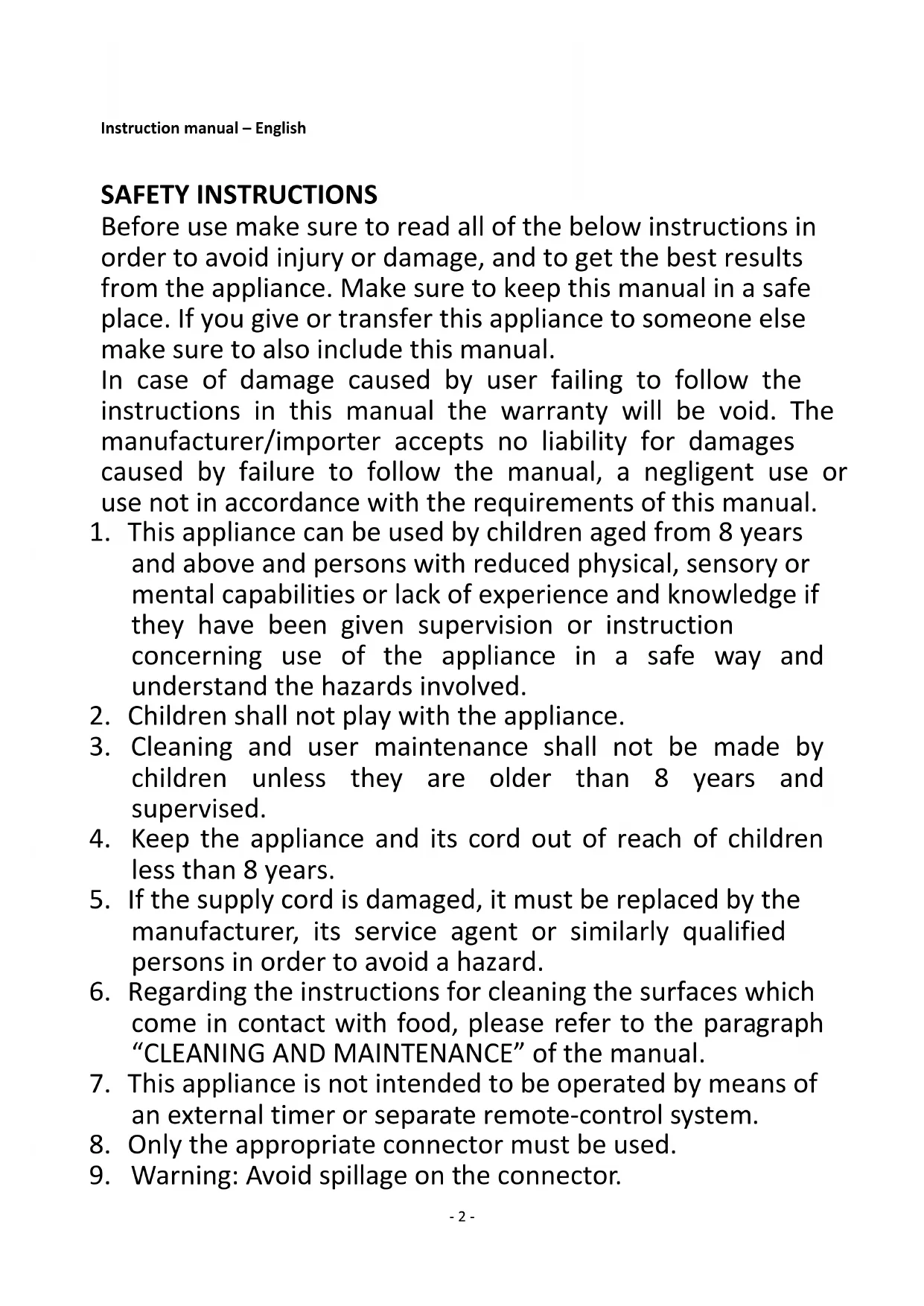

Content – Inhalt – Teneur – Inhoud – Содержание Instruction manual – English ...................................................................................... - 2 - Bedienungsanleitung – German ................................................................................. - 9 - Mode d’emploi – French .......................................................................................... - 17 - Gebruiksaanwijzing – Dutch ..................................................................................... - 25 - Инструкция по эксплуатации – Russian ................................................................. - 33 -- 2 - Instruction manual – English SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children unless they are older than 8 years and supervised.

4. Keep the appliance and its cord out of reach of children

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which

come in contact with food, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

7. This appliance is not intended to be operated by means of

an external timer or separate remote-control system.

8. Only the appropriate connector must be used.

9. Warning: Avoid spillage on the connector.- 3 -

10. Warning: Potential risk of injuries from misuse.

11. The heating element surface is subject to residual heat

12. This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

13. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

14. Always plug the appliance into an earthed plug socket.

15. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

16. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

17. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

18. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

19. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

20. Do not touch the appliance if it falls into water. Remove

the plug from its socket, and send it to an authorized service centre for repair.

21. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

22. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

23. Never leave the appliance unattended during use.

24. Do not use the appliance for other than intended use.- 4 -

25. Do not wind the cord around the appliance and do not

26. Place the appliance on a stable, level surface from which it

27. If you use products with non-stick surfaces, please make

sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

28. Fill water or soup not more that 70% of the pot during

operation. Spillage from overflow when boiled may cause electric hazard.

29. Never switch on the appliance with an empty pot which

may result in serious damage to the appliance.

30. Do not cover the lid during grilling or if the grill plate is hot.

Do not spatter other liquid than cooking oil on the grill plate. Do not touch the grill plate during cooking; it is very hot.

31. “Flat-topped” tapered heater must be kept dry at all times.

It is just solely for grill plate use. Do not try to use it for other purpose.

32. Place the pot in a dry place. Be careful to protect the

heating base against dampness and shock. Never put the heating base into water for cleaning.

33. Do not remove the pot from the heating base before it

cools down. Removing the pot with force may damage the pot and the heating base.

34. Unplug from the outlet when not in use and before

cleaning. Allow it to cool down before putting on or taking off parts, and before cleaning.

35. The appliance should be given ample air circulation on all

sides. The heating base has to face upwards when using.

36. Operate the appliance on a flat and dry place. Always keep

the appliance dry, especially the heating base. The appliance may be deformed or damaged when exposed to high heat or used in unstable surroundings (excess water or humidity).- 5 -

37. Make sure the outer surface of the pot and the heating

base is clean and dry before plug in.

38. Before cooking, make sure the pot is levelly placed and

tightly seated in the middle of the heating base.

39. Do not place any object nearby or cover or touch the hot

steam vent of the glass lid while cooking. Beware of the hidden steam under the lid.

40. Never put the pot on any other cooking devices.

41. Never touch the outer body of the pot during operation.

Always allow it to cool down before handling.

42. Extreme caution is necessary when moving the appliance

with hot liquid inside.

43. This appliance is not suitable for outdoor use or to be

used in damp areas. This appliance is for household use only.

44. Do not place the appliance on or near a hot gas or electric

burner, or in a heated oven. Do not place the flammable materials near the appliance.

45. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 6 - HPS-121313 EN

4. Removable grill plate

9. Removable power cord

1. Remove all packaging materials.

2. Clean the appliance according to the section “cleaning and maintenance”.

3. To assemble the knob onto the glass lid, loosen the screw from the knob and then place the knob on top of

the glass lid with the black washer underneath. Tighten back the screw firmly. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal, and will stop soon.- 7 - OPERATING INSTRUCTIONS

1. Place the appliance on a flat, stable, heat-resistant and splash-proof surface where it cannot fall off.

2. Before each operation, remove any unwanted materials from the surface of the heating base and tapered

heater. Ensure the pot sits firmly on the heating base before operation. The fondue button and grill button are set at position “O”.

3. Put the hot pot with soup or water on the heating base and turn slightly to fit the bottom of the pot to the

surface of the heating base. Fill only 70% full when cooking to avoid spillage which may result in electric hazard.

4. Fill the cooking pot with soup or water before placing on the heating base. The grill pan must sit on the

“flat-topped” tapered heater. Keep the “flat-topped” tapered heater dry.

5. Connect the power cord fully into the heating base socket first, and then plug into an appropriate

electrical outlet. The power indicator light will illuminate.

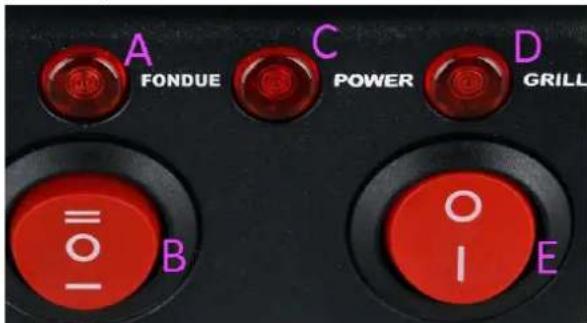

6. Fondue/ Hotpot function: Press the fondue button to position “I” = low temperature setting / “II” = high

temperature setting to turn on the fondue function. The fondue indicator light will illuminate. Note: Heat the broth for about 20 minutes if cold. If you have prepared the broth on the stove and it is still hot, this time is reduced accordingly.

7. Grill function: Press the grill button to position “I” to turn on the grilling function. The grill indicator light

will illuminate. Before filling cooking oil, please let the grill plate dry up for a moment. Note: During grilling, do not cover with lid. Otherwise, the lid knob temperature will be too hot to handle.

8. After use, press the fondue button and grill button to position “O”.

RECIPE Chinese hotpot (Chinese fondue) for 4 persons Ingredients:

• 5 vegetable stock cubes

• 2 cloves garlic, pressed

• 400 g vegetables: snow peas, pepper strips, mushrooms, onion rings, shiitakes, carrot

• 800 g meat: steak, veal tenderloin, fricandeau, pig liver, pork tenderloin, chicken breast, turkey fillets, chopped Prepare: Bring 2 litres of water to the boil with the vegetable stock cubes. Add the onion and garlic and let it simmer for 30 minutes. Meanwhile, cut the vegetables into strips or cubes and place on a separate bowl. Cut the meat into thin strips (not diced) and arrange the type of meat on a nice dish (or 2 bowls for more than 5 persons). Serve chicken separately on a plate. Heat the broth for about 20 minutes if cold. If you have prepared the broth on the stove and it is still hot, this time is reduced accordingly. Put the meat and vegetables in a basket in the vegetable stock until it is cooked. Note: Chinese Hotpot is a fondue without grease or oil, but with a strong vegetable stock in which light meats and vegetables are cooked.- 8 -

CLEANING AND MAINTENANCE

1. Before cleaning the appliance, make sure you remove the plug from the mains socket. Allow it to cool

down completely. Note: Never immerse the appliance into water or any other liquids.

2. Clean the pot and the glass lid with water and sponge.

3. Wipe clean the heating base with a damp cloth. Do not wash the heating base in water.

4. Dry well before storage.

5. All non-electrical parts are dishwasher safe.

CAUTION: The pot will stick on the heating base tightly when heating. Do not remove the pot from the heating base before it cools down. Removing with force will damage the pot and the heating base. TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power: 1950W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
