RG128187 - Fondue, raclette and wok appliance Emerio - Free user manual and instructions

Product type	3-in-1 appliance (fondue, raclette, grill)
Brand	Emerio
Model	RG128187
Power	2200 W
Power supply voltage	220-240 V ~ 50/60 Hz
Cooking plate material	Non-stick coating
Pot material	Stainless steel
Number of mini raclette pans	8
Included accessories	8 fondue forks, fork holder, 8 wooden spatulas
Functions	Grill, raclette, fondue (cheese, chocolate, bourguignonne)
Adjustable thermostat	Yes, 2 independent thermostats (grill and pot)
Indicator lights	Yes (blue/red) for each thermostat
Dimensions (approx.)	30 x 30 x 20 cm
Net weight (approx.)	3 kg
Cleaning	Plate, pot, forks and holder are dishwasher safe; spatulas hand wash only
Warranty	2 years
Recycling	Compliant with WEEE Directive 2012/19/EU
After-sales service	Emerio B.V., Oudeweg 115, 2031 CC Haarlem, Netherlands

Frequently Asked Questions - RG128187 Emerio

How to clean the appliance after use?

Unplug the appliance and let it cool down. The cooking plate, pot, forks, and holder can be washed in the dishwasher or with soapy water. The wooden spatulas should be hand washed and dried completely. Never immerse the appliance body.

Can the pot be used for cheese fondue?

Yes, the pot is perfect for Savoyard fondue. Set the thermostat to MAX to melt the cheese, then reduce the temperature to maintain a creamy consistency without boiling.

Which oil to use for bourguignonne fondue?

Use a neutral cooking oil with a high smoke point, such as peanut or sunflower oil. Fill the pot between the min and max marks indicated inside.

Why does the appliance emit smoke and odor during first use?

This is normal. Manufacturing residues burn off during the first heating. Run the appliance at medium power for about 10 minutes in a well-ventilated room before first use.

How to prevent food from sticking to the grill plate?

Before first use, pour a small amount of oil on the plate and wipe it with a dry cloth. For each use, make sure to add a little fat to the mini raclette pans.

Are the mini raclette pans dishwasher safe?

Yes, the mini pans, cooking plate, pot, forks, and holder can be washed in the dishwasher. The wooden spatulas must be hand washed.

Is the appliance suitable for raclette?

Yes, it includes 8 mini pans for preparing toast, eggs, potatoes, and other ingredients. The hot plate can also be used for grilling meat.

How to adjust temperature for chocolate fondue?

Turn the pot thermostat to MAX to melt the chocolate, then gradually reduce to maintain a low temperature without boiling. Stir regularly with a wooden spatula.

What is the maximum oil level in the pot?

Do not exceed the max mark indicated inside the pot. The level should be between the min and max marks to avoid hot oil splashes.

Does the appliance shut off automatically?

No, the appliance does not have automatic shut-off. It is essential to never leave the appliance unattended during use and to unplug it after each use.

USER MANUAL RG128187 Emerio

Modern flat-screen grater with a bowl of hot pot and chopsticks on top (no text or symbols visible)

3 in 1 Raclette, Grill and Cheese Fondue (EN)

Instruction manual – English ...... - 2 -

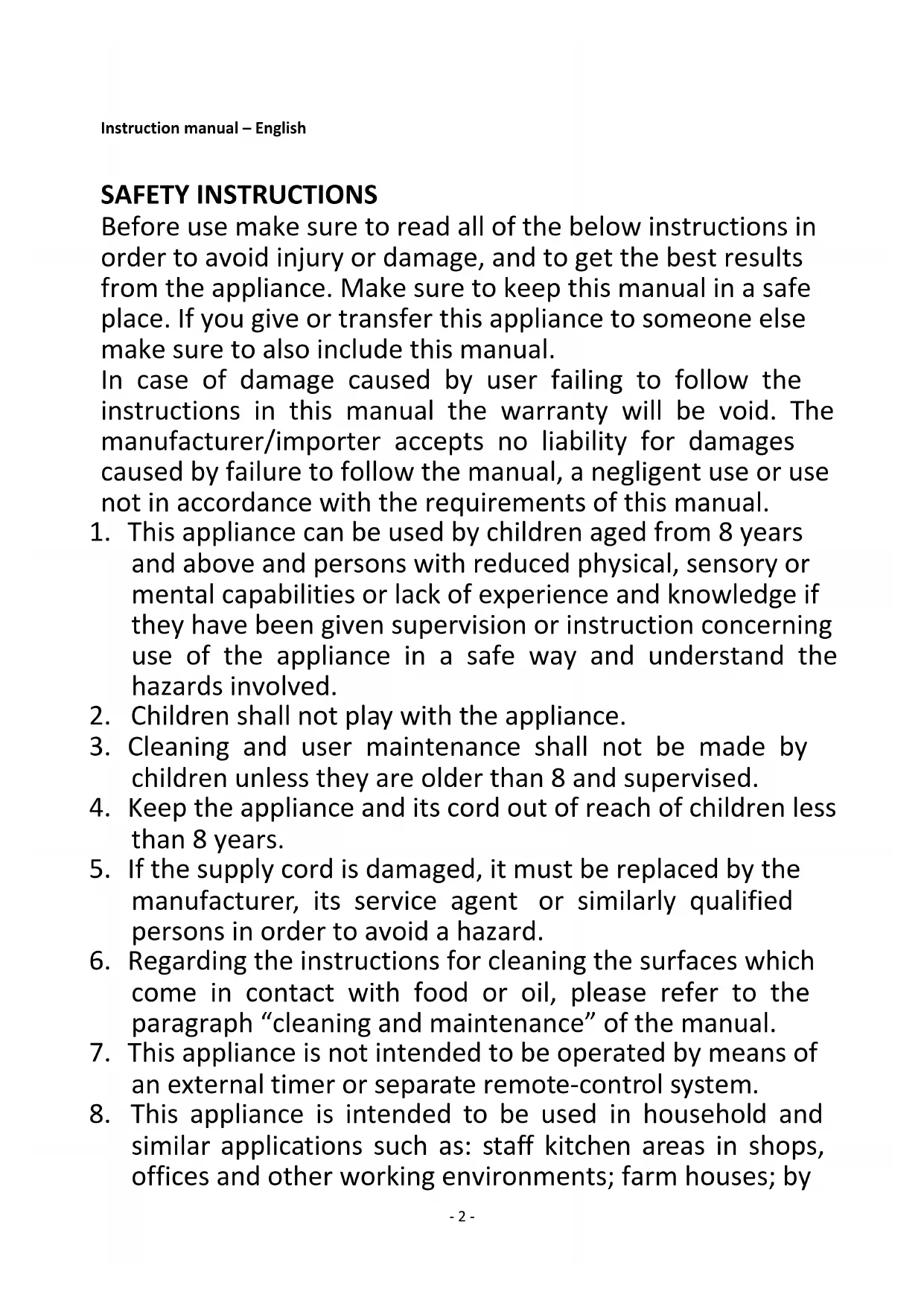

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by

clients in hotels, motels and other residential type environment; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.

12. Do not use the appliance for other than intended use.

13. Do not wind the cord around the appliance and do not bend it.

14. Place the appliance on a stable, level surface from which it cannot fall off.

15. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

16. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

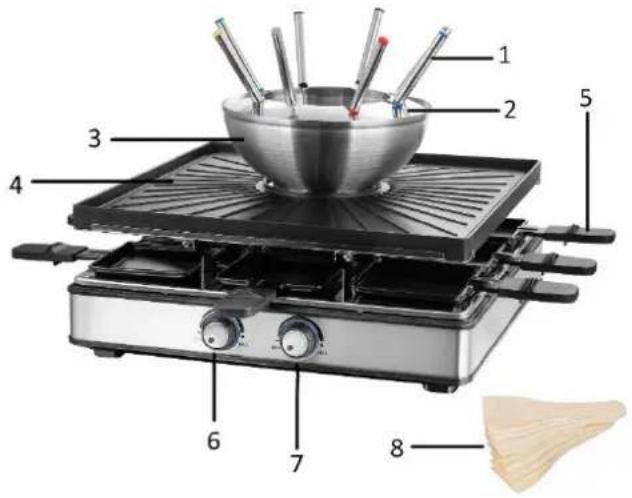

LIST OF COMPONENTS

1. Forks
2. Forks supporter
3. Fondue pot
4. Grill plate
5. Mini pans
6. Temperature control knob and its indicator light (for grill)
7. Temperature control knob and its indicator light (for fondue pot)
8. Wooden spatulas

Labeled diagram of a food grater with numbered components including a hot pot, plate, and dish.

BEFORE USE

1. Make sure all packing materials are removed. Clean the appliance and accessories according to below "cleaning and maintenance".
2. Make sure that there is enough ventilation around the appliance.
3. The appliance should not be placed on an untreated wood surface. Place the appliance on a level and heat resistant surface.
4. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Grill like a real Chef.

Preparing your meat in advance (take it out of the refrigerator, let it reach room temperature before you put it on the grill-plate) gives your meat a more even cooked result. It also prevents the grill-plate from deforming if the meat and other ingredients are too cold.

OPERATION

Place the appliance in the middle of the table and plug in. Two temperature control knobs will illuminate blue.

Grill plate

1. Cut the meat into small pieces. You can thus reduce the cooking time.
2. Rotate the temperature control knob for grill to your desired position. Its indicator light illuminates red and the appliance heats up.
   NOTE: When first use, drop some oil on the surface of the plate and then wipe it off with dry cloth.
3. When your desired temperature is reached, its indicator light will illuminate blue again; you can put your food on the gill plate to start cooking.
4. During cooking, the heating element will be on or off to maintain the set temperature and its indicator light will illuminate blue or red accordingly.
5. You can grill toasts in the raclette pans, fry eggs or potatoes and many other things. Meat can be prepared on the grill plate.
   NOTE: Always remember to add some grease to mini pans before use.
6. After use, rotate the temperature control knob for grill to position "MIN". Then, unplug the appliance.

Fondue pot

The appliance has a fondue pot. You can fill the fondue pot with oil, chocolate or cheese. Do not over the Max line inside the pot.

a) Oil fondue

Caution: Do not move your appliance when the oil is hot!

1) Pour the oil in the pot and ensure that the oil level is between the min and max levels marked inside the pot. Warning: failure to observe this might damage your appliance or get burned by splashing oil.
2) Turn the temperature control knob for fondue pot to the "MAX" position. Its indicator light illuminates red and the appliance heats up.
3) Cut the meat into small equal sized pieces (2 to 3 cm).
4) Wait until the oil has reached the desired temperature. To make sure the oil has heated up sufficient, preheat the oil for 30 minutes. To check if the temperature is sufficient, immerse a piece of meat into the oil. If the meat starts frying immediately, it means that the oil has reached the necessary temperature.
5) Using the fondue forks. Skewer the meat and place the meat carefully into the oil to avoid splashes. Rest the fondue forks in the slots of the forks supporter and wait until the meat is cooked. Depending on the amount of meat that you will immerse, the oil might start boiling. If this happens, reduce the temperature by turning the temperature knob anticlockwise.
6) During cooking, the heating element will be on or off to maintain the set temperature and its indicator light will illuminate blue or red accordingly.
7) After use, rotate the temperature control knob to position "MIN". Then, unplug the appliance.

b) Cheese / chocolate fondue

1) Cut the cheese/ chocolate and put it in the pot.
2) Turn the temperature control knob for fondue pot to the "MAX" position. Its indicator light illuminates red and the appliance heats up. It is not necessary to use the forks supporter.
3) Stir regularly with a wooden spoon when the cheese / chocolate starts to melt.
4) Regulate the temperature of the thermostat so that the cheese / chocolate melts but does not boil.
5) Using the fondue forks, you can dip your food into the melted cheese / chocolate.
6) After use, rotate the temperature control knob to position "MIN". Then, unplug the appliance.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and allow cooling before moving and/or cleaning.
2. Do not immerse the appliance in water. Clean the heating unit with a soft damp cloth only. Remove debris from the heating elements with a soft brush.
3. Grill plate, fondue pot, forks and forks supporter can be washed in water. If stains still appear, it is recommended to use soap. They can be cleaned in a dishwasher.
4. Wooden spatulas and mini pans can be cleaned in soapy water, and dry completely after cleaning.
5. Do not use abrasive cleaners or sharp utensils to clean the appliance.

TECHNICAL DATA

Operating voltage: 220-240V\~50/60Hz

Power: 2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

Labeled diagram of a food grater with numbered components including a hot pot, plate, and dish.

VOR ERSTBENUTZUNG

1. Attention, surface chaude.

Labeled diagram of a grating machine with numbered components for cooking or cooking preparation

AVANT USAGE

Labeled diagram of a food grater with numbered components including a bowl, utensils, and a pastry.

INNAN ANVÄNDNING

Labeled diagram of a food grater with numbered components including a bowl, utensils, and a pastry.

VOORDAT HET APPARAAT GEBRUIKT WORDT

Yellow triangular warning sign with black smoke symbol indicating hot water or steam

Labeled diagram of a food grater with numbered components including a bowl, pan, and dish

PRZED UŻYCIEM
