USER MANUAL MS 62 GRAEF

MS 61 MS 62 MS 80 MS 85

Bedienungsanleitung

Operating Instructions

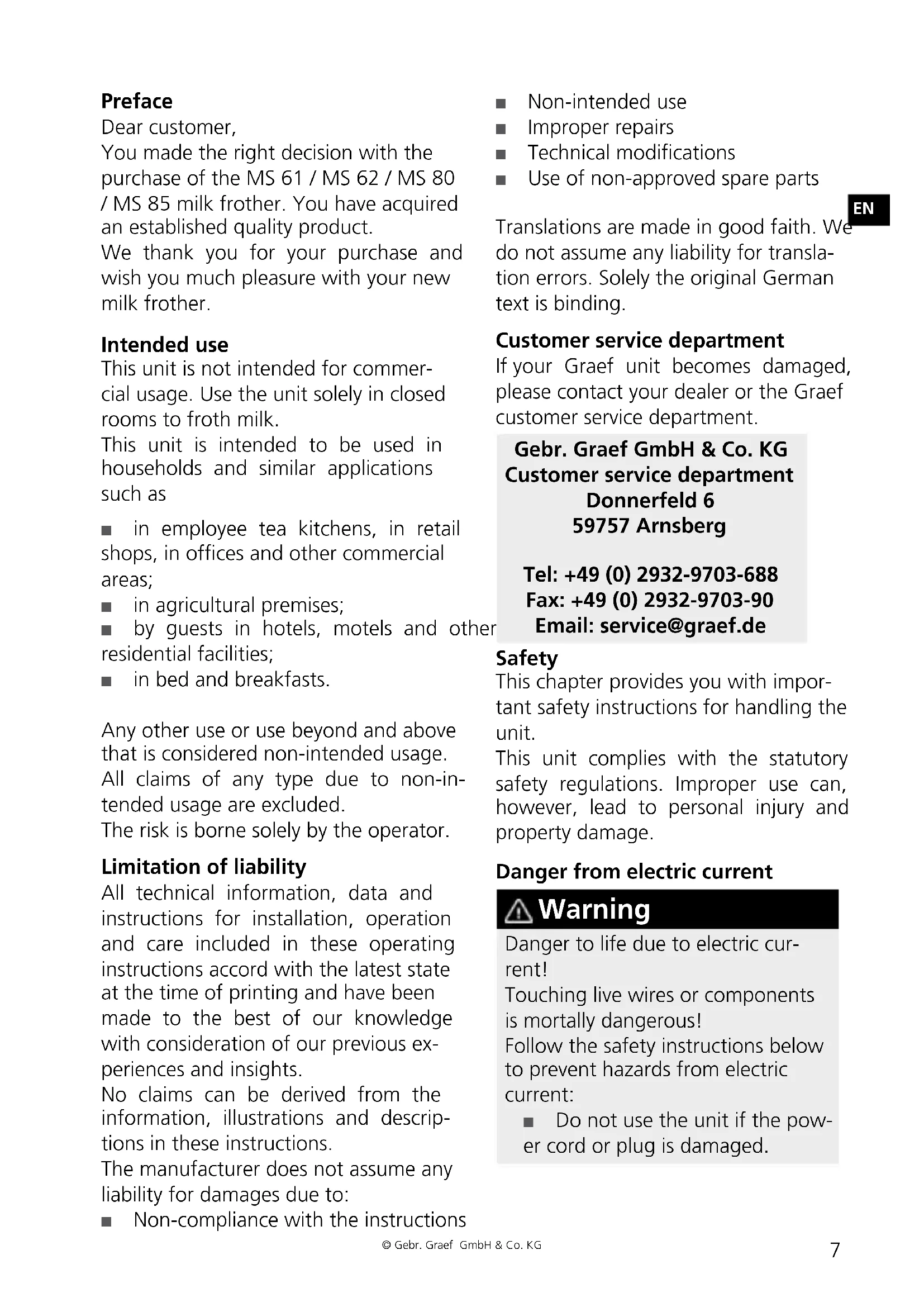

You made the right decision with the purchase of the MS 61 / MS 62 / MS 80 / MS 85 milk frother. You have acquired an established quality product.

We thank you for your purchase and wish you much pleasure with your new milk frother.

Intended use

This unit is not intended for commercial usage. Use the unit solely in closed rooms to froth milk.

This unit is intended to be used in households and similar applications such as

■ in employee tea kitchens, in retail shops, in offices and other commercial areas;
■ in agricultural premises;
■ by guests in hotels, motels and other residential facilities;
■ in bed and breakfasts.

Any other use or use beyond and above that is considered non-intended usage.

All claims of any type due to non-in-tended usage are excluded.

The risk is borne solely by the operator.

Limitation of liability

All technical information, data and instructions for installation, operation and care included in these operating instructions accord with the latest state at the time of printing and have been made to the best of our knowledge with consideration of our previous experiences and insights.

No claims can be derived from the information, illustrations and descriptions in these instructions.

The manufacturer does not assume any liability for damages due to:

■ Non-compliance with the instructions

■ Non-intended use
■ Improper repairs
■ Technical modifications
■ Use of non-approved spare parts

Translations are made in good faith. We do not assume any liability for translation errors. Solely the original German text is binding.

Customer service department

If your Graef unit becomes damaged, please contact your dealer or the Graef customer service department.

Gebr. Graef GmbH & Co. KG Customer service department Donnerfeld 6 59757 Arnsberg

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Safety

This chapter provides you with important safety instructions for handling the unit.

This unit complies with the statutory safety regulations. Improper use can, however, lead to personal injury and property damage.

Danger from electric current

Warning

Danger to life due to electric current!

Touching live wires or components is mortally dangerous!

Follow the safety instructions below to prevent hazards from electric current:

■ Do not use the unit if the power cord or plug is damaged.

WARNING

Follow the safety instructions below to prevent hazards from electric current:

■ Do not use the unit if the power cord or plug is damaged.

■ Before using the unit, have a new connector cable installed by the Graef customer service department or an authorised specialist.

■ Never open the unit housing under any circumstances. If live connections are touched and the electrical or mechanical structure changes, there is a danger of electric shock.

■ Never touch any parts that are conducting electricity. They can cause an electric shock or even lead to death.

Basic safety instructions

To handle the unit safely, follow the instructions below:

- Check the unit for external, visible damage to the housing, the connector cable and the plug before using it. Do not put a damaged unit into operation.

■ Repairs are only allowed to be performed by a specialist or by the Graef customer service department. Improper repairs can lead to extreme hazards for the user. Furthermore, the warranty claim expires.

■ Only Graef customer service is authorised to repair the unit during the warranty period, otherwise the warranty expires for subsequent damages.

■ Defective components must be replaced solely with genuine spare parts. Fulfilment of the safety regulations is only guaranteed if these parts are used.

■ This unit is not intended for use by people (including children) with restricted

physical, sensory or mental capabilities, or who have a lack of experience and/or lack of knowledge, unless they are supervised by a person responsible for their safety or have received instructions from that person about how to use the unit.

■ Children should be supervised to ensure that they do not play with the unit.

■ Use the unit only together with the supplied base station.

■ Always pull the supply line from the electric socket using the connector plug, not on the connector cable.

■ Do not carry the unit by the connector cable.

■ Use the unit only when it is standing upright; never put the unit into operation if is lying on its side or upside down.

■ The unit is not intended to be used with an external timer or a separate telecontrol system.

■ Be especially careful when opening the cap; the contents in the unit tank can squirt out.

- Do not move the unit while it is switched on. While moving, hot liquid can escape from the unit.

■ Switch the unit off before cleaning and pull the power cord from the electric socket.

■ Let the unit cool off before cleaning.

■ Do not use any aggressive or abrasive cleaning agents and do not use any solvents.

■ Do not scratch off stubborn soiling with hard objects.

■ Never immerse the unit base, the tank, the connection cable or the connection plug into water or any other fluid.

■ Do not clean the unit or any of its parts in a dishwasher.

■ Do not use the packing material as a toy. Danger of suffocation.

- Follow the instructions regarding the requirements for the place of installation and on the unit's electrical connection to prevent personal harm and property damage.

■ Never touch rotating parts of the unit.
■ Never put objects or body parts in the unit while it is running.
■ Never leave the unit unsupervised during operation.
- Fill the unit only up to the respective mark. If overfilled, hot liquid can emerge from the tank.

Unpacking

To unpack the unit, proceed as below:

■ Take the unit out of the carton.
■ Remove all pieces of the packing.
■ Remove any possibly extant labels from the unit (do not remove the rating plate).

Requirements for the installation location

For safe and flawless operation of the unit, the place of location must meet these prerequisites:

■ The unit must be set up on a firm, flat, level, non-slip and heat resistant base that has sufficient load bearing capacity.
■ Select the place of location so that children cannot reach the hot surfaces of the unit.
■ The unit is not intended for installation in a wall or a built-in cupboard.
■ Do not set up the unit in a hot, wet or moist environment.
■ The electric socket must be readily accessible so that the power cord can be easily unplugged.

Electric connection

Follow these instructions about the electrical connection for safe and flawless operation of the unit:

■ Before connecting the unit, compare the connection information (voltage and frequency) on the rating plate with those of your electrical network. This information must match to avoid damage to the unit. If in doubt, ask your electrician.
■ The socket must be fused with at least a 10A circuit breaker.
■ Make sure that the power cord is not damaged. Do not conduct it over hot surfaces or sharp edges.
■ The connector cable must not be pulled tight.
■ The electrical safety of the unit is only ensured if it is connected to a properly installed protective conductor system. Operation on a socket without a protective conductor is prohibited. If in doubt, have the building installation checked by an electrician. The manufacturer does not assume any responsibility for damages caused by a missing or interrupted protective conductor.

Electric connection

Follow these instructions about the electrical connection for safe and flawless operation of the unit:

■ Before connecting the unit, compare the connection information (voltage and frequency) on the rating plate with those of your electrical network. This information must match to avoid damage to the unit. If in doubt, ask your electrician.
■ The socket must be fused with at least a 10A circuit breaker.
■ Make sure that the power cord is not damaged. Do not conduct it over hot surfaces or sharp edges.
■ The connector cable must not be pulled tight.
■ The electrical safety of the unit is only ensured if it is connected to a prop-

erly installed protective conductor system. Operation on a socket without a protective conductor is prohibited. If in doubt, have the building installation checked by an electrician. The manufacturer does not assume any responsibility for damages caused by a missing or interrupted protective conductor.

Before the first use

Remove the protective cap between the base station and the tank. Before using the unit for the first time, clean as described in the Cleaning chapter.

IMPORTANT!

Let the unit cool off between uses.

Making milk froth

Connect the unit to the mains supply:

■ Remove the cap and insert the attach-

ment for warm milk froth.

or cold

- Fill the desired amount of milk in the tank.

IMPORTANT!

Comply with the “max” mark. Never fill any more milk than that into the tank. Frothed milk expands; if the filling level is too high it will overflow the tank.

■ Put the cap on the tank.
■ Start preparation by pressing the corresponding "on" button. The LED is illuminated as long as the unit is running.

IMPORTANT!

Preparation stops automatically after 60 - 90 seconds, depending on the filling level.

■ Open the cap after preparation has finished and pull it up.

■ Pour or ladle the milk froth into a cup or glass.

■ After using the unit, clean it as described in the Cleaning

Warming up milk

Warming up milk differs from making milk froth in the following points:

■ Remove the attachment for milk froth.
■ Fill the desired amount of milk in the stainless steel tank.
■ The rest of the steps are identical to making warm milk froth.

Cleaning

■ Clean the exterior of the unit with a soft, moist cloth. If heavily soiled, a mild detergent can be used.
- Rinse out the tank with hot water after use. If there is stubborn soiling in the inside of the stainless steel tank, wash it out with a soap solution and rinse thoroughly.

Disposal

At the end of its service life, this product must not be disposed through normal domestic waste; rather it must be disposed at a collection point for recycling electronic domestic refuse. The symbol on the product and in the operating instructions points this out. The materials can be recycled in accordance with their markings. By recycling, making use of the materials or other forms of recycling old units you are making an important contribution to protecting our environment. Please ask your municipal administration about the responsible disposal sites.

Warranty

2 year warranty

Starting with the date of purchase, we assume a 24 month manufacturer's warranty for defects that are attributable to manufacturing and material defects. Your legal warranty rights in accordance with § 439 ff. German Civil Code-E remain unaffected by this clause. Not included in the warranty are damages that have arisen due to improper handling and use, as well as defects which have only a slight influence on the functioning or value of the unit. Furthermore, shipping damages, unless our responsibility, are excluded from warranty rights. Warranty claims are excluded for damages that arise due to repairs we or our representatives have not performed. In case of a justified complaint, we will repair or replace the defective product with a flawless product as we choose.
