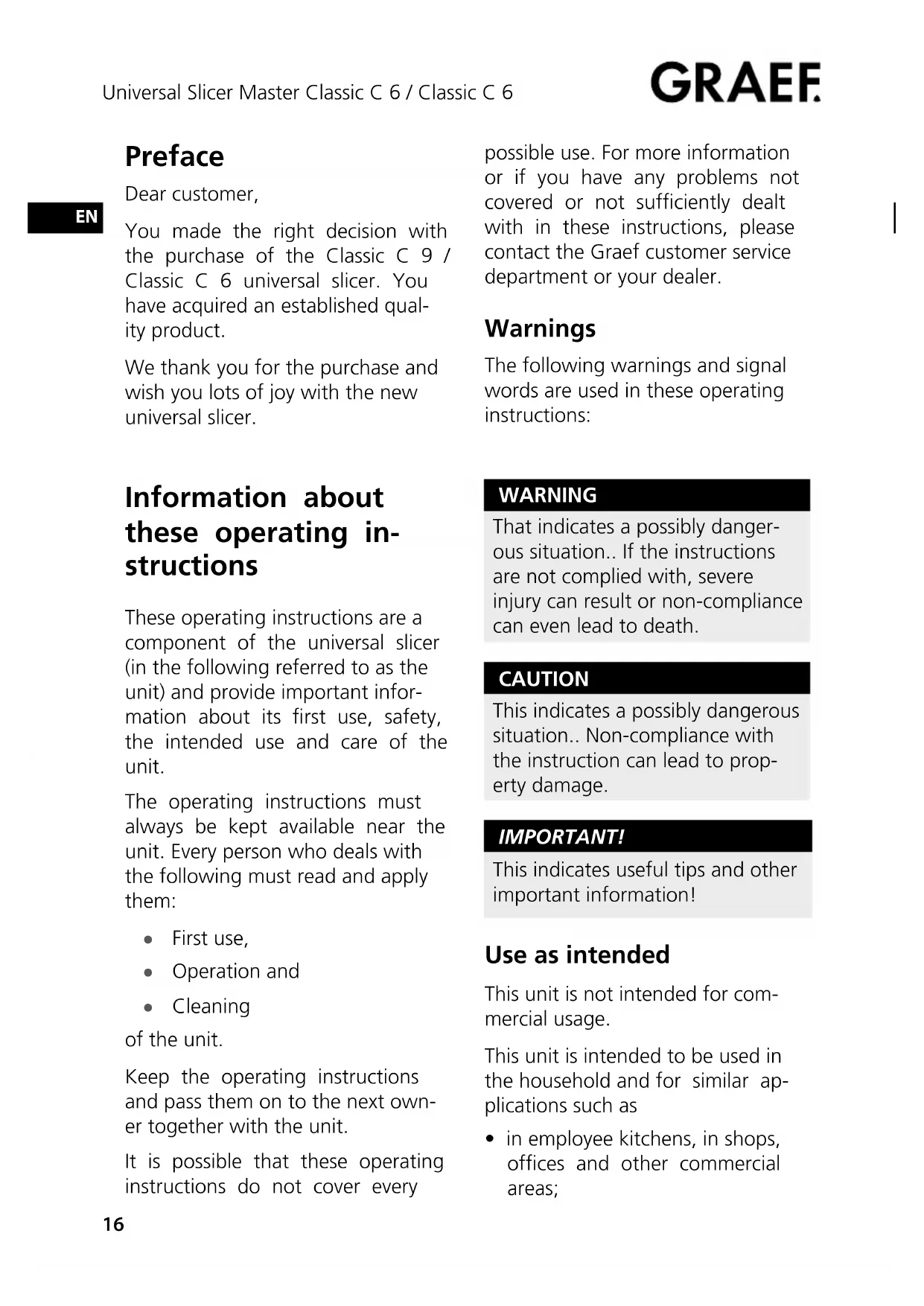

Preface Dear customer, You made the right decision with the purchase of the Classic C 9 / Classic C 6 universal slicer. You have acquired an established qual- ity product. We thank you for the purchase and wish you lots of joy with the new universal slicer. Information about these operating in- structions These operating instructions are a component of the universal slicer (in the following referred to as the unit) and provide important infor- mation about its rst use, safety, the intended use and care of the unit. The operating instructions must always be kept available near the unit. Every person who deals with the following must read and apply them: ● First use, ● Operation and ● Cleaning of the unit. Keep the operating instructions and pass them on to the next own- er together with the unit. It is possible that these operating instructions do not cover every possible use. For more information or if you have any problems not covered or not sufciently dealt with in these instructions, please contact the Graef customer service department or your dealer. Warnings The following warnings and signal words are used in these operating instructions: WARNING That indicates a possibly danger- ous situation.. If the instructions are not complied with, severe injury can result or non-compliance can even lead to death. CAUTION This indicates a possibly dangerous situation.. Non-compliance with the instruction can lead to prop- erty damage. important! This indicates useful tips and other important information! Use as intended This unit is not intended for com- mercial usage. This unit is intended to be used in the household and for similar ap- plications such as

• in employee kitchens, in shops, ofces and other commercial areas;Universal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

• on agricultural premises;

• by guests in hotels, motels and other residential facilities;

• in bed-and-breakfast establish- ments. With the unit you can slice bread, ham, sausage, cheese, fruit, veg- etables, etc. Never slice hard objects such as frozen foods, bones, wood, sheet metal or similar. Any other use or use beyond and above that is considered non-in- tended usage. CAUTION Danger through non-intended us- age! The unit can cause hazards if used other than intended and/or for alien usage. ► Use the unit exclusively as in- tended. ► Follow the procedures described in these operating instructions. All claims of any type due to non- intended usage are excluded. The risk is borne solely by the op- erator. Limitation of liability All technical information, data and instructions on installation, opera- tion and care included in these op- erating instructions accord with the latest state at the time of printing and have been made to the best of our knowledge with consideration of our previous experiences and in- sights. No claims can be derived from the information, illustrations and de- scriptions in these instructions. The manufacturer does not assume any liability for damages due to: ● Non-compliance with the in- structions ● Non-intended use ● Improper repairs ● Technical modications ● Use of non-approved spare parts Customer service If your Graef unit is defective, please contact your dealer or the Graef customer service depart- ment. Gebr. Graef GmbH & Co. KG Customer service Donnerfeld 6 59757 Arnsberg GERMANY Tel.: +49 (0) 2932-9703-6041 Fax.: +49 (0) 2932-9703-90 Email: service@graef.de Safety This chapter provides you with im- portant safety instructions for han- dling the unit. This unit complies with the statu- tory safety regulations. Improper use can, however, lead to personal injury and property damage.Universal Slicer Master Classic C 6 / Classic C 6

Danger due to electric cur- rent CAUTION Danger of death due to electric current! Touching live lines or components is mortally dangerous! Follow the safety instructions below to prevent hazards from electric cur- rent: ► Do not use the unit if the con- necting cable or plug are dam- aged. ► Before continued use of the unit, have a new connecting cable in- stalled. Have it installed solely by the manufacturer or its customer service or a similarly qualied person to prevent hazards. ► Never open the unit housing under any circumstances. If live connections are touched and the electrical or mechanical structure changes, there is a danger of electric shock. ► Do not use the unit if it has been cleaned with a large amount of water. ► Never touch any parts that are conducting electricity. They can cause an electric shock or even lead to death. Basic safety instructions To handle the unit safely, follow the instructions below: ■ Check the unit for external, vis- ible damage to the housing, the connector cable and the plug be- fore using it. Do not put a dam- aged unit into operation. ■ If the machine's connecting ca- ble is damaged, continued use of the machine is only allowed it has been replaced with a new one. Have it installed solely by the manufacturer or its customer service or a similarly qualied person to prevent hazards. ■ Repairs are only allowed to be performed by a specialist or by the Graef customer service de- partment. Improper repairs can lead to extreme hazards for the user and damage the unit. Fur- thermore, the warranty claim expires. ■ Only Graef customer service is authorised to repair the unit dur- ing the warranty period, other- wise the warranty expires for subsequent damages. ■ Defective components must be replaced solely with genuine spare parts. Fullment of the safety regulations is only guaran- teed if these parts are used. ■ This unit is not intended for use by people (including children) with restricted physical, sensory or mental capabilities, or who have a lack of experience and/ or lack of knowledge, unless they are supervised by a person responsible for their safety or have received instructions from that person about how to use the unit.Universal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

Children should be supervised to ensure that they do not play with the unit. ■ Always pull the supply line from the electric socket using the con- nector plug, not on the connec- tor cable. ■ Never operate the unit with wet hands. ■ This unit must be used with the carriage and food holder unless the size and shape of the items to be sliced do not permit use of the food holder. ■ In stand-by mode, turn the con- trol knob clockwise past the zero position up to the limit so that the stop plate covers the cutter. First use Safety instructions CAUTION Personal harm or property damage could occur when the unit is being used for the rst time! Follow the safety instructions below to prevent hazards and property damage: ► Do not use the packing material as a toy. Danger of suffocation. Scope of delivery and shipping inspection The unit comes standard with the following components: ● Universal slicer ● ø 170 mm serrated, electrolytic polished stainless steel blade ● GENIO carriage ● Food holder ● Stainless steel tray ● Operating instructions ● Vaseline packs important! ► Check the delivery for com- pleteness and for visible dam- age. ► Immediately notify the car- rier and the supplier about an incomplete delivery or damages due to improper packing or caused by shipping. Unpacking To unpack the unit, proceed as be- low: Take the unit out of the carton. Remove all pieces of the pack- ing. Remove any possibly extant la- bels on the unit (do not remove the rating plate). Dispose of the packing The packing protects the unit from shipping damage. The packing materials are selected for their en- vironmental compatibility and from disposal aspects so they are recy- clable.Universal Slicer Master Classic C 6 / Classic C 6

Returning the packing to the ma- terials circuit saves raw materials and reduces the accumulation of waste. Dispose of packing material that is no longer needed at a col- lection point for the »Green Point« recycling system. important! ► If possible, save the original packing during the unit's warran- ty period to be able to properly pack the unit in case of a war- ranty claim. Requirements for the in- stallation location For safe and awless operation of the unit, the place of location must meet these prerequisites: ■ The unit must be set up on a rm, at, level and non-slip base that has sufcient load bearing capacity. ■ Select the place of location so that children cannot reach the sharp blade in the unit. Electric connection Follow these instructions about the electrical connection for safe and awless operation of the unit: ■ Before connecting the unit, com- pare the connection information (voltage and frequency) on the rating plate with those of your electrical network. This informa- tion must match to avoid dam- age to the unit. If in doubt, ask your electrician. ■ Make sure that the connecting cable is not damaged. Do not conduct it over hot surfaces or sharp edges. ■ The connector cable must not be pulled tight. ■ The electrical safety of the unit is only ensured if it is connected to a properly installed protective conductor system. Operation on a socket without a protec- tive conductor is prohibited. If in doubt, have the building instal- lation checked by an electrician. The manufacturer does not as- sume any responsibility for dam- ages caused by a missing or in- terrupted protective conductor.Universal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

Setup and Functioning Overview

8) Continuous operation

9) Child-proof safety catch

11) Cable compartment

Features ● Solid metal design ● Whisper-quiet, high-traction capacitor motor with 170 Watt ● ø 170 mm stainless steel blade with serrated cutting edge ● 30° tilt cutter ● Solid glass baseplate (C 9) ● Aluminium baseplate (C 6) ● GENIO carriage to xate the items to be sliced ● Food holder ● Carriage switch with quick ac- tion and continuous operation switch ● Slice thickness setting 0 - 20 mm ● Stainless steel tray ● Cable compartment Spare parts The following spare parts can be supplied for this unit: ● ø 170 mm Replacement blade ● Replacement food holder Contact customer service if you need spare parts for your unit. Control and operation This chapter provides you with im- portant information on operating the unit. Safety instructions CAUTION Follow the safety instructions below to prevent hazards and property damage: ► Do not touch the cutter blade with your ngers. It is very sharp and cause severe injuries. Technical data Classic C 6 Classic C 9 Dimensions (L x W x H) 390 x 325 x 270 390 x 315 x 270 mm Weight ca. 6.35 ca. 8.6 kg Slice thickness 0 - 20 0 - 20 mm Slice height 140 140 mm Slice length 220 220 mm Operating voltage 230 230 Volt Power 170 170 WattUniversal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

Sources of hazards WARNING The rotating blade can cut off body parts. Your ngers, especially the thumbs, are endangered. For this reason, never reach into the space between the stop plate and the holder for the material to be sliced as long as the stop plate is not com- pletely closed, i.e., is placed below "0". Child-proof safety catch You can push the carriage in front of the blade and press in the car- riage lock (child-proof safety catch) to secure the blade (the stop plate must be closed, i.e. be positioned under "0"). The carriage ts snug- ly. Cutting with the quick-ac- tion switch Place the items to be sliced on the carriage. Set the desired slicing thickness. Press the items to be sliced slightly against the stop plate and uniformly guide the car- riage against the blade. Use your thumb to press the quick-action switch - that switches on the motor. Press your thumb against the quick-action switch while slic- ing. As soon as you remove your thumb from the quick-action switch the motor switches off. Cutting with the continu- ous operation switch Use the continuous operation switch to slice large quantities. Place the items to be sliced on the carriage. Set the desired slicing thickness. Press the items to be sliced slightly against the stop plate and uniformly guide the car- riage against the blade. Turn the continuous operation switch clockwise up the limit stop (1/4 turn). Turn the continuous operation switch back to turn off the unit. Let the motor cool off after us- ing continuously for approx. 9.5 minutes. important! ► Soft items to be sliced (e.g., cheese or ham) can be sliced best when cool. ► Soft items can be sliced better when you push them slowly forward. ► When slicing cucumbers or carrots, it is advantageous if they are cut to a uniform length beforehand and then fed in with the food holder.Universal Slicer Master Classic C 6 / Classic C 6

30° tilt The tilt function is especially use- ful when slicing bread, dry sausage and vegetables. The tilt function takes advantage of the natural gravity of the items to be sliced while feeding. To tilt the unit, proceed as below: Press the lock button. The unit is unlatched. Pull the unit up powerfully with the tilting lever until you hear it latch. The unit is only secured if you hear it latch. You can now continue as de- scribed under "Slicing". After completing the slicing process, swivel the unit back. Turn the tilting lever down. The arresting bolt latches in by pressing on the rear part of the prole. GENIO carriage The GENIO carriage uses its spring- loaded carriage support to keep the items to be sliced in the start position. It continuously adapts to the size and weight of the items to be sliced, bringing them from the hard anodized aluminium slic- ing support into the ideal position. That makes additional xation as used in conventional carriages un- necessary while at the same time absolutely precluding the food from slipping or rolling off. Re- gardless of what is to be sliced, the GENIO carriage completely rede- nes slicing thanks to its enormous exibility, great operating comfort and ergonomic handling together with new high standards for safety, simplicity and speed. The unique spring mechanism keeps the GENIO carriage adapted to the particularities of the items to be sliced. They cannot roll off and they can always be ideally and ef- fortlessly guided to the blade. If you happen to want to slice heavy items (such as bread or ham), you can lock the slicing support. Press the arresting bolt and then press down the slicing support. Re- lease the bolt again. To unlatch, press the bolt; the slic- ing support springs up.Universal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

Food holder When the items to be sliced are shorter and 10 cm so it is no long- er possible to correctly hold onto them, the food holder must be used. Place the food rests or the small items for slicing on the carriage. Set the food holder on the rear of the carriage and put the food holder onto the items to be sliced. Proceed as above as described in "Slicing". important! ► The food holder lets you slice small items such as mushrooms and tomatoes. ► The unit must not be used with- out the food holder unless the size and shape of the items to be sliced do not permit its use. Cleaning and Care This chapter provides you with im- portant information on cleaning and caring for the unit. Safety instructions CAUTION Follow the safety instructions below before you start cleaning the unit: ► Make sure the unit is switched off and not connected to the mains supply. ► Check to make sure the limit stop is closed (cutter blade is covered). ► Do not use any aggressive or abrasive cleaning agents and do not use any solvents. ► Do not scratch off stubborn soil- ing with hard objects. ► Do not wash in the unit in water or immerse it into water. Cleaning Clean the exterior of the unit with a soft, moist damp cloth. If heavy soiled, a mild detergent can be used. Blade removal Please occasionally unscrew the blade and clean the interior of the unit. Especially, when "juicy" slic- ing items (tomatoes, fruit, roasts, etc.) were sliced. Handle the blade with great care! WARNING ► CAUTION: sharp blade.Universal Slicer Master Classic C 6 / Classic C 6

Pull the carriage completely closed. Loosen the blade by turning the blade screw counter clockwise with a coin. Clean the inside of the blade with a moist cloth. Replace the blade in the reverse sequence. important! ► Periodically grease the marked points. WARNING ► This process must be performed with great CAUTION as this is an extremely sharp object. carriage The carriage can be removed from the machine for better cleaning. To do that, pull out the carriage latch on the right side of the car- riage. Pull the carriage towards the back and remove it. You can now take apart the GENIO carriage for better clean- ing. Remove the slicing support by placing it vertically and pulling it out to the top. You can now also pull off the at spring. Clean all parts with a moist cloth or under running water. important! ► Do not clean the slicing support in a dishwasher! Please put a few drops of non- resinous oil or Vaseline on the car- riage guide once a month. Wipe off excess oil/Vaseline with a soft cotton rag. Grease here!Universal Slicer Classic C 6 / Classic C 6 © Gebr. Graef & Co. KG

Disposal Disposing this product at the end of its service life through normal domestic waste is prohibited. The symbol on the prod- uct and in the operating instructions points this out. The ma- terials can be recycled in accordance with their markings. By recycling, making use of the materials or other forms of recy- cling old units you are making an important contribution to protecting our environment. Please ask your municipal admin- istration about the responsible disposal sites. Warranty 5 year warranty Starting with the date of purchase, we assume a 60 month manufacturer's warranty for defects that are attributable to manufacturing and material defects. Your legal warranty rights in accordance with § 439 ff. German Civil Code-E re- main unaffected by this clause. Not included in the warranty are damages that have arisen due to improper handling and use as well as defects which have only a slight inuence on the functioning or value of the unit. Furthermore, shipping dam- ages, unless our responsibility, are excluded from warranty rights. Warranty claims are excluded for damages that arise due to repairs we or our representatives have not performed. In case of a justied complaint, we will repair or replace the defective product with a awless product as we choose.Trancheuse Classic C 6 / Classic C 6
