USER MANUAL Manuale H93 GRAEF

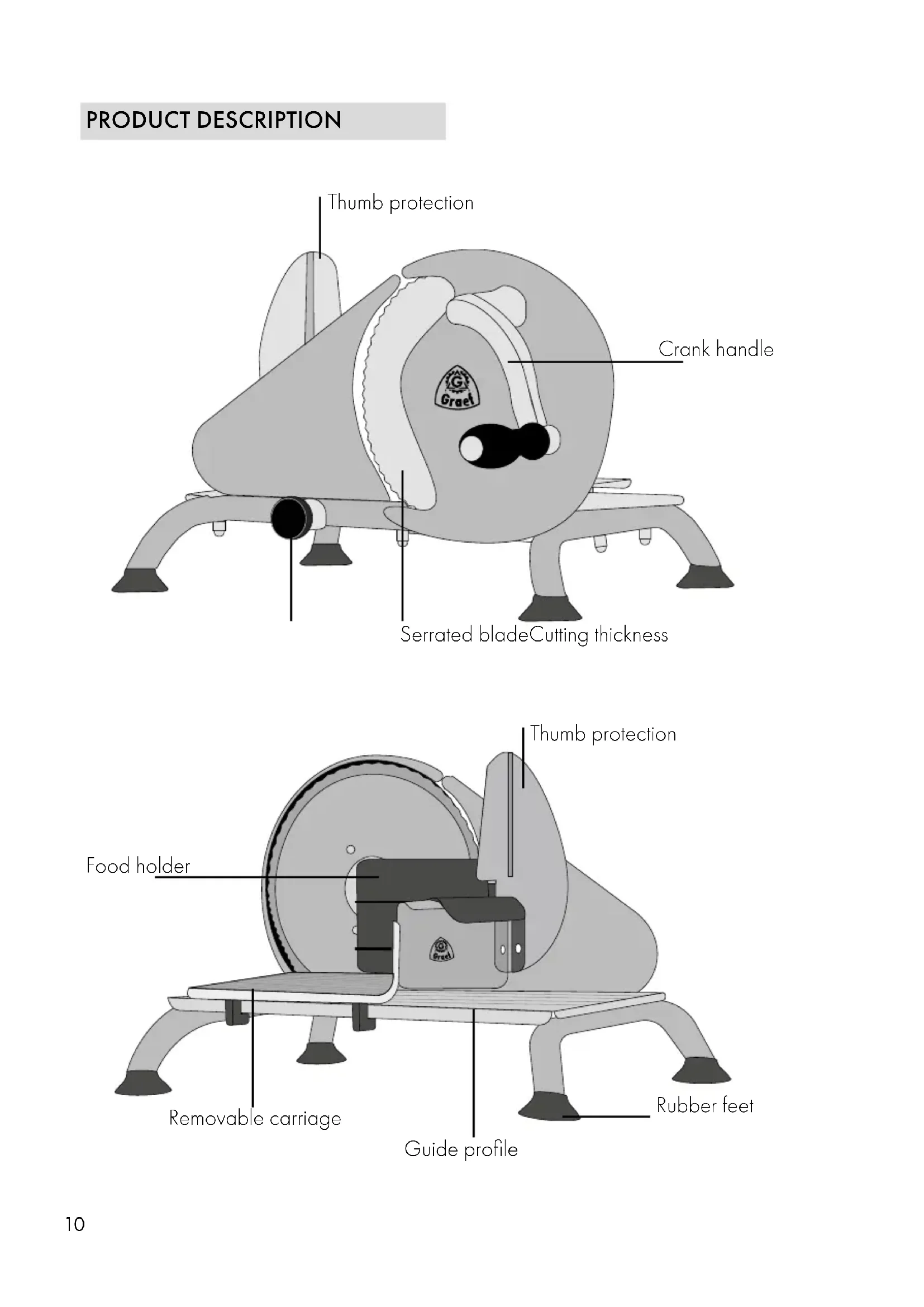

Rubber feet SAFETY INSTRUCTIONS This unit complies with the statutory safety regulations. Improper use can, however, lead to personal injury and property damage. To handle the unit safely, follow the in- structions below:

• Repairs are only allowed to be performed by a specialist or by the Graef customer service depart- ment. Improper repairs can lead to extreme hazards for the user. Furthermore, the warranty claim ex- pires.

• Only Graef customer service is authorised to repair the unit during the warranty period, otherwise the warranty expires for subsequent damages.

• Defective components must be re- placed solely with genuine spare parts. Fulfilment of the safety regu- lations is only guaranteed if these parts are used.

• This unit may not be used by chil- dren.

• Children should be supervised to ensure that they do not play with the unit.

• This unit is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environ- ments; farm houses; by clients in hotels, motels and other residental type environments; bed and break- fast type environments.

• This unit must be used with the car- riage and food holder unless the size and shape of the items to be sliced do not permit its usage.

• Do not use the packing material as a toy. Danger of suffocation.

• Do not use any aggressive or abra- sive cleaning agents and do not use any solvents.

• Do not scratch off stubborn soiling with hard objects.

• Do not put the appliance in the dishwasher. UNPACKING To unpack the unit, proceed as below:

• Take the unit out of the carton.

• Remove all pieces of the packing.

• Remove any possibly extant labels on the manual universal slicing machine (do not remove the rating plate).

REQUIREMENTS FOR THE IN-

STALLATION LOCATION For safe and flawless operation of the unit, the place of location must meet these pre- requisites:

• The unit must be set up on a firm, flat, level, and non-slip base that has suffi- cient load bearing capacity.

• Select the place of location so that children cannot reach the sharp blade in the unit. SLICING

• Place the carriage on the carriage12 guide profile.

• Place the items to be sliced on the car- riage.

• Set the desired slicing thickness.

• Turn the handle away from your body and push the items to be sliced to the front.

• Soft items to be sliced (e.g., cheese or ham) can be sliced best when cool.

• Soft items can be sliced better when you turn faster and push the items to be sliced forward more slowly.

• To slice vegetables, it is sufficient to turn slowly, partially even only scrap- ing while the blade is stationary.

• When slicing cucumbers or carrots, it is advantageous if they are cut to a uni- form length beforehand. FOOD HOLDER

• The unit must not be used without the food holder unless the size and shape of the items to be sliced do not permit its use.

• As soon it is no longer possible to cor- rectly hold onto the items to be sliced, the food holder must be used.

• Place the food rests or the small items for slicing on the carriage.

• Set the food holder on the rear of the carriage and put the food holder onto the items to be sliced.

• Proceed as above as described in “Slicing”. CLEANING

• Clean the exterior of the unit with a soft, moist cloth. If heavily soiled, a mild detergent can be used.

Please occasionally unscrew the blade and clean the interior of the unit. Handle the blade with great care! Caution: sharp blade.

• Remove the carriage.

• Turn the blade, e.g. using a coin.

• Clean the blade with a moist cloth.

• Subsequently clean the blade with a dry cloth.

• Replace the blade and tighten it firmly.

• Periodically grease the gears. CARRIAGE GUIDE Periodically grease the carriage guide.

• Remove the carriage.

• Turn the carriage over.

• Grease the carriage guide with a bit of acid-free sewing machine oil.

MENT If your Graef unit becomes damaged, please contact your dealer or the Graef customer service department. 2 YEAR WARRANTY As from the date of purchase we assu- me manufacturer warranty of twenty-four months for defects which can be traced back to manufacturing and material de- fect. Your legal warranty claim in confor-13

mity with Section 437 ff. of the German Civil Code (BGB) shall remain unaffected by this regulation. The guarantee does not cover any damage which is caused by in- correct handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport damage provided we are not responsib- le shall be excluded from the claims un- der guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our representations. In case of justified com- plaints, we shall repair the defective pro- duct or replace it by a product without defects at our discretion.14
