Cycle S - Exercise bike KETTLER - Free user manual and instructions

Brand	KETTLER
Model	Cycle S
Product type	Exercise bike
Power supply	2 batteries 1.5 V UM 3/AA
Display	LCD screen with large digits and segment
Display functions	Time, distance, calories, pulse, RPM, speed
Training mode	Free or with personal goal (time, distance, calories, pulse)
Heart rate measurement	Handlebar sensors (standard), ear clip (optional), chest strap + receiver (optional)
Recovery function	Recovery heart rate measurement and fitness rating (F1 to F6)
SCAN mode	Alternating display of functions every 6 seconds
Heart rate range	40 - 220 beats/min
Time display	0:00 to 99:59
Distance display	0.00 to 99.99 km
Calorie display	0 to 9999 kcal
Speed display	3.9 to 70.6 km/h or 2.4 to 43.9 mph
RPM display	11 to 199 rpm
Built-in clock	24-hour display, adjustable
Standby mode	After 4 minutes of inactivity, only the time remains displayed
Brake type	Adjustable mechanical brake (brake levels)
Usage	For amateur athlete, cardiovascular training
Maximum user weight	Approximately 120 kg (standard estimate)
Dimensions (L x W x H)	Approx. 100 x 50 x 130 cm (estimate)
Net weight	Approx. 25 kg (estimate)
Spare parts	Only original KETTLER spare parts
Maintenance	Regularly check fastenings, clean with a dry cloth, avoid moisture

Frequently Asked Questions - Cycle S KETTLER

How to set the time on the Kettler Cycle S bike?

After inserting the batteries, the display shows '00:00'. Use the SET button to set the hour, then confirm with MODE. Do the same for the minutes.

How to start a workout without prior settings?

Simply start pedaling. The computer automatically counts time, distance, calories and pulse from zero. No settings are necessary.

How to measure heart rate with the handlebar sensors?

Place both hands on the metal sensors on the handlebars. The heart symbol flashes in rhythm with your pulse. The display shows the heart rate in beats per minute.

How to use the Recovery function?

After exercise, press the RECOVERY button and keep your hands on the sensors. The computer calculates the recovery heart rate for 60 seconds and displays a fitness rating from F1 (very good) to F6 (poor).

How to change the batteries of the Kettler Cycle S bike?

Open the battery compartment (often located under the display) and replace the two used AA batteries with new ones. All training values are erased; you will need to set the time again.

What does SCAN mode mean?

SCAN mode automatically alternates the display of functions (time, distance, calories, pulse, RPM, speed) every 6 seconds in large digits. Press MODE to activate or deactivate scan.

How to set a training goal?

When stopped (P symbol displayed), press MODE several times until the desired function flashes (TIME, DISTANCE, CALORIES or PULSE). Use SET to increase the value and RESET to reset to zero. Confirm with MODE.

What is the optimal heart rate for fat burning?

Calculate using the formula: (220 - age) x 0.65. For example, at age 40: 180 x 0.65 = 117 beats/min. Maintain this pulse for at least 30 minutes to promote fat burning.

Can I use an ear clip or chest strap?

Yes, as an option. Plug the ear clip into the designated jack or connect a chest strap with receiver (sold separately). If an accessory is plugged in, the handlebar sensor measurement is automatically disabled.

How to maintain my Kettler Cycle S bike?

Regularly check screws and fastenings. Clean the device with a soft, dry cloth. Avoid moisture and humid environments. Use only KETTLER spare parts. Replace any damaged parts immediately.

USER MANUAL Cycle S KETTLER

PLS = PULSE = Herzfrequenz

RPM = Round Per Minute = Umdrehung pro

Minute/Trittfrequenz

Gerätestart

Safety instructions 12

• Service 12
- Your safety 12

Short description 13-15

• Function area / keys 13 Pulse measurement
- Indication area / display 14-15

Starting the computer 16

• Insertion of batteries 16
• Changing the batteries 16
• Starting the computer without previous knowledge 16
• Setting the time 16

Training 17

Personal training default settings 17

• General 17
  • Specification of target values 17 Example: DISTANCE 17
  • SCAN operation 17

Recovery (measurement of pulse at recovery) 18

• Calculation of fitness level 18

Changing the batteries 19

• Disposal of used batteries and accumulators

Options for pulse registration 19

• With ear clip 19
• With chest strap 19
• With hand pulse 19
  • Instructions for pulse measurement 19

Training instructions 20

• Endurance training 20
• Exercise intensity 20
• Exercise extent 20
18-19

Safety instructions

Please observe the following instructions for your own safety:

• The training device must be set up on an appropriate and firm surface.
• Inspect the connections for firm fitting before initial operation and additionally after approximately six operation days.
• In order to prevent injuries caused by wrong stress or overstress, the training device may only be used in accordance with the instructions.
• It is not recommended to permanently set up the device in humid rooms due to the resulting corrosion development.
• Assure yourself regularly that the training device functions properly and that it is in duly condition.

• The operator is responsible for the safety controls, which have to be carried out on a regular and proper basis.

• Defective or damaged parts must be exchanged immediately. Only use original KETTLER spare parts.

• The device may not be used until after repairs are completed.
• The safety level of the device can only be maintained provided that it is regularly inspected for damage and wear and tear.

For your safety:

- Please clarify with your general practitioner before you start with the training, whether or not your health condition allows you to train with this device. The diagnostic findings should be the basis for the determination of your training programme. Wrong or excessive training can cause damage to your health.

Short description

The device has a function area with keys and a display area with varying symbols and graphics.

Function area / keys

MODE

When pressing the MODE key without accomplishing any training activities, the symbol P appears at the top left side. In this mode, all functions can be set.

By briefly pressing the MODE key, you select different functions [TIME, DISTANCE, CALORIES or PULSE], the display and your personal settings.

Keeping the MODE key pressed for a while will set all values to >0<.

SET

With the SET key, the standard values are set. For this the device must be in idle state > shown in the display in the upper left: P. Through shortly pressing the SET key, the setting values of the differing functions increases > [TIME; DISTANCE, CALORIES or PULSE]. If the SET key is pressed for a longer time, the setting values can be reached in a quicker counting sequence.

RESET

Pressing the RESET key will set the functions to >0<. When setting the default values of each function, only the value of each individual function will be set to >0< by shortly pressing the RESET key. Keeping the RESET key pressed for a longer time, all values are set to >0<; this corresponds to a restart of the computer. In this case, the time setting must be entered again.

When changing the batteries, all values are also reset to >0<.

RECOVERY

Pulse can be measured in three different ways:

1. With hand pulse (standard)
2. With an ear clip (optional)
   The connector is plugged into the jack.
3. With a chest strap + plug-in receiver (optional)
   If the chest strap option is used, the chest strap must be connected with the training computer via a plug-in receiver. Chest strap and plug-in receiver can be ordered additionally.

ST 7604-69

Training and operating instructions

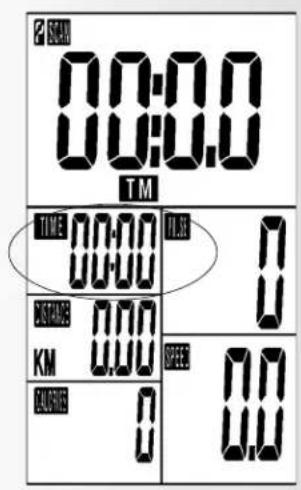

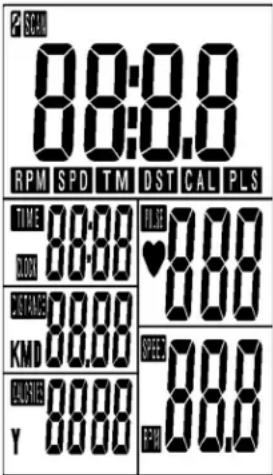

Indication area / displayOn the display, one large-sized display plus several display segments in the lower area of the display appear at the same time.After the completion of each training session, training data are saved and can be accessed for the next training session. Any new data are added.
Time24 hours		After the completion of the training session, or if the training session is interrupted, the computer switches to sleep mode after 4 minutes.Only time is displayed.
Training time(TIME)		Displayed values between 0:00 - 99:59
Distance(DISTANCE)KM		Displayed values between 0.00 - 99.99
Energy consumptionCALORIES(KCAL)		Displayed values between 0 - 9999However, the data are only rough values comparing different exercises. They cannot be used for medical purposes.
Pulse(PULSE)The heart symbol flashes when signal is identified.		Displayed values between 40 - 220As soon as you hold the handle sensors with both hands, the display indicates your current heart rate. You may enter a target value before starting the training. If the heart rate exceeds this target value, an acoustic alarm sounds to make you aware of such.

Displayed values between 40 - 220

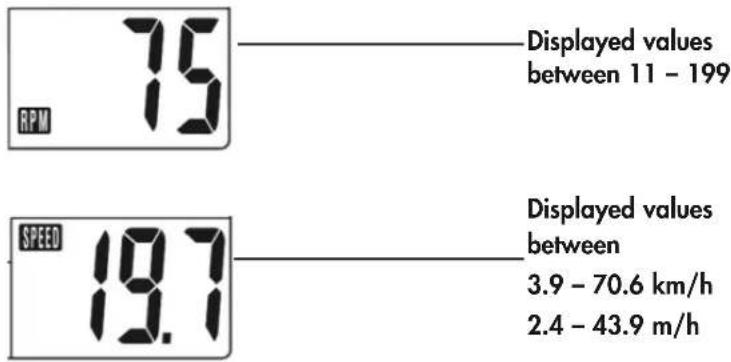

Step frequency (RPM) – Round per Minute Pedal rotation per minute

Speed (SPEED) (KM/H) or (Mi/H)

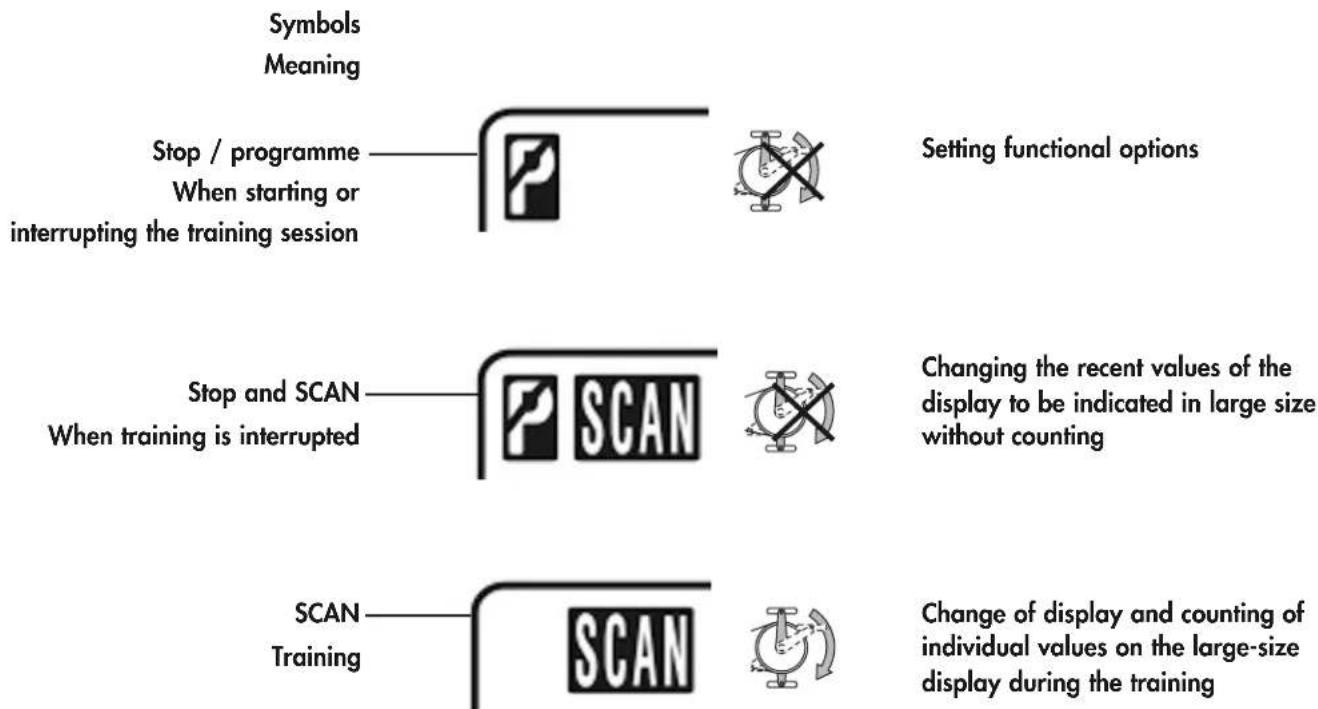

Changing display of all functions in large size. The abbreviation of each function appears on the left side of the display. TM = TIME = training time DST = DISTANCE = distance covered CAL = CALORIES = energy / calorific consumption PLS = PULSE = heart rate RPM = Round Per Minute = step frequency SPD = SPEED

For any value that appears on the large-size display, the corresponding function flashes in the small window.

Large-size SCAN display of e.g. RPM

Small-size SCAN display of e.g. RPM

Training and operating instructions

Starting the computer

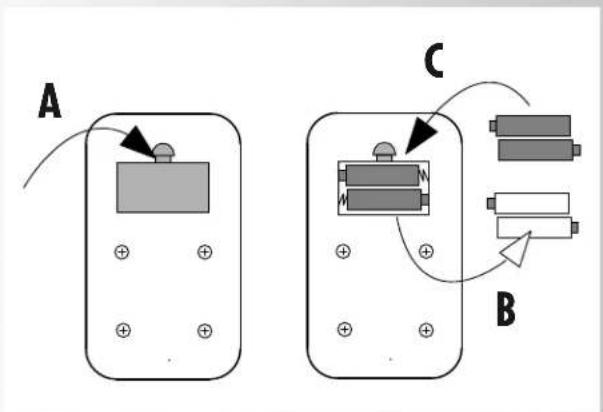

Insert two batteries (1.5V UM 3/AA).

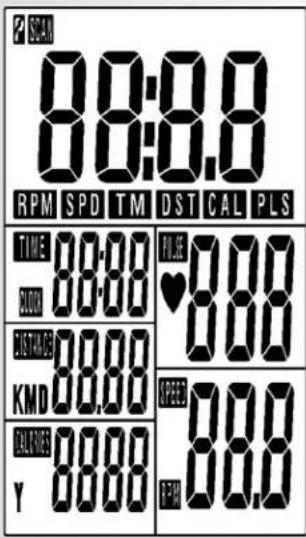

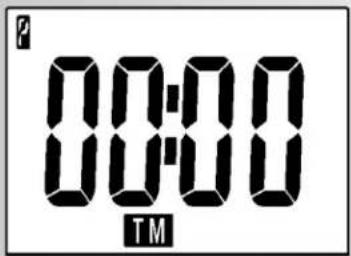

The computer starts a segment test indicating all available symbols plus confirmation sound. The figure "78.0" appears for a short time followed by the display for time setting – hour and minute "00:00".

Setting time

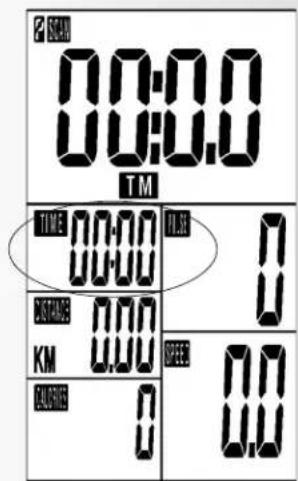

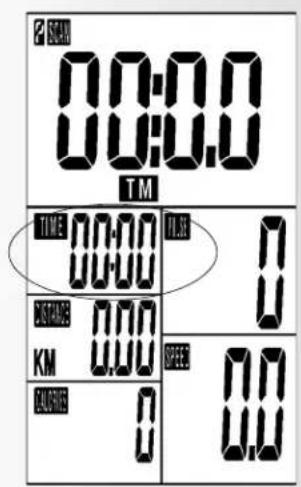

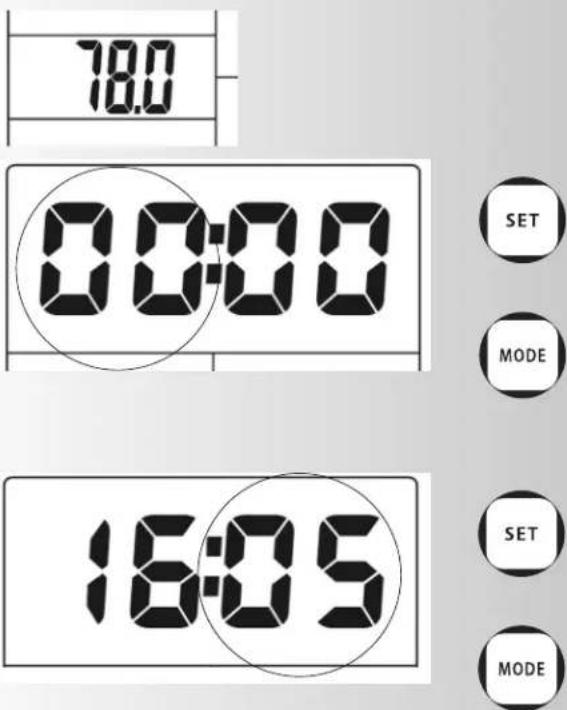

Time can be changed by pressing the SET and MODE keys:

The hour display flashes.

The current hour is set with the SET key. If you briefly press the SET key, the hour value is increased by one figure. Keeping the SET key pressed will accelerate the counting of the hour value to be set.

If the desired value has been missed by mistake, the SET key can be kept pressed for accelerated counting, or the RESET key can be pressed and counting will start from >0<.

Confirm the desired time value for the current hour with the MODE key.

The minute display flashes.

Set the time value for the current minute by means of SET, RESET and MODE as described above.

After having confirmed the time setting for the current minute by pressing the MODE key, you will return to the programme menu for the setting of your personal training default settings. The first field for TIME flashes, and TM is indicated on the large display.

Starting the computer without previous knowledge (guest)

With this setting, you can start your training even without previous knowledge. Any information is shown on the display. All values are counted from >0< upwards.

For efficient training and for setting your personal training default settings, please read and observe any further instructions provided in the chapter "Personal training default settings".

Training

Personal exercising specifications

General

• Without particular preliminary settings, the values in the individual functions [TIME, DISTANCE; CALORIES and PULSE] count from >0< upwards.
• For reasonable exercising, it is sufficient to merely set a target value in one function [TIME, DISTANCE, CALORIEN or PULSE].
• If a personal target value is set as an exercise specification, the computer counts from this value downwards. When reaching the target value >0<, an acoustic signal sounds off. If afterwards, without setting of a new target value, you continue exercising, the computer counts in this mode from >0< upwards again.
• Once target values have been set, during exercising these cannot be changed, only during a standstill.

Target value specifications

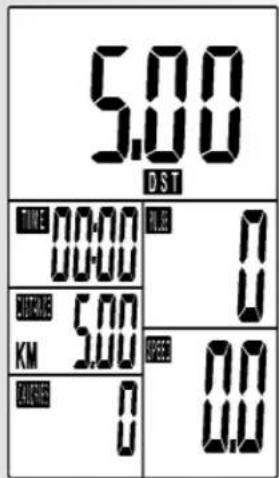

The setting of the target values is the same with all functions: e.g. DISTANCE

1. Press the MODE key until in the field the number blinks in the field DISTANCE and the large number is in the display (identification > DST).
2. Through shortly pressing the key SET, you increase the value. E.g. DISTANCE in 0.5 km steps. If you press and hold the SET key, the set value is counted quicker.
3. If you would like to reduce the target value again, shortly press the RESET KEY: Counting will begin again from >0<. Press the SET key again until the target value has been reached.
4. If you have set the target value, press the MODE key. The value is then stored in this function and you go to the next function, e.g. CALORIES.
5. Enter the specification values if possible only in one function because otherwise the exercise goals will be overlapped. E.g. if you would reach the preset time goal earlier than the preset distance goal.
6. The specified values in the other functions [TIME; CALORIES or PULSE] are, as described with 1-4, also entered with the keys SET, RESET and MODE.

After finishing the presettings, you can begin with exercising.

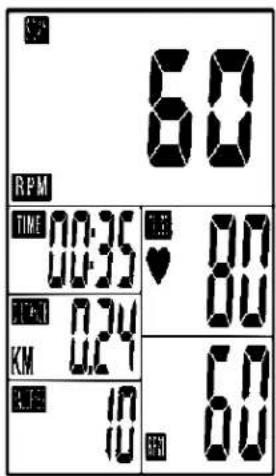

During the exercise session, in the display the display of the different functions changes every 6 seconds. If you press the MODE key during this display, the selected function remains in the display in large numbers. In the small display the function name blinks, e.g. PULSE.

Pressing the MODE key again operates the SCAN operation > display change every 6 seconds.

Training and operating instructions

RECOVERY

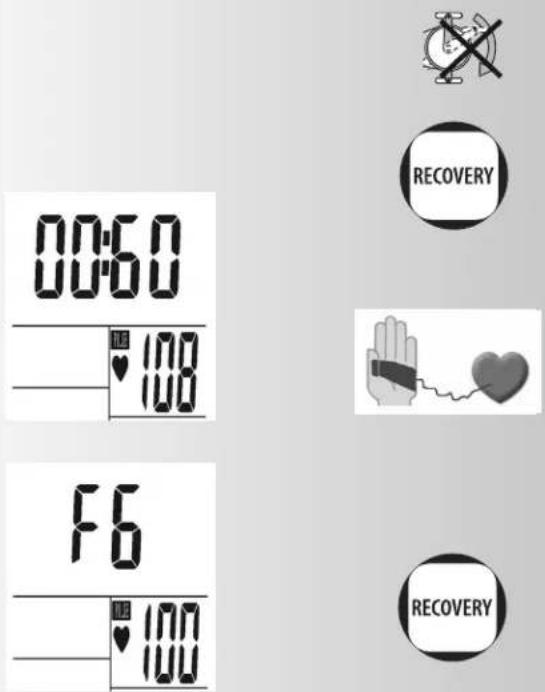

Pressing the RECOVERY key will start the recovery pulse measurement at the end of the training unit. Deviations and your fitness level are calculated from your initial and final pulse. In case of equal training units, the improvement of the fitness level is a measurement for increased fitness.

As soon as the target values are reached, you can finish the training session, press the recovery key and rest your hands on the hand pulse sensors.

In the case of a previous pulse measurement, the display indicates 00:60 for time, and the current pulse value flashes on the PULSE segment display (right). Time count-down starts from 00:60. Rest your hands on the hand pulse sensors until the count-down has reached >0<.

A value between F1 and F6 is indicated on the display. F1 is the best and F6 the worst status. Pressing the RECOVERY key again will finish the function.

Calculation of fitness score

The computer calculates and assess the difference between the training and recovery heart rate and the resulting "fitness score" according to the following formula:

$$ \text { Score } (F) = 6 - \left(\frac {1 0 \times (P 1 - P 2)}{P 1}\right) ^ {2} $$

P1 = Training pulse P2 = Recovery pulse

Score 1 = very good Score 6 = poor

A comparison of the training and recovery heart rate is a quick and easy way in which to determine physical fitness. The fitness score is an orientation value to assess your recovering ability after physical exercise. Before pressing the recovery heart rate button and determining your fitness score, you should train at your own level of intensity for a significant period of time e.g. 10 minutes. For regular cardiovascular training you will discover that your "fitness score" improves.

Change of batteries

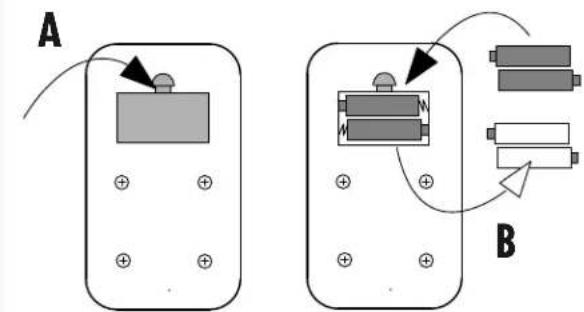

If the display is only slightly illuminated, the batteries must be changed. The values and default settings of the previous training session will get lost. The time setting must be entered again.

Disposal of used batteries and storage batteries

This symbol tells you that batteries and storage batteries must not be disposed of with the normal household waste.

The symbols Hg (mercury) and Pb (lead) underneath the crossed-out rubbish bin also tell you that the battery or storage battery contains more than 0.0005% mercury or more than 0.004% lead.

Improper disposal damages the environment and can

damage people's health. Recycling of materials conserves precious raw materials. When disposing of the appliance, remove all batteries and storage batteries from the product and hand them over to the collection point for the recycling of batteries or electrical or electronic appliances. Information about the appropriate collection points can be obtained from your local authorities, your waste disposal team or in the outlet where this appliance was sold.

Possibilities for Pulse Measurement

The pulse measurement starts as soon as the heart in the display blinks in time with your pulse beat.

With ear clip

The pulse sensor works with infrared light and measures the variations in translucence in your skin, which are produced by your pulse beat. Rub your ear ten times strongly to activate the blood circulation before attaching the pulse sensor to your earlobe. Avoid disturbing pulses.

• Attach the ear clip properly to your earlobe and look for the best point for the measurement (heart symbol blinks without interruption).
• Do not train directly under strong incidence of light, e.g. neon light, halogen light, spotlight, sun light.
• Completely eliminate any shocks or bounces of the ear sensor and the cable. Always attach the cable with a clip at your clothing or, even better, at your headband.

With chest strap

If a chest strap should be used optionally, the connection between the chest strap and the training computer must be established by using a plug-in receiver. Chest strap and plug-in receiver can be ordered subsequently.

With hand pulse

An extra-low voltage caused by the contractions of your heart is registered by the hand sensors and evaluated by the electronics assembly of the device.

• Always grab the contact faces with both hands.
- Avoid jerky grasping.
- Hold your hands calmly and avoid contractions and rubbing on the contact faces.

Note:

Pulse measurement can be accomplished: by ear clip, by hand pulse, or by chest strap. If there is no ear clip or plug-in receiver in the pulse jack, hand pulse measurement is activated. If there is an ear clip or plug-in receiver in the pulse jack, the hand pulse measurement is automatically deactivated. There is no need to pull out the connector of the hand pulse sensors.

Options for pulse measurement.

	[HHOK]
	[SDY8]
	optional

Training and operating instructions

Training Instructions

For Your Safety:

- Before beginning your program of exercise, consult your doctor to ensure that you are fit enough to use the equipment. Base your program of exercise on the advice given by your doctor. Incorrect or excessive exercise may damage your health.

This device has particularly been designed and developed for leisure time sportsmen. It is excellently suited for cardiovascular training.

The training methodically has to be organised on the principles of stamina training. This will predominantly cause changes and adaptations of the cardiovascular system. This includes the reduction of the resting pulse frequency and of the load pulse.

This gives the heart more time for filling the ventricles and for the blood circulation of the cardiac musculature (through the coronary vessels. Moreover, depth of breathing and the volume of air that can be breathed in (vital capacity) are increased. Further positive changes take place in the metabolic system. In order to achieve these positive changes, the training has to be planned according to certain guidelines.

Planning and control of your training

The basis for your training planning is your current physical fitness condition. Your family doctor can diagnose your personal fitness by means of an exercise tolerance test, which will constitute the basis for your training planning. If you have not undergone an exercise tolerance test, high training exertion and/or overstraining must be avoided in all cases. The following rule should be considered in your planning: stamina training is controlled via the scope of exertion as well as via the level / intensity of exertion.

Regarding exertion intensity

The intensity of exertion should preferably be checked in your fitness training via your heart's pulse rate. The maximum heart rate per minute of >220 minus age must not be exceeded. The optimum training pulse is determined by age and training target.

Training target: fat burning/weight reduction

The optimum pulse frequency is calculated using the empirical formula (220 - age x 0.65).

Advice: fat burning for energy supply only gains significance after a minimum training period of 30 minutes.

Training target cardio-vascular fitness:

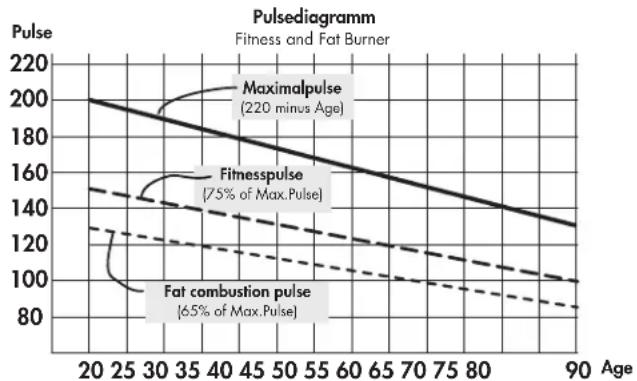

The optimum pulse frequency is calculated using the empirical formula (220 - age x 0.75).

The intensity is predetermined in your training by means of the braking levels. As a beginner, you should avoid too high braking level settings for your training, as this will quickly lead to exceeding the recommended pulse rate range. Start by using a low braking level setting and then approach your optimum training pulse step by step. Do not forget to regularly check during your fitness training whether you still range within the intensity area according to the above stated recommendations.

Sports physicians consider the following load factors to be positive for fitness:

Frequency Duration

daily 10 min

2-3 times weekly 20-30 min

1-2 times weekly 30-60 min

Beginners should not start with training units of 30 to 60 minutes.

A beginner training could be organised as follows during the first four weeks:

Training frequency Extent of training session

1st week

3 times a week 2 minutes of training

Break of 1 minute for physical exercises

2 minutes of training

Break of 1 minute for physical exercises

2 minutes of training

2nd week

3 times a week 3 minutes of training

Break of 1 minute for physical exercises

3 minutes of training

Break of 1 minute for physical exercises

2 minutes of training

3rd week

3 times a week 4 minutes of training

Break of 1 minute for physical exercises

4 minutes of training

Break of 1 minute for physical exercises

3 minutes of training

4th week

3 times a week 5 minutes of training

Break of 1 minute for physical exercises

4 minutes of training

Break of 1 minute for physical exercises

4 minutes of training

In order to have a personal training documentation, you can enter the training values achieved in the performance table. Prior to and after every training unit gymnastic exercises lasting approx. 5 minutes serve the warming up and/or cooling down. There should be a day without training between two training units, if you later on prefer to train three times a week for 20 - 30 minutes each. Otherwise nothing can be said against a daily training.

Performance table

Date	Restpulse	Stress pulse	Recovery pulse	Slope	Time (min) (km)	Distance (Kcal)	Energy consumption	Fitness	Mark
	2018-03-29

F

Table des matières

RECOVERY

2-3 x per week 20-30 min

1-2 x per week 30-60 min

Inicio del aparato

RECOVERY

Iniciar o aparelho

RECOVERY

Start af maskinen

Start af maskinen

Sæt 2 batterier i (1,5 V UM 3/AA).

RECOVERY

P1 P2 Tid Distance Fitness

Dato Restitutionspuls Belastningspuls Hvilepuls Belastningstrin (min.) (km) Energiforbrug karakter

CZ

Obsah

Spuštění přístroje

Vložte 2 baterie (1,5 V UM 3/AA).

RECOVERY

Date	Restpulse	Stress pulse	Recovery pulse	Slope	Time (min) (km)	Distance (Kcal)	Energy consumption	Fitness	Mark
	1986	1987	1988	1989	1990	1991	1992	1993	1994

Performance table

Date	Restpulse	Stress pulse	Recovery pulse	Slope	Time (min) (km)	Distance (Kcal)	Energy consumption	Fitness	Mark
	2018-06-29
					2018-06-30

KETTLER

Person using a rowing machine on a tiled floor (no visible text or symbols)

Person riding a three-wheeled vehicle on a snowy mountain slope, no visible text or symbols

Black-and-white photo of a woman riding bicycles with two men in the background, snow-capped mountains in the background (no text or symbols visible)

Black-and-white exterior view of a modern outdoor patio with a long wooden table and chairs, no visible text or signage.
