USER MANUAL KNWS540N KONIG

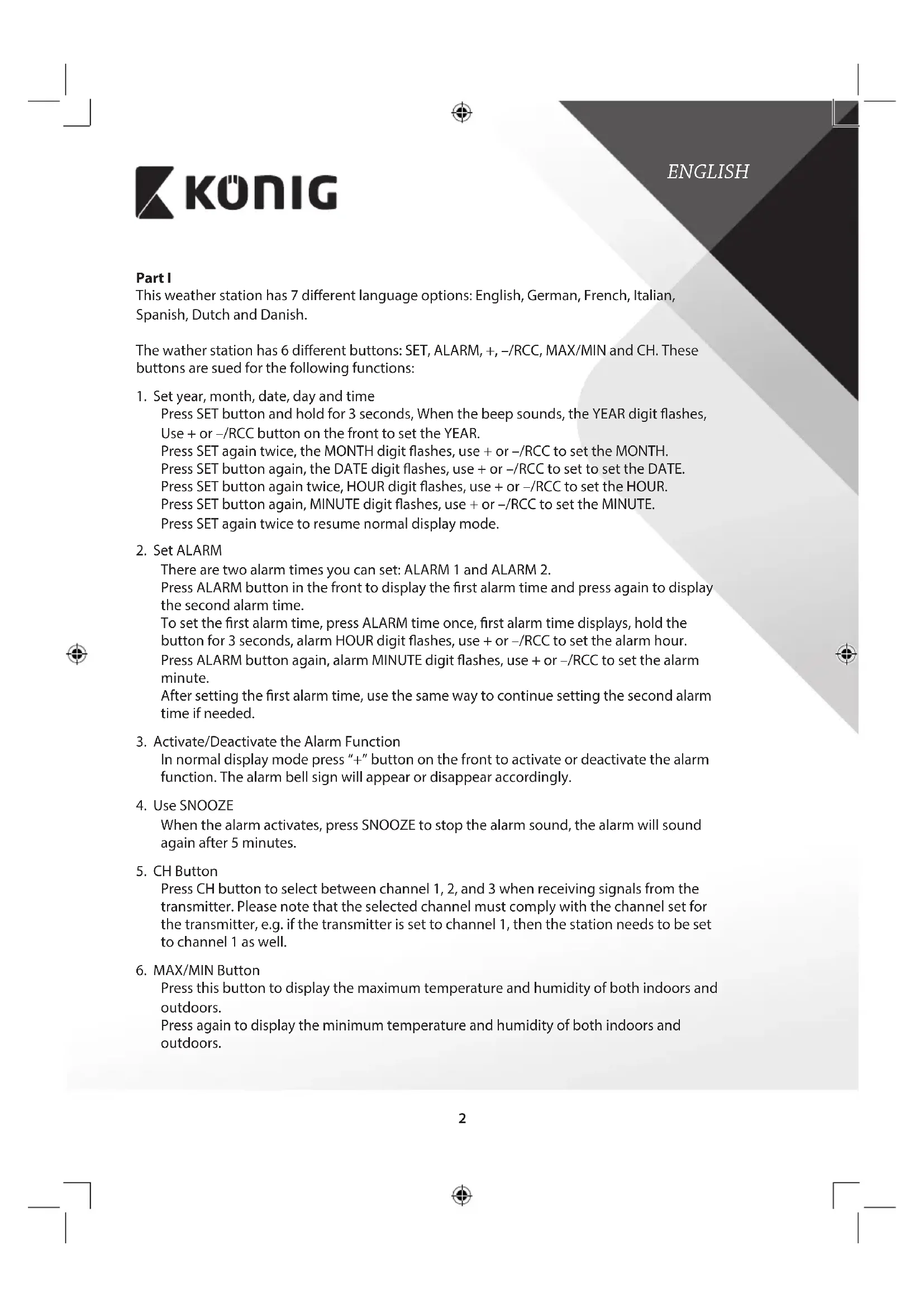

1. Set year, month, date, day and time

Press SET button and hold for 3 seconds, When the beep sounds, the YEAR digit ashes, Use + or –/RCC button on the front to set the YEAR. Press SET again twice, the MONTH digit ashes, use + or –/RCC to set the MONTH. Press SET button again, the DATE digit ashes, use + or –/RCC to set to set the DATE. Press SET button again twice, HOUR digit ashes, use + or –/RCC to set the HOUR. Press SET button again, MINUTE digit ashes, use + or –/RCC to set the MINUTE. Press SET again twice to resume normal display mode.

There are two alarm times you can set: ALARM 1 and ALARM 2. Press ALARM button in the front to display the rst alarm time and press again to display the second alarm time. To set the rst alarm time, press ALARM time once, rst alarm time displays, hold the button for 3 seconds, alarm HOUR digit ashes, use + or –/RCC to set the alarm hour. Press ALARM button again, alarm MINUTE digit ashes, use + or –/RCC to set the alarm minute. After setting the rst alarm time, use the same way to continue setting the second alarm time if needed.

3. Activate/Deactivate the Alarm Function

In normal display mode press “+” button on the front to activate or deactivate the alarm function. The alarm bell sign will appear or disappear accordingly.

When the alarm activates, press SNOOZE to stop the alarm sound, the alarm will sound again after 5 minutes.

Press CH button to select between channel 1, 2, and 3 when receiving signals from the transmitter. Please note that the selected channel must comply with the channel set for the transmitter, e.g. if the transmitter is set to channel 1, then the station needs to be set to channel 1 as well.

Press this button to display the maximum temperature and humidity of both indoors and outdoors. Press again to display the minimum temperature and humidity of both indoors and outdoors.3 ENGLISH

It will calculate the moon phase automatically, the moon phase being divided into 8degrees. Temperature and Humidity:

1. Temperature range indoors: 0 °C~50 °C (32 °F~122 °F);

Temperature range outdoors: -50°C~70°C (-58°F~158°F).

2. Range of humidity: 20%–99%.

3. Tendency of temperature change: one check per hour, compared to previous data. If the

temperature changes more than 1 °C the arrow will be at. Pressure and Weather Forecast:

1. Turn on power to set the height, or it will be 0.

2. Two kinds of pressure units: Hpa/Mb or in Hg.

3. Records the pressure data of the past 12 hours.

4. Compares the pressure data with the previous data every 60 minutes. If the change is

more than 2 hpa the pressure arrow will change.

5. Checks data every hour and will display the weather graphics according to the result.

1. RCC reception format: DCF, the reception time is about 10 minutes.

2. RCC reception way.

3. It will begin to receive the RCC 3 minutes after turning on the unit.

4. RCC reception graphic:

The tower graphic ashes when receiving, the tower graphic will also ash when lost or has no signal. The tower graphic will not ash when synchronizing the signal, but the arc- shaped antenna symbol on top of the tower graphic is ashing. The whole RCC reception graphic will display when the reception is successful: The tower graphic will turn o and exit RCC when the signal reception fails. Part II There are 5 buttons at the rear: UP, DOWN, HISTROY, MAX/MIN, ALERT. These buttons are used for the following functions:

While in normal display mode, press this button to activate or deactivate the temperature alert function. An arrow icon will appear to indicate the funcion has been activated, or the arrow icon will disappear to indicate the alarm is deactivated. While in normal display mode, press and hold this button for 3 seconds to enter the temperature alert settings. The door temperature digits will start ashes. Press the ALERT button at the rear to set the temperature (0 °C~50 °C) at which the statio nhas to sound an alarm.

2. UP Button at the rear

In normal display mode press this button to select pressure unit between Hpa/Mb or Hg. In normal display mode press and hold this button for 3 seconds to enter weather forecast display mode, select by pressing the DOWN button (at the rear) among sunny, cloudy, rainy, etc.4 ENGLISH

3. DOWN Button at the rear

HISTORY Button Press this button repeatedly to show the history record of the barometer of the past 12hours. The hour is displayed in the bottom right corner of the barometer chart. In normal display mode press this button to check the barometer history of 12 the past hours.

Press this button display the maximum temperature and humidity of both indoors and outdoors. Press again to display the minimum temperature and humidity of both indoors and outdoors. Part III Use the Transmitter: For each weather station there is a transmitter. Set the channel after inserting the battery at the rear of the transmitter. There are 3 settings: channel 1, 2 and 3. The maximum distance between the station and the transmitter is 20 m in open areas. Greater distance or buildings in-between station and transmitter will aect signal transmission and reception. Transmitter shall be kept away from rain or water. Part IV Points to note: Tolerance:

• The tolerance for temperature variation is +/– 2 °C.

• The tolerance for humidity variation is +/– 5%. Remarks:

1. 3x AAA batteries or DC 4.5 V adapter are needed to operate the weather station.

2. 2x AAA batteries are needed to operate the transmitter.

3. The transmitter distance is 30 m.

4. Transmits one time every second. The light will ash at the same time.

5. Select the channel and change the temperature unit inside the battery compartment.

6. When the RCC signal ashes, the handset function is turned o. Press –/RCC button once

to stop the RCC signal ashing; it will recover the handset function.

7. The system’s channel is CHANNEL1.5

Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an authorised technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture. Maintenance: Clean only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty: No guarantee or liability can be accepted for any changes and modications of the product or damage caused due to incorrect use of this product. General: Designs and specications are subject to change without notice. All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such. Keep this manual and packaging for future reference. Attention: This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products. This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report. Please contact our customer service desk for support: via website: http://www.nedis.com/en-us/contact/contact-form.htm via e-mail: service@nedis.com via telephone: +31 (0)73-5993965 (during oce hours) NEDIS B.V., De Tweeling 28, 5215 MC ’s-Hertogenbosch, THE NETHERLANDS6 DEUTSCH Teil I Die Wetterstation hat 7 Sprachoptionen: Englisch, Deutsch, Französisch, Italienisch, Spanisch, Holländisch und Dänisch. Die Wetterstation verfügt über 6 Tasten: SET, ALARM, +, –/RCC, MAX/MIN und CH. Diese Tasten dienen den nachstehenden Funktionen:
