| Product type | Pedestal fan |
| Brand | TEAM |
| Model | KA VT 15 |
| Number of speeds | 3 (low, medium, high) |
| Oscillation function | Yes, push button control |
| Height adjustment | Yes, telescopic tube with tightening screw |
| Vertical orientation | Manually adjustable |
| Protection grilles | Front and rear, clip and safety bolt fastening |
| Safety system | Mandatory grille fixing bolt to prevent access to the blade |
| Control type | Rotary selector for speeds, push button for oscillation |
| Power supply | Mains (voltage to check on the appliance) |
| Cleaning | Unplug, use a damp cloth and a vacuum cleaner |
| Immersion | Do not immerse in water or any other liquid |
| Usage | Indoor only |
| Supplied accessories | Grille fixing bolt |
| Assembly | Requires assembly of the base, motor unit, grilles and blade |
| Material | Plastic (mainly) |
| Weight | Not specified |
Frequently Asked Questions - KA VT 15 TEAM
User questions about KA VT 15 TEAM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual KA VT 15 - TEAM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KA VT 15 by TEAM.
USER MANUAL KA VT 15 TEAM
- Guard ornament
- Front guard
- Position fixer
- Cap
- Fan blade
- Guard mounting ring
- Rear guard
- Motor shaft
- Oscillation knob
- Motor housing
- Motor fixing screw
- Upper pipe
- Pipe fixing screw
- Lower pipe
- Base
- Fixing nut
F

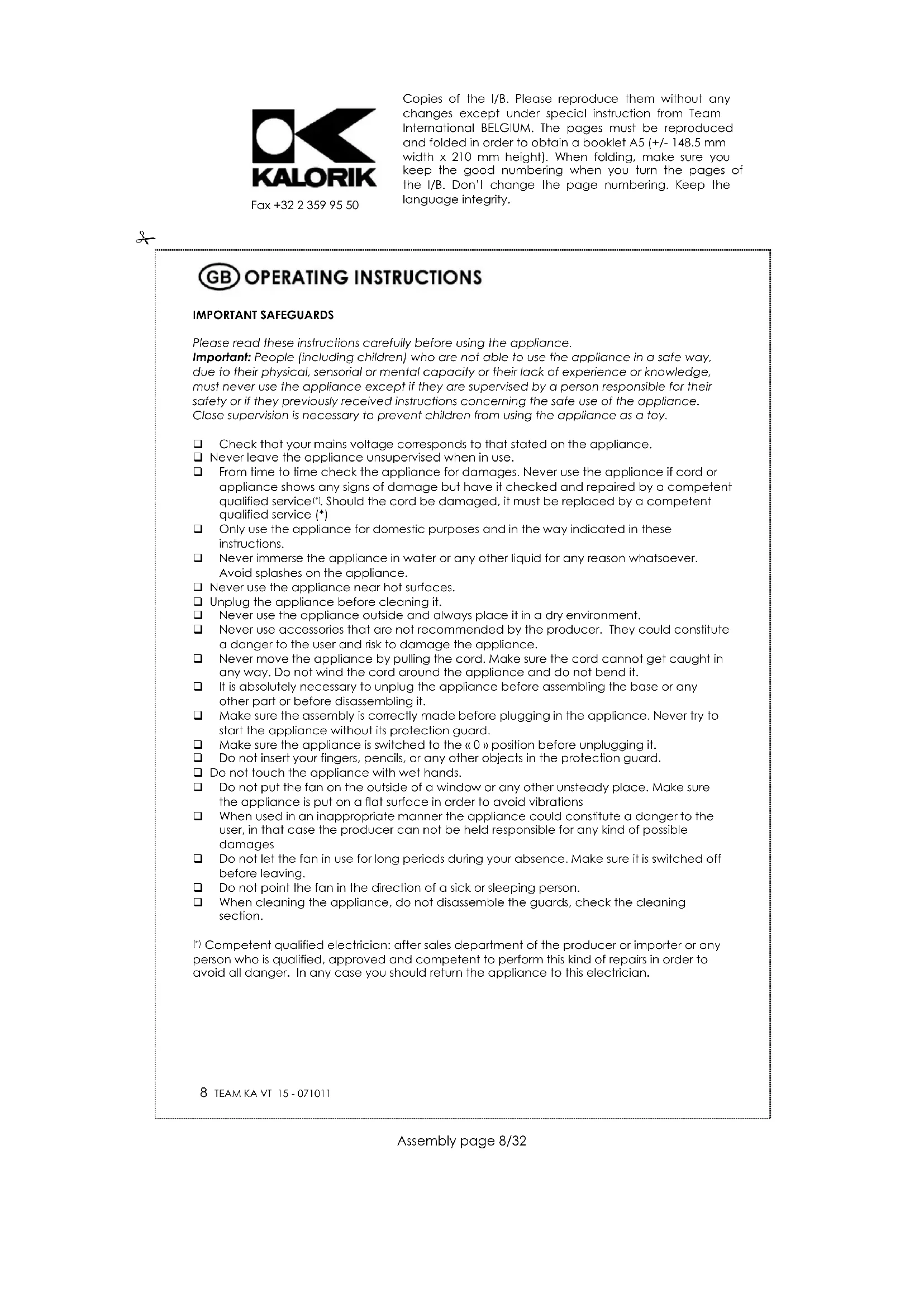

Please read these instructions carefully before using the appliance.
Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance.
Close supervision is necessary to prevent children from using the appliance as a toy.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service. Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Avoid splashes on the appliance.
Never use the appliance near hot surfaces.
Unplug the appliance before cleaning it.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
It is absolutely necessary to unplug the appliance before assembling the base or any other part or before disassembling it.
Make sure the assembly is correctly made before plugging in the appliance. Never try to start the appliance without its protection guard.
Make sure the appliance is switched to the 0 position before unplugging it.
Do not insert your fingers, pencils, or any other objects in the protection guard.
Do not touch the appliance with wet hands.
Do not put the fan on the outside of a window or any other unsteady place. Make sure the appliance is put on a flat surface in order to avoid vibrations
When used in an inappropriate manner the appliance could constitute a danger to the user, in that case the producer can not be held responsible for any kind of possible damages
Do not let the fan in use for long periods during your absence. Make sure it is switched off before leaving.
Do not point the fan in the direction of a sick or sleeping person.
- When cleaning the appliance, do not disassemble the guards, check the cleaning section.
(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
ASSEMBLY
- Loosen the fixing nut (16) from the lower pipe (14).
- Insert the lower pipe (14) in the middle of the base (15) and tighten the fixing nut (16) underneath the base (15) to fix the pipe to the base.
- Slightly loosen the pipe fixing screw (13) and pull out the upper pipe (12) to the desired length. Then tighten the pipe fixing screw (13).
- Remove the fixing screw (11) located on the upper pipe and fit the motor housing (10) with speed regulator into the upper pipe (12). Make sure the motor housing (10) is pushed fully onto the upper pipe and that the hole of the upper pipe is in front of the hole located on the motor housing. Attach the two parts with the fixing screw (11).
- Loosen the guard mounting ring (6) from the motor housing (10).
- Position the rear guard (7) firmly against the motor housing (9) and fasten by turning the guard mounting ring (6) clockwise tightly.
- Push the blade (5) along the motor shaft (8). Fasten it firmly with the cap (4) by turning it counter clockwise.
- Fit the front guard (2) and the rear guard (7) together with the position fixer (3) provided at the front guard rim, and then clamp them together with the clips provided.
- To ensure that it is impossible to have access to the fan blade without using a tool, a screw is provided with this appliance in order to attach both parts of the mesh guard together. This screw must be tightened on the lower part of the guards. We cannot be held responsible for any injuries in case this screw had not been tightened before using the appliance.
- To change the height, loosen the pipe fixing screw(13) and slide the upper pipe to a suitable height. Then tighten the pipe fixing screw (13) again.
OPERATION
This appliance is equipped with 3 ventilation speeds. To switch on the appliance, turn the rotary speed regulator into the desired position. To switch it off, put it in "0" position.
Speed settings:
0 = OFF
1 = Low
2 = Medium
3 = High
-
This appliance also has an oscillation function:
-
Push the oscillation knob (9) to switch on the oscillation.
- Pull the oscillation knob (9) to stop.
It is also possible to tilt the upper part of the appliance in order to adjust the airflow direction vertically.
CLEANING AND CARE
Always disconnect the power supply cable from the power supply before carrying out any cleaning operation.
- To remove dirt from the plastic surfaces, use a soft damp cloth. Use a vacuum cleaner to remove the dust from the guards without having to disassemble them.
- Never immerse the fan in water or any other liquid.
PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
FR MODE D'EMPLOI
POUR VOTRE SECURITE
0=UIT
1 = Langzaam
2 = Matig
3 = Snel
