VT 18 - Fan TEAM - Free user manual and instructions

Product type	Table fan
Brand	TEAM
Model	VT 18
Power supply	220-240 V ~ 50 Hz
Speeds	3 speeds (buttons 1, 2, 3)
Oscillation	Yes, push button (push to activate, pull to stop)
Number of blades	4 blades (fan blade)
Protection	Front and rear safety grilles with safety bolt
Main material	Plastic (base, grilles, fan blade)
Cleaning	Damp cloth, vacuum between grilles; do not immerse
Assembly required	Yes: base, grilles, fan blade
Weight	Approximately 2.5 kg
Dimensions (approx.)	Height: 45 cm, grille diameter: 40 cm
Color	White (typical)
Usage	Domestic, indoor
Safety	Do not use without grille, do not immerse, unplug before cleaning

Frequently Asked Questions - VT 18 TEAM

How to assemble the base of the TEAM VT 18 fan?

Insert the upper part of the base into the lower part until it clicks, then fasten the two parts with the 3 provided screws. Do not overtighten the screws.

How to mount the safety grilles?

Unscrew the cap and the fixing ring, place the rear grille against the motor, retighten the ring. Insert the fan blade onto the shaft (the notches must match) then secure it with the cap. Attach the front grille using the clips and tighten the safety bolt at the bottom.

How many speeds does the VT 18 fan have?

It has 3 speeds. Press the corresponding button (1, 2 or 3) to turn it on, and press the '0' button to turn it off.

How to activate oscillation?

Push the oscillation button (located on the motor) to activate oscillation. Pull the same button to stop it.

How to clean the TEAM VT 18 fan?

Always unplug the device before cleaning. Use a damp cloth for plastic surfaces. For dust between the grilles, use a vacuum. Do not disassemble the grilles and never immerse the device in water.

What if the fan stops turning?

First check the power outlet and the power cord. If the cord is damaged, it must be replaced by a qualified service. Ensure the fan blade is not blocked. If the problem persists, contact after-sales service.

Can I use the fan outdoors?

No, the fan is designed for domestic indoor use only. Do not use it outdoors or in a humid environment.

The fan is noisy or vibrates, what should I do?

Ensure the fan is placed on a flat and stable surface. Check that the base screws are tightened (not overly) and that the fan blade is properly secured. If the noise persists, inspect the blades for any defect.

How to replace the power cord?

The damaged power cord must be replaced by a qualified competent service (manufacturer, importer or authorized person) to avoid any danger. Do not attempt to repair it yourself.

What to do in case of breakdown or problem?

First consult the user manual. If the problem persists, contact the manufacturer's after-sales service or a qualified competent service. Do not use the device if it is damaged.

USER MANUAL VT 18 TEAM

1. Front guard
2. Cap
3. Fan blade
4. PVC sleeve
5. Guard mounting ring
6. Rear guard
7. Oscillation knob
8. Upper part of the base
9. Lower part of the base
10. Screw

F

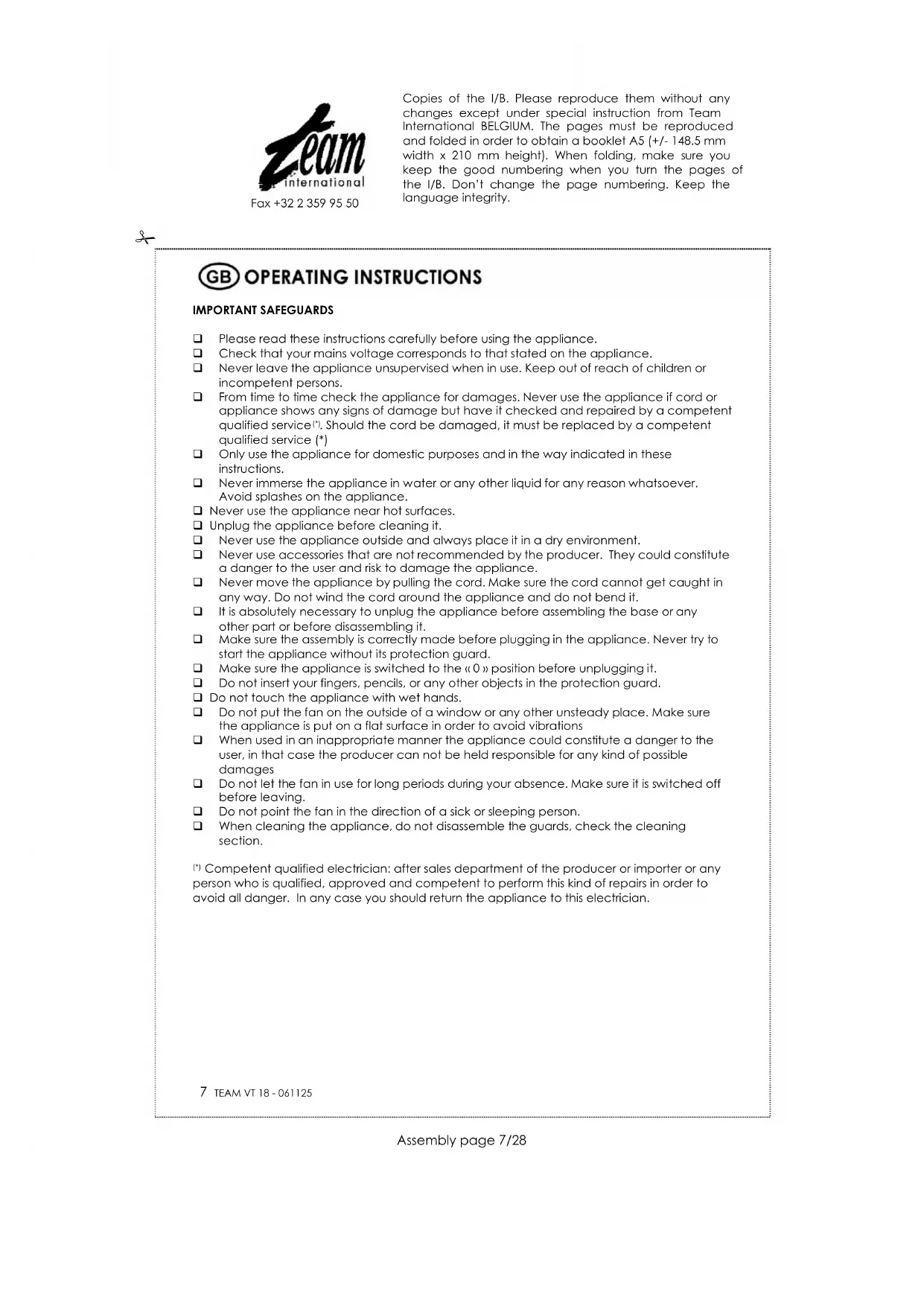

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service. Should the cord be damaged, it must be replaced by a competent qualified service ()
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Avoid splashes on the appliance.
Never use the appliance near hot surfaces.
Unplug the appliance before cleaning it.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
It is absolutely necessary to unplug the appliance before assembling the base or any other part or before disassembling it.
Make sure the assembly is correctly made before plugging in the appliance. Never try to start the appliance without its protection guard.
Make sure the appliance is switched to the 0 position before unplugging it.
Do not insert your fingers, pencils, or any other objects in the protection guard.
Do not touch the appliance with wet hands.
Do not put the fan on the outside of a window or any other unsteady place. Make sure the appliance is put on a flat surface in order to avoid vibrations
When used in an inappropriate manner the appliance could constitute a danger to the user, in that case the producer can not be held responsible for any kind of possible damages
Do not let the fan in use for long periods during your absence. Make sure it is switched off before leaving.
Do not point the fan in the direction of a sick or sleeping person.
When cleaning the appliance, do not disassemble the guards, check the cleaning section.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

ASSEMBLY

A. Base

The upper and lower part of the base must be fitted together before using the fan. Insert the upper part (8) into the lower part (9) of the base, then press the upper part of the base onto the lower part of the base till it clicks. Fix the two parts together with the 3 screws provided. Do not over-tighten these screws.

B. Guards

1. Loosen the cap (2) from the motor housing by rotating it clockwise.
2. Loosen the guard mounting ring (5) from the motor housing by rotating it anti-clockwise.
3. Position the rear guard (6) firmly against the motor housing and fasten by turning the guard mounting ring (5) clockwise tightly.
4. Remove and discard the PVC sleeve on the motor shaft.
5. Place the blade (3) along the motor shaft, locating the slot at the back of the blade on the drive pin that passes through the motor shaft.
6. Fasten it firmly with the cap (2) by turning anti-clockwise.
7. Fit the front guard (1) and the rear guard (6) together with the clips provided. Attach the front guard (1) to the rear guard (5) with the position fixer located on the front guard rim, and then fit them together with the clips provided.
8. To ensure that it is impossible to have access to the fan blade without using a tool, a screw is provided with this appliance in order to attach both parts of the mesh guard together. This screw must be tightened on the lower part of the guards. We cannot be held responsible for any injuries in case this screw had not been tightened before using the appliance.

OPERATION

This appliance is equipped with 3 ventilation speeds. To switch on the appliance, press one of the speed knobs. To switch it off, press "0".

Speeds:
0=OFF
1 = Low
2 = Medium
3 = High

• This appliance also has an oscillation function:

• Push the oscillation knob (7) to switch on the oscillation.

• Pull the oscillation knob (7) to stop.

CLEANING AND CARE

Always disconnect the power supply cable from the power supply before carrying out any cleaning operation.
To remove dirt from the plastic surfaces, use a cloth moistened with a little water. Use a vacuum cleaner to remove the dust from the guards without having to disassemble them.
- Never immerse the fan in water or any other liquid.

8 TEAM VT 18-061125

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
