Product Type	Electric Oven
Brand	Proline
Model	CN19
Power Supply	220-240 V ~ 50 Hz, 1300 W
Maximum Temperature	230 °C
Timer	Up to 90 minutes with continuous ON function
Cooking Functions	Grill (top heating element), Bottom cooking (bottom heating element), Convection (top and bottom heating elements)
Maximum Load Capacity	3.5 kg on rack or tray
Included Accessories	Cooking rack, baking tray, handle for rack and tray
Cleaning and Maintenance	Unplug and let cool before cleaning. Clean surfaces with a damp cloth, no abrasive products. Removable parts washable in soapy water.
Safety	Do not immerse in water, keep out of reach of children under 8 years old, hot surfaces, do not use aluminum foil, do not cover during operation.
Continuous Use Without Timer	Set the timer knob to "ON"
Recommended Preheating	5 to 8 minutes
First Use	Run empty at 230°C for 15 minutes to eliminate odors
Repairability	Contact after-sales service: in France 0 978 970 970, in Belgium [phone]. The damaged power cable must be replaced by a professional.

Frequently Asked Questions - CN19 PROLINE

How to use the oven for the first time?

Before use, remove all packaging, clean the exterior with a damp cloth and wash the rack and tray with soapy water. Place the oven on a flat and stable surface. Run empty at 230°C for 15 minutes using the convection function to eliminate new odors.

What cooking functions are available?

The Proline CN19 oven offers three functions: Grill (top heating element), Bottom cooking (bottom heating element), and Convection (both elements together). Use the function knob to select.

How to set the timer?

Turn the timer knob clockwise to the desired time (max 90 minutes). The red indicator light turns on. A beep sounds at the end of cooking. For continuous cooking, set the knob to ON.

Can I use aluminum foil in the oven?

No, it is forbidden to line the oven with aluminum foil as it could cause overheating and a fire hazard. Use only the recommended accessories.

How to clean the oven after use?

Unplug the appliance and wait for it to cool completely. Wipe exterior surfaces with a slightly damp cloth. Wash the rack and tray with hot soapy water, rinse and dry thoroughly. Never use chemical or abrasive products.

What is the maximum recommended load?

The maximum recommended weight for food placed on the rack or tray is 3.5 kg. Distribute food evenly for uniform cooking.

Can the oven be used by children?

Yes, from 8 years old under supervision. Children under 8 must be kept away. Cleaning and maintenance should not be done by children unless they are over 8 and supervised.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any hazard. Contact customer service at 0 978 970 970 (France) or [phone] (Belgium).

Can I use glass or ceramic containers?

No, do not use glass or ceramic pots in this oven. Preferably use recommended oven-safe dishes (metal or special oven glass).

How to recycle the oven at end of life?

Do not dispose of the appliance with household waste. Take it to a local collection point for recycling. The packaging must also be sorted according to local instructions. For more information, consult local authorities.

USER MANUAL CN19 PROLINE

Language of introduction

English

French

Dutch

Page

GB1-GB13

FR14-FR28

NL29-NL43

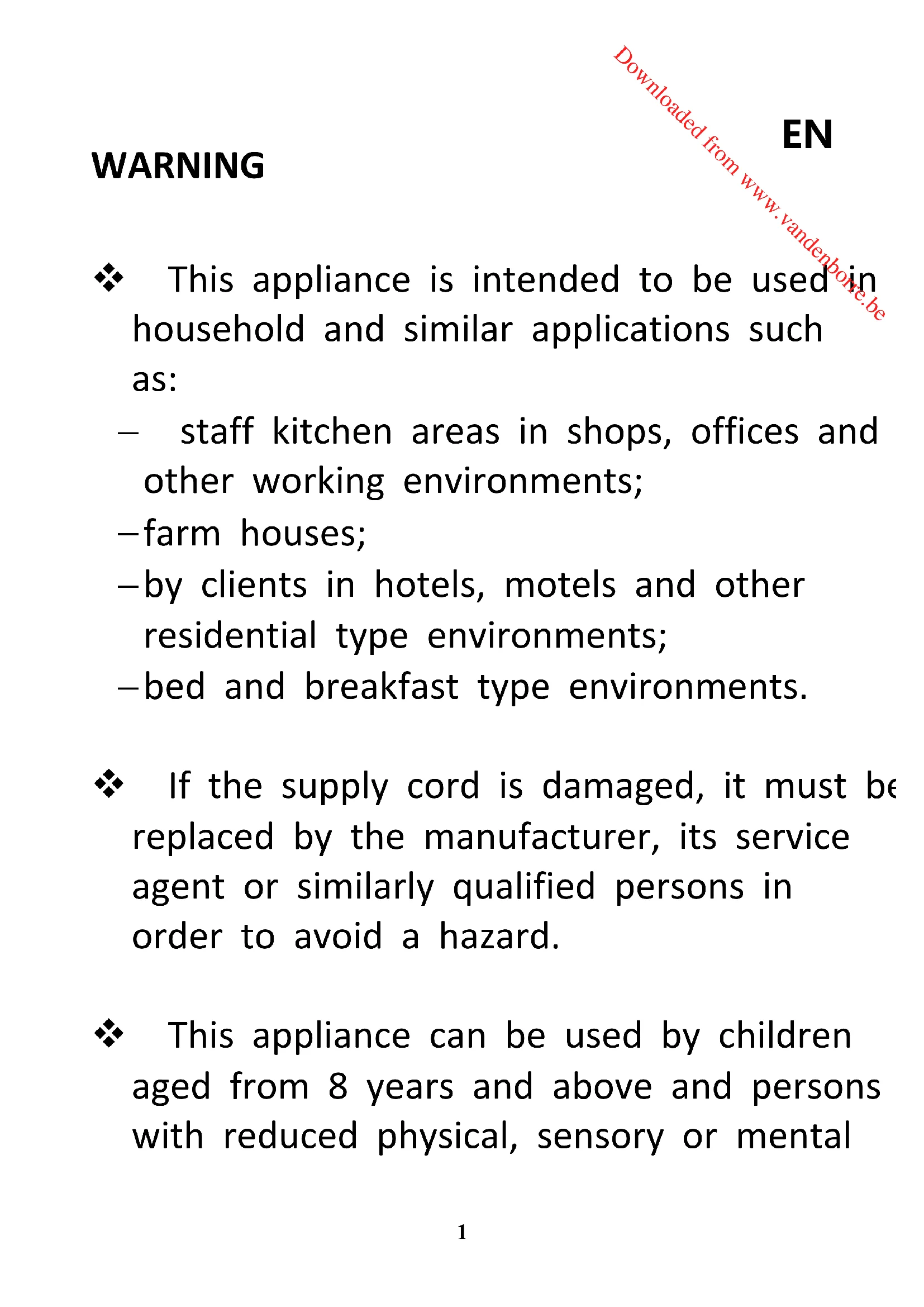

WARNING

EN

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
  -by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

EN

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
  The appliance is not intended to be operated by means of an external timer or separate remote-control system.
  Regarding the instructions for cleaning surfaces in contact with food, refer to the section "Cleaning and Maintenance" on

EN

page 12 of the manual.

The door or the outer surface may get h when the appliance is operating.
The surfaces are liable to get hot during use.
The temperature of accessible surfaces may be high when the appliance is operating.
Do not touch hot surface. Use the handle while moving the product.
Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven.
The rear surface of appliance shall be

EN

placed against a wall.

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions carefully before operating the toaster oven. Keep them for further reference.

• To protect against electric shock, do not immerse the cord, plug, or any parts of the oven in water or other liquids.
• Do not let the cord hang over the edge of a table or coun or touch hot surfaces.
• The use of accessory or attachments not recommended by the manufacturer may cause injuries.
• Turn off and unplug the oven from the mains socket when not in use and before cleaning. Allow to cool before cleaning or handling. Always hold the plug, but never pull the cord.
• Do not cover any part of the oven with metal foil. This will cause overheating of the oven.
• To avoid burns, use extreme caution when removing the tray or disposing of hot grease.
• A fire may occur if the oven is covered or touching flammable materials such as curtains, draperies, walls, and the like, when in operation. Do not store any items on top of the oven when in operation.
• Extreme caution should be exercised when using containers constructed of other than metal or glass.

EN

• Do not place any of the following materials in the oven: paper, cardboard, plastic, and other similar products.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
  Always wear oven gloves (not supplied) or use the supplied rack/tray handle when inserting or removing items from the hot oven.
• Do not use the oven outdoors.
• Do not use the oven for other than intended use.
• Oversize foods or metal utensils must not be inserted in the toaster oven as they may cause a risk of fire or risk of electric shock.

EN

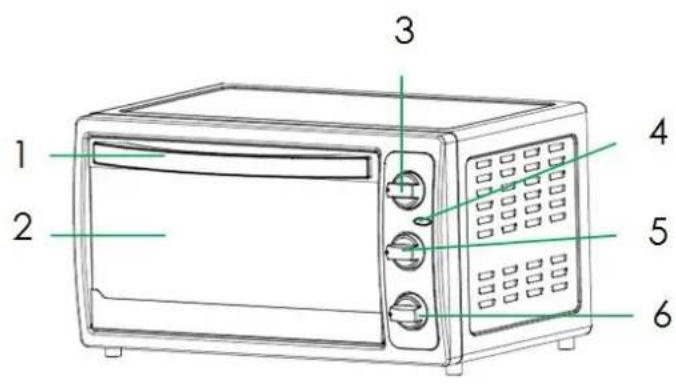

PARTS

1. Door handle
2. Glass door
3. Thermostat knob
4. Red indicator light

5. Function knob

6. Timer knob

7. Rack
8. Tray
9. Rack / tray handle

BEFORE FIRST USE

Remove all packaging materials and wipe the outside of the appliance with a slightly damp cloth.

Wash the rack and tray in warm soapy water. Dry thoroughly before using.

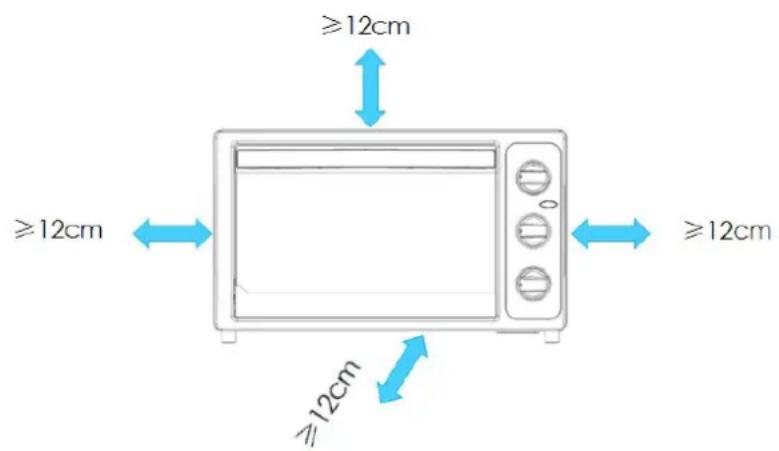

Place the oven on a stable flat surface. Be sure that no other appliances are plugged into the same circuit with the oven.

CONTROL SETTINGS

EN

TEMPERATURE SETTING

You can turn the thermostat knob clockwise to the desired temperature up to 230^

FUNCTION SETTING

You can turn the function knob to select the OFF, grill lower heating or convection setting.

Lower heating:

Only the bottom heating element will heat up.

Grill:

Only the top heating element will heat up.

Convectional:

The top and bottom heating elements will heat up.

EN

TIMER SETTING

The timer can be set up to 90 minutes. In orc for the oven to work, you will need to either up a cooking time or turn the timer knob to "ON" position (see section "Continuous cooking without timer" below).

Cooking with timer

To set the required operating time, turn the timer knob clockwise. The red indicator light will illuminate. After the time has elapsed, a bell sound will be heard.

Adjusting Time

Timer can be changed during cooking. Turn the timer knob to the required time.

Continuous cooking without timer

If you want to use the oven without timer control, turn the timer knob to the "ON" position. The oven will work unless the timer knob is set to the "0" position.

OPERATION

For the first time use, set the thermostat to 230 C , set the function knob to the position and turn the timer knob to 15 minutes. Leave the oven operating with no food inside.

NOTE: The oven may smoke during cooking. This is normal for a new oven and will last no more than 10 to 15 minutes

General Instructions

1. Place the rack in position.

2. There are 2 slots in the oven: slide the rack to the desired height according to the food to be cooked.

1. Oil from food may drip when cooking; in this case place the food on the tray. Make sure that you always use an ovenproof container and never use plastic or cardboard containers in the oven.
2. Never use glass or ceramic cookware.
3. Set the temperature as suggested by the recipe or as desired.
4. Securely shut the oven door and set the cooking time to start cooking.
5. To achieve better cooking performance, it is recommended to preheat the oven for 5 to 8 minutes before cooking.

EN

NOTE: It's recommended that the weight of the food which is put on the rack/tray is not over 3.5 kg . Put food on the rack/tray evenly.

Convectional

This setting is ideal for use when cooking baked potatoes, roasting meat and vegetables, ready meals, casseroles, stews, bread, cakes and desserts.

1. Slide the tray into the middle position in the oven. Close the oven door.
2. Turn the function knob to
3. Select suitable temperature by turning the thermostat knob.
4. Turn the timer knob to either ON or the required cooking time.

Grill

This setting is ideal for use when toasting bread and grilling chicken, sausage, pork chops and bacon.

1. Slide the rack into the top position in the oven.
2. Slide the tray below to collect grease and fat. Close the oven door.
3. Turn the function knob to
4. Select suitable temperature by turning the thermostat knob.
5. Turn the timer knob to either ON or required cooking time.

EN

Lower heating

This setting can be used for most food cooked in the conventional function, but will take longer.

1. Slide the tray into the bottom position in the oven. Close the oven door.
2. Turn the function knob to
3. Select suitable temperature by turning the thermostat knob.
4. Turn the timer knob to either ON or required cooking time.

After cooking

After you finish cooking, turn the timer knob to the "0" position.

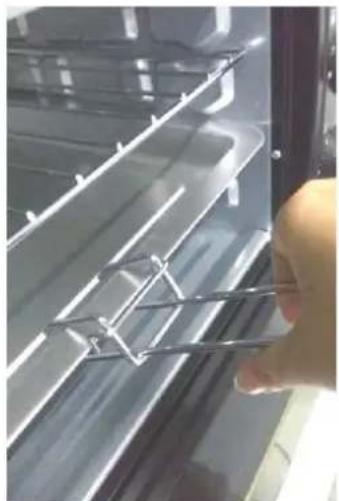

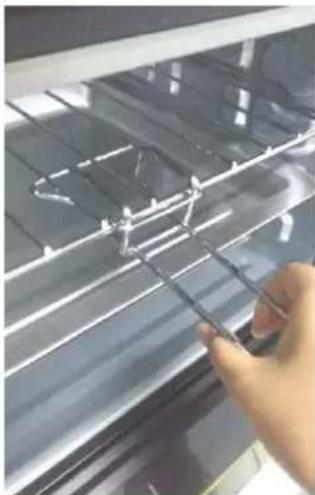

When removing food from the oven, always use oven gloves (not supplied) or the supplied rack/tray handle. Beware: the food and oven are very hot.

EN

CLEANING AND MAINTENANCE

Unplug the appliance from the mains socket and allow it to cool completely before cleaning.

Clean the outside of the appliance with a slightly damp cloth. Never use abrasive or chemical cleaners.

Wash all removable parts in warm soapy water. Rinse and dry them thoroughly before use.

SPECIFICATIONS

Ratings: 220V-240V~ 50Hz 1300W

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

EN

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 05 / 01/ 2016
