Product Type	Electric Oven
Brand	Proline
Model	OV23
Power Supply	220-240 V~50 Hz, 1300 W
Maximum Temperature	230 °C
Timer	Up to 90 minutes with audible signal
Cooking Functions	Convection, grill, bottom heat
Number of Rack Positions	3 pairs of rails
Included Accessories	Baking rack, baking tray, handle
Maximum Load Capacity	3.5 kg on rack or tray
Door Material	Glass
Cleaning	Wipe exterior surfaces with a damp cloth; removable parts washable with soapy water
Safety	Automatic timer shut-off; hot surface; supervision of children under 8 required
Usage	Domestic and similar (staff kitchens, farms, hotels, bed and breakfasts)
Repairability	Power cord replaceable by a qualified professional

Frequently Asked Questions - OV23 PROLINE

How to clean the Proline OV23 oven?

Unplug the appliance and wait for it to cool down. Wipe the exterior surfaces with a slightly damp cloth. Removable parts (rack, tray) can be washed in warm soapy water. Rinse and dry before reuse. Do not use chemical or abrasive products.

What temperature to bake a cake in this oven?

For a cake, use the convection mode (top and bottom heating elements). Preheat for 5 to 8 minutes at the temperature indicated in your recipe, usually between 160°C and 180°C. Adjust according to your preferences.

How to use the oven timer?

Turn the timer knob clockwise to the desired duration (max 90 min). The red indicator light turns on. At the end, an audible signal sounds. For continuous cooking without a timer, set the knob to the "ON" position.

Can I use aluminum foil in the oven?

No, it is forbidden to line the inside of the oven with aluminum foil: this could cause overheating and a fire hazard. Use only oven-safe containers (glass, metal, ceramic).

What is the function of each knob?

The thermostat knob sets the temperature (max 230°C). The function knob selects the mode: OFF, grill (top heating element), bottom heat (bottom heating element), convection (both). The timer knob sets the cooking time or the ON position for continuous cooking.

What to do if the oven emits smoke on first use?

This is normal. Heat the empty oven for 15 minutes at 230°C in convection mode. The smoke should disappear after 10 to 15 minutes. Make sure the room is well ventilated.

What types of dishes can I use in the oven?

Use oven-safe dishes made of glass, metal, or ceramic. Avoid plastic, cardboard, and paper. Glass and ceramic casseroles are not recommended as they may break under heat.

How to set the oven for grilling sausages?

Place the rack on the top rails and the tray underneath to catch drippings. Select the grill mode (function knob set to grill). Set the temperature (e.g., 200°C) and timer according to desired cooking. Monitor to prevent burning.

What is the power input of the oven?

The Proline OV23 oven has a power of 1300 W and operates on a 220-240 V~50 Hz supply. Do not plug other appliances into the same outlet.

How to know when cooking is finished?

The timer emits an audible signal at the end of the programmed time. You can also check the cooking visually. Always use oven mitts to remove dishes from the oven, as surfaces are very hot.

USER MANUAL OV23 PROLINE

Language of introduction

English

French

Dutch

Pag

GB1-GB3

FR14-FR28

NL29-NL43

EN

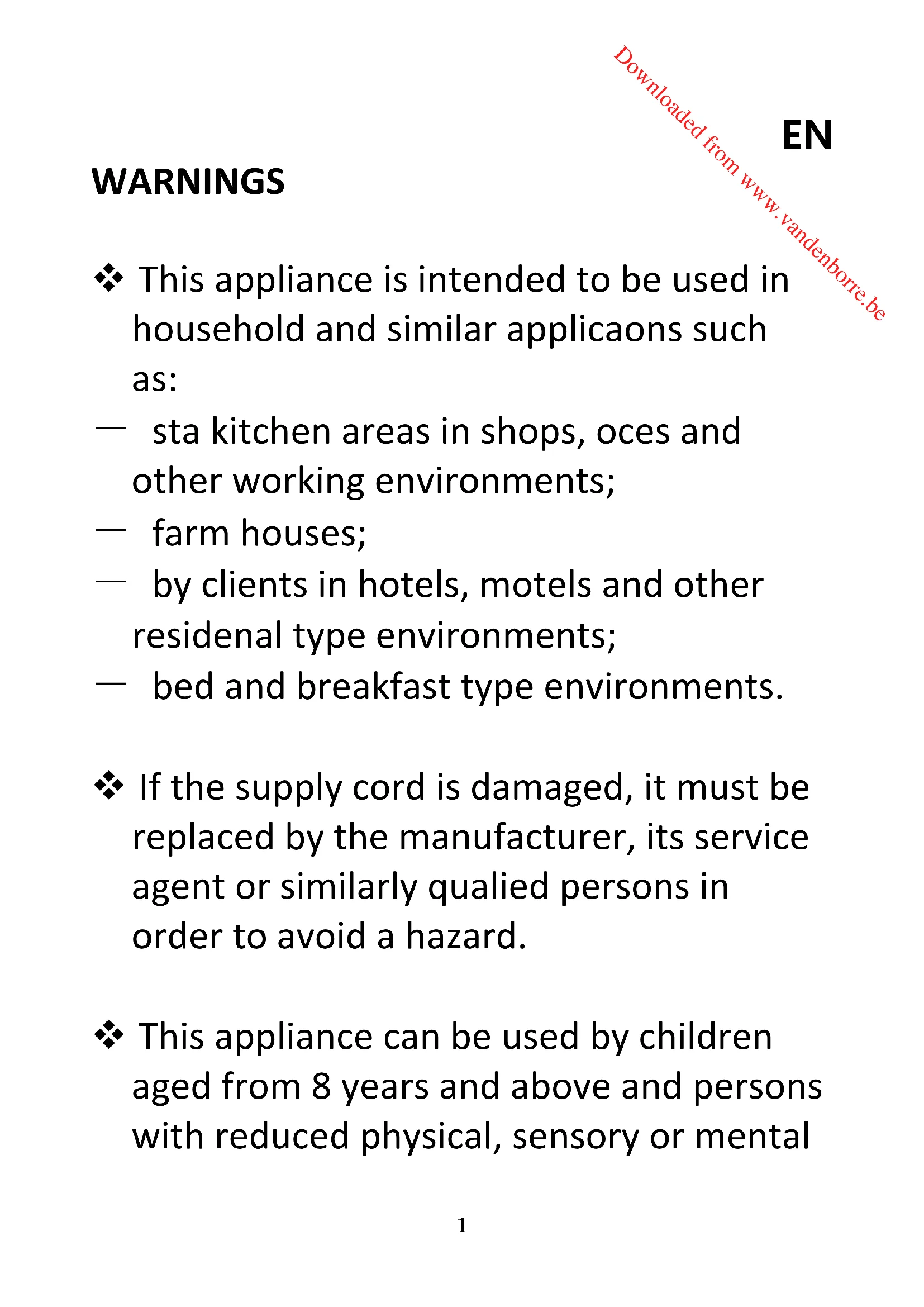

WARNING

This appliance is intended to be used in household and similar applicacons such as:

• sta kitchen areas in shops, oces and other working environments;
• farm houses;
  by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

EN

capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
  The appliance is not intended to be operated by means of an external mer or separate remote-control system.
  Regarding the instrucons for cleaning surfaces in contact with food, refer to the secon "Cleaning and Maintenance" on

EN

page 12 of the manual.

The door or the outer surface may get hot when the appliance is operang.
The surfaces are liable to get hot during use.
The temperature of accessible surfaces may be high when the appliance is operang.
Do not touch hot surface. Use the handle while moving the product.
Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven.
The rear surface of appliance shall be

EN

placed against a wall.

IMPORTANT SAFETY INSTRUCTIONS

Read these instrucons carefully before operang the toaster oven. Keep them for further reference.

• To protect against electric shock, do not immerse the cord, plug, or any parts of the oven in water or other liquids.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• The use of accessory or aachments not recommended by the manufacturer may cause injuries.
• Turn o and unplug the oven from the mains socket when not in use and before cleaning. Allow to cool before cleaning or handling. Always hold the plug, but never pull the cord.
• Do not cover any part of the oven with metal foil. This will cause overheang of the oven.
• To avoid burns, use extreme caunon when removing the tray or disposing of hot grease.

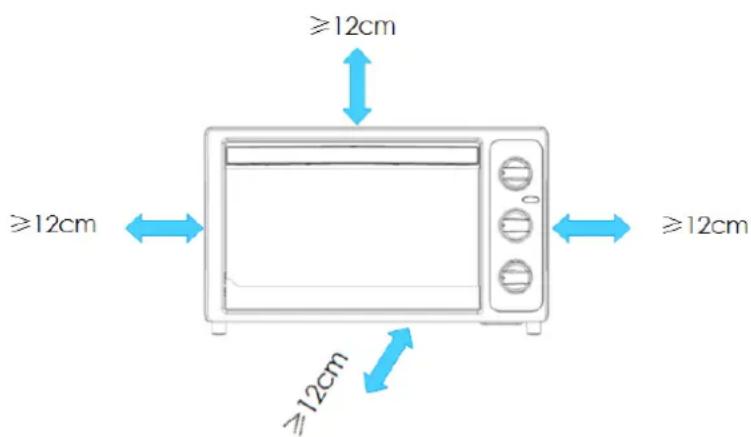

• A re may occur if the oven is covered or touching ammable materials such as curtains, draperies, walls, and the like, when in operaon. Do not store any items on top of the oven when in operaon.
• Extreme caunon should be exercised when using containers constructed of other than metal or glass.
• Do not place any of the following materials in the oven: paper, cardboard, plasc, and other similar products.

EN

• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.

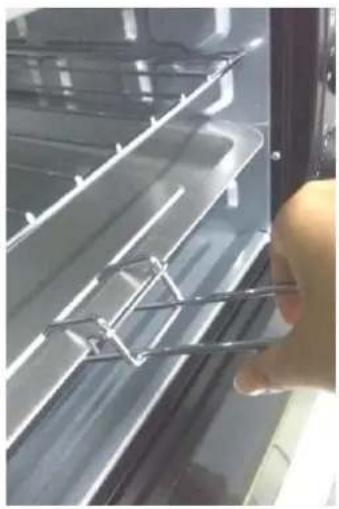

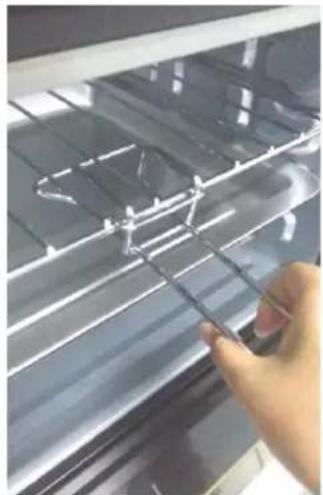

• Always wear oven gloves (not supplied) or use the supplied rack/tray handle when inserting or removing items from the hot oven.
• Do not use the oven outdoors.
• Do not use the oven for other than intended use.
• Oversize foods or metal utensils must not be inserted in the toaster oven as they may cause a risk of re or risk of electric shock.

EN

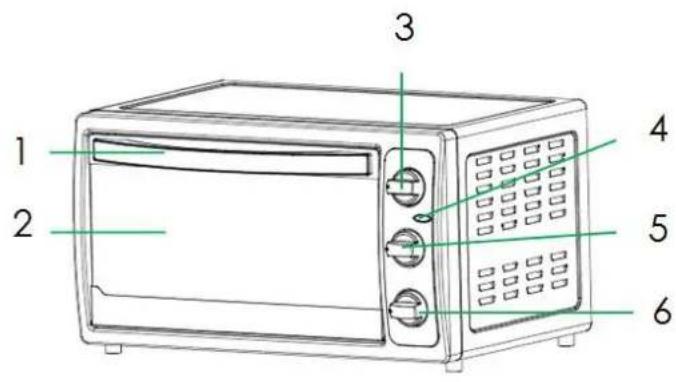

PARTS

1. Door handle
   2.Glass door
   3.Thermostat knob
   4.Red indicator light
   5.Funcon knob

6.Timer knob
7.Rack
8.Tray
9.Rack / tray handle

BEFORE FIRST USE

Remove all packaging materials and wipe the outside of the appliance with a slightly damp cloth.

Wash the rack and tray in warm soapy water. Dry thoroughly before using.

Place the oven on a stable at surface. Be sure that no other appliances are plugged into the same circuit with the oven.

EN

CONTROL SETTINGS TEMPERATURE FUNCTION SETTING SETTING

You can turn the thermostat knob clockwise to the desired temperature up to 230^

You can turn the funcon knob to select the OFF, grill, lower heang or convecon seng.

Lower heang:

Only the boom heang element will heat up.

Grill:

Only the top heang element will heat up.

Conveconal:

The top and boom heang elements will heat up.

EN

TIMER SETTING

The mer can be set up to 90 minutes. In order for the oven to work, you will need to either set up a cooking me or turn the mer knob to "ON" posion (see secon "Connuous cooking without mer" below).

Cooking with mer

To set the required operang me, turn the mer knob clockwise. The red indicator light will illuminate. Aer the me has elapsed, a bell sound will be heard.

Adjusng Time

Timer can be changed during cooking. Turn the mer knob to the required me.

Connuous cooking without mer

If you want to use the oven without mer control, turn the mer knob to the "ON" posion. The oven will work unless the mer knob is set to the "0" posion.

EN

OPERATION

For the rst me use, set the thermostat to 230 ^ C, set the funcon knob to the position and turn the mer knob to 15 minutes. Leave the oven operang with no food inside.

NOTE: The oven may smoke during cooking. This is normal for a new oven and will last no more than 10 to 15 minutes.

General Instrucons

1. Place the rack in posion.

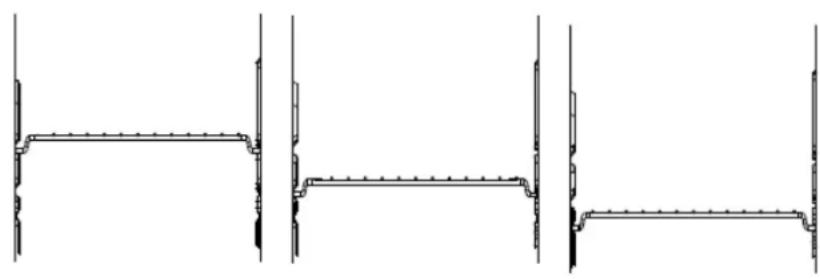

2. There are 3 slots in the oven: slide the rack to the desired height according to the food to be cooked.

2.Oil from food may drip when cooking; in this case, place the food on the tray. Make sure that you always use an ovenproof container and never use plasc or cardboard containers in the oven.
3.Never use glass or ceramic cookware.
4. Set the temperature as suggested by the recipe or as desired.
5. Securely shut the oven door and set the cooking me to start cooking.

EN

1. To achieve beer cooking performance, it is recommended to preheat the oven for 5 to 8 minutes before cooking.

NOTE: It's recommended that the weight of the food which is put on the rack/tray is not over 3.5kg . Put food on the rack/tray evenly.

Conveconal

This seng is ideal for use when cooking baked potatoes, roasng meat and vegetables, ready meals, casseroles, stews, bread, cakes and desserts.

1. Slide the tray into the middle posion in the oven. Close the oven door.
2. Turn the funcon knob to.
3. Select suitable temperature by turning the thermostat knob.
4. Turn the mer knob to either ON or the required cooking me.

Grill

This seng is ideal for use when toasng bread and grilling chicken, sausage, pork chops and bacon.

1. Slide the rack into the top posion in the oven.
   2.Slide the tray below to collect grease and fat. Close the oven door.
2. Turn the funcon knob to .

EN

1. Select suitable temperature by turning the thermostat knob.
2. Turn the mer knob to either ON or required cooking me

Lower heang

This seng can be used for most food cooked in the conventional funcon, but will take longer.

1. Slide the tray into the boom posion in the oven. Close the oven door.
2. Turn the funcon knob to
3. Select suitable temperature by turning the thermostat knob.
4. Turn the mer knob to either ON or required cooking me.

Aer cooking

Aer you nish cooking, turn the mer knob to the "0" posion.

When removing food from the oven, always use oven gloves (not supplied) or the supplied rack/tray handle. Beware: the food and oven are very hot.

EN

CLEANING AND MAINTENANCE

Unplug the appliance from the mains socket and allow it to cool completely before cleaning.

Clean the outside of the appliance with a slightly damp cloth. Never use abrasive or chemical cleaners.

Wash all removable parts in warm soapy water. Rinse and dry them thoroughly before use.

SPECIFICATIONS

Rangs: 220V-240V~ 50Hz 1300W

DISPOSAL

As a responsible retailer we care about the environment.

EN

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulaons.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collecon point for recycling. Some collecon points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instrucons, which may occur as a result of product improvement and development.

Darty Holdings SNC © 14 route d'Aulnay 93140 Bondy, France

05/08/2015
