Product type	Extractor / recirculation hood
Brand	Blomberg
Model	DKP 2020 X
Electrical supply	220-240 V ~ 50/60 Hz
Number of speeds	4 (including an intensive)
Lighting	40 W incandescent bulb
Grease filter type	Self-supporting metal filter, dishwasher safe
Activated carbon filter	Optional, not washable, replace every 4 months
Air outlet diameter	120 mm or 150 mm (with supplied reducer)
Minimum distance to cooking surface	650 mm
Installation	Extractor or recirculation (carbon kit required)
Control	Mechanical buttons with LED
Intensive function	Yes, 10 minutes with automatic shut-off
Chimney type	Telescopic, adjustable height
Included components	Hood body, upper and lower chimney, reduction flange, air outlet connector, extension, flanges, screws, wall plugs
Grease filter maintenance	Every 2 months under normal use
Carbon filter maintenance	Replace every 4 months

Frequently Asked Questions - DKP 2020 X BLOMBERG

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance between the cooking surface and the hood must be at least 650 mm.

How to install the hood in recirculation mode?

For a recirculation installation, insert the connector 15 onto the hood body extension, then the lateral extensions connector 14.1. Make sure the activated carbon filters are present. The air outlet must be at the level of the chimney openings.

How to clean the metal filters?

The metal grease filters are dishwasher safe. Remove them by pushing towards the back of the unit and pulling downwards. Wash them without bending, dry them, then reassemble with the handle visible.

How often should the carbon filter be replaced?

The activated carbon odor filter is not washable or regenerable. It must be replaced at least every 4 months, or more frequently with heavy use.

How to turn on the intensive function?

To activate the intensive speed, press the T4 button for about 2 seconds. The indicator flashes. The function stops automatically after 10 minutes. You can turn it off manually by pressing any button.

What to do if the lighting no longer works?

Check the bulbs. They are 40 W incandescent type. To replace them, remove the metal filters, unscrew the defective bulbs, and replace them with new ones of the same specifications.

How to connect the hood electrically?

The hood must be connected to the mains via a bipolar switch with a contact gap of at least 3 mm. Ensure the voltage matches that on the rating plate (220-240 V). Earthing is mandatory.

Can the hood be used with a gas hob?

Yes, but the minimum distance of 650 mm must be respected. Additionally, if you use gas appliances in the same room, provide sufficient ventilation for fresh air intake.

How to adjust the motor speed?

The hood has dedicated buttons: T10/1 for the first speed (and stop by pressing 2 seconds), T2 for the second, T3 for the third, and T4 for intensive speed. Use the speed appropriate for the amount of steam.

Where to find spare parts?

Spare parts are available from Blomberg after-sales service or authorized dealers. Refer to the manual for the list of components: hood body, chimney, filters, bulbs, etc.

USER MANUAL DKP 2020 X BLOMBERG

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS 7
CHARACTERISTICS 8
INSTALLATION 9
USE 12
MAINTENANCE 14

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS 15
CHARACTERISTIQUES 16
INSTALLATION 17
UTILISATION 20
ENTRETIEN 22

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

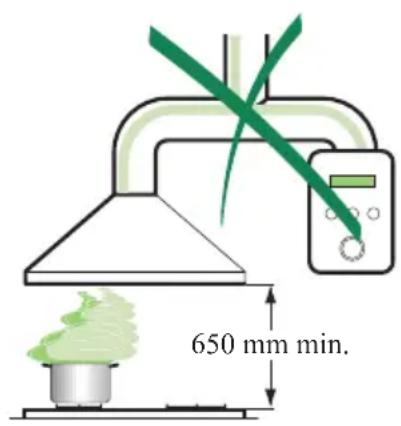

• The minimum safety distance between the cooker top and the extractor hood is 650~mm .

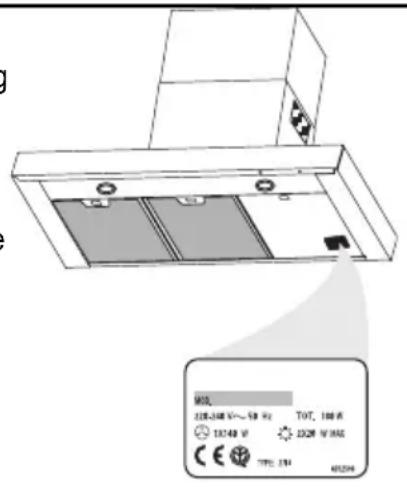

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

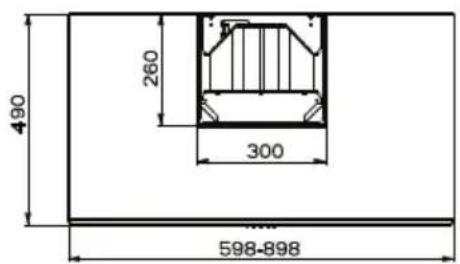

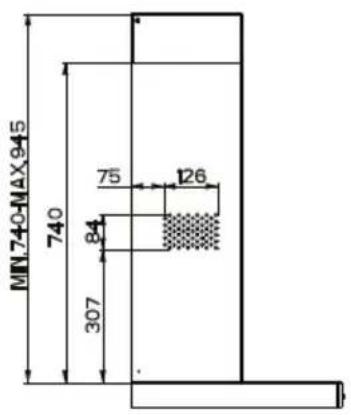

Dimensions

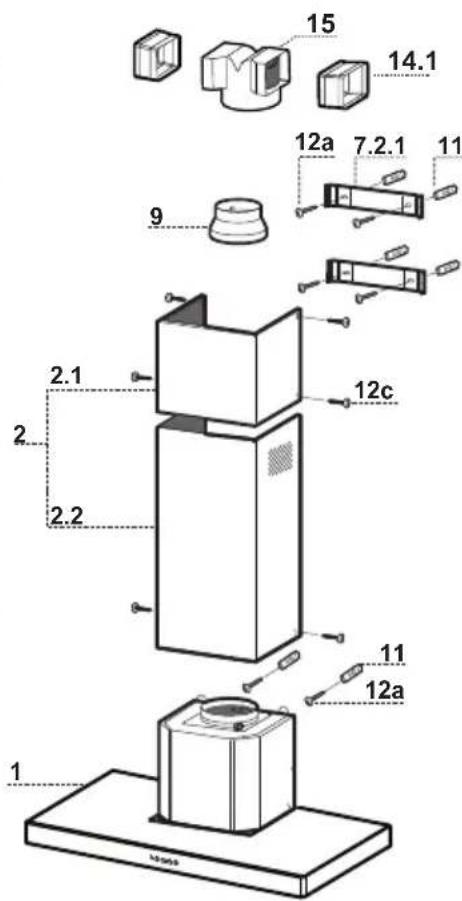

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
9 1 Reducer Flange 150-120 mm
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
12a 6 Screws 4,2× 44,4
12c 6 Screws 2,9× 9,5

Q.ty Documentation

1 Instruction Manual

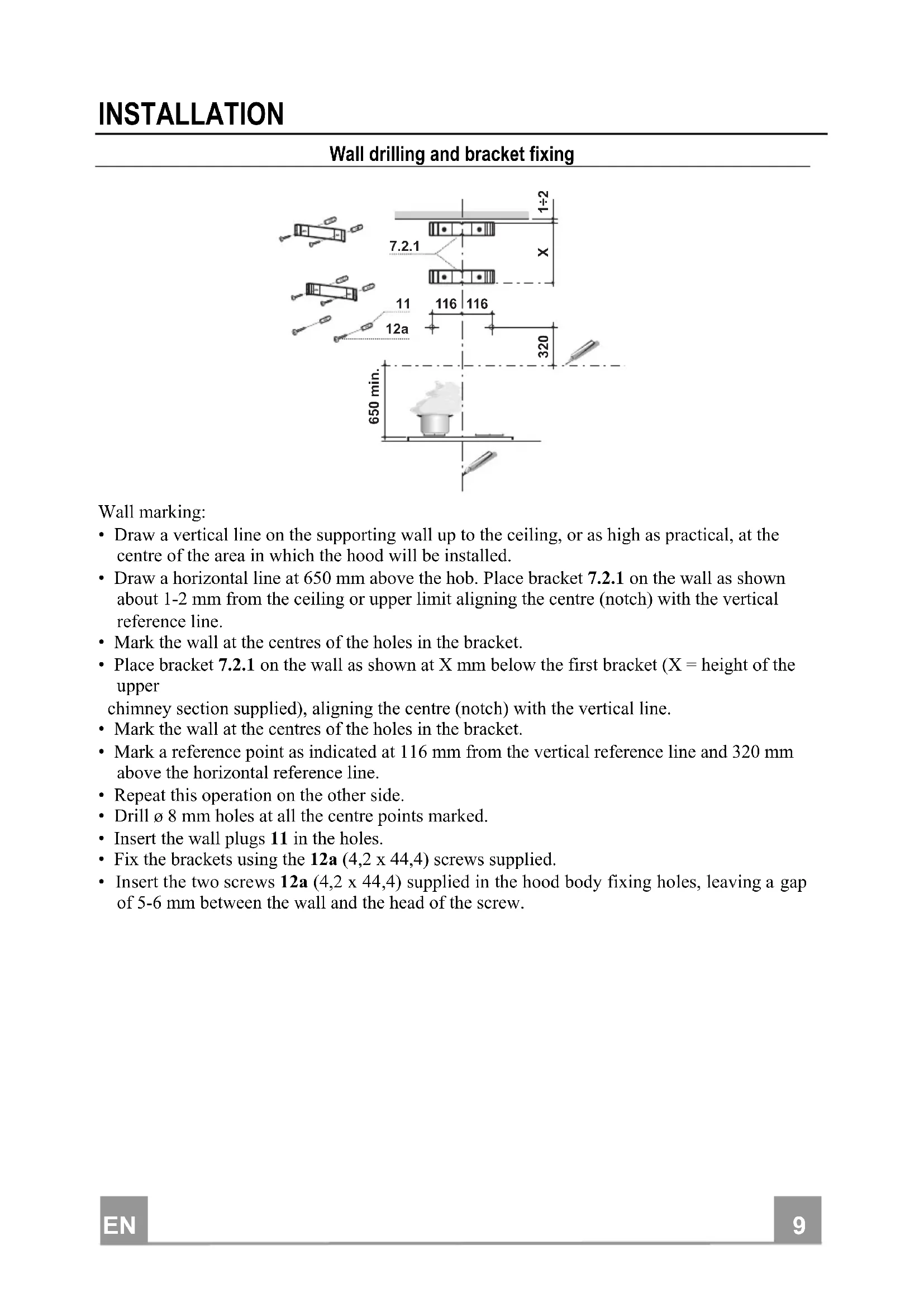

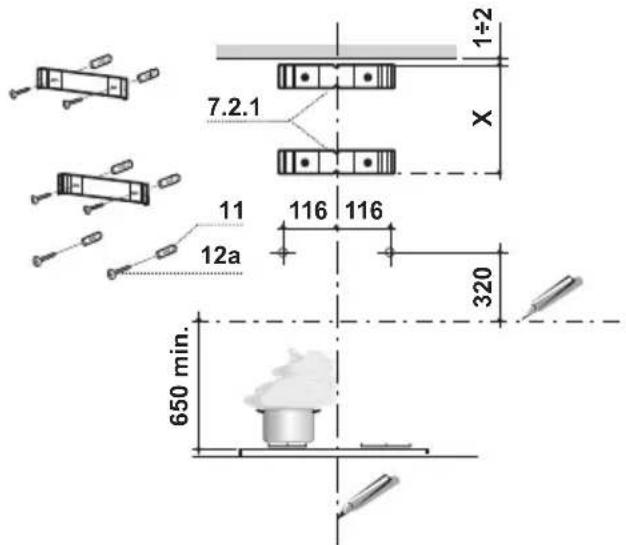

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650mm above the hob. Place bracket 7.2.1 on the wall as shown about 1 - 2mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket ( X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116mm from the vertical reference line and 320mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  Fix the brackets using the 12a (4.2 x 44.4) screws supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5 - 6mm between the wall and the head of the screw.

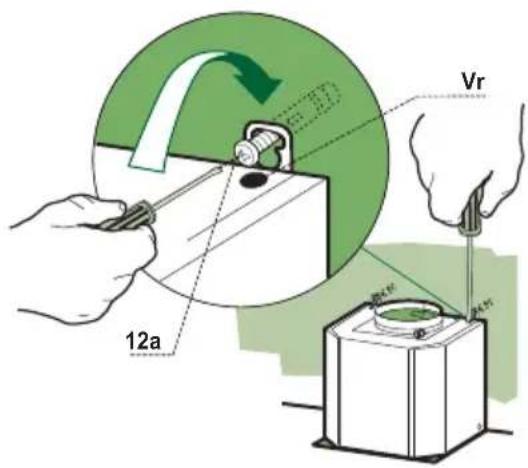

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.

Connections

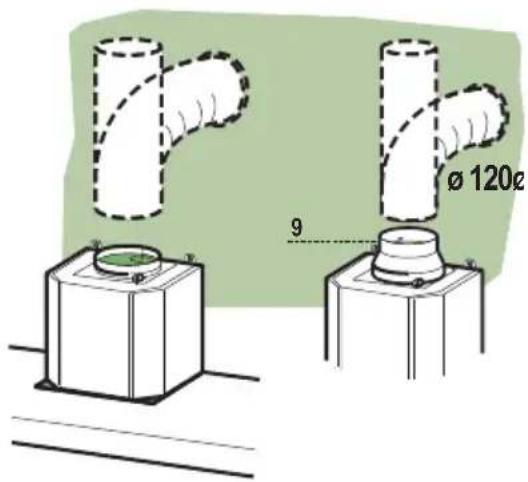

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm the choice of which is left to the installer.

• To install a 120 mm air exhaust connection,in insert the reducer flange 9 on the hood body outlet.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

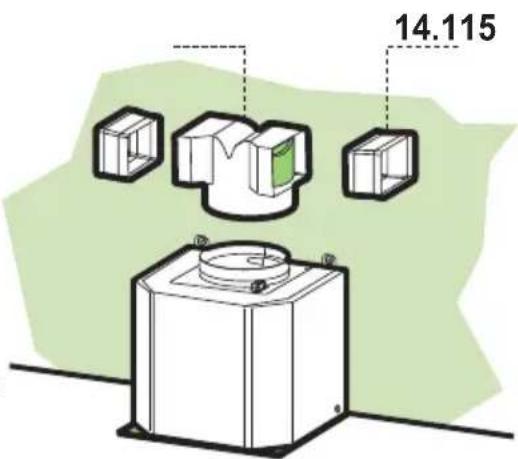

RECIRCULATION VERSION AIR OUTLET

• Push fit connection 15 onto the hood body outlet.
• Insert the connection extension pieces laterally 14.1 in connection 15.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets. If this is not the case, adjust the position by either reversing the connection extension pieces 14.1 and then reassemble as described previously.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

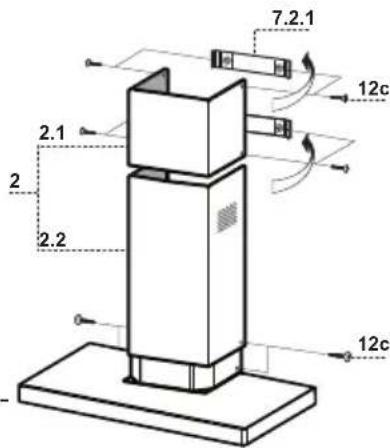

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper fluc and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body using the 2 screws 12c (2,9× 9,5) supplied.

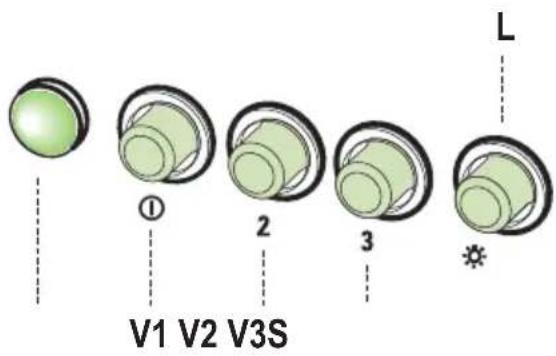

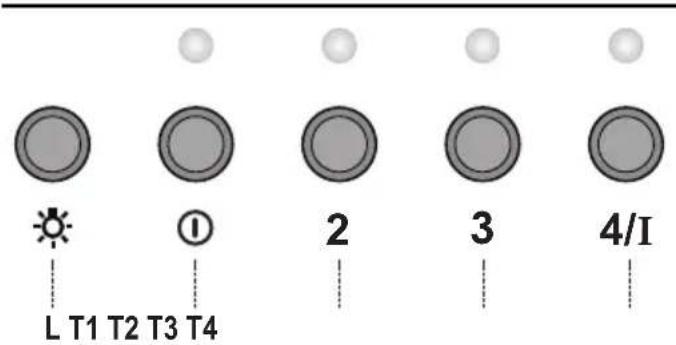

Control panel

KEY LED FUNCTIONS

L 0/1 Light Turns lighting on and off.

T1 0/1 Motor on First speed.

When pressed for about 1 seconds the motor is switched off.

T2 Speed on Second speed.
T3 Speed on Third speed.
T4 Speed Fixed Max. speed

Flashing Intensive speed.

Suitable for the strongest cooking vapours and odours. The func

tion becomes active when the button is pushed for about 2 seconds. After 10 minutes of functioning it turns off automatically.

This function can be interrupted by means of pressing any of the buttons.

L Light Switches the lighting system on and off.

S Led Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.
V2 Speed Medium speed, suitable for most operating conditions given the optimum treated air floss/noise level ratio.
V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

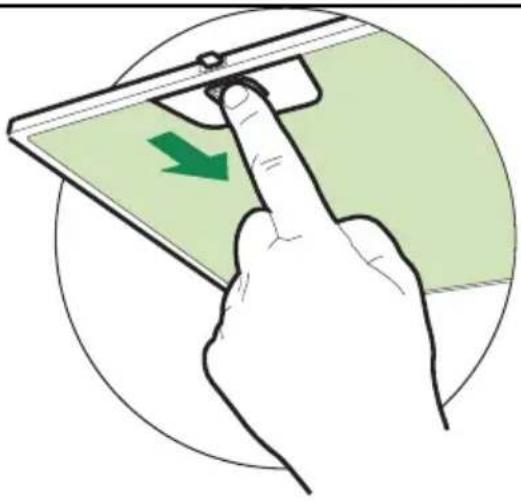

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
• Fit the new filter by hooking it into its seating
• Replace the metal grease filters.

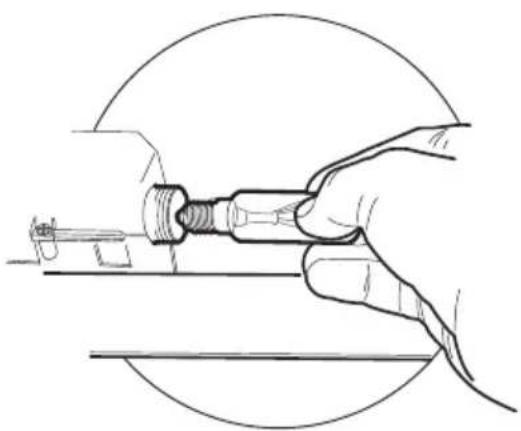

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

CONSEILS ET SUGGESTIONS

INSTALLATION

REEMPLACEMENT FiltRE AU CHARBON ACTIF

REEMPLACEMENT LAMPES

Ref. Installatieonderdelen
