KTL05 - Kettle PROLINE - Free user manual and instructions

Product type	Electric kettle
Brand	Proline
Model	KTL05
Supply voltage	110-120V / 220-240V~ 50/60Hz
Rated power	550W - 650W
Main functions	Automatic shut-off, dry heat protection, voltage selector
Safety	Automatic shut-off at boiling, dry heat protection, locked lid
Care and cleaning	Clean with a damp cloth, do not immerse, descale regularly
Accessories included	2 cups, 2 spoons, mesh filter
Spout	With removable filter
Indicator light	Operation indicator
Intended use	Domestic and similar (offices, farms, hotels, bed and breakfasts)
Voltage selector	Located under the appliance, two positions
Dry heat protection device	Yes, automatic shut-off
Number of cups included	2

Frequently Asked Questions - KTL05 PROLINE

How to clean the Proline KTL05 kettle?

Unplug the appliance and let it cool down. Wipe external surfaces with a damp cloth and dry thoroughly. Never immerse the kettle in water. Wash the cups and spoons under the tap. Do not use chemical or abrasive products.

Can the kettle be used without water?

No, the kettle is equipped with a dry heat protection device. If it is turned on without water, it will stop automatically. Let it cool down, fill it with cold water, and start again.

How to select the correct voltage on the kettle?

The voltage selector is located under the appliance. For Europe, China, Africa and Australia, use 220V-240V. For the United States, Japan, Taiwan, Canada and Mexico, use 110V-120V. Always check before using.

Does the kettle stop automatically when the water boils?

Yes, once the water reaches boiling point, the kettle turns off automatically and the indicator light goes out. You can also stop it at any time with the on/off button.

Can I heat something other than water in the kettle?

No, this kettle is designed only for heating water. Do not use for other liquids or food. This could damage the appliance.

Can children use the kettle?

Children aged at least 8 years old can use the kettle under adult supervision. Children under 8 years old must be kept away from the appliance and the cable. Do not let children play with it.

How to descale the kettle?

It is recommended to descale regularly the kettle with a specific descaling product. Follow the product instructions. You can also use white vinegar or lemon. Rinse thoroughly.

Can I immerse the kettle in water for cleaning?

No, never immerse the kettle or the base in water. Clean only with a damp cloth. The heating element must not come into contact with water during cleaning.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Do not use the appliance with a damaged cord.

How many cups can I prepare with the kettle?

The kettle is supplied with 2 cups and 2 spoons. The water capacity is not specified, but you can prepare up to 2 cups at a time. Do not fill beyond the indicated maximum level.

USER MANUAL KTL05 PROLINE

Language of introduction

English- GB1-GB5

French- FR6-FR10

Dutch- NL11-NL15

Spanish- ES16-ES20

WARNING

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.
- For the details on how to clean surfaces in contact with food and descaling please see section "Cleaning and descaling" on page 5.
- If the kettle is overfilled, boiling water may be ejected.
- WARNING: Do not remove the lid while the water is boiling.
- The appliance must not be immersed.
- WARNING: Risks of injuries if you don't use this appliance correctly.
- The heating element surface is subject to residual heat after use.
- WARNING: Avoid spillage on the connector.

IMPORTANT SAFETY INSTRUCTIONS

• The kettle has a dual voltage selector on the bottom of the kettle. Always check that you have selected the correct voltage before using this kettle.
• Be careful when opening the lid immediately after the water has boiled, the steam coming out of the kettle is very hot constituting a risk of scalding.
• Do not use the kettle to heat anything other than water. Never fill the kettle beyond the maximum level indication.

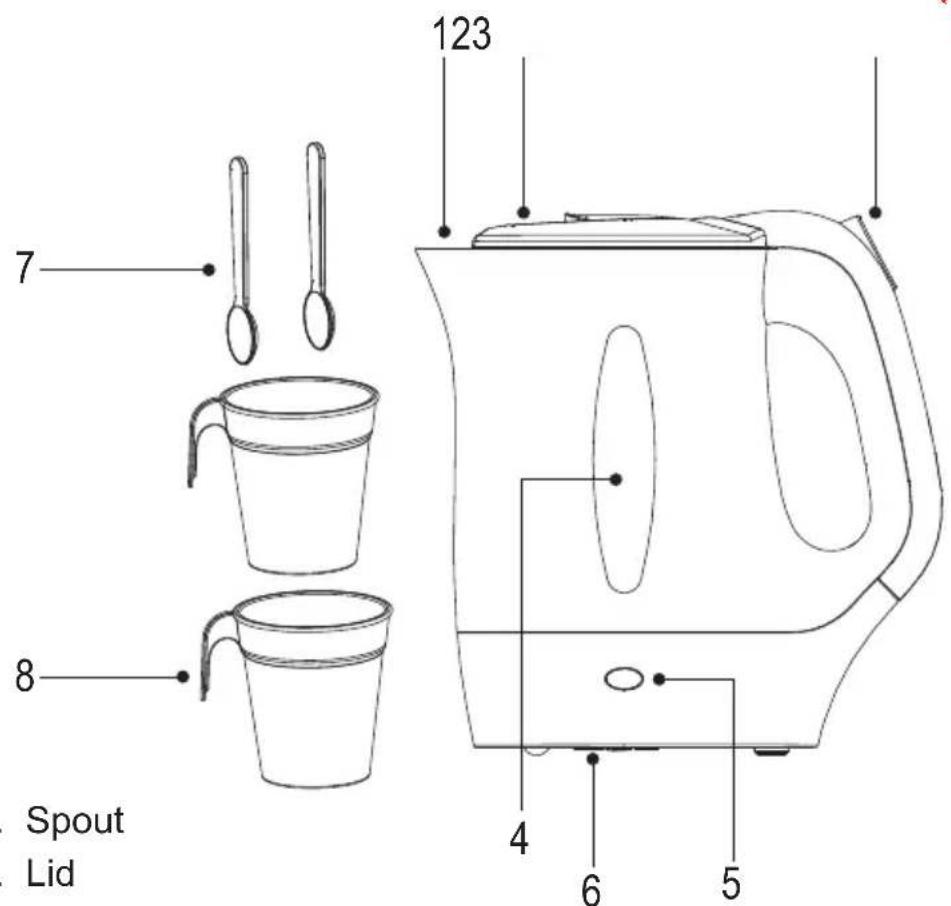

PARTS

1. Spout
2. Lid
3. Power switch
4. Water level window
5. Power indicator light
6. Dual voltage selector (on the bottom)
7. 2 spoons
8. 2 cups

OPERATION

Before first use, wash the spoons and cups.

It is recommended to operate the kettle for 2 to 3 times following the instructions below. This will remove any dust or residues remaining from the manufacturing process.

1. Remove the cups and spoons from the kettle.
2. Select the correct voltage by turning the selector on the bottom of the kettle.

220V-240V 110V-120V

This kettle can work in two voltages.

• Select the 220V-240V voltage for use in the vast majority of the world such as Great Britain, Europe, China, Africa and Australia.

• Select the 110V-120V voltage for use in the countries and regions such as America, Japan, Taiwan, Canada and Mexico.

• Place the kettle on a dry, flat and stable surface.

• Fill kettle with desired amount of cold water through the spout or the open lid.
• Do not overfill the kettle by exceeding the Max level.
• Close the lid by pressing it down until it clicks into place.
• Plug the kettle into the mains socket.
• Press the power switch. The water is being heated.
  The power indicator light will illuminate.
  NOTE: Use the kettle only when the lid is closed and the filter is in place.
• The kettle will switch off automatically when the water boils.
  The power indicator light will go out.
• You can stop the boiling process by setting the power switch to the O position.
• You can make hot drinks using the supplied cups and spoons. Slowly pour the boiling water into the cups.

Cut-out for boil-dry protection

If you operate the kettle without water, the kettle will stop heating and automatically switch off.

If this occurs, allow the kettle to cool before filling with cold water and re-boiling.

CLEANING AND DESCALING

Always unplug the appliance from the mains socket and allow it to cool down before cleaning.

Clean the outside of the kettle using a damp cloth. Dry thoroughly. Never immerse the kettle in water.

Remove the mesh filter from the spout. Clean it under running water and then replace it.

Clean the spoons and cups under running water.

Do not use abrasive or chemical cleaning agent.

Regularly descale the kettle using a specific descaler.

Wipe the inside of the kettle with a clean cloth.

SPECIFICATIONS

Ratings: 110-120V/220-240V~ 50/60Hz 550W-650W

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SNC © Bondy 93140 France 09 / 02 /2015
