PKC17B - Kettle PROLINE - Free user manual and instructions

Product type	Electric kettle
Brand	Proline
Model	PKC17B
Capacity	1.7 L
Power	1850-2200 W
Voltage	220-240 V ~ 50/60 Hz
Body material	Plastic
Heating element material	Stainless steel
Automatic shut-off	Yes
Overheat protection	Yes (dry-boil protection device)
360° rotating base	Yes
Removable filter	Yes (mesh filter in the spout)
Indicator light	Yes
Easy-open lid	Yes (opening button)
Visible water level	Yes
Cable length	Approximately 0.8 m
Weight	0.9 kg
Dimensions (L x W x H)	22 x 18 x 25 cm
Included accessories	Base, filter
After-sales service	Hotline Darty (France) and Vanden Borre (Belgium)

Frequently Asked Questions - PKC17B PROLINE

How to clean my Proline PKC17B kettle?

Unplug always the appliance and let it cool down. Wipe external surfaces with a damp cloth and dry them. Remove the mesh filter from the spout, wash it under the tap, then put it back. Do not use chemical or abrasive products. Never immerse the kettle or base in water.

How to descale the kettle?

Use a specific descaling product for kettles. Follow the product instructions. After descaling, rinse several times with clean water. Regular descaling extends the life of the appliance.

Why does my kettle turn off before boiling?

This may be due to needed descaling or insufficient water level. Check that the lid is properly closed and the kettle is correctly placed on the base. If the problem persists, contact after-sales service.

Can I use the kettle with something other than water?

No, only use water. Never heat other liquids (milk, soup, etc.) as this could damage the appliance and cause a burn risk.

How to safely open the lid?

Press the lid opening button. Caution: steam is very hot. Do not direct steam toward yourself and wait for the water to cool before opening after boiling.

What to do if the kettle does not turn on?

Check that the cable is properly plugged in and the kettle is correctly placed on the base. Ensure the dry-boil protection device has not been activated (if the kettle was turned on without water). Let it cool, fill with water, and try again.

Can children use this appliance?

Children aged 8 years and over may use the kettle under supervision, provided they have received instructions on safe use. Cleaning and maintenance must not be done by children under 8 years.

How to replace the filter?

The mesh filter is located in the spout. Gently pull to remove it. Wash it with clean water and put it back by pushing until it clicks. A clean filter ensures better water quality.

Can I immerse the kettle?

No, never immerse the kettle or base in water or any other liquid. This could damage electrical components and create a risk of electric shock.

What is the maximum capacity?

The maximum capacity is indicated by the MAX level inside the kettle, usually 1.7 liters. Never exceed this level to avoid boiling water ejection.

USER MANUAL PKC17B PROLINE

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  -farm houses;
  -by clients in hotels, motels and other residential type environments;
  -bed and breakfast type environments.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of

reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
For the details on how to clean surfaces in contact with food and descaling please see section "Cleaning and descaling" on page 5. w
If the kettle is overfilled, boiling water may be ejected.
WARNING: Position the lid so that steam is directed away from the handle.

WARNING6 Do not remove the lid while the water is boiling.
The kettle is only to be used with the stand provided.
The appliance must not be immersed.
©AUTION6 Insure that the kettle is switched off before removing it from its stand.
WARNING6 Risks of injuries if you don't use this appliance correctly.
The heating element surface is subject to residual heat after use.
The surfaces are liable to get hot during use.
WARNING: Avoid spillage on the connector.

W

IMPORTANTWSAETWwNSTRUCTIONwWWwwwwwwwwww

• Place the appliance on a stable flat surface before use.
• Be careful when opening the lid immediately after the water has boiled, the steam coming out of the kettle is very hot constituting a risk of scalding.
• Do not use the kettle to heat anything other than water. Never fill the kettle beyond the maximum level indication.
• Make sure the bottom of the kettle and the power base are dry before placing the kettle onto the power base.

W

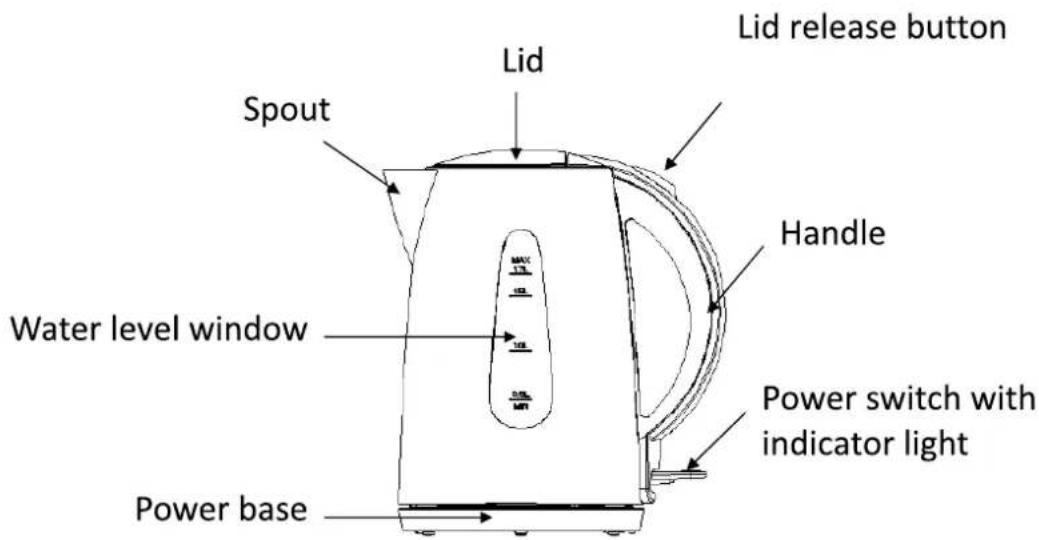

PARTS

OPERATION

Before first use, it is recommended to operate the kettle for 2 to 3 times following the instructions below. This will remove any dust or residues remaining from the manufacturing process.

1. Remove kettle from power base.

2. Fill kettle with desired amount of cold water through the spout or the open lid.

3. Open the lid by pressing the lid release button.

4. Do not overfill the kettle by exceeding the MAX level.

5. Close the lid by pressing it down until it clicks into place.

6. Place the kettle on the power base and insert the plug into the mains socket.

7. Press the power switch. The water is being heated.

8. The power indicator light will illuminate.

9. The kettle will switch off automatically when the water boils.

10. The power indicator light will go out.

11. You can stop the boiling process by setting the power switch to "O".

12. Lift the kettle from the power base and then slowly pour the boiling water.

NOTE: Use the kettle only when the lid is closed and the filter is in place.

Cut-out for boil-dry protection

If you operate the kettle without water, the kettle will stop heating and automatically switch off.

If this occurs, allow the kettle to cool before filling with cold water and re-boiling.

W

W

W

CLEANINGwANDwDESCALINGw

Always unplug the appliance from the mains socket and allow it to cool down before cleaning.

Clean the outside of the kettle and the power base using a slightly damp cloth. Dry thoroughly.

Remove the mesh filter from the spout. Clean it under running water and then replace it.

Do not use abrasive or chemical cleaning agent.

Never immerse the kettle and the power base in water.

Regularly descale the kettle using a specific descaler.

Wipe the inside of the kettle with a clean cloth.

SPECIFICATIONSwww

Ratings: 220-240V~ 50/60 Hz 1850-2200 W

W

W

W

W

W

W

W

DISPOSAL

Asaresponsibleretailerwecareabouttheenvironment.

Assuchweurgeyoutofollowthecorrectdisposalprocedurefortheapplianceand packaging materials. This will help conserve natural resources and ensure that it is recycled inamannerthatprotectshealthandtheenvironment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed separately from household waste when the appliance reaches its end of life.

Contactyourlocalauthoritytolearnaboutdisposalandrecycling.

The appliances should betaken toyour local collectionpointforrecycling.Some collection pointsacceptappliancefreeofcharge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 24/8/2016
