USER MANUAL TKG CEH 19 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Ceramic fan heater

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the rating plate of the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service*. Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph "Maintenance and Cleaning" because water penetration through the openings can be very dangerous for your appliance.
Never use the appliance near hot surfaces.
Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited.
Your appliance should be mounted at a height of at least 1.8m from the floor and at a distance of at least 30~cm from the ceiling and at least 20~cm from the side walls.
Do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance in order to avoid overheating.
Never orient the appliance towards the ceiling, but orient it horizontally or downwards. This safeguard is primordial in order to avoid excessive heating of the ceiling that could result in the deterioration of its coating.
Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of fire, do not cover the heater (e.g. with clothes).
Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water.
Do not allow the power cord to touch any hot part of the appliance.

4TKGCEH19-091008

The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin.
Never use the appliance near inflammable or explosive materials.
Do not insert any objects through the grid or into the interior of the appliance.

Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

POSITIONING OF THE APPLIANCE

This heater is specially designed so that it can be used in any room in your house, including those where there is a risk of water being splashed onto it from above (kitchen, bathroom, etc.). However, the electrical installation in the room, the installation of the unit and the way the unit is used must all comply with the safety rules and safety standards in force in your country. The safety rules define 3 volumes in a bathroom (see diagram on page 2). This unit must only be installed in zone 3 of the room so that the control panel cannot be touched by anyone using the bath or shower. For other rooms in the house, please follow this rule: the heater should only be operated at a minimum distance of 60cm from any other object. Position the air flow in order to optimise the heating of the room. Avoid corners, small volumes, floors and ceilings.

Caution: the heater is to be installed at least 1m80 above the floor.

WALL-MOUNTING

Make sure all the packaging has been removed before any operation. This appliance is intended to be wall-mounted. For wall-mounting, proceed as follows:

Caution: the heater is to be installed at least 1m80 above the floor.

Measure the distance between the 2 slots on the back of the heater (see figure 1).
Take a pencil and mark 2 dots on the wall, making sure the distance between them is the same as the one you just measured.
- Drill a hole on each dot you just marked.

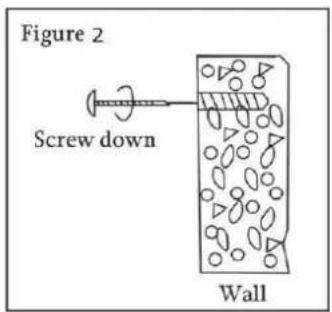

Put a plug in the holes and tighten the screws, and let them overhang by a few millimetres (see figure 2).

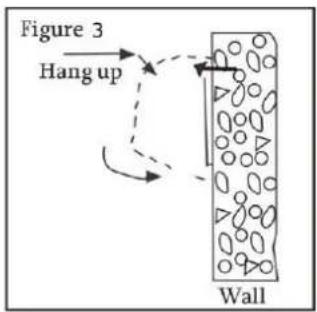

- Hang the appliance on the screw heads (see figure 3).
- Screw the bracket down on the appliance (see figure 4).

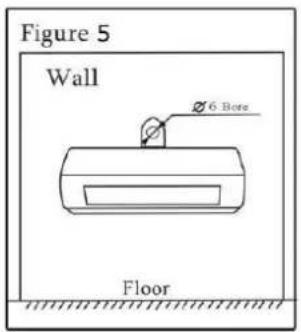

- Drill a hole in the wall in the opening of the bracket (see figure 5).

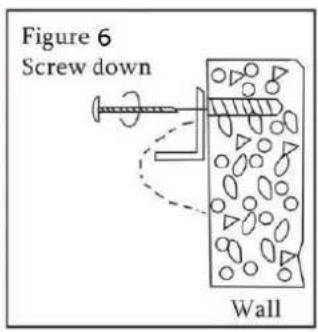

- Screw the bracket down against the wall (see figure 6).

5TKGCEH19-091008

BATTERIES

In order to be able to use the remote control, you first have to insert the batteries in it. To do so:

• Open the battery compartment.

• Insert the batteries, making sure you respect the + and - polarity.

• Close the compartment. Use 2 AAA-type batteries of 1.5V . Never mix up new and old batteries or batteries of different types.

• When you decide to throw away the appliance, make sure to remove the batteries and to dispose of them in an ecological manner by handing them in a place intended for this end.

Caution: if you don't use your remote control for a long time, it is recommended to remove the batteries because they could run.

USE

When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly.

The heater may be operated with the control panel located on the heater or with your remote control.

1. Mount the heater on the wall as explained in the "wall-mounting" paragraph. CAUTION: NEVER USE THE APPLIANCE WHEN NOT MOUNTED ON THE WALL.
2. Plug in the appliance. A beep will sound and the POWER pilot light will come on indicating that there is power to the unit. The heater is ready for use. This light will remain lighted during functioning.
3. Press the "按钮 of the remote control or on the control panel to switch on the heater.
4. Upon turning the heater on, the unit will be in the fan mode. The FAN pilot light will come on.
5. To select a temperature/power, proceed as follows: To select the minimum temperature/power (1000W), press the 1000W button of the remote control or the "button on the control panel. The corresponding pilot light (1000W) will switch on. To select the maximum power, press the 2000W button on the remote control or press again the "button on the control panel. The corresponding pilot lights (1000W+1000W) will switch on.

6 TKG CEH 19-091008

1. By pressing the " button on the control panel or the "TIMER" button of the remote control, you can set the switch-off time of the appliance. The timer is adjustable from 0.5 hour (min) up to 7.5 hours (max). Every pressing corresponds to 0.5 hour. Some settings will switch on several pilot lights. For instance, if you select 1 hour and 30 minutes, the pilot lights corresponding to 0.5h and 1h will be on. If you press the timer button once more after you have selected the 7.5 hours setting (pilot lights "0.5h", "1h", "2h" and "4h" on), this will reset the heater to continuous running.
2. To switch off the appliance, press the "O" button of the remote control or on the control panel. The fan will stay on for a few minutes so that the appliance cools down. Unplug the heater when you do not use it.

SAFETY DEVICE

This heater is protected with an overheat protection that switches the appliance off automatically in case of overheating, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

MAINTENANCE AND CLEANING

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
The housing may be wiped with a slightly damp, lint-free cloth; do not use any abrasive scouring pad or steel wool.
The grids are particularly delicate; to clean them you can carefully use a vacuum cleaner.
- When you do not use the appliance, place it in a dry environment.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
