USER MANUAL BS 1294 CLATRONIC

Exterior view of a clean vacuum cleaner with red hose and black base (no text or symbols visible)

CE

BODENSTAUBSAUGE

Overview of the Components ...... Page 3

Instruction Manual......Page 30

Technical Data Page 33

Disposal Page 34

NEDERLANDS

Inhoud

Labeled diagram of a vacuum cleaner with numbered parts for identification

Bedienungsanleitung

Line drawing of a hand operating a vacuum cleaner with a handle and wheels (no text or symbols)

Line drawing of a portable device with a handle and spout, no text or symbols present

Simple line drawing of a faucet and bucket with a sun above (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical component with a meshed chamber and a black arrow pointing to a feature (no visible text or symbols)

Line drawing of a mechanical device with a hand pressing a button (no text or symbols)

Line drawing of a cylindrical device with a handle and spout, showing internal components and a black arrow pointing to a small component (no text or symbols)

Simple line drawing of a faucet and a container under a sun (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh chamber and a black component (no visible text or symbols)

Reiniging

WAARSCHUWING:

Line drawing of a hand operating a vacuum cleaner with a handle and control panel (no text or symbols)

Line drawing of a cylindrical device with a handle and spout, showing internal components and a black arrow pointing to a small component (no text or symbols present)

Simple line drawing of a faucet and a trash can under a sun (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh chamber and a black component (no visible text or symbols)

Nettoyage

AVERTISSEMENT :

Line drawing of a mechanical device with a hand pressing a button (no text or symbols)

Line drawing of a portable device with a handle and spout, no text or symbols present

Simple line drawing of a faucet and a cup on a surface under sunlight (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh chamber and a black component (no visible text or symbols)

Limpieza

AVISO:

Line drawing of a mechanical device with a hand pressing a button (no text or symbols)

Line drawing of a cylindrical device with a handle and spout, showing internal components and an arrow pointing to a small component (no text or symbols present)

Simple line drawing of a faucet with a filter and a cup, next to a sun (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh grille and a black component (no visible text or symbols)

Pulizia

AVVISO:

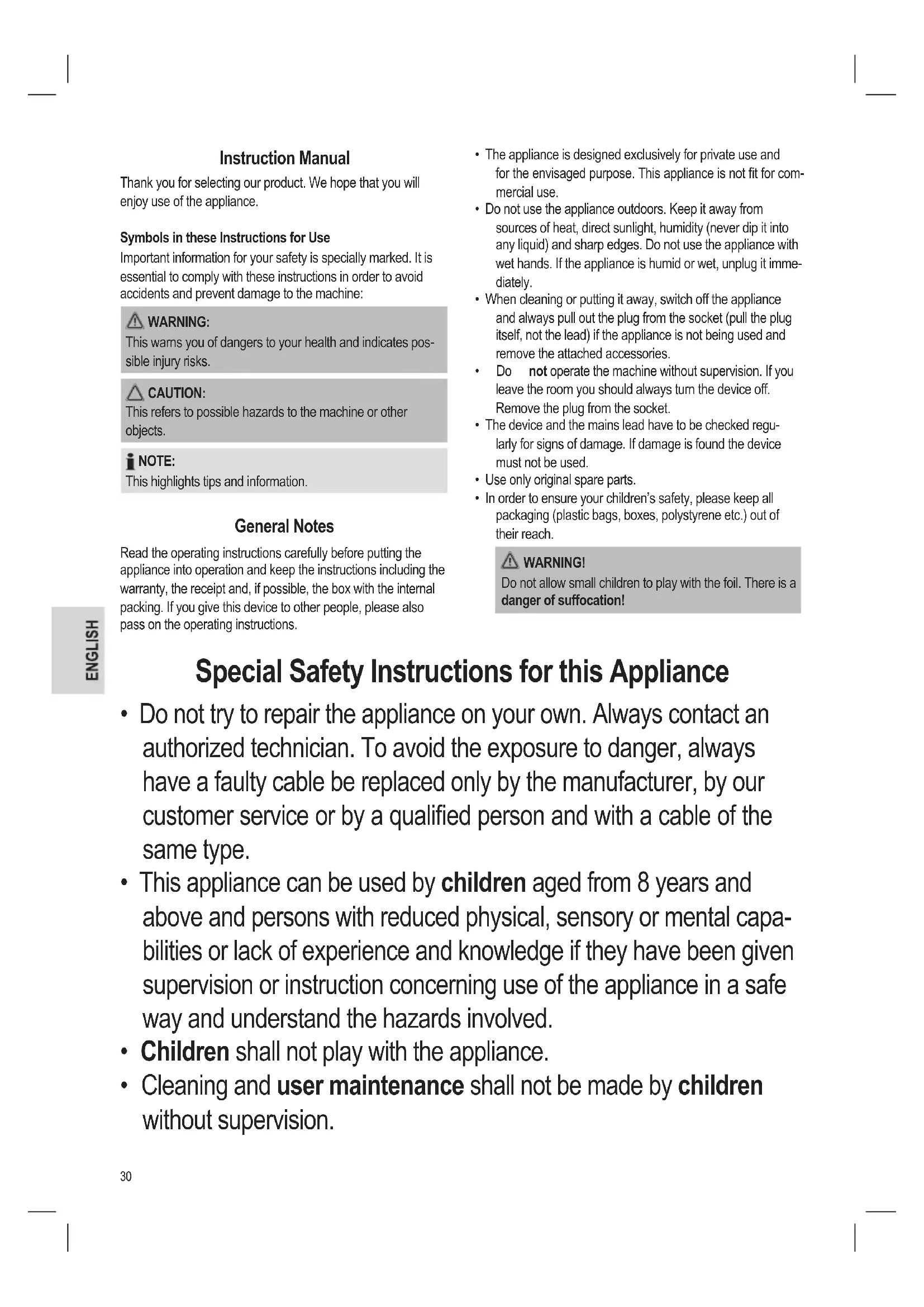

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Do not suck up liquids!

• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the device in damp rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• Hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of the Components

1 Suction hose

2 Cable-winding button

3 Carrying handle

4 Suction power control

5 Positioning aid

6 On/off switch

7 Outlet filter

8 Hose connection

9 Dust collector with HEPA filter

10 Dust collector release button

11 Lever for extending and retracting the brushes

12 Floor nozzle

13 Telescopic suction tube

14 Accessory holder

15 Air control

Accessories not shown:

Groove and brush nozzle

Upholstery nozzle

Start-up

• Insert the connecting head of the suction hose into the hose connection of the appliance. For this, press both buttons on the connection head at the same time.
• To disconnect the hose, press both buttons on the connection head and pull out the hose.
• Insert the vacuum tube into the handle if required.
• You can use the sliding switch on the telescopic suction tube to adjust the length individually.
• Then assemble the floor nozzle and/or the accessories.

Nozzle attachments

i NOTE:

Insert the nozzle attachments into the accessory holder (14) on the telescopic suction tube. In this way, you have the accessories always ready for vacuuming.

Floor nozzle (12)

The floor nozzle is fitted with rollers for easier guiding.

You can clean smooth surfaces and carpets with the floor nozzle.

- Adjust the brushes outwards or inwards using the lever (11).

Best use of the appliance depends on the texture of the floor covering. We recommend the following use:

• Use without brushes:

For vacuuming floor coverings with a deep pile

• Use with brushes:

For vacuuming smooth floors and carpets with a shallow pile

Crevice and jointed nozzle

For vacuuming upholstery, curtains and in corners and crevices etc.

NOTE "2-in-1" nozzle:

When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place.

Upholstery nozzle

Clean your upholstery (for example on chairs) with the upholstery nozzle.

To detach the nozzle attachments from the suction pipe, pull them off by turning them slightly.

Using the Appliance

1. Unwind the length of cable you require.

CAUTION:

• Pull out the cable up to the maximum length indicated with the yellow mark.
• Never pull the cable out up to the red mark as the cable winding can be damaged.

i NOTE:

If the red mark is visible, pull in the cable with the help of the cable winding button back to the yellow mark.

1. Insert the mains plug into a correctly installed power socket.

2. Turn the device on by the on/off switch by pressing down the button.

3. Set the "carpet/hard floor" switch, depending on the floor covering.

4. Vacuum at a steady speed. There is no need to exert pressure.

i NOTE:

Pay attention to the range that can be covered with the cable length!

Air Slide (15)

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Switching off and Winding up the Mains Lead

1. Turn the vacuum cleaner off by the on/off switch and remove the plug from the socket.

2. Keep the plug in your hand.

3. Press the cable winding button and guide the cable. Hold the cable to avoid wrapping.

Maintenance

Emptying the Dust Collector

Empty the dust collector once the collected dirt reaches the MAX marking.

1. Disconnect the mains plug from the wall socket.

2. Press the button (10) to release the dust collector. Remove the dust collector.

Line drawing of a hand pressing down on a mechanical device with no visible text or symbols

1. Empty the dust collector over a dustbin. In order to do so, press the button on the dust collector to open the base plate.

Technical line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

1. Then close the base plate again.

2. Attach the dust collector to the appliance. It must engage with a click.

Filter

Your appliance features 4 filters. The common dust bag system has been replaced by a transparent dust collector. The higher flow speed of the collector allows for heavy dirt and smallest floating particles to be separated from the "sucked-in air".

It is thus not necessary to buy dust bags.

HEPA Filter

Clean the filter element twice a year.

CAUTION:

• Never wash the filter in the washing machine.
• Do not use a hairdryer for drying.
• Only use the appliance after the filters have been installed correctly.

Proceed as follows to remove, clean and reinstall the filter element:

1. Empty the dust collector as described previously.
2. Remove the dust collector lid. To do so, turn the ↓ marking on the lid towards the 🔒 symbol. Pull the filter element from the dust collector.
3. Remove the filter element from the lid by turning the filter element towards OPEN.

4. Pull the nylon filter from the HEPA.

5. Use a brush to clean the filters. In case of heavy staining, clean the filters under running water.

6. Let the filters air-dry completely before refitting them!

Simple line drawing of a faucet and a cup on a table under the sun (no text or symbols)

1. Wipe the dust collector with a damp cloth and then wipe it dry.

2. Once the filters are completely dry, attach the nylon filter to the HEPA filter.

3. Reinsert the filter element into the lid of the dust collector, using the notches in the lid. Turn the filter element towards the CLOSE symbol.

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

1. Reinsert the lid including the filter element into the dust collector. Close the lid until the ↓ marking is aligned with the symbol.

2. Fit the dust collector in the appliance.

Motor protection filter (inlet filter)

The inlet filter is located in the dust container space. The filter sits vertically in the rear part of the dust housing. Do not remove the rubber seal! Pull the filter (black foam) out to the front. Clean the motor protection after every approx. 10th emptying of the dust container.

When required, you can clean the filter with warm water without any additions. Reinsert it only after it is completely dry.

Outlet filter (7)

The appliance is also equipped with an outlet filter. It is located on the rear of the device under the parking aid.

We recommend that you clean the filter every 6 months to assure correct functioning.

1. Push the lever to the left and remove the ventilation grid.
2. Remove the filter insert and clean it as described above.
3. Place the completely dry filter back into the ventilation grille.
4. Put the ventilation grille back on the appliance. Observe the guide lugs. The ventilation grid must engage audibly.

Close-up of a mechanical device with a mesh chamber and a black component (no visible text or symbols)

Cleaning

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Clean the housing with a soft, dry cloth without additives.

Storage

• Let the device cool down completely.
  • Wind the cable completely.
• Please insert the hook of the floor nozzle into the parking assistant on the rear of the device.
• When you place the appliance vertically: Hang the hook of the accessory holder (on the suction tube) into the parking aid on the underside of the appliance.

Troubleshooting

• The Device Does Not Work.

Remedy:

Check the connection to the mains.

Check the position of the switch.

• The device does not suck up anything.

Possible Cause: The dust collector is full.

Remedy: Empty the dust collector.

or

Possible Cause: The filters are dirty.

Remedy: Clean the components.

or

Possible Cause: There is a foreign body in the suction tube or the nozzle.

Remedy: Check the accessories for foreign bodies.

Technical Data

Model: BS 1294

Power supply: 220 - 240 V\~, 50 / 60 Hz

Protection class:......II

Net weight: ....approx. 4.70 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Technical Data for Vacuum Cleaners COMMISSION DELEGATED REGULATION (EU) Nr. 665 / 2013

Trade mark Clatronic
Model BS 1294
Energy efficiency class ^1)		A
Energy consumption
Annual energy consumption ^2)	kWh / year	26.7
Cleaning performance class
Carpet cleaning performance class		E
Hard floor cleaning performance class		B
Dust re-emission class C
Sound power level	dB(A)re1pW	76.0
Rated input power W 700

1) A (highest efficiency) to G (lowest efficiency).

2) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.

Actual annual energy consumption will depend on how the appliance is used.

Note

The values mentioned were determined with the switchable floor nozzle.

The device meets the European standards and directives in the current version at delivery:

• Low Voltage Directive (LVD) 2014 / 35 / EU
• Electromagnetic Compatibility (EMC) Legislation Directive 2014 / 30 / EU
• RoHS-directive 2011 / 65 / EU
• Ecodesign-directive (ErP) 2009 / 125 / EC
- Ecodesign requirements for vacuum cleaners COMMISSION REGULATION (EU) No 666 / 2013

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcje obsługi

Line drawing of a hand pressing down on a small mechanical device (no text or symbols)

Line drawing of a cylindrical device with a handle and spout, showing internal components and a black arrow pointing to a small component (no text or symbols)

Simple line drawing of a faucet spraying water onto a sink, with a sun and a small container nearby (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a vent and handle (no visible text or symbols)

Czyszczenie

OSTRZEŻENIE:

CTC Clatronic Sp. z o.o

Line drawing of a hand operating a vacuum cleaner with a handle and wheels (no text or symbols)

Line drawing of a cylindrical device with a handle and spout, showing internal components and an arrow pointing to a small component (no text or symbols present)

Simple line drawing of a faucet and a cup on a surface under sunlight (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh grille and a black arrow pointing to a component (no visible text or symbols)

Tisztítás

FIGYELMEZTETÉS:

Line drawing of a hand operating a vacuum cleaner with a handle and valve (no text or symbols)

Technical line drawing of a mechanical device with a handle and mounting bracket (no text or symbols)

Simple line drawing of a faucet and a bucket with sun above (no text or symbols)

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh chamber and a black component (no visible text or symbols)

Чищення

ПОПЕРЕДЖЕННЯ:

Line drawing of a hand operating a vacuum cleaner with a directional arrow (no text or symbols)

Line drawing of a portable device with a handle and spout, no text or symbols present

Simple line drawing of a faucet and a cup on a surface under sunlight (no text or symbols)

Close-up of a mechanical device with a mesh grille and a black component (no visible text or symbols)

Чистка

ПРЕДУПРЕЖДЕНИЕ:

Three-step diagram showing a mechanical component with internal structure, labeled (8) and (9), no text or symbols present.

Close-up of a mechanical device with a mesh chamber and a black arrow pointing to a component (no visible text or symbols)

Line drawing of a hand operating a vacuum cleaner with a valve (no text or symbols)

Line drawing of a portable device with a handle and spout, no text or symbols present
