USER MANUAL KG 2960 CLATRONIC

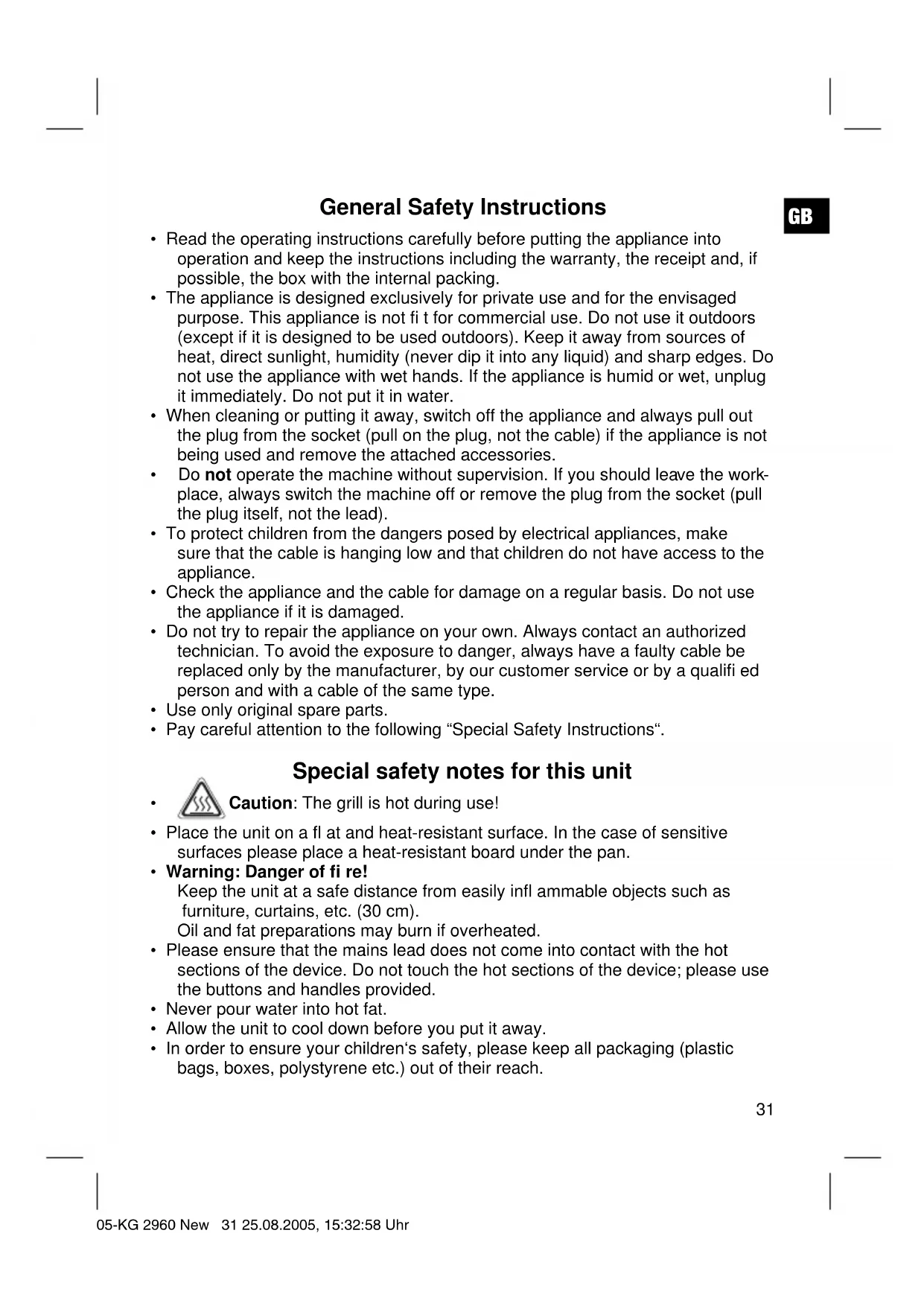

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the work- place, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special safety notes for this unit

Caution: The grill is hot during use!

• Place the unit on a fl at and heat-resistant surface. In the case of sensitive surfaces please place a heat-resistant board under the pan.

• Warning: Danger of fi re! Keep the unit at a safe distance from easily infl ammable objects such as furniture, curtains, etc. (30 cm). Oil and fat preparations may burn if overheated.

• Please ensure that the mains lead does not come into contact with the hot sections of the device. Do not touch the hot sections of the device; please use the buttons and handles provided.

• Never pour water into hot fat.

• Allow the unit to cool down before you put it away.

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. 05-KG 2960 New 31 25.08.2005, 15:32:58 UhrGB

• Non-stick coating Grease the grill plates slightly before using for the fi rst time. Use the appliance for 10 minutes with the grill plates closed and without food (see use of the appliance). Then wipe them clean with a moist cloth. Using the unit

1. Insert the fat collection tray in the front opening. Put the plug into an earthed

230 V, 50 Hz mains socket. Mains control lamp As soon as you have inserted the plug the green mains control lamp lights up and indicates that the device is connected to the mains. Warm-up time The warm-up time is approx. 5 min. During this time you should keep the grilling surfaces closed.

2. When the red control lamp lights up the grilling temperature has been reached.

3. Open the cover and place the food to be grilled. Then close the lid gently.

4. Grilling is fi nished after 8 to 10 minutes (depending on the thickness of the

food being grilled).

5. Open the cover and remove the cooked food with a wooden fork or similar

kitchen utensil. Do not use any sharp or cutting objects as they may damage the coating of the grill plates.

6. When food is not being grilled the grill surfaces should always be kept closed.

Switching off In order to stop the cooking process remove the mains plug from the socket. Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents.

• Under no circumstances should the device be immersed in water for cleaning. Heating Plate

• Please remove any food residues while they are still warm with a damp cloth or paper towel.

• Clean the heating plate with a soft sponge and soapy water. Then wipe off with clear water and dry thoroughly with a soft cloth. After drying please apply a thin fi lm of edible oil to the surface. 05-KG 2960 New 32 25.08.2005, 15:32:59 UhrGB

• Pull out of the fat collecting pan. Shake the contents out and clean the drawer in soapy water. Housing

• Clean the housing after use with a slightly damp cloth. Technical Data Model: ........................................................................................................ KG 2960 Power supply: ....................................................................................... 230 V, 50 Hz Power consumption: ..................................................................................... 1400 W Protection class: ...................................................................................................... Ι This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories *) ascri- bable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! 05-KG 2960 New 33 25.08.2005, 15:32:59 UhrGB

The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on. 05-KG 2960 New 34 25.08.2005, 15:33:00 UhrPL
