Brand	Clatronic
Model	MK 2952
Product type	Multi-function kettle with adjustable thermostat
Power supply	230 V, 50 Hz
Protection class	I
Capacity	Approx. 1.7 L (between MIN and MAX)
Main functions	Boiling, heating and keeping warm, cooking pasta/instant meals/soups
Adjustable thermostat	From MIN to MAX, with PASTA position
Automatic shut-off	Yes, after boiling or when temperature is reached
Indicator light	Indicates power-on and temperature maintenance
Included accessories	Pasta basket, pasta strainer, base
Care and cleaning	Clean the exterior with a damp cloth; water tank washable with soapy water; descaling with citric acid-based product
Safety	Do not immerse; overheat protection; automatic shut-off; use only on base
Warranty	24 months from date of purchase
Material	Plastic and stainless steel (water tank)

Frequently Asked Questions - MK 2952 CLATRONIC

How to use the kettle to boil water?

Place the appliance on a flat surface. Open the lid and fill with water up to the MAX mark. Close the lid. Place the kettle on the base. Set the thermostat to MAX and press the On/Off button. The indicator light turns on. The appliance switches off automatically when the water boils.

Can I cook pasta in this kettle?

Yes. This kettle is designed for cooking pasta. Use the PASTA position on the thermostat. Fill with water (max. 1 liter for 200-230 g of pasta). Place the pasta in the provided basket if desired. Once the water is hot (indicator off), add the food and set the cooking time. Switch off the appliance at the end of cooking.

How to clean the kettle?

Always unplug the appliance and let it cool down before cleaning. Clean the exterior with a slightly damp cloth. The water tank can be cleaned with a soft sponge and soapy water, then rinsed with clean water. Never immerse the appliance or base in water.

How to descale the kettle?

If the appliance turns off before the water boils, it is time to descale. Use a descaling product based on citric acid (not vinegar). Follow the quantities indicated on the product. After descaling, boil fresh water 3 to 4 times to remove residues. Do not consume this water.

What is the maximum water capacity?

The water level should not exceed the MAX mark (approx. 1.7 liters). Do not overfill to avoid splashing boiling water.

Can I keep water warm without boiling?

Yes. Set the thermostat to a position between MIN and PASTA. The indicator light turns on and off when the temperature is reached, then turns on again regularly to maintain heat.

Does the appliance turn off automatically?

Yes. In boil mode (MAX), the appliance turns off automatically after boiling. For other functions, turn off manually with the On/Off button.

What to do if the water does not boil?

Check that the thermostat is set to MAX and that the appliance is turned on (indicator on). Ensure the kettle is correctly placed on the base. If the problem persists, descaling may be required.

What accessories are included?

The kettle comes with a base, a pasta basket, and a pasta strainer. The lid is integrated.

Can I use the kettle without the lid?

For the heat/keep warm function, the lid is not needed. For the boil function with automatic shut-off, the lid must be closed. For cooking pasta, the lid can be left open.

USER MANUAL MK 2952 CLATRONIC

Black and silver portable coffee maker with black handle and control knob (no visible text or symbols)

MK 2952

C€

Inhalt

D

Seite

Overview of the Components ....3

Instruction Manual......45

Technical Data 49

Guarantee 49

Spis treści

PL

Strona

Labeled diagram of a mechanical device with numbered parts for identification

D

Consommation: 1200 W

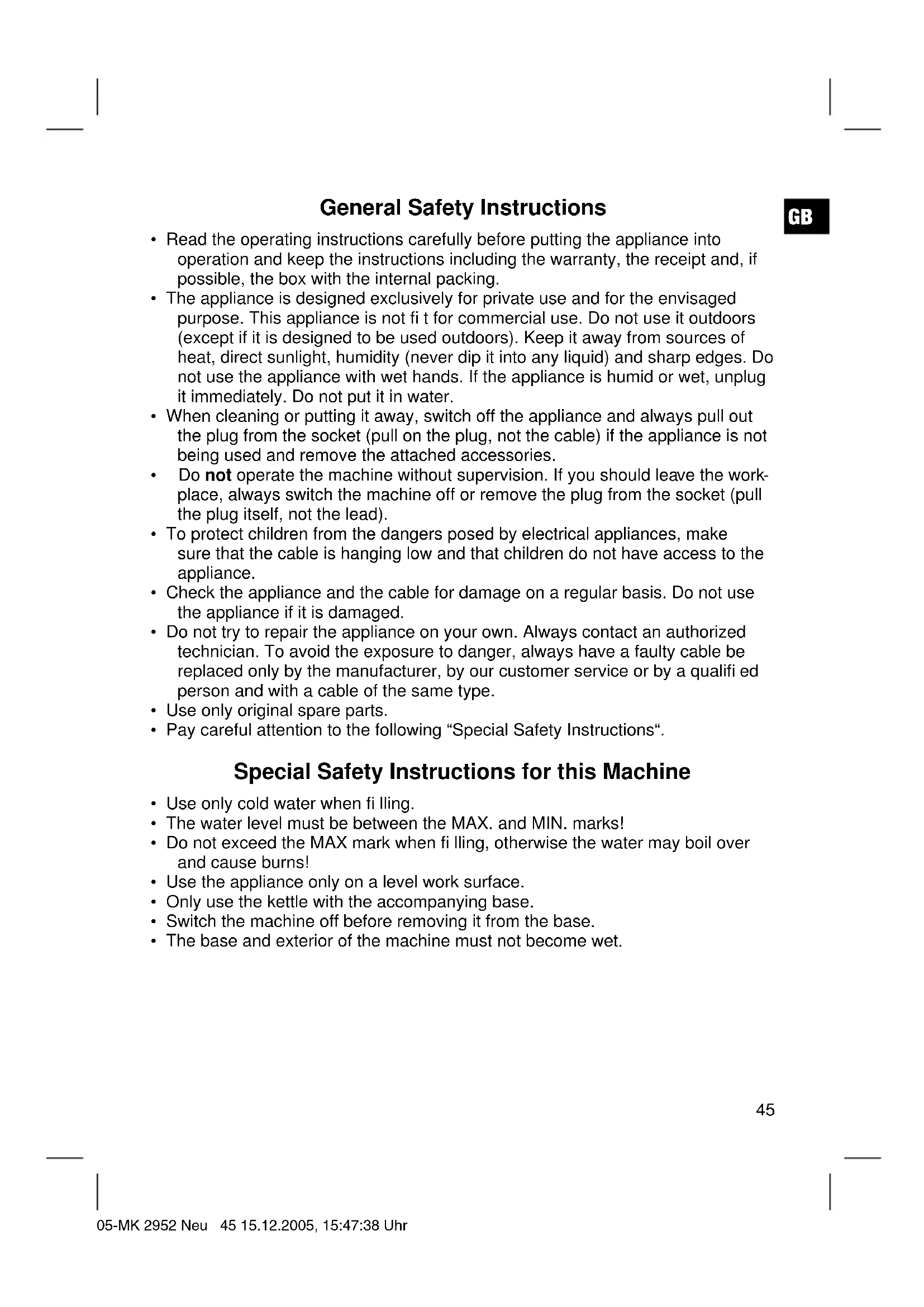

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• Use only cold water when fi lling.
• The water level must be between the MAX. and MIN. marks!
• Do not exceed the MAX mark when fi lling, otherwise the water may boil over and cause burns!
• Use the appliance only on a level work surface.
• Only use the kettle with the accompanying base.
• Switch the machine off before removing it from the base.
• The base and exterior of the machine must not become wet.

GB

Overview of the Components

1 Thermostat 7 Handle
2 Water container 8 On/off switch
3 Lid 9 Base
4 Pasta fork
5 Button Not shown:
6 Control lamp Pasta strainer

Instructions

Please read these operating instructions carefully and keep them in a safe place. If you sell or give this article to other people please also pass on these instructions.

General

- Thanks to the adjustable thermostat you can use this device to keep water warm or allow food to simmer or boil. It is therefore also suitable for preparing instant or convenience foods, pasta and similar items.

Preparation

- Before using for the first time, boil fresh water at least twice in the appliance. Use only water without any additives or ingredients.

Lid

• Simmering and keeping warm: When using this function please do not replace the lid as foam often forms which then overflows past the lid.
• Boiling and switching off: In order to ensure that the device switches off automatically the lid must be in place.

Important Information

• Always use fresh water.
- Do not consume any water that has already been in the water container for more than one hour.
- Do not re-boil water that has been allowed to cool down.
• Always pour old water away.

Operation

Electrical connection

• Check whether the electrical voltage that you intend to use is the same as that of the machine. Details are to be found on the label on the base.
• Only connect the machine to a properly installed 230 V, 50 Hz safety socket.

Boiling Water and Automatic Switch-Off

1. Place the machine on a fl at surface.
2. Open the water boiler with the button on the lid. Fill it with water. Fill only up to the maximum mark (MAX). You can read off the water level in the water level display.
3. Close the lid.
4. Place the kettle flush on the base.
5. Move the thermostat to MAX and turn the device on by the switch. To control lamp lights up.
6. When the water is boiling the kettle switches itself off automatically unless you press the switch to interrupt or stop the water from boiling.

Careful when pouring! The water container also becomes hot. Always pour water that is no longer required away immediately.

Heating Water

1. Place the machine on a fl at surface.
2. Open the water boiler with the button on the lid. Fill it with water. Fill only up to the maximum mark (MAX). You can read off the water level in the water level display. Do not replace the lid.
3. Place the kettle flush on the base.
4. Move the thermostat to a value between „MIN“ and „PASTA“ and turn the device on with the switch. The control lamp lights up.
5. The temperature has been reached when the control lamp goes out.

Note: The control lamp goes on from time to time during operation to indicate that the correct temperature is being maintained.

1. If you would like to stop heating and remove some of the water, turn the device off by the switch.

Preparation of pasta/instant dishes/soups

1. Place the machine on a fl at surface.
2. Open the water boiler with the button on the lid. Fill it with water. Fill only up to the maximum mark (MAX). You can read off the water level in the water level display. Do not replace the lid.
3. Place the kettle flush on the base.
4. Move the thermostat (1) to „PASTA“ and turn the device on with the switch (8). The control lamp goes on.
5. The temperature has been reached when the control lamp goes off.

Note: The control lamp goes on from time to time during operation to indicate that the correct temperature is being maintained.

1. Place the food to be cooked (pasta/instant dishes/soups) in the water container, using the basket if necessary.

GB

Note:

• For 1 litre (max.) of water we recommend approximately 200-230g of pasta/noodles (for approx. 2-3 people).

• If necessary the thermostat setting (1) should be adjusted to the filling quantity (pasta/noodles).

• Once the desired cooking time has been reached turn the device off by the switch and remove the food.

Switching off

• If you wish to switch the device off, turn the switch to 0 (off), the thermostat to MIN and remove the plug from the socket.
  • Emptying the water container.

Cleaning

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
• Never immerse the device or the base in water or other liquids.

Water Container

• Remove food residues with a damp cloth.
• Wash out the kettle with a soft sponge and soapy water and then rinse with clear water.
• Dry off the water container with a cloth.

Exterior of the Housing

Clean the housing after use with a slightly damp cloth.

Decalcifi cation

• The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
• If the machine switches off before the water boils, it probably needs to be decalcified.
• Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

Important Note!

After descaling the device boil fresh water in it several times (approximately 3-4 times) in order to remove any residues. Do not consume this water.

Technical Data

GB

Model: MK 2952

Power supply: 230 V, 50 Hz

Power consumption: 1200 W

Protection class: I

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GB

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on. In Germany from March 23, 2006 on.
